BASIC CONFIGURATION

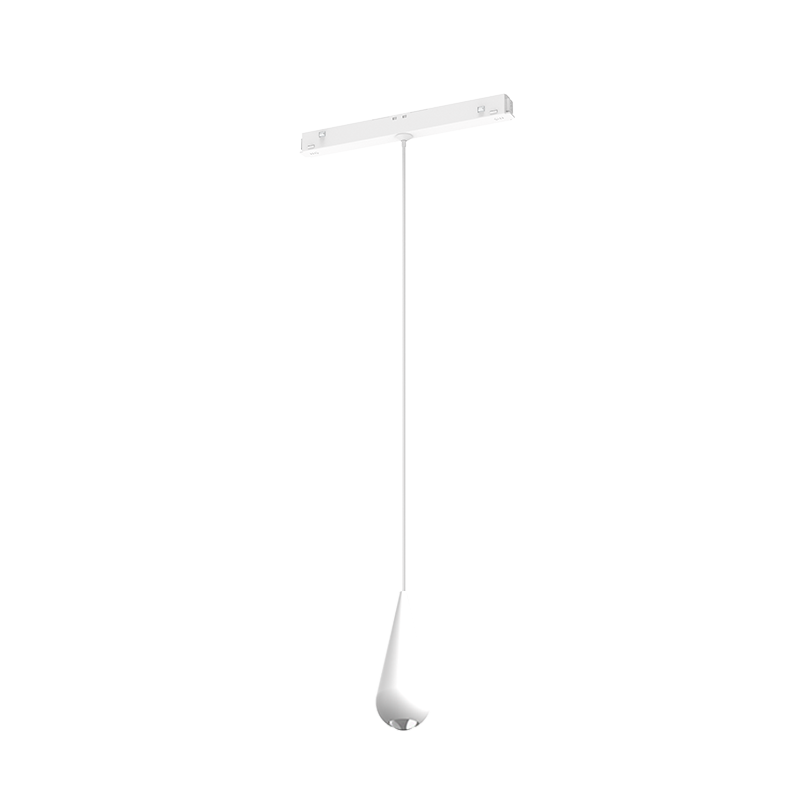

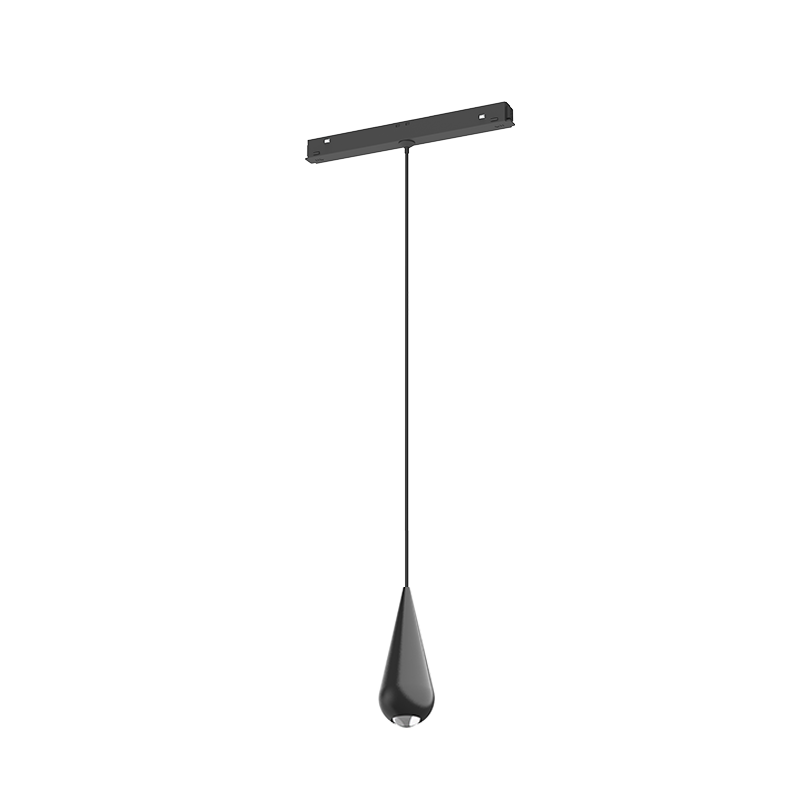

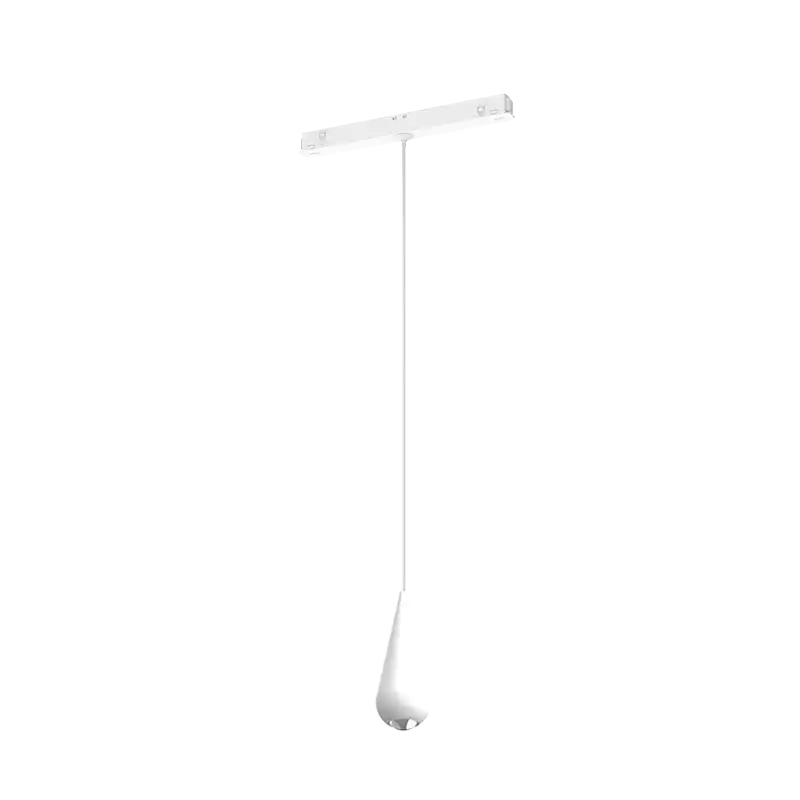

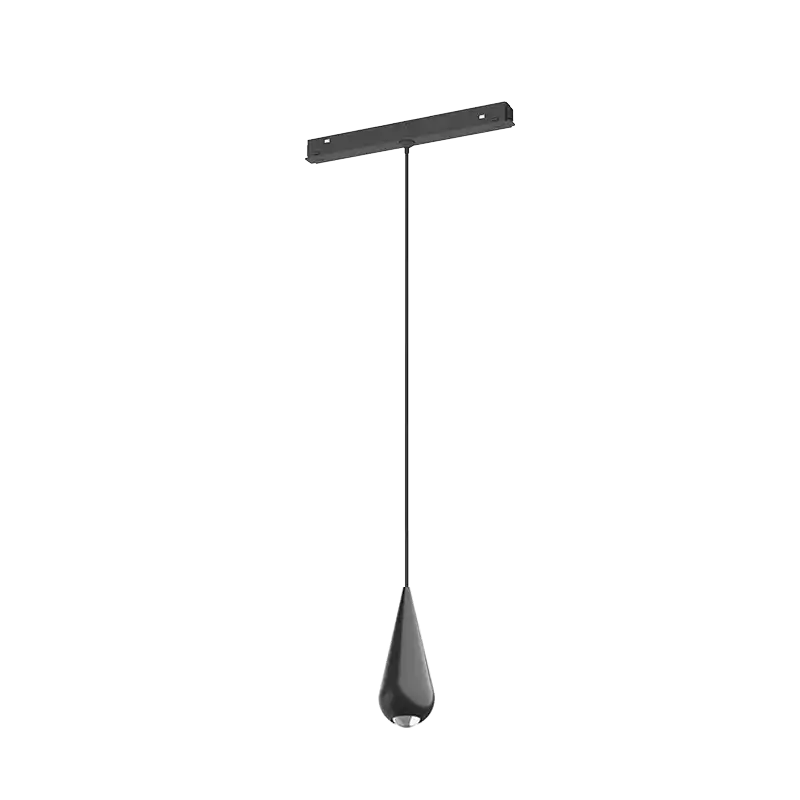

MT20IW-40_Module

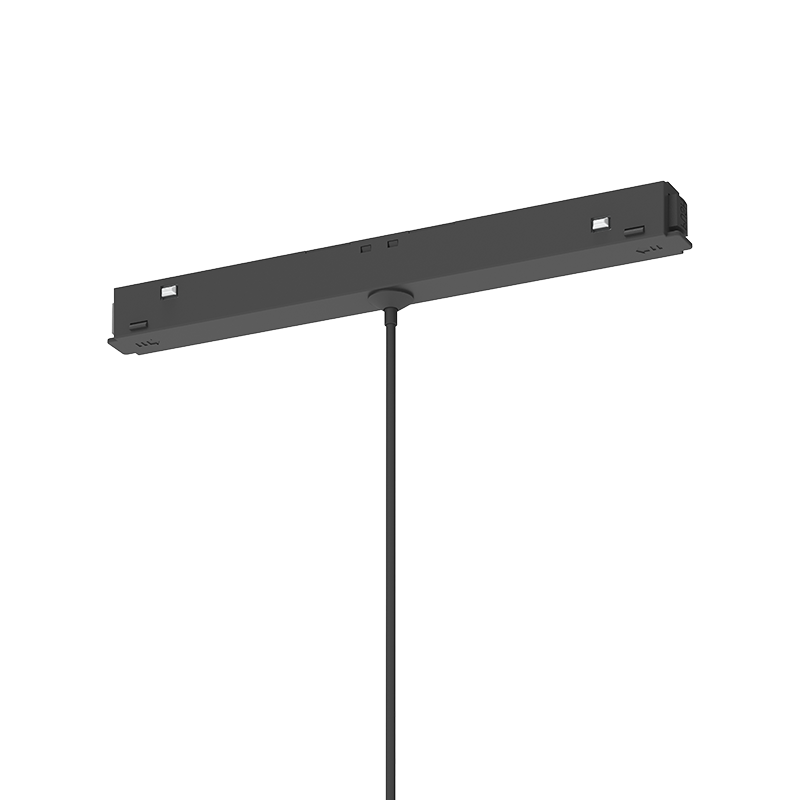

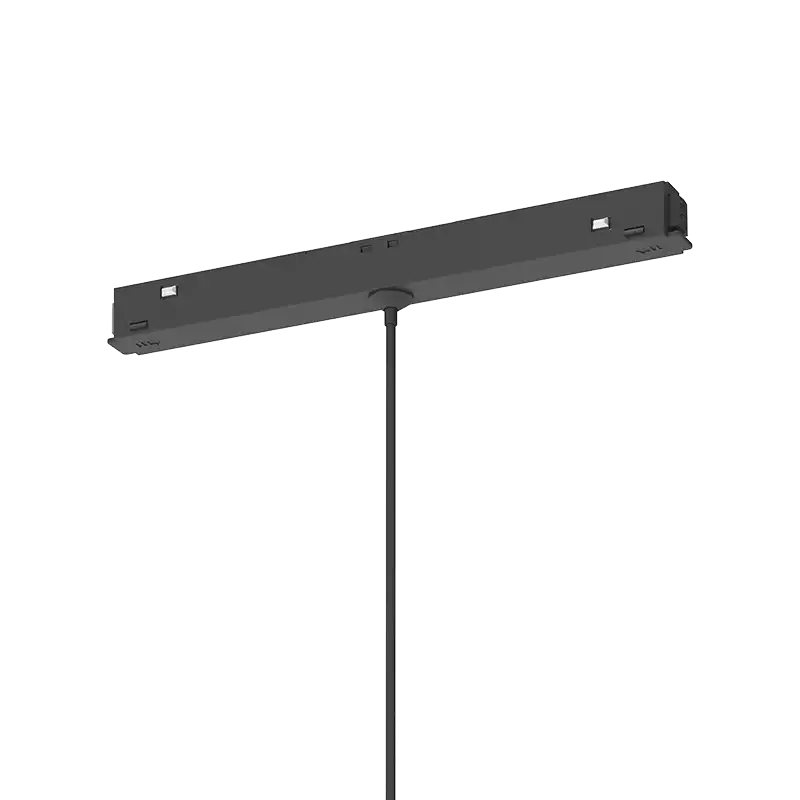

Required track installation
Including electrical conector
Only some tracks of listed brands are compatible:Powergear, Stucchi

Features

· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· Length: 100mm optional
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step(ANSI)
· Light efficiency: 93LM/W
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI

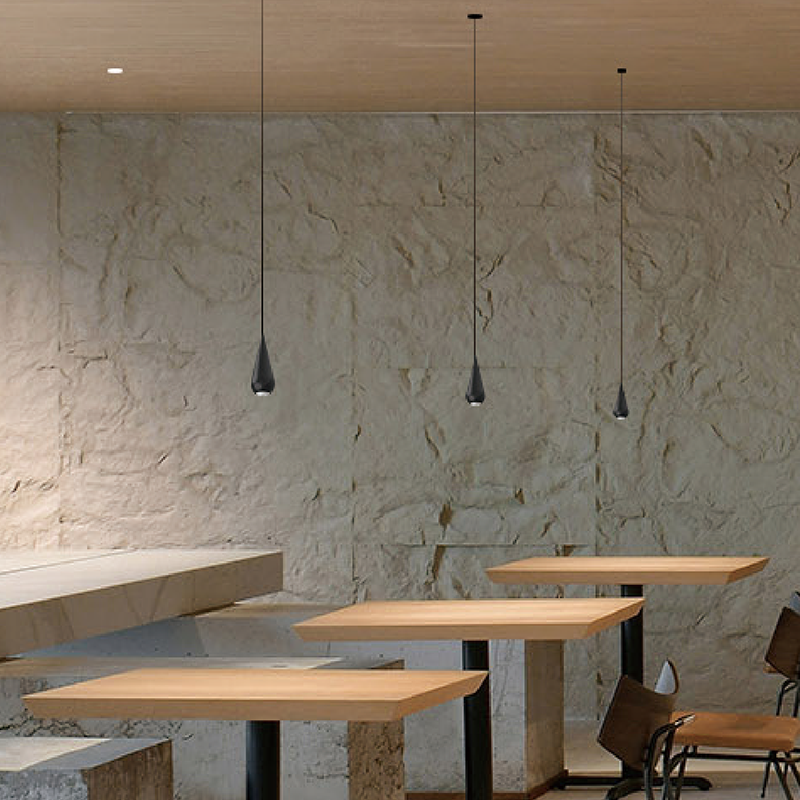

· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20IW-40

Track Lights > Low-voltage > MagTrack 20 > Decorative Module

Reset selected

CCT
  • 2700K

  • 3000K

  • 4000K

CRI
  • >90

Beam Angle
  • 110°

Typ.power
  • 3W

Wire Length
  • 500mm

  • 700mm

  • 900mm

  • 1100mm

  • 1300mm

  • 1500mm

Label Type
  • COLORS

  • Customized Label

Color
  • White

  • Black

Length

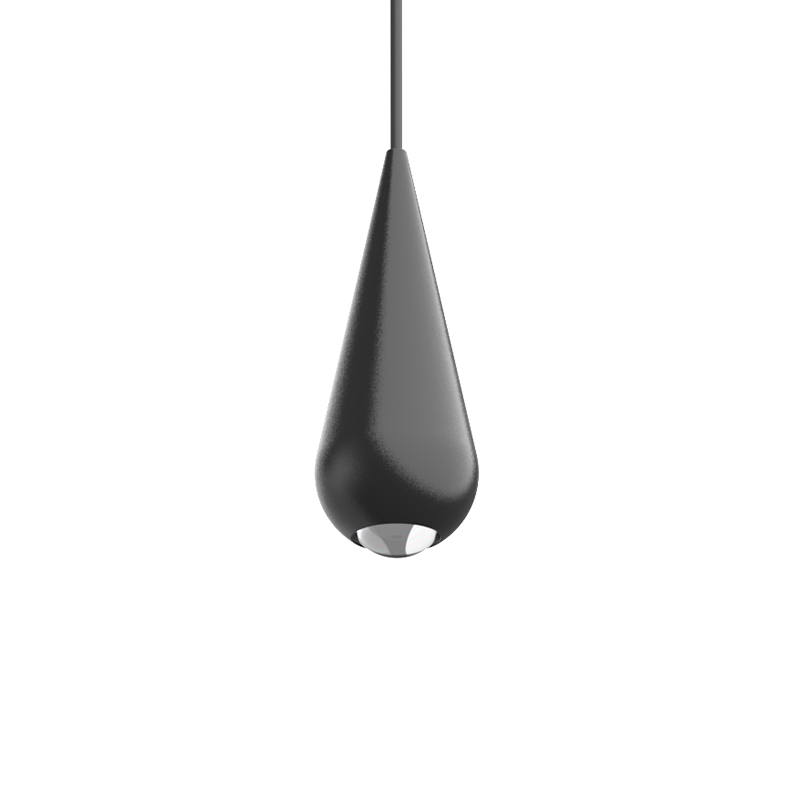

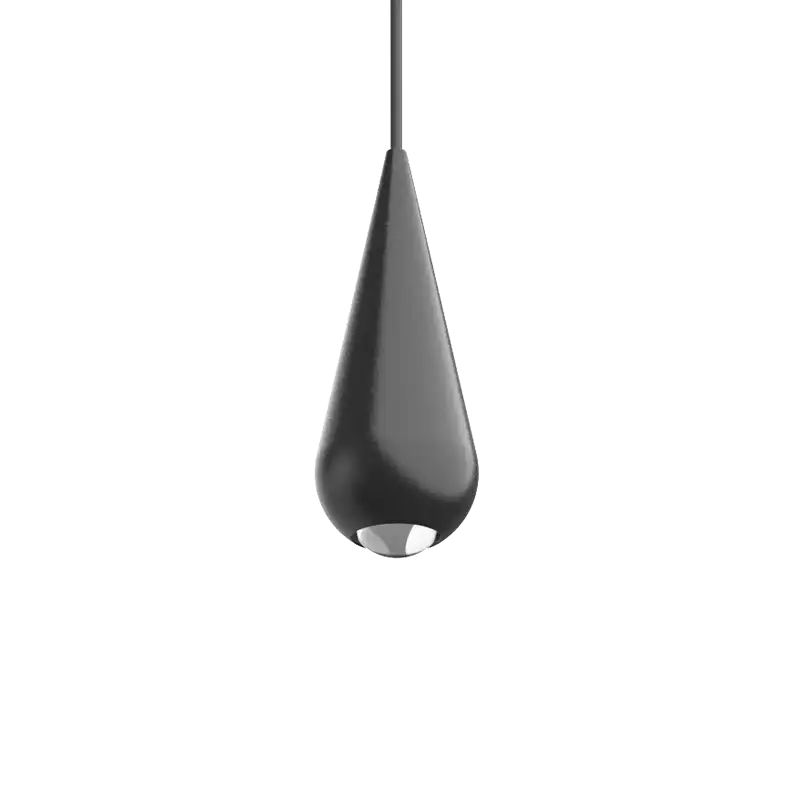

  • φ40mm Waterdrop light

Dimming Method
  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage
  • DC24-48V

User Manual
  • EN

Ordering Code:

TLS-MT20IW40-0390F1

Qty

$ ** /SET

Ordering Code:

TLS-MT20IW40-0390F1
