Features

Applicable product model:CS5035/CS5070/CE5035(stick a single strip)
CS7035/CS7070/CE7035(paste two strips placed parallel to each other)
Size: 3000*23*1.5mm/4000*23*1.5mm
Cutting Unit:50mm/16LEDs
Input Voltage:DC24V
Typ.Power:
48W/M(2700K+6500K)@3M/roll
28.8W/M(2700K+6500K)@4M/roll
Typ.luminous flux:
4000LM/M@RA80,2700K+6500K(4M/roll)
6700LM/M@RA80,2700K+6500K(3M/roll)
CCT: 2700K+6500K
CRI: 80/90
Other:Outer diameter 6mm,18# wire diameter, brown-blue-green 3PIN crystal wire

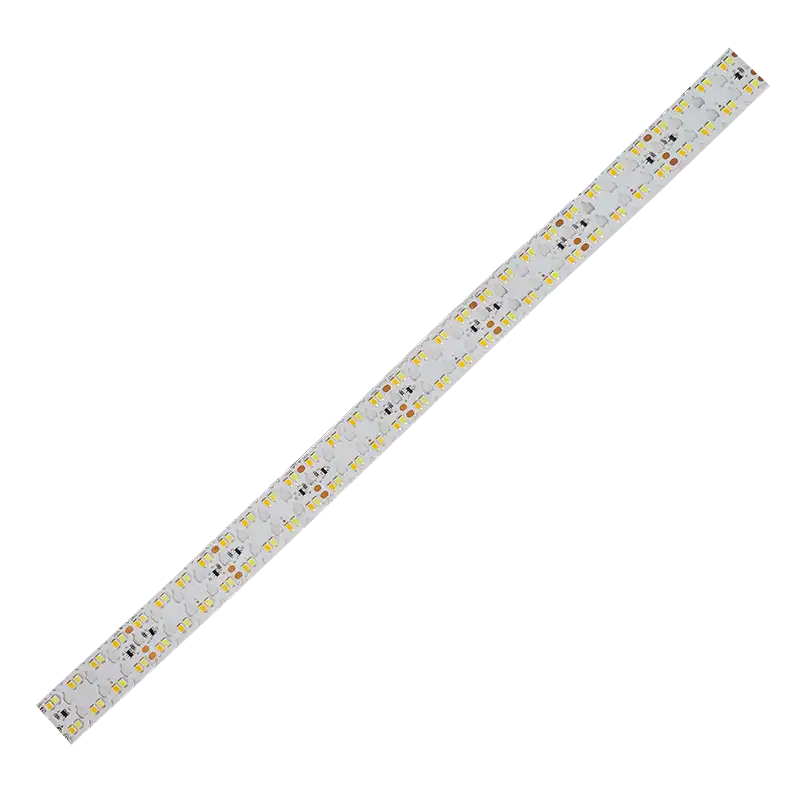

DS8320-24V-23mm

$
**
/m
Login to view price

Flexible Options

Reset selected

Typ.power
  • 28.8W/M

  • 48W/M

CRI
  • >80

  • >90

CCT
  • 2700K+6500K

Entry Cable
  • No

  • One end

  • Dual ends

Wire Length
  • 50CM

  • 100CM

  • 200CM

  • No

Label Type
  • COLORS

  • Customized Label

Strip Length
  • 3M

  • 4M

Silk Printing
  • COLORS

  • Neutral

IP Process
  • IP20(NO)

Tape Type
  • White(3M 55230H)

Wire Type
  • Crystal wires

  • No

Ordering Code :

$ **/m

Common Accessories

Accessories Type
