Features

· Material: AL6063,spraying surface
· Coating: Black (RAL9005)
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step
· Beam angle: 24°, 36°optional
· Light efficiency: 46LM/W. 50LM/W optional
· Input voltage: DC24-48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

BASIC CONFIGURATION

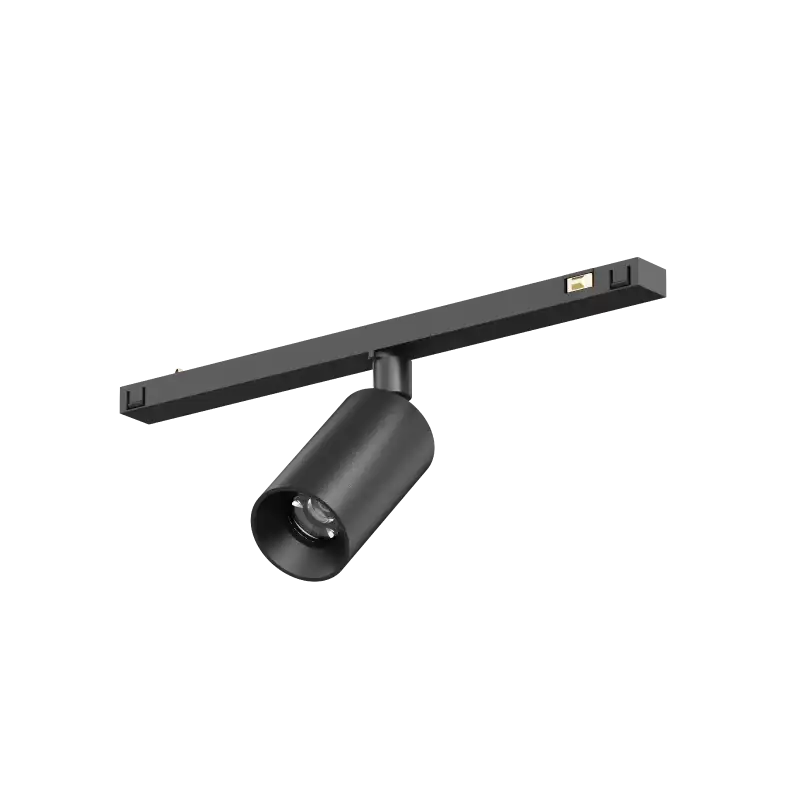

MT11S-25_Module
Required track installation
Including electrical connector
Adapted track brand:Stucchi(MICRO series)

MT11S-25

Name: MT11S-25
Brand: COLORS Lighting

/set

Flexible Options

Smart Picks

Reset selected

Length

φ25mm Spotlight

Typ.power

Beam Angle

24°
36°

Color

Matte Black
Champagne Gold
Matte White
Matte Silver

Dimming Method

Non-Dimming
DALI Dimming
Tuya-Bluetooth Mesh Dimming

CRI

CCT

2700K
3000K
4000K

Input Voltage

DC24-48V

Optical Accessory

No Honeycomb

Label Type

COLORS
Customized Label

Delivery Date

Ordering Code :

TLS-MT11S25-0490

$ **/set

Common Accessories

Accessories Type

Track
Standard Corner
Power feeder
Splicing accessory
Installation accessory
End cap accessory
Power Supply

BN-V48-XP

Product name:BN-V48-100P/BN-V48-150P/BN-V48-250P Output power:100W/150W/250W Output current:≤2.10A/≤3.13A/≤5.21A Product size:350.0*30.0*18.0mm/350.0*30.0*18.0mm/400.0*40.0*22.0mm Input voltage:AC220-240V Output voltage:DC48V PF：PF>0.95 IP:IP20 Dimming method:Non-Dimming Material:Plastic housing Certification:CE/CB Warranty:5 years Note:Products with COLORS LOGO

$ ** /SET

LV100W48CG-1 MICRO

Applicable track model:TLS-MT11-SX0Dimming mode:Non-dimmingSize:230×19×24.5mm(L*W*H)Input voltage:AC220~240VOperating frequency:50/60HzPF value:≥0.9Output voltage:48VDCOutput current:2.1APower:100WEfficiency:≥90%Certification:CECase material:Plastic housing

$ ** /SET

MT11-L90-MH11

Applicable product model: TLS-MT11-HX0 Installation method: L-shaped splicing(Downward) Material process: Aluminum Light source: No Size: L34.5×W34.5×H24mm

$ ** /SET

MT11-L90-MR11

Applicable product model: TLS-MT11-RX0 Installation method: L-shaped splicing(Downward) Material process: Aluminum Light source: No Size: : L49.5×W49.5×H15mm

$ ** /SET

MT11-L90-MS11

Applicable product model: TLS-MT11-SX0 Installation method: L-shaped splicing(Downward) Material process: Aluminum Light source: No Size: L34.5×W34.5×H10.2mm

$ ** /SET
