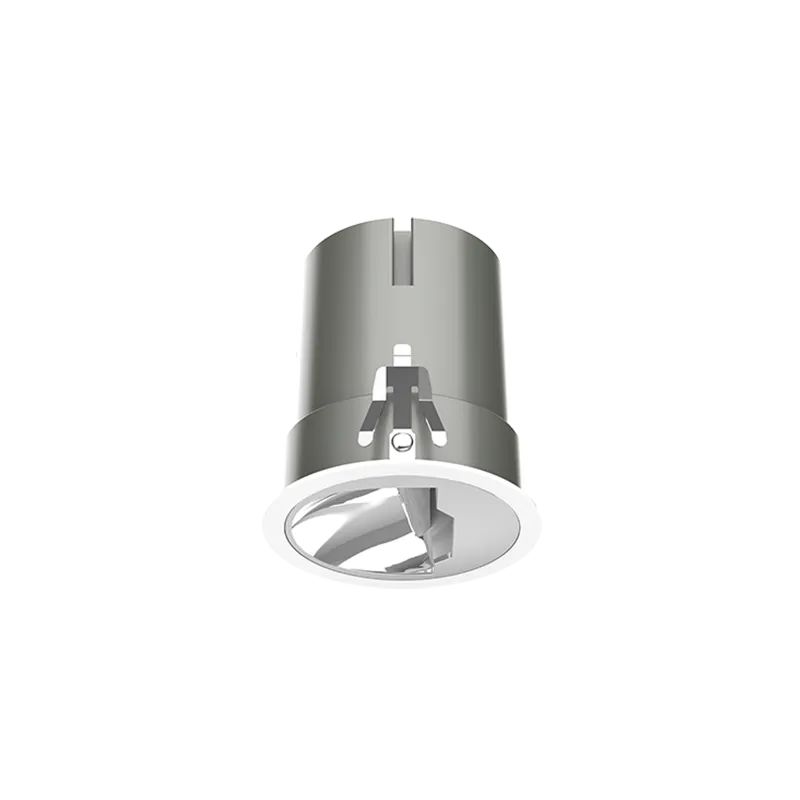

Aurora

Discover Aurora

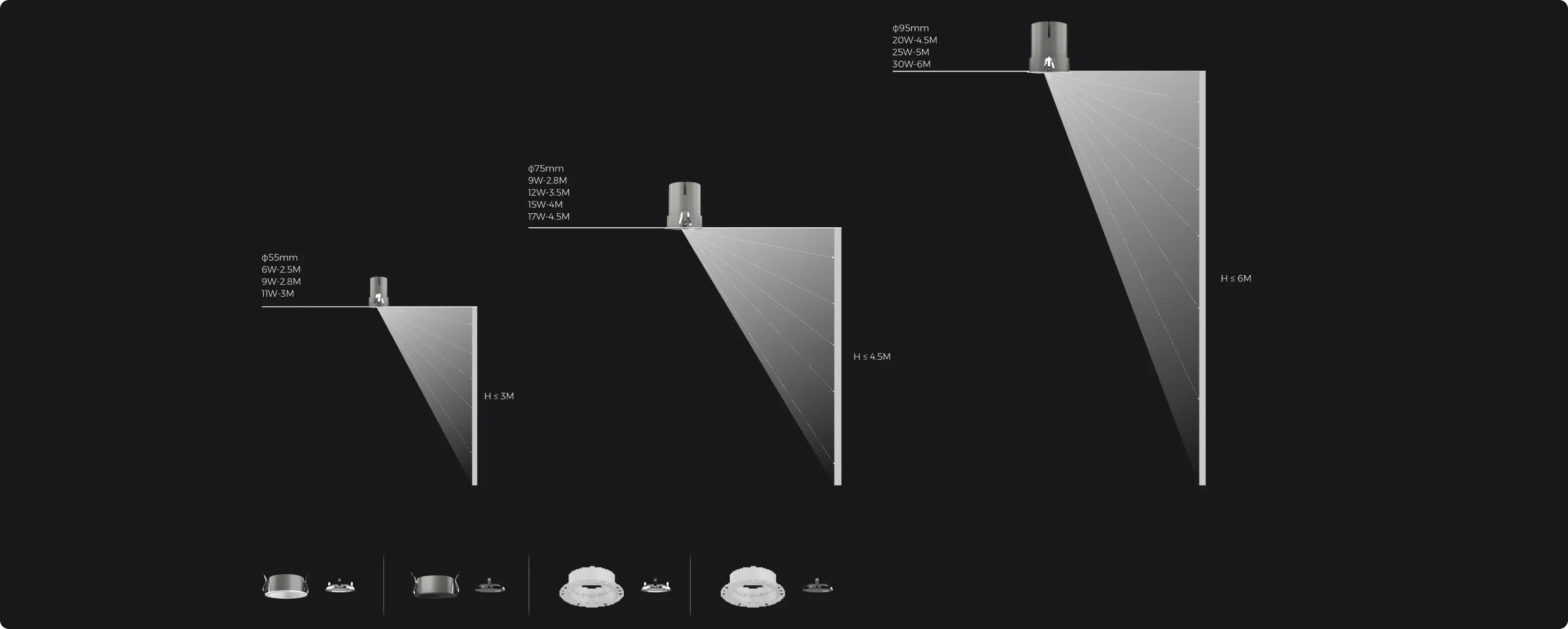

The Aurora series features an excellent deep anti-glare design with a shading angle of 100° and a narrow edge design of 4.5mm. It boasts an outstanding wall-washing optical design, offering a variety of reflector options and product size choices to meet wall-washing applications in spaces with a height of 3-6 meters. The products are applied to murals or corridor walls in luxury villas and star-rated hotels, achieving a smooth transition with the ceiling when washing the wall.

Key Features

Unique optical design

boosting light's wall coverage, beautifully and efficiently

Extra-wide wall-washing ratio

Anti-glare Design

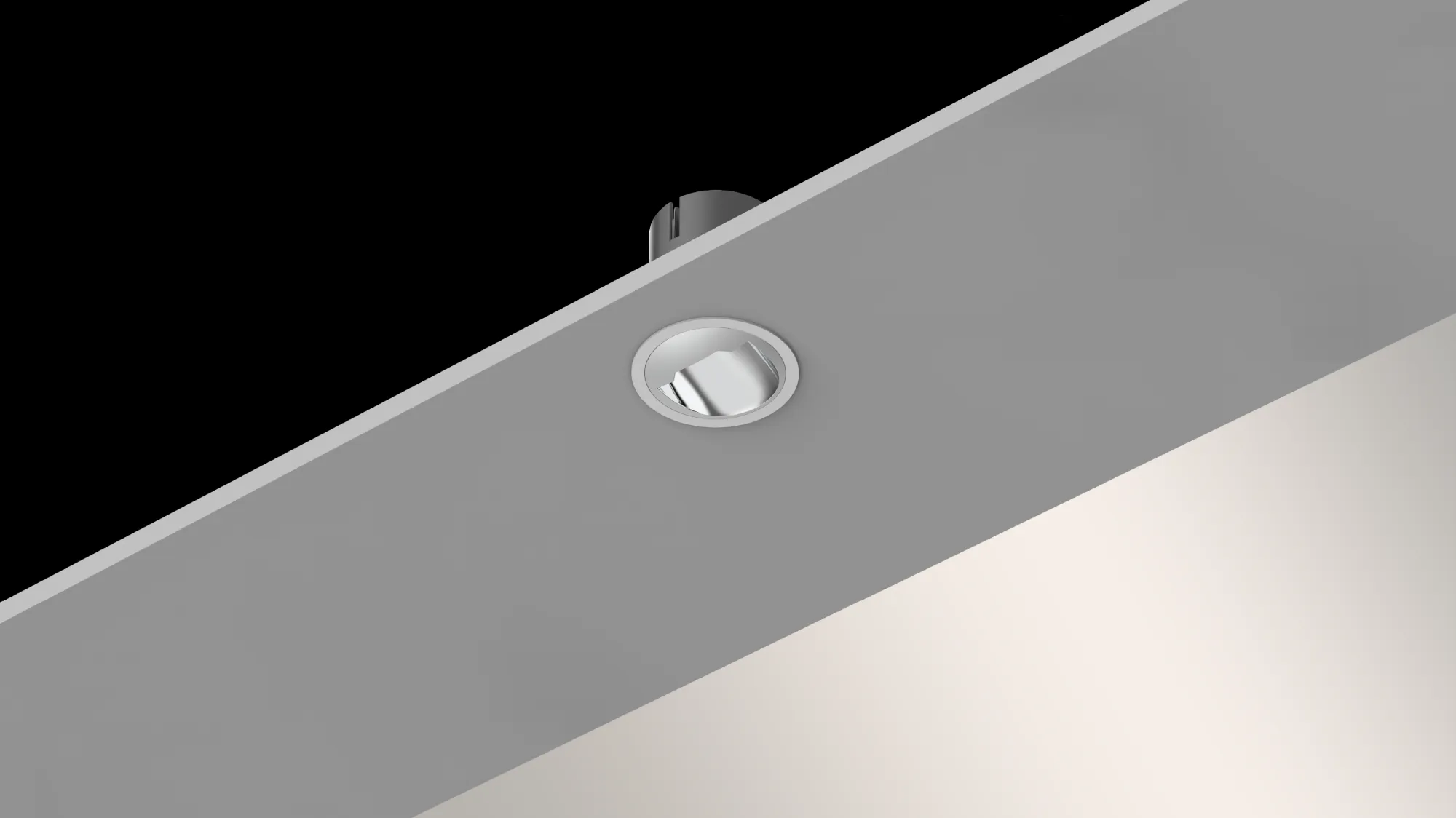

Flush with the ceiling No shadowed corners

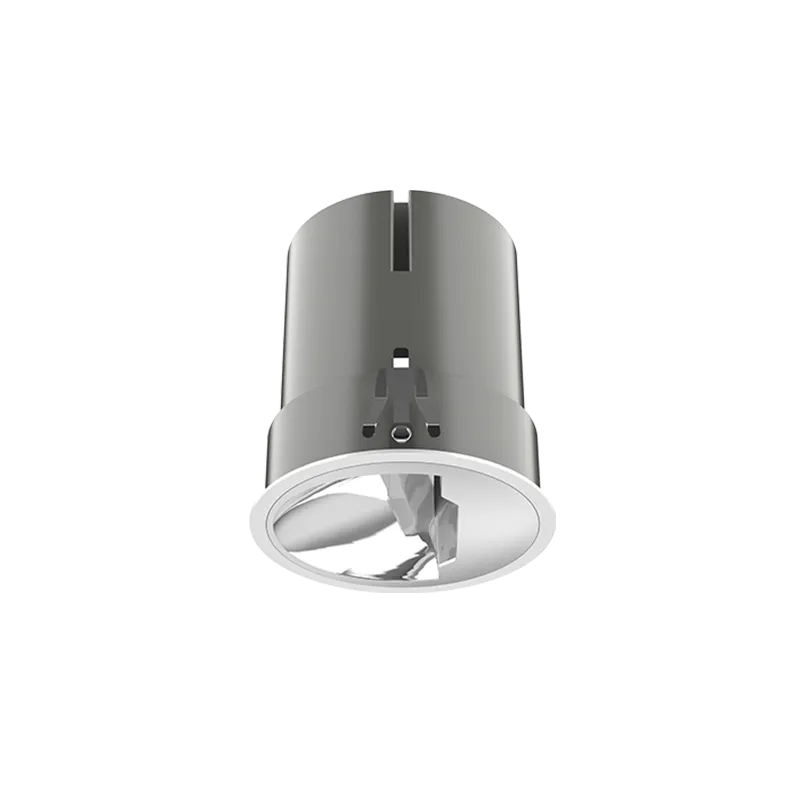

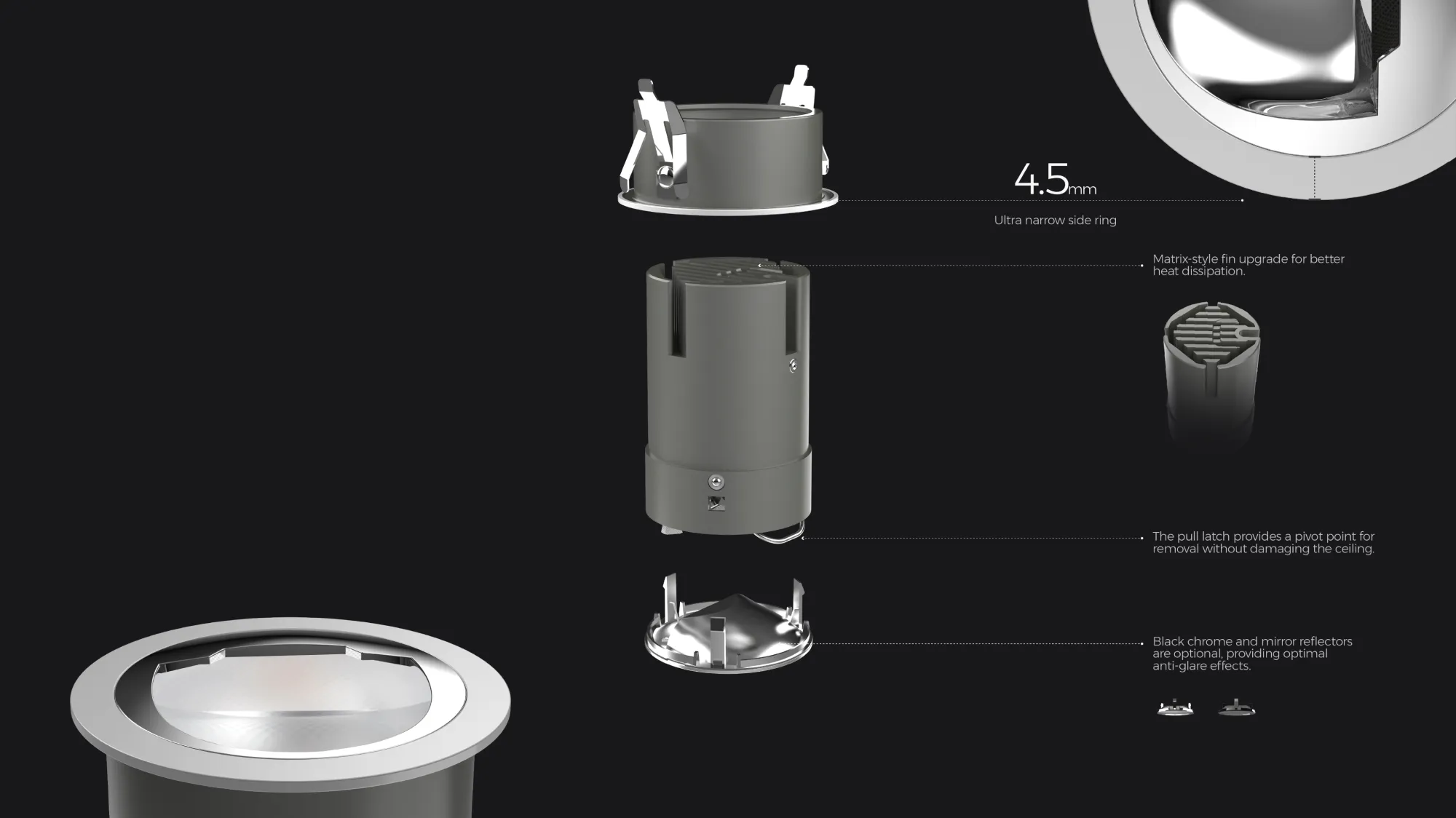

Split Design

Easy Installation Easy maintenance Free combination

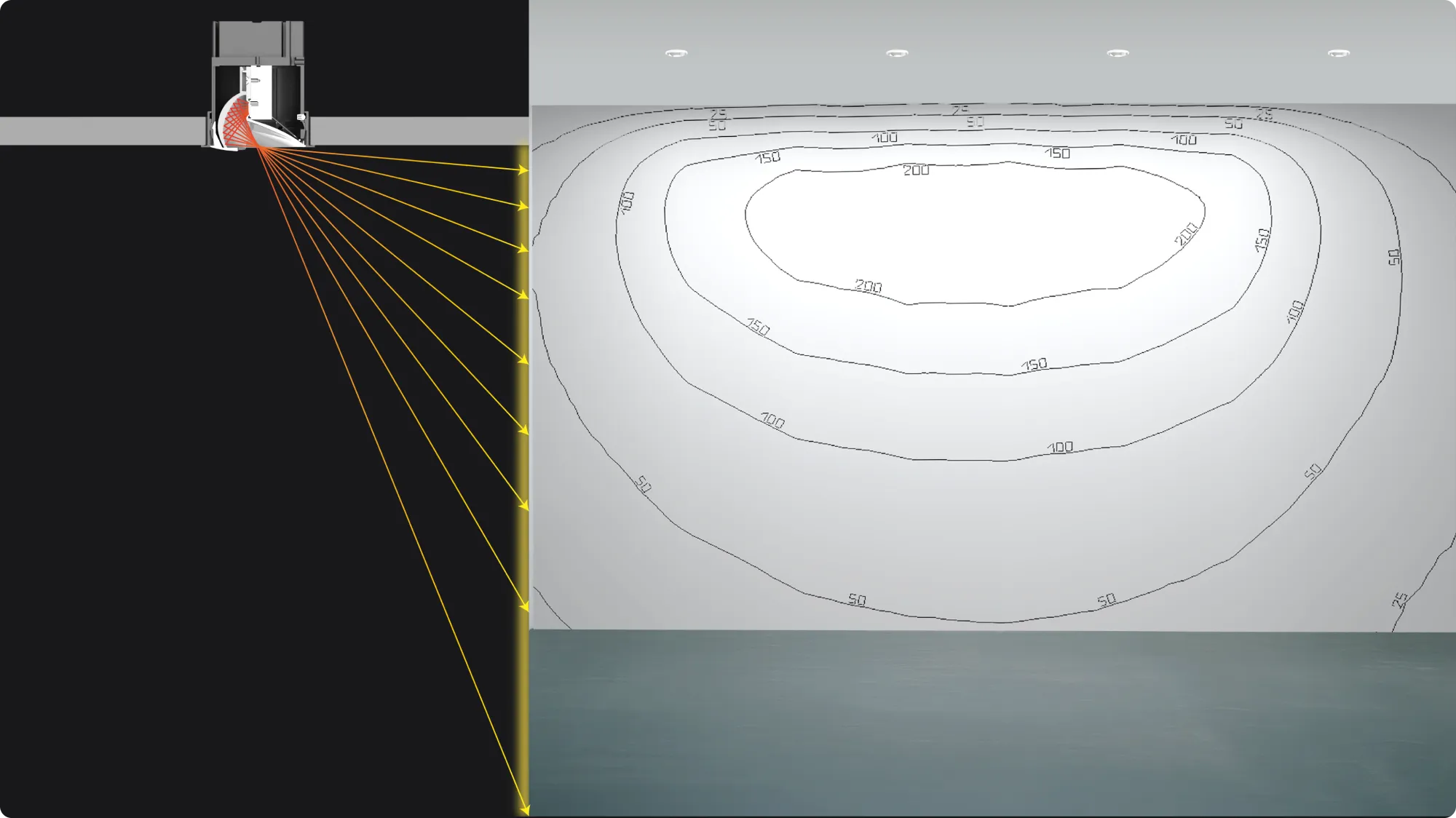

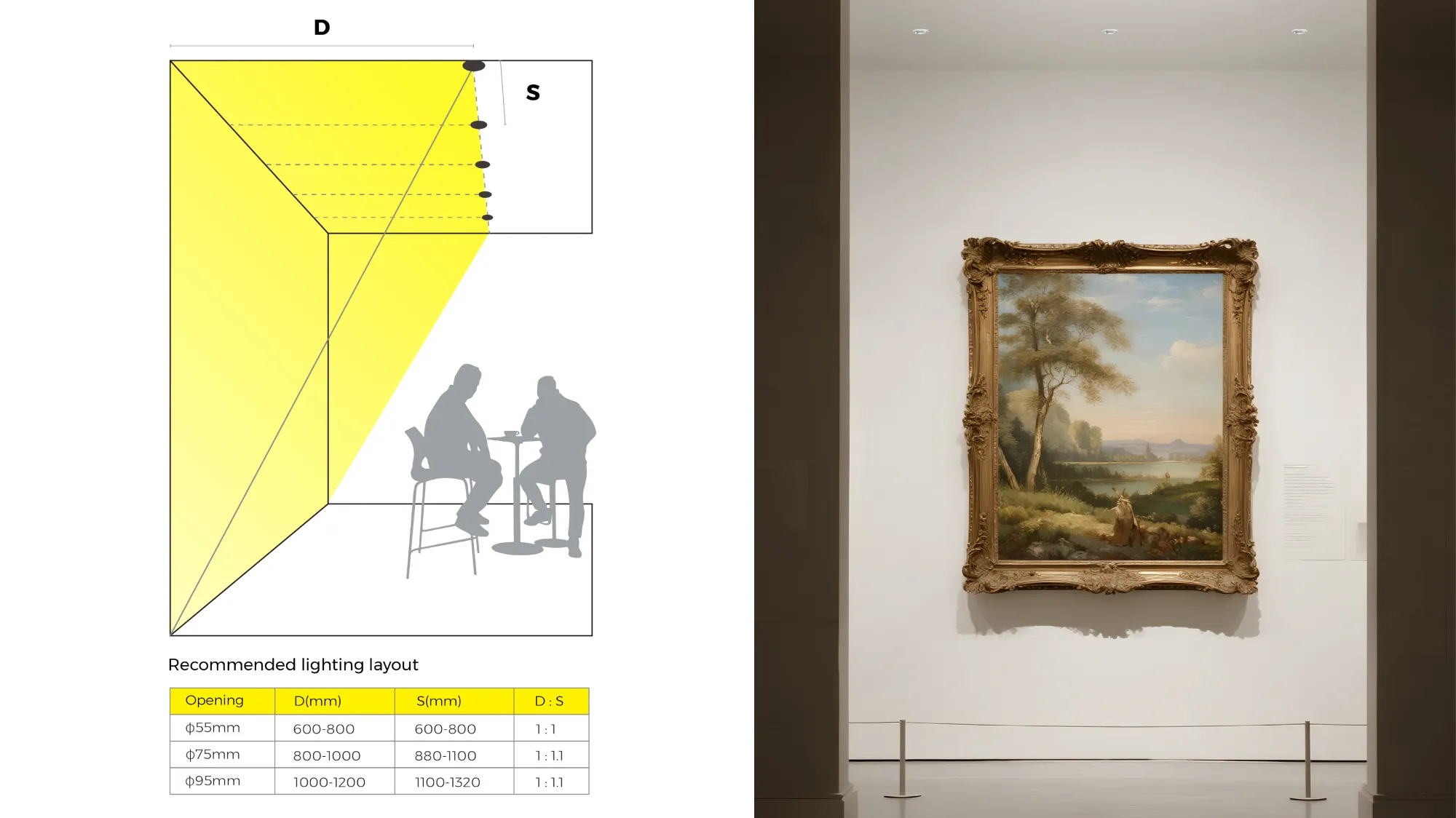

Application Principle

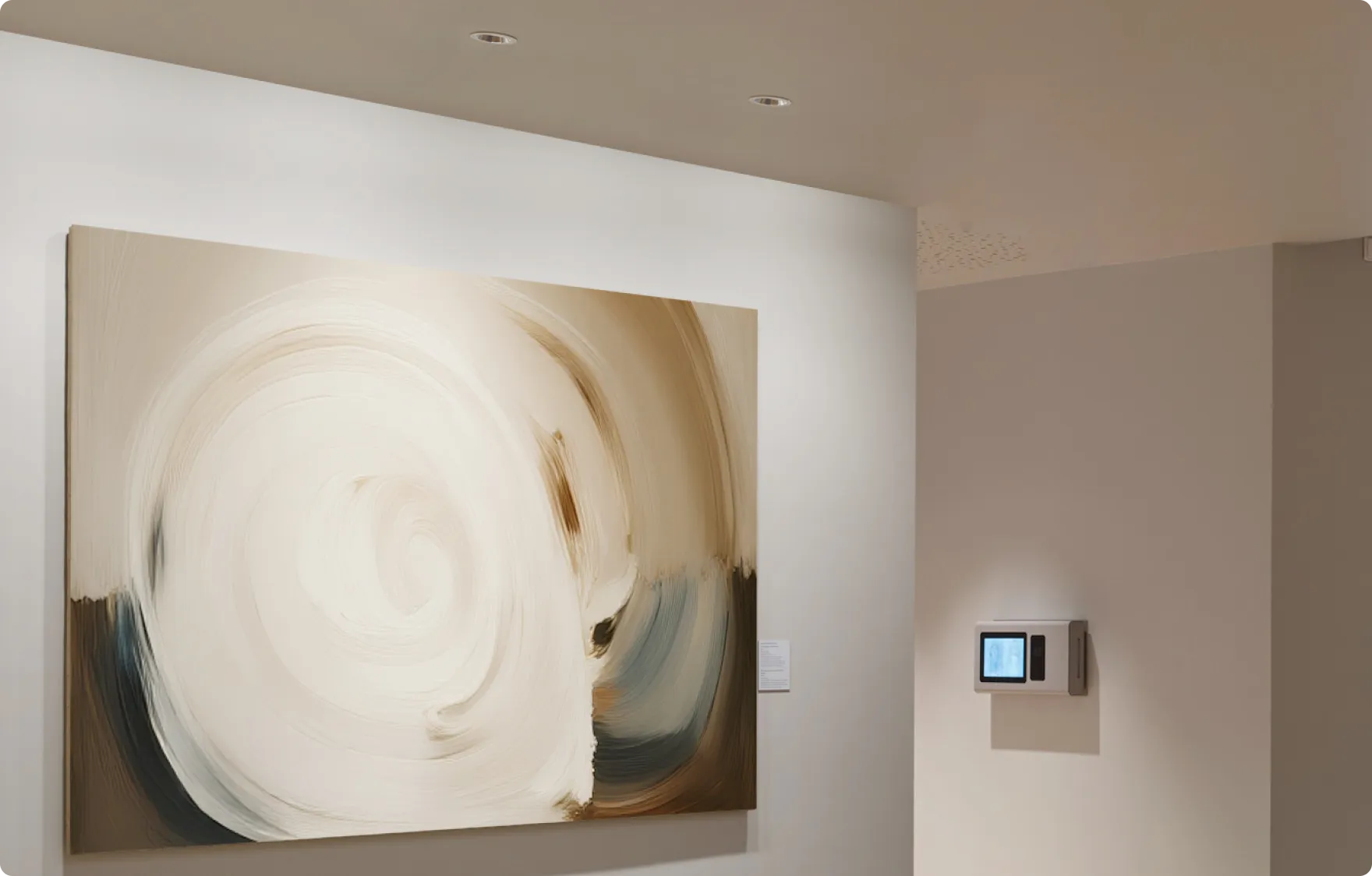

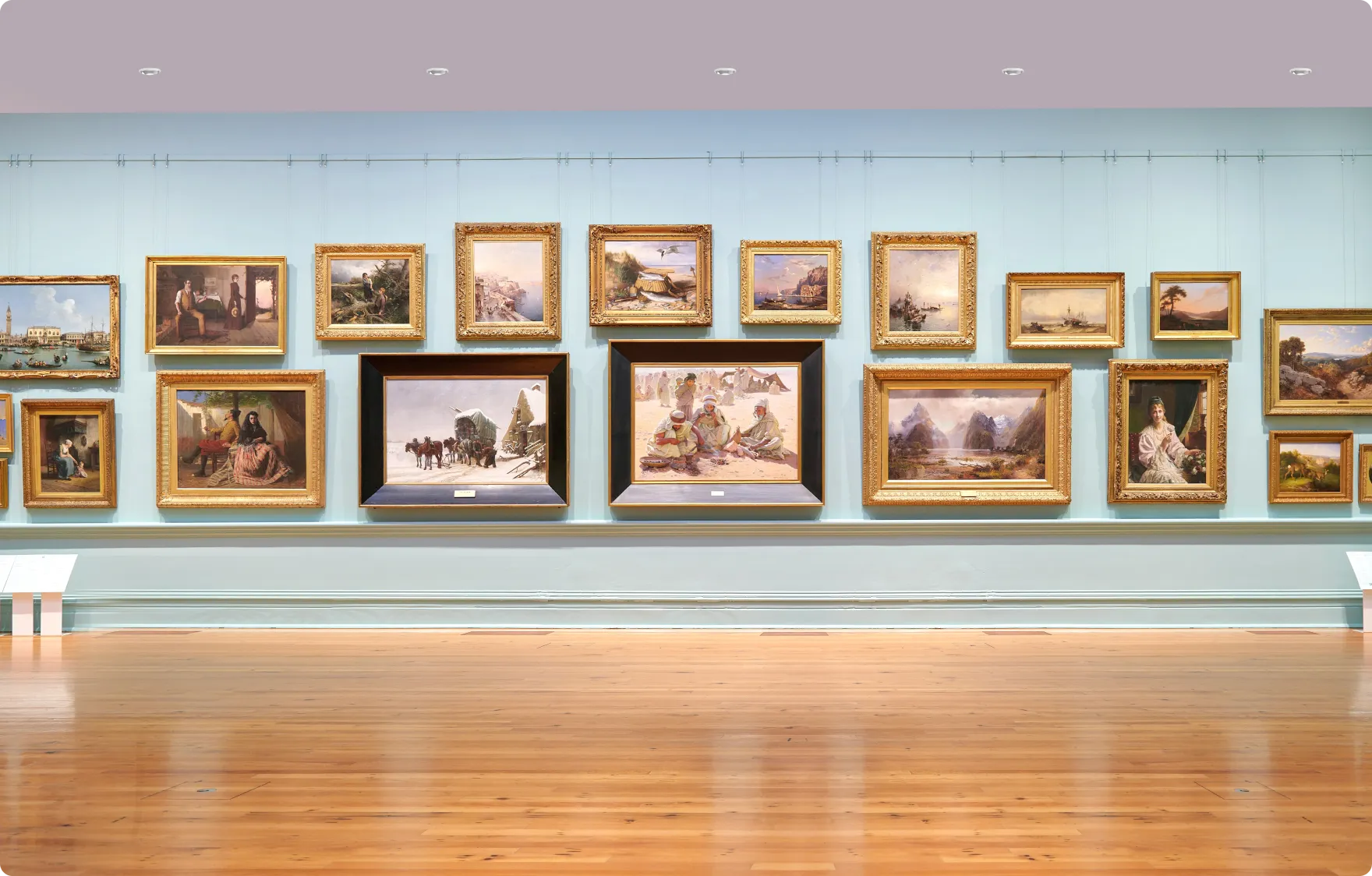

Scenario Case

Ordering Code

Optional Model

AE55L1

AE75L1

AE95L1

AE55L1

Basic parameter

Material

AL1060,spraying surface

Sdcm Lamp

<3 Step(ANSI)

UGR

/

IP Process

IP20

Warranty

5 years

Certification

CE,ROHS,Reach

Installation

Recessed

Type Power (W)

Input Voltage (V)

Input Current (mA)

Beam Angle

CCT

Lumen(LM)

6

DC36

150

Wall washer

2700K

304

6

DC36

150

Wall washer

3000K

320

6

DC36

150

Wall washer

3500K

350

6

DC36

150

Wall washer

4000K

360

9

DC36

200

Wall washer

2700K

435

9

DC36

200

Wall washer

3000K

460

9

DC36

200

Wall washer

3500K

490

9

DC36

200

Wall washer

4000K

505

11

DC36

250

Wall washer

2700K

515

11

DC36

250

Wall washer

3000K

550

11

DC36

250

Wall washer

3500K

580

11

DC36

250

Wall washer

4000K

595

Size (mm/box)

Quantity /box

QTY/CTN

NW (kg/box)

N. WT (ctn)

G.WT (ctn)

Size (cm/carton)

Product Size (mm)

156L*156W*124Hmm

1

24

0.25

6

11.1

L636*W480*H262mm

Φ61*75mm
