Brook

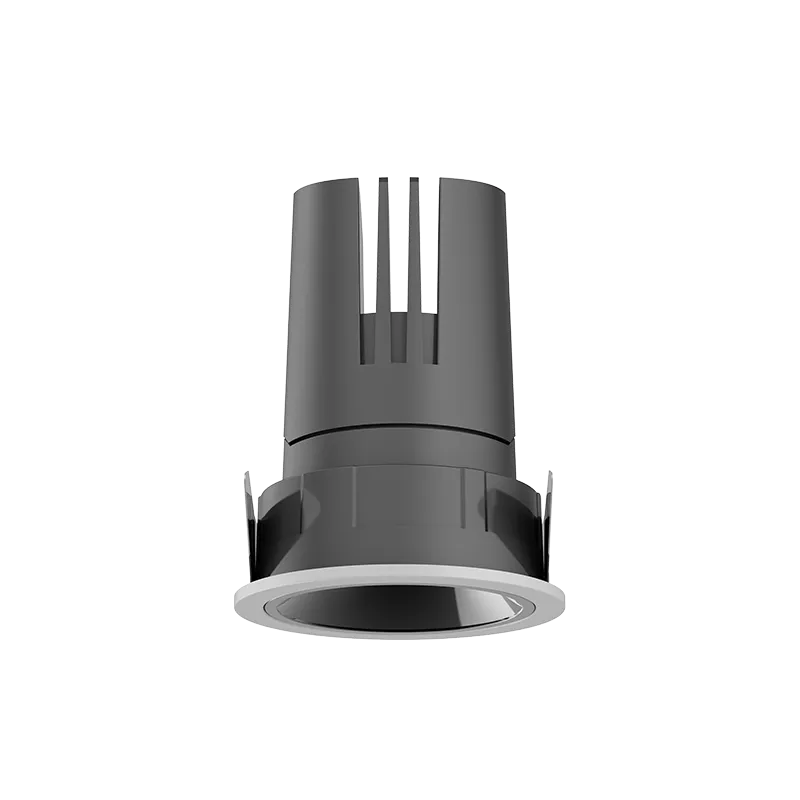

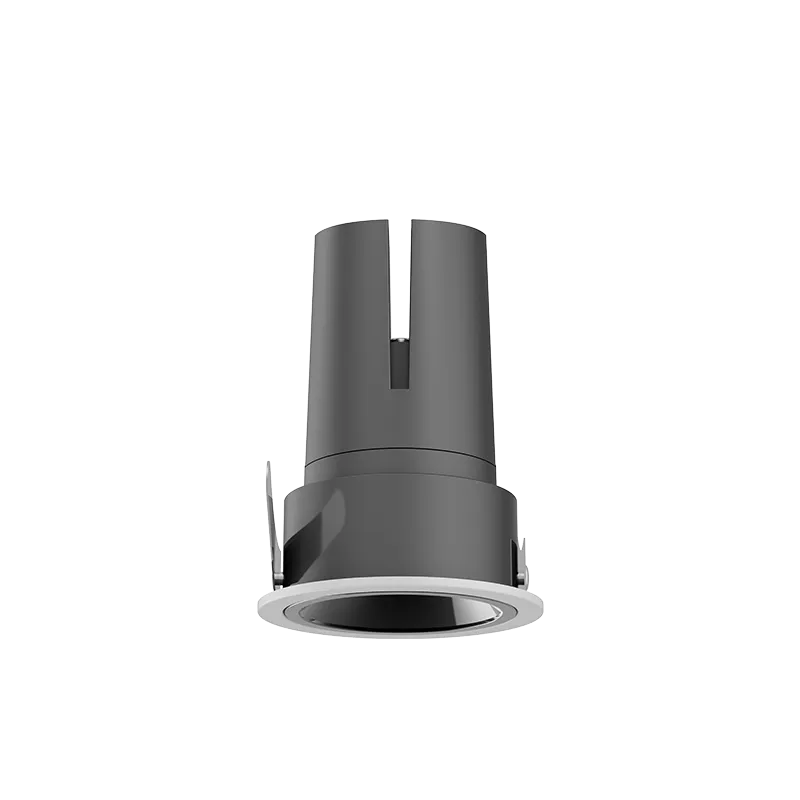

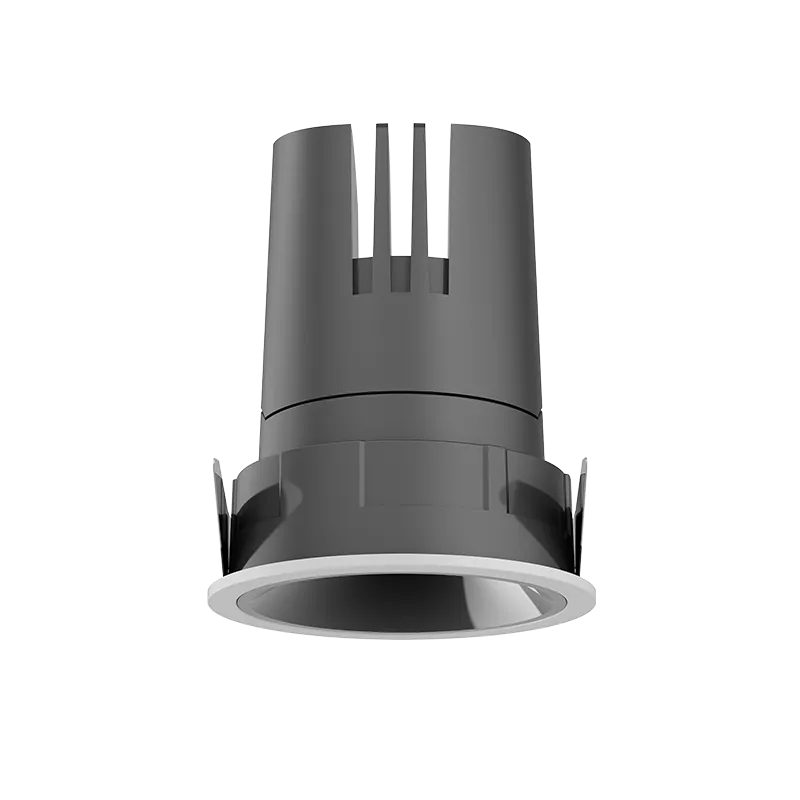

Brook is an adjustable recessed downlight with IP65 protection, suitable for indoor and outdoor scenarios like walkways, airports, parking lots, and swimming pools. The recessed part is shielded by a metal casing, and the pre-wired LED Power supply shares the same IP65 rating. It features excellent anti-glare performance, precise spot effect, high luminous efficiency, and flexible optical configurations, offering optimal lighting solutions for high-standard spaces.

Key Features

Product Details

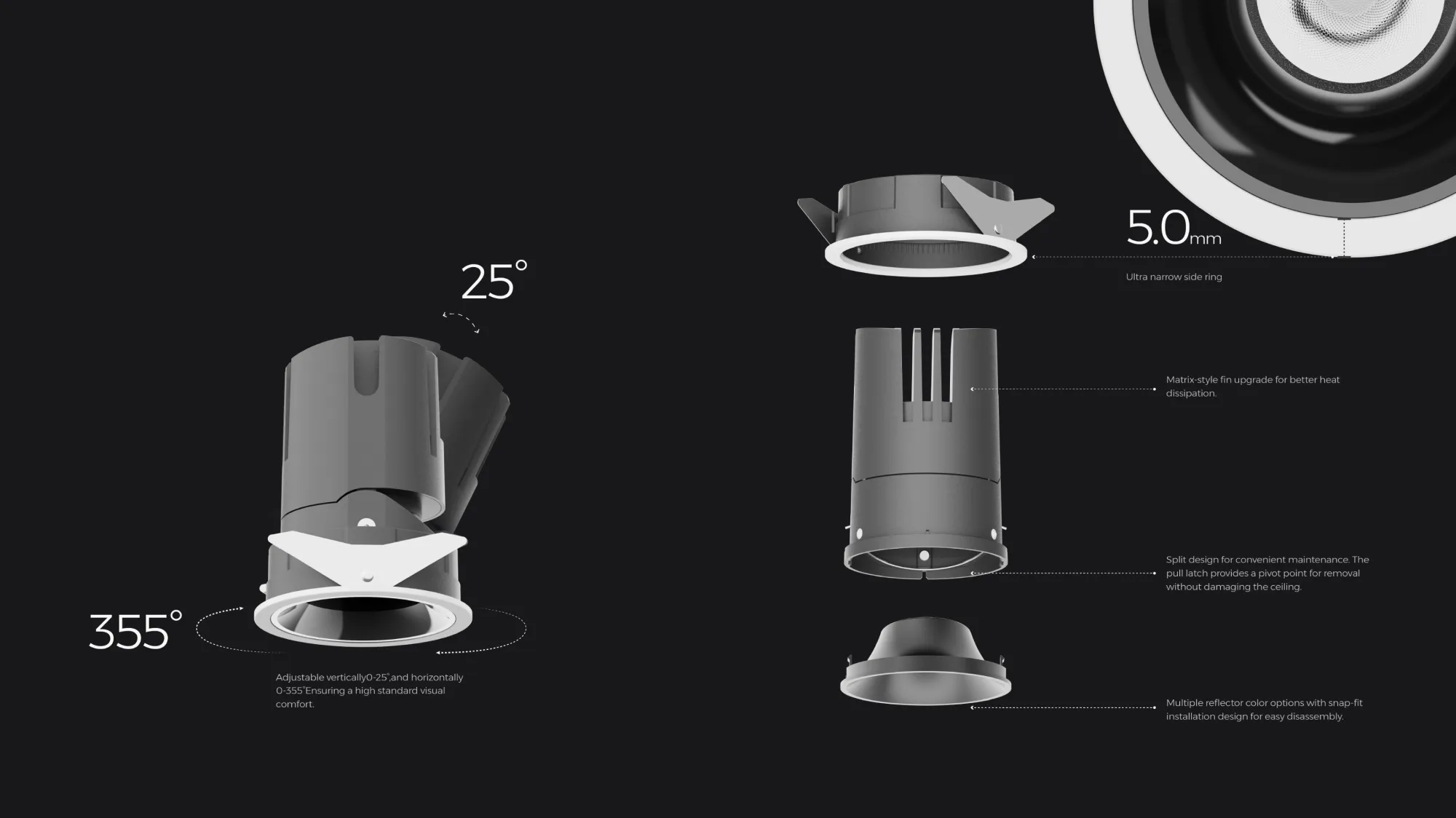

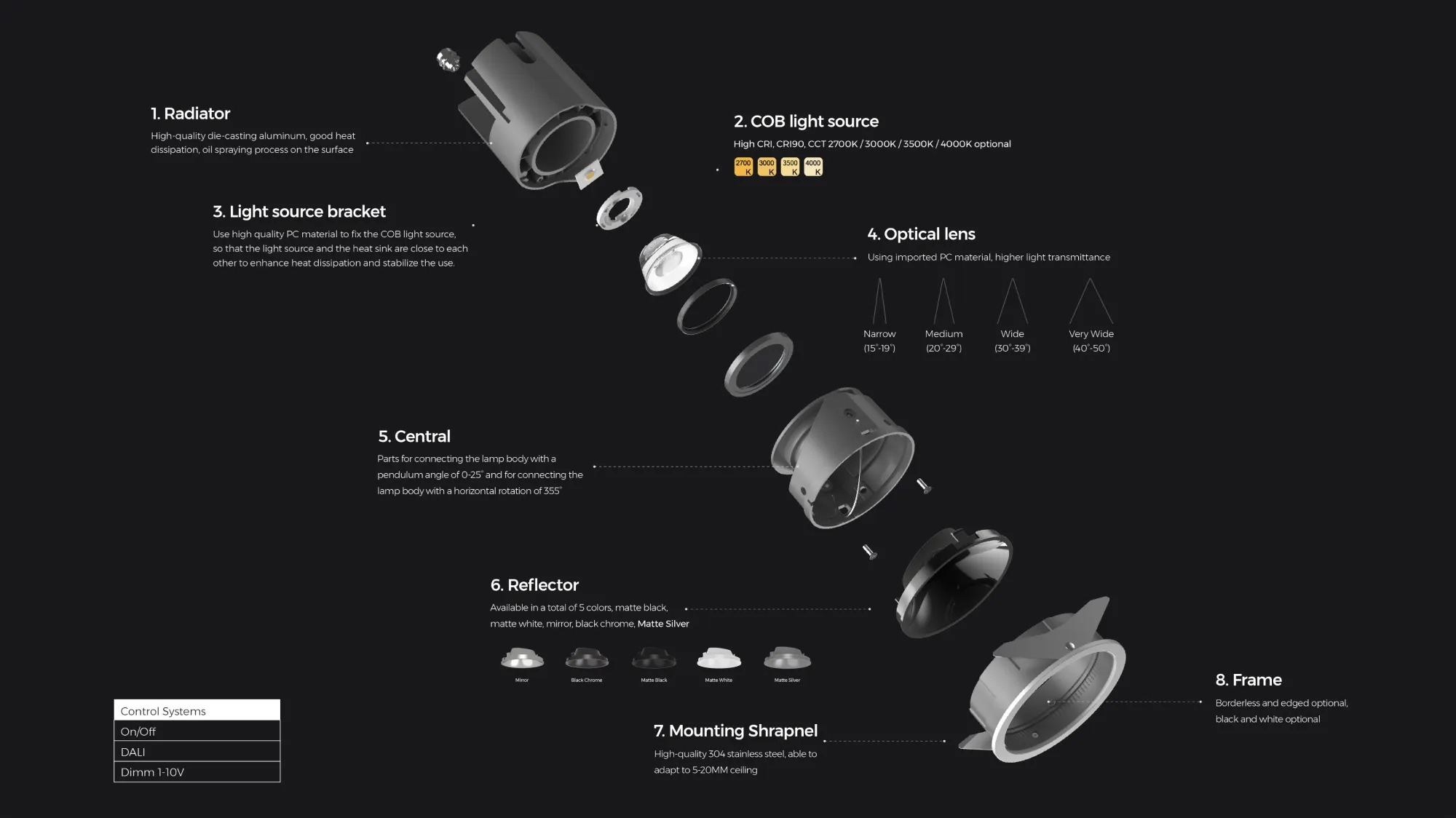

Radiator COB light source Light source bracket Optical lens Central Reflector Mounting Shrapnel Frame

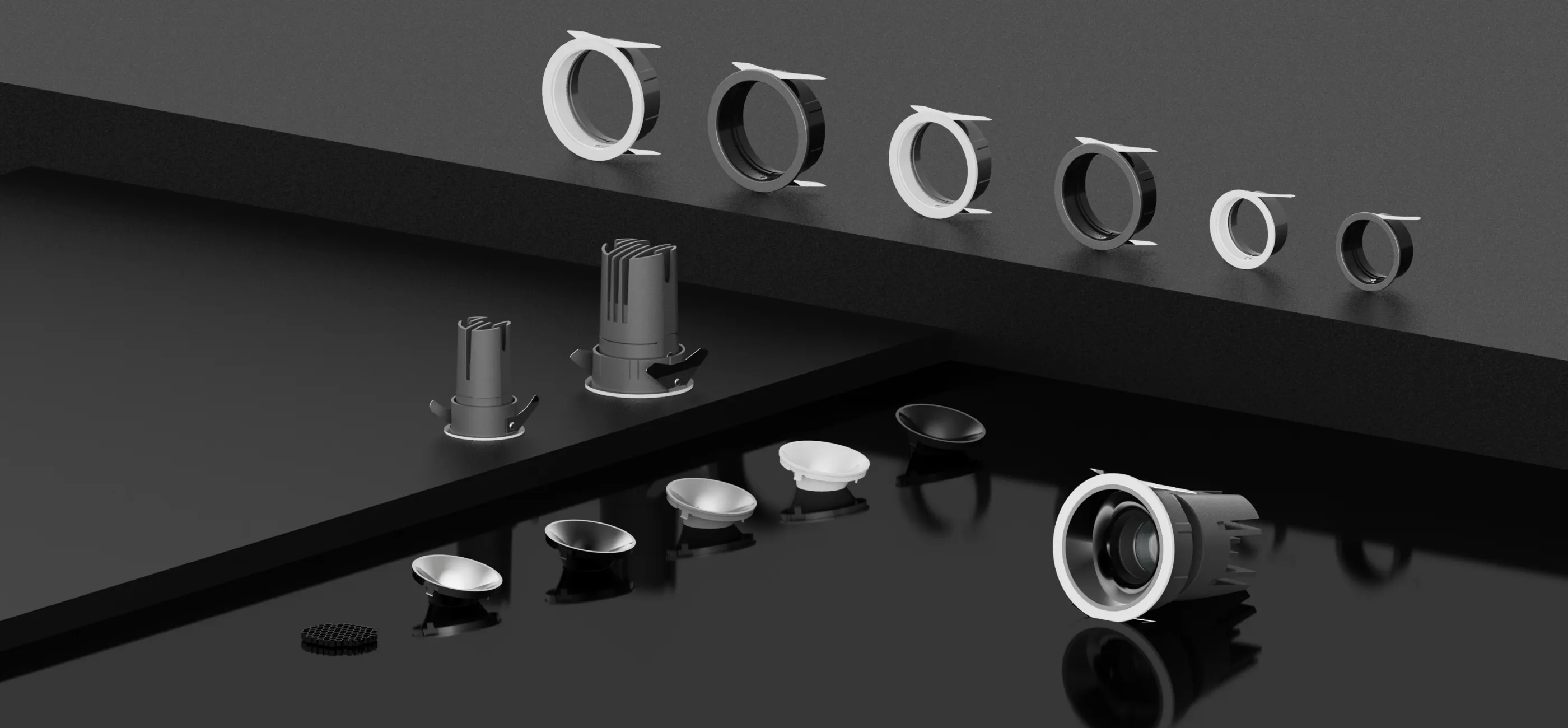

Split Design

Easy Installation Easy maintenance Free combination

Deep Anti-glare Dark Light Technology Minimum UGR ≤ 1

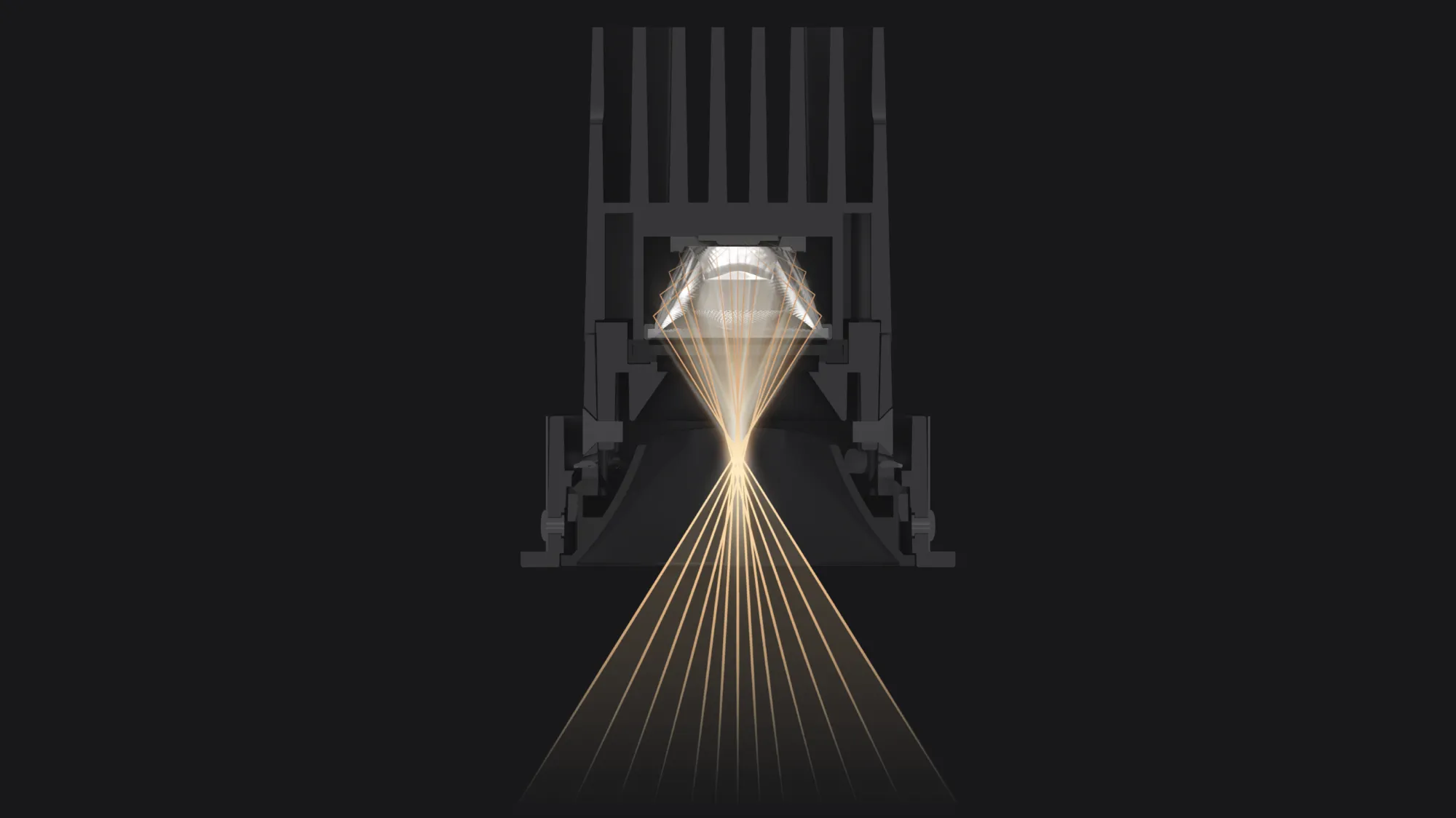

Patented Lens Design

Using cross-light-path topology and reconstructing free-form optical systems, precise light field control is achieved via ray tracing algorithms.

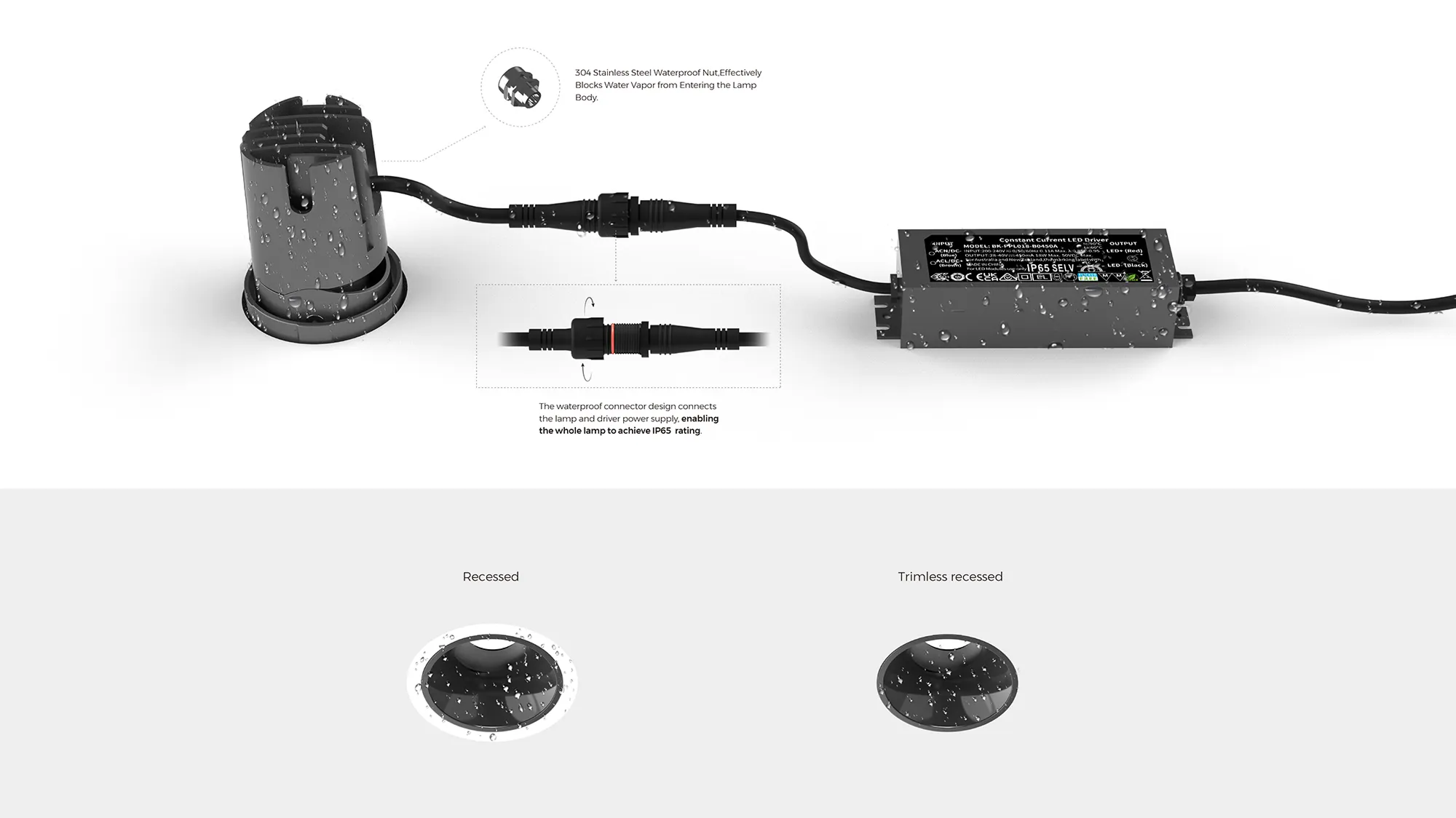

IP65 Protection for Luminaire-Driver System

Ideal for Indoor/Outdoor Use in Moist & Dust Environments

Application Principle

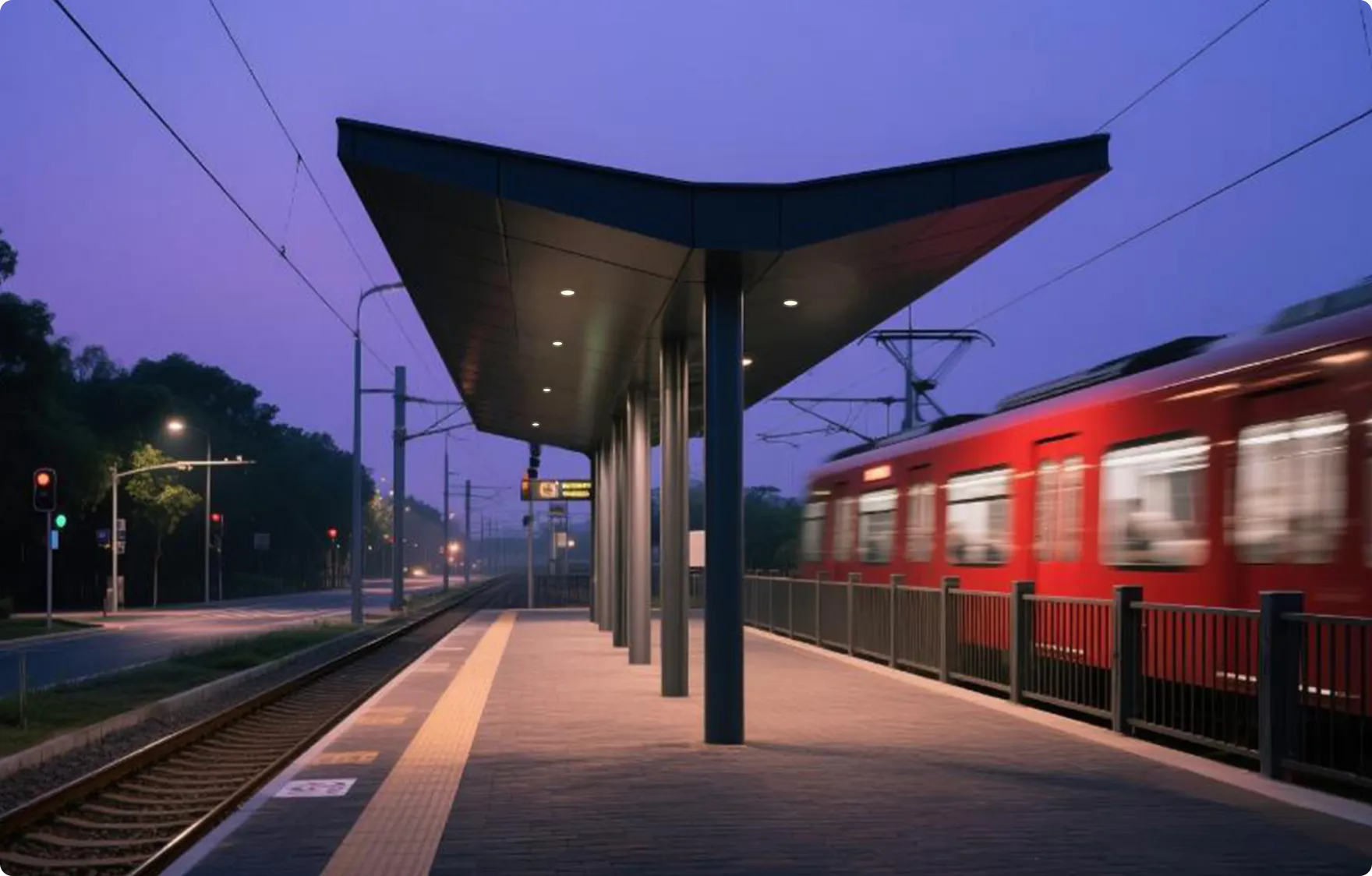

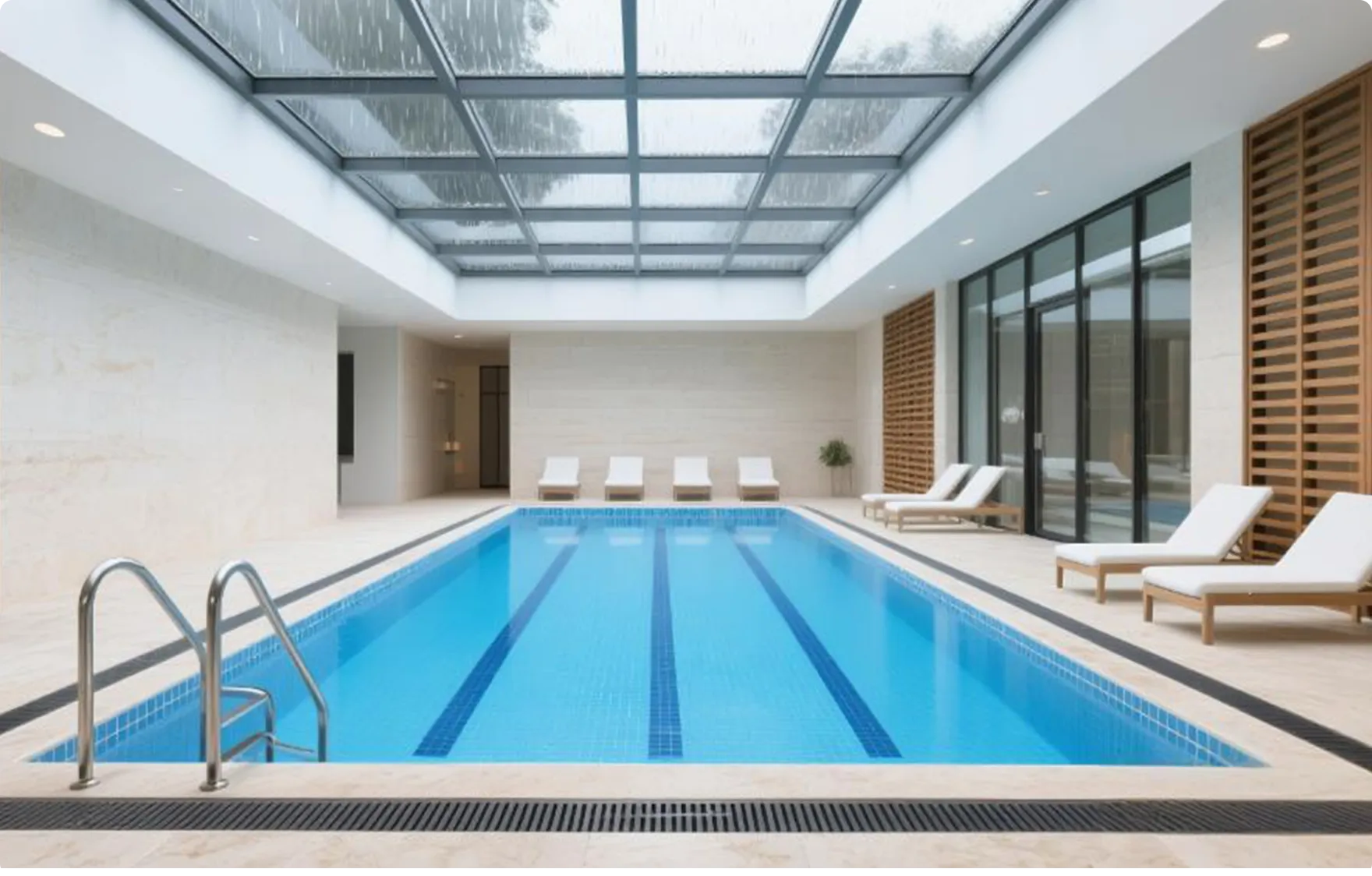

Scenario Case

Ordering Code

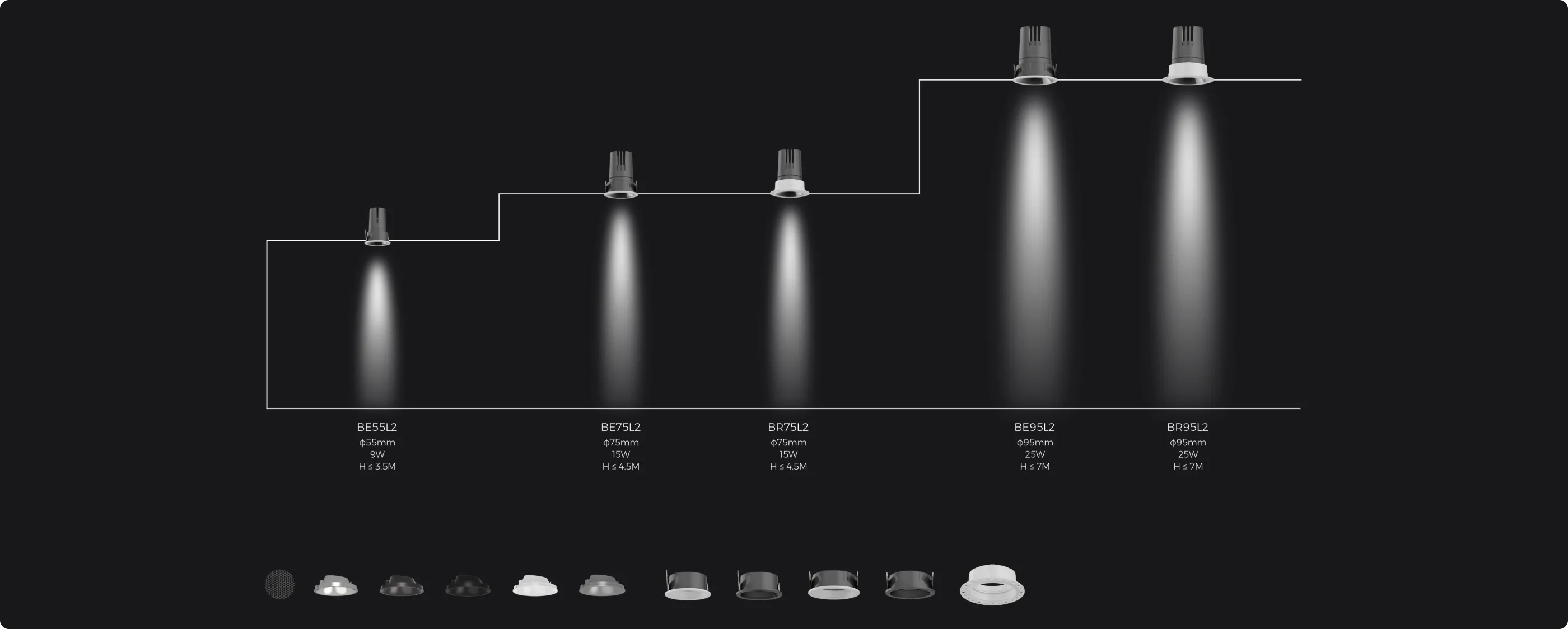

Optional Model

BE55L2

BE75L2

BE95L2

BE55L2

Basic parameter

Material

ADC12,spraying surface

Sdcm Lamp

<3 Step(ANSI)

UGR

≤6(15°/24°), ≤10(30°), ≤16(45°)

IP Process

IP65

Warranty

5 years

Certification

CE,ROHS,Reach

Installation

Recessed

Type Power (W)

Input Voltage (V)

Input Current (mA)

Beam Angle

CCT

Lumen(LM)

6

DC36

150

15°

2700K

255

6

DC36

150

24°

2700K

230

6

DC36

150

30°

2700K

255

6

DC36

150

45°

2700K

300

6

DC36

150

15°

3000K

270

6

DC36

150

24°

3000K

240

6

DC36

150

30°

3000K

270

6

DC36

150

45°

3000K

315

6

DC36

150

15°

3500K

280

6

DC36

150

24°

3500K

250

6

DC36

150

30°

3500K

290

6

DC36

150

45°

3500K

335

6

DC36

150

15°

4000K

290

6

DC36

150

24°

4000K

260

6

DC36

150

30°

4000K

300

6

DC36

150

45°

4000K

345

9

DC36

200

24°

2700K

325

9

DC36

200

30°

2700K

370

9

DC36

200

45°

2700K

425

9

DC36

200

24°

3000K

340

9

DC36

200

30°

3000K

390

9

DC36

200

45°

3000K

450

9

DC36

200

24°

3500K

375

9

DC36

200

30°

3500K

410

9

DC36

200

45°

3500K

480

9

DC36

200

24°

4000K

390

9

DC36

200

30°

4000K

425

9

DC36

200

45°

4000K

495

Size (mm/box)

Quantity /box

QTY/CTN

NW (kg/box)

N. WT (ctn)

G.WT (ctn)

Size (cm/carton)

Product Size (mm)

L166*W126*H150mm

1

20

0.6

12

16.5

L643*W345*H315mm

Φ61.8*86mm
