BASIC CONFIGURATION

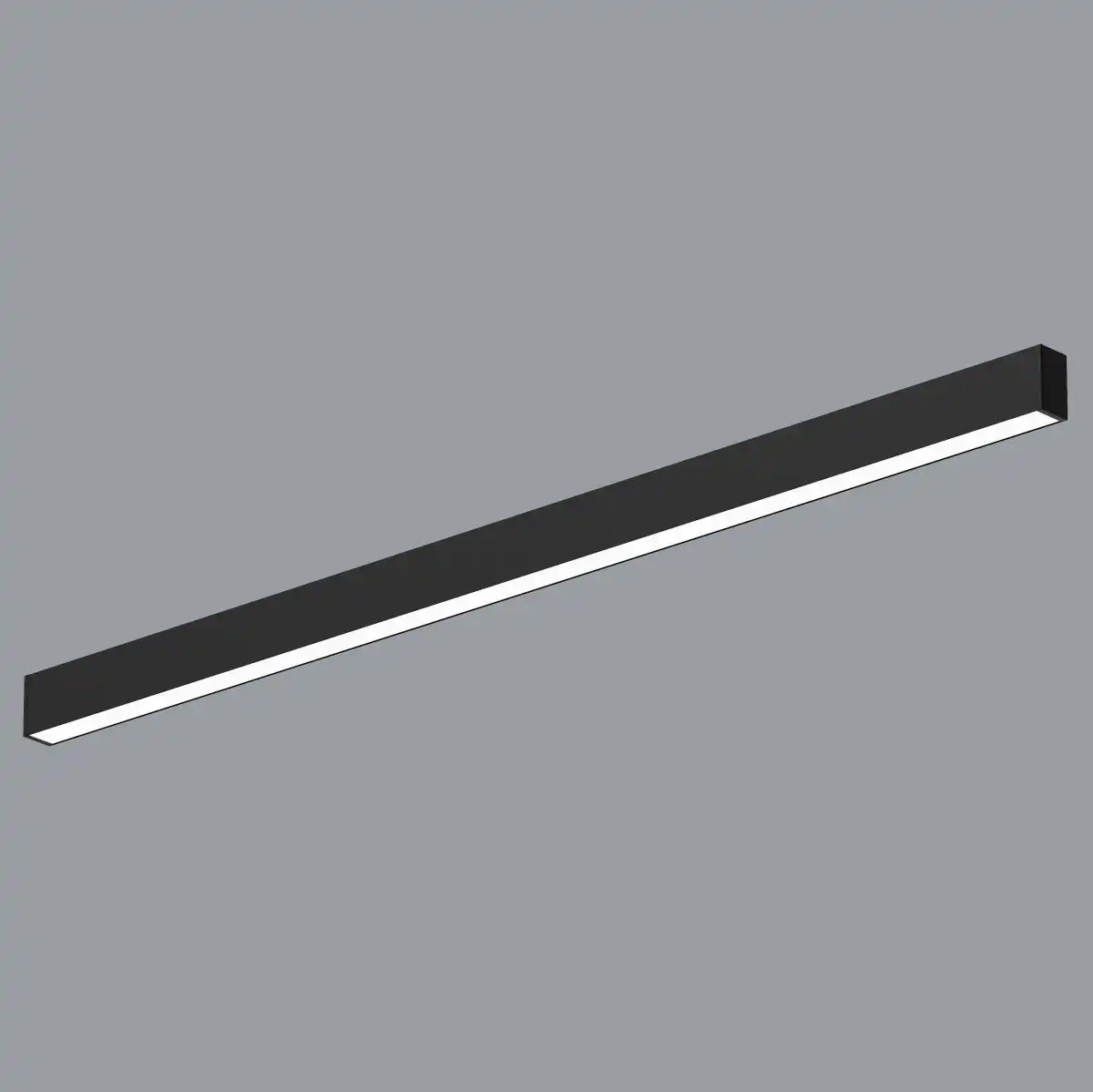

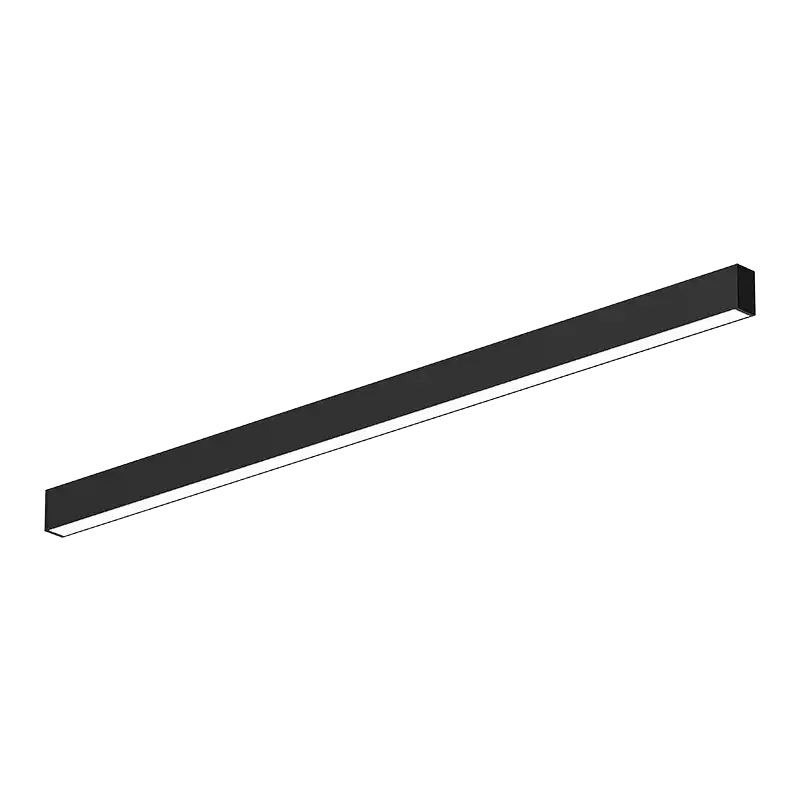

LS35FD luminaire
luminaire entry cable 1.5M
≤1.2m luminaire included 2 PCS clips;
1.2m<L≤2.5m luminaire included 3 PCS clips;

Features

·Material:AL6063-T5,spraying surface,anodizing
·Coating:Silver anodized,Black,White
·Length:1200,1800,2400mm optional
·Lighting direction:Downward
·Installaton:Pendant,Ceiling
·IP grade:IP20
·Application:Indoor
·Light efficiency:110LM/W(Normal),120LM/W(High efficiency-3CCT Dial switch)
130LM/W(High efficiency),100LM/W(Normal-3CCT Dial switch)
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K,4000K,6500K,3000-4200-6200K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

LS35FD

Linear Lights > Luminaires > LINE ECO > Pendant/Ceiling

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

  • 6500K

  • 3000K-4200K-6200K

CRI

  • >80

  • >90

Typ.power

  • 29W

  • 45W

  • 58W

Label Type

  • COLORS

  • Customized Label

Package

  • Single-Unit Inner Box Packaging

Version

  • Normal

  • Normal-3 CCT Dial Switch

  • High efficiency-3 CCT Dial Switch

  • High efficiency

Diffuser Nature

  • Diffuser

Carrier Style

  • No carrier

Color

  • White

  • Black

Light Source Type

  • Constant Current Rigid PCB

Length

  • 1200mm

  • 1800mm

  • 2400mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

Input Voltage

  • AC200-240V

End Cap Style

  • Holeless end cap

Ordering Code:

LLS-LS35FDXS-T-D

Qty

$ ** /SET

Ordering Code:

LLS-LS35FDXS-T-D
