Features

·Material:AL6063-T5,spraying surface,anodizing

·Coating:Black,White

·Length:1200,1800,2400mm optional

·Lighting direction:Downward

·Installation:Pendant,Ceiling

·IP grade:IP20

·Application:Indoor

·Light efficiency:110LM/W(Normal),135LM/W(High efficiency-3CCT Dial switch) 150LM/W(High efficiency),110LM/W(Normal-3CCT Dial switch)

·SDCM:<3 Step (ANSI)

·CRI:80,90

·CCT:2700K,3000K,4000K,6500K,3000-4200-6500K optional

·Dimming:Non,1-10V,DALI2 optional

·Certification:CE,UKCA,ROHS,Reach

·Warranty:5 years

BASIC CONFIGURATION

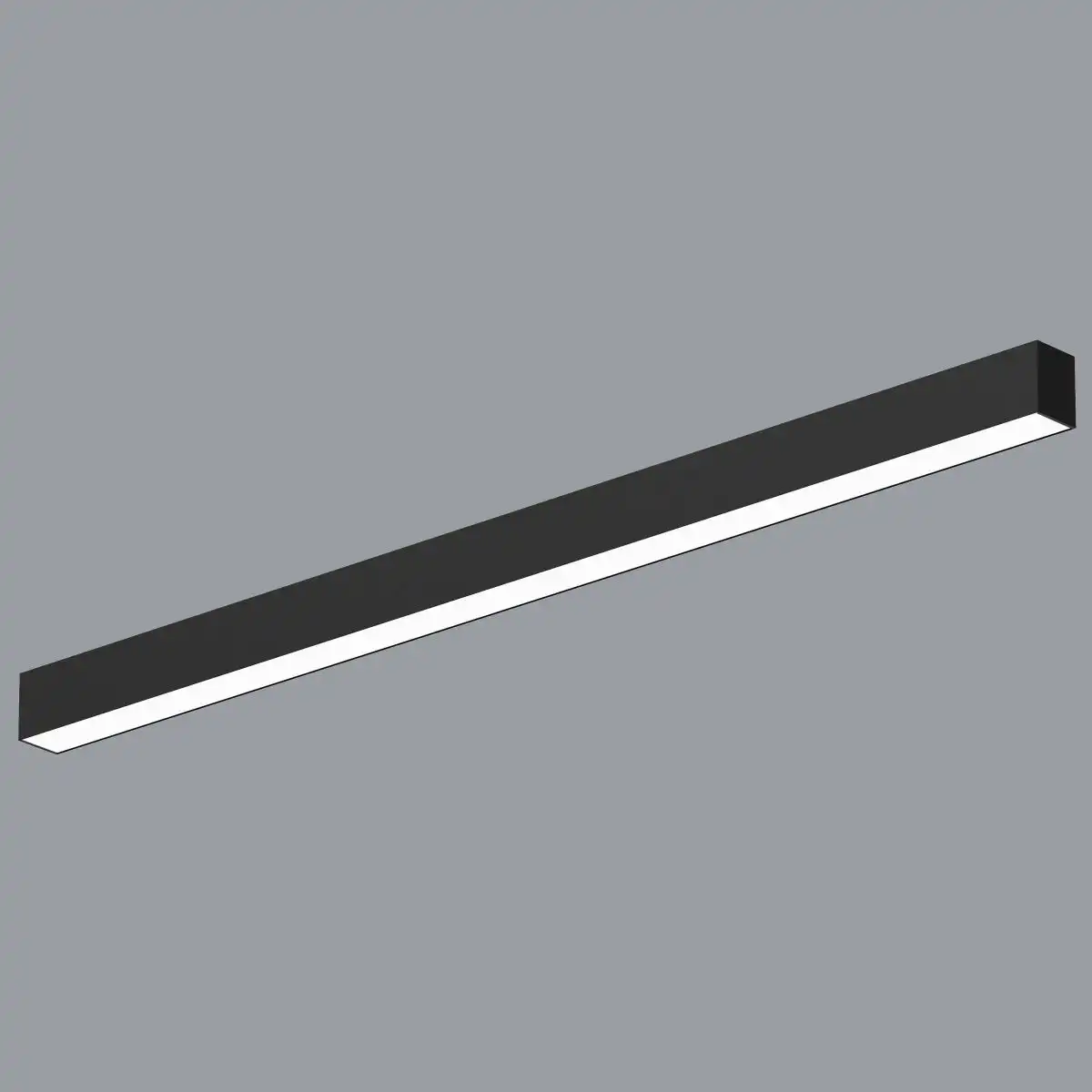

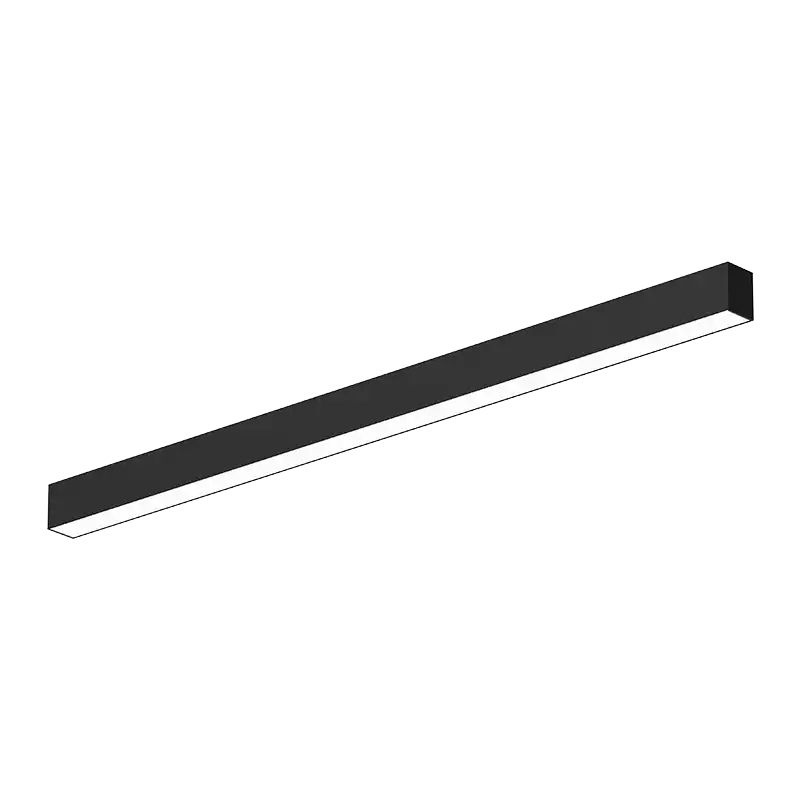

LS50FD luminaire
luminaire entry cable 1.5M
≤1.2m luminaire included 2 PCS clips;
1.2m＜L≤2.5m luminaire included 3 PCS clips;

LS50FD

/set

Flexible Options

Smart Picks

Reset selected

Version

Normal
High efficiency
High efficiency-3 CCT Dial Switch
Normal-3 CCT Dial Switch

Diffuser Nature

Diffuser

Length

1200mm
1800mm
2400mm

Typ.power

Carrier Style

No carrier

Color

Black
White

Dimming Method

Non-Dimming
1-10V Dimming
DALI Dimming

CRI

CCT

2700K
3000K
4000K
6500K
3000K-4200K-6500K

Light Source Type

Constant Current Rigid PCB

Input Voltage

AC200-240V

End Cap Style

Holeless end cap

Label Type

Customized Label
COLORS

Package

Single-Unit Inner Box Packaging

Ordering Code :

Datasheet

$ **/set

Common Accessories

Accessories Type

Installation accessory
