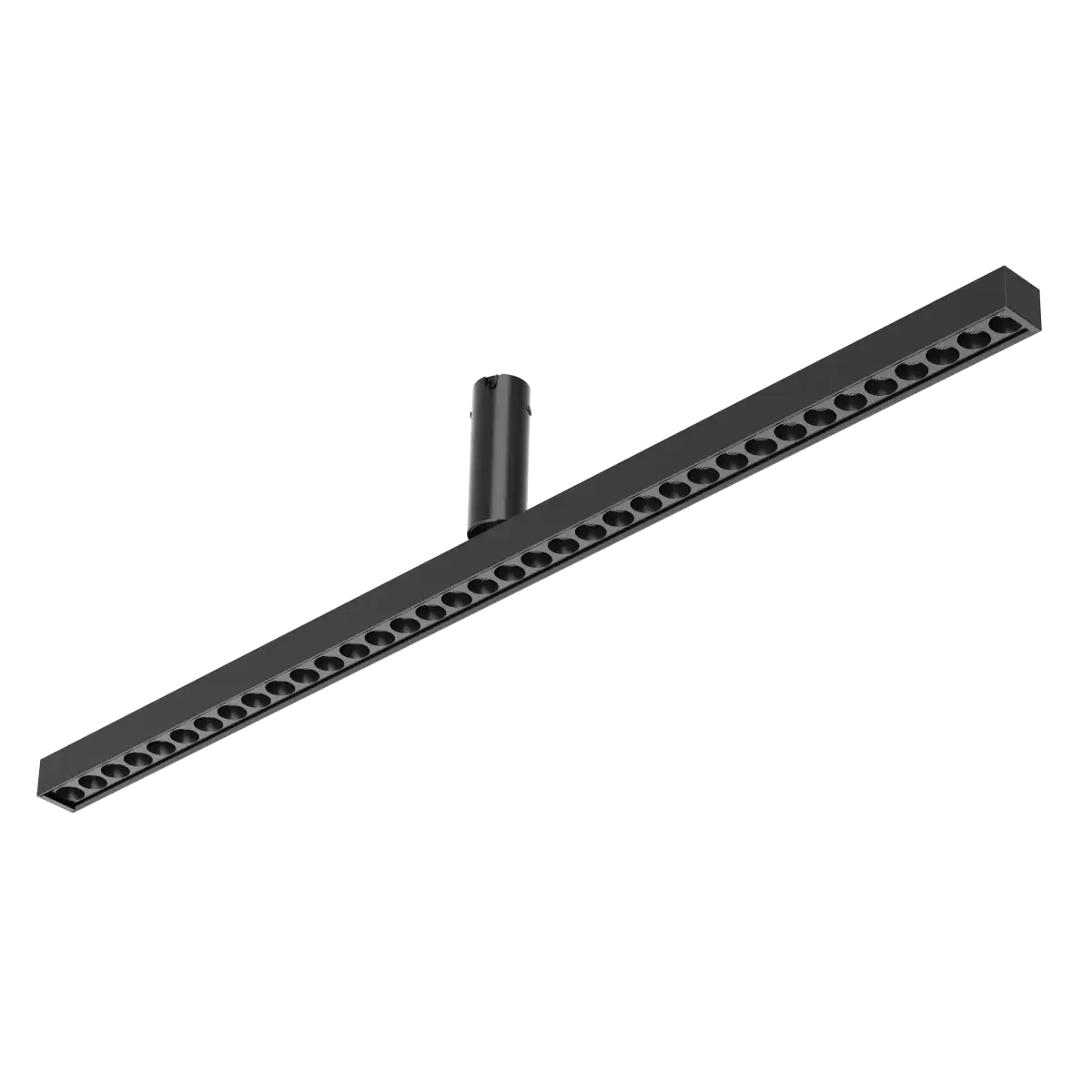

HM40G_Module(DC48V)
No Including power supply
no application accessories
Required for use with Base, Base needs to be ordered separately
- EN
BASIC CONFIGURATION
Features
·Installation: Ceiling
·Material: AL6063-T5
·Coating: Black
·Dimming method: Non/DALI-2/CASAMBI
·Input voltage: DC48V
·SDCM: <3 Step (ANSI)
·CRI: 90
·CCT: 2700/3000/4000K optional
·Beam angle: 30°/55°
·Application: Indoor
·IP grade: IP20
·Warranty: 5 years
·Certification: CE、UKCA、ETL、ROHS、Reach
·Material: AL6063-T5
·Coating: Black
·Dimming method: Non/DALI-2/CASAMBI
·Input voltage: DC48V
·SDCM: <3 Step (ANSI)
·CRI: 90
·CCT: 2700/3000/4000K optional
·Beam angle: 30°/55°
·Application: Indoor
·IP grade: IP20
·Warranty: 5 years
·Certification: CE、UKCA、ETL、ROHS、Reach
HM40G
Reset selected
Length
650mm
1300mm
Dimming Method
Non-Dimming
DALI Dimming
Diffuser Nature
Grating 55°
Grating 30°
Color
Black
Input Voltage
DC48V
Typ.power
26W
13W
CCT
2700K
3000K
4000K
CRI
>90
Label Type
Customized Label
COLORS
Qty
$ ** /SET
Ordering Code:
-9B
