BASIC CONFIGURATION

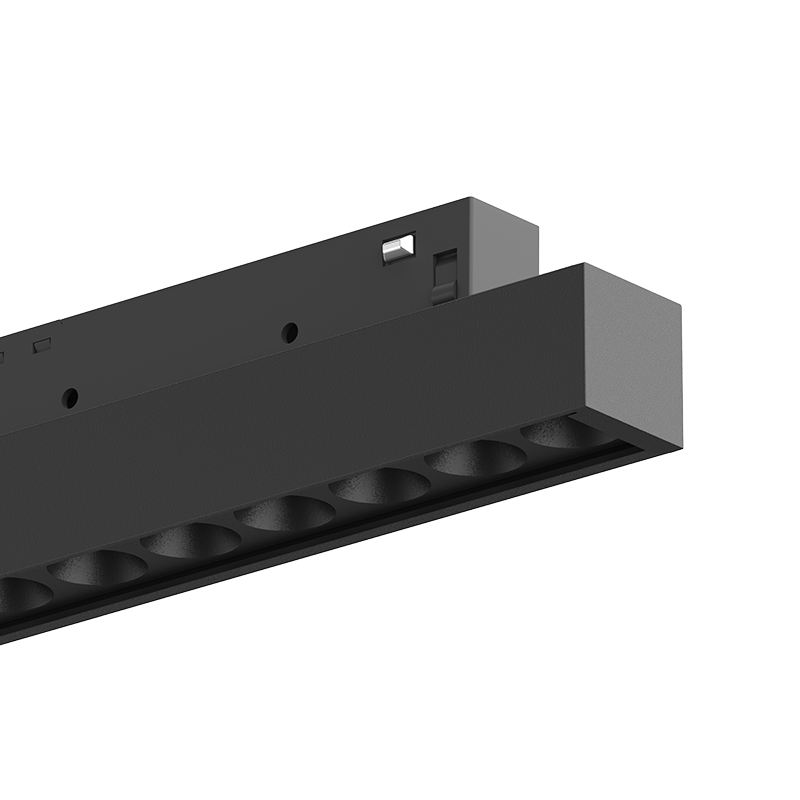

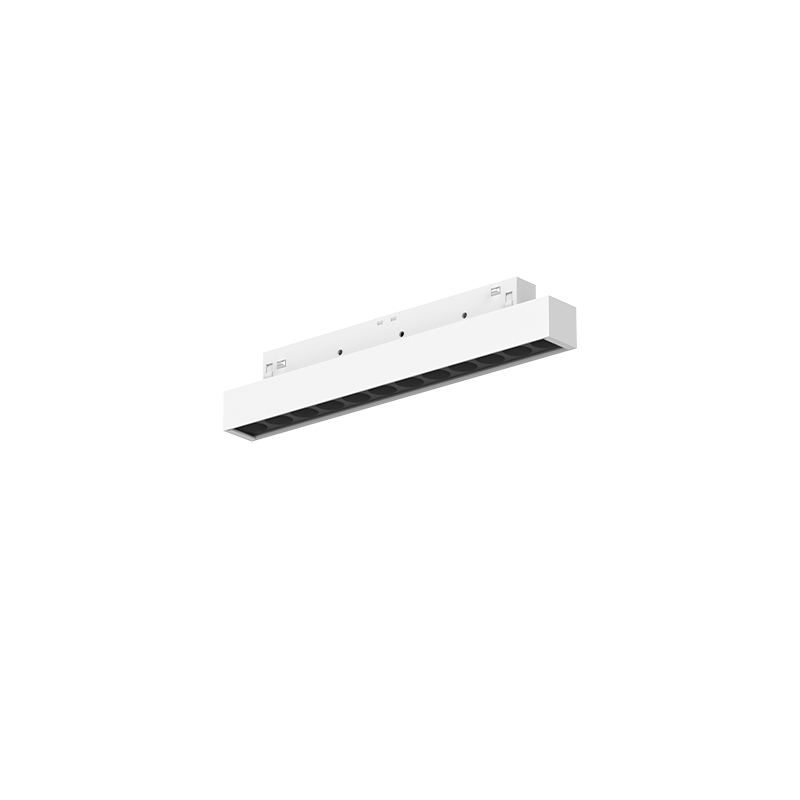

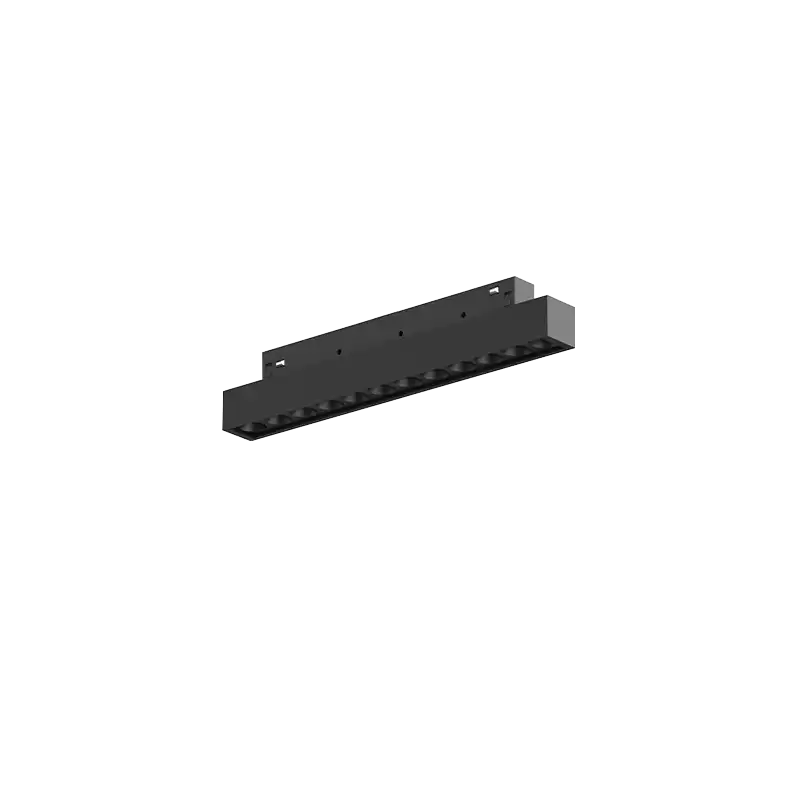

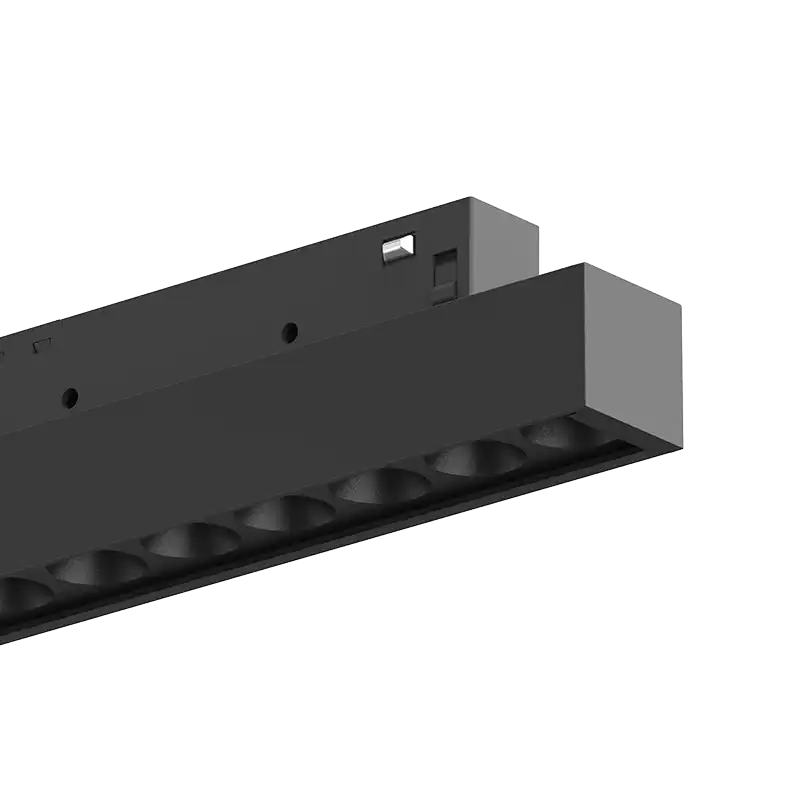

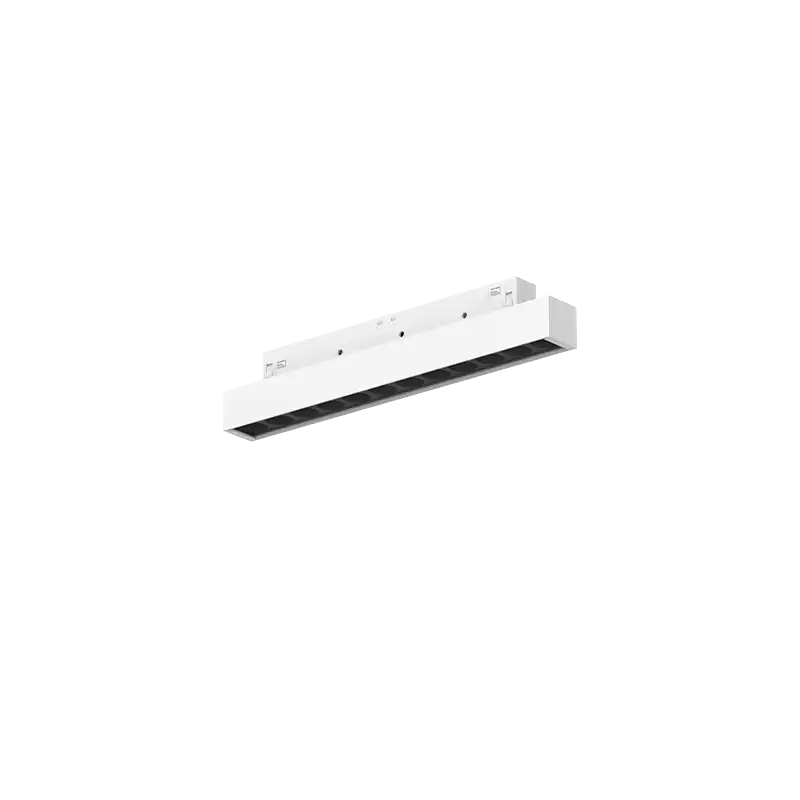

MT20G_Module
Required track installation
Including electrical conector

Features

· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)/White (RAL9003)

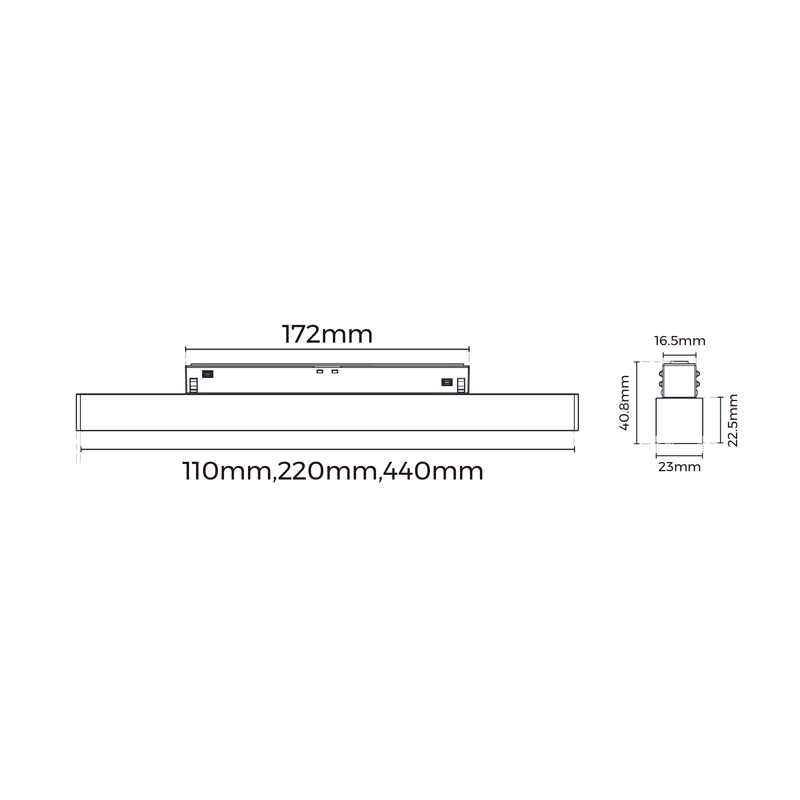

· Length: 110mm,220mm,440mm optional
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step(ANSI)
· Beam angle: 30°,55°
· Light efficiency: 73LM/W,68LM/W
· Input voltage: DC24-48V,DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20G

Track Lights > Low-voltage > MagTrack 20 > Linear module

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

CRI

  • >90

Beam Angle

  • Grating 30°

  • Grating 55°

Typ.power

  • 6W

  • 12W

  • 24W

Label Type

  • COLORS

  • Customized Label

Color

  • White

  • Black

Cover Color

  • Black

Length

  • 110mm

  • 220mm

  • 440mm

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage

  • DC48V

  • DC24-48V

User Manual

  • EN

Ordering Code:

90B

Qty

$ ** /SET

Ordering Code:

90B
