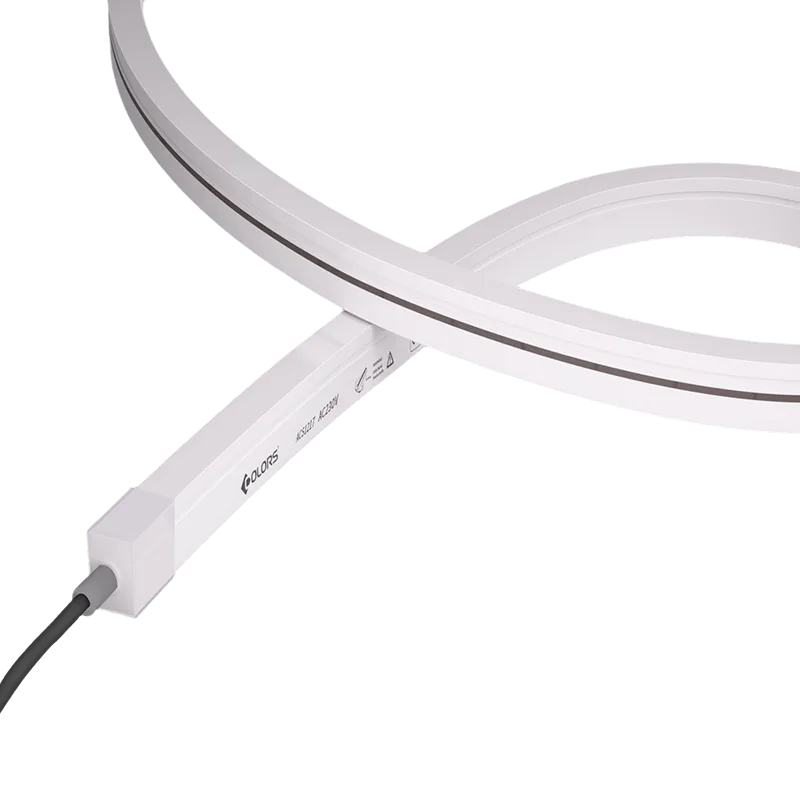

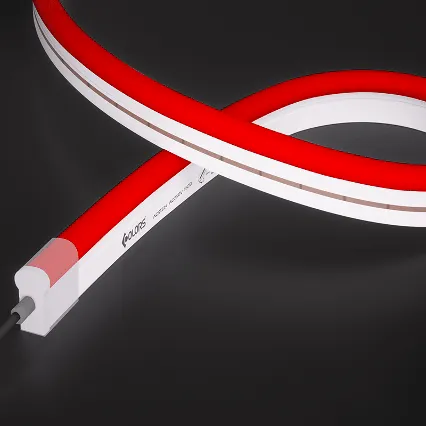

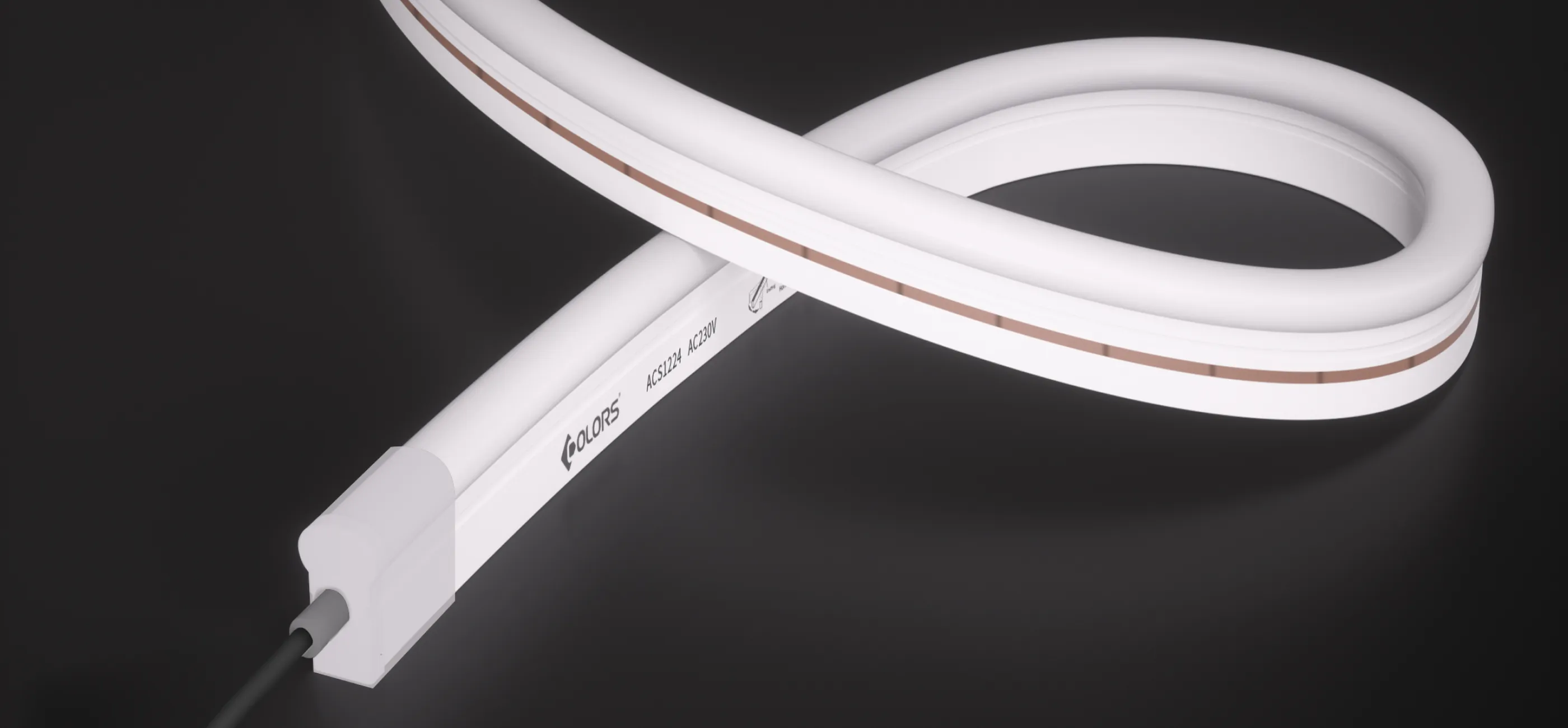

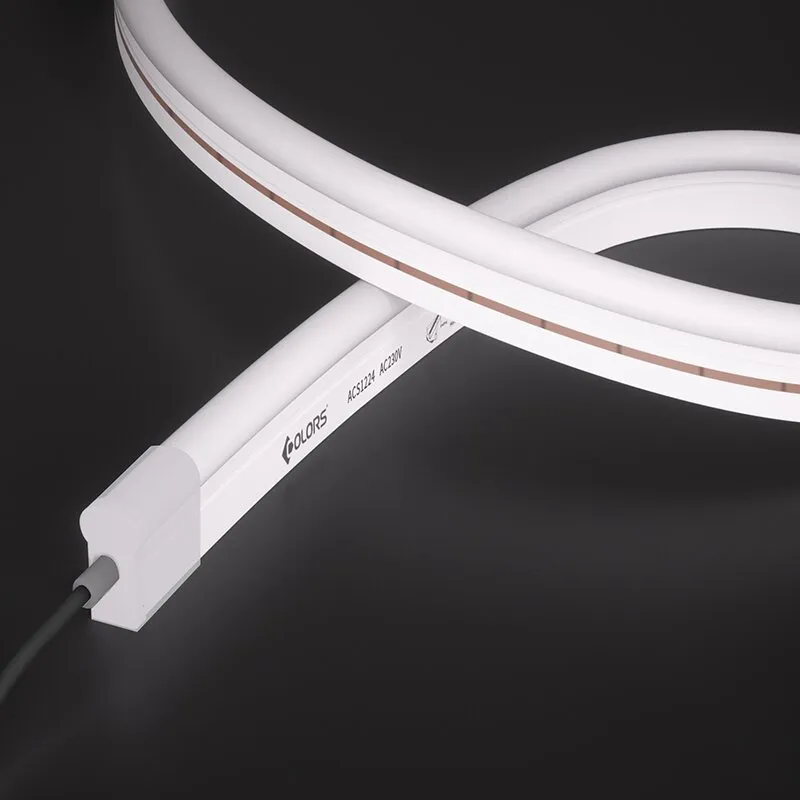

ACS1224
Discover AC Series- AC 230V input
- 5-year warranty
- Lengths up to 50m
- ErP, flicker free
Key Features
Driver-free installation is more convenient
AC230V input, directly connected to the mains
Saves time & effort, worry-free & cost-effective
No wiring required, reducing installation steps, and improving efficiency.

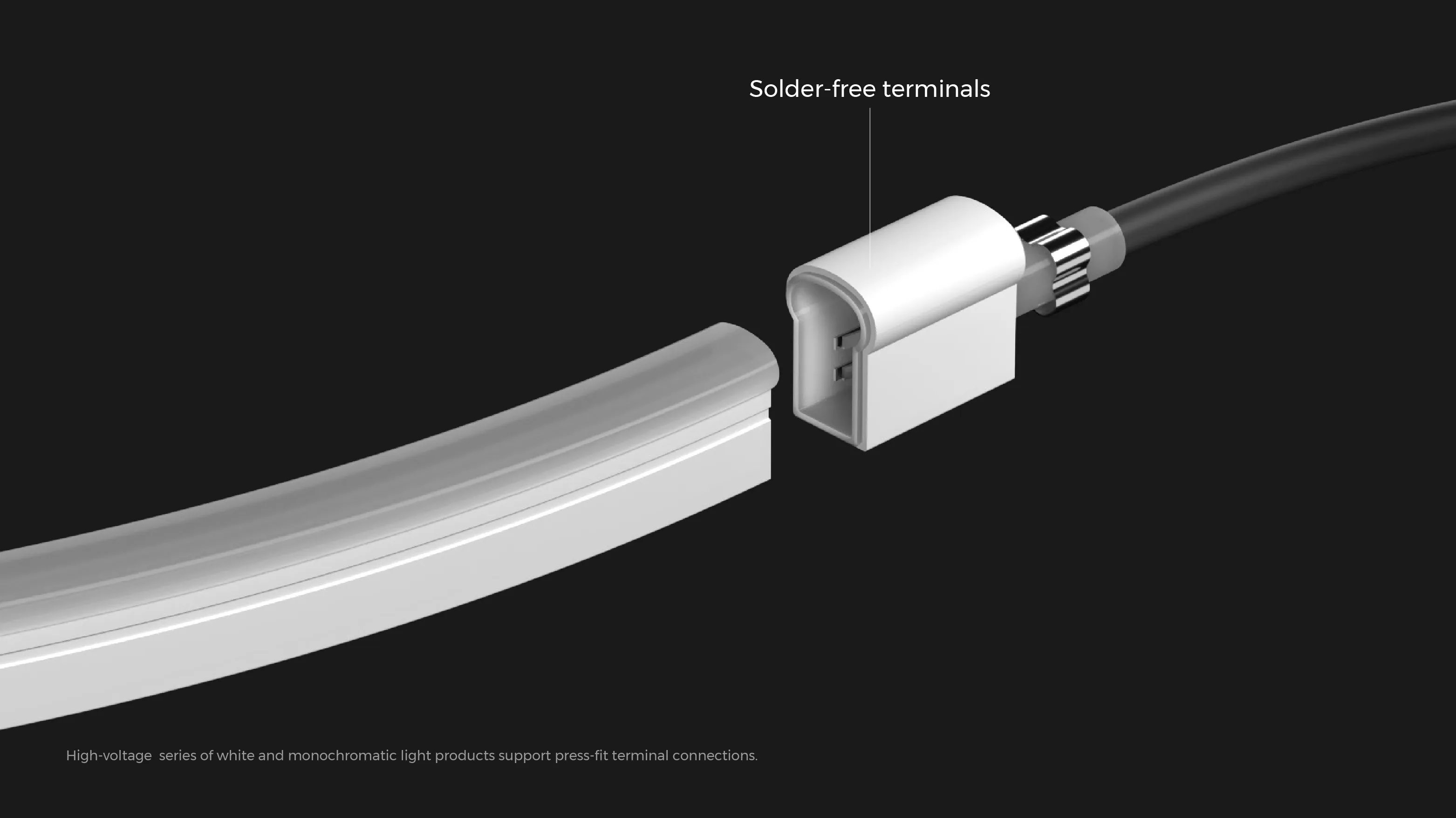

Solder-free quick-connect terminals for easy secondary processing
It can be cut to desired size and quickly installed with solder-free terminals.
Lightning resistance* Withstands 2kV Lightning surge
It can withstand a 2kV lightning surge when used with an SPD lightning

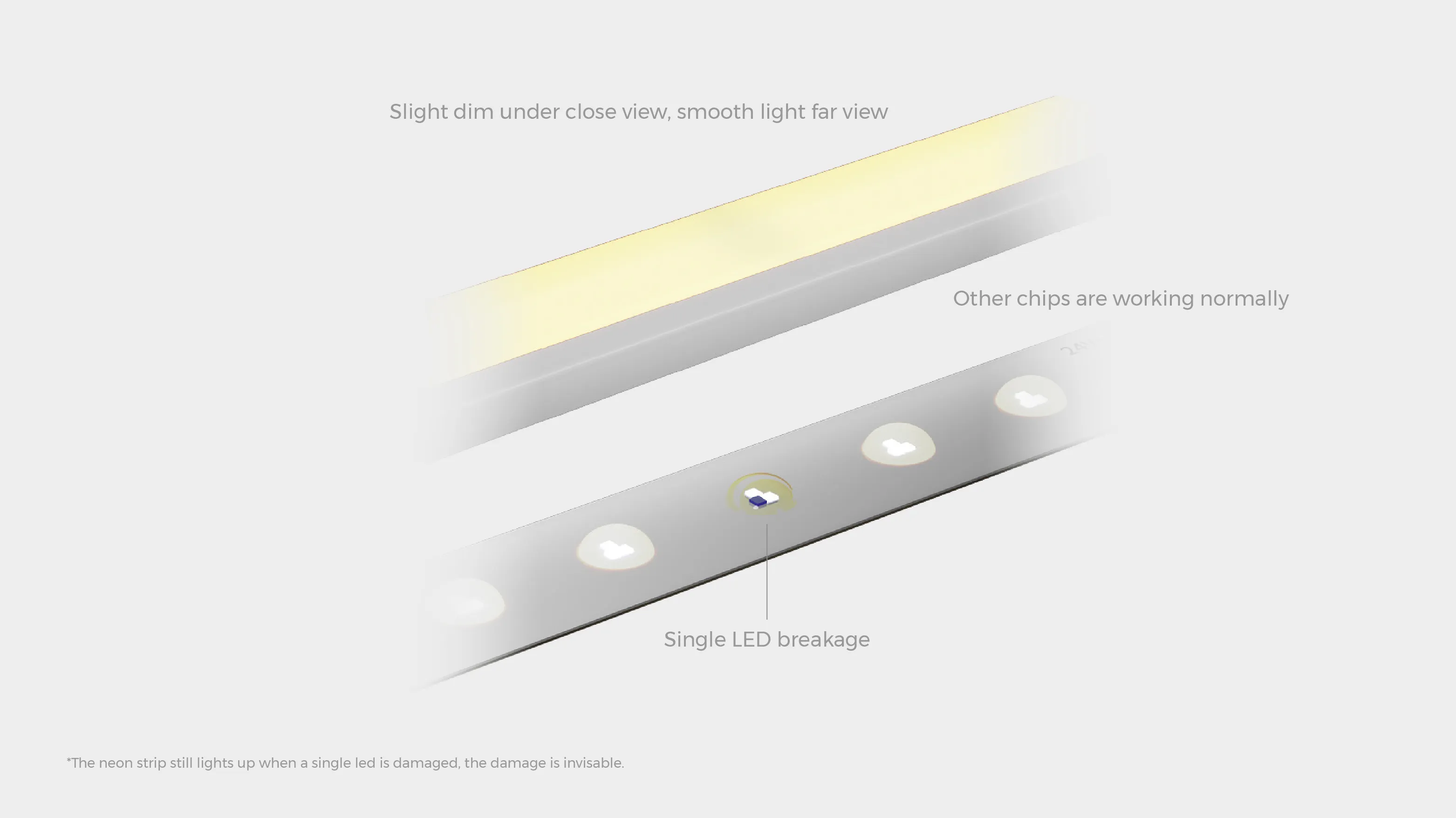

Ultra-high structural strength Special chips design, worry free about the dead-leds*
Parallel design of the smallest lighting unit,
single LED failure does not affect normal illumination.
Innovative structure, Anti-twist high reliability
Built in anti-tensile PC line
Twisting test : 5000 times* & Tensile Test ≥ 650N
Trouble-free installation
Unique structure design for more uniform light distribution and better visual effects

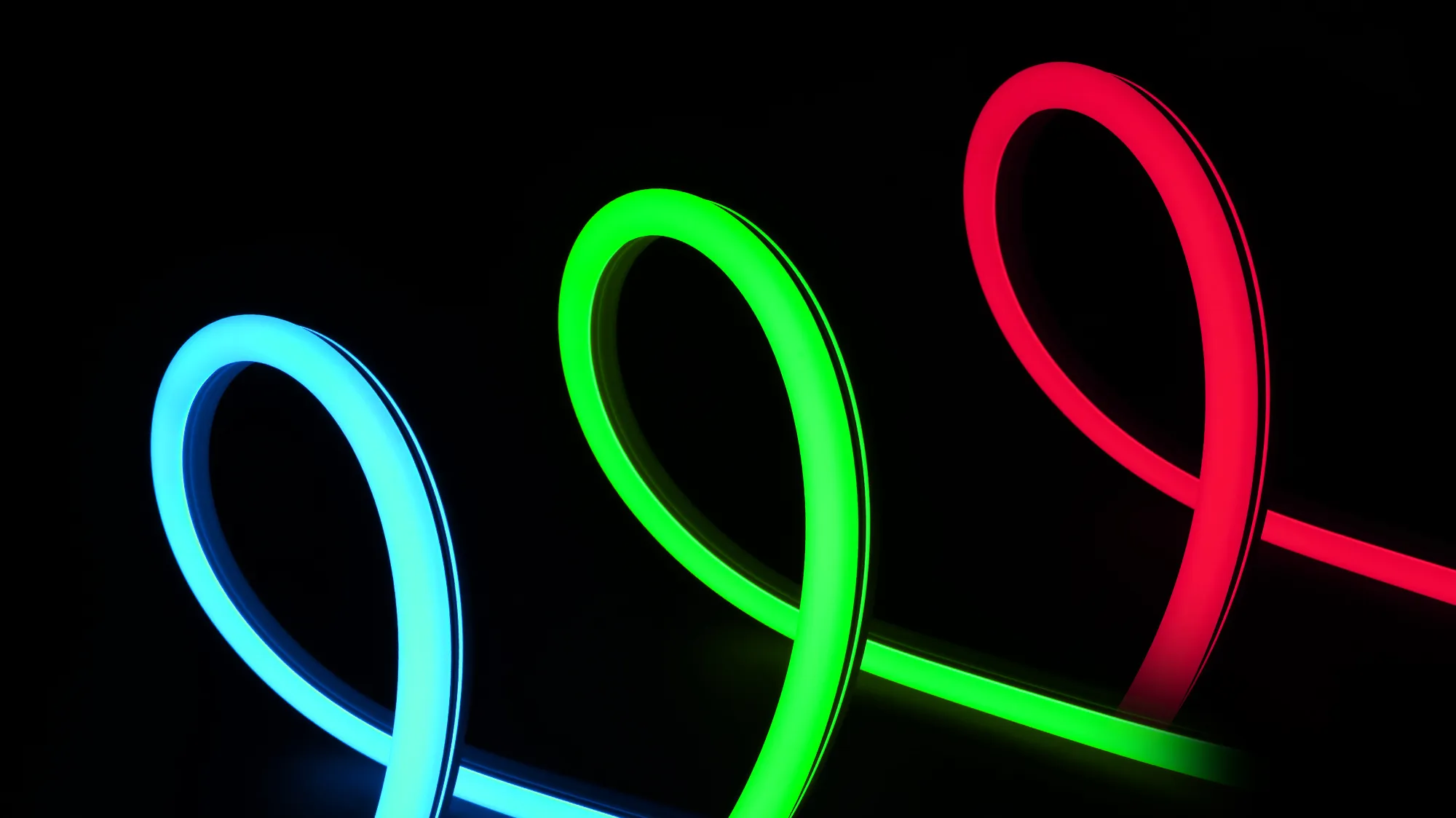

New high-voltage neon RGB lighting

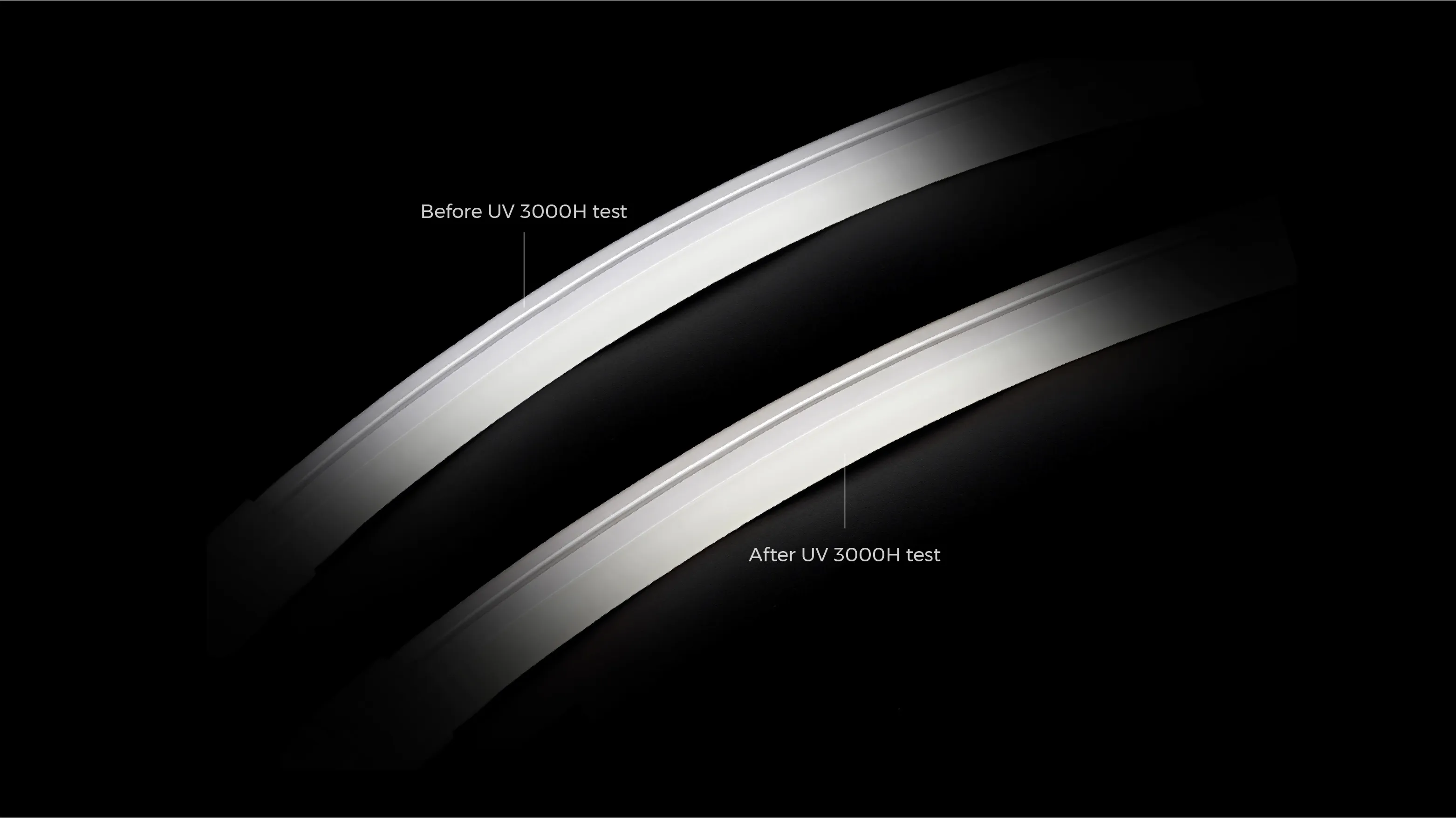

High-intensity UV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.

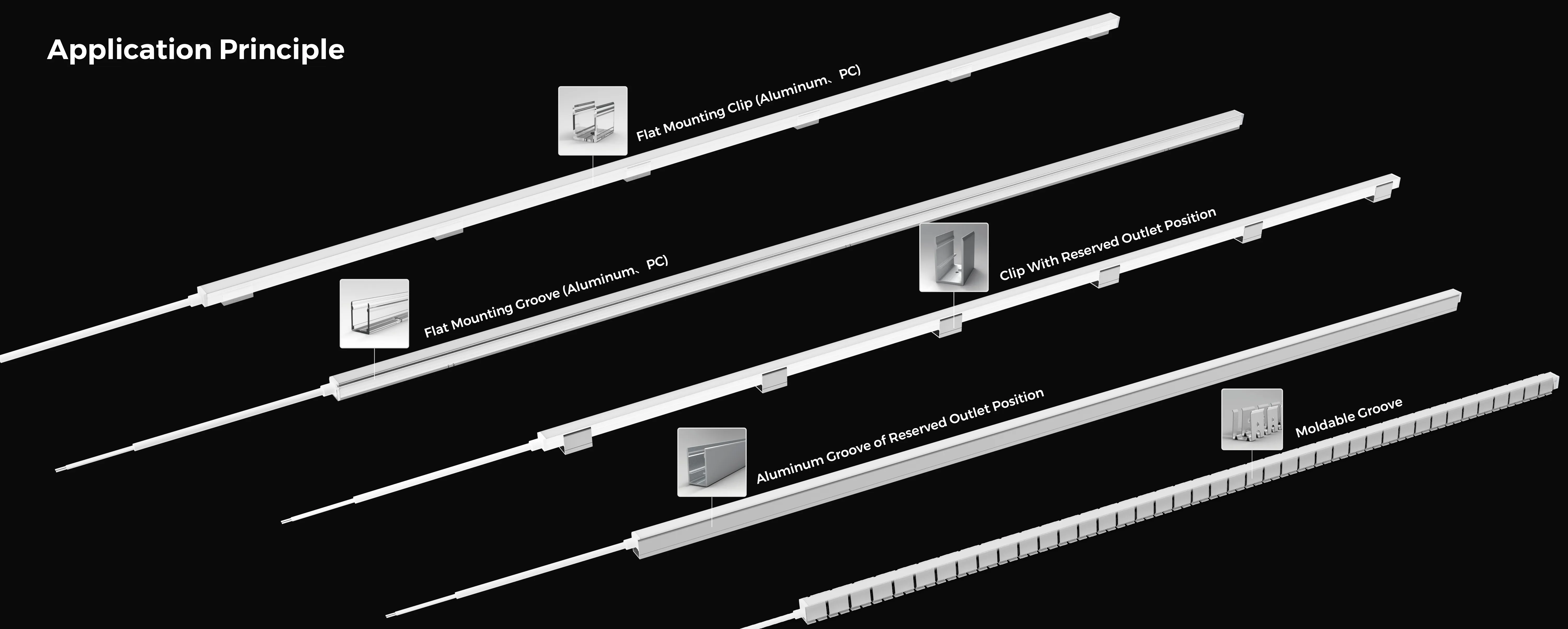

Application Principle

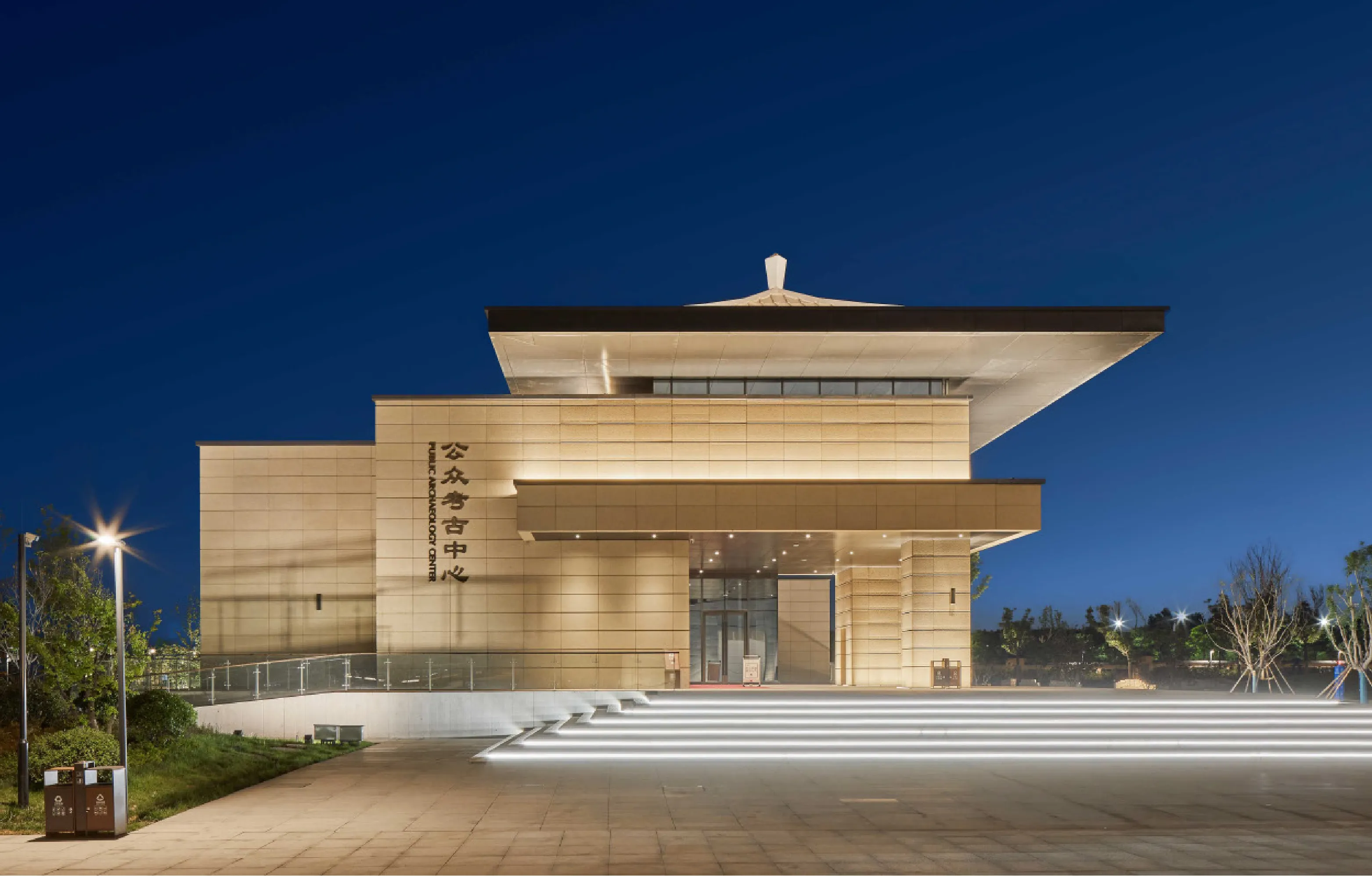

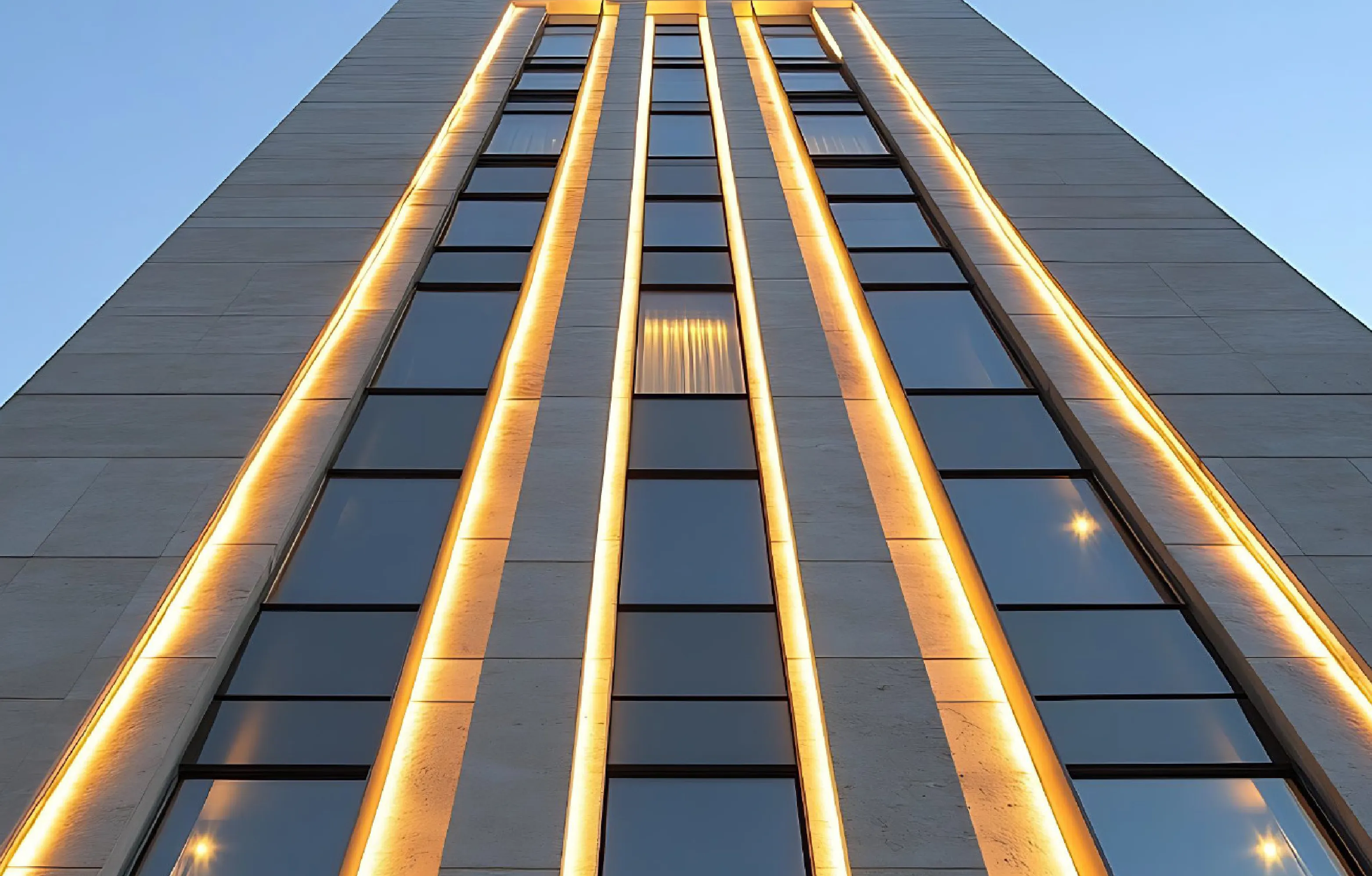

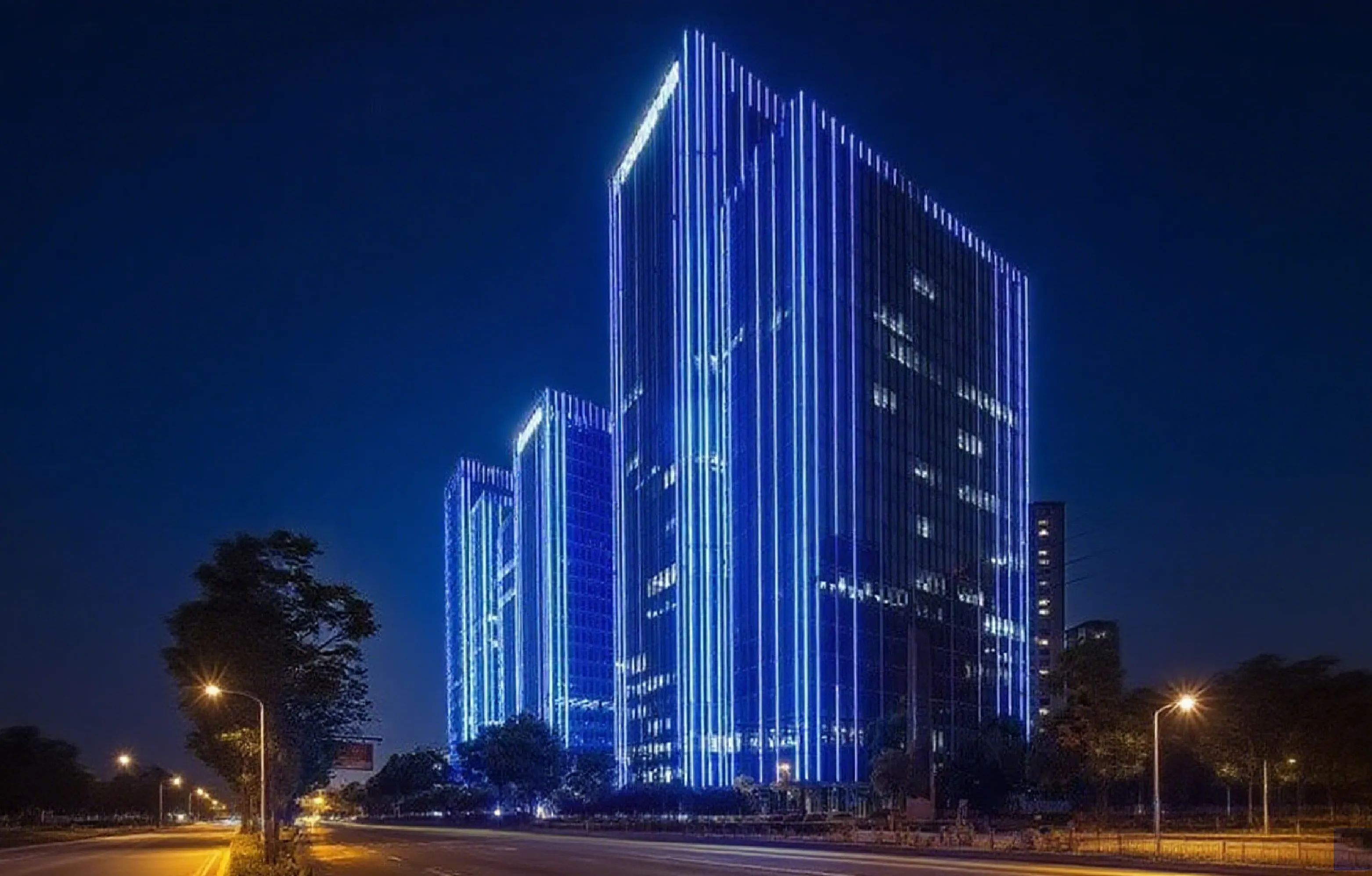

Scenario Case
Optional Model

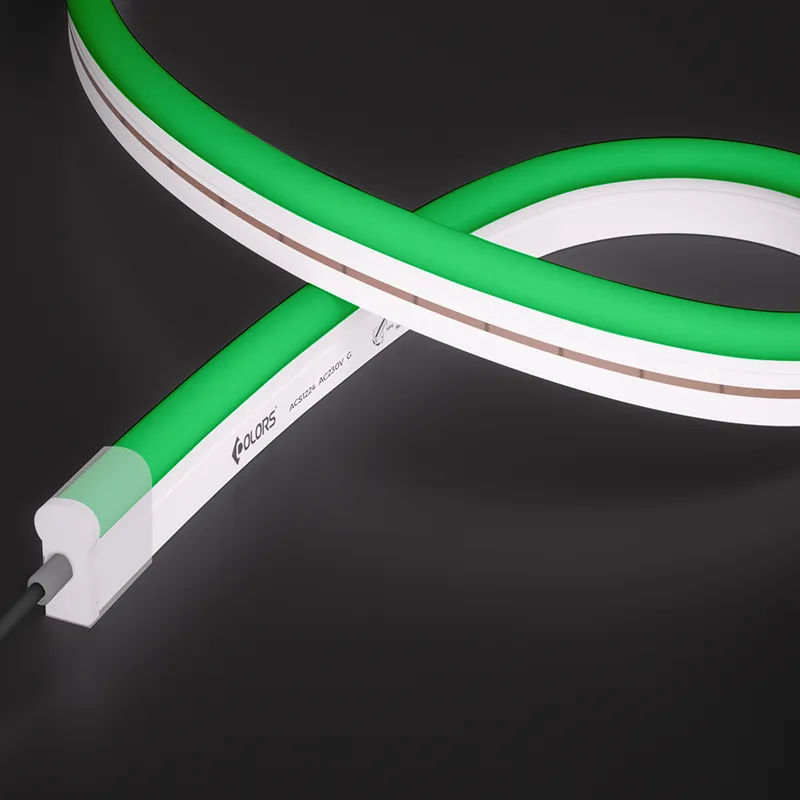

ACS1224-Color light-230V
ACS1224-RGB-230V
ACS1224-White light-230V
ACS1224-Color light-230V
Basic parameter
IP Process
IP65
Warranty
5 Years
Cutting Unit
500 mm
Leds Qty
336LEDs/m
Typ.power
10W/M
CCT/colors
Color range
CRI
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
Accessories Type
Installation accessory

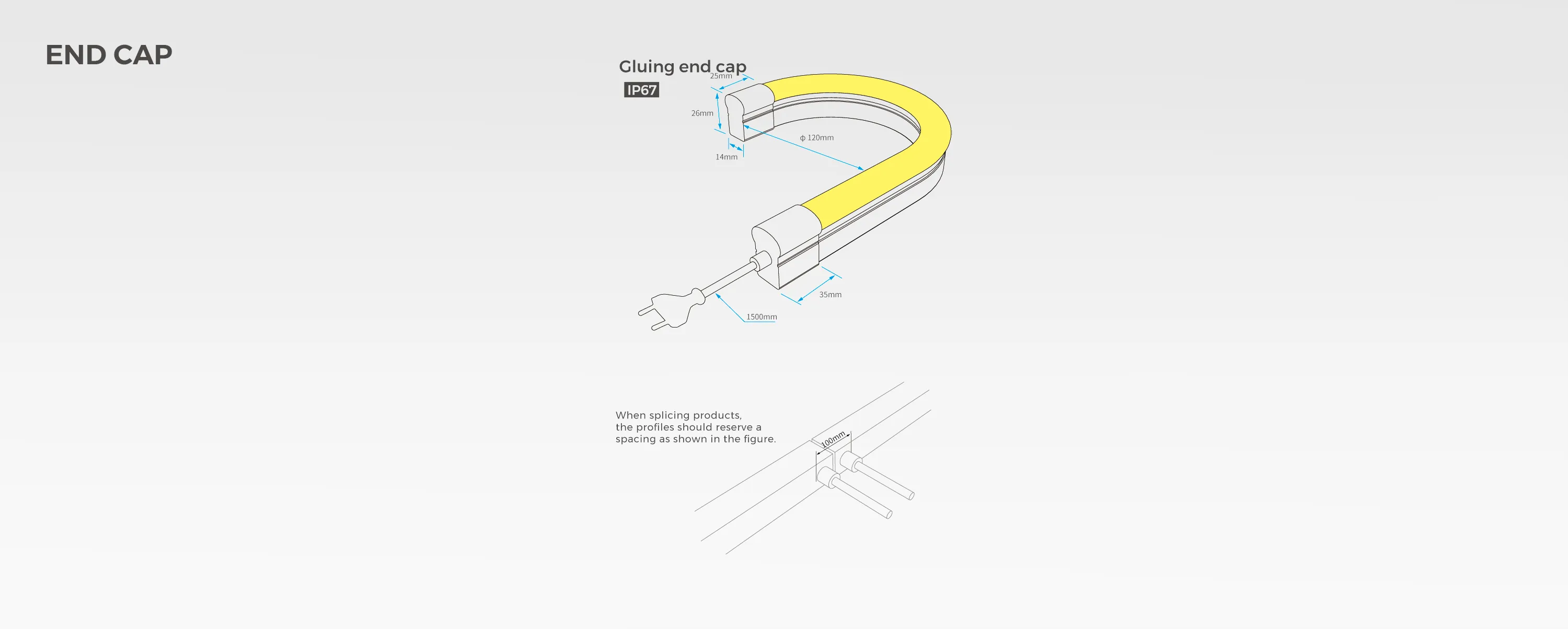

End cap accessory
Size
Name
Model
Description
Quantity
Application
AS-ACS1224GH0-EC
AS-ACS1224GH0-EC

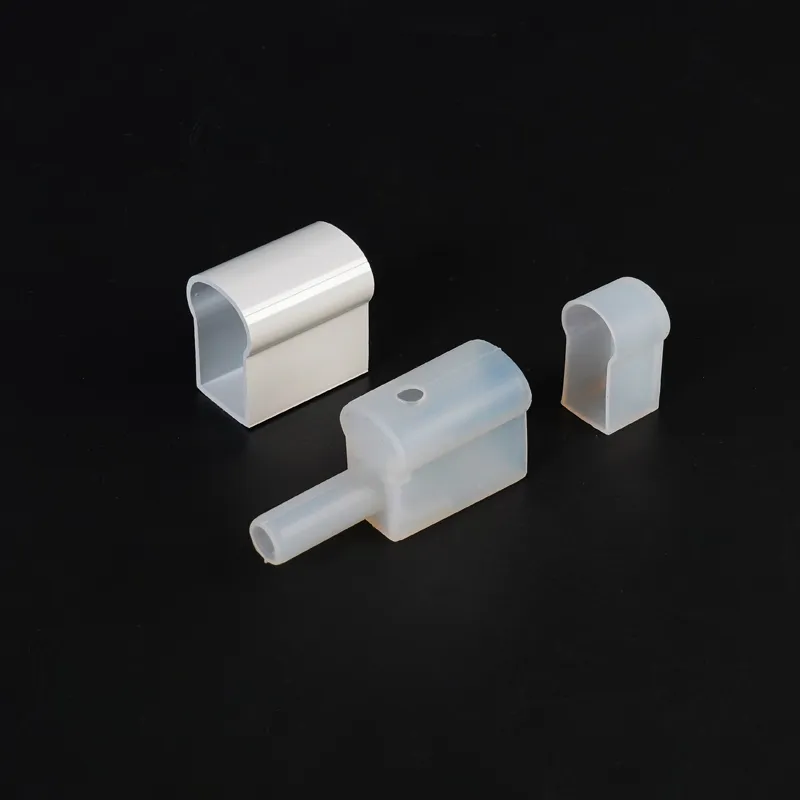

Product Name：AS-ACS1224GH0-EC，ACS1224 Straight Outlet Plug
Installation: glue
Appearance color: transparent
Size: L57mm*W18.4mm*H27.16mm
Quantity: 1PCS/ set
Recommended quantity: 1PCS/set
Applicable models: ACS1224 white light
Installation: glue
Appearance color: transparent
Size: L57mm*W18.4mm*H27.16mm
Quantity: 1PCS/ set
Recommended quantity: 1PCS/set
Applicable models: ACS1224 white light

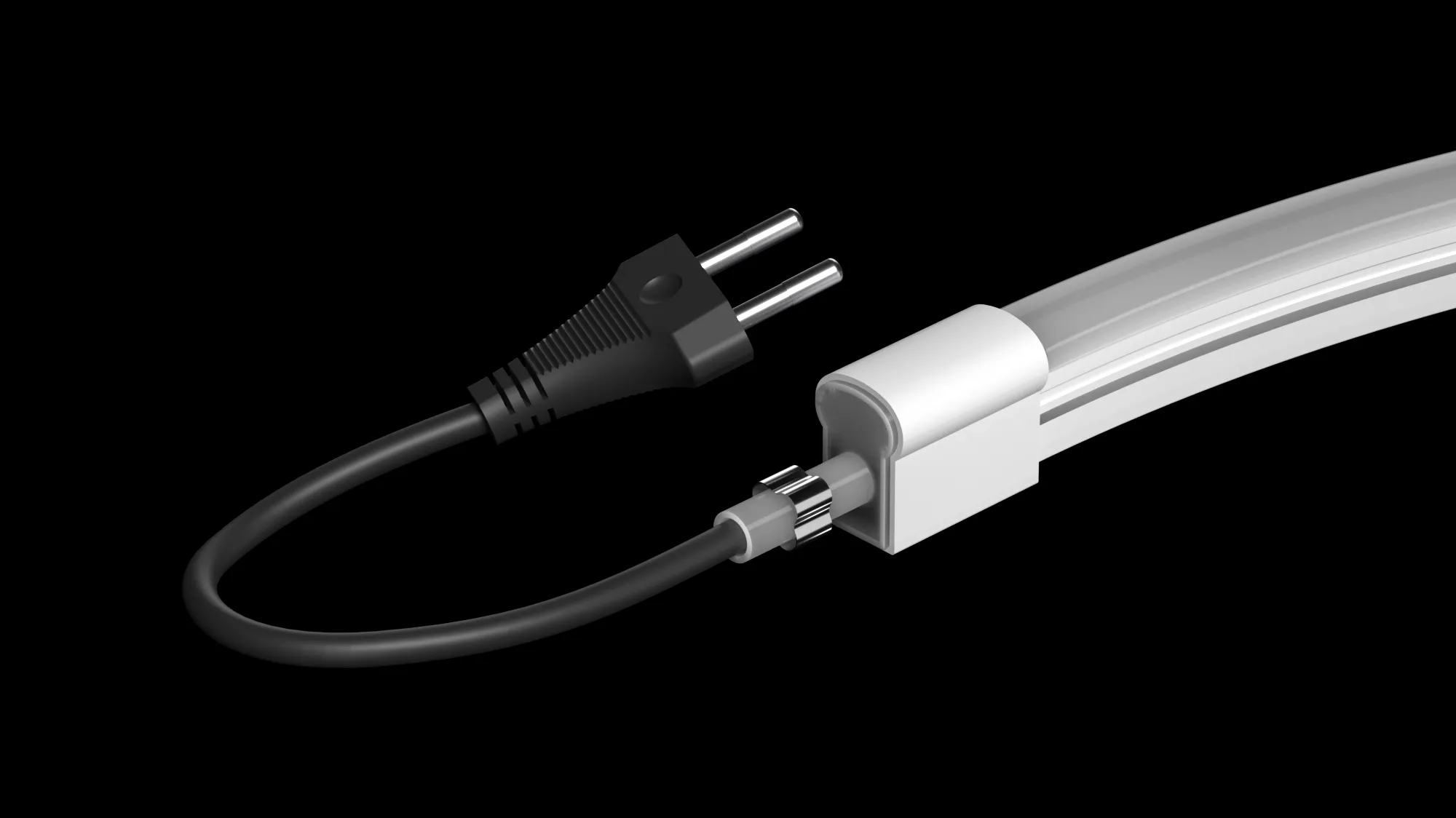

AS-ACS1224HT0-FL-2
AS-ACS1224HT0-FL-2

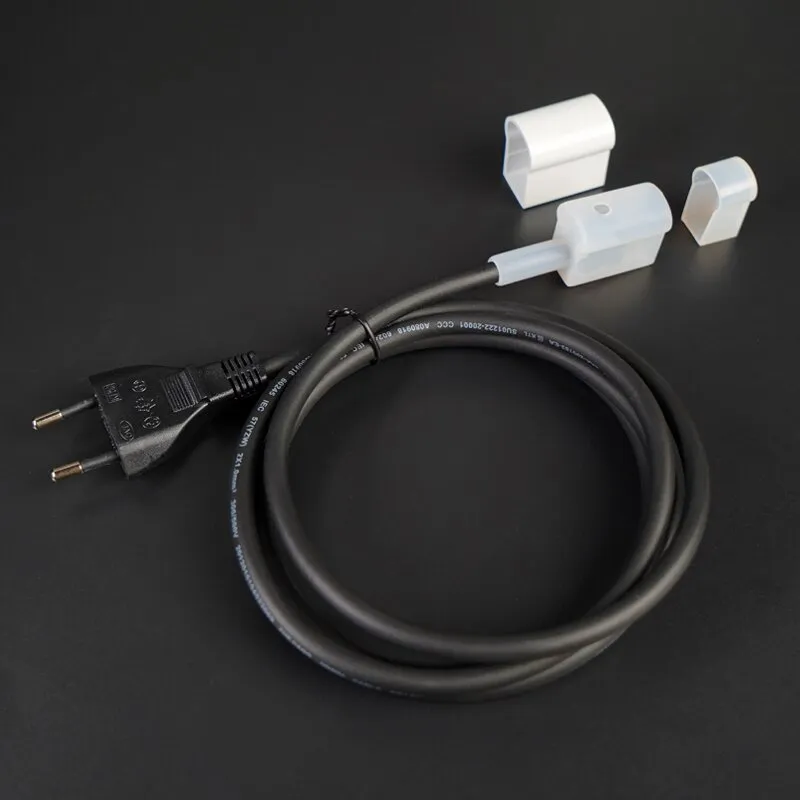

Product Name: AS-ACS1224HT0-FL-2, ACS1224 solderless connector top outlet plugs
Outlet direction: straight out
Wire length:1500mm
IP:IP65
Include: connector and plug, plug end, PC
Applicable models: ACS1224 silicone neon monochrome light
Outlet direction: straight out
Wire length:1500mm
IP:IP65
Include: connector and plug, plug end, PC
Applicable models: ACS1224 silicone neon monochrome light
AS-CX-0001
AS-CX-0001

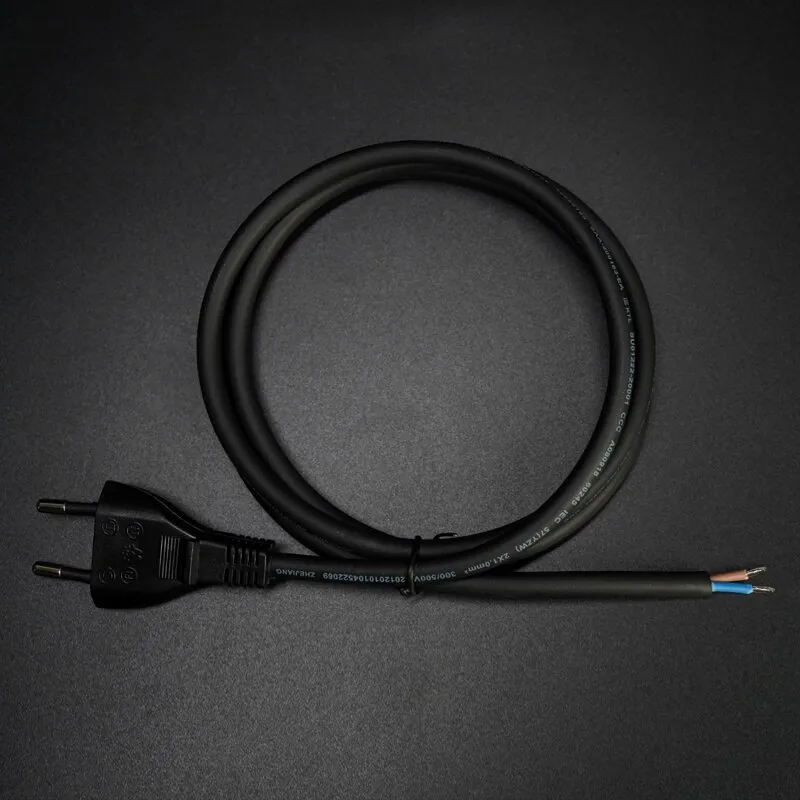

Product Name：AS-CX-0001，2P Rubber Wire
Outer diameter : φ6.8mm
Wire Length : 1500±2mm\PCS
Applicable models: ACS1224/ACS1217/ACT1312
Outer diameter : φ6.8mm
Wire Length : 1500±2mm\PCS
Applicable models: ACS1224/ACS1217/ACT1312

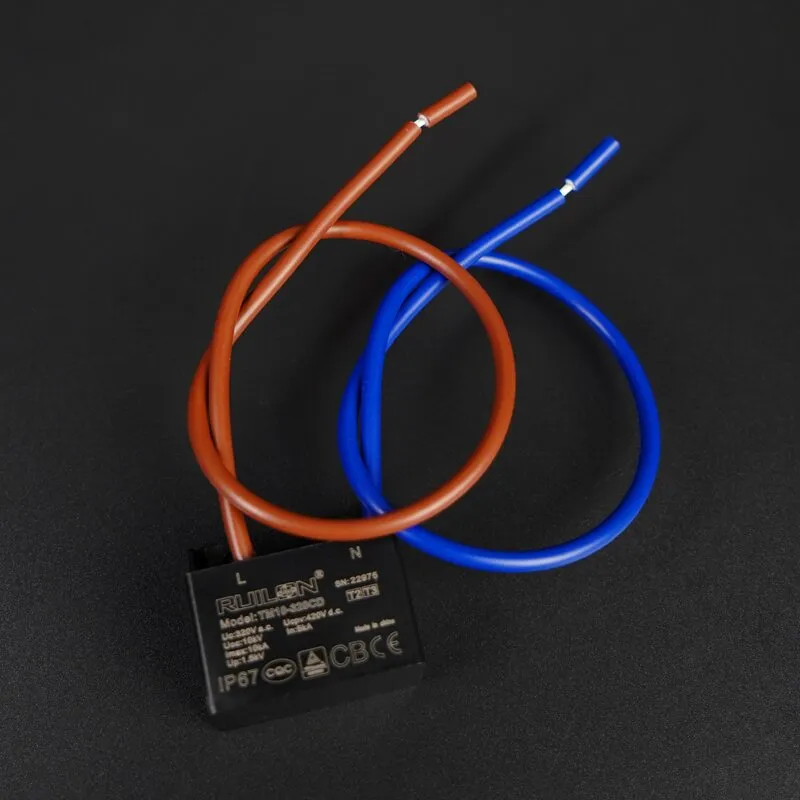

AS-FL-0001
AS-FL-0001
Product Name: AS-FL-0001(Lightning Protection Module)
Applicable Model:ACS1224/ACS1217/ACT1312
AS-NMS1217A-1000
AS-NMS1217A-1000
Product model:AS-NMS1217A-1000，NMS1217 Flat Mounting Aluminum Groove Installation method：Flat Mounting Coating：Silver Size：L1000*W14.4*H18.85 Quantity: 1PCS/ set Recommended dosage:1PCS/M Applicable product model：AFS1217/AHS1217/ANS1217/AFS1224/AHS1224/NMS1217/NNS1224
1PCS/ SET
