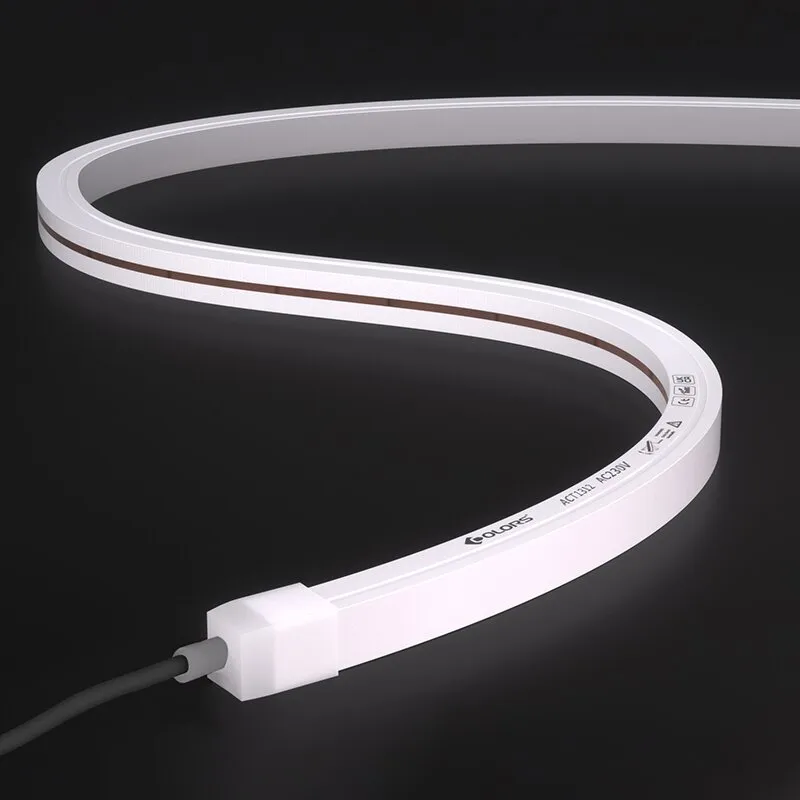

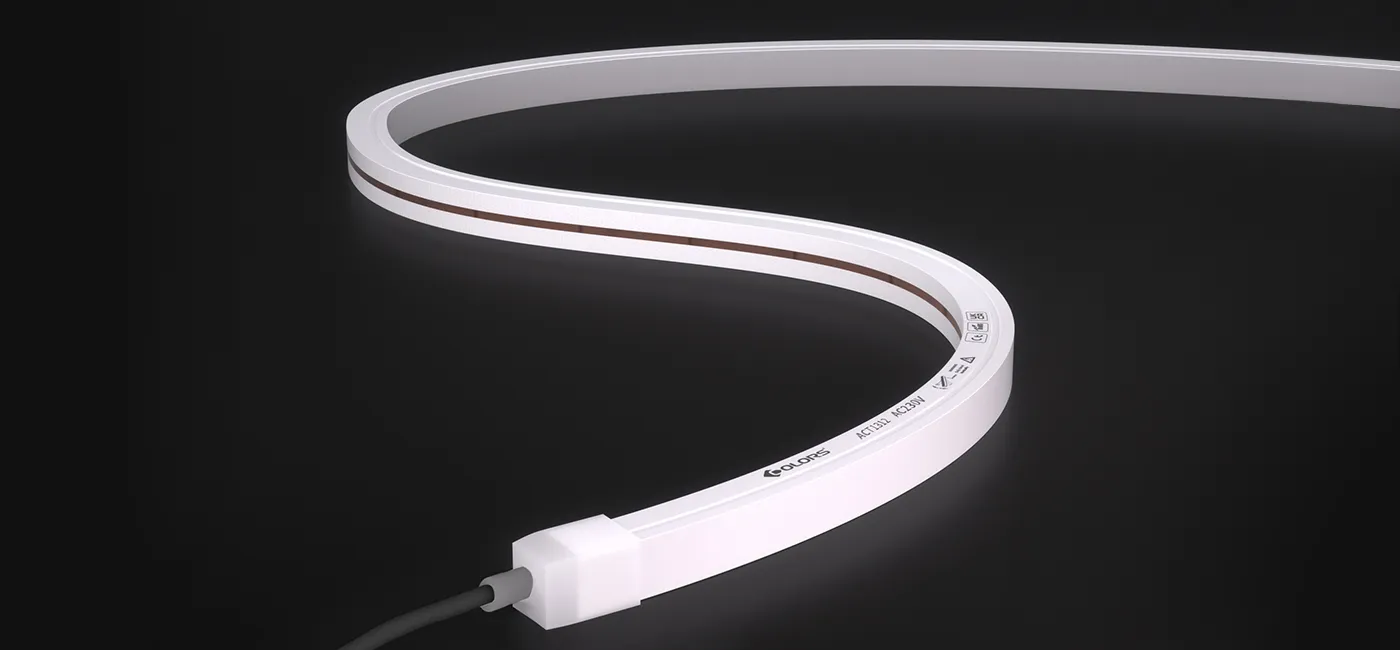

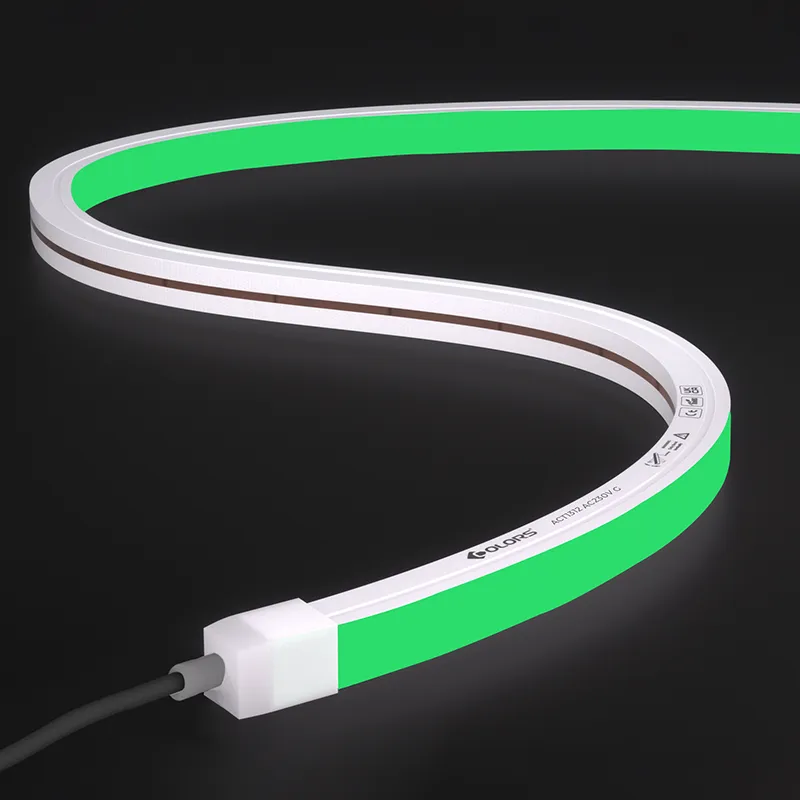

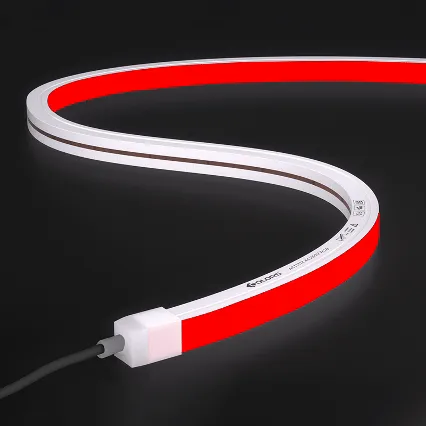

ACT1312
Discover AC Series- AC 230V input
- 5-year warranty

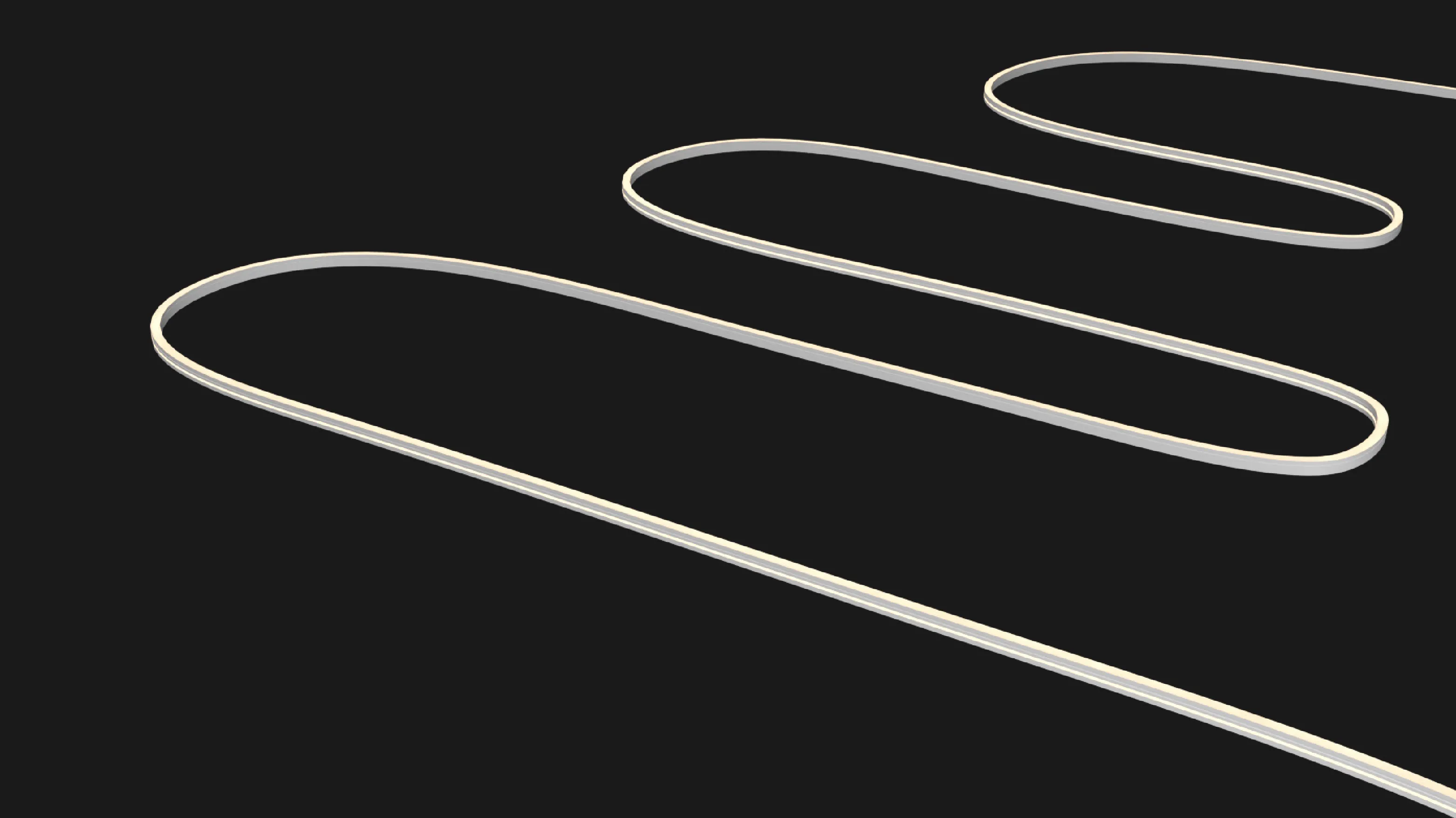

- Lengths up to 50m
- ErP, flicker free
Key Features
Driver-free installation is more convenient

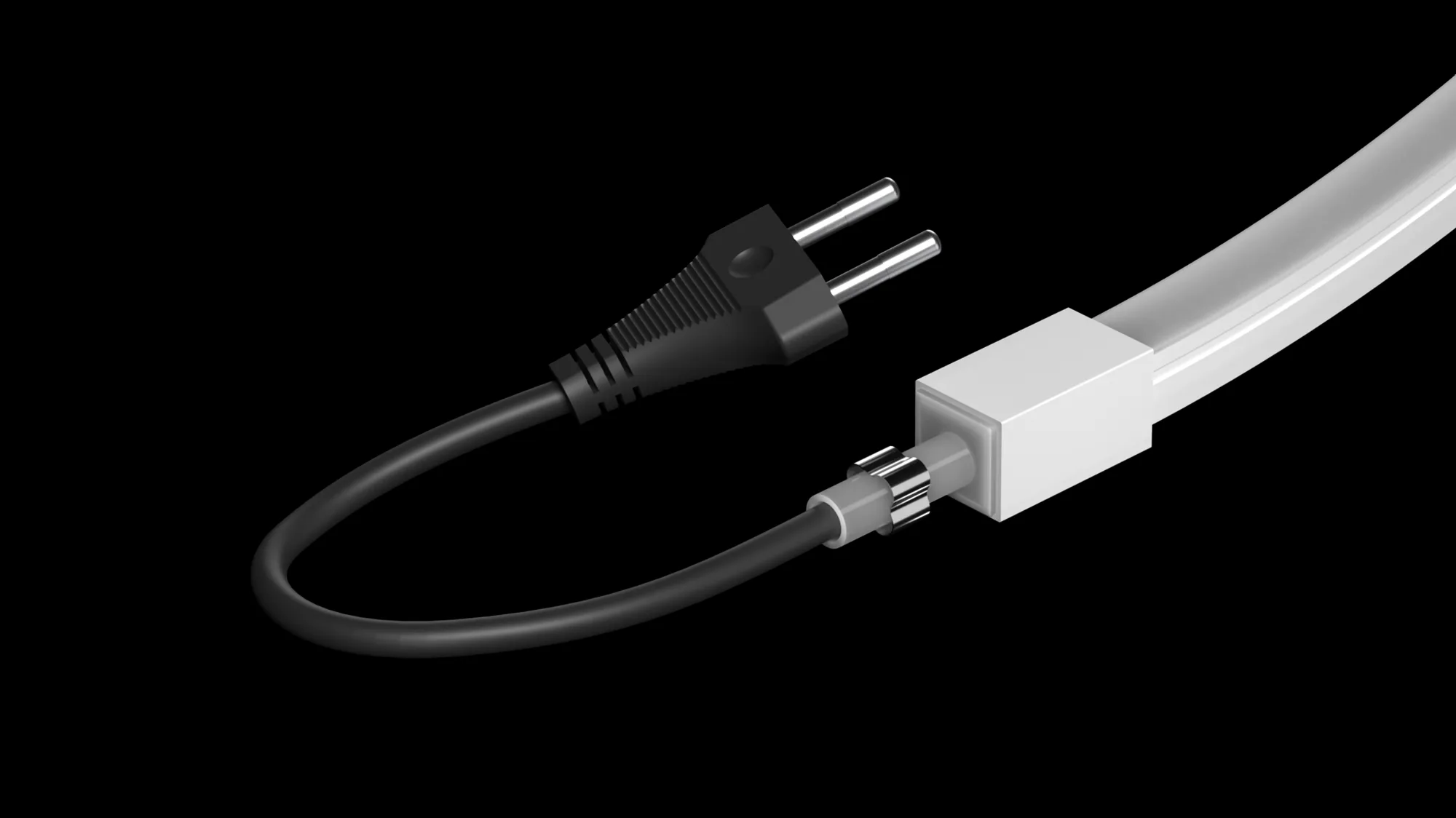

AC230V input, directly connected to the mains
Saves time & effort, worry-free & cost-effective
No wiring required, reducing installation steps, and improving efficiency.
Solder-free quick-connect terminals for easy secondary processing
It can be cut to desired size and quickly installed with solder-free terminals.

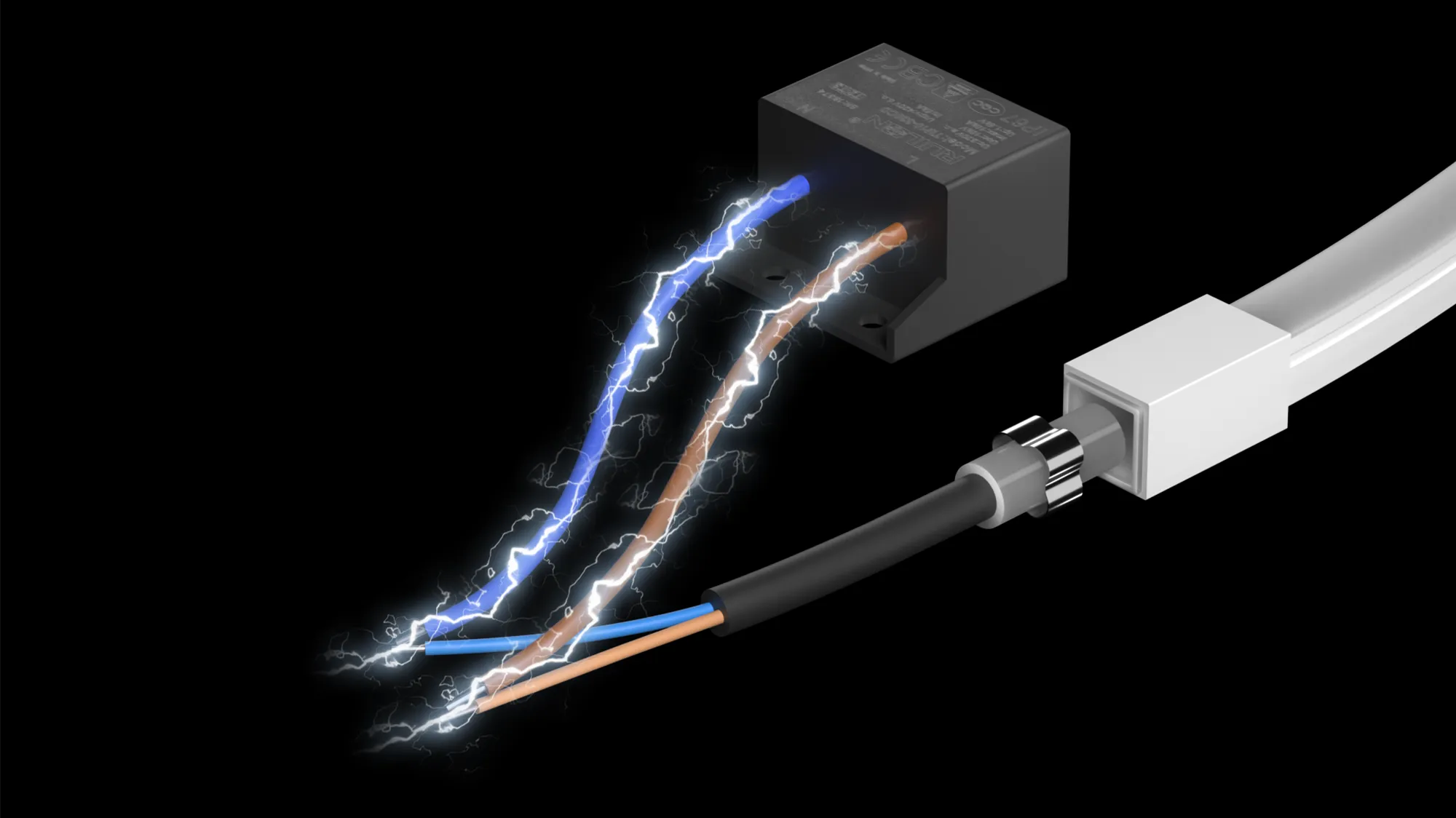

Lightning resistance* Withstands 2kV Lightning surge
It can withstand a 2kV lightning surge when used with an SPD lightning

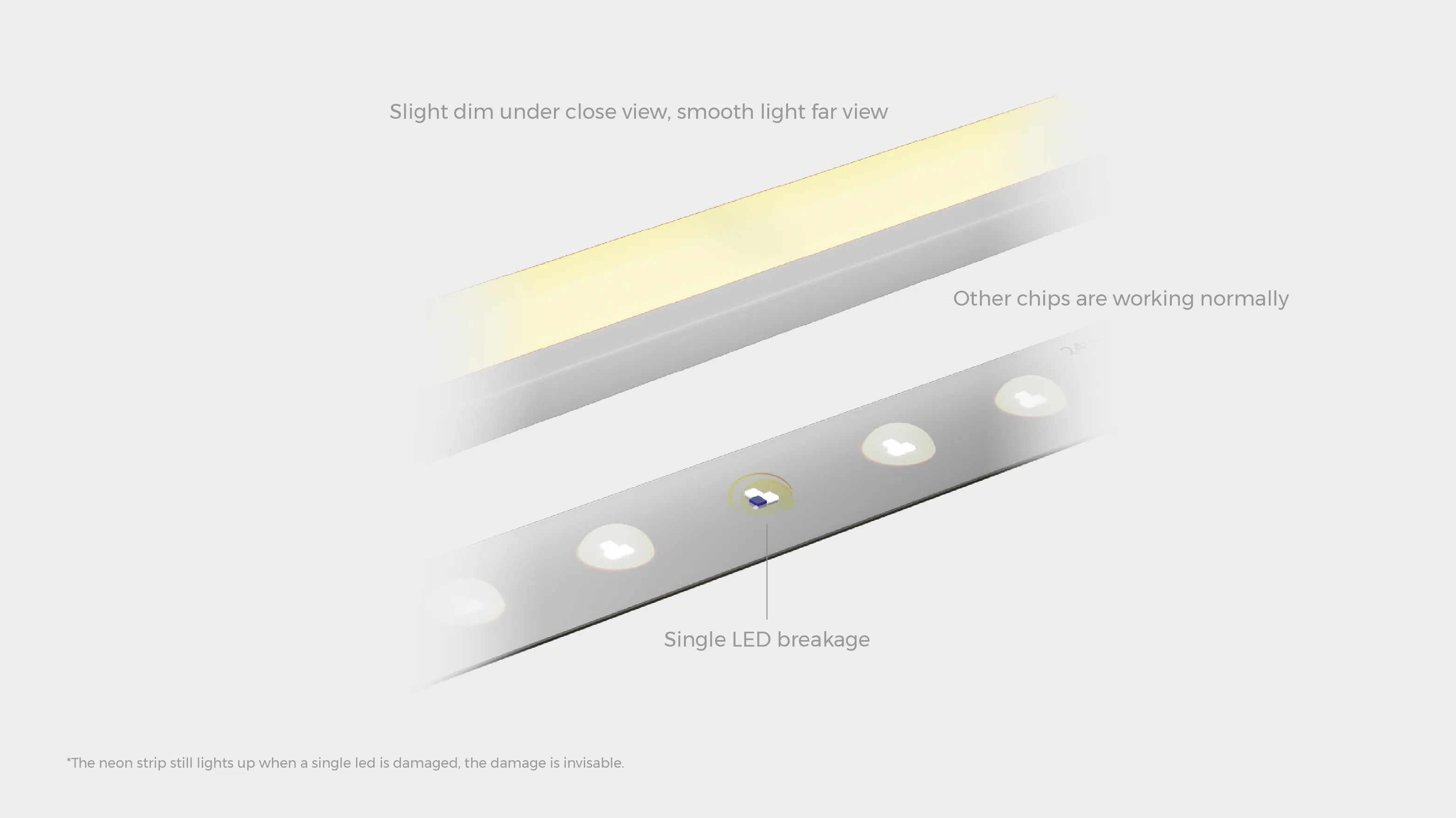

Ultra-high structural strength Special chips design, worry free about the dead-leds*
Parallel design of the smallest lighting unit,
single LED failure does not affect normal illumination.
Innovative structure, Anti-twist high reliability
Built in anti-tensile PC line
Twisting test : 5000 times* & Tensile Test ≥ 650N
Trouble-free installation

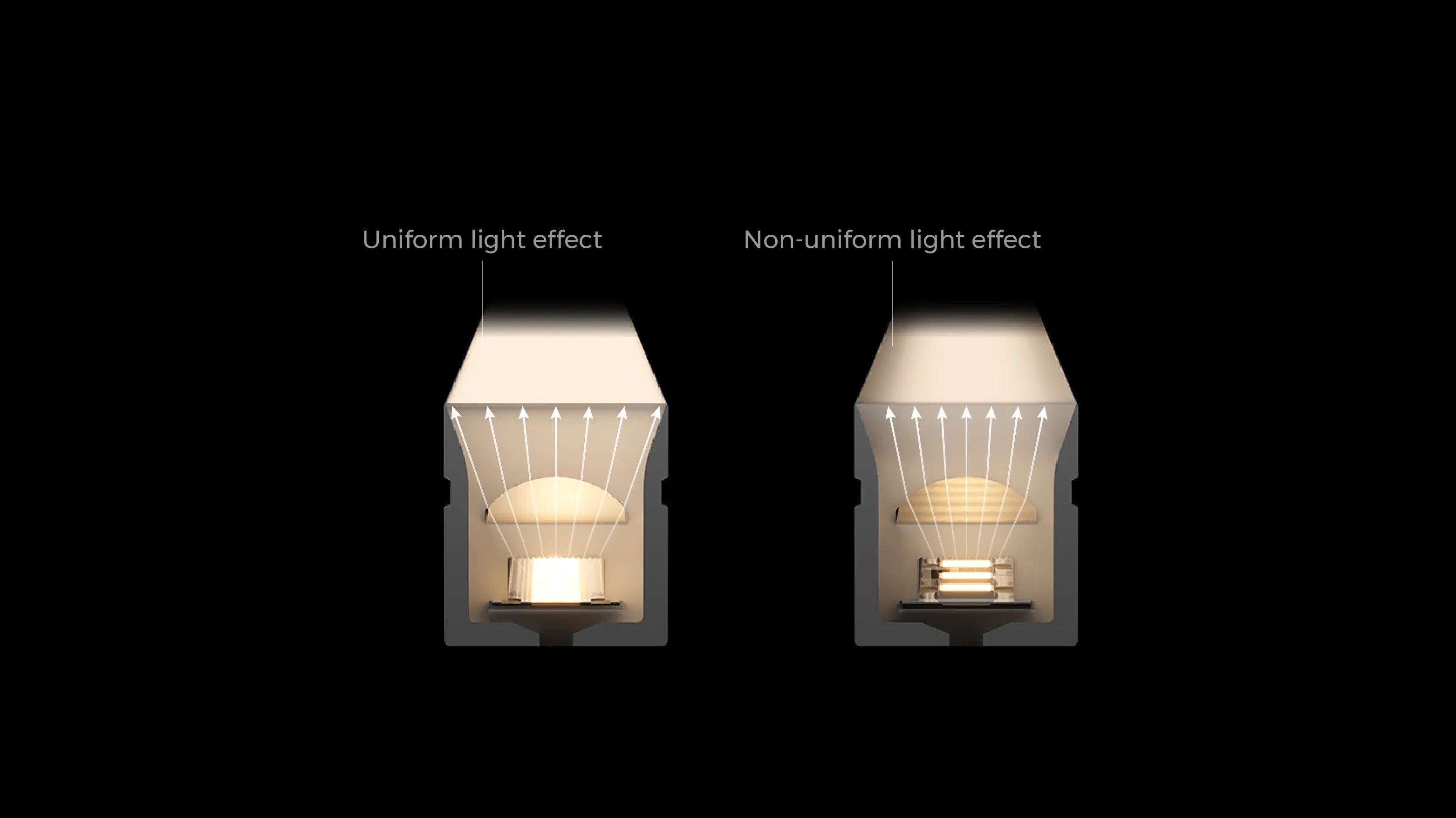

Unique structure design for more uniform light distribution and better visual effects

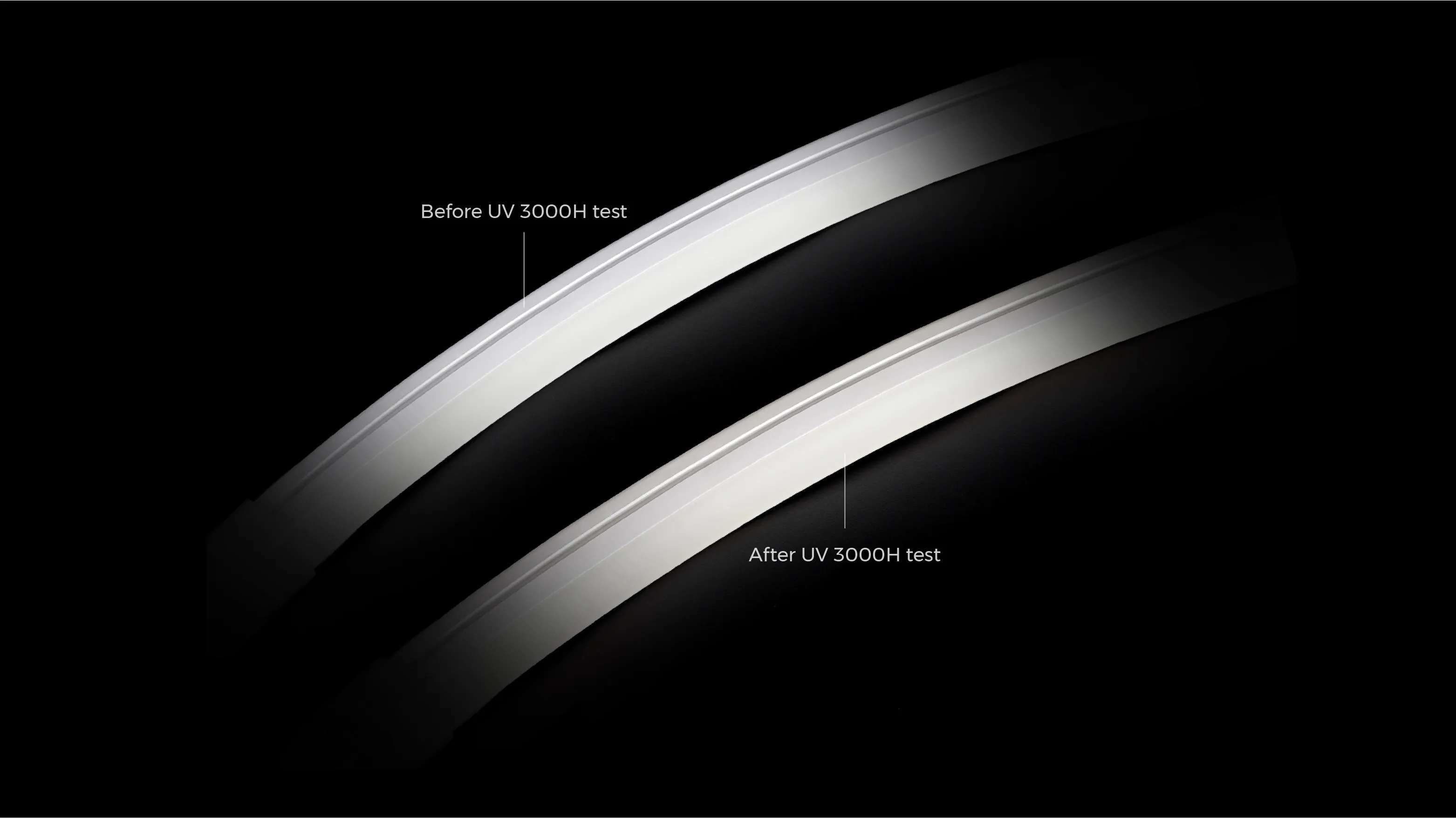

High-intensity UV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.
Application Principle

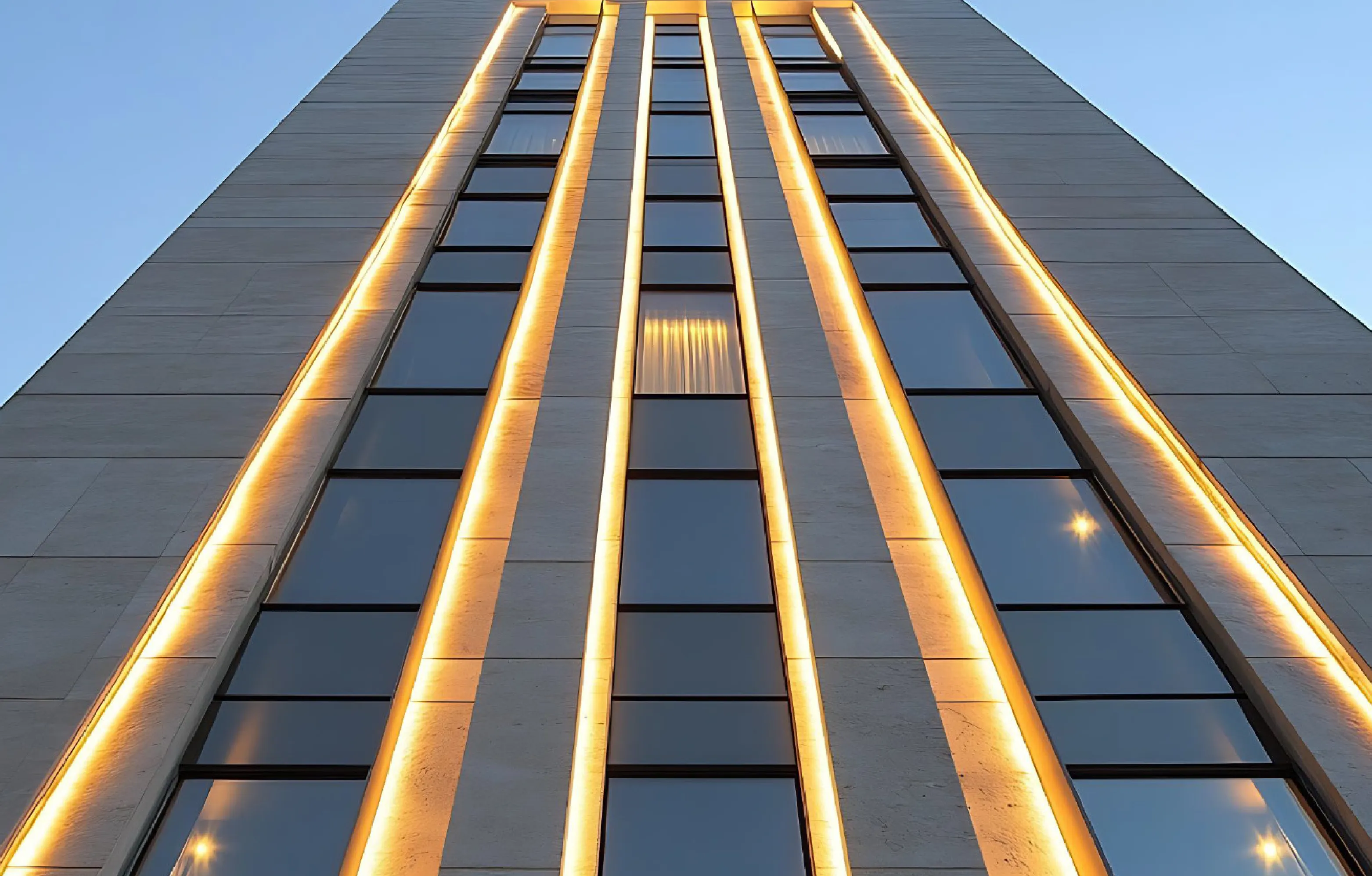

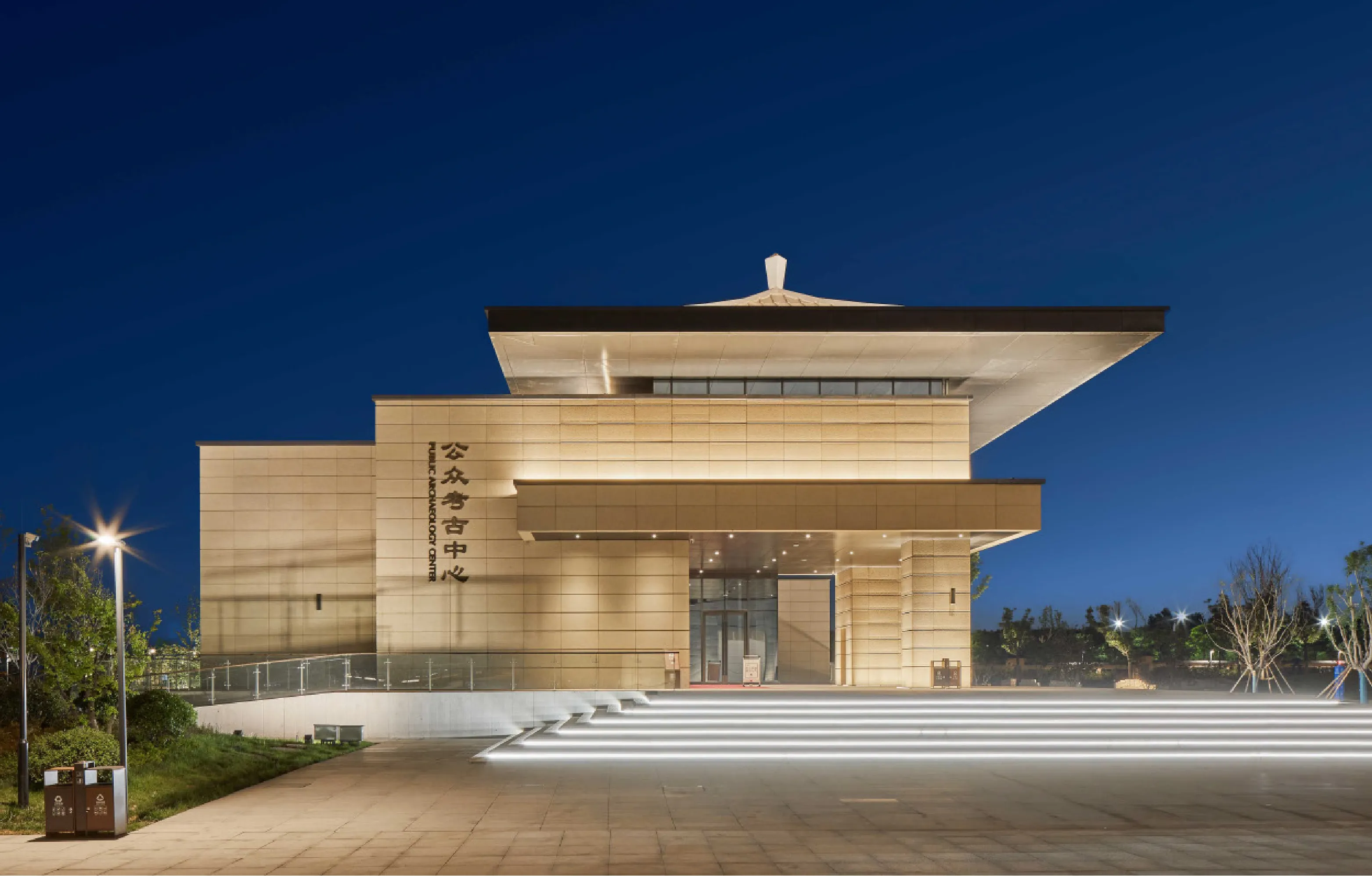

Scenario Case
Optional Model
ACT1312-Color light-230V
ACT1312-RGB-230V
ACT1312-White light-230V
ACT1312-Color light-230V
Basic parameter
IP Process
IP65
Warranty
5 Years
Cutting Unit
500 mm
Leds Qty
336LEDs/m
Typ.power
10W/M
CCT/colors
Color range
CRI
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
Accessories Type
Installation accessory
End cap accessory
Size
Name
Model
Description
Quantity
Application
AS-ACT1312GH0-EC
AS-ACT1312GH0-EC

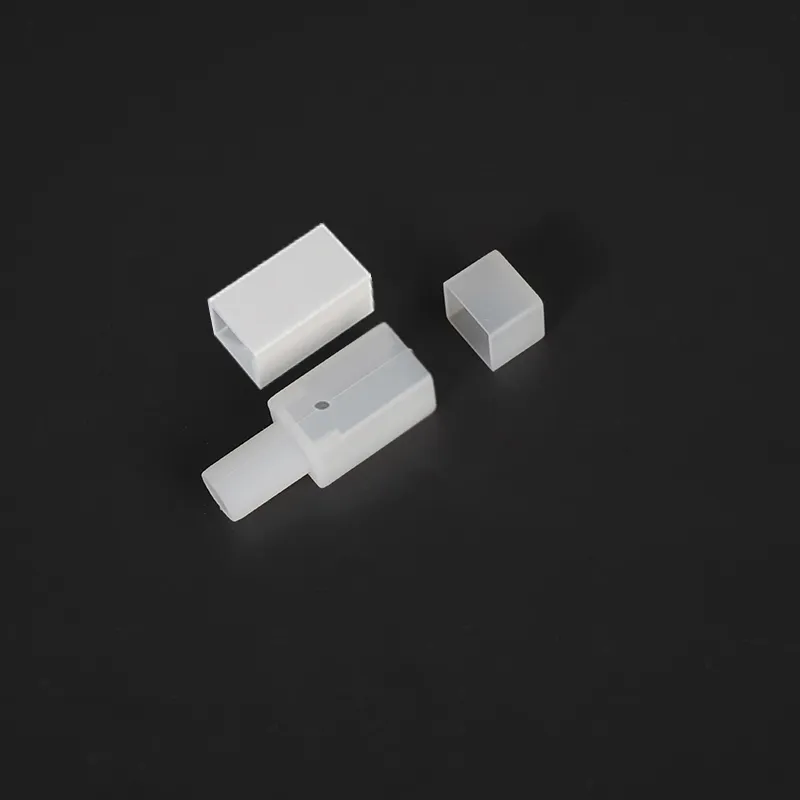

Product Name：AS-ACT1312GH0-EC，ACT1312 Straight Outlet Plug
Installation: glue
Appearance color: transparent
Size: L57*W15.6*H14.7mm
Quantity: 1PCS/ set
Recommended quantity: 1PCS/set
Applicable models: ACT1312
AS-ACT1312HT0-FL
AS-ACT1312HT0-FL

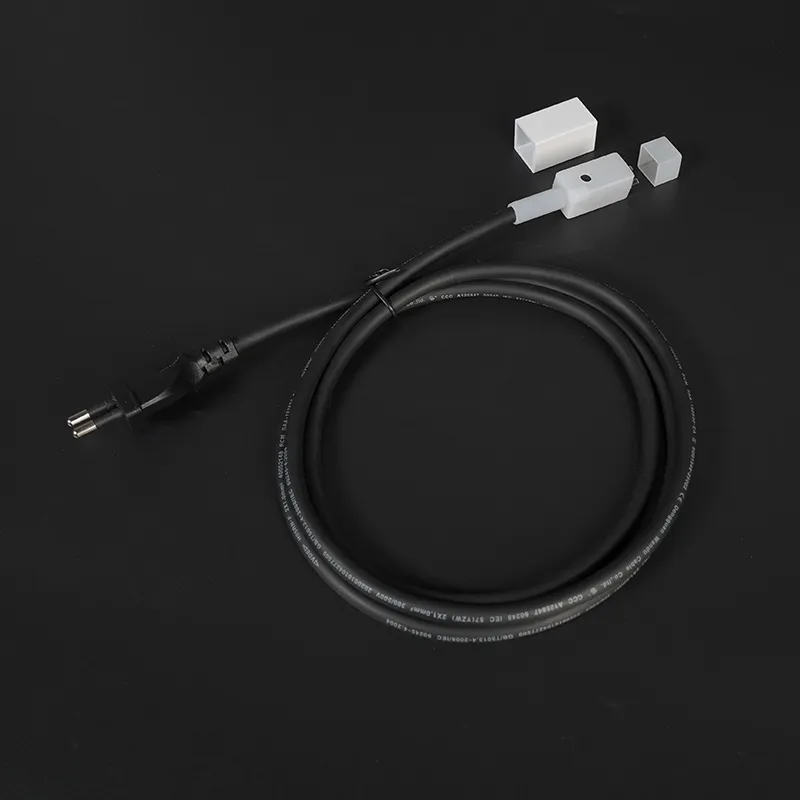

Product Name: AS-ACT1312HT0-FL, ACT1312 solderless connector top outlet plugs
Outlet direction: straight out
Wire length:1500mm
IP:IP65
Include: connector and plug, plug end, PC
Applicable models: ACT1312 silicone neon monochrome light
AS-AFT1312A4-1000
AS-AFT1312A4-1000
Product model:AS-AFT1312A4-1000，Side opening card slot
Installation method：Flat Mounting
Coating：Silver
Size：1000*15.4*14.1mm
Quantity: 1PCS/ set,Side opening card slot, screws
Recommended dosage:1PCS/M
Applicable product model：1312 neon strips
AS-AFT1312A4-35
AS-AFT1312A4-35
Product model:AS-AFT1312A4-35，Side opening clip
Installation method：Flat Mounting
Coating：Silver
Size：35*15.4*14.1mm
Quantity: 1PCS/ set,Side-opening clip, screws
Recommended dosage:3PCS/M
Applicable product model：1312 neon strips
AS-AFT1312A5-1000
AS-AFT1312A5-1000
Product model:AS-AFT1312A5-1000,Recessed Shaped Slot
Installation method：Recessed installation
Coating：Silver
Size：1000*55.4*14.6mm
Quantity: 1PCS/ set,Recessed Shaped Slot, screws
Recommended dosage:1PCS/M
Applicable product model：1312 neon strips
