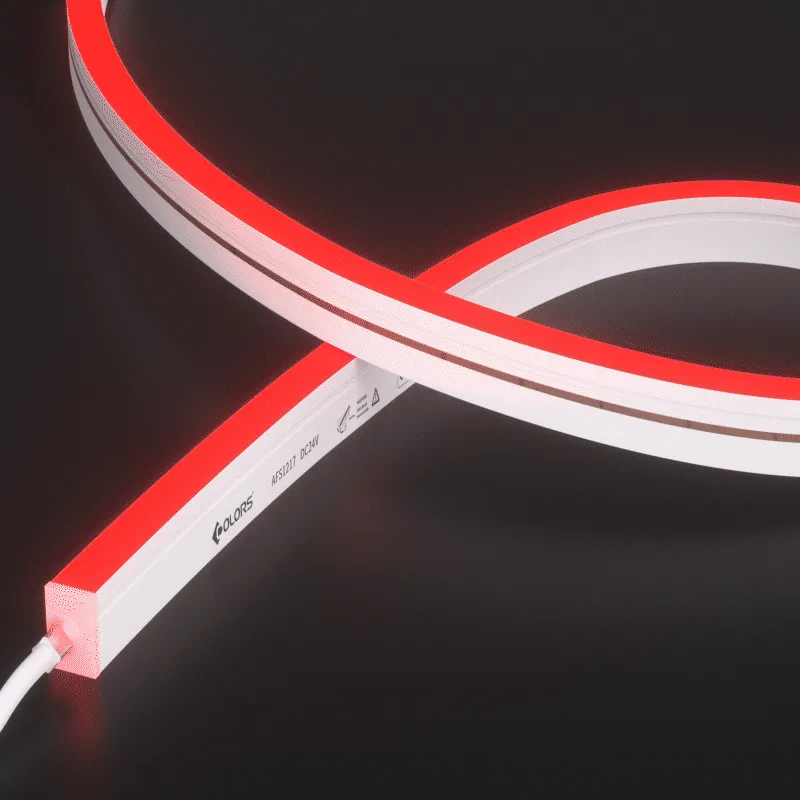

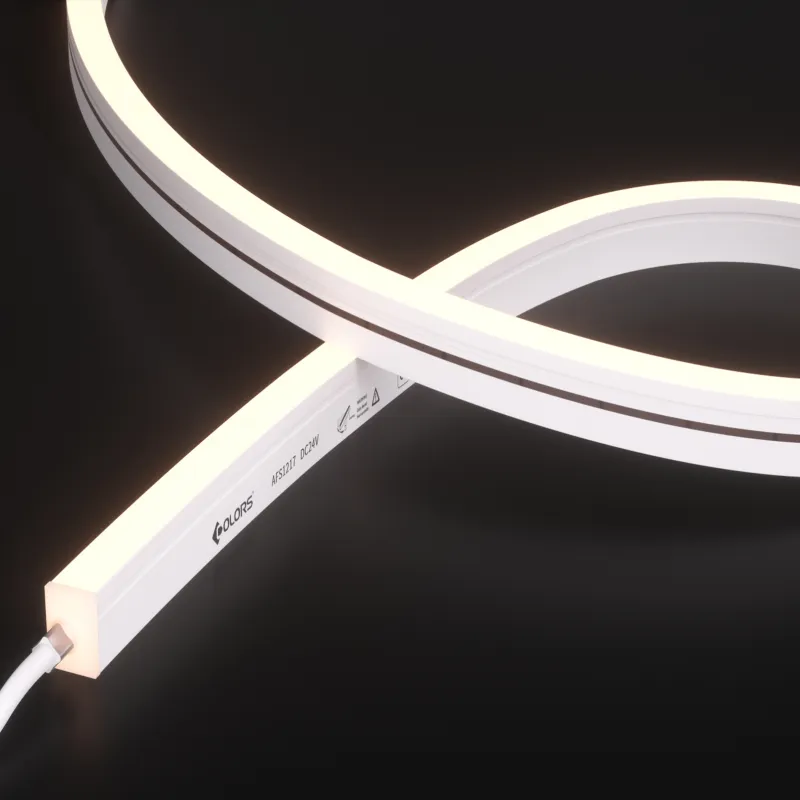

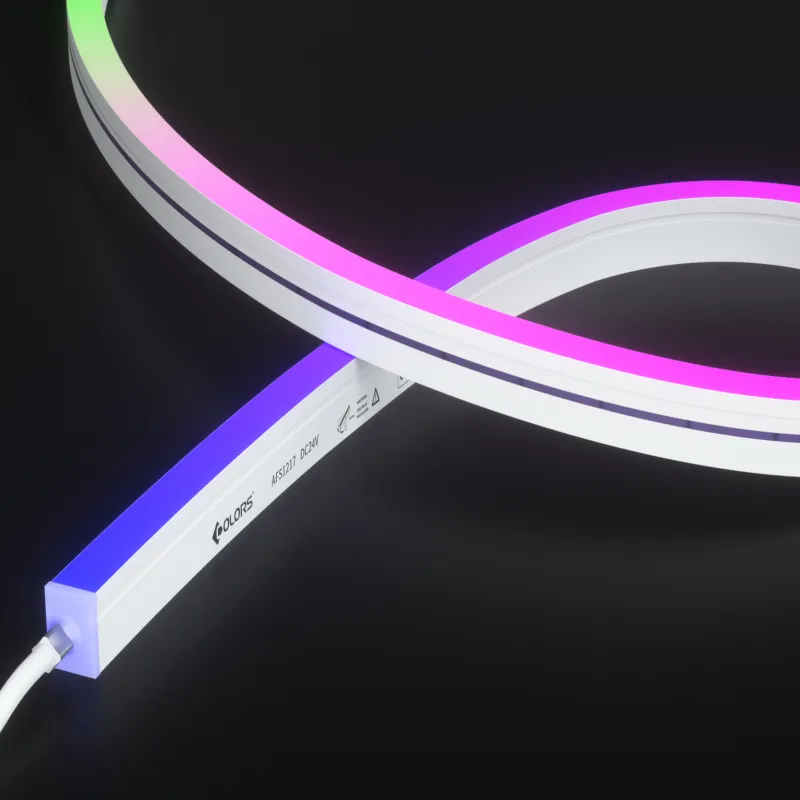

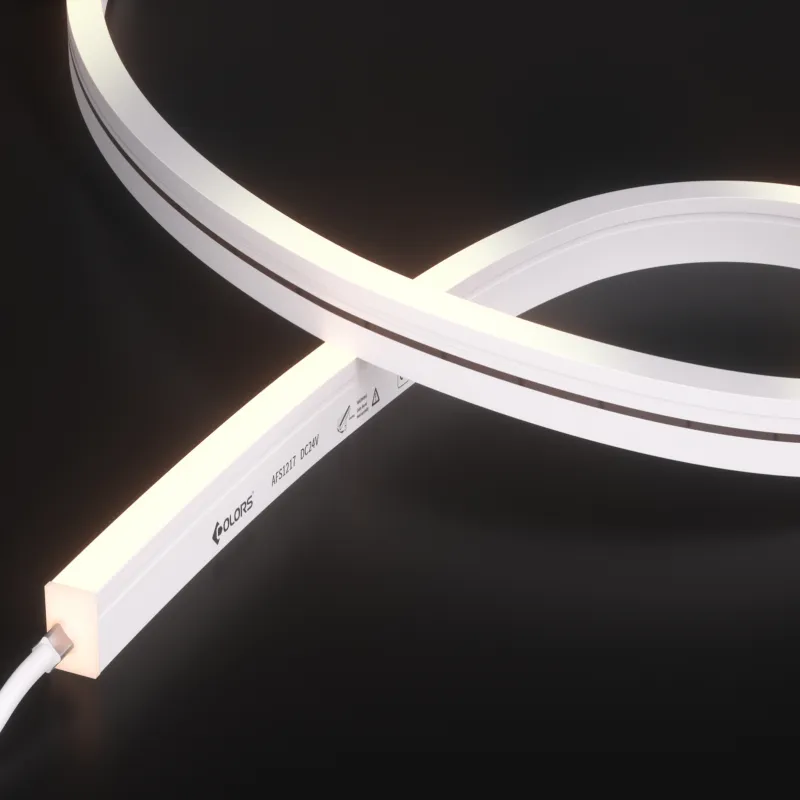

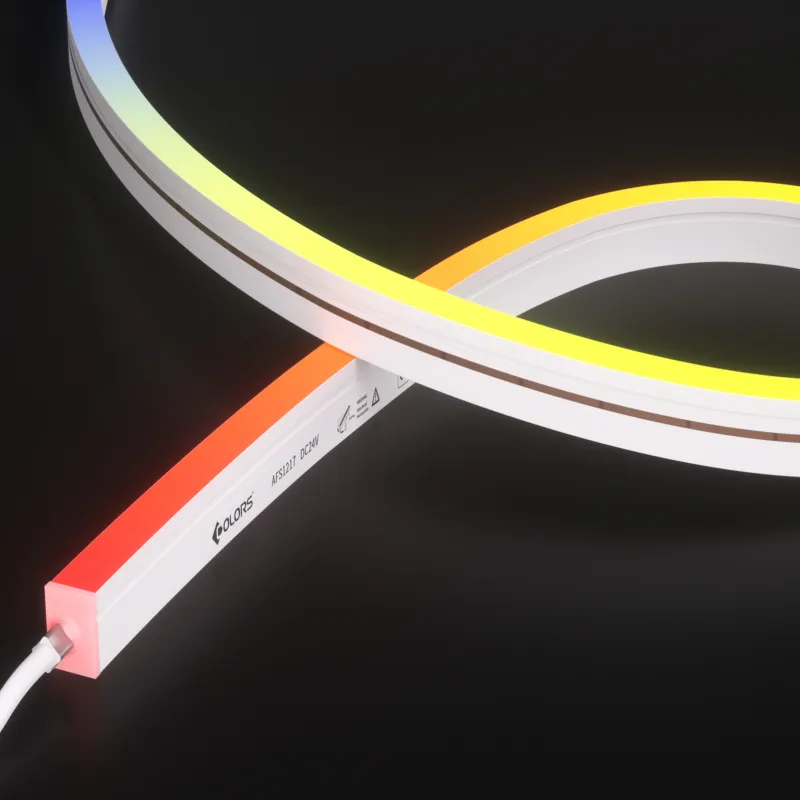

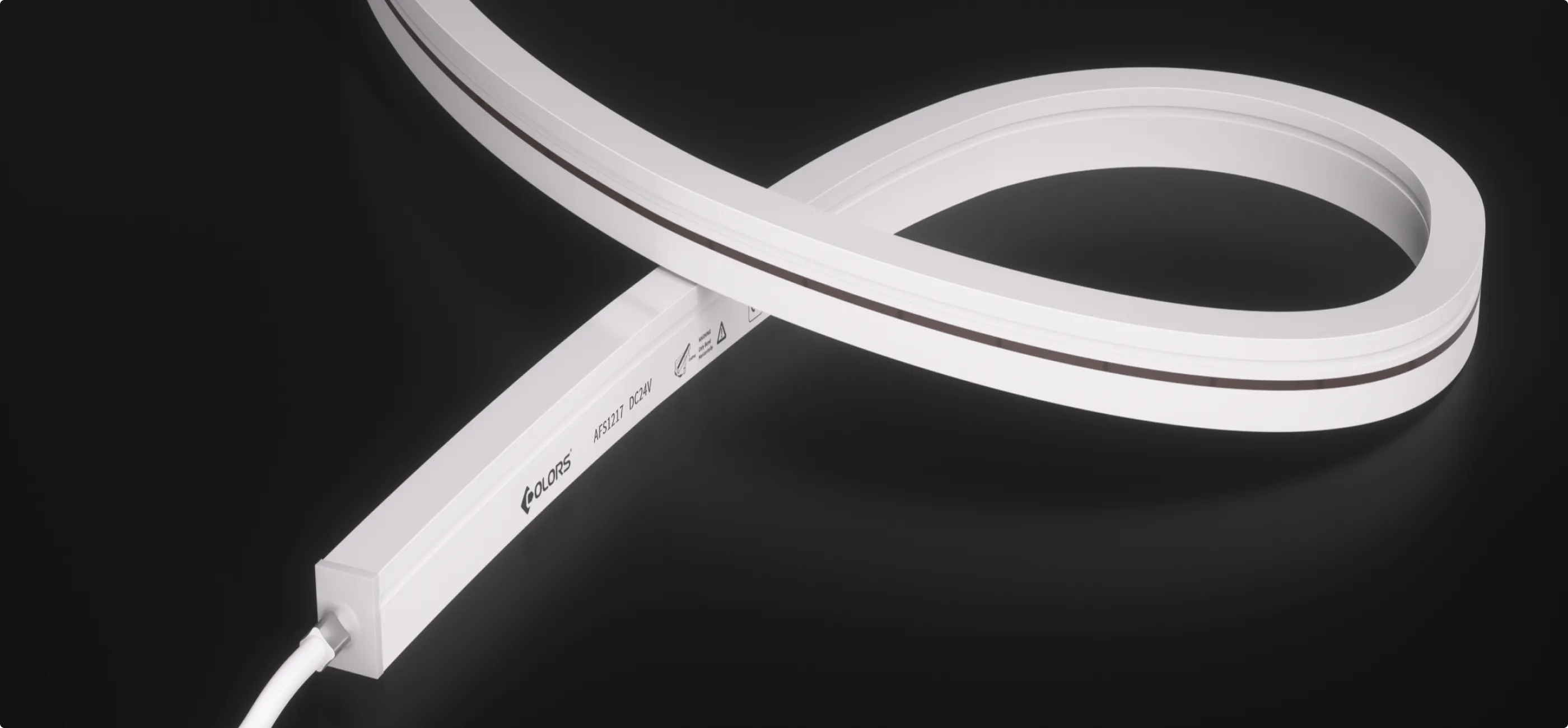

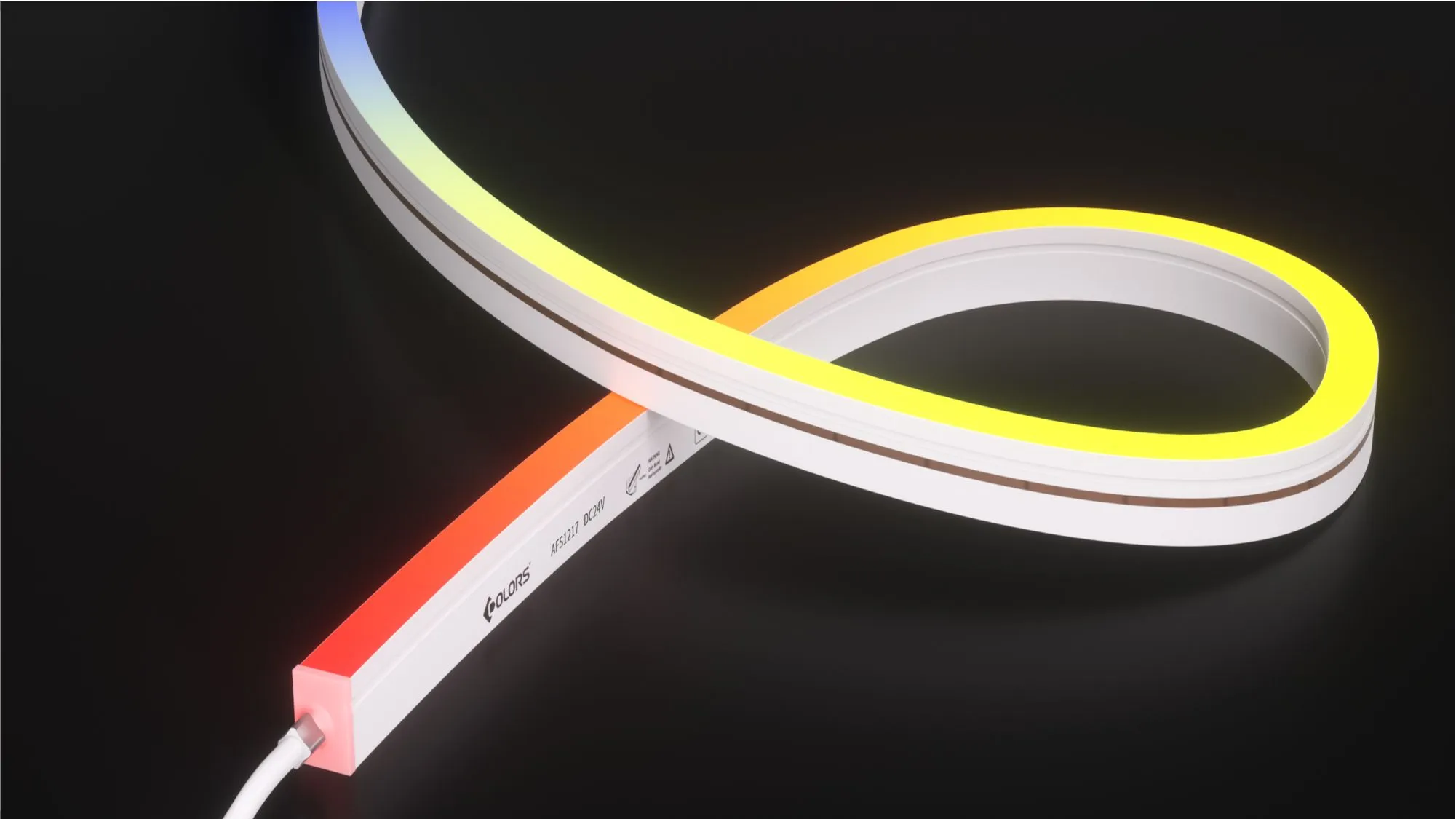

AFS1217
Discover AF SeriesDesigned for illuminating building facades and outdoor landscapes,
tailored for use in frigid and sweltering climates(-40~+60°C), 7-year
warranty, characterized by high reliability and exceptional weather
fastness, ANSI SDCM≤5
Key Features
NEWLY UPGRADED ARCH NEON
Anti-dead LED design.
Anti-breakage PCB design.
Warranty Upgraded.
Weather Resistance Upgraded.
Lighting Effect Upgraded.

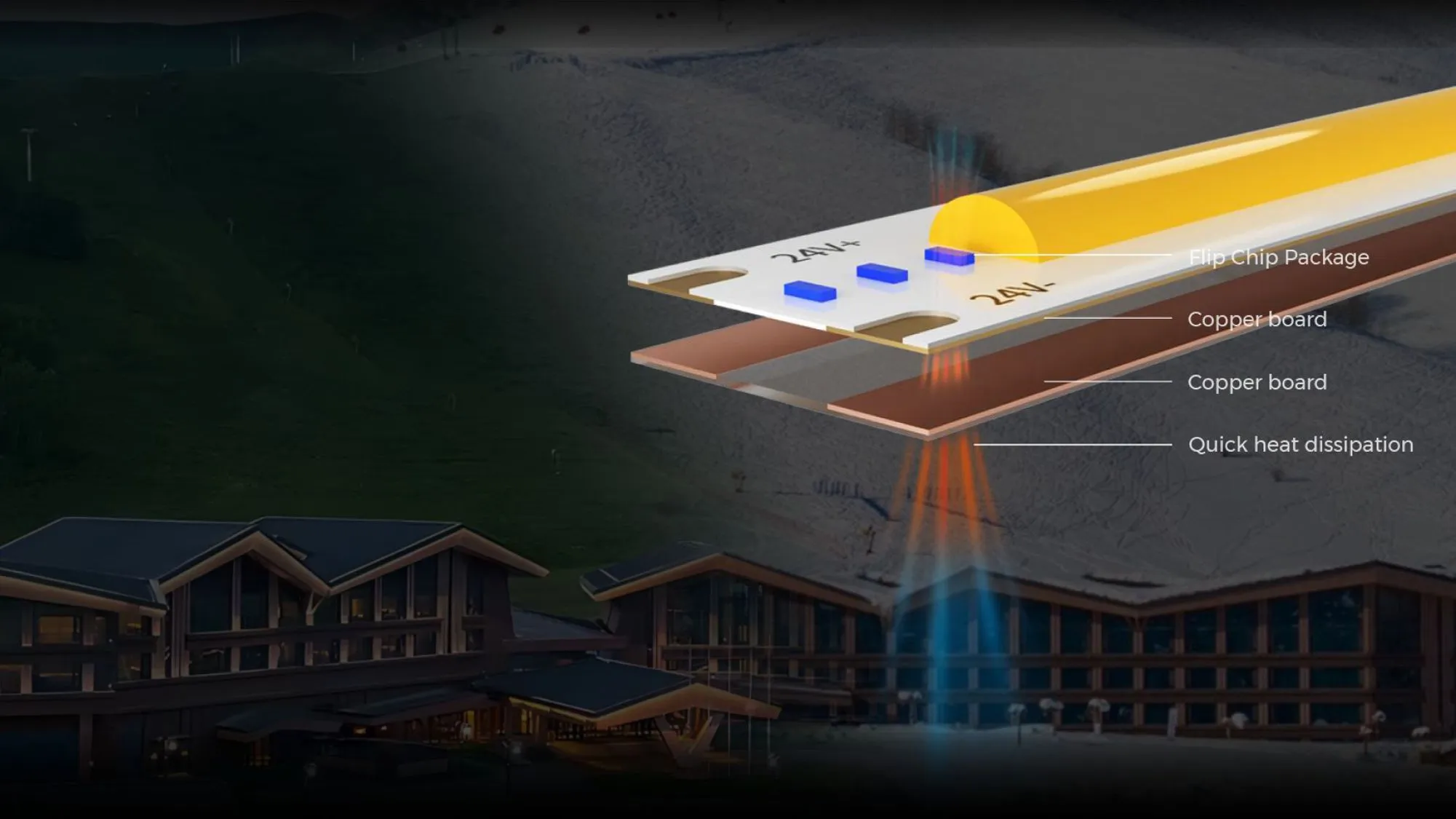

Outstanding weather resistance with flip chip package technology, unaffected by extreme cold or heat
Temperature resistance: -40°C ~ + 60°C
High-intensity UV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.
Solder-free fast connection, avoid siphonage phenomenon.
Silicone Filling waterproof in two areas, and structure waterproof in three areas.Dural Protection
Special dura chips design, worry free about the dead-chips.
Parallel design of the smallest lighting unit,single chip failure does not affect normal illumination
Innovative structure, Anti-twist high reliability.
Built in anti-tensile PC line and Backplane, 2in1 designTwisting test : 5000 times* & Tensile Test ≥ 650NTrouble-free installation
Compatible with Various DMX Control Systems.
Compatible with various DMX control systems such asNicolaudie (SLESA-U11+DNA-DRT-LTE),MADRIX (AURA <2/8/32>/STELLA),Mingrui (MR-CM <23S/12T/12V/12E>/MR-228DW).

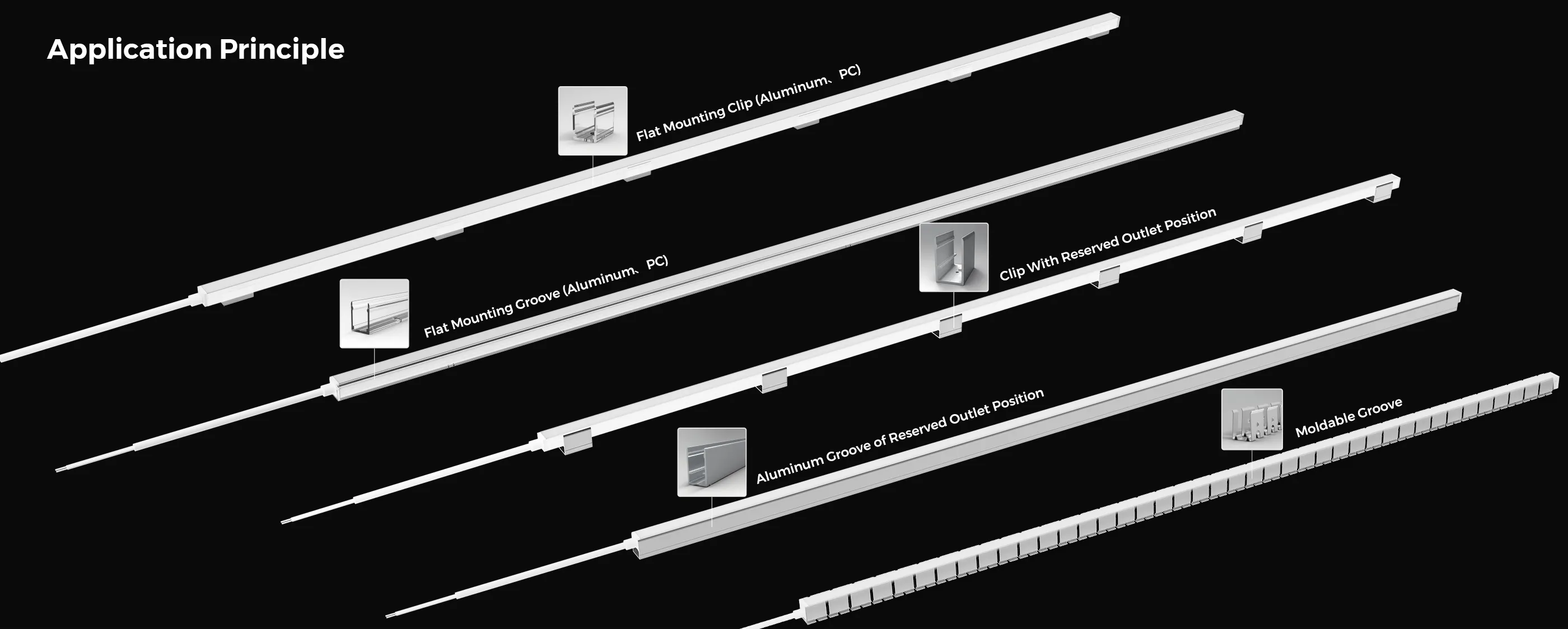

Application Principle

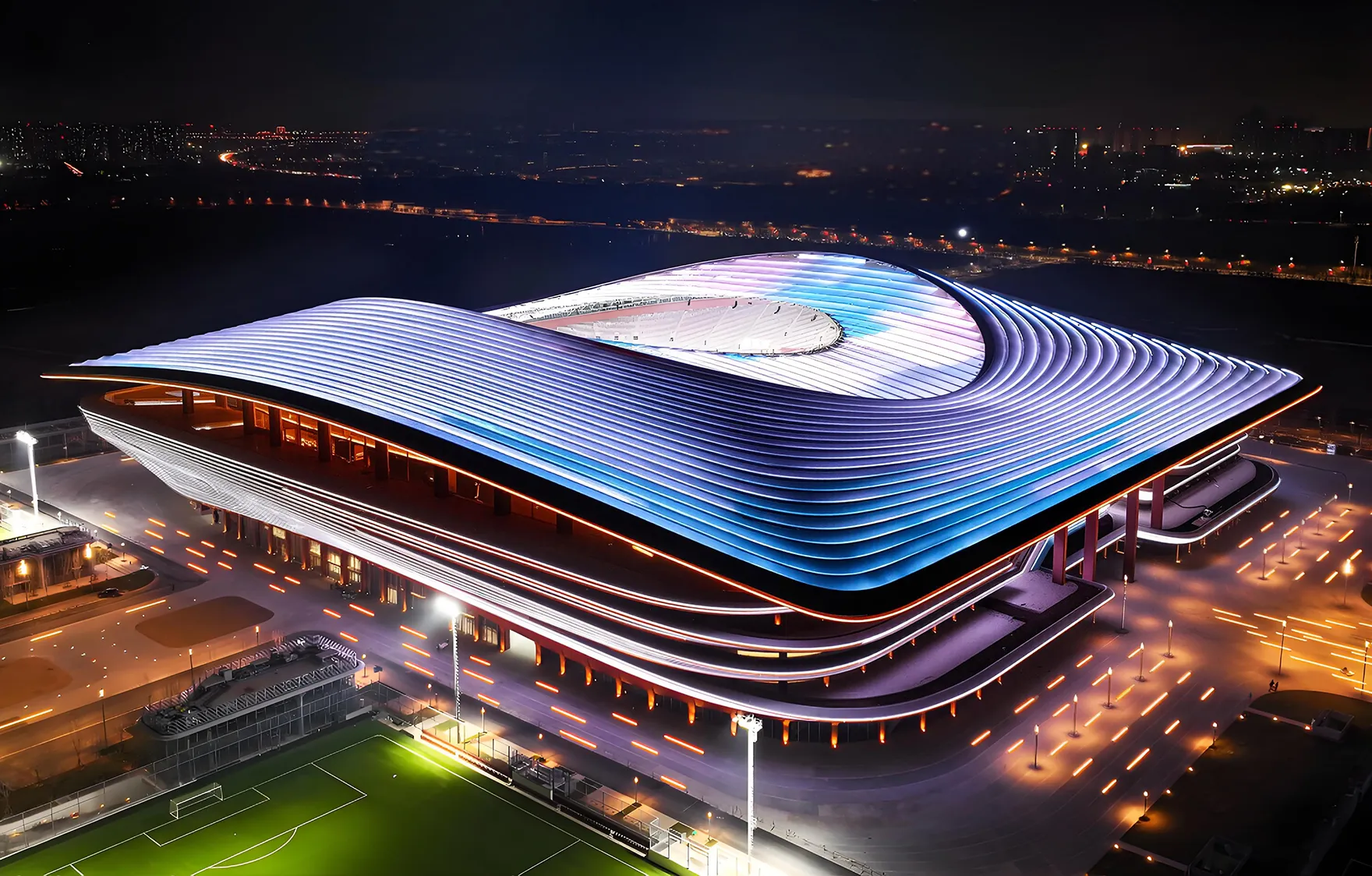

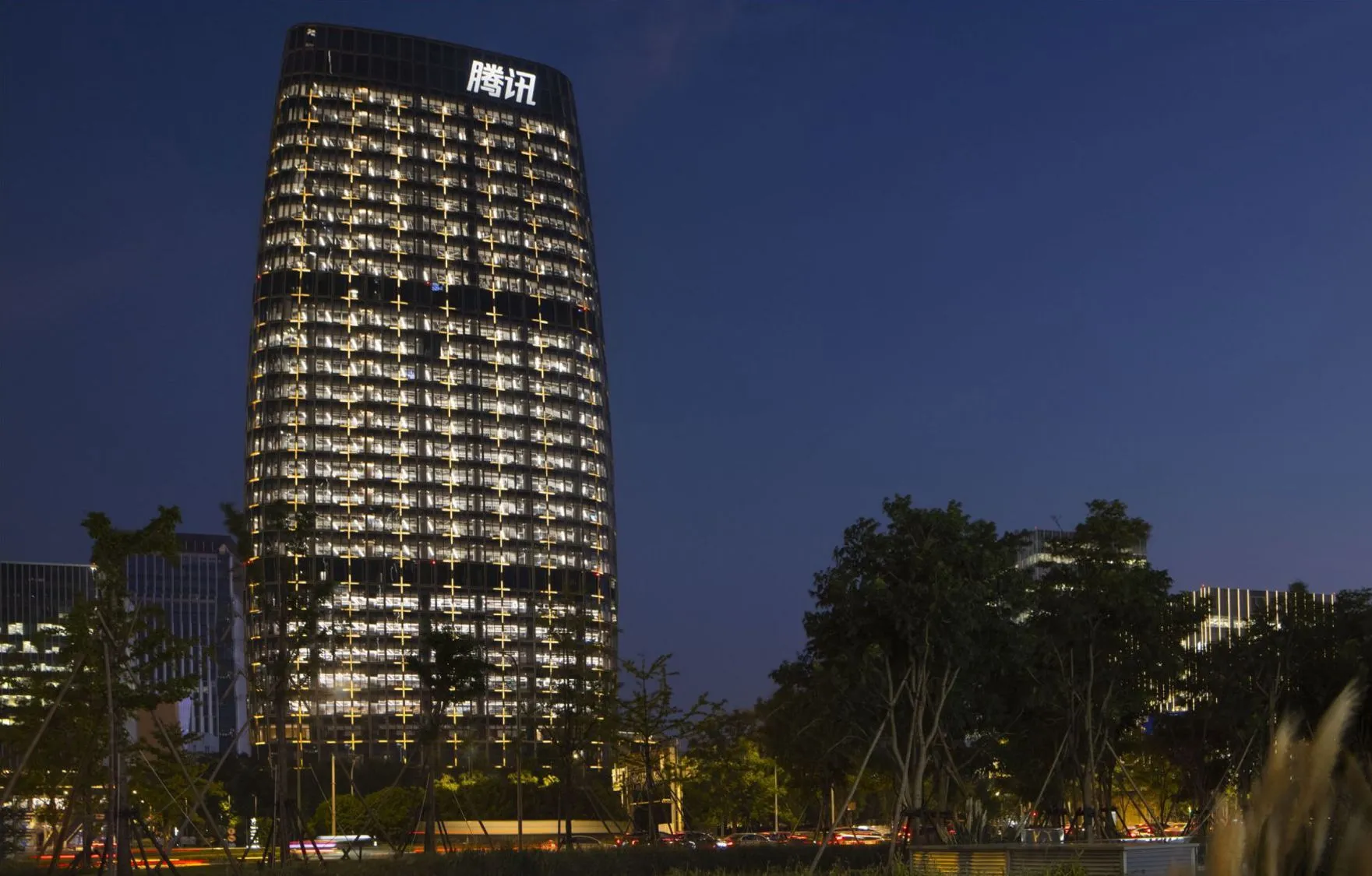

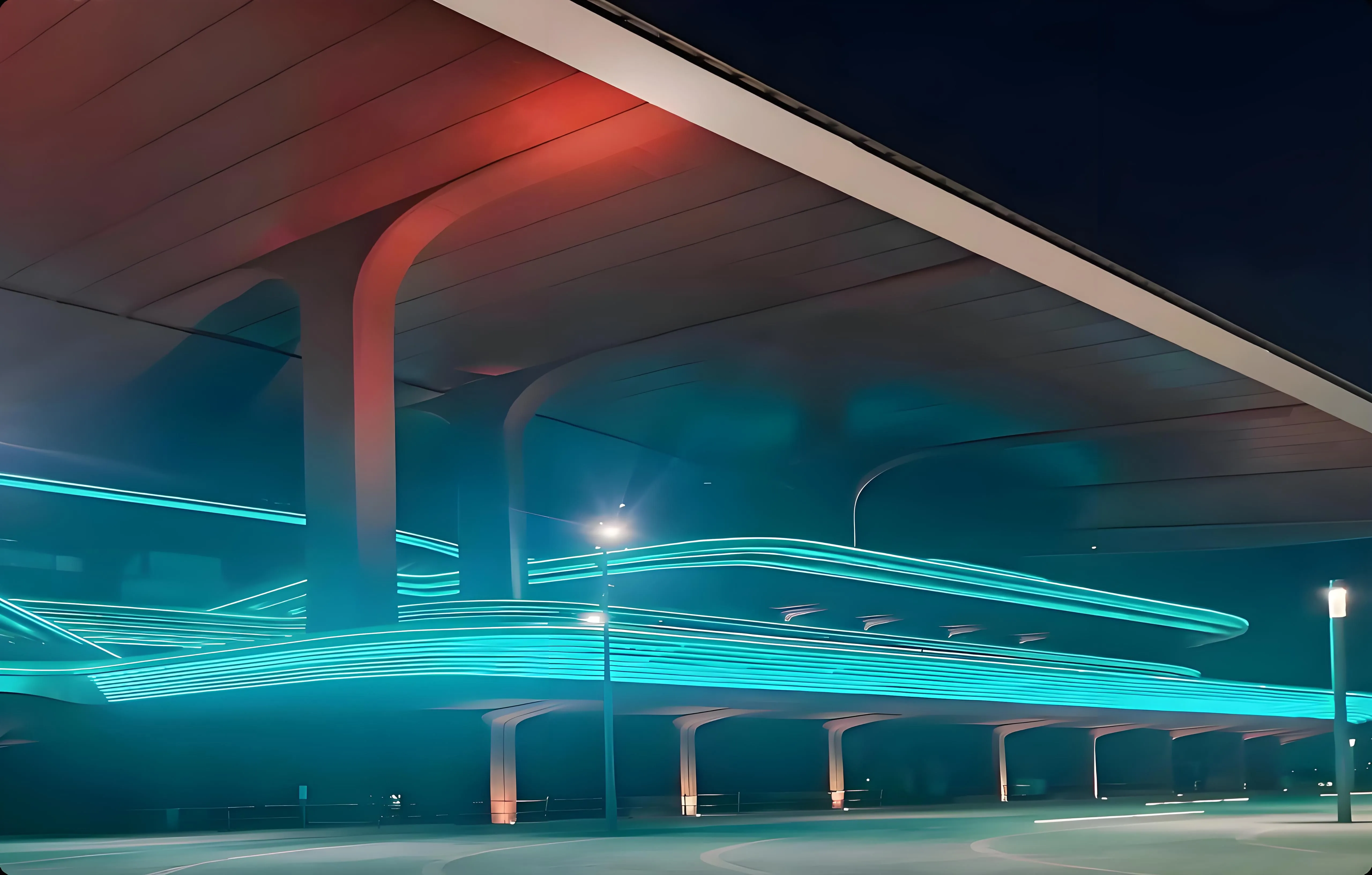

Scenario Case
Ordering Code
Optional Model
AFS1217-Color light-24V
AFS1217-DMX512 RGB neon light-24V
AFS1217-DMX512 RGBW neon light-24V
AFS1217-DMX512 White neon light-24V
AFS1217-RGB-24V
AFS1217-RGBW-24V
AFS1217-White light-24V
AFS1217-White light-48V
AFS1217-Color light-24V
Basic parameter
Warranty
7 Years
Cutting Unit
50
Leds Qty
320LEDs/m
Typ.power
10W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Standard Length
Min Cut
R
24V
0.3
(0.09A/ft)
7.2 (2.2W/ft)
7.92 (2.41W/ft)
10000mm (32.81ft)
16LED/50mm
G
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
B
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
Product size
Product Quantity/box
Product Quantity/case
Product net weight (㎏)
Net weight per box (㎏)
Gross weight (㎏)
Carton size (m)
L10000*12*17mm
10M*1
40M
2.34
9.36
10.91
0.41*0.41*0.26
Accessories Type
Installation accessory

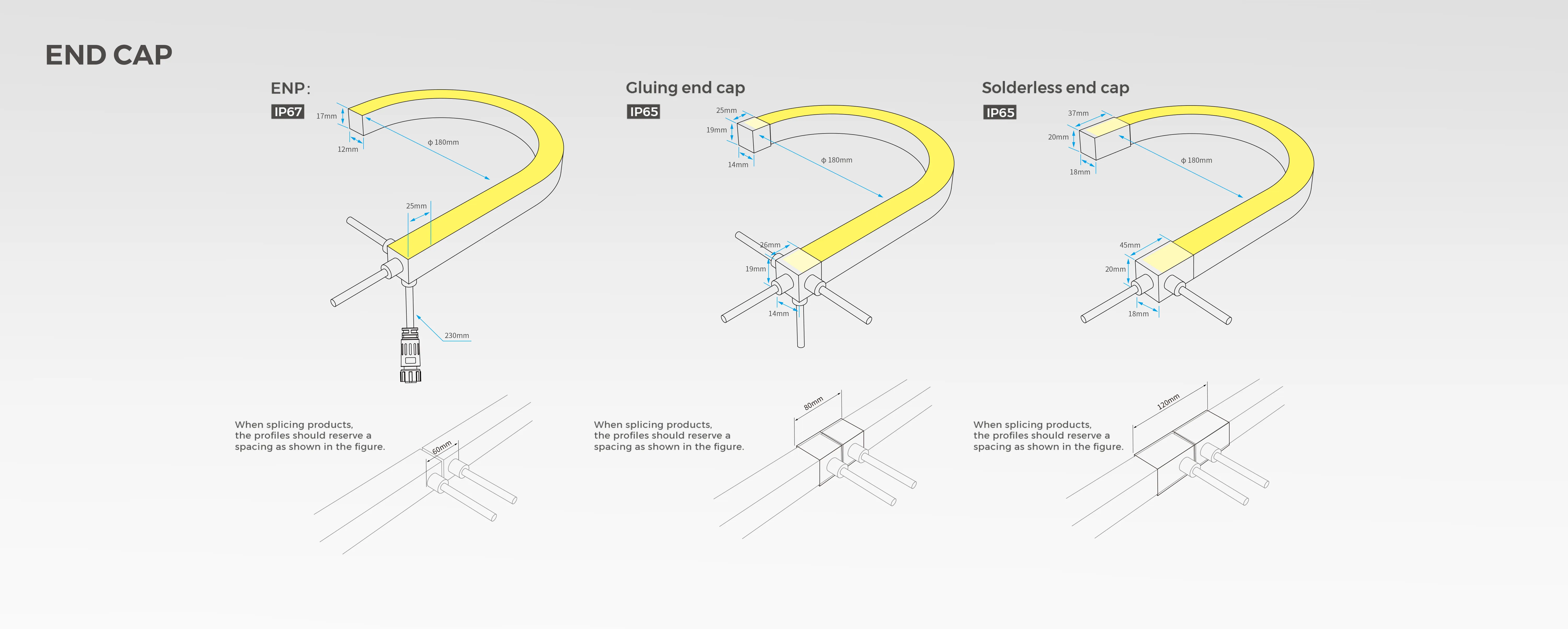

End cap accessory
Cable accessory
Supporting accessory
Monochrome-Remote control
Controller
Other
Size
Name
Model
Description
Quantity
Application
AS-AFS1217A4-1000
AS-AFS1217A4-1000
Product model:AS-AFS1217A4-1000，Side opening card slot
Installation method：Flat Mounting
Coating：Silver
Size：1000*14.4*18.9mm
Quantity: 1PCS/ set,Side opening card slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-AFS1217A4-35
AS-AFS1217A4-35
Product model:AS-AFS1217A4-35，Side opening clip
Installation method：Flat Mounting
Coating：Silver
Size：35*14.4*18.9mm
Quantity: 1PCS/ set,Side-opening clip, screws
Recommended dosage:3PCS/M
Applicable product model：1616 neon strips
AS-AFS1217A5-1000
AS-AFS1217A5-1000
Product model:AS-AFS1217A5-1000,Recessed Shaped Slot
Installation method：Recessed installation
Coating：Silver
Size：1000*54.8*19.1mm
Quantity: 1PCS/ set,Recessed Shaped Slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-FC-0009
AS-FC-0009
Product model：AS-FC-0009，2P Male silicone wire 0.25m
Line number:18#
Outer diameter：φ6.0mm
Wire Length：250mm
Applicable product model：GMS\GMT1616\2020-Color light-24V,GMS\GMT1616(L)\2020(L)White light-24V
AS-FC-0010
AS-FC-0010
Product model：AS-FC-0010，2P Male silicone wire 0.5m
Line number:18#
Outer diameter：φ6.0mm
Wire Length：500mm
Applicable product model：GMS\GMT1616\2020-Color light-24V,GMS\GMT1616(L)\2020(L)White light-24V
