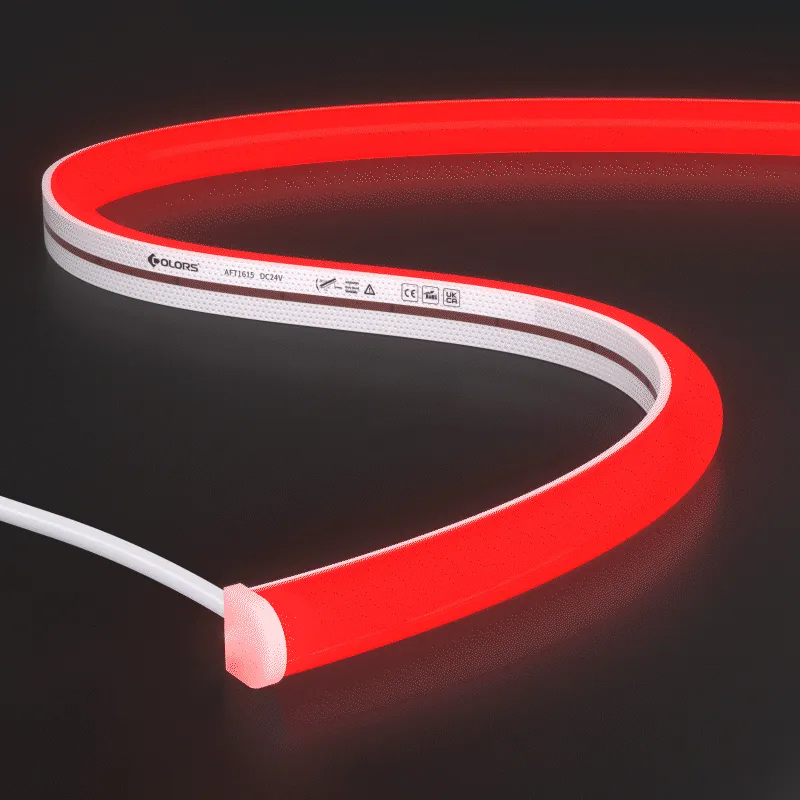

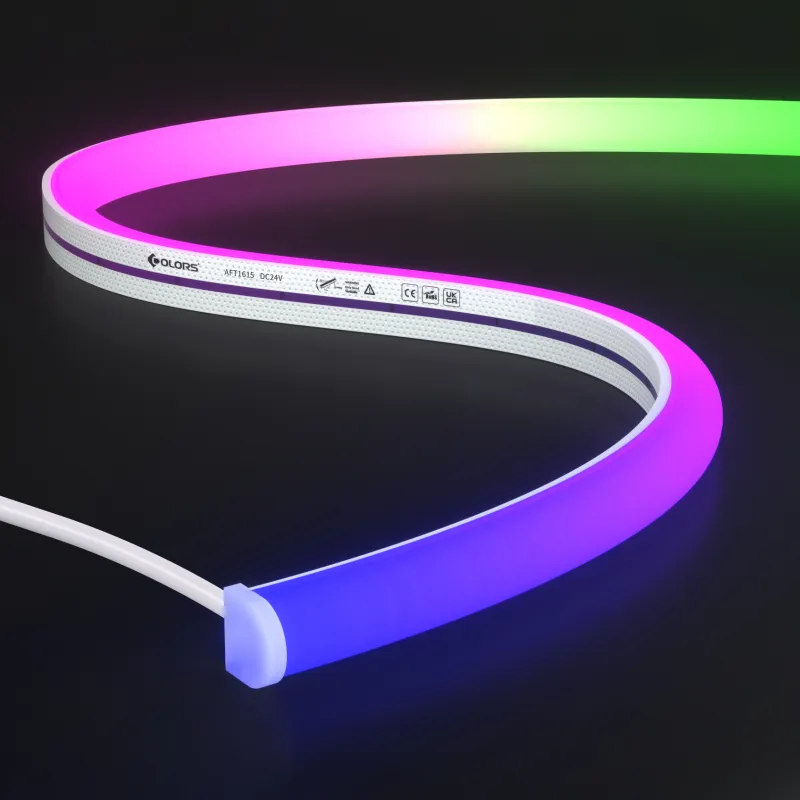

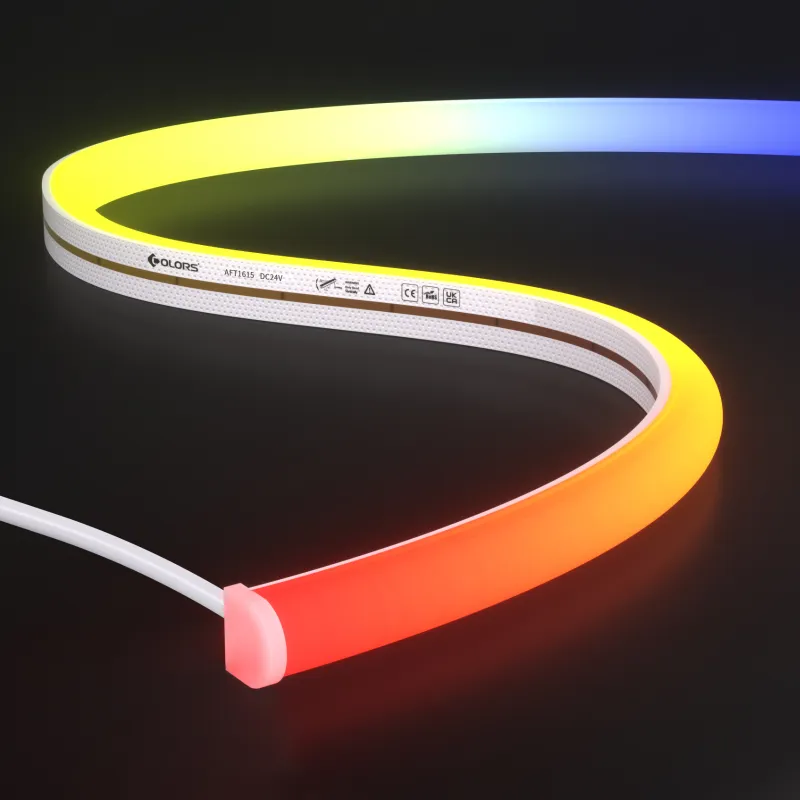

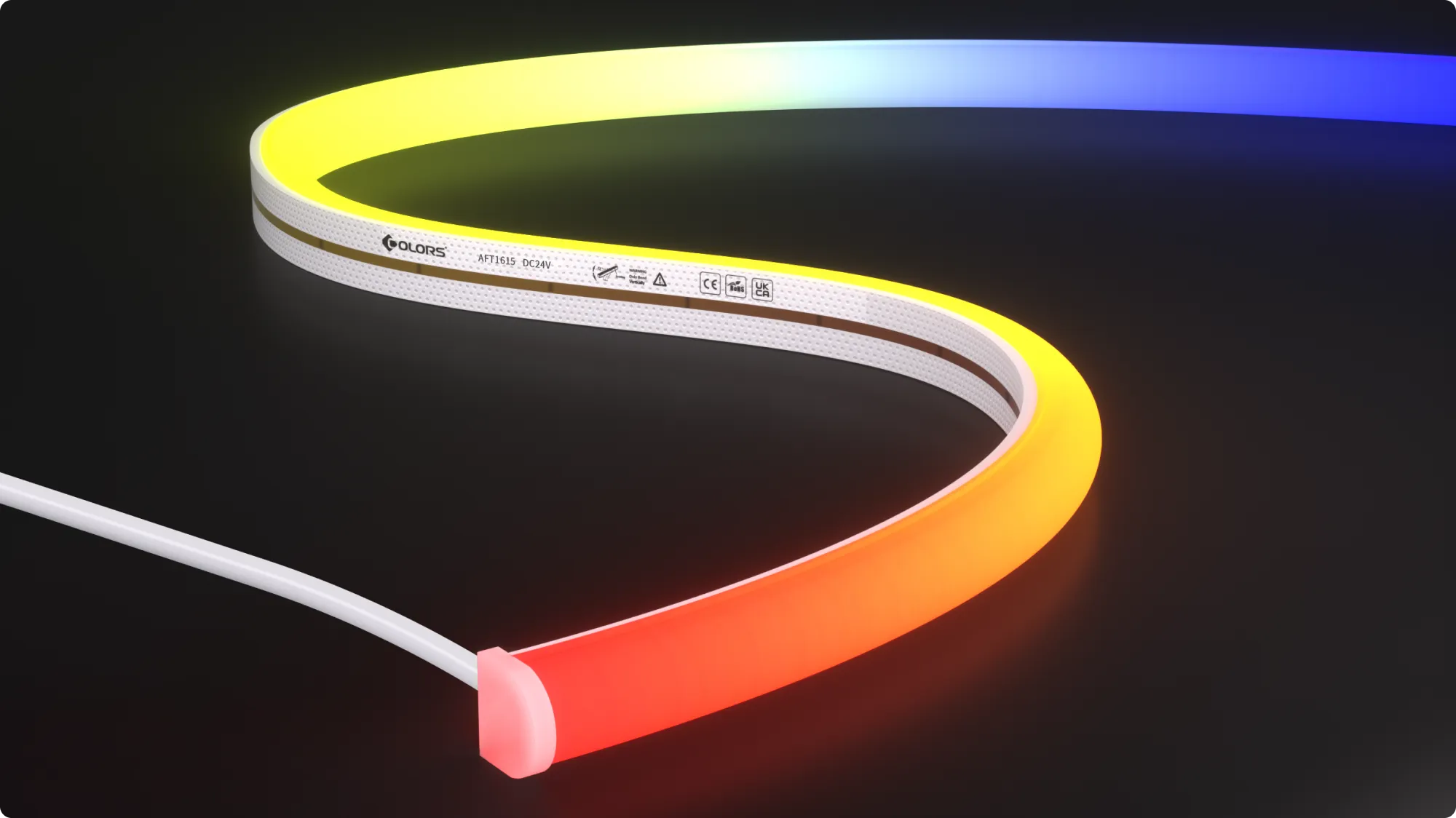

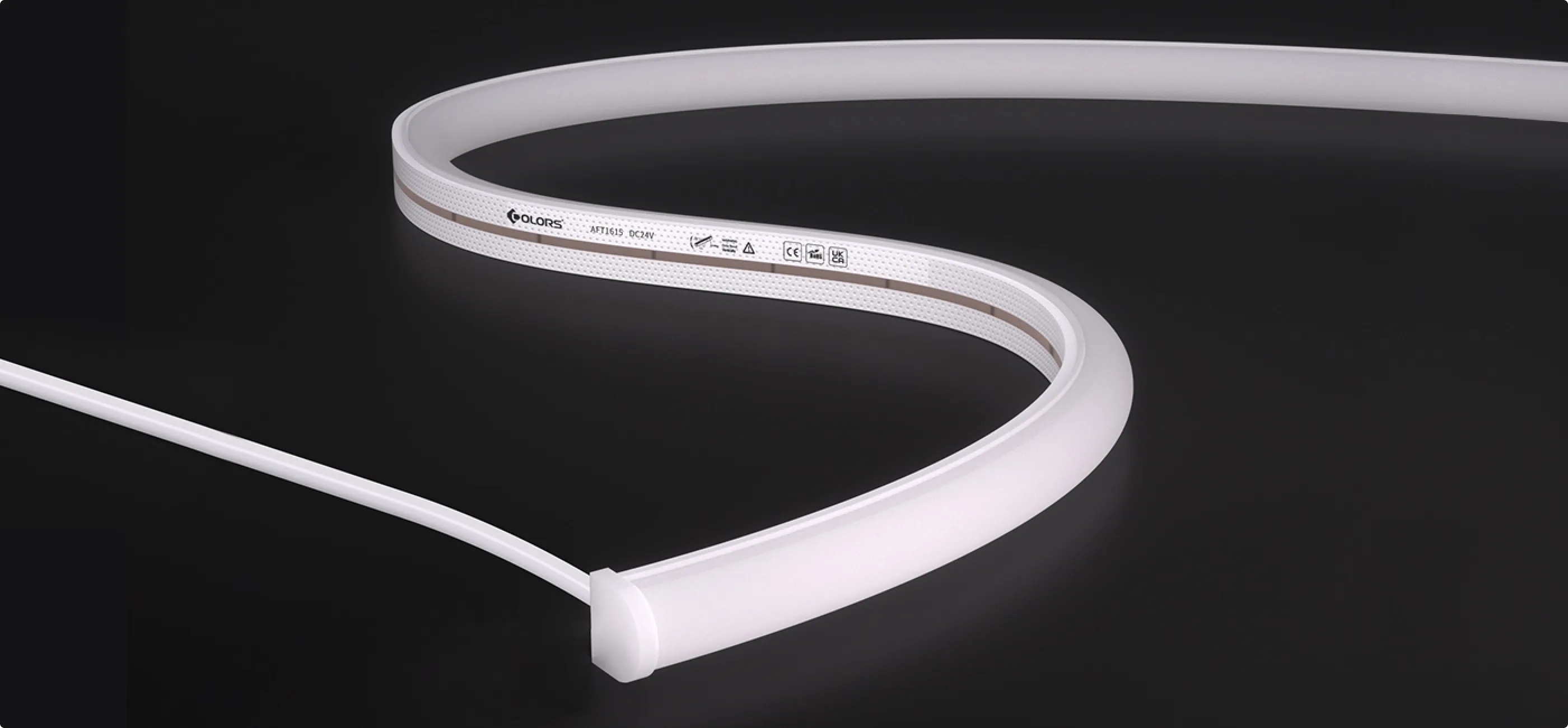

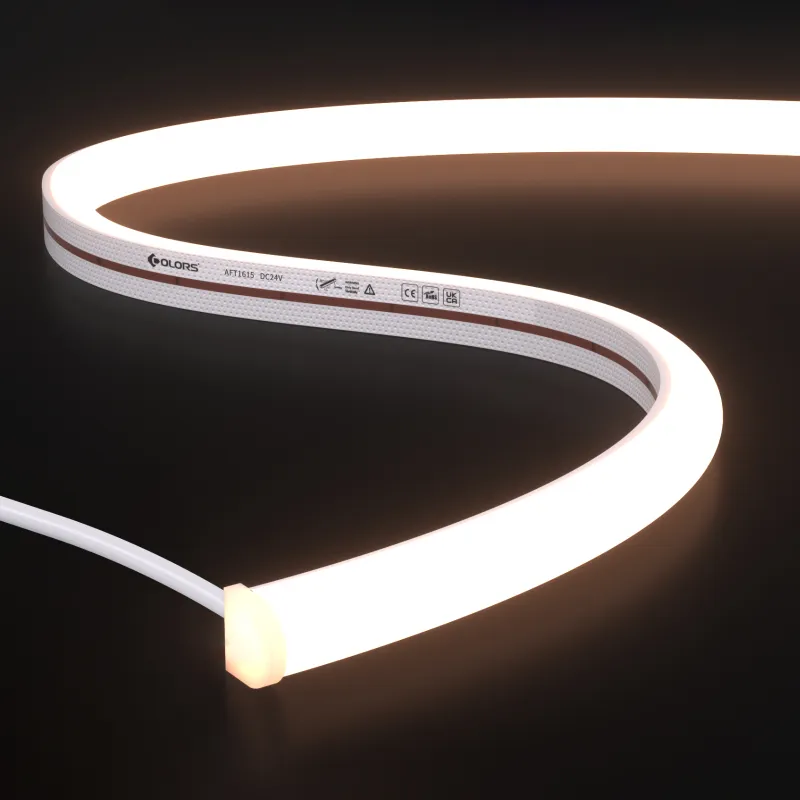

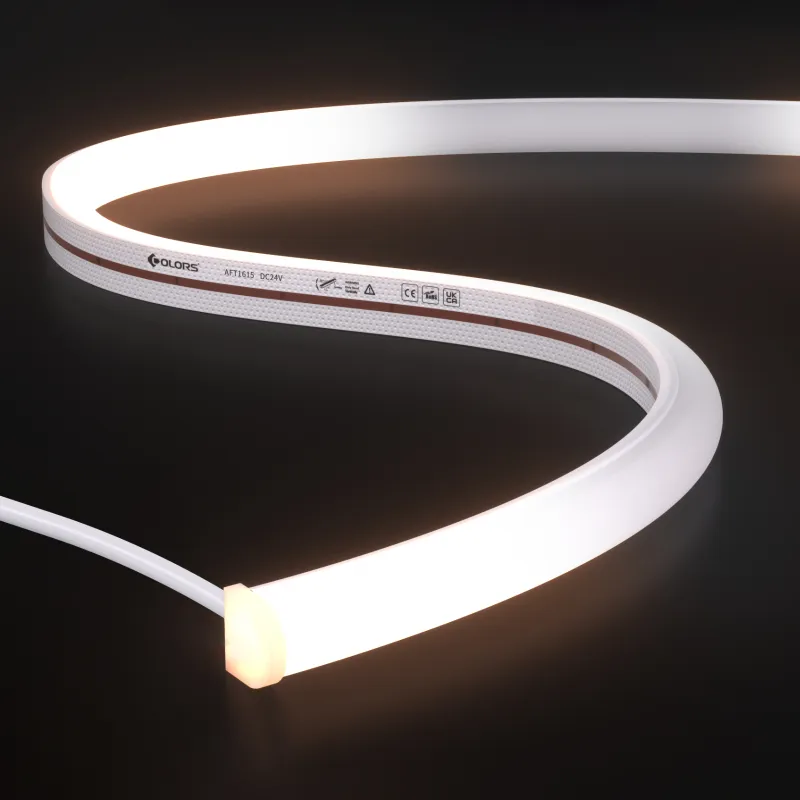

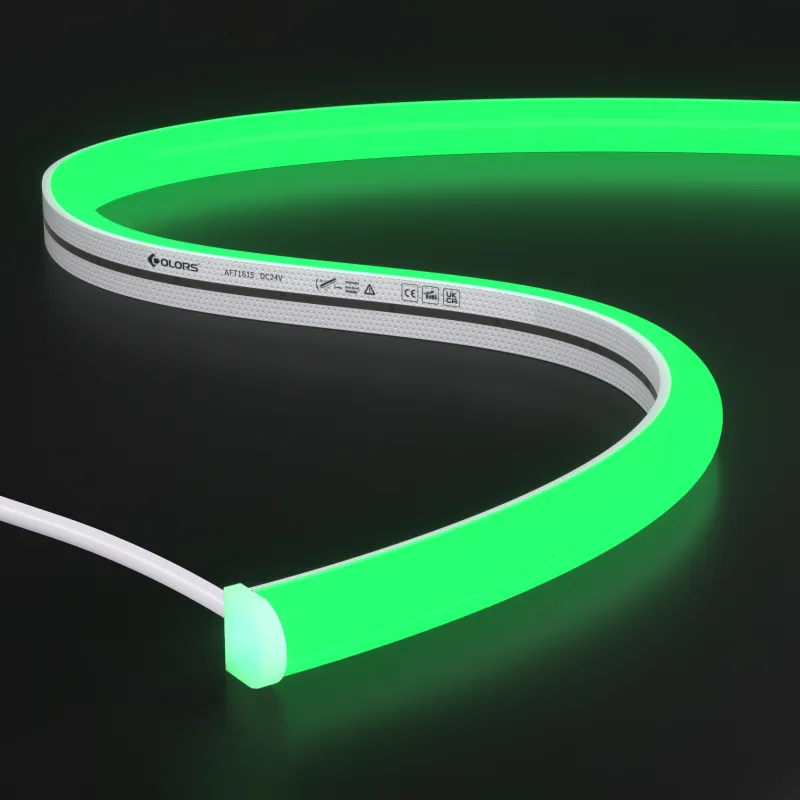

AFT1615
Discover AF SeriesDesigned for illuminating building facades and outdoor landscapes,
tailored for use in frigid and sweltering climates(-40~+60°C), 7-year
warranty, characterized by high reliability and exceptional weather
fastness, ANSI SDCM≤5
Key Features
NEWLY UPGRADED ARCH NEON
Anti-dead led design
Anti-breakage PCB design
Warranty Upgraded
Weather Resistance Upgraded
Lighting Effect Upgraded

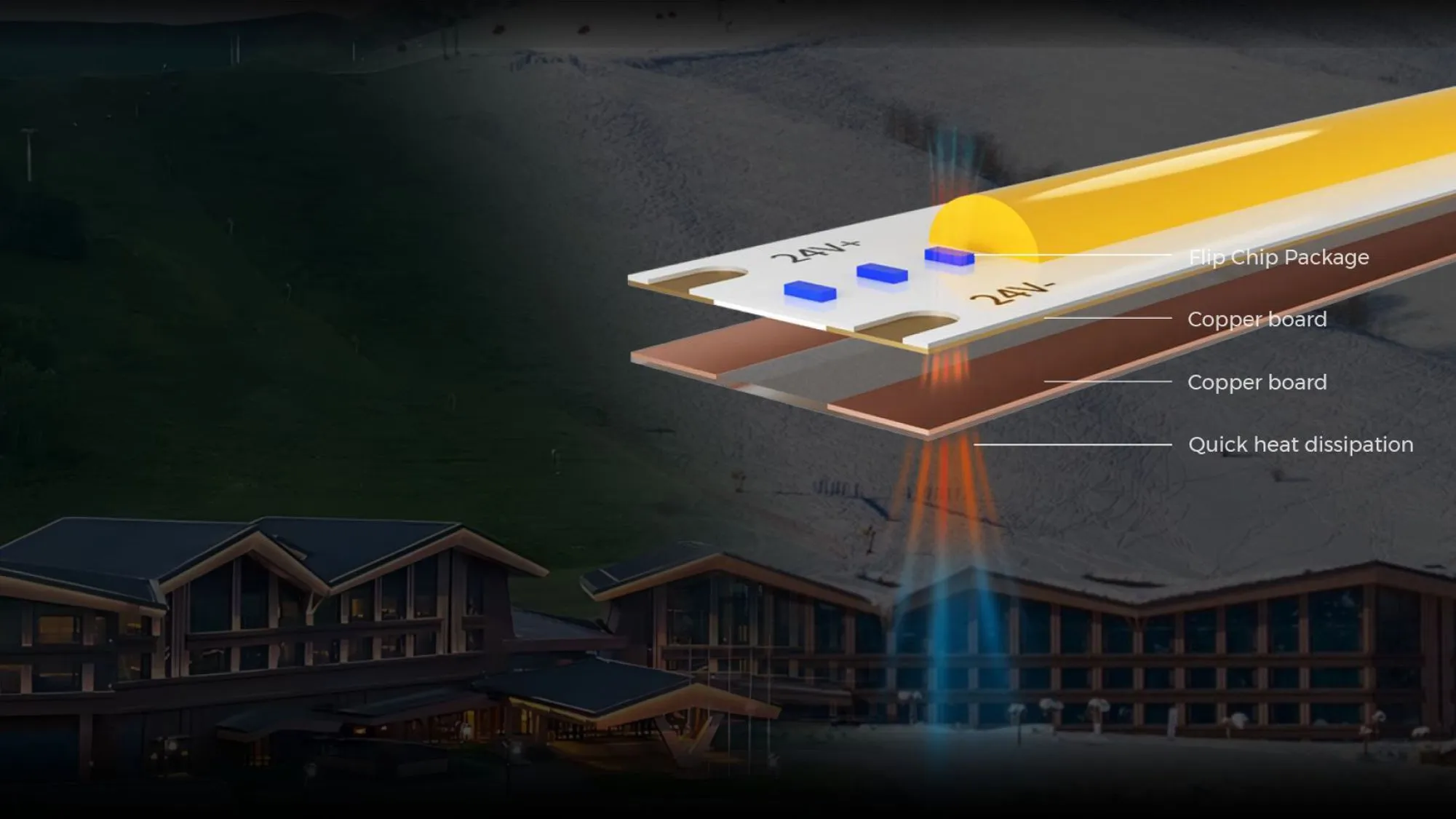

Outstanding weather resistancewith flip chip package technology,unaffected by extreme cold or heat
Temperature resistance: -40°C ~ + 60°C

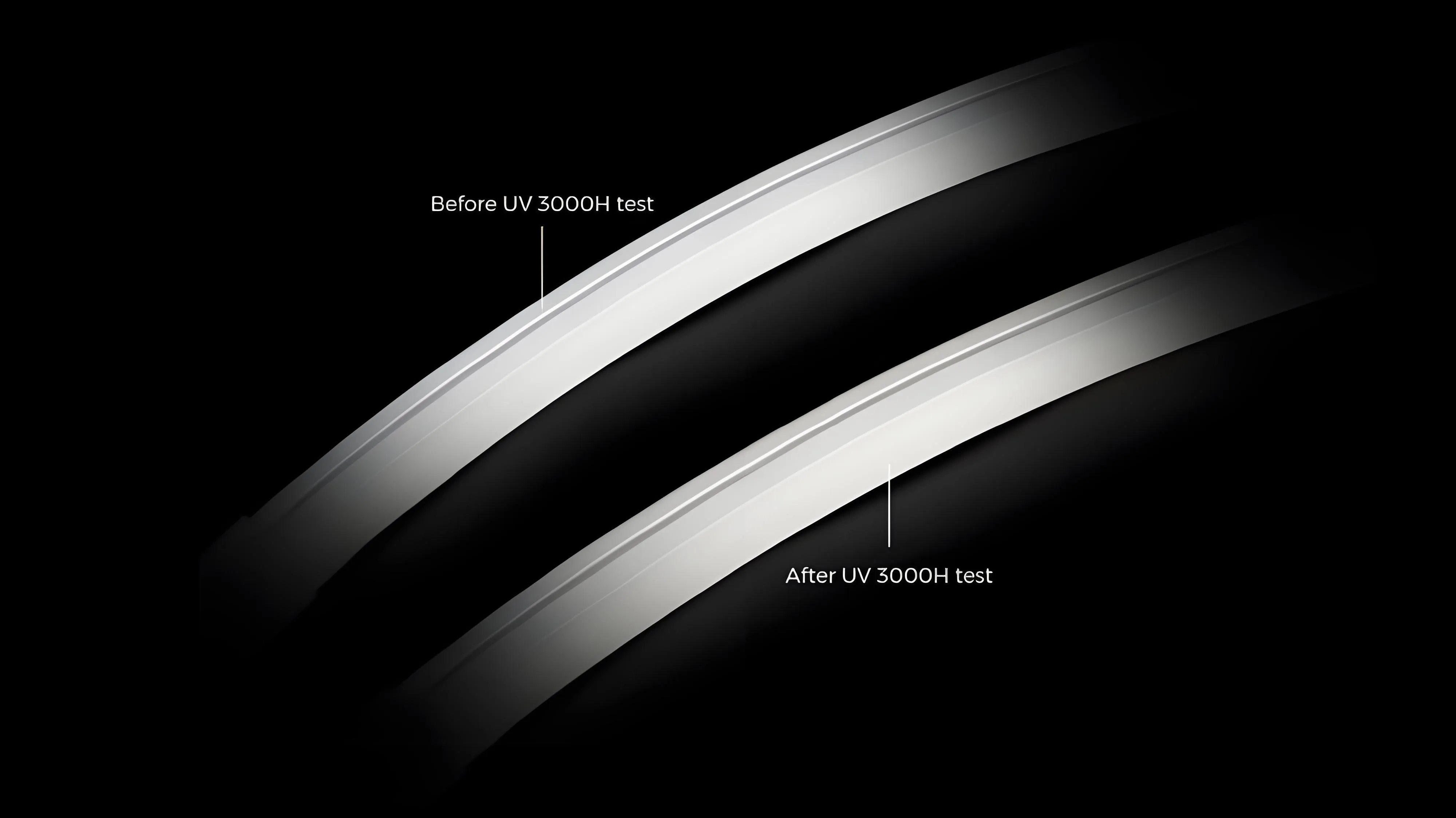

High-intensity UV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.

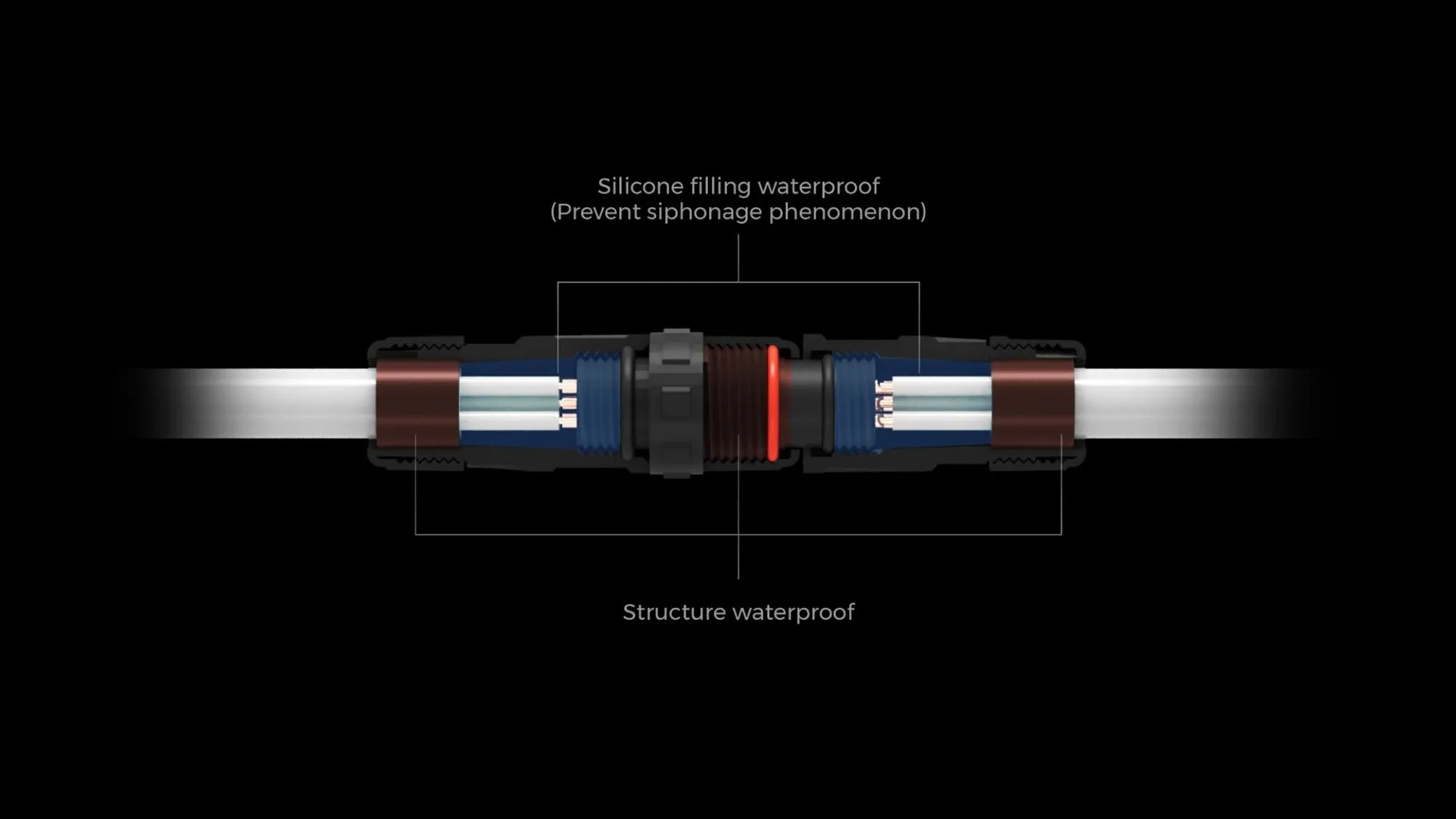

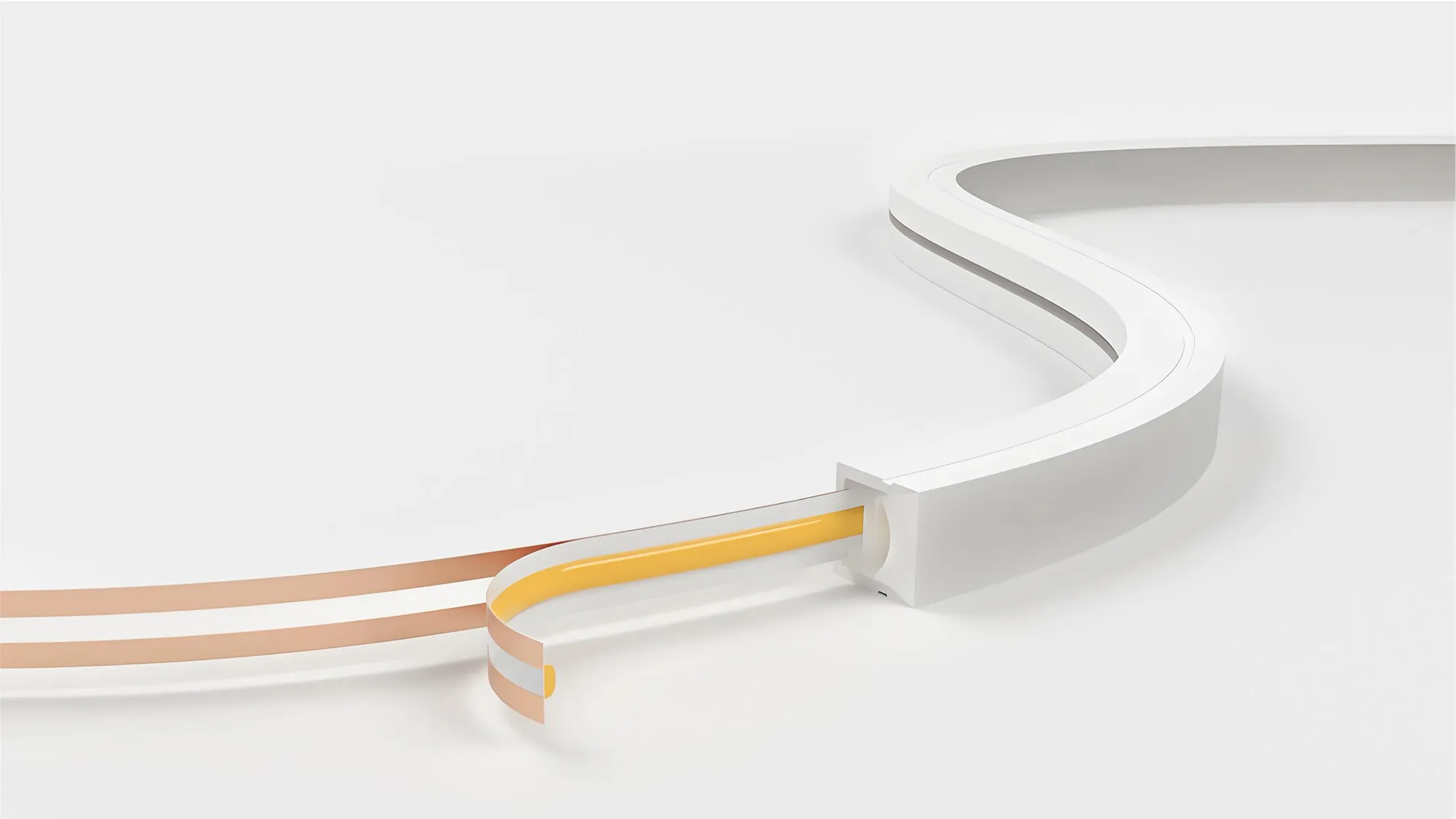

Solder-free fast connection, avoid siphonage phenomenon.
Silicone Filling waterproof in two areas, and structure waterproof in three areas.Dural Protection

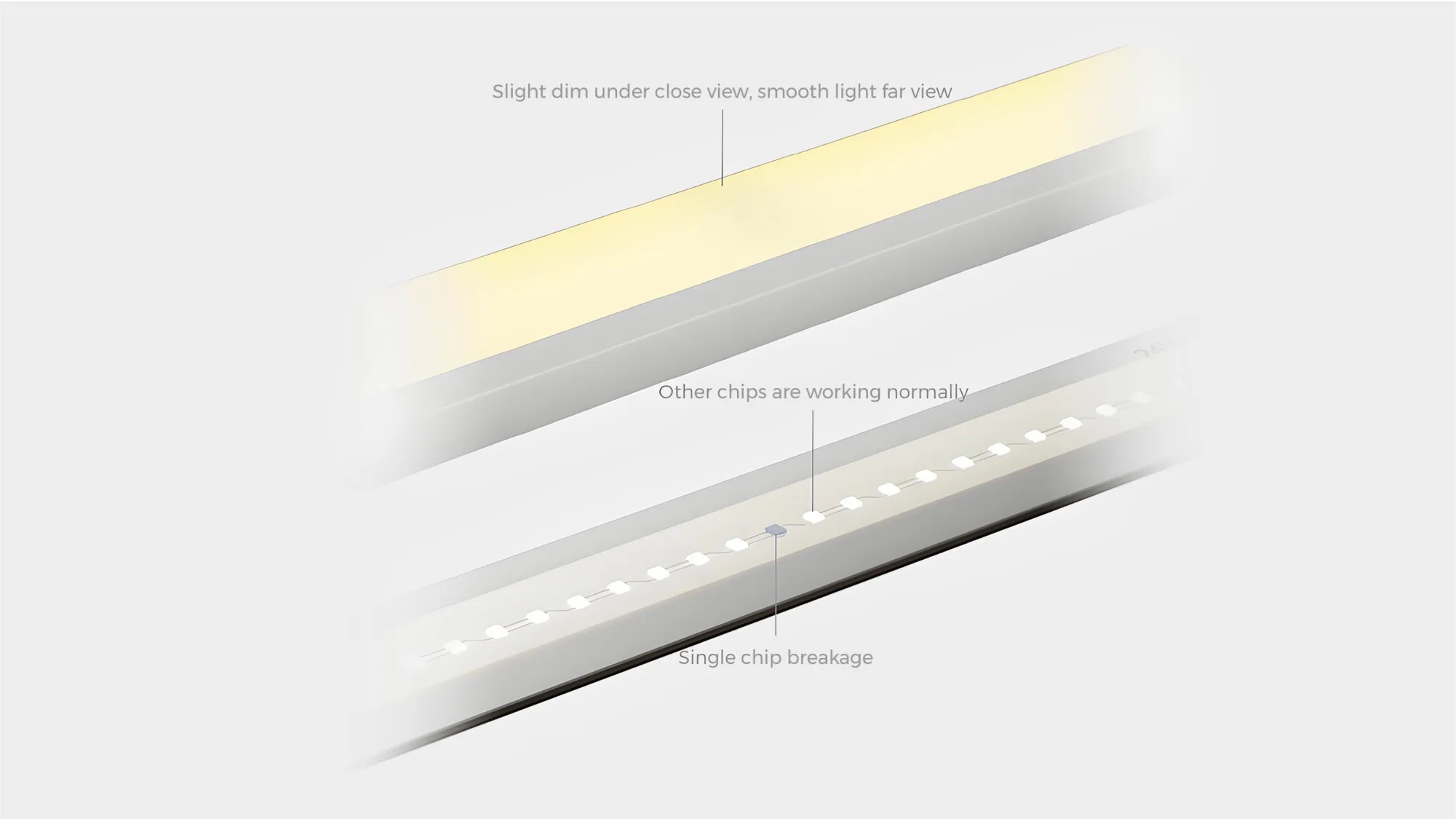

Special dura chips design, worry free about the dead-chips.
Parallel design of the smallest lighting unit, single chip failure does not affect normal illumination
Innovative structure, Anti-twist high reliability.
Built in anti-tensile PC line and Backplane, 2in1 designTwisting test : 5000 times* & Tensile Test ≥ 650NTrouble-free installation
Compatible withVarious DMX Control Systems.
Compatible with various DMX control systems such asNicolaudie (SLESA-U11+DNA-DRT-LTE),MADRIX (AURA <2/8/32>/STELLA),Mingrui (MR-CM <23S/12T/12V/12E>/MR-228DW).

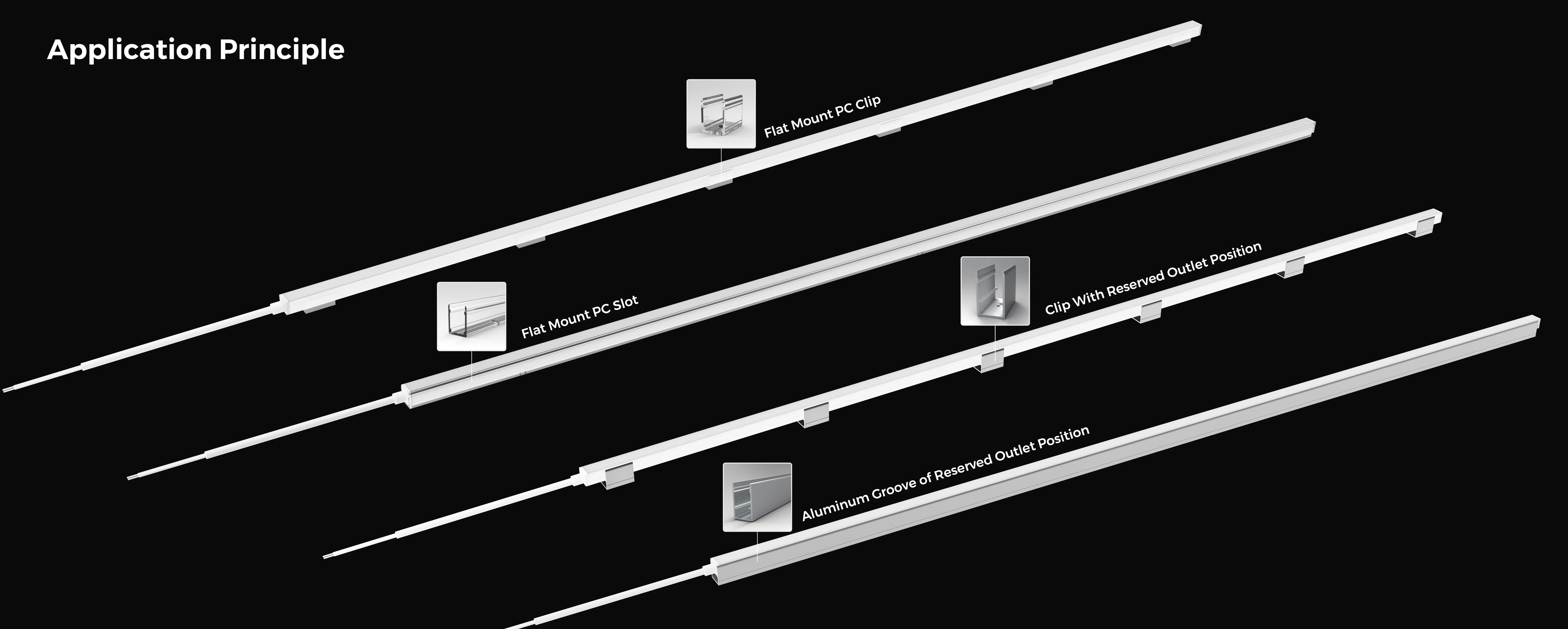

Application Principle

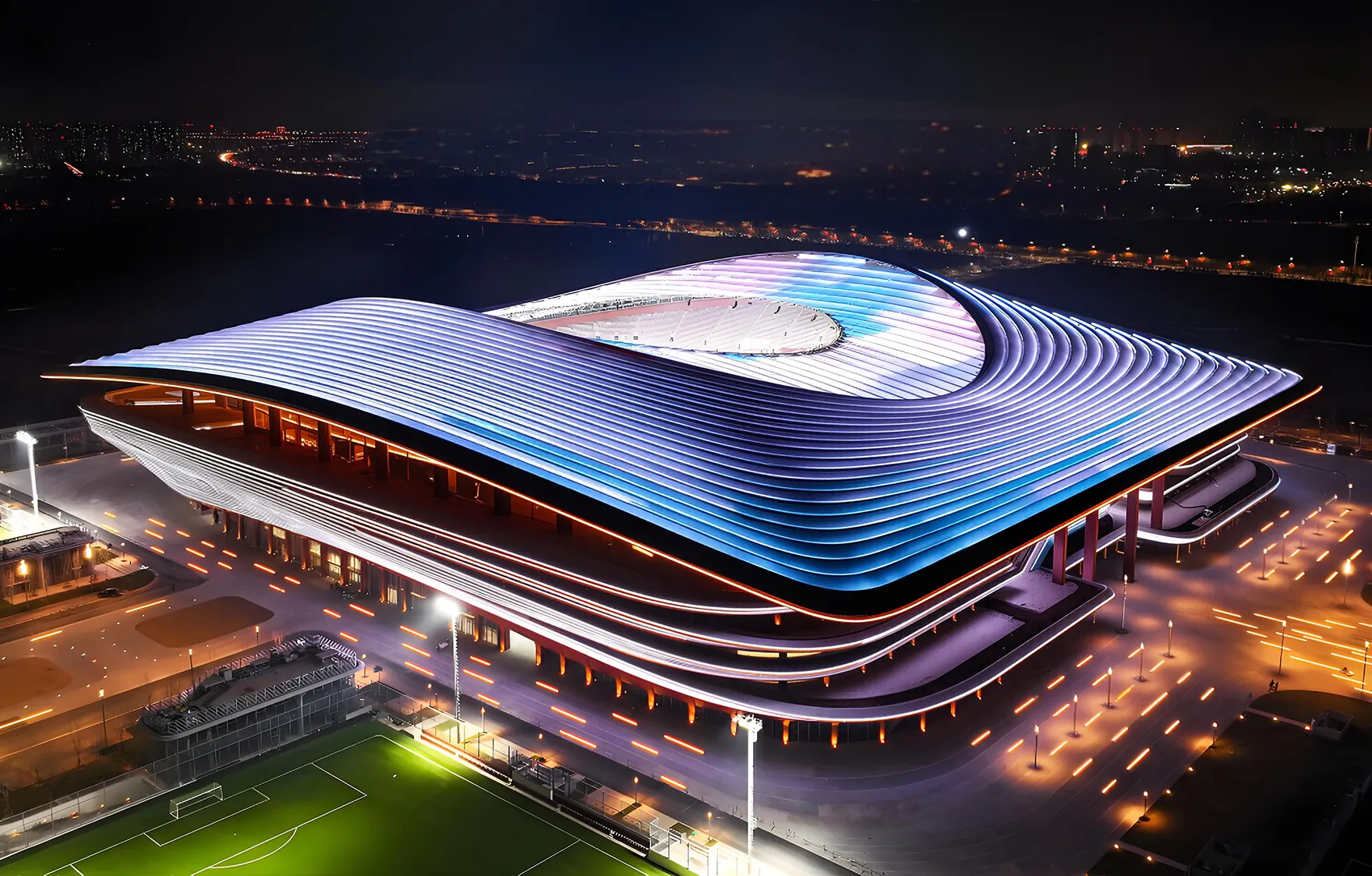

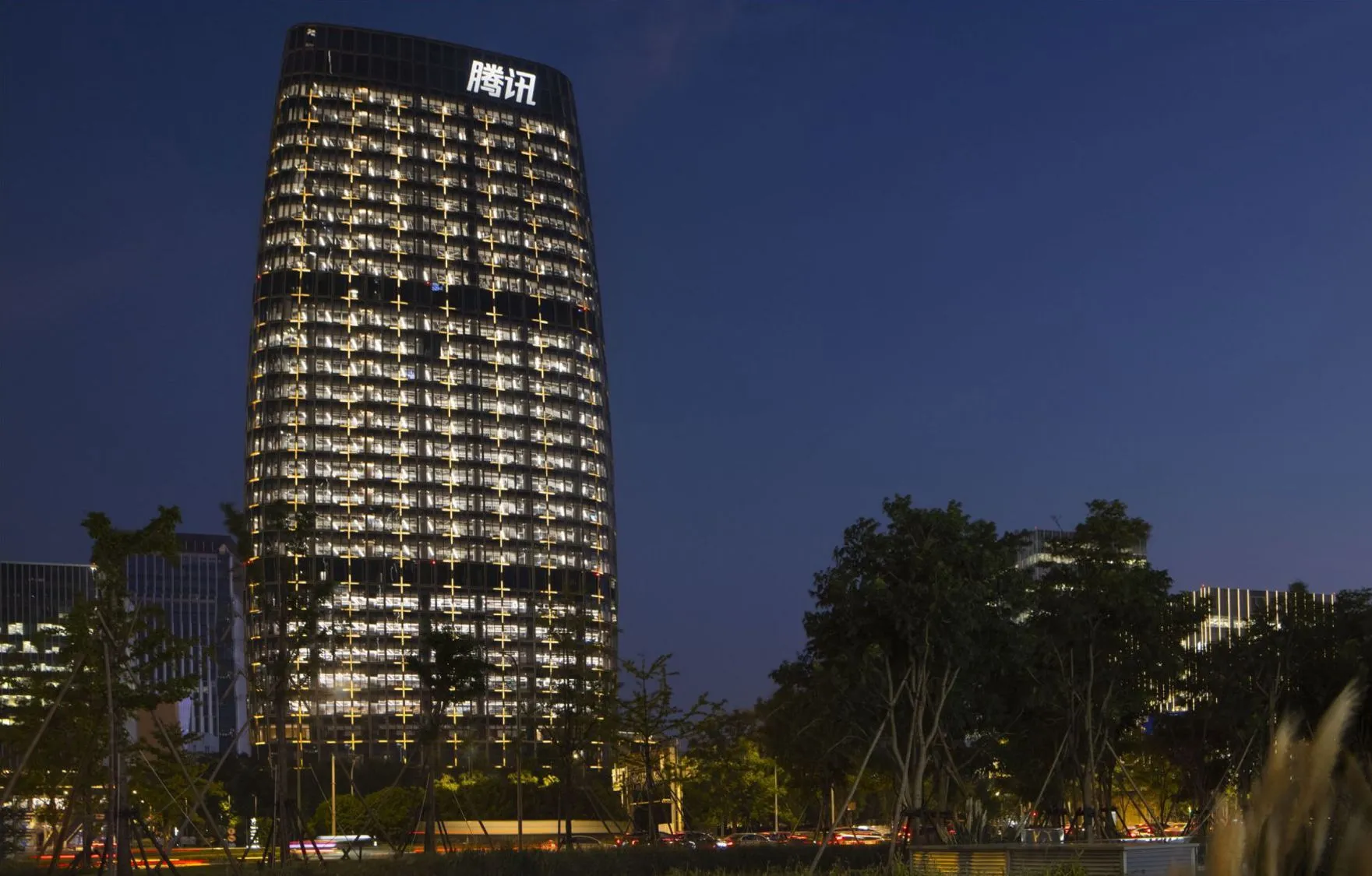

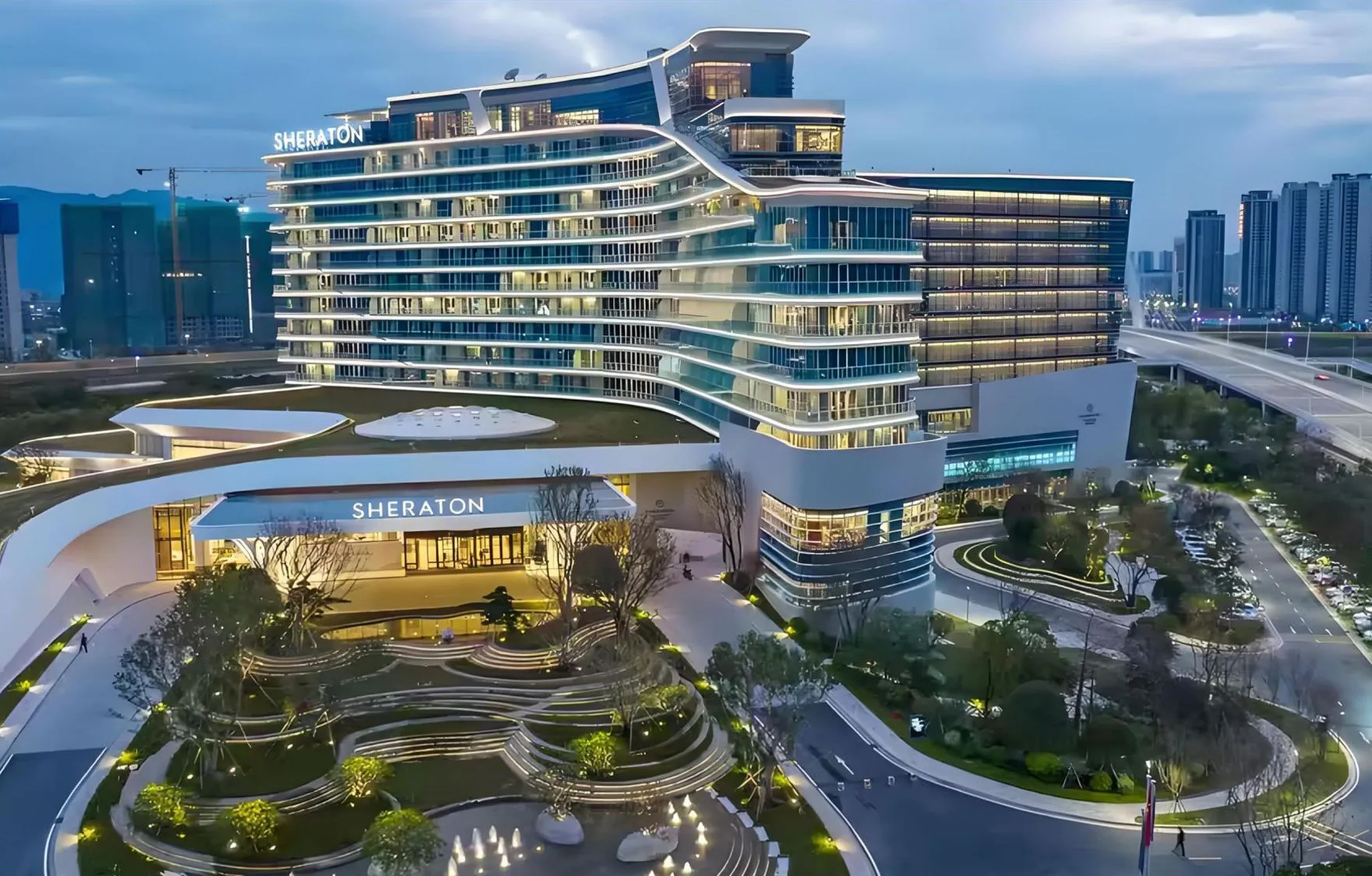

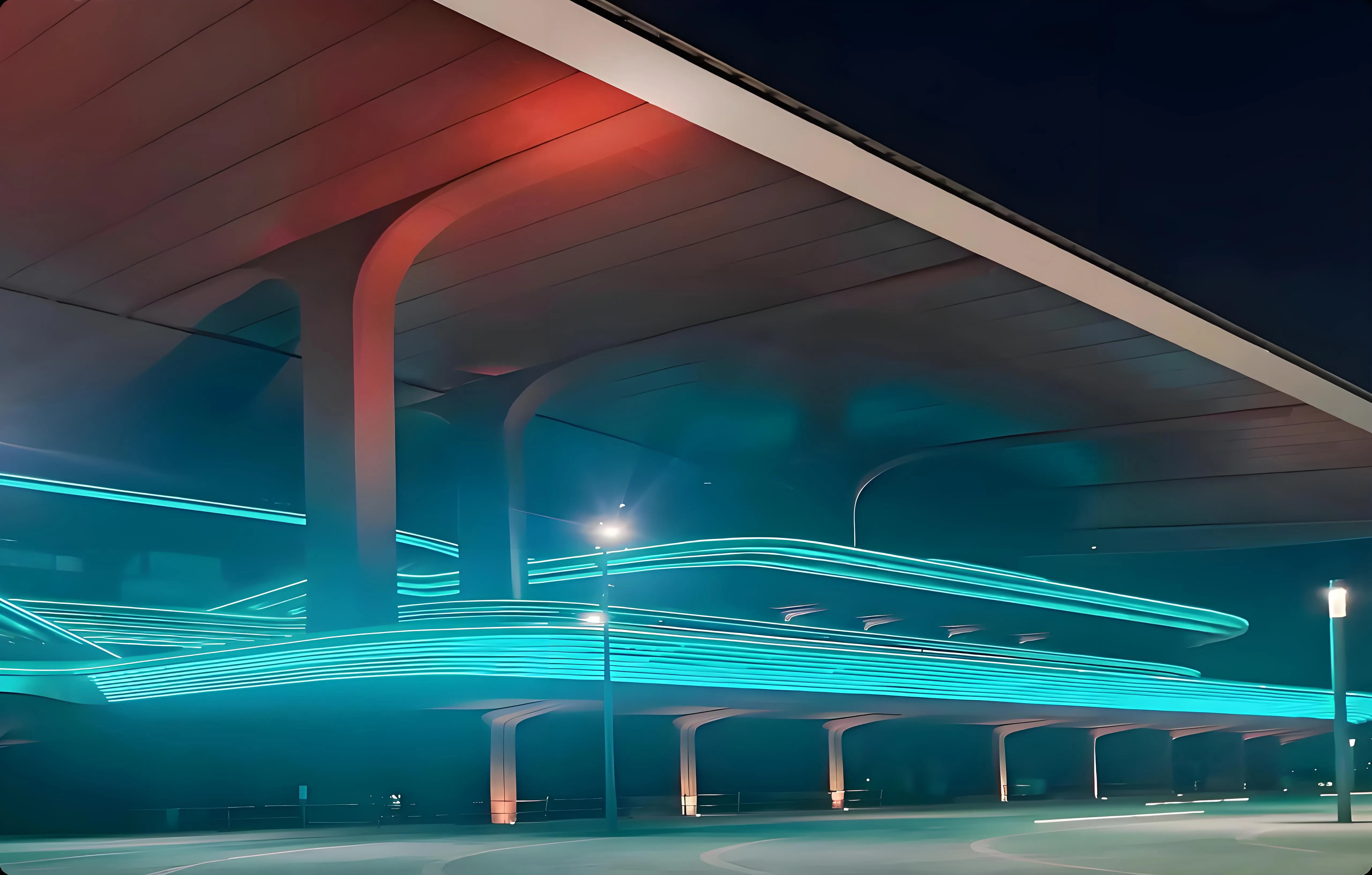

Scenario Case
Ordering Code
Optional Model
AFT1615-Color light-24V
AFT1615-DMX512 RGB neon light-24V
AFT1615-DMX512 RGBW neon light-24V
AFT1615-DMX512 White neon light-24V
AFT1615-RGB-24V
AFT1615-RGBW-24V
AFT1615-White light-24V
AFT1615-Color light-24V
Basic parameter
Warranty
7 Years
Cutting Unit
50
Leds Qty
320LEDs/m
Typ.power
10W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Standard Length
Min Cut
G
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
B
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
Accessories Type
Installation accessory
End cap accessory
Cable accessory
Supporting accessory
Monochrome-Remote control
Controller
Size
Name
Model
Description
Quantity
Application
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET

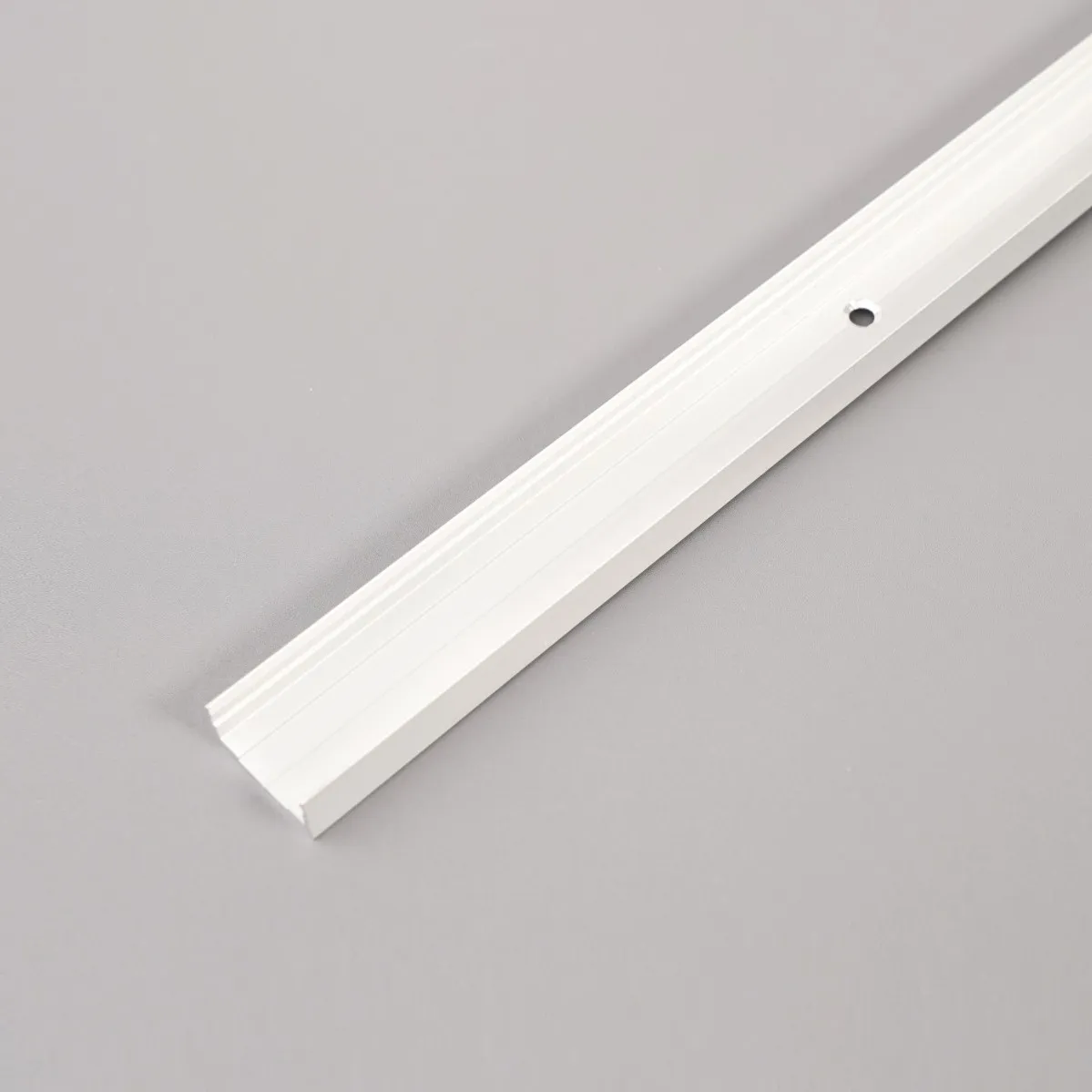

AS-NNT1615A-1000
AS-NNT1615A-1000
Product model:AS-NNT1615A-1000，NNT1615 Flat Patch Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：L1000*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615

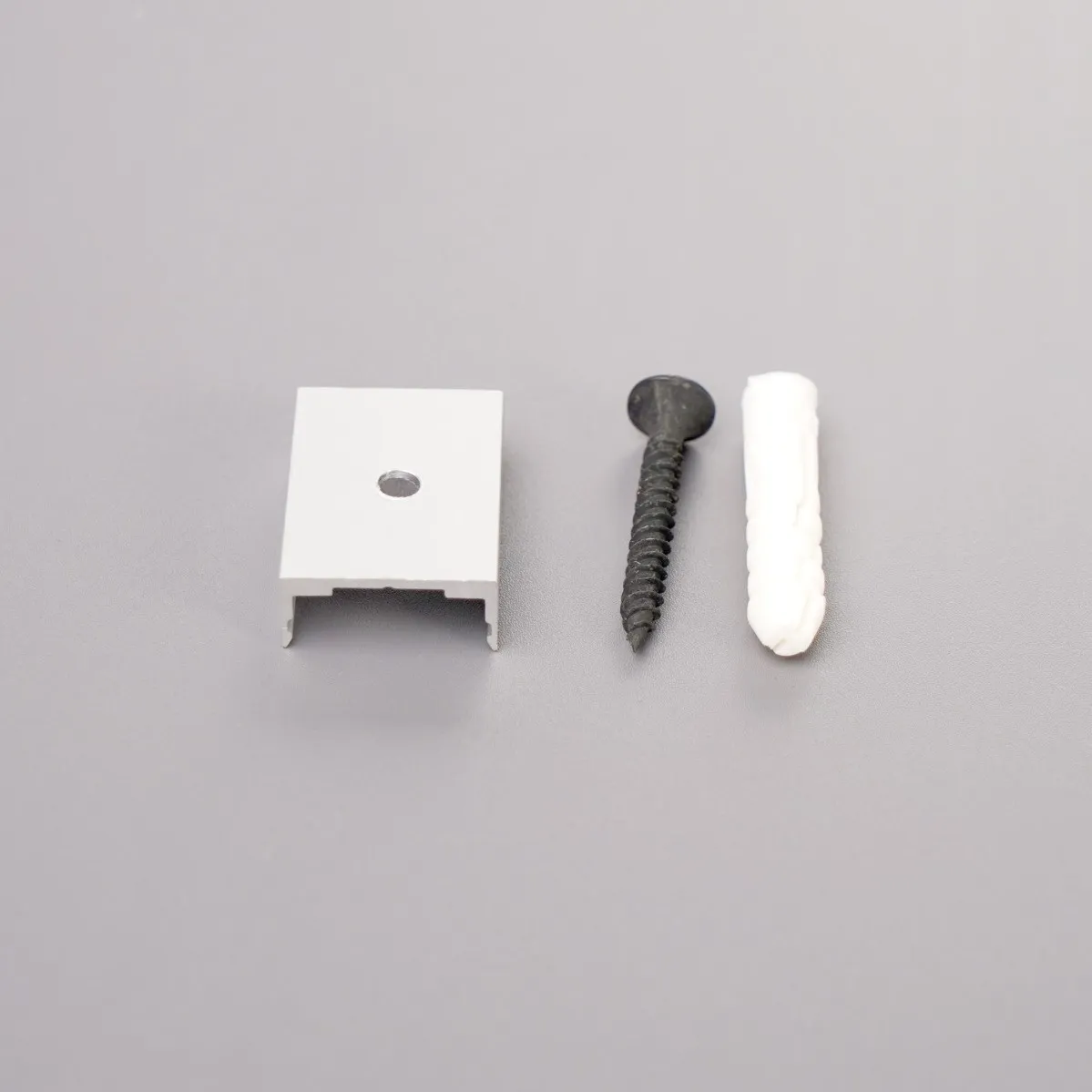

AS-NNT1615A-25
AS-NNT1615A-25
Product model:AS-NNT1615A-25，NNT1615 Flat Patch Mounting Aluminum Clip
Installation method：Flat Mounting
Coating：Silver
Size：L25*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：NNT1615

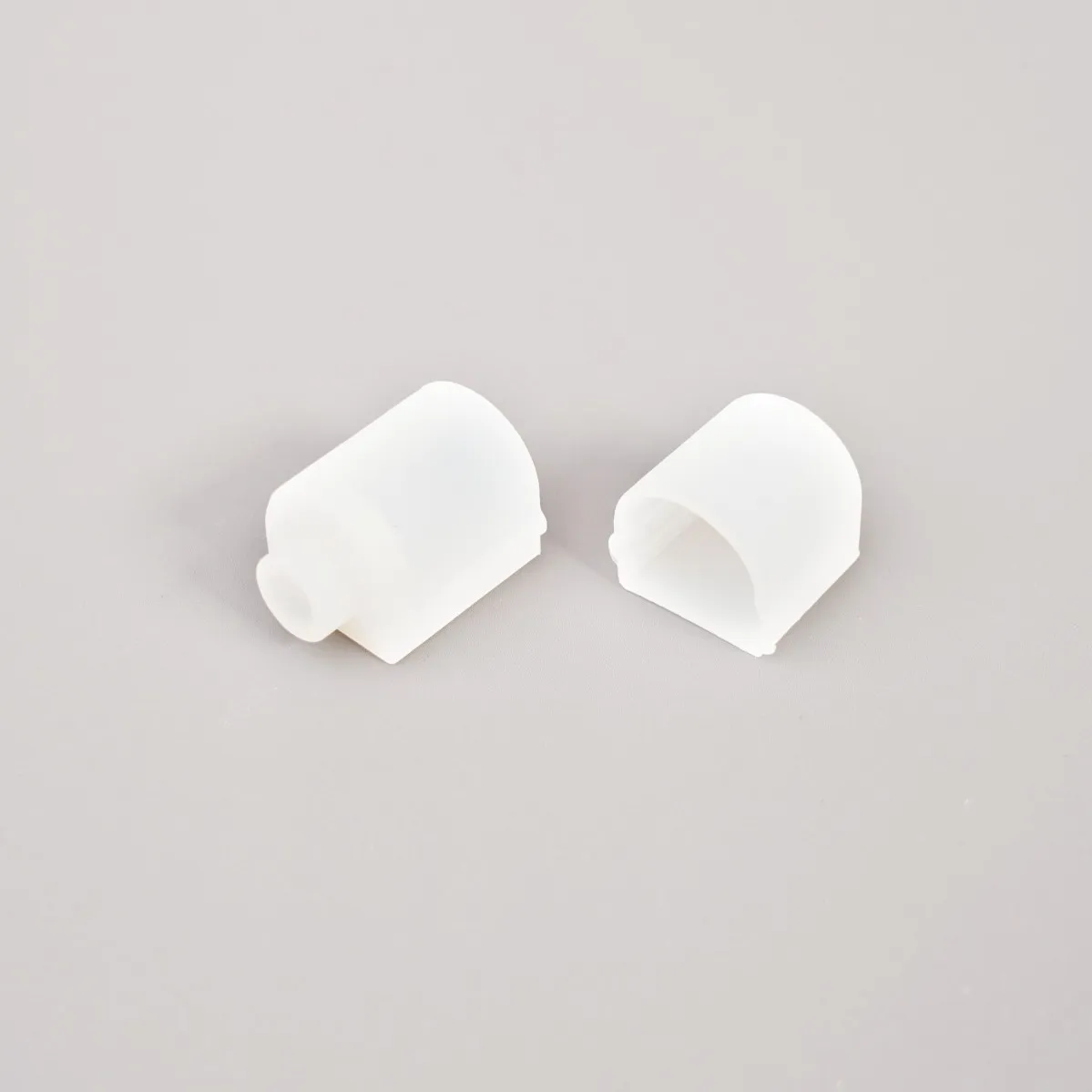

AS-NNT1615GH0-EC
AS-NNT1615GH0-EC
Product model:AS-NNT1615GH0-EC, NNT1615 translucent silicone plug set
Outlet direction: top
IP:IP65
Included: Translucent silicone plug and end cap
Applicable product model：NNT1615

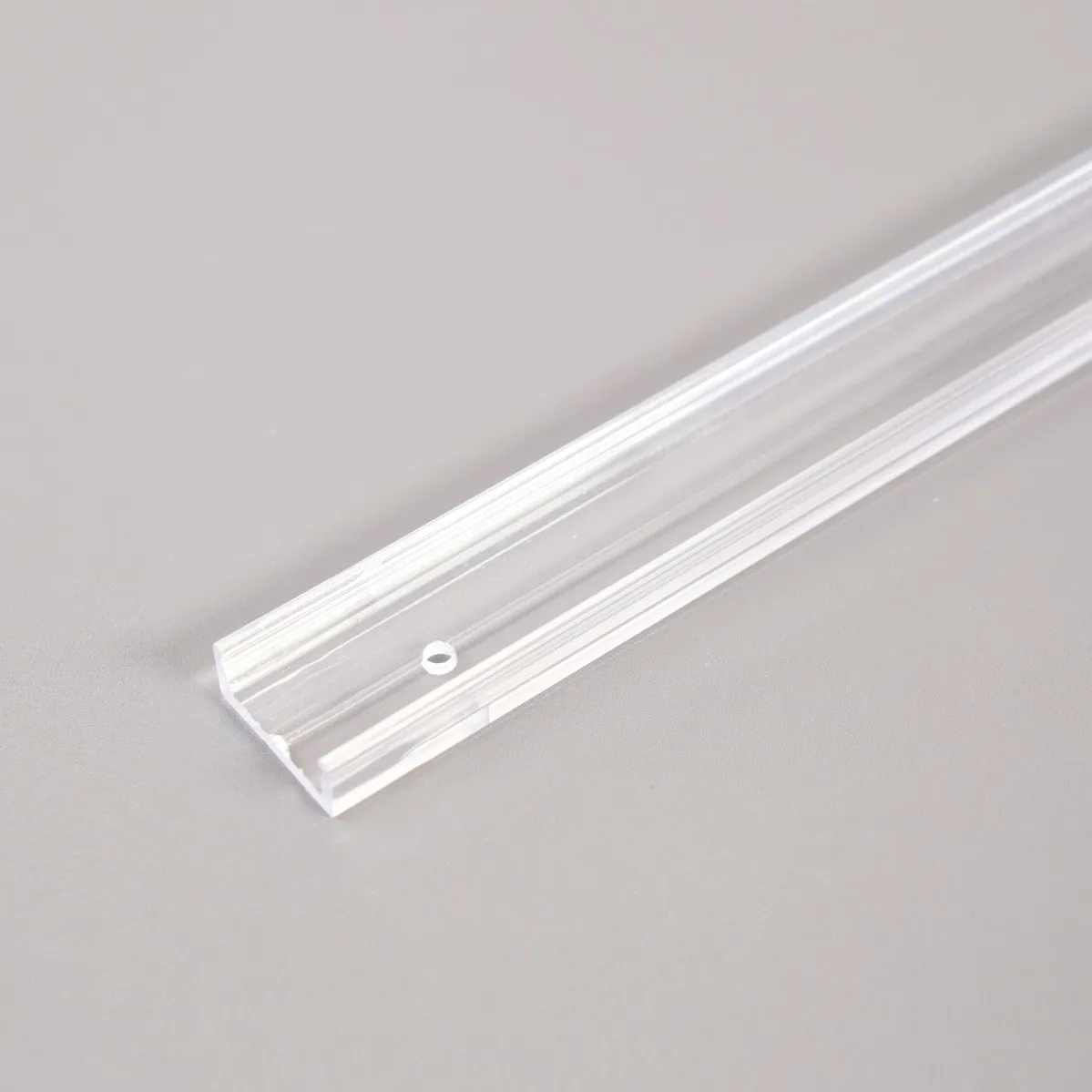

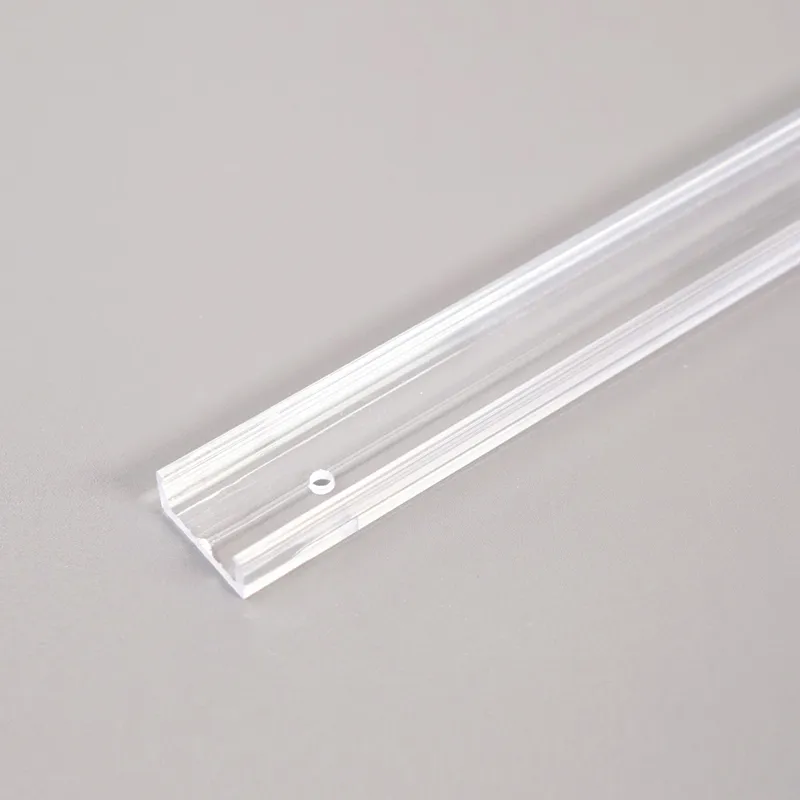

AS-NNT1615P-1000
AS-NNT1615P-1000
Product model:AS-NNT1615P-1000，NNT1615 Flat Mounting PC Groove
Installation method：Flat Mounting
Coating：Transparent
Size：L1000*W19.4*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615
