KING 2 Wall Mounted

KING 2 is a high-end series of downlights, the all-metal housing design ensures the reliability, the patented optical lens design ensures high light efficiency of 115LM/W and low glare of UGR<l, the modular design ensures the easy installation and easy maintenance.

Certification

General Info

Application
Indoor,outdoor
Mounting Type
Wall Mounted
Light Direction
Direct & Indirect
Dimension
φ73mm
Lamp Body Material
AL1070
Finish Colors
Black,White
Reflector Coating
Black chrome
Fire-Resistance Rating
UL94-V2
IP Rating
IP65
Operating Temperature
-15℃~35℃
Storage Temperature
0℃-40℃
Warranty
5 years
Certifications
CE,Reach,RoHS,UKCA

Electrical Info

Input Voltage
AC220-240V
Driver Brand
LiFud
Electrical Insulation Class
Class Ⅱ
Dimming
Non-Dimming

Optical Info

Version
Regular
LED Type
COB
LED Brand
CREE
CRI
Ra90+
CCT
2700K,3000K,3500K,4000K
SDCM
≤3 Step (ANSI)
Beam Angle
36°
UGR(4H,8H)
UGR<16
LED Lifetime
000H,>50,L90B10(Ta 25℃)

Download

Product Code

Finish Colors

Filter by Finish Colors

CCT

Filter by CCT
2 matching product codes

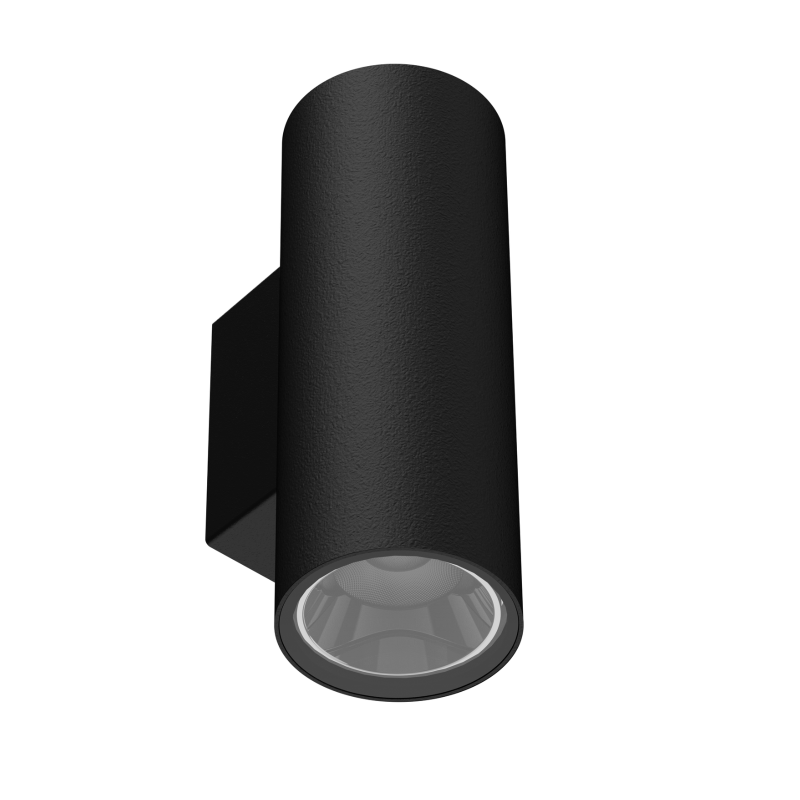

K2W73L1D

K2W73L1D

ORDER NOW
NameVersionDimensionSystem PowerCRICCTFinish ColorsBeam AngleSystem OutputLuminous EfficacyInput VoltageDownload
-Regularφ73mm2*7WRa90+2700K36°1090 lm78 lm/WAC220-240V
-Regularφ73mm2*7WRa90+3000K36°1150 lm82 lm/WAC220-240V
-Regularφ73mm2*7WRa90+3500K36°1185 lm84 lm/WAC220-240V
-Regularφ73mm2*7WRa90+4000K36°1210 lm86 lm/WAC220-240V

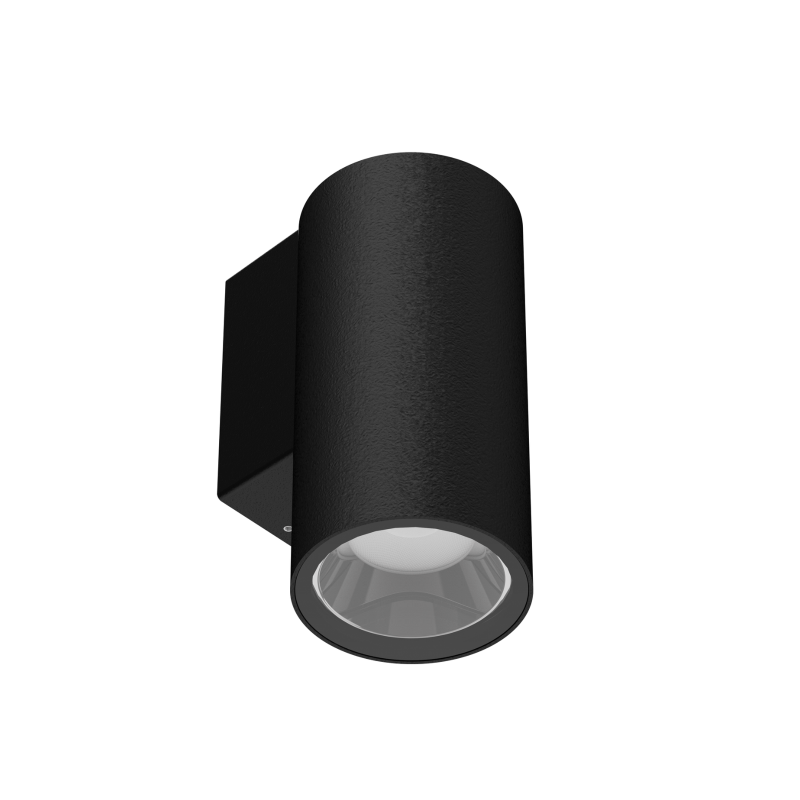

K2W73L1

K2W73L1

ORDER NOW
NameVersionDimensionSystem PowerCRICCTFinish ColorsBeam AngleSystem OutputLuminous EfficacyInput VoltageDownload
-Regularφ73mm12WRa90+2700K36°910 lm76 lm/WAC220-240V
-Regularφ73mm12WRa90+3000K36°960 lm80 lm/WAC220-240V
-Regularφ73mm12WRa90+3500K36°990 lm82 lm/WAC220-240V
-Regularφ73mm12WRa90+4000K36°1010 lm84 lm/WAC220-240V
