Infinite Diamond Recessed

If you don't need complex customization, Infinite Lights provides you with a wide range of ready-made shapes to choose from. You only need to confirm the basic specifications and parameters to obtain the product you need.

Feature

  • Aesthetics Without Seams
  • Mainstream Size Options
  • Powerful Performance
  • Multiple Types Of Installation

Certification

General Info

Application
Indoor
Mounting Type
Recessed
Light Direction
Direct
Dimension
600mm,900mm,1200mm
Lamp Body Material
AL6063-T5
Finish Colors
Black,Silver,White
Diffuser Type
Diffuser
Cover Material
PC
Diffuser Transmittance
>80%
Fire-Resistance Rating
UL94-V2
IP Rating
IP20
Operating Temperature
-15~35℃
Storage Temperature
0℃-40℃
Warranty
5 years
Certifications
CB,CE,ENEC,LM80,Reach,RoHS,UKCA

Electrical Info

Input Voltage
AC200-240V
Driver Brand
LiFud
Electrical Insulation Class
Class I
Dimming
1-10V,DALI-2,Non-Dimming

Optical Info

Version
High efficiency,Regular
LED Type
SMD2835
LED Brand
Lumileds,QZOPTO
CRI
Ra80+,Ra90+
CCT
2700K,3000K,3500K,4000K,5000K,6500K
SDCM
≤3 Step (ANSI)
Beam Angle
100°
Luminous Efficacy
120 lm/W max,135 lm/W max
LED Voltage
DC36V
LED Lifetime
000H,>50,L90B10(Ta 25℃)

Download

Product Code

Dimension

Filter by Dimension

Finish Colors

Filter by Finish Colors

Version

Filter by Version

CRI

Filter by CRI

CCT

Filter by CCT

Luminous Efficacy

3 matching product codes
D-RE5035D

D-RE5035D

ORDER NOW
NameVersionDimensionSystem PowerCRICCTFinish ColorsBeam AngleSystem OutputLuminous EfficacyInput VoltageDownload
-Regular600mm58WRa80+2700KWhite100°4930 lm85 lm/WAC200-240V
-Regular600mm58WRa80+3000KWhite100°5220 lm90 lm/WAC200-240V
-Regular600mm58WRa80+3500KWhite100°5626 lm97 lm/WAC200-240V
-Regular600mm58WRa80+4000KWhite100°5800 lm100 lm/WAC200-240V
-Regular600mm58WRa80+5000KWhite100°5800 lm100 lm/WAC200-240V
-Regular600mm58WRa80+6500KWhite100°5800 lm100 lm/WAC200-240V
-Regular600mm58WRa90+2700KWhite100°4234 lm73 lm/WAC200-240V
-Regular600mm58WRa90+3000KWhite100°4524 lm78 lm/WAC200-240V
-Regular600mm58WRa90+3500KWhite100°4814 lm83 lm/WAC200-240V
-Regular600mm58WRa90+4000KWhite100°4988 lm86 lm/WAC200-240V
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6

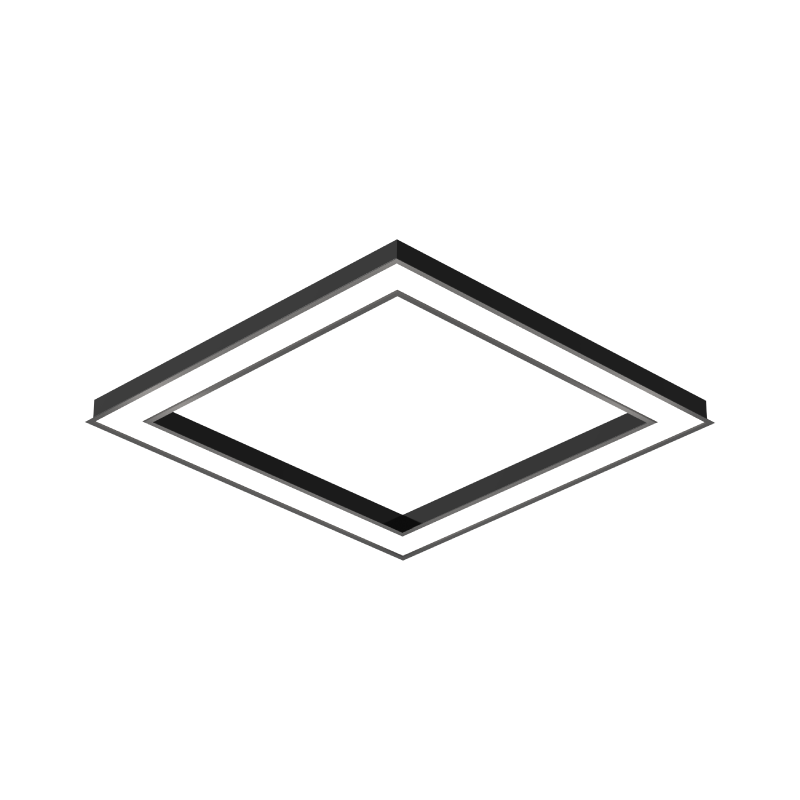

D-RE7035D

D-RE7035D

ORDER NOW
NameVersionDimensionSystem PowerCRICCTFinish ColorsBeam AngleSystem OutputLuminous EfficacyInput VoltageDownload
-Regular600mm78WRa80+2700KWhite100°7293 lm94 lm/WAC200-240V
-Regular600mm78WRa80+3000KWhite100°7722 lm99 lm/WAC200-240V
-Regular600mm78WRa80+3500KWhite100°8323 lm107 lm/WAC200-240V
-Regular600mm78WRa80+4000KWhite100°8580 lm110 lm/WAC200-240V
-Regular600mm78WRa80+5000KWhite100°8580 lm110 lm/WAC200-240V
-Regular600mm78WRa80+6500KWhite100°8580 lm110 lm/WAC200-240V
-Regular600mm78WRa90+2700KWhite100°6263 lm80 lm/WAC200-240V
-Regular600mm78WRa90+3000KWhite100°6692 lm86 lm/WAC200-240V
-Regular600mm78WRa90+3500KWhite100°7121 lm91 lm/WAC200-240V
-Regular600mm78WRa90+4000KWhite100°7379 lm95 lm/WAC200-240V
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
D-RE3535D

D-RE3535D

ORDER NOW
NameVersionDimensionSystem PowerCRICCTFinish ColorsBeam AngleSystem OutputLuminous EfficacyInput VoltageDownload
-Regular600mm48WRa80+2700KWhite100°4080 lm85 lm/WAC200-240V
-Regular600mm48WRa80+3000KWhite100°4320 lm90 lm/WAC200-240V
-Regular600mm48WRa80+3500KWhite100°4656 lm97 lm/WAC200-240V
-Regular600mm48WRa80+4000KWhite100°4800 lm100 lm/WAC200-240V
-Regular600mm48WRa80+5000KWhite100°4800 lm100 lm/WAC200-240V
-Regular600mm48WRa80+6500KWhite100°4800 lm100 lm/WAC200-240V
-Regular600mm48WRa90+2700KWhite100°3504 lm73 lm/WAC200-240V
-Regular600mm48WRa90+3000KWhite100°3744 lm78 lm/WAC200-240V
-Regular600mm48WRa90+3500KWhite100°3984 lm83 lm/WAC200-240V
-Regular600mm48WRa90+4000KWhite100°4128 lm86 lm/WAC200-240V
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
