CSP-Dot PDS

The IP67 version of CSP DOT series LED strips is incredibly durable with anti-bending, anti-twisting, and anti-tensile features. The LED strip lights are manufactured using a fully enclosed solid silicone extrusion process, suitable for both outdoor and indoor environments. It comes with a 5-year warranty.

Certification

General Info

Operating Temperature
-40~60°C;Tc:75°C(max)
Storage Temperature
0~40°C
Warranty
5years
Certifications
CB,CE,UKCA,UL

Electrical Info

Max-Run(Single-End Feed)
5M
Input Voltage
DC24V
Electrical Insulation Class
Class III
Typ.Power
14W/M

Optical Info

LED Type
CSP
CRI
N/A,Ra90+
CCT
3000K,4000K,6500K,SPI-2700K,SPI-RGB
Cutting Unit
100mm
LED QTY
210LEDs/m,280LEDs/m
IC Model
UCS5603A
Pixel/Meter
10 pixels/m
Copper foil
3oz

Download

Product Code

CRI

Filter by CRI

CCT

Filter by CCT
2 matching product codes

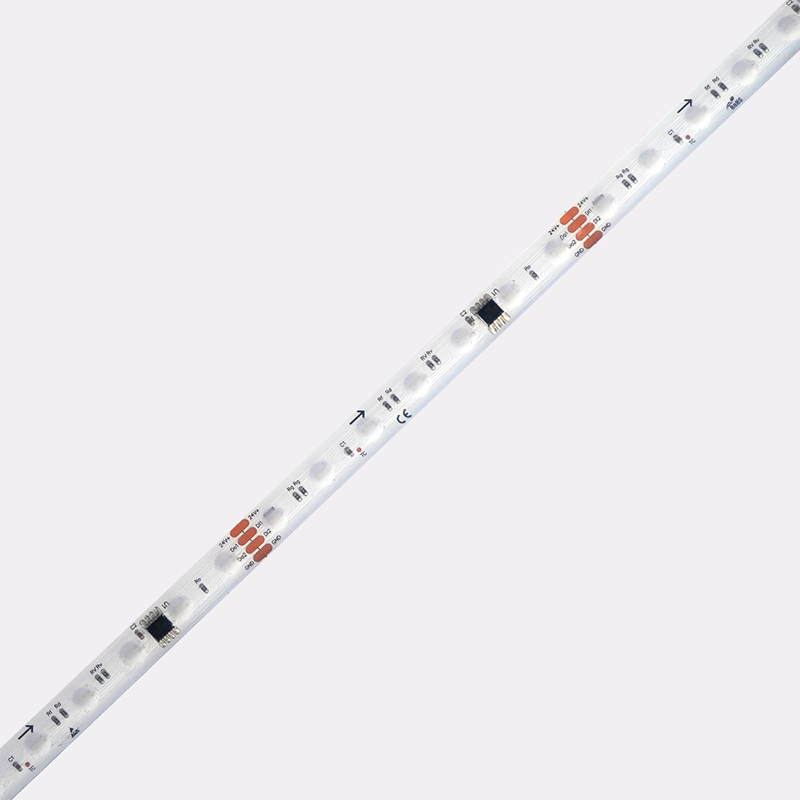

PDS70RGB-24V-10mm

PDS70RGB-24V-10mm

ORDER NOW
NameInput VoltageTyp.PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
-DC24V14 W/mN/AR95 lm/m[29 lm/ft]27 lm/W5years
-DC24V14 W/mN/AG320 lm/m[97 lm/ft]91 lm/W5years
-DC24V14 W/mN/AB65 lm/m[20 lm/ft]19 lm/W5years
-DC24V14 W/mN/ARGB-SPI450 lm/m[137 lm/ft]32 lm/W5years

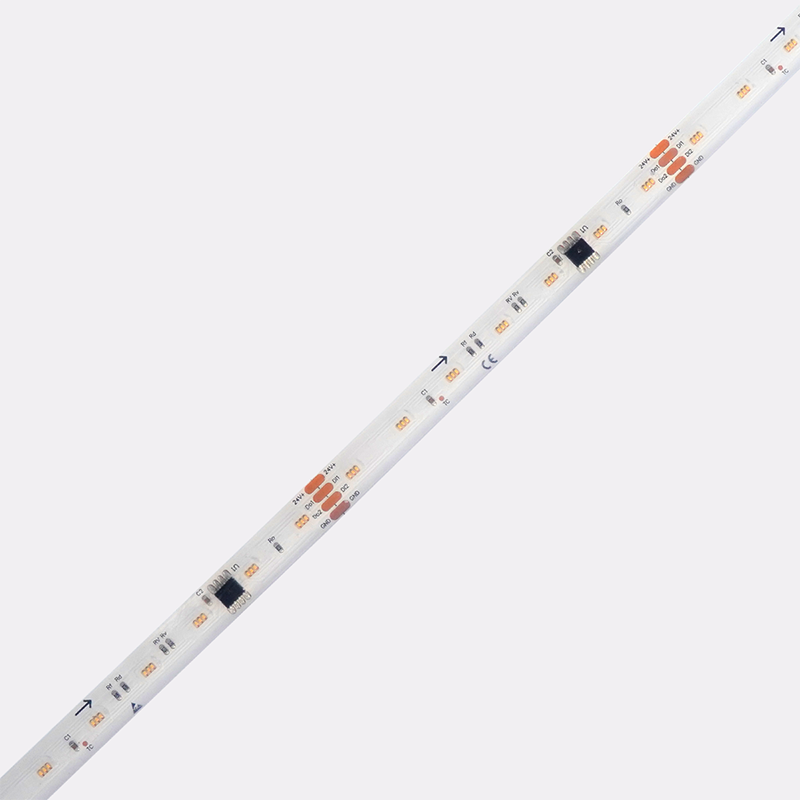

PDS70-24V-10mm

PDS70-24V-10mm

ORDER NOW
NameInput VoltageTyp.PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
-DC24V14 W/mRa90+2700K-SPI950 lm/m[290 lm/ft]68 lm/W5years
-DC24V14 W/mRa90+3000K-SPI995 lm/m[303 lm/ft]71 lm/W5years
-DC24V14 W/mRa90+4000K-SPI1020 lm/m[311 lm/ft]73 lm/W5years
-DC24V14 W/mRa90+6500K-SPI1020 lm/m[311 lm/ft]73 lm/W5years
