COF-Linear DF

The COF Linear Series dotless LED strip light delivers premium lighting performance with a high color rendering index of CRI90 and ultra-high luminous efficiency reaching up to 150lm/W, presenting vivid, authentic color reproduction with outstanding energy-saving performance. This seamless linear light comes with a comprehensive 7-year manufacturer’s warranty for all indoor decorative and architectural lighting applications.

Certification

General Info

Operating Temperature: -25~40°C;Tc：75°C（max）
Storage Temperature: 0~40°C
Warranty: 7years
Certifications: CB,CE,UKCA,UL

Electrical Info

Max-Run(Single-End Feed): 2.5M,5M,15M
Input Voltage: DC12V,DC24V,DC48V
Electrical Insulation Class: Class III
Typ.Power: 8W/M,10W/M,15W/M

Optical Info

LED Type: COF
CRI: Ra90+
CCT: 2700K,3000K,3500K,4000K,6500K,B,G,R
Cutting Unit: 3.68mm,7.35mm,10mm,25mm,29.4mm,29.41mm,33.3mm,50mm
LED QTY: 280LEDs/m,320LEDs/m,400LEDs/m,420LEDs/m,544LEDs/m
Copper foil: 3oz

Download

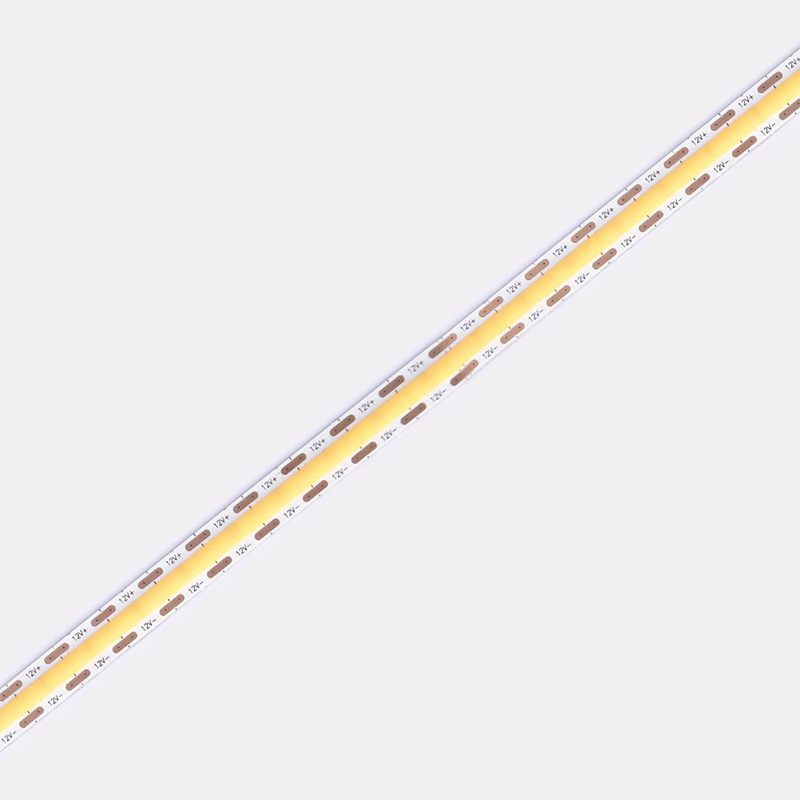

Product Code

DF8-12V-8mm

DF8-12V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC12V	8 W/m	Ra90+	2700K	910 lm/m[278 lm/ft]	114 lm/W	7years
-	DC12V	8 W/m	Ra90+	3000K	960 lm/m[293 lm/ft]	120 lm/W	7years
-	DC12V	8 W/m	Ra90+	4000K	1040 lm/m[317 lm/ft]	130 lm/W	7years
-	DC12V	8 W/m	Ra90+	6500K	1055 lm/m[322 lm/ft]	132 lm/W	7years
-	DC12V	8 W/m	N/A	B	160 lm/m[49 lm/ft]	20 lm/W	7years
-	DC12V	8 W/m	N/A	G	760 lm/m[232 lm/ft]	95 lm/W	7years
-	DC12V	8 W/m	N/A	R	170 lm/m[52 lm/ft]	21 lm/W	7years

DF10-24V-8mm

DF10-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	10 W/m	Ra90+	2700K	1170 lm/m[357 lm/ft]	117 lm/W	7years
-	DC24V	10 W/m	Ra90+	3000K	1220 lm/m[372 lm/ft]	122 lm/W	7years
-	DC24V	10 W/m	Ra90+	4000K	1320 lm/m[402 lm/ft]	132 lm/W	7years
-	DC24V	10 W/m	Ra90+	6500K	1340 lm/m[409 lm/ft]	134 lm/W	7years
-	DC24V	10 W/m	N/A	B	85 lm/m[25 lm/ft]	8 lm/W	7years
-	DC24V	10 W/m	N/A	G	1190 lm/m[362 lm/ft]	126 lm/W	7years
-	DC24V	10 W/m	N/A	R	65 lm/m[19 lm/ft]	7 lm/W	7years

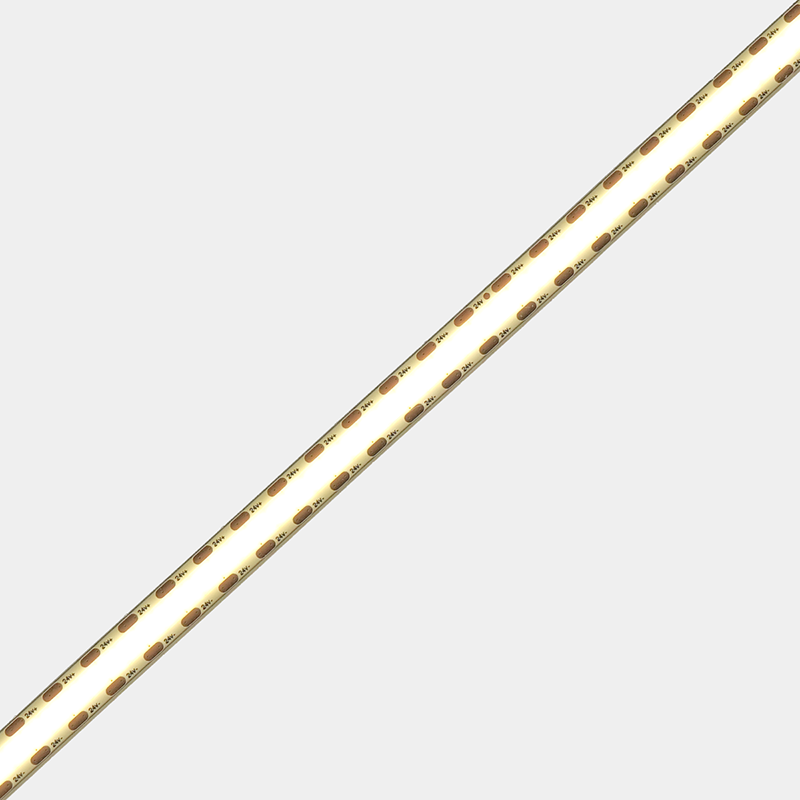

DF10N-24V-8mm

DF10N-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	10 W/m	Ra90+	2700K	1040 lm/m[317 lm/ft]	104 lm/W	7years
-	DC24V	10 W/m	Ra90+	3000K	1090 lm/m[332 lm/ft]	109 lm/W	7years
-	DC24V	10 W/m	Ra90+	3500K	1140 lm/m[348 lm/ft]	114 lm/W	7years
-	DC24V	10 W/m	Ra90+	4000K	1190 lm/m[363 lm/ft]	119 lm/W	7years
-	DC24V	10 W/m	Ra90+	6500K	1210 lm/m[369 lm/ft]	121 lm/W	7years

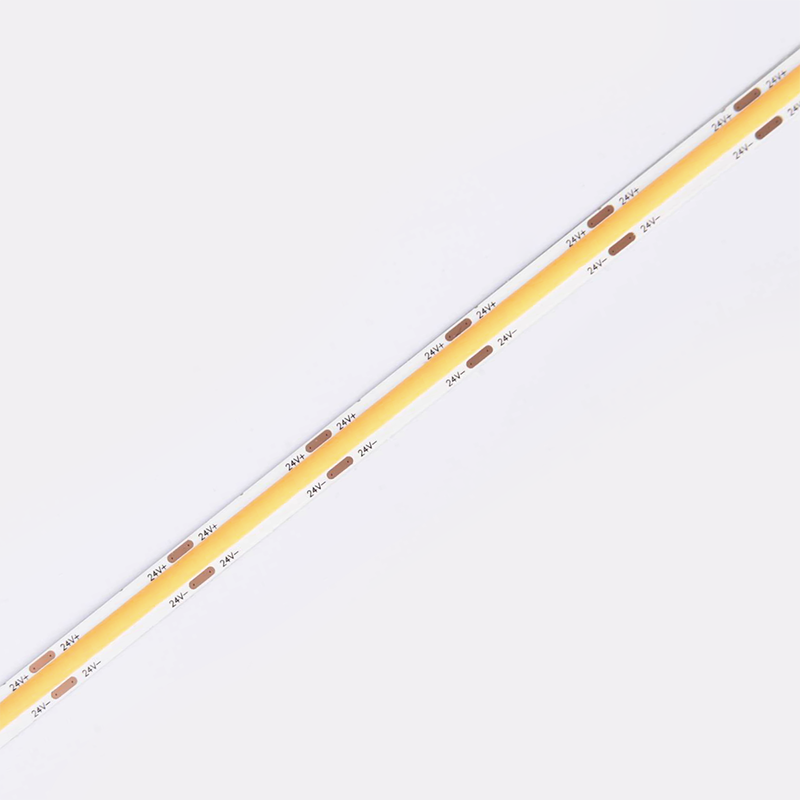

DF15-24V-8mm

DF15-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	15 W/m	Ra90+	2700K	1755 lm/m[535 lm/ft]	117 lm/W	7years
-	DC24V	15 W/m	Ra90+	3000K	1755 lm/m[535 lm/ft]	117 lm/W	7years
-	DC24V	15 W/m	Ra90+	4000K	1950 lm/m[595 lm/ft]	130 lm/W	7years
-	DC24V	15 W/m	Ra90+	6500K	1935 lm/m[590 lm/ft]	129 lm/W	7years
-	DC24V	15 W/m	N/A	B	300 lm/m[91 lm/ft]	20 lm/W	7years
-	DC24V	15 W/m	N/A	G	1425 lm/m[434 lm/ft]	95 lm/W	7years
-	DC24V	15 W/m	N/A	R	315 lm/m[96 lm/ft]	21 lm/W	7years

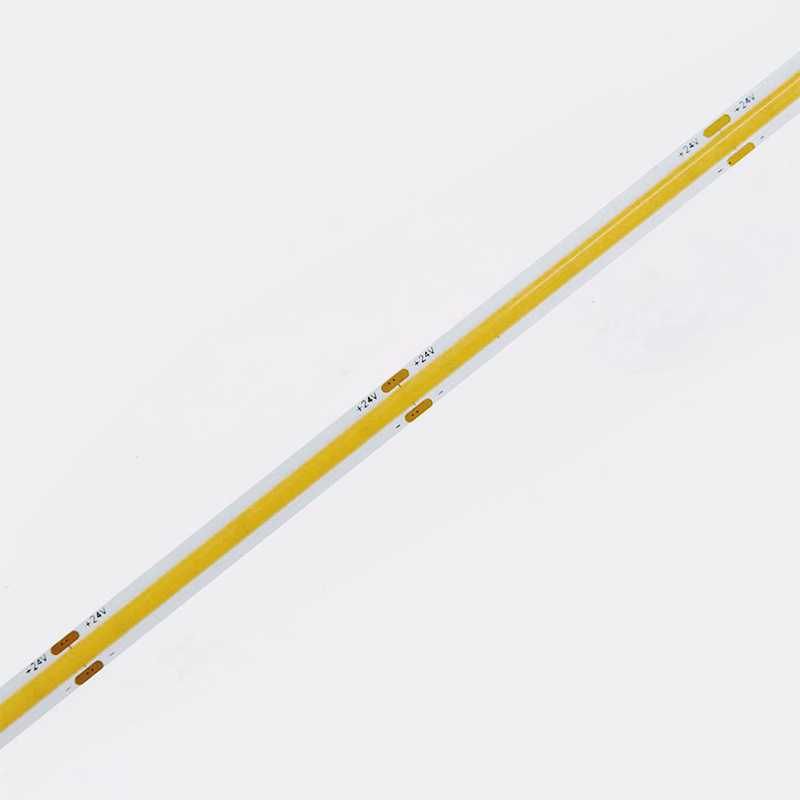

DF8-24V-8mm

DF8-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	10 W/m	Ra90+	2700K	1150 lm/m[351 lm/ft]	115 lm/W	7years
-	DC24V	10 W/m	Ra90+	3000K	1210 lm/m[369 lm/ft]	121 lm/W	7years
-	DC24V	10 W/m	Ra90+	4000K	1300 lm/m[396 lm/ft]	130 lm/W	7years
-	DC24V	10 W/m	Ra90+	6500K	1350 lm/m[412 lm/ft]	135 lm/W	7years
-	DC24V	10 W/m	N/A	B	200 lm/m[61 lm/ft]	20 lm/W	7years
-	DC24V	10 W/m	N/A	G	950 lm/m[290 lm/ft]	95 lm/W	7years
-	DC24V	10 W/m	N/A	R	210 lm/m[64 lm/ft]	21 lm/W	7years

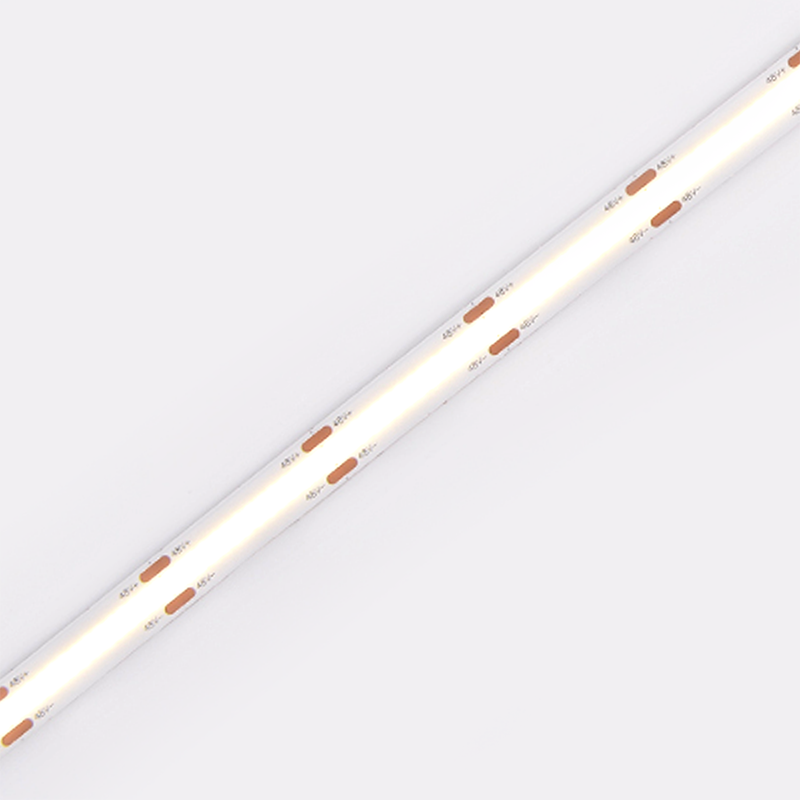

DF8-48V-10mm

DF8-48V-10mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC48V	10 W/m	Ra90+	2700K	1020 lm/m[311 lm/ft]	102 lm/W	7years
-	DC48V	10 W/m	Ra90+	3000K	1090 lm/m[332 lm/ft]	109 lm/W	7years
-	DC48V	10 W/m	Ra90+	4000K	1200 lm/m[366 lm/ft]	120 lm/W	7years
-	DC48V	10 W/m	Ra90+	6500K	1210 lm/m[369 lm/ft]	121 lm/W	7years
-	DC48V	10 W/m	N/A	B	200 lm/m[61 lm/ft]	20 lm/W	7years
-	DC48V	10 W/m	N/A	G	950 lm/m[290 lm/ft]	95 lm/W	7years
-	DC48V	10 W/m	N/A	R	210 lm/m[64 lm/ft]	21 lm/W	7years

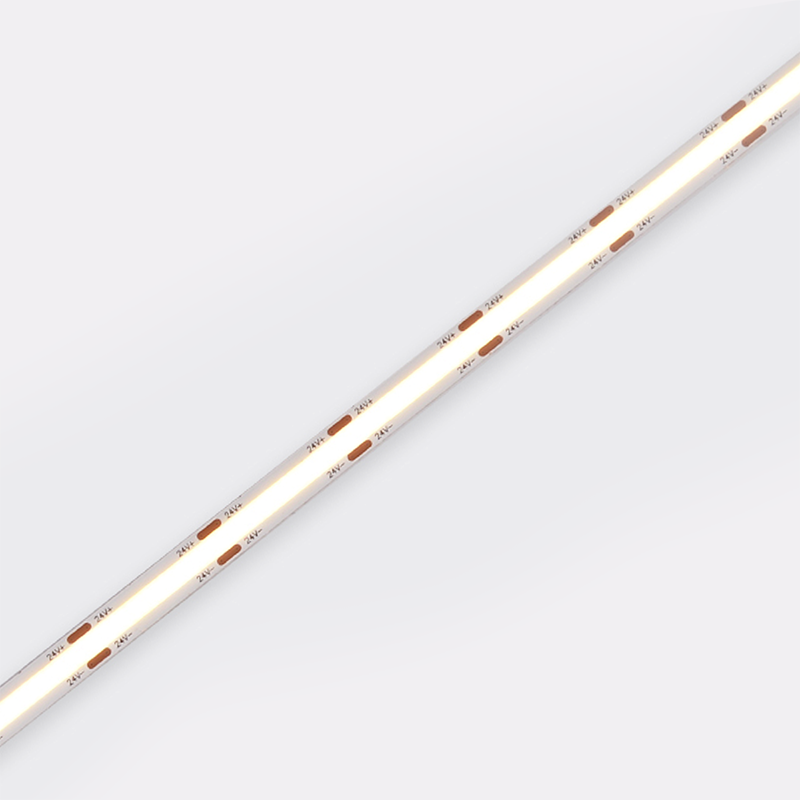

DF6-24V-8mm

DF6-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	8 W/m	Ra90+	2700K	630 lm/m[185 lm/ft]	79 lm/W	7years
-	DC24V	8 W/m	Ra90+	3000K	640 lm/m[205 lm/ft]	80 lm/W	7years
-	DC24V	8 W/m	Ra90+	4000K	660 lm/m[222 lm/ft]	83 lm/W	7years
-	DC24V	8 W/m	Ra90+	6500K	680 lm/m[234 lm/ft]	85 lm/W	7years

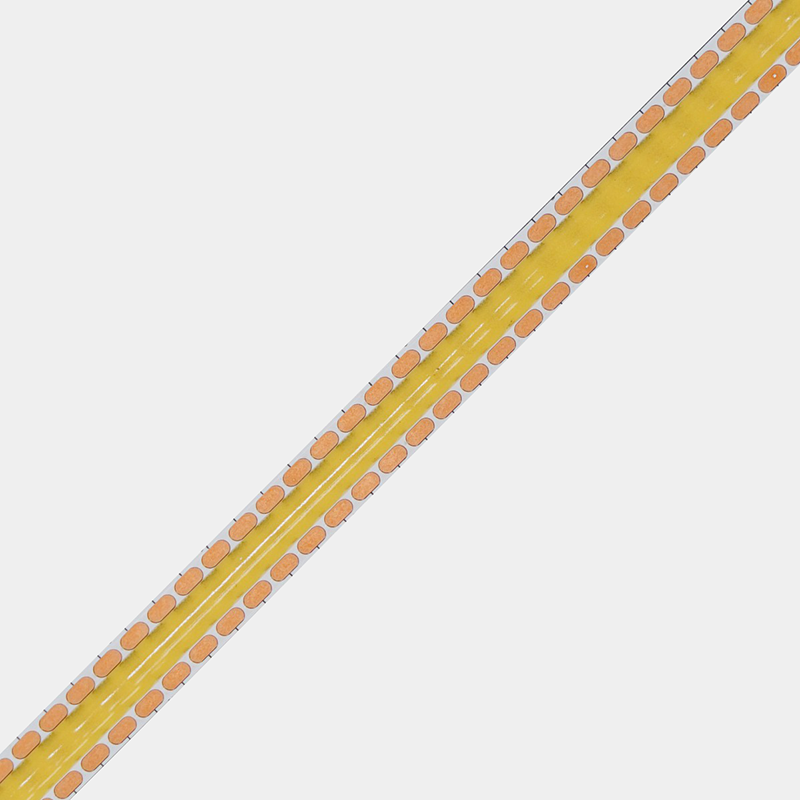

DF6N-24V-8mm

DF6N-24V-8mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download

no data
