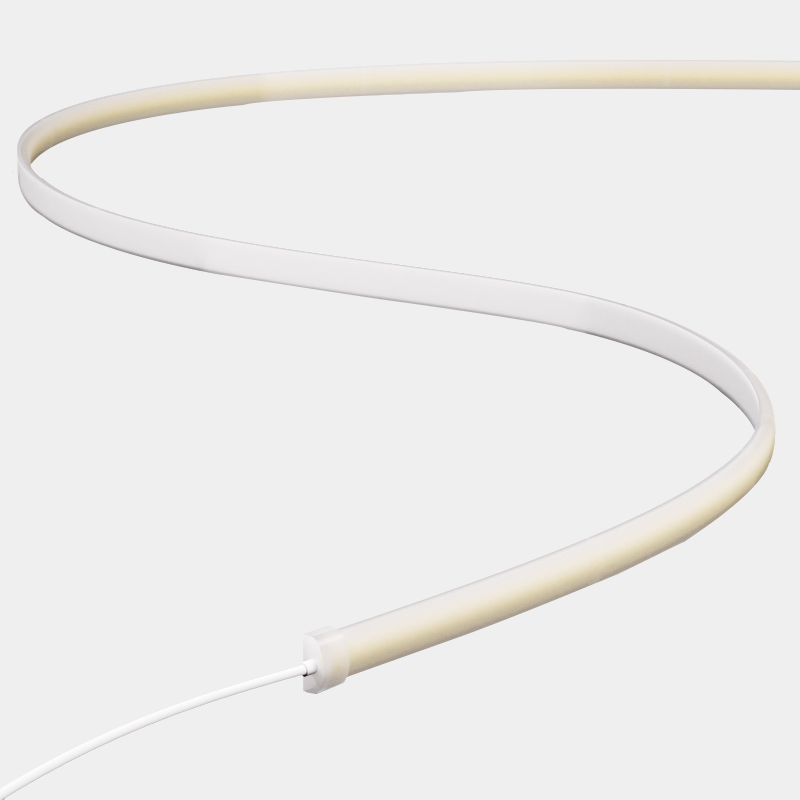

The SAUNA Series LED strip light adopts customized high-temperature & humidity resistant LED chips with a maximum temperature resistance of 125°C, equipped with dual-layer waterproof construction to maintain stable and reliable performance under long-term high-heat and steamy humid environments, perfectly designed for sauna rooms, steam rooms and other special humid high-temperature lighting scenarios.
Certification
General Info
- Operating Temperature
- -40~125°C;Tc：120°C（max）
- Storage Temperature
- 0~40°C
- Warranty
- 5years(85℃)
- Certifications
- CB,CE,UKCA,UL
Electrical Info
- Max-Run(Single-End Feed)
- 5M
- Input Voltage
- DC24V
- Electrical Insulation Class
- Class III
- Typ.Power
- 5W/M
Optical Info
- LED Type
- COF
- CRI
- Ra90+
- CCT
- 1600K,2200K,2700K,3000K,4000K
- Cutting Unit
- 50mm
- LED QTY
- 320LEDs/m
- Copper foil
- 3oz
Download
Product Code
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DC24V | 5 W/m | Ra90+ | 1600K | 350 lm/m[107 lm/ft] | 70 lm/W | 5years | |
| - | DC24V | 5 W/m | Ra90+ | 2200K | 400 lm/m[122 lm/ft] | 80 lm/W | 5years | |
| - | DC24V | 5 W/m | Ra90+ | 2700K | 450 lm/m[137 lm/ft] | 90 lm/W | 5years | |
| - | DC24V | 5 W/m | Ra90+ | 3000K | 475 lm/m[145 lm/ft] | 95 lm/W | 5years | |
| - | DC24V | 5 W/m | Ra90+ | 4000K | 495 lm/m[151 lm/ft] | 99 lm/W | 5years |
