Digital DM5

The DIGITAL Series LED strip lights cover both SPI and DMX addressable pixel solutions. The SPI version supports breakpoint continuation, meaning the rest of the LED strip can still operate normally even if single pixels get damaged, delivering stable dynamic lighting effects for stage, signage and landscape digital lighting projects.

Certification

General Info

Operating Temperature
-25~40°C;Tc:75°C(max)
Storage Temperature
0~40°C
Warranty
3years
Certifications
CB,CE,UKCA

Electrical Info

Max-Run(Single-End Feed)
5M
Input Voltage
DC24V
Electrical Insulation Class
Class III
Typ.Power
13W/M,16W/M

Optical Info

LED Type
5050
CRI
N/A
CCT
3000K,4000K,6000K,RGB,RGB+2700K
Cutting Unit
100mm
LED QTY
60LEDs/m
Copper foil
3oz

Download

Product Code

CCT

Filter by CCT

Typ.Power

Filter by Typ.Power
2 matching product codes

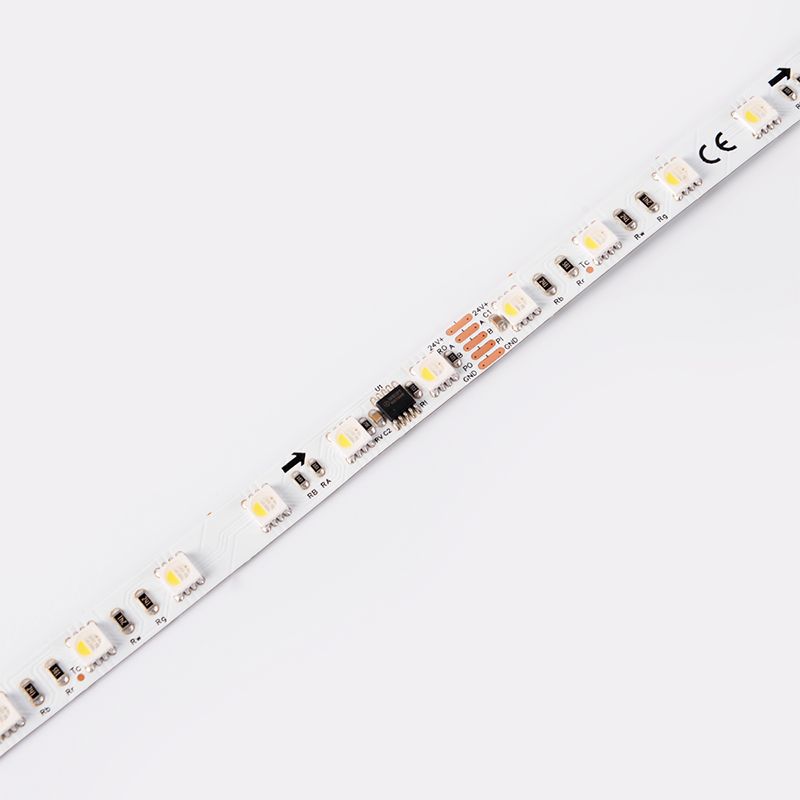

DM560RGBW-24V-10mm

DM560RGBW-24V-10mm

ORDER NOW
NameInput VoltageTyp.PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
-DC24V16 W/mN/AR85 lm/m[25 lm/ft]21 lm/W3years
-DC24V16 W/mN/AG235 lm/m[71 lm/ft]59 lm/W3years
-DC24V16 W/mN/AB65 lm/m[19 lm/ft]16 lm/W3years
-DC24V16 W/mN/ARGB+2700K640 lm/m[195 lm/ft]40 lm/W3years
-DC24V16 W/mN/ARGB+3000K640 lm/m[195 lm/ft]40 lm/W3years
-DC24V16 W/mN/ARGB+4000K640 lm/m[195 lm/ft]40 lm/W3years
-DC24V16 W/mN/ARGB+6000K640 lm/m[195 lm/ft]40 lm/W3years

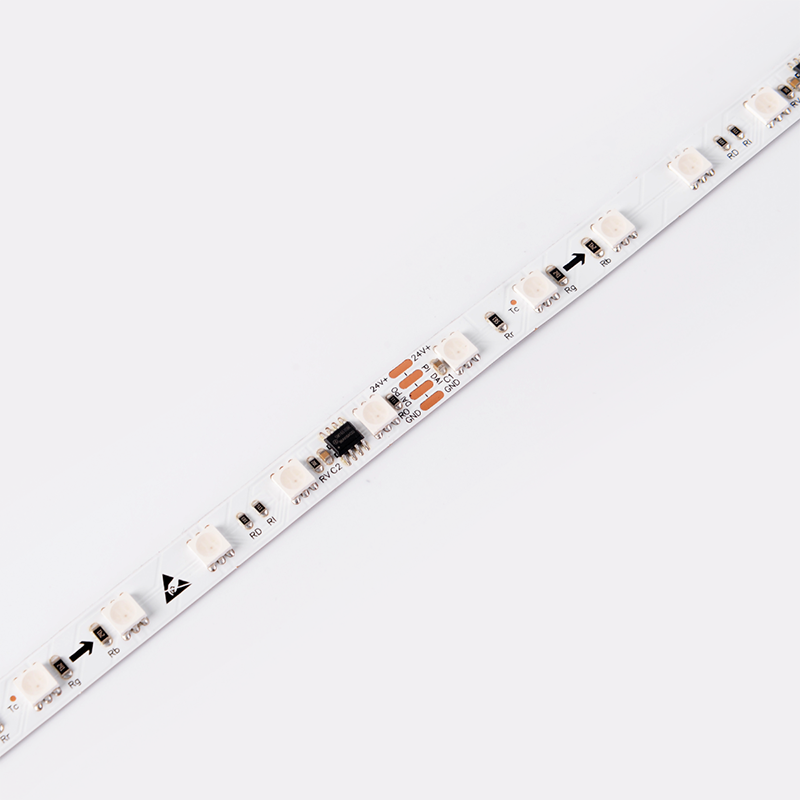

DM560RGB-24V-10mm

DM560RGB-24V-10mm

ORDER NOW
NameInput VoltageTyp.PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
-DC24V13 W/mN/AR85 lm/m[25 lm/ft]26 lm/W3years
-DC24V13 W/mN/AG335 lm/m[102 lm/ft]103 lm/W3years
-DC24V13 W/mN/AB65 lm/m[19 lm/ft]20 lm/W3years
-DC24V13 W/mN/ARGB440 lm/m[134 lm/ft]34 lm/W3years
