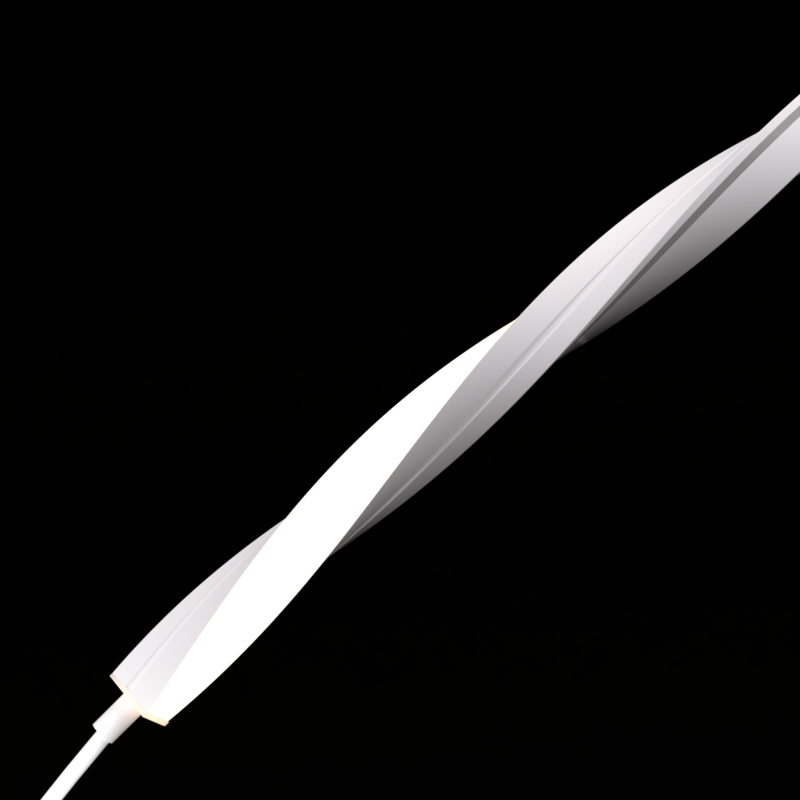

Arch Neon 3D Series features ultra-flexible construction that enables free three-dimensional bending to realize diverse spatial shapes and custom artistic designs. It passes a 650N tensile pulling test for outstanding structural tensile resistance, alongside a rigorous 3000-hour UV ageing test to prevent yellowing and material degradation under long-term outdoor sunlight exposure. The neon strip also withstands over 1500 cycles of thermal shock testing, delivering stable performance amid drastic temperature fluctuations and ensuring long-term durability for architectural signage, art installations and landscape decorative lighting.
Certification
General Info
- Application
- Indoor/Semi-outdoor
- IK Rating
- IK08
- IP Rating
- IP67
- Operating Temperature
- -40~50℃
- Storage Temperature
- 0℃~60℃
- Warranty
- 3years semi-outdoor,5years indoor
- Certifications
- UKCA、CE、UL、CB、RoHS、REACH
- Bend Direction
- 3D
Electrical Info
- Max-Run(Single-End Feed)
- 5m
- Input Voltage
- DC24V
- Electrical Insulation Class
- Class III
- Typ.Power
- 8W/M
Optical Info
- LED Type
- COF
- CRI
- Ra90+
- CCT
- 2700K,3000K,4000K
- Cutting Unit
- 29.41mm
- LED QTY
- 544LEDs/m
Download
Product Code
Warranty
Filter by Warranty
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DC24V | 8 W/m[2.44 W/ft] | Ra90+ | 2700K | 300 lm/m[91 lm/ft] | 38 lm/W | 5years indoor,3years semi-outdoor | |
| - | DC24V | 8 W/m[2.44 W/ft] | Ra90+ | 3000K | 320 lm/m[98 lm/ft] | 40 lm/W | 5years indoor,3years semi-outdoor | |
| - | DC24V | 8 W/m[2.44 W/ft] | Ra90+ | 4000K | 340 lm/m[104 lm/ft] | 43 lm/W | 5years indoor,3years semi-outdoor |
