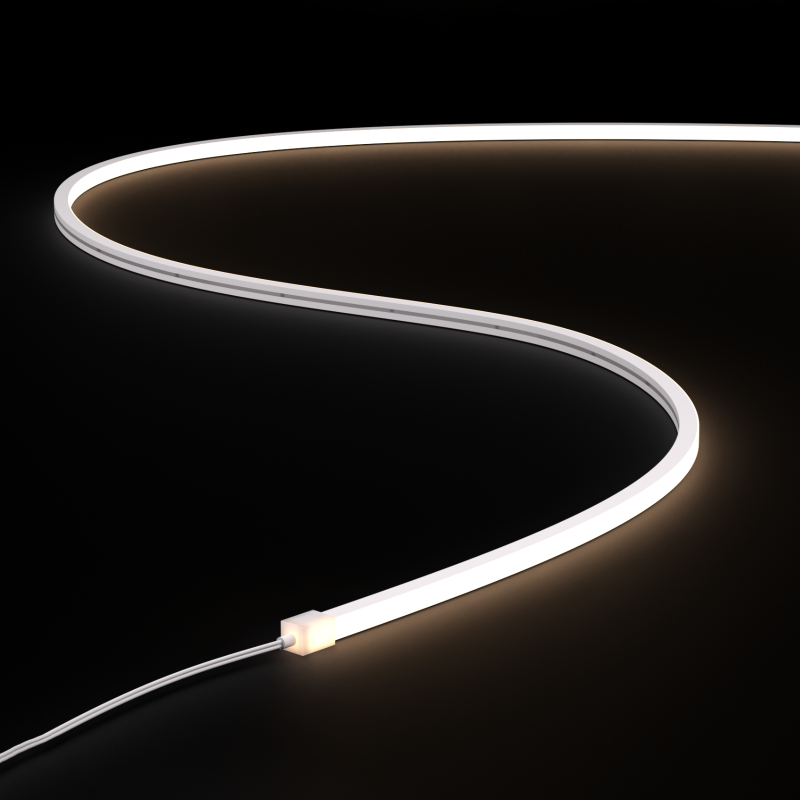

Slim Neon MINI Series boasts an ultra-fine, compact body, available in both trimmed and trimless versions. It requires no extra aluminum profile for mounting, enabling quick and hassle-free installation. With its slim delicate silhouette, this mini neon strip is perfectly suited for subtle outline lighting and integrated furniture ambient lighting scenarios.
Certification
General Info
- Application
- Indoor/Semi-outdoor
- IK Rating
- IK08
- IP Rating
- IP65
- Operating Temperature
- -25~55℃
- Storage Temperature
- 0℃～60℃
- Warranty
- 3years semi-outdoor,5years indoor
- Certifications
- UKCA、CE、UL、CB、RoHS、REACH
- Bend Direction
- Top-Bend
Electrical Info
- Max-Run(Single-End Feed)
- 5m
- Input Voltage
- DC24V
- Electrical Insulation Class
- Class III
- Typ.Power
- 7.2W/M
Optical Info
- LED Type
- 2216
- CRI
- Ra90+
- CCT
- 2300K,2700K,3000K,4400K
- Cutting Unit
- 25mm
- LED QTY
- 280LEDs/m
Download
Product Code
Warranty
Filter by Warranty
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DC24V | 7.2 W/m[2.19 W/ft] | Ra90+ | 2300K | 350 lm/m[107 lm/ft] | 49 lm/W | 5years indoor,3years semi-outdoor | |
| - | DC24V | 7.2 W/m[2.19 W/ft] | Ra90+ | 2700K | 400 lm/m[122 lm/ft] | 56 lm/W | 5years indoor,3years semi-outdoor | |
| - | DC24V | 7.2 W/m[2.19 W/ft] | Ra90+ | 3000K | 400 lm/m[122 lm/ft] | 56 lm/W | 5years indoor,3years semi-outdoor | |
| - | DC24V | 7.2 W/m[2.19 W/ft] | Ra90+ | 4400K | 440 lm/m[134 lm/ft] | 61 lm/W | 5years indoor,3years semi-outdoor |
