Infinite Profile 50 Recessed

The Infinite Lights series is a highly customizable lighting solution that revolutionizes the boundaries of customized lighting with its innovative production processes and modular product design concepts. It breaks free from the limitations of product size and shape, giving designers unprecedented freedom to transform graphics into lighting fixtures at will.

Feature

Mainstream Size Options
Profile Type
Flexible Diffuser
Multiple Light Sources Available

Certification

General Info

Application: Indoor
Mounting Type: Recessed
Light Direction: Direct
Dimension: 2400mm,Customized Length,D600mm,D1000mm,D1200mm,D1500mm,D2000mm,D3000mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,Silver,White
Diffuser Type: Diffuser
Cover Material: Silicone
Diffuser Transmittance: ≥55%
Fire-Resistance Rating: UL94-V2
IP Rating: IP20
Operating Temperature: -15~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: Reach,RoHS

Electrical Info

Input Voltage: DC24V
Driver Brand: N/A
Electrical Insulation Class: Class Ⅲ
Dimming: No Driver

Optical Info

SDCM: N/A
Beam Angle: 110°
Luminous Efficacy: 90 lm/W
LED Voltage: DC24V

Download

Product Code

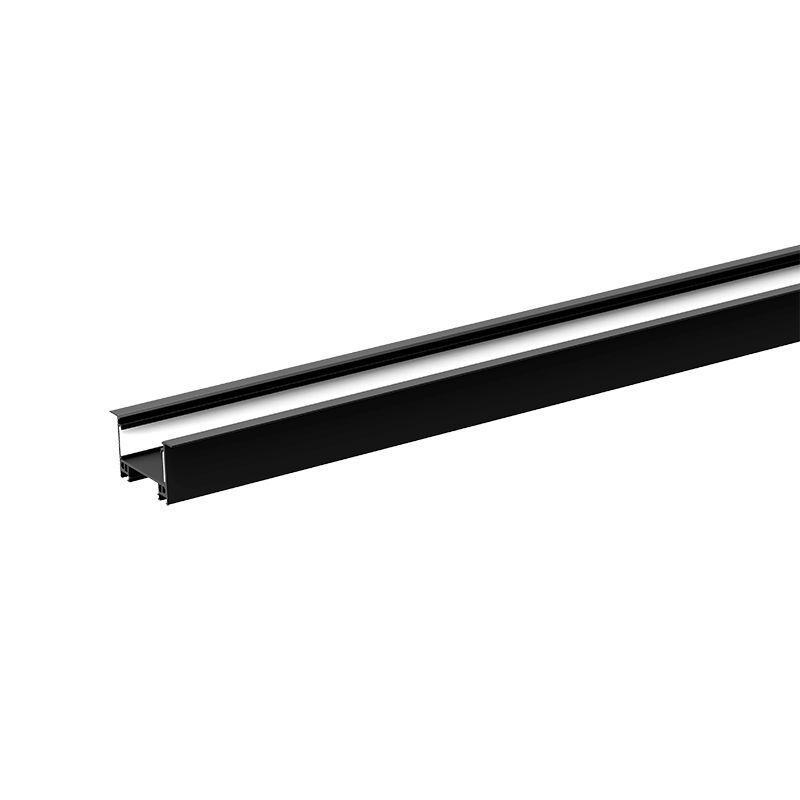

CE5035

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

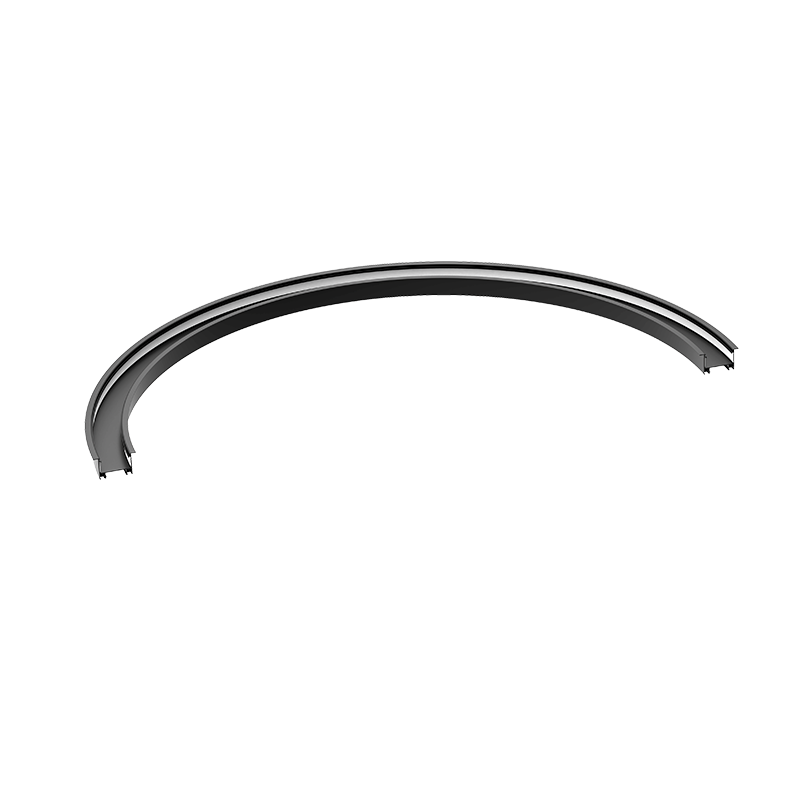

CE5035-A180

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

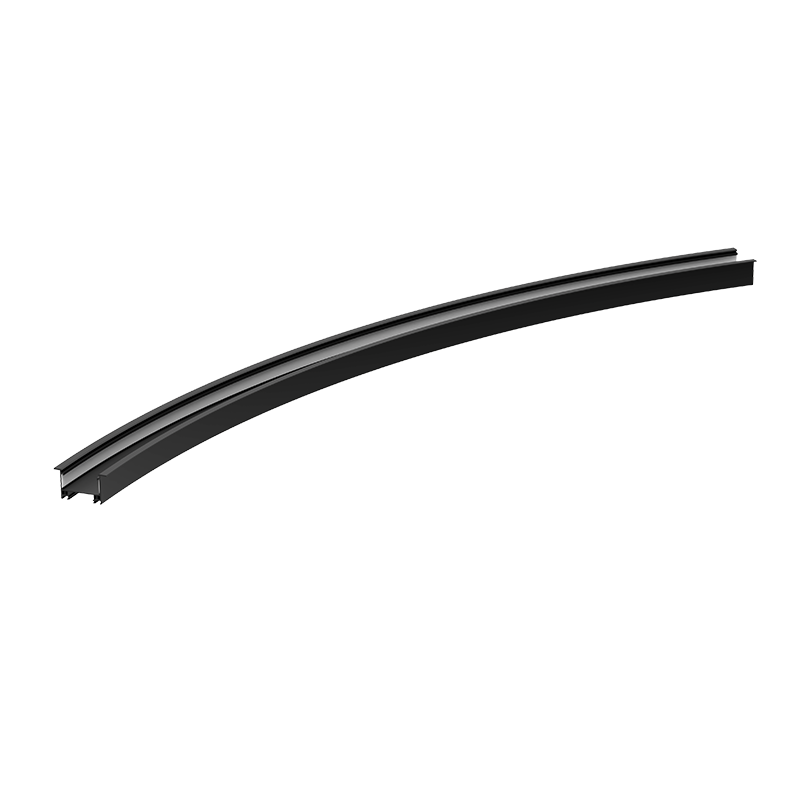

CE5035-A45

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

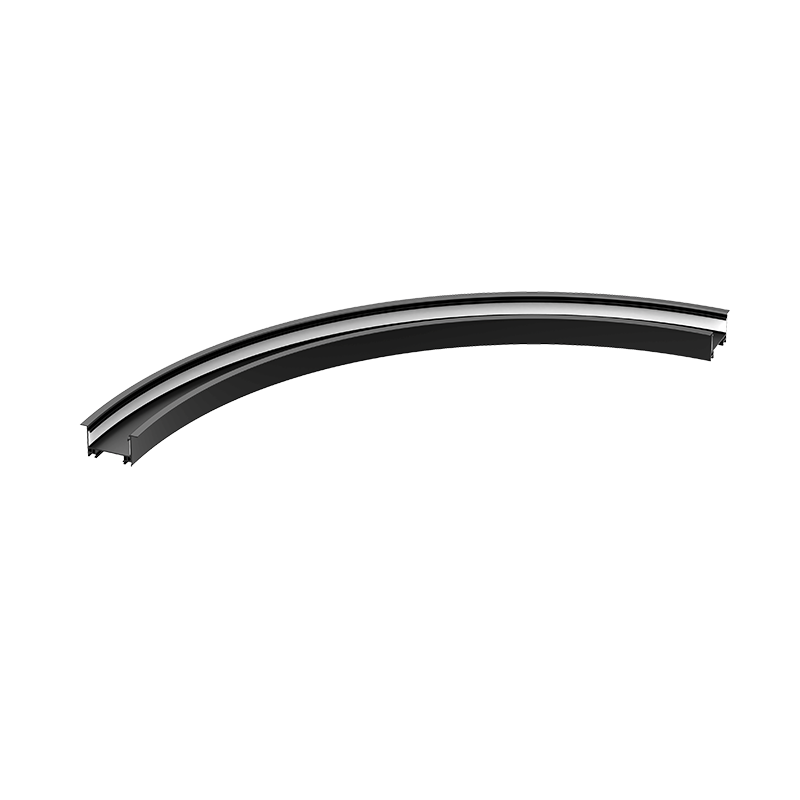

CE5035-A90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

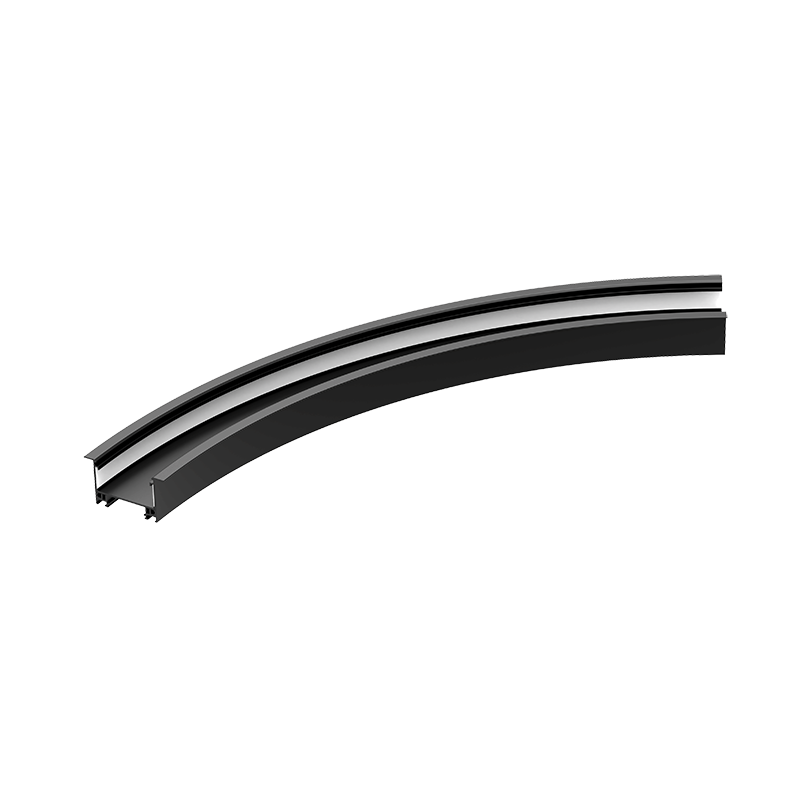

CE5035-A60

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

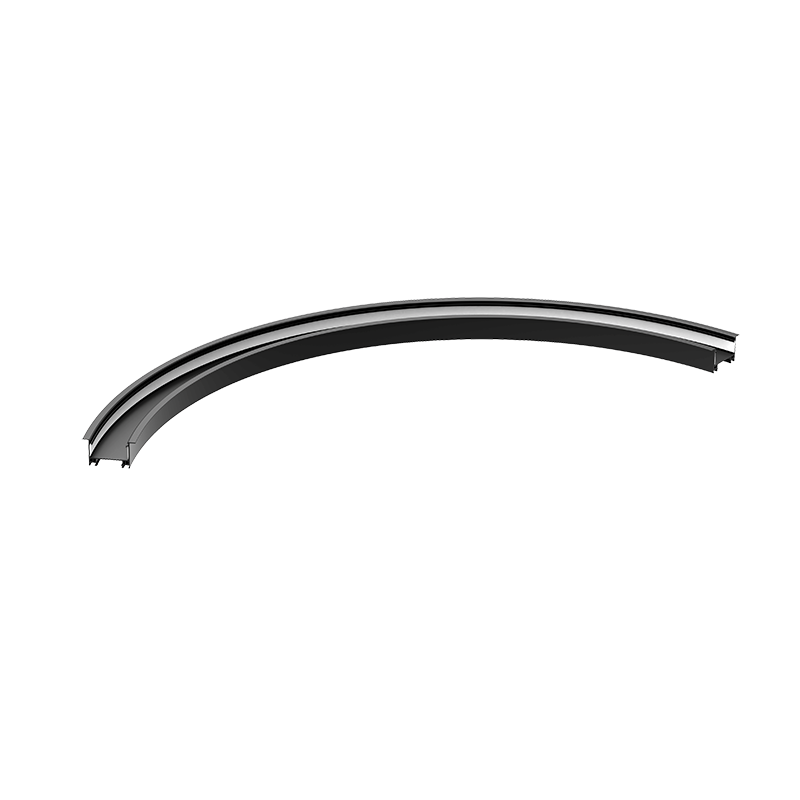

CE5035-A120

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

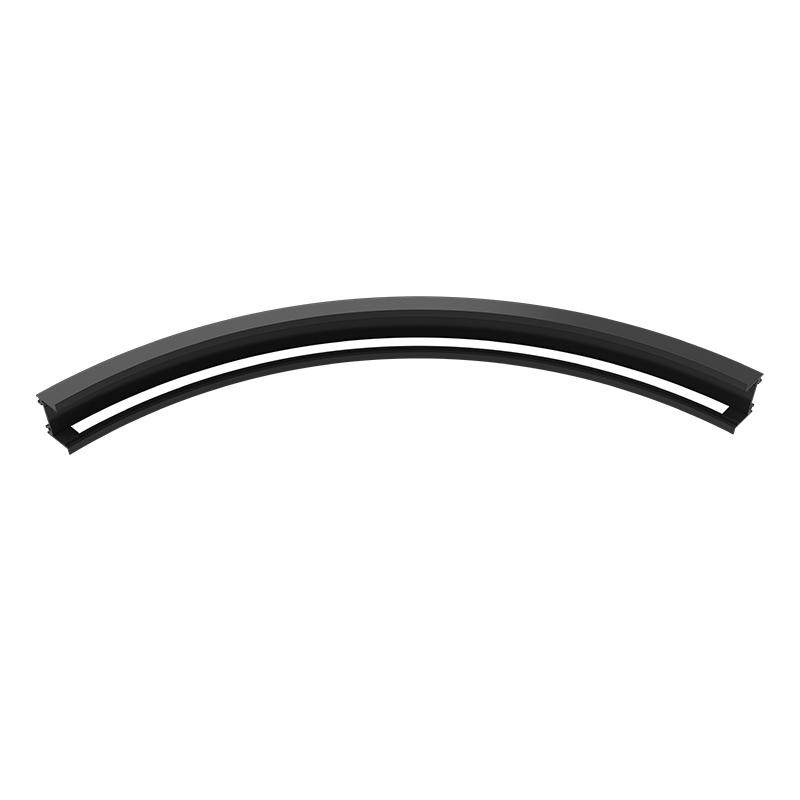

CE5035-N90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data
