Infinite Profile 50 Surface Mounted

The Infinite Lights series is a highly customizable lighting solution that revolutionizes the boundaries of customized lighting with its innovative production processes and modular product design concepts. It breaks free from the limitations of product size and shape, giving designers unprecedented freedom to transform graphics into lighting fixtures at will.

Feature

Mainstream Size Options
Profile Type
Flexible Diffuser
Multiple Light Sources Available

Certification

General Info

Application: Indoor
Mounting Type: Surface Mounted,Suspended
Light Direction: Direct
Dimension: 2400mm,Customized Length,D600mm,D1000mm,D1200mm,D1500mm,D2000mm,D3000mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,Silver,White
Diffuser Type: Diffuser
Cover Material: Silicone
Diffuser Transmittance: ≥55%
Fire-Resistance Rating: UL94-V2
IK Rating: IK10
IP Rating: IP20
Operating Temperature: -15~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: Reach,RoHS

Electrical Info

Input Voltage: DC24V
Driver Brand: N/A
Electrical Insulation Class: Class Ⅲ
Dimming: No Driver

Optical Info

Version: Regular
LED Type: SMD
LED Brand: Lumileds, QZOPTO
CRI: Ra80, Ra90
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
SDCM: N/A
Beam Angle: 110°
UGR(4H,8H): UGR<19
Luminous Efficacy: 90 lm/W
LED Voltage: DC24V
LED Lifetime: 000h-L90-B10(Ta 25°C),>50

Download

Product Code

CS5035

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

CS5035-A120

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

CS5035-A180

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

CS5035-A60

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

CS5035-A45

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

CS5035-A90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

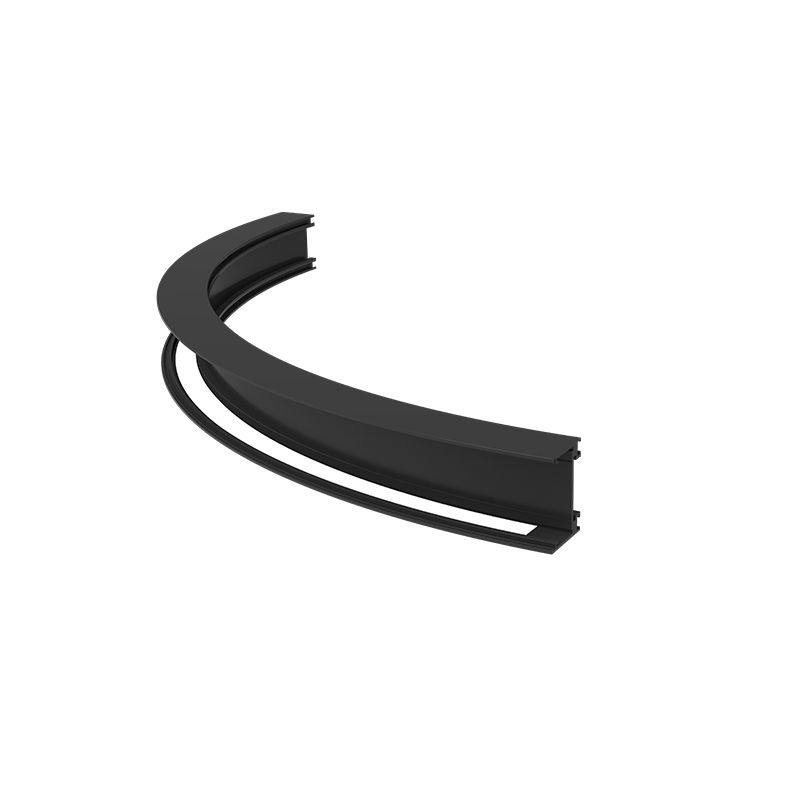

CS5035-W90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data

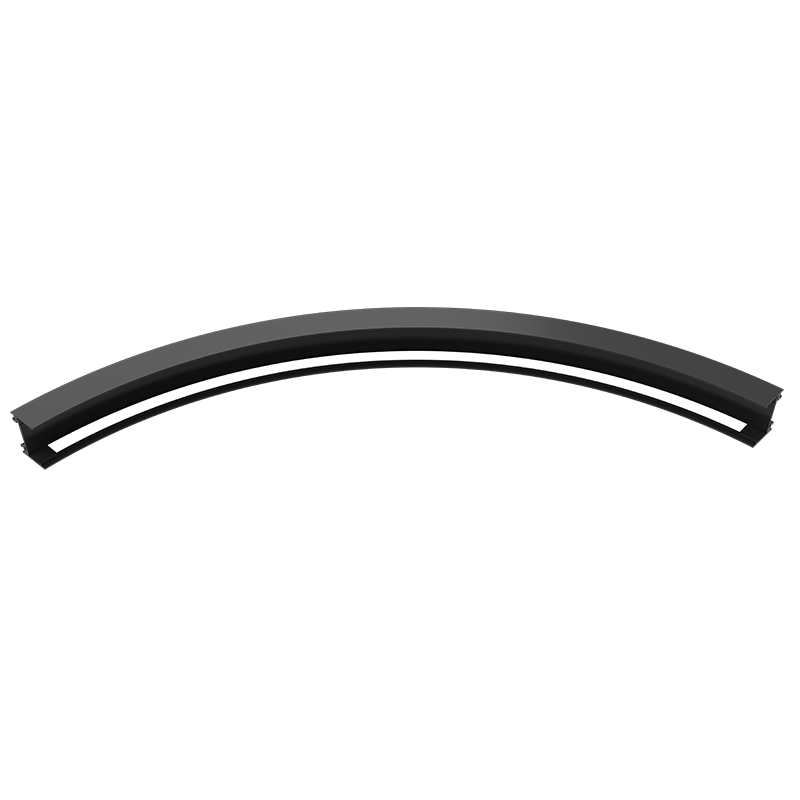

CS5035-N90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage	Download

no data
