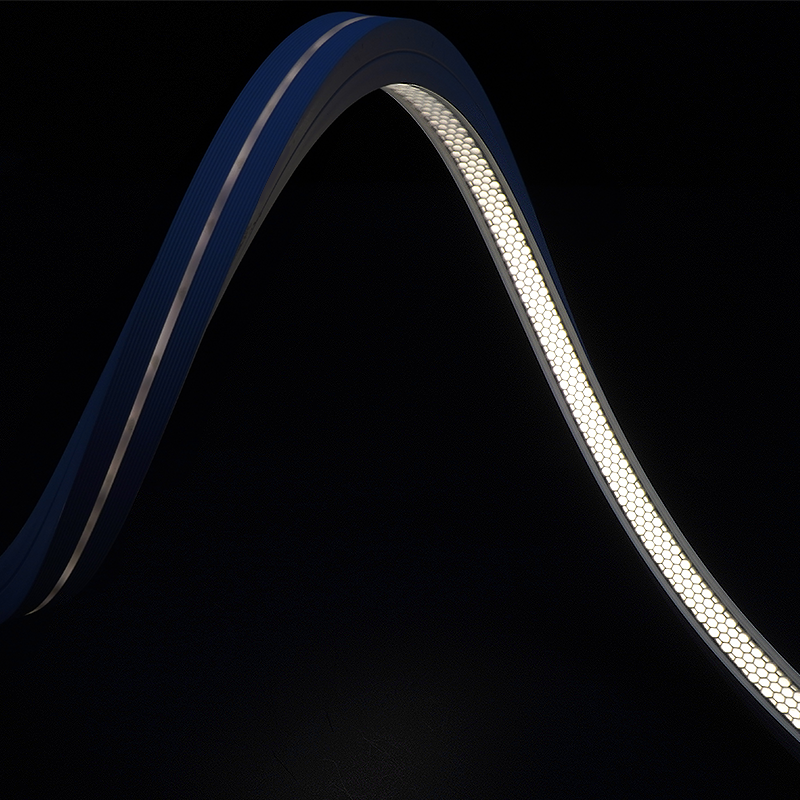

AH3D1616UGR

  • Max.110lm/w, Free Cutting
  • 7-year warranty, high reliability
  • Max.20m@48V
  • For building facades and outdoor landscapes

Certification

General Info

Application
outdoor
IK Rating
IK08
IP Rating
IP67
Operating Temperature
-20~50℃
Storage Temperature
0℃~60℃
Warranty
5years
Certifications
UKCA、CE、UL、RoHS、REACH
Bend Direction
3D

Electrical Info

Max-Run(Single-End Feed)
5m
Input Voltage
DC24V
Typ.Power
10W/M

Optical Info

LED Type
2835
CRI
Ra90+
CCT
2300K,2700K,3000K,4000K
Cutting Unit
6.25mm
LED QTY
160LEDs/m

Download

Product Code

CCT

Filter by CCT
1 matching product codes
AH3D1616UGR-White light-24V

AH3D1616UGR-White light-24V

ORDER NOW
NameInput VoltageTyp.PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
-DC24V11 W/m[3.35 W/ft]Ra90+2300K110 lm/m[33 lm/ft]10 lm/W5years
-DC24V11 W/m[3.35 W/ft]Ra90+2700K135 lm/m[41 lm/ft]12 lm/W5years
-DC24V11 W/m[3.35 W/ft]Ra90+3000K135 lm/m[41 lm/ft]12 lm/W5years
-DC24V11 W/m[3.35 W/ft]Ra90+4000K150 lm/m[46 lm/ft]14 lm/W5years
