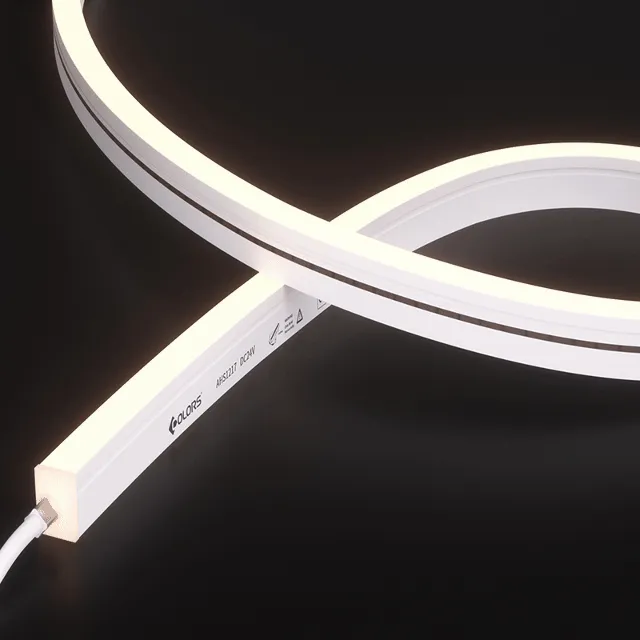

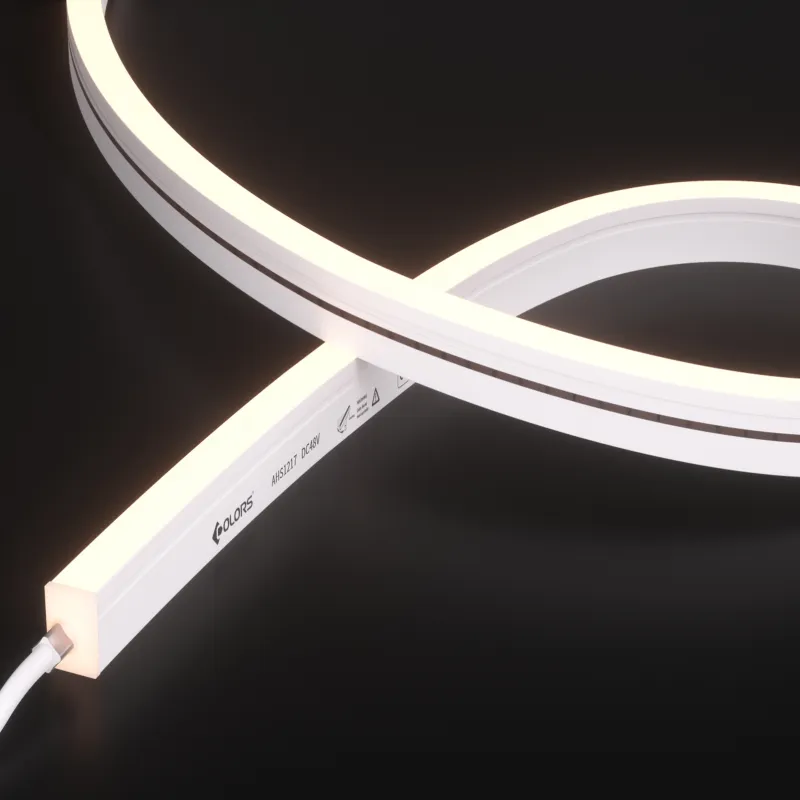

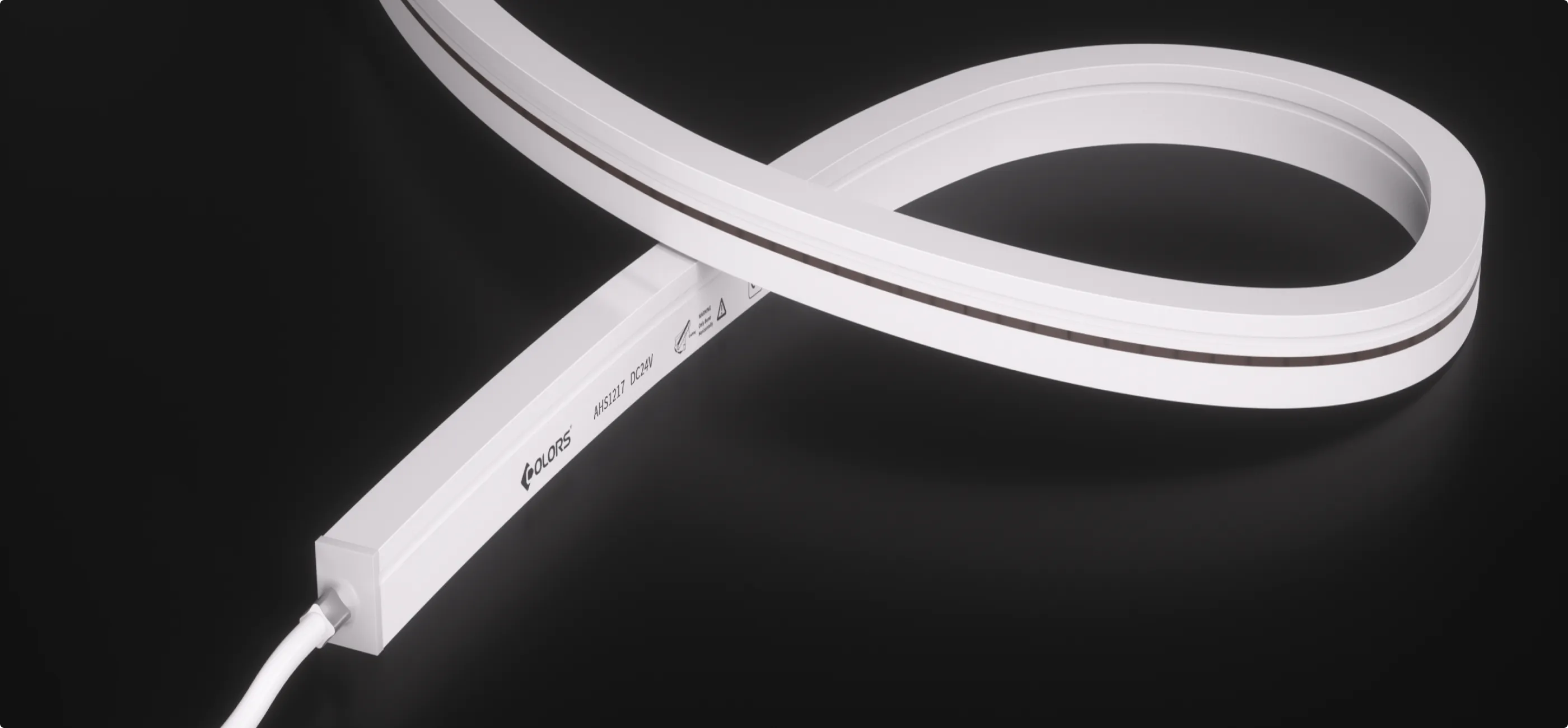

AHS1217
Discover AH Series- Max.110lm/w, Free Cutting
- 7-year warranty, high reliability
- Max.20m@48V
- For building facades and outdoor landscapes
Key Features

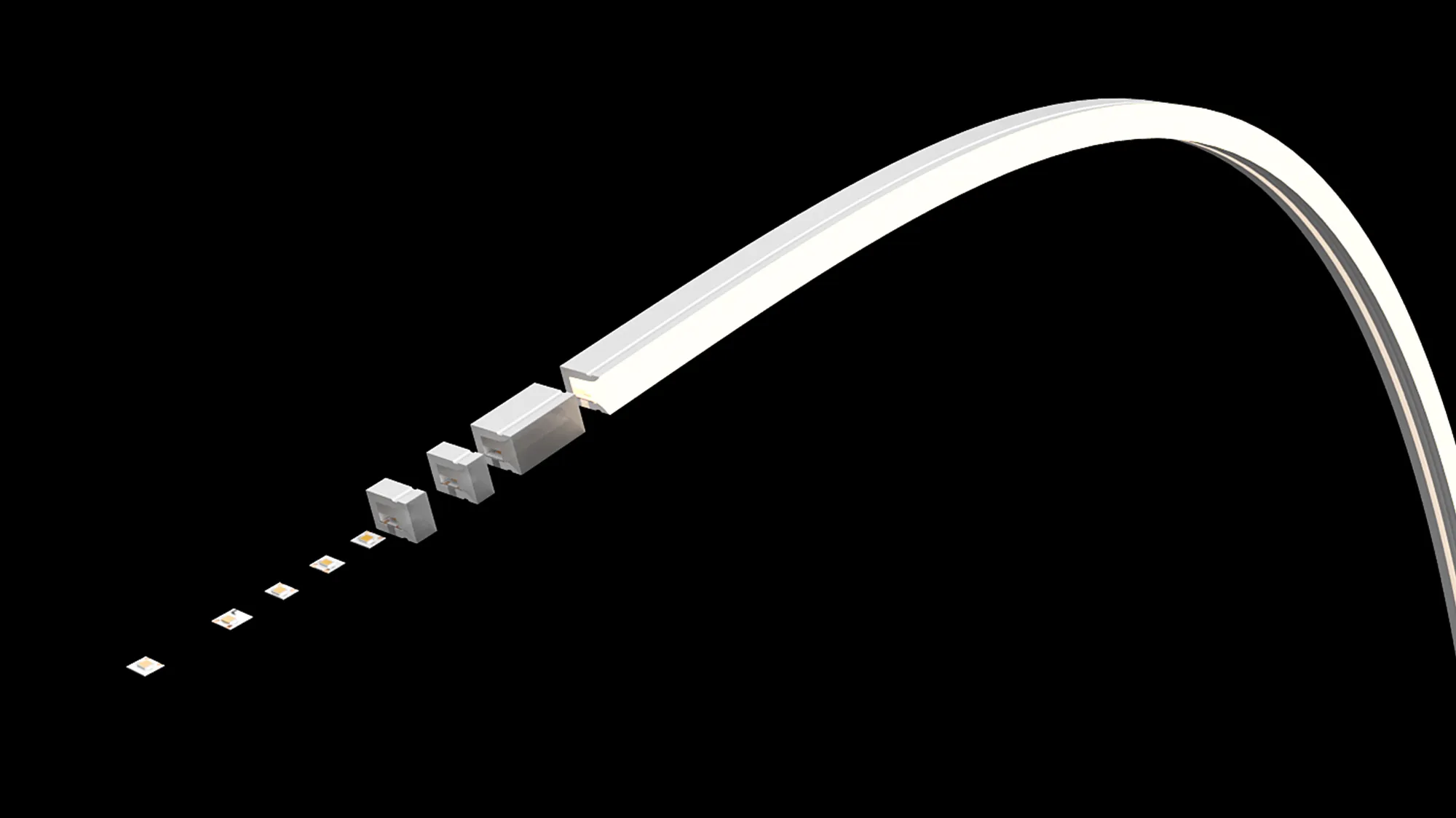

Cut-to-Size · Accurate Fit for Easy Installation
DC24V single Led cutting, precise to 6.25mm, with length customization unlimited by cutting units.

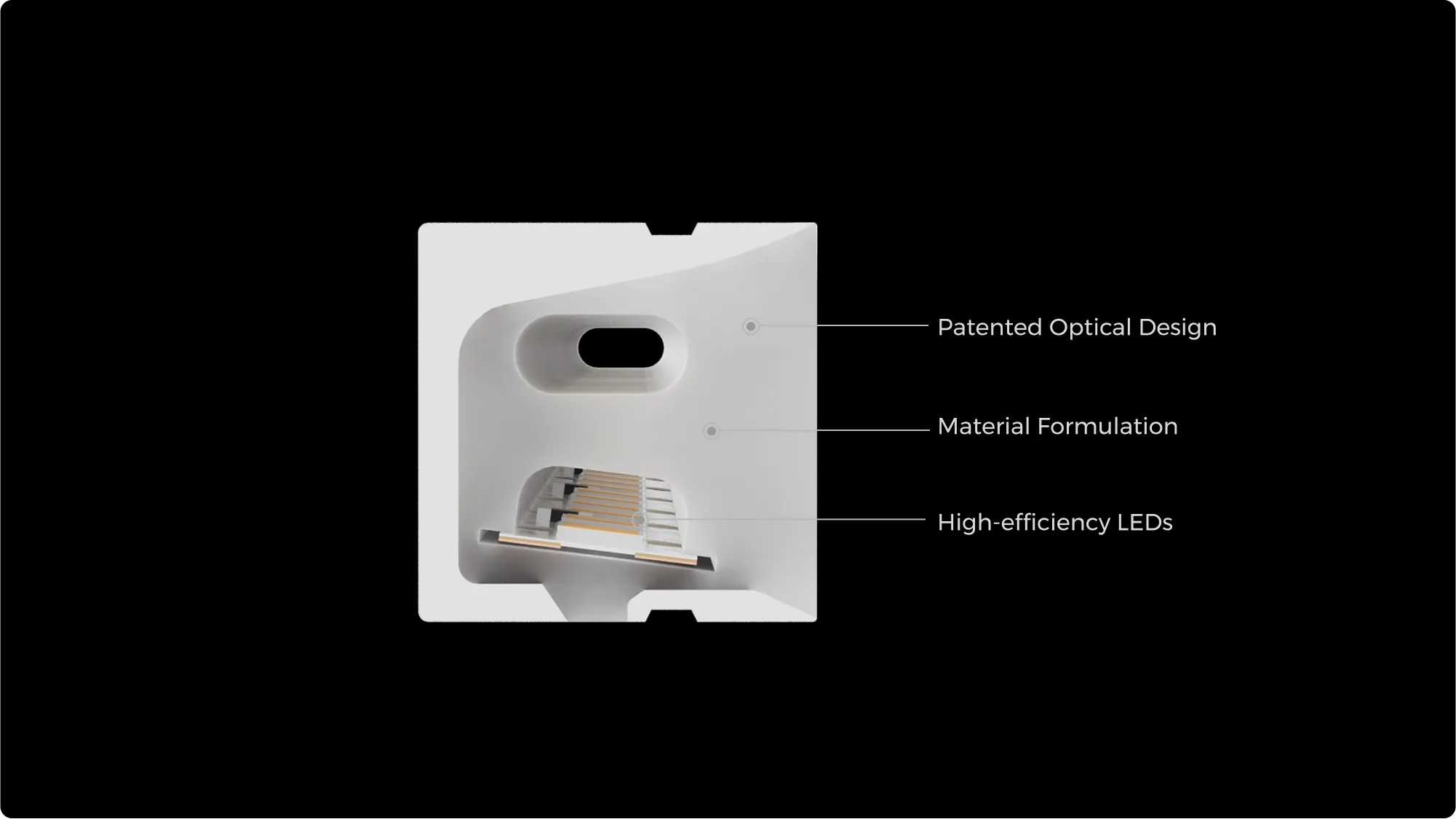

Ultra High Light Efficiency & More Energy Saving
High-efficiency LEDs + Patented Optical Design and Material Formulation， The maximum light efficiency is 110 lm/W, increasing the brightness by 60%, and 40% energy savings.
UV and Yellowing Resistance
Gas-Phase Silicone Extrusion Process,High-intensity 3000 hours UV test, equivalent to 9 years of outdoor use, almost no yellowing.
No Worry About Siphonage and Water Seepage

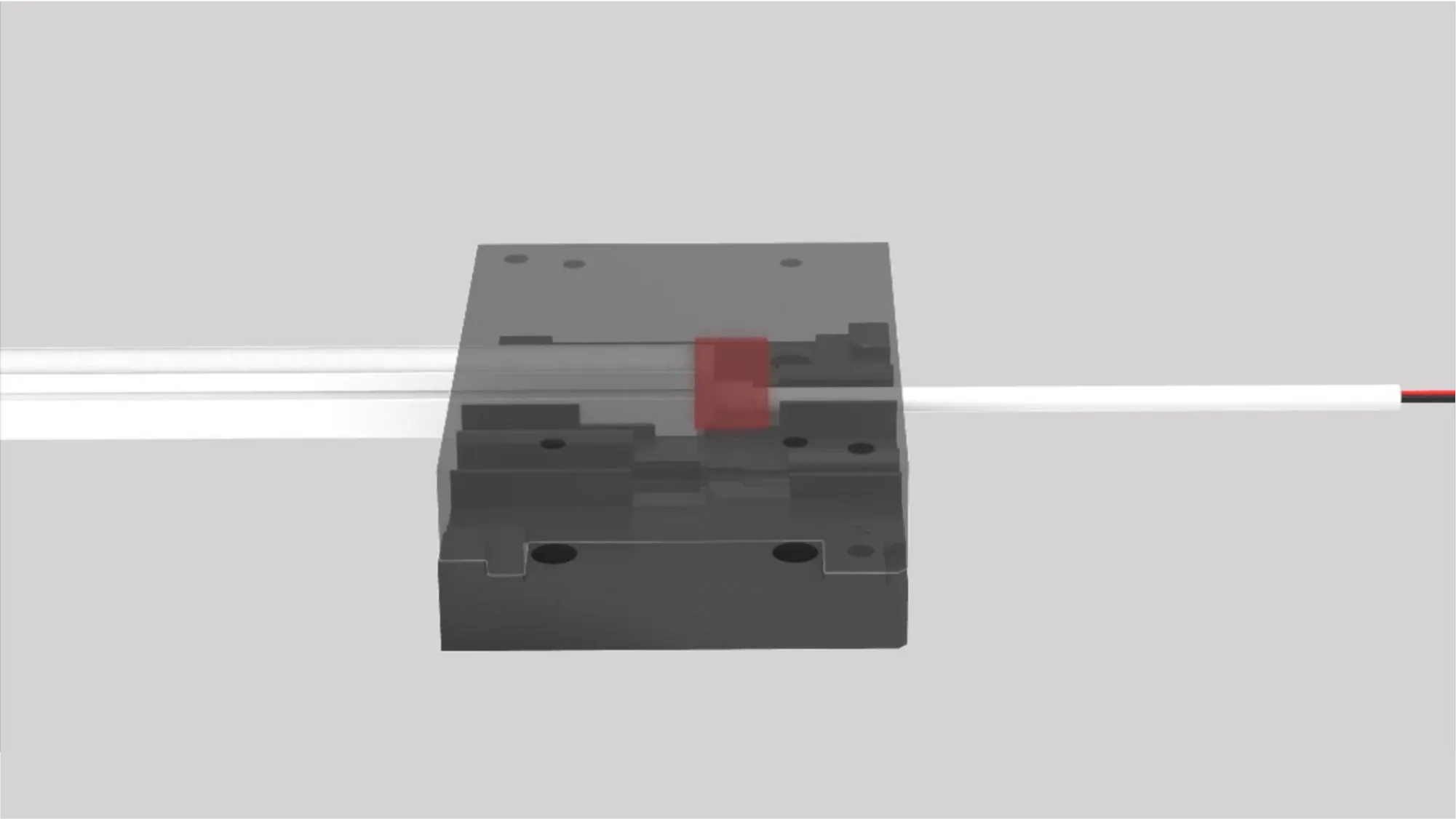

Uniform materials for the neon, end cap and terminal wire. Used integrated hot melt molding process.
Dual-Layer Protective Terminal
Dual-layer protective terminal ensure IP67 protection against rain and water immersion.

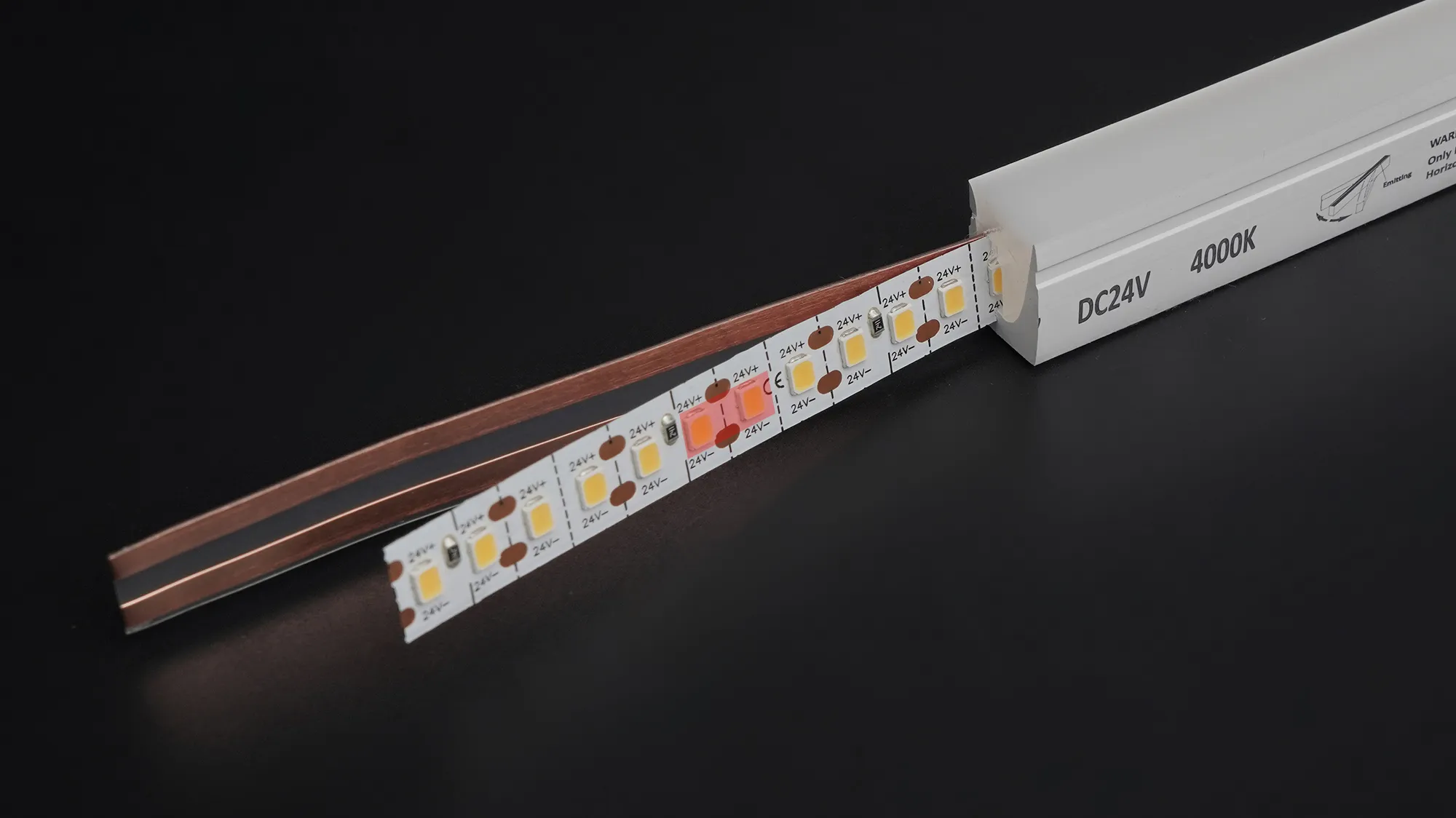

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable.
Worry Free About Quality
Parallel LEDs technology，special chip design, single chip breakage no affect the light effect.
Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces.
Withstands Installation Stresses
Precision-Controlled Color Temperature After Silicone Coated
SDCM<5, ensuring color consistency.
Application Principle

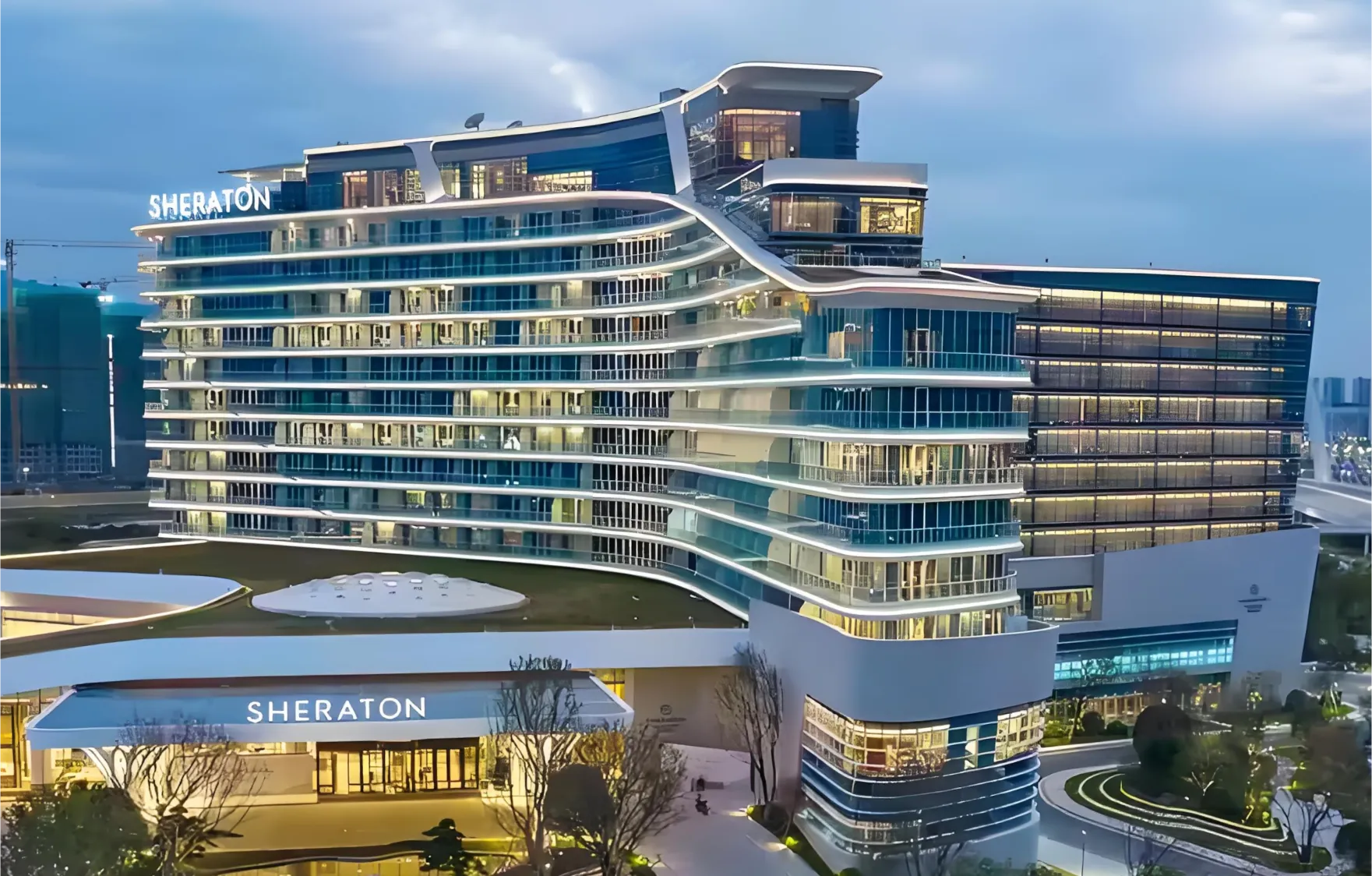

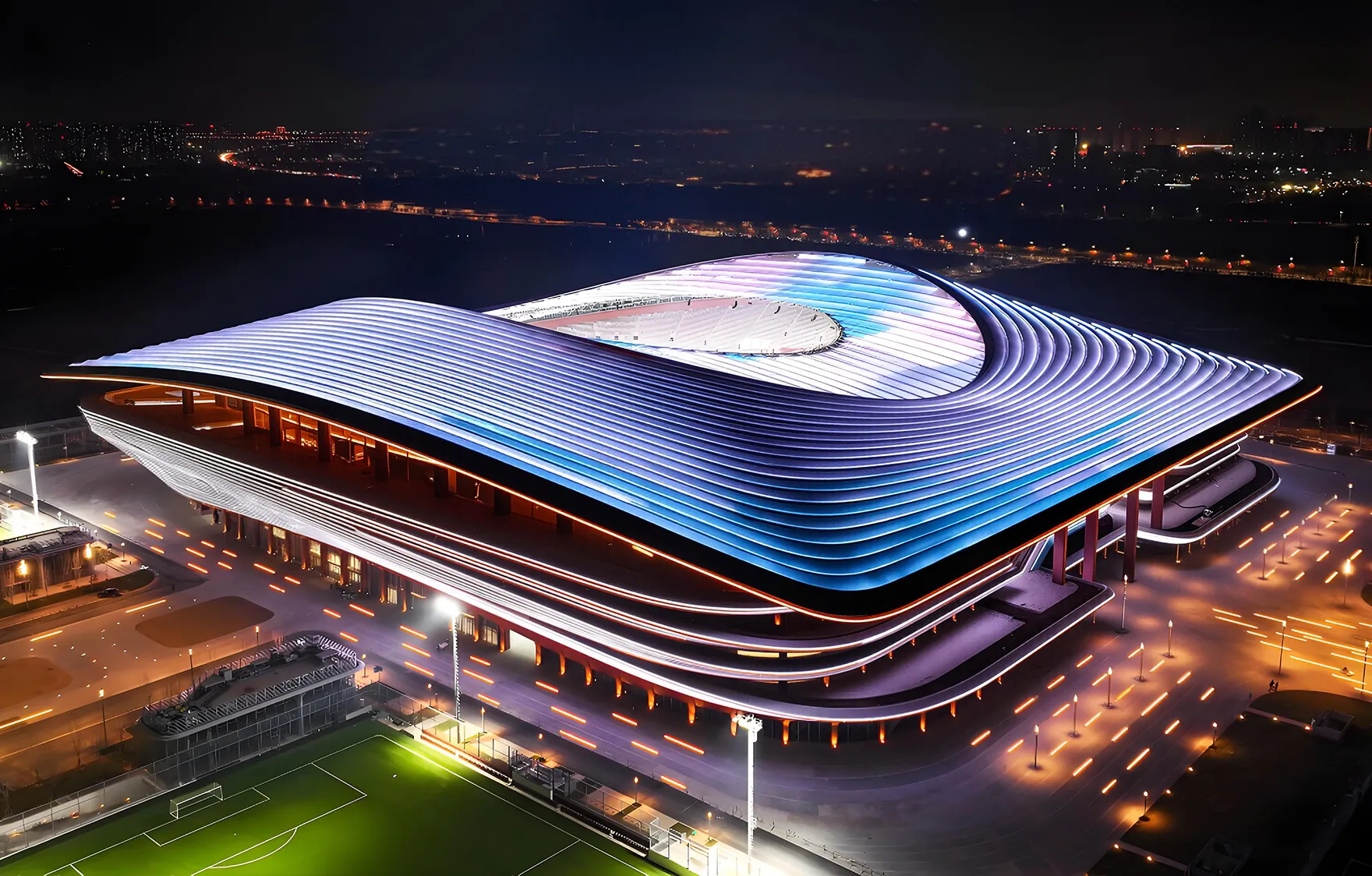

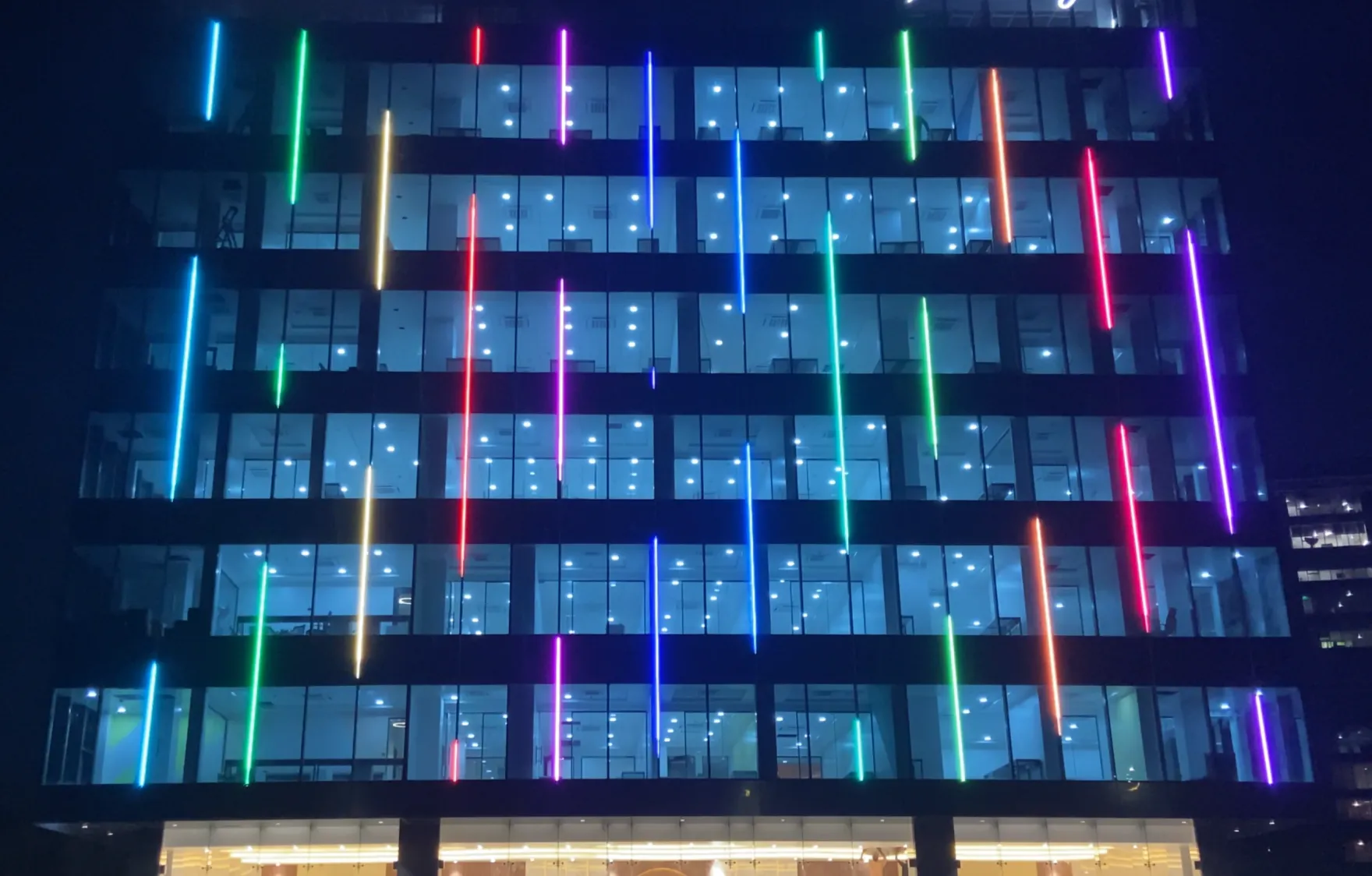

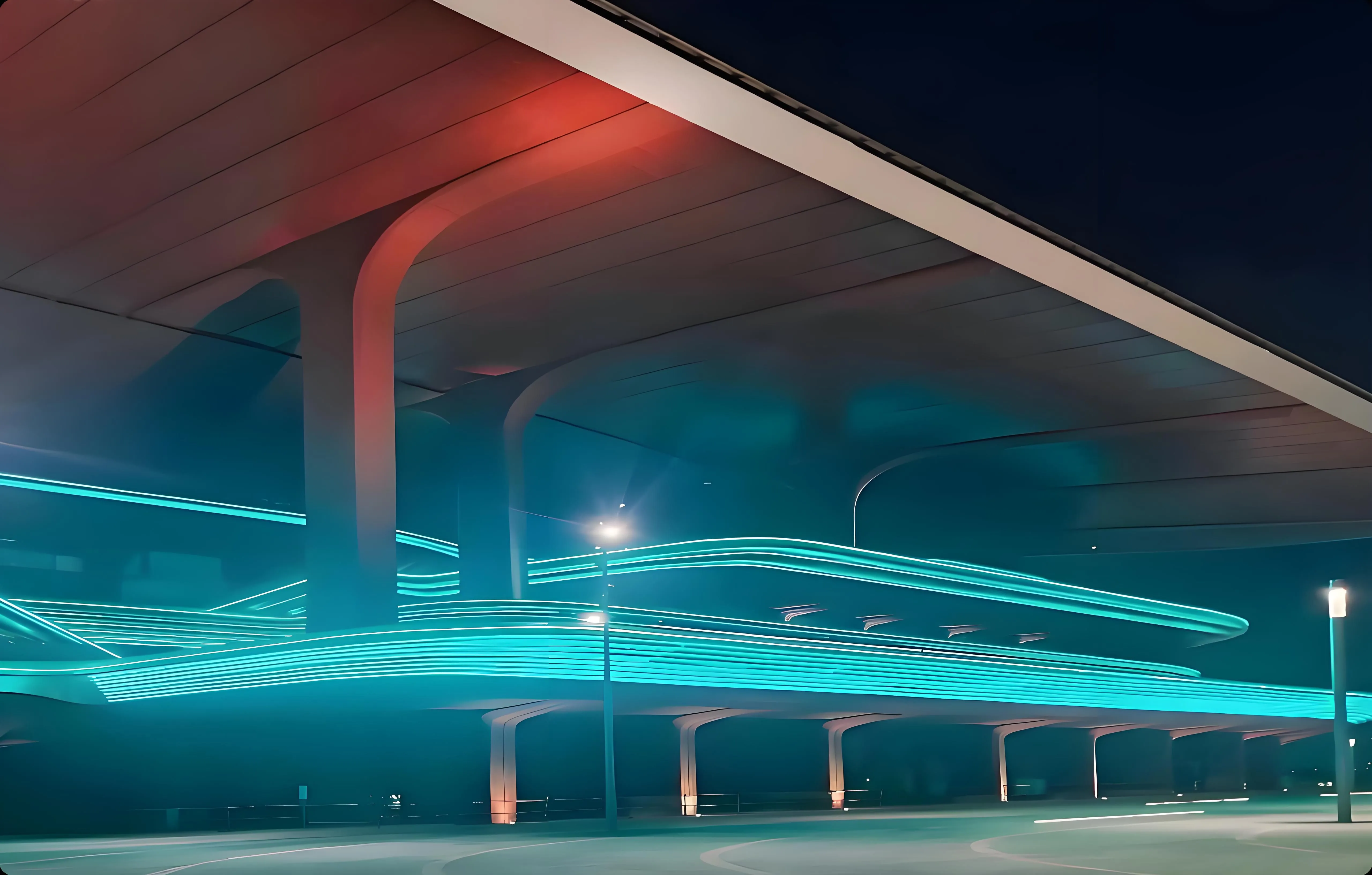

Scenario Case
Ordering Code
Optional Model
AHS1217-CCT-24V
AHS1217-White light-24V
AHS1217-White light-48V
AHS1217-CCT-24V
Basic parameter
IP Process
IP67
Warranty
7 Years
Cutting Unit
14.29 mm
Leds Qty
140LEDs/m
Typ.power
14W/M
Accessories Type
Installation accessory

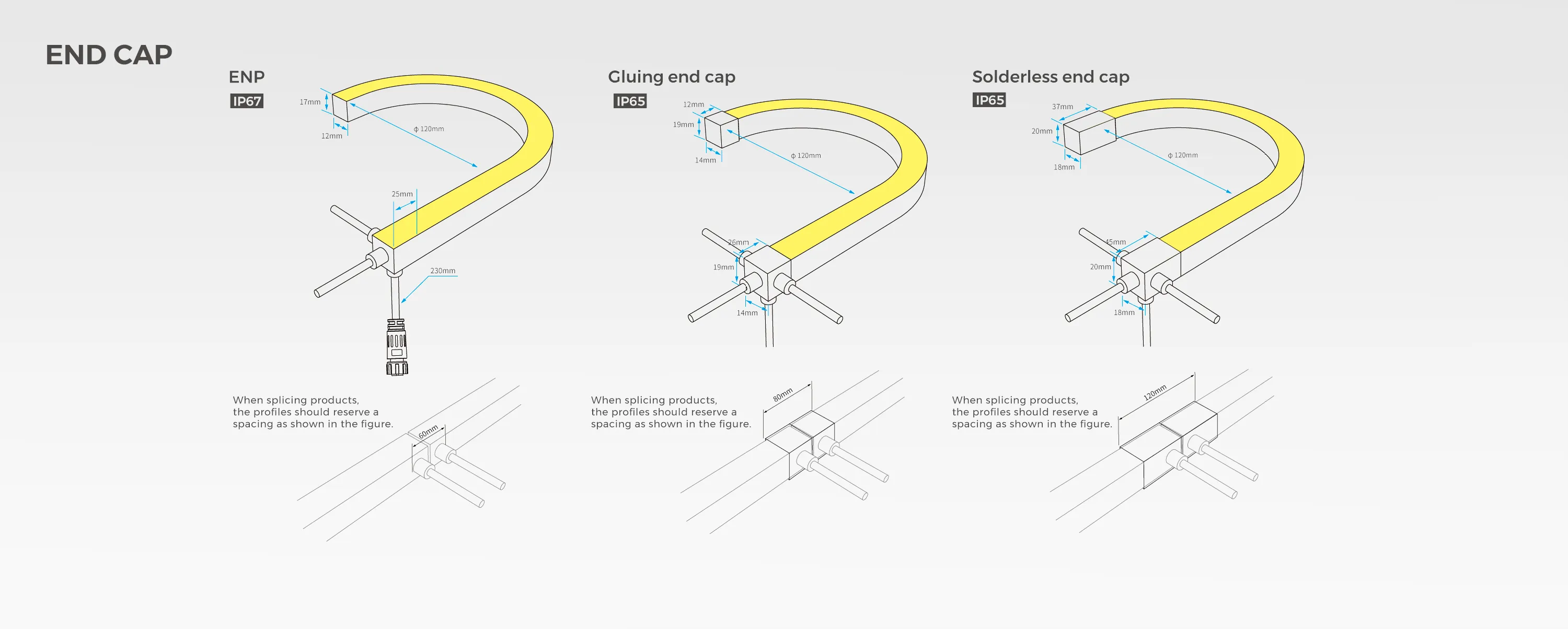

End cap accessory
Supporting accessory
Other
Size
Name
Model
Description
Quantity
Application

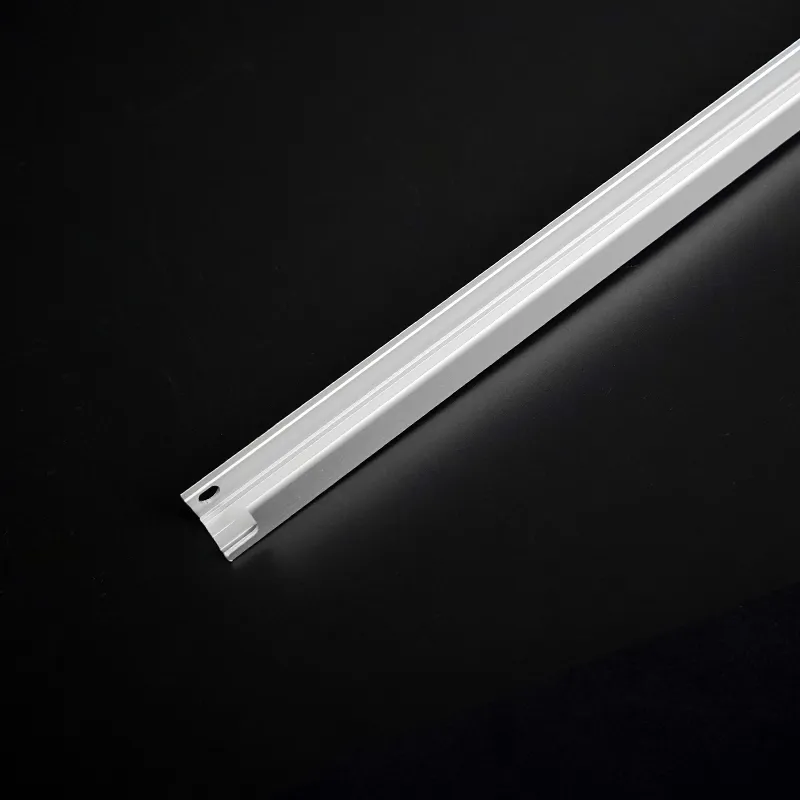

AS-AFS1217A4-1000
AS-AFS1217A4-1000
Product model:AS-AFS1217A4-1000，Side opening card slot
Installation method：Flat Mounting
Coating：Silver
Size：1000*14.4*18.9mm
Quantity: 1PCS/ set,Side opening card slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-AFS1217A4-35
AS-AFS1217A4-35

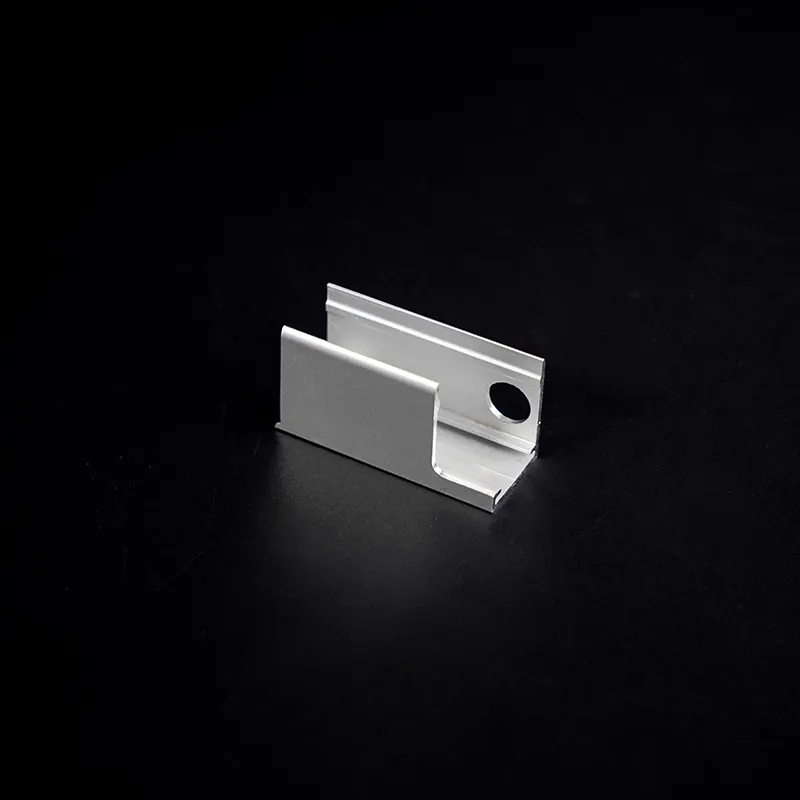

Product model:AS-AFS1217A4-35，Side opening clip
Installation method：Flat Mounting
Coating：Silver
Size：35*14.4*18.9mm
Quantity: 1PCS/ set,Side-opening clip, screws
Recommended dosage:3PCS/M
Applicable product model：1616 neon strips

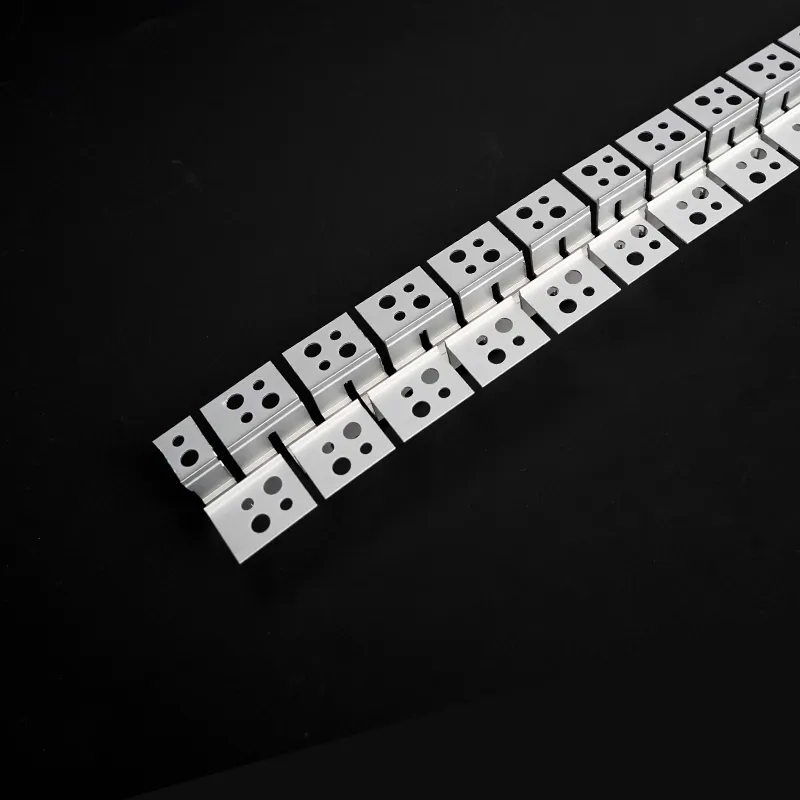

AS-AFS1217A5-1000
AS-AFS1217A5-1000
Product model:AS-AFS1217A5-1000,Recessed Shaped Slot
Installation method：Recessed installation
Coating：Silver
Size：1000*54.8*19.1mm
Quantity: 1PCS/ set,Recessed Shaped Slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-NMS1217A
AS-NMS1217A
Product model:AS-NMS1217A，NMS1217 Flat Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：LXXXX*W14.4*H18.85
Applicable product model：NMS1217/NNS1224
1PCS/ SET
