• Max.110lm/w, Free Cutting
  • 7-year warranty, high reliability
  • Max.20m@48V

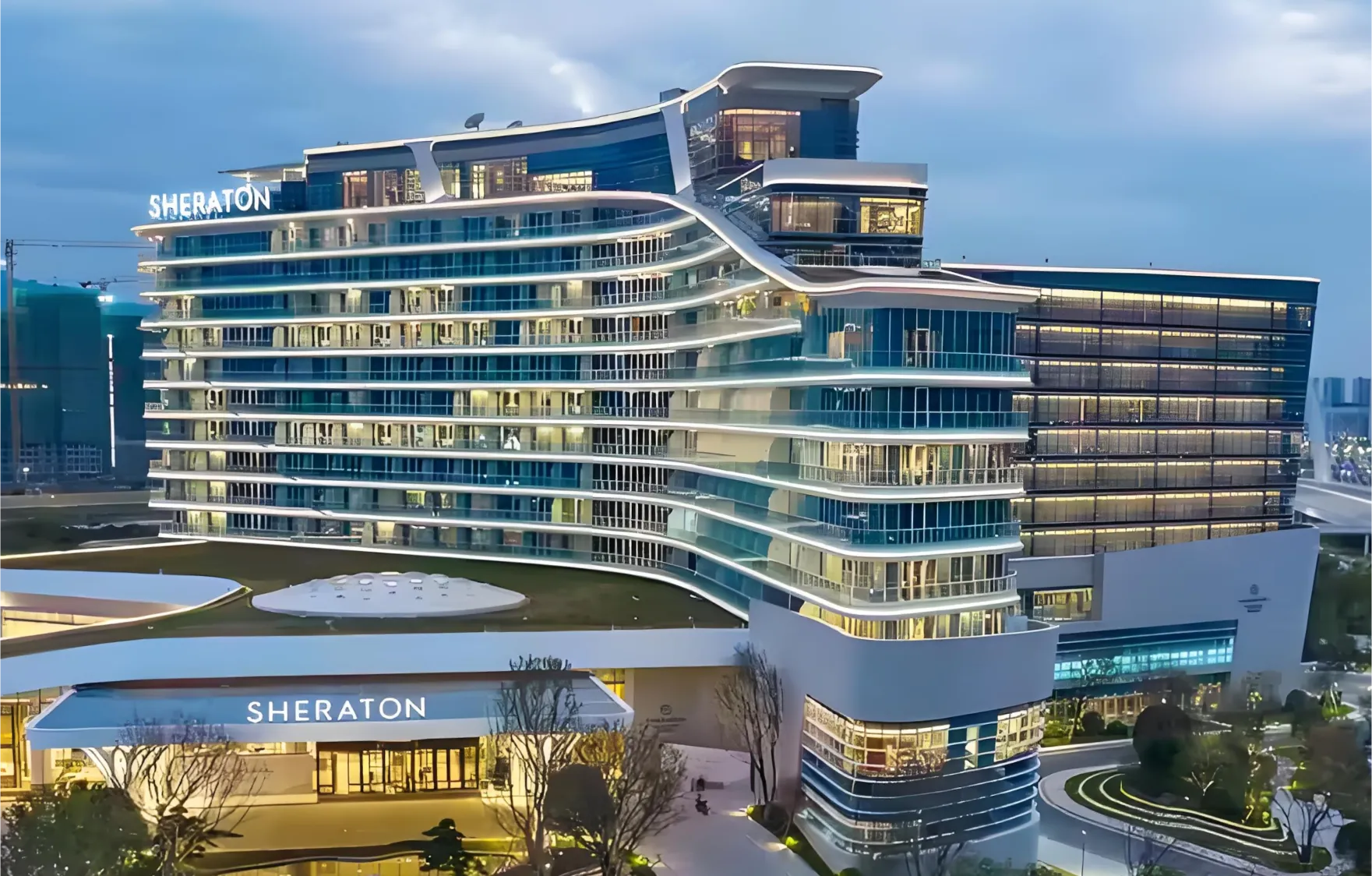

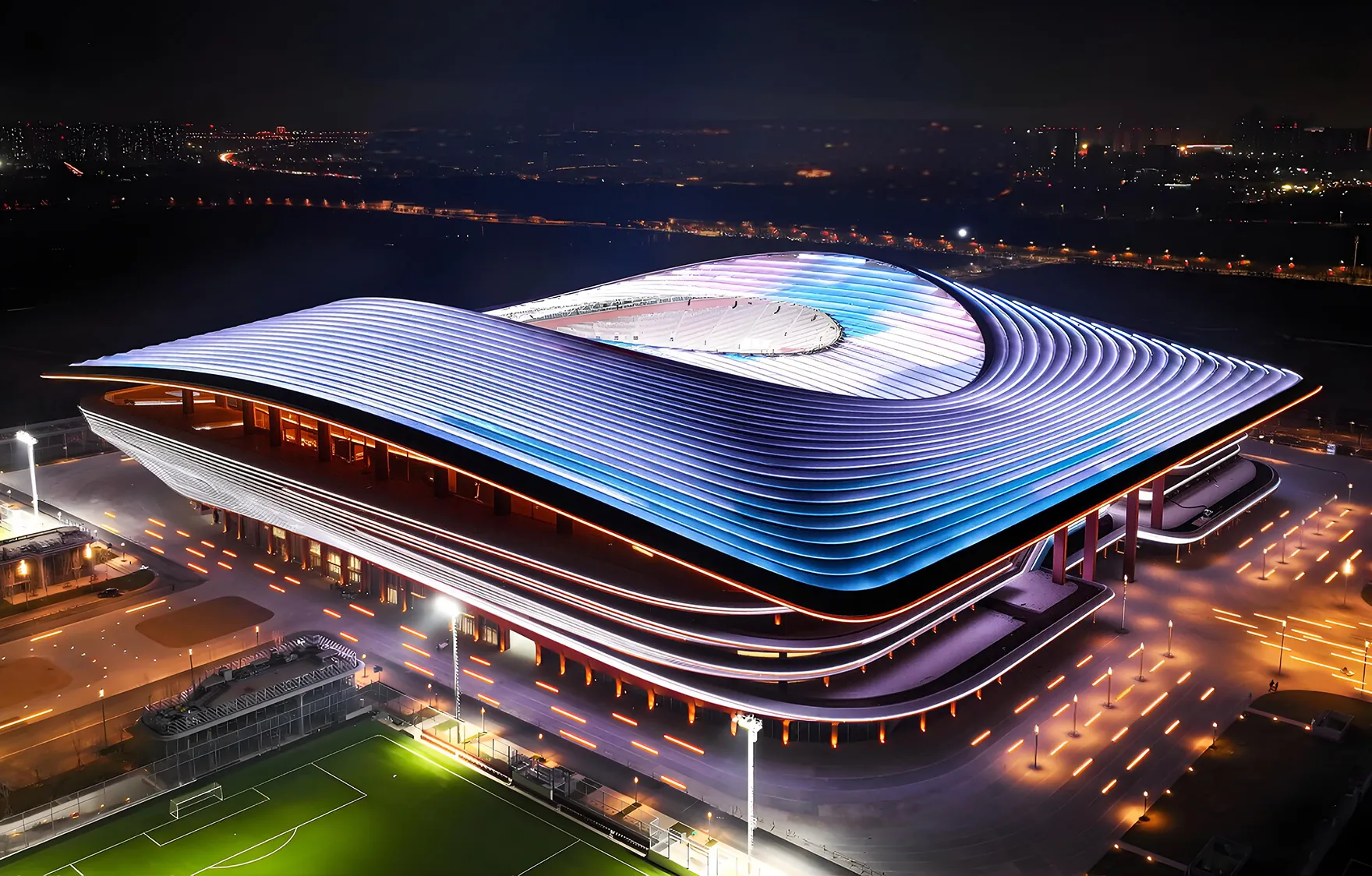

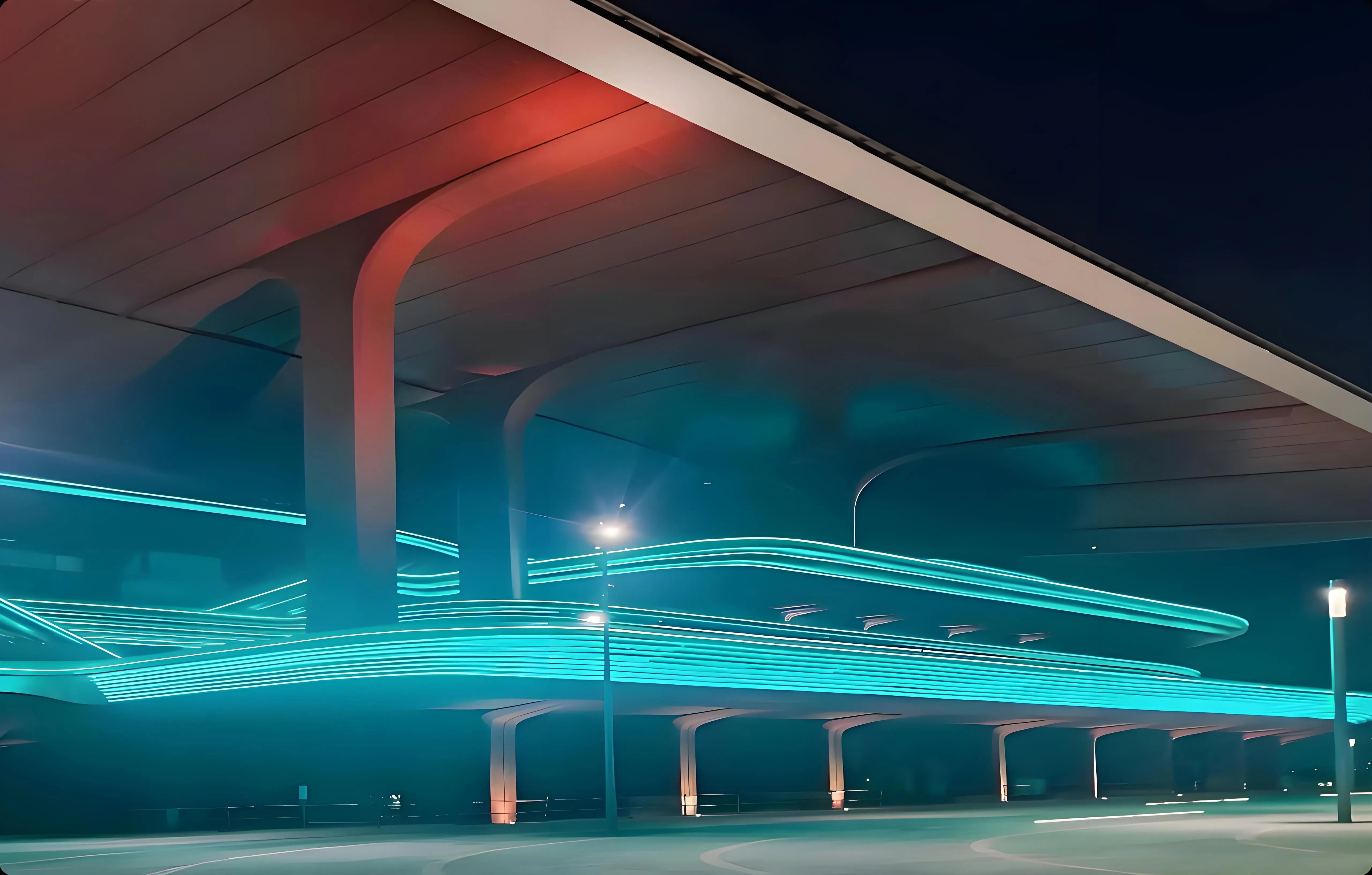

  • For building facades and outdoor landscapes

Feature

  • Cut-to-Size · Accurate Fit for Easy Installation
  • Ultra High Light Efficiency & More Energy Saving

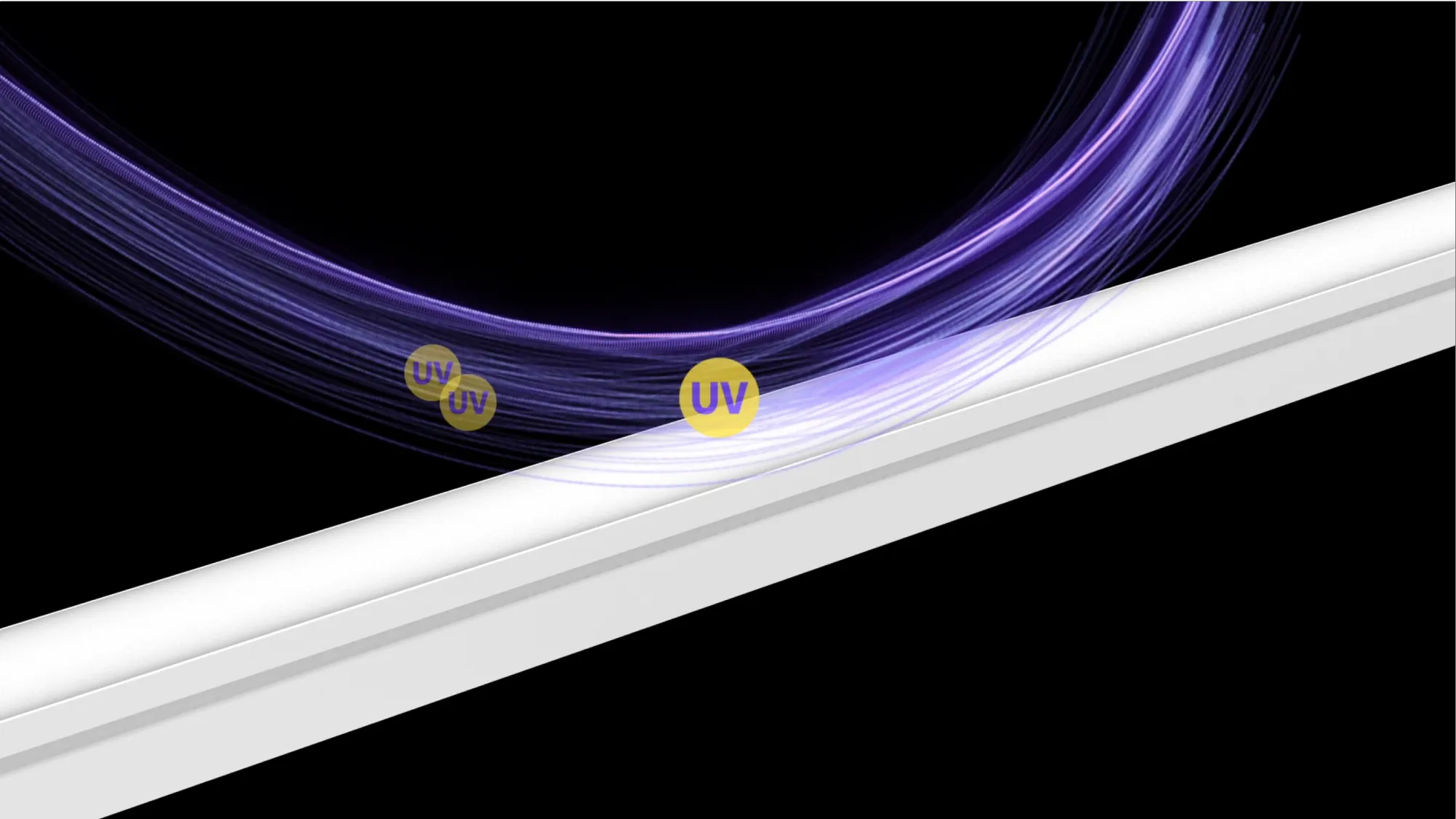

  • UV and Yellowing Resistance

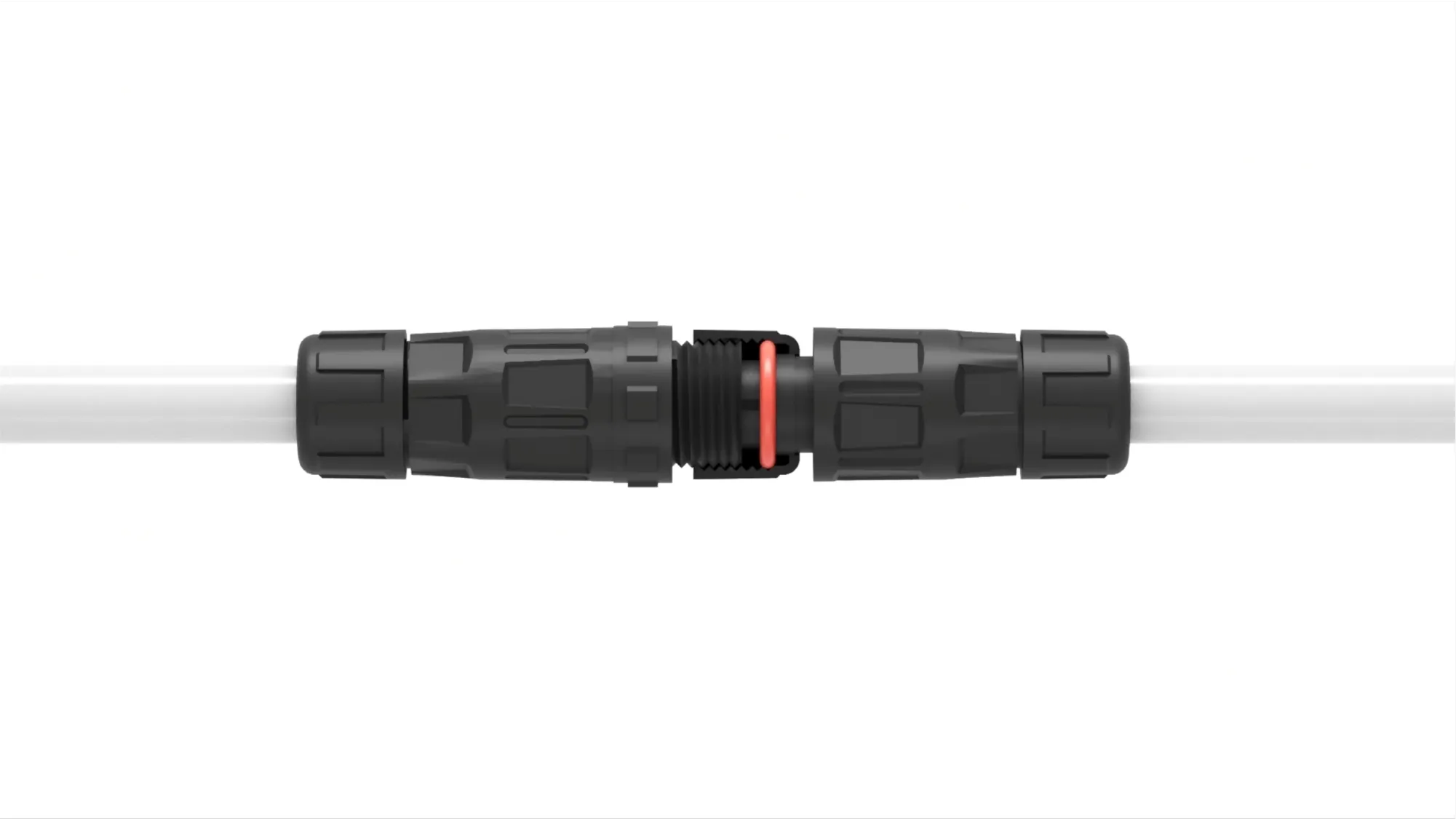

  • No Worry About Siphonage and Water Seepage

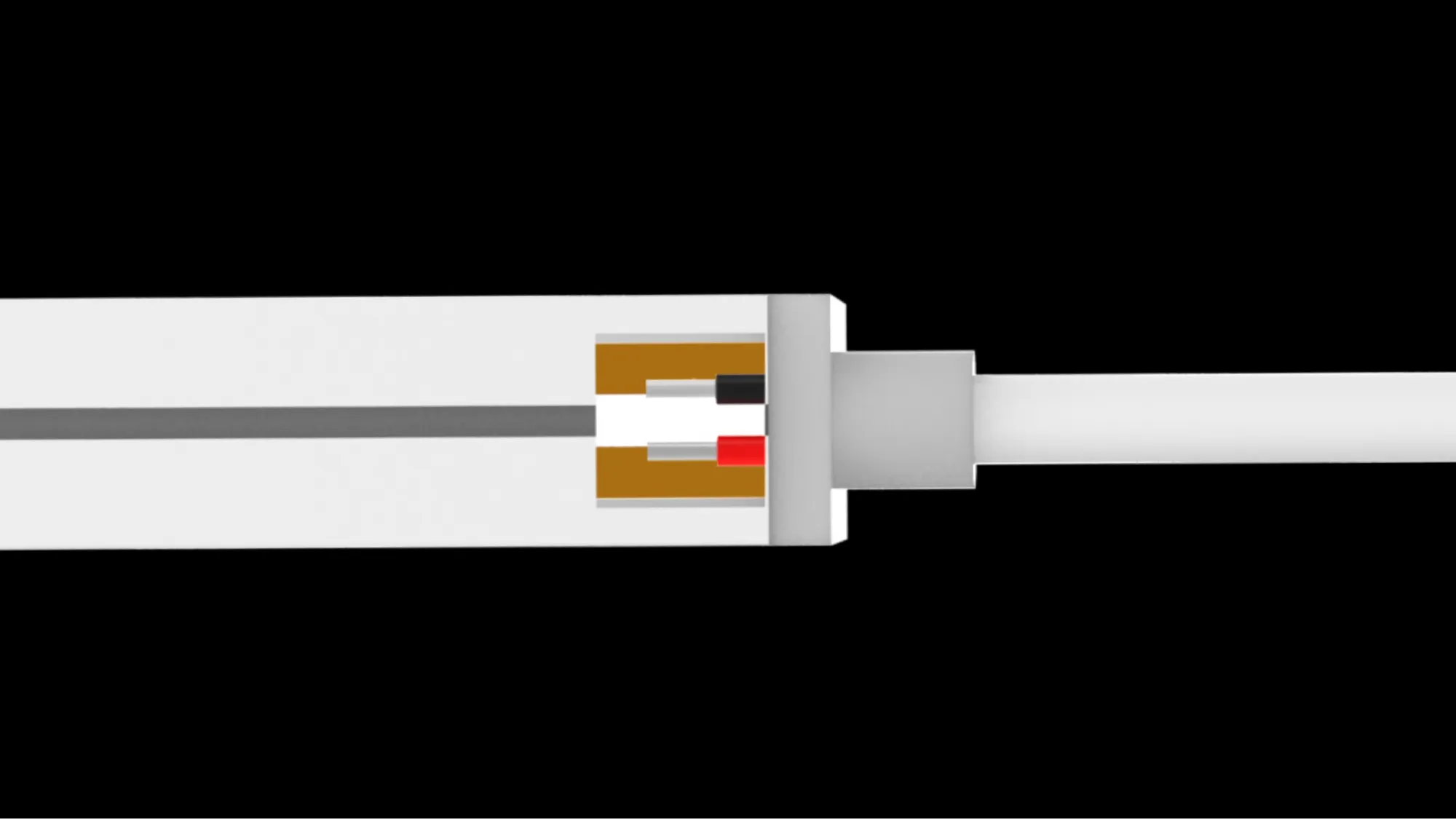

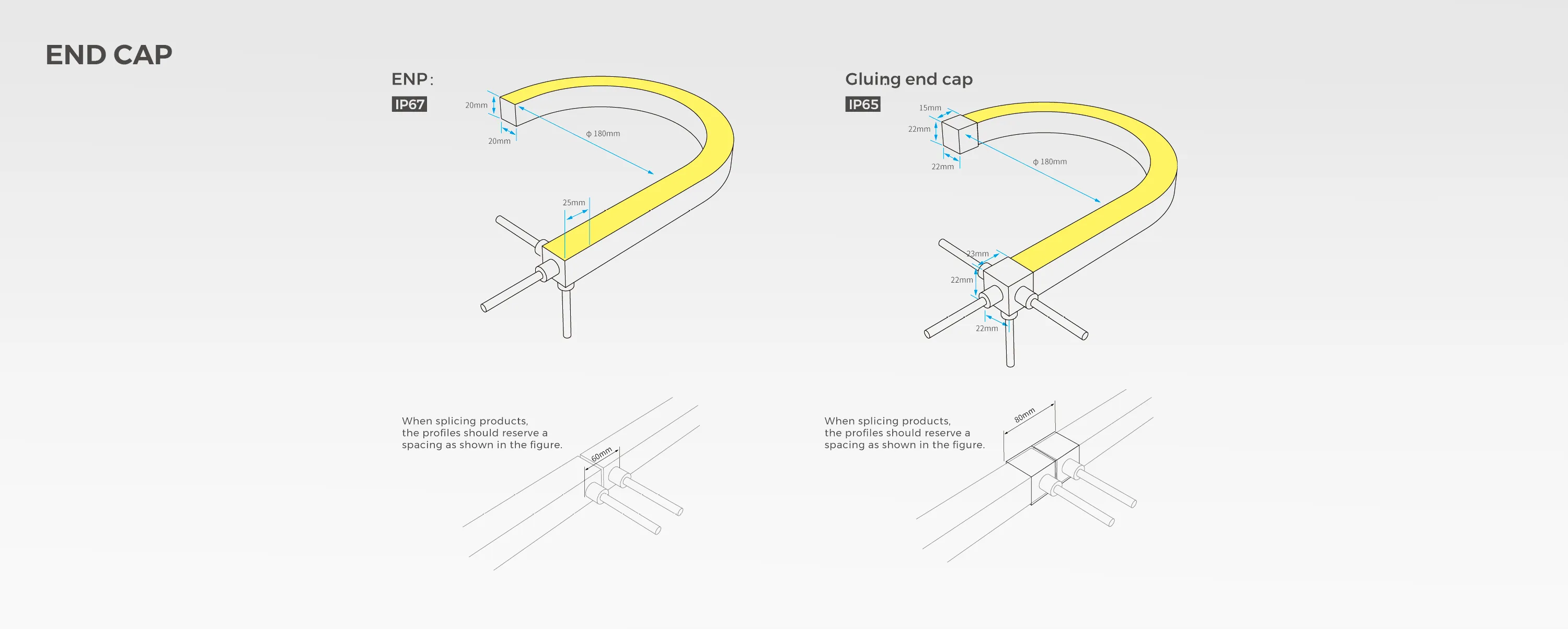

  • Dual-Layer Protective Terminal

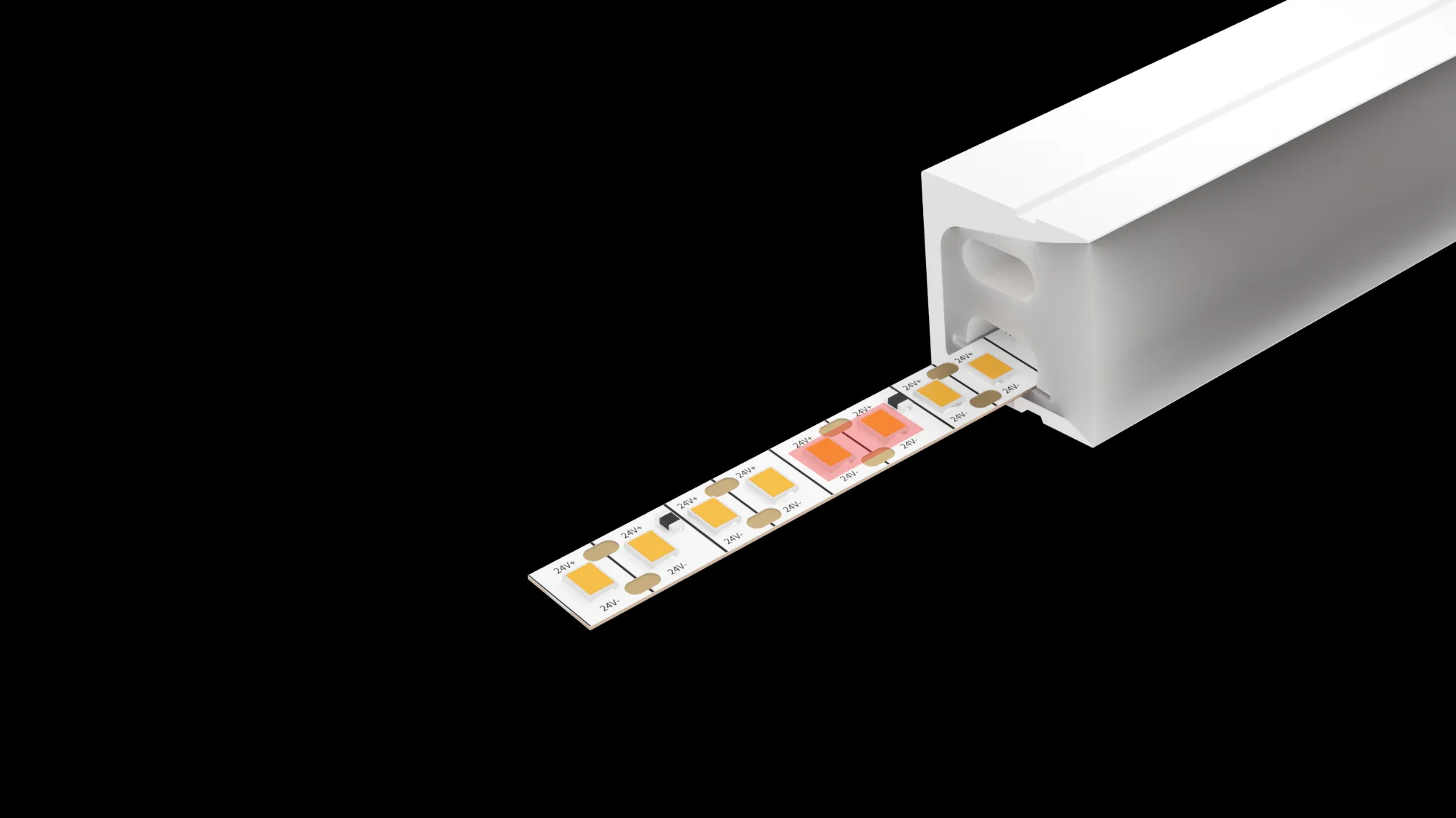

  • Anti-Breakage PCB Are More Durable
  • Worry Free About Quality

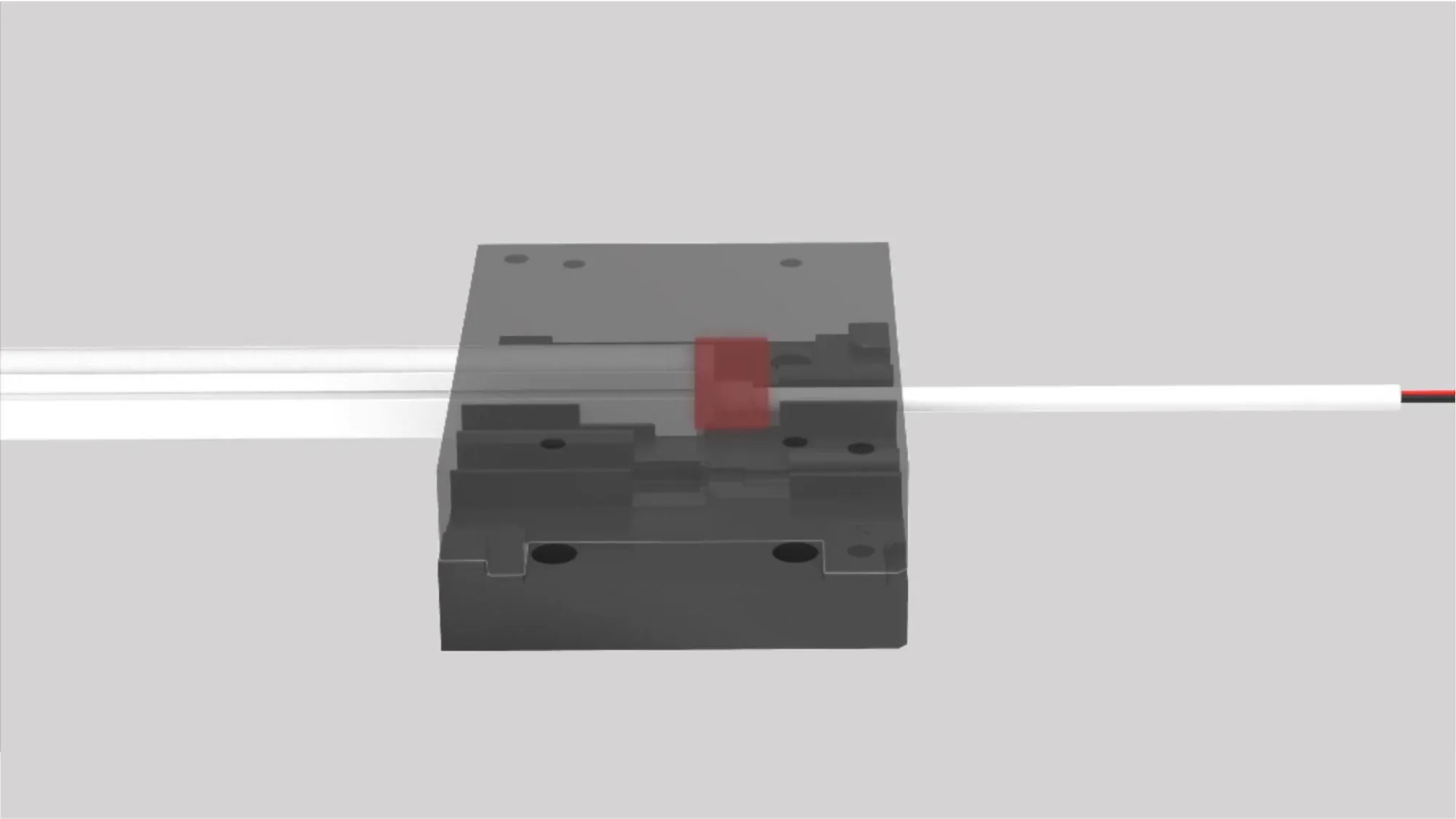

  • Withstands Installation Stresses

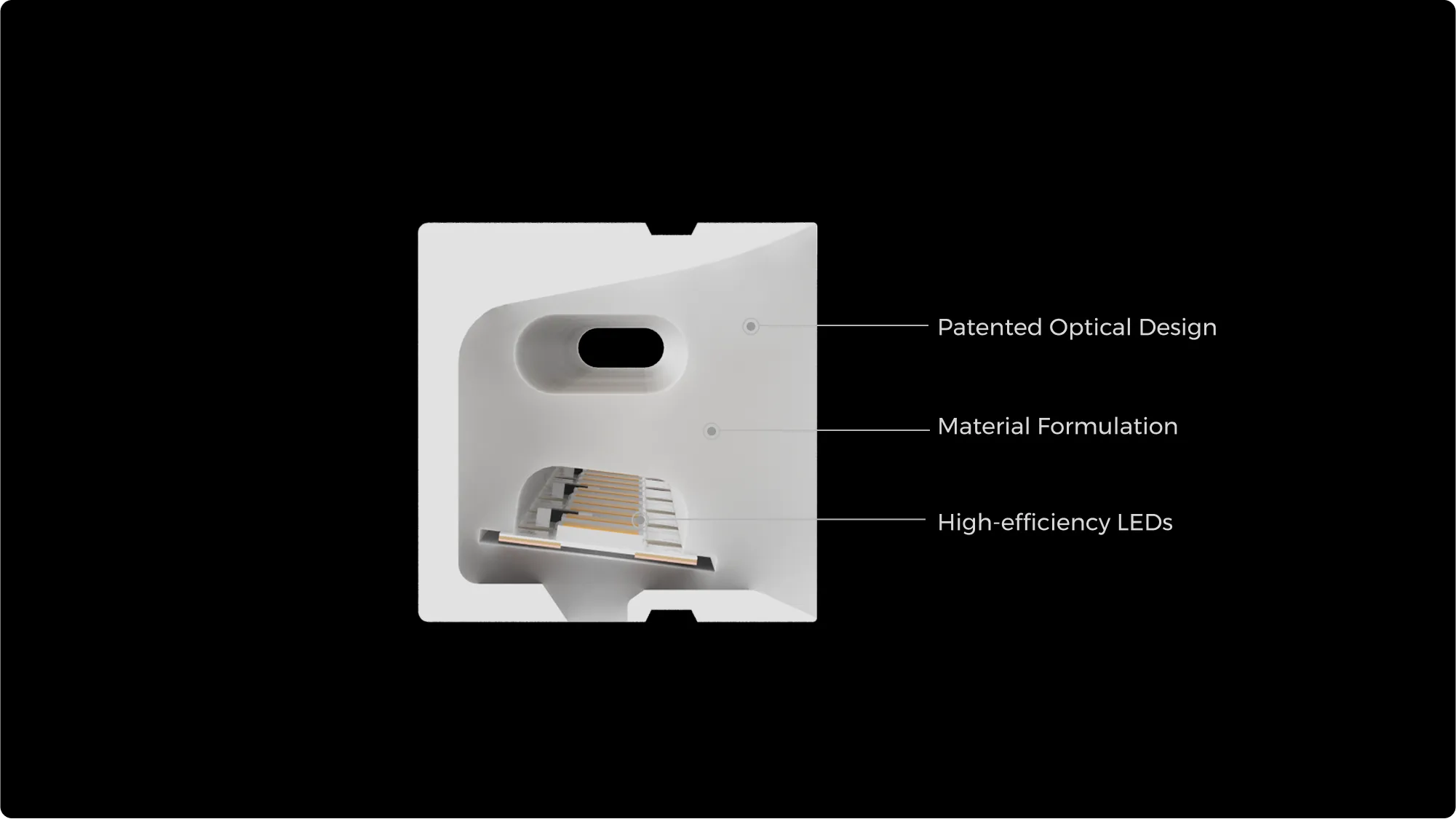

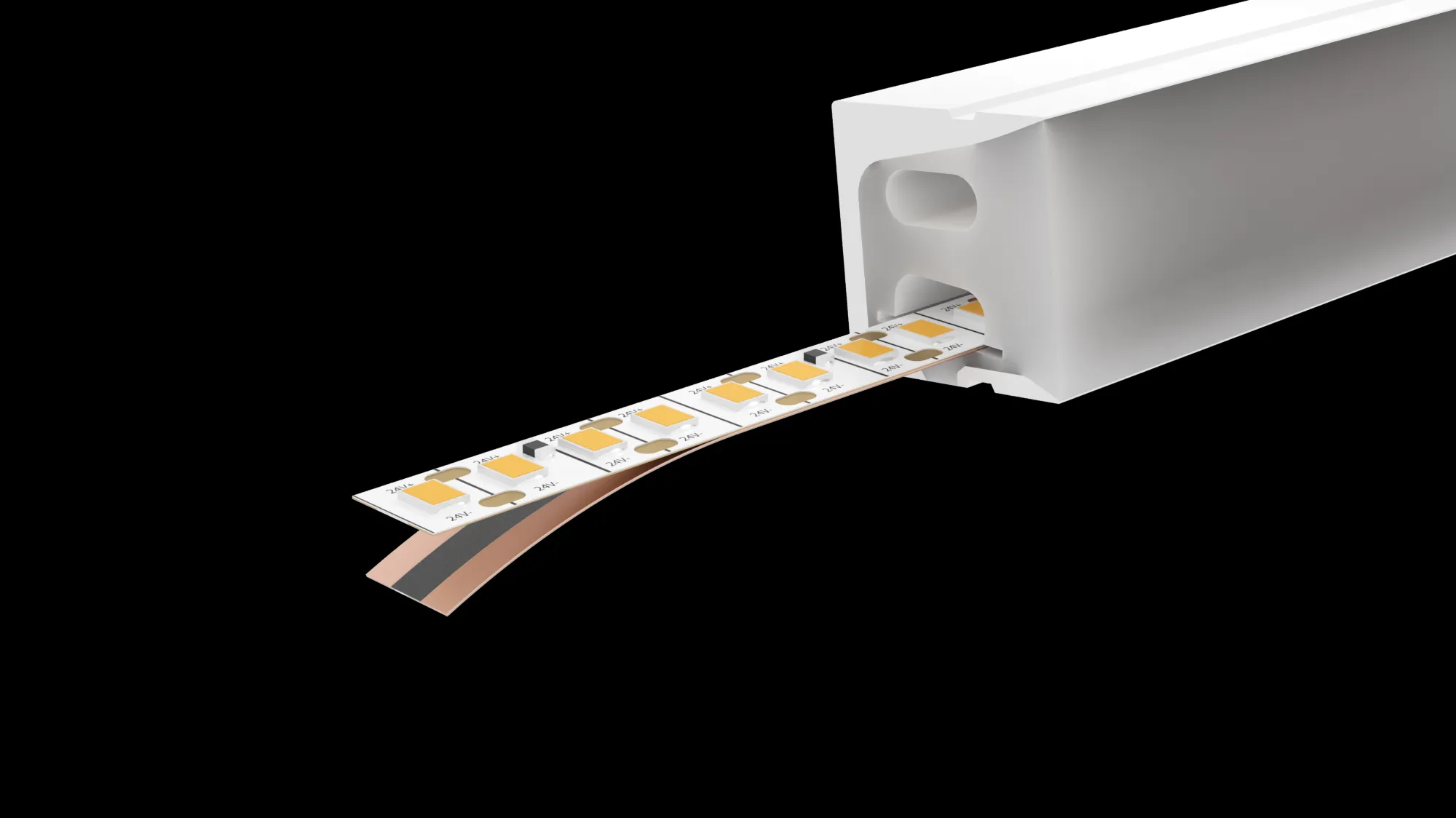

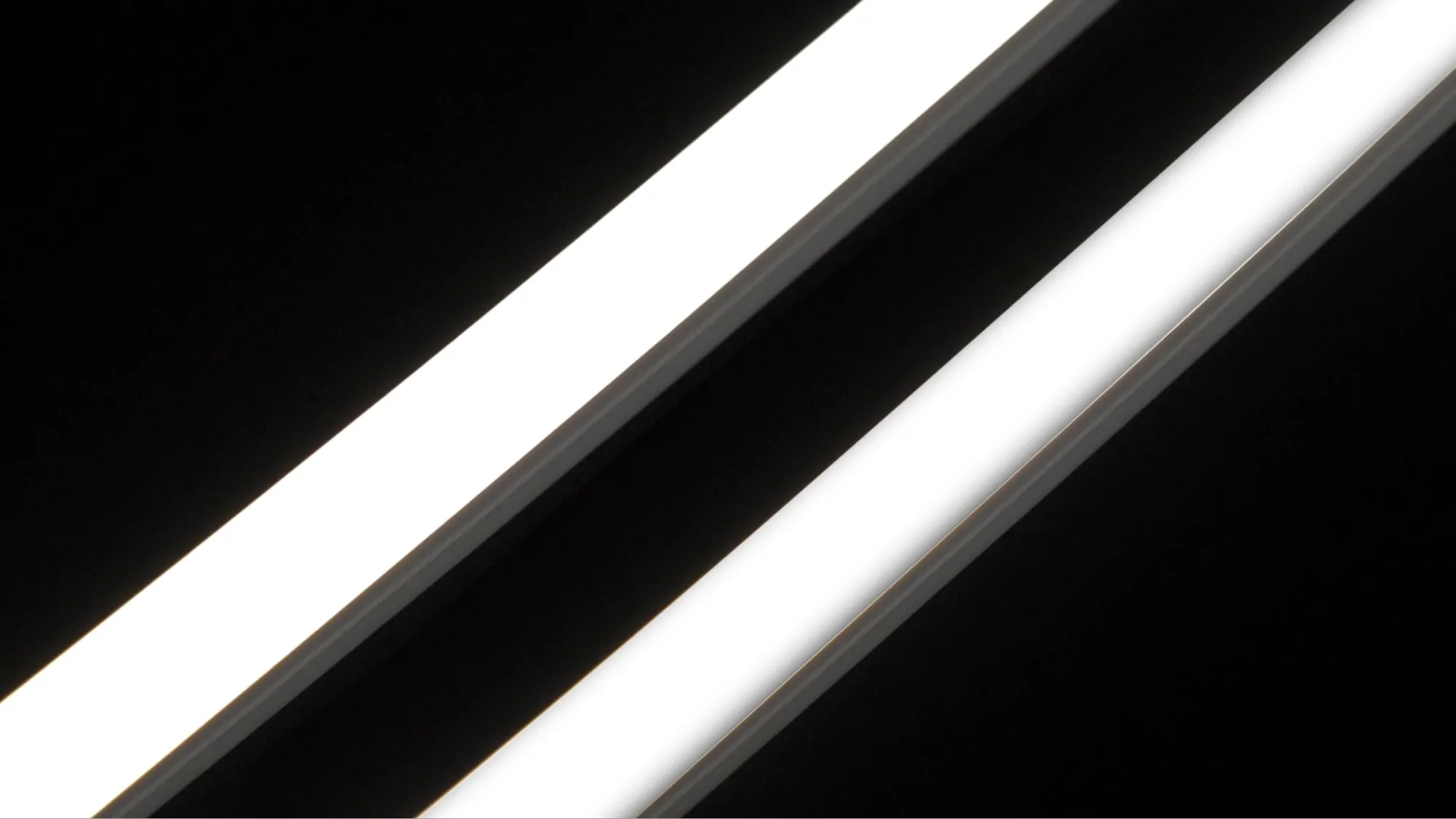

  • Upgraded Light-Emitting Structure, Even Color Without Dark Area On Surface
  • Precision-Controlled Color Temperature After Silicone Coated

Certification

General Info

Application
Outdoor
Bend Direction
Side-Bend
IK Rating
IK08
IP Rating
IP67
Operating Temperature
-20~50℃
Storage Temperature
0℃~60℃
Warranty
7 years
Certifications
CB, CE, REACH, RoHS, UKCA, UL

Electrical Info

Input Voltage
DC24V, DC48V
System Power
10 W/m
Electrical Insulation Class
Class III
Max-Run(Single-End Feed)
10m, 20m

Optical Info

LED Type
SMD2835
LED Brand
Colors
LED QTY
160LEDs/m
CCT
2200K, 2700K, 3000K, 4000K
CRI
Ra90+
Cutting Unit
6.25mm, 12.5mm

Download

Model

Input Voltage

Filter by Input Voltage

CCT

Filter by CCT

Luminous Efficacy(lm/W Max)

2 matching product codes

AHS2020-White light-24V

ORDER NOW
NameInput VoltageSystem PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
AHS2020-White light-24V,10 W/m,Ra90+,2200KDC24V10 W/m[3.05 W/ft]Ra90+2200K665 lm/m[203 lm/ft]67 lm/W7 years
AHS2020-White light-24V,10 W/m,Ra90+,2700KDC24V10 W/m[3.05 W/ft]Ra90+2700K785 lm/m[239 lm/ft]79 lm/W7 years
AHS2020-White light-24V,10 W/m,Ra90+,3000KDC24V10 W/m[3.05 W/ft]Ra90+3000K845 lm/m[258 lm/ft]85 lm/W7 years
AHS2020-White light-24V,10 W/m,Ra90+,4000KDC24V10 W/m[3.05 W/ft]Ra90+4000K895 lm/m[273 lm/ft]90 lm/W7 years

AHS2020-White light-48V

ORDER NOW
NameInput VoltageSystem PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
AHS2020-White light-48V,10 W/m,Ra90+,2200KDC48V10 W/m[3.05 W/ft]Ra90+2200K735 lm/m[224 lm/ft]74 lm/W7 years
AHS2020-White light-48V,10 W/m,Ra90+,2700KDC48V10 W/m[3.05 W/ft]Ra90+2700K870 lm/m[265 lm/ft]87 lm/W7 years
AHS2020-White light-48V,10 W/m,Ra90+,3000KDC48V10 W/m[3.05 W/ft]Ra90+3000K890 lm/m[271 lm/ft]89 lm/W7 years
AHS2020-White light-48V,10 W/m,Ra90+,4000KDC48V10 W/m[3.05 W/ft]Ra90+4000K950 lm/m[290 lm/ft]95 lm/W7 years
