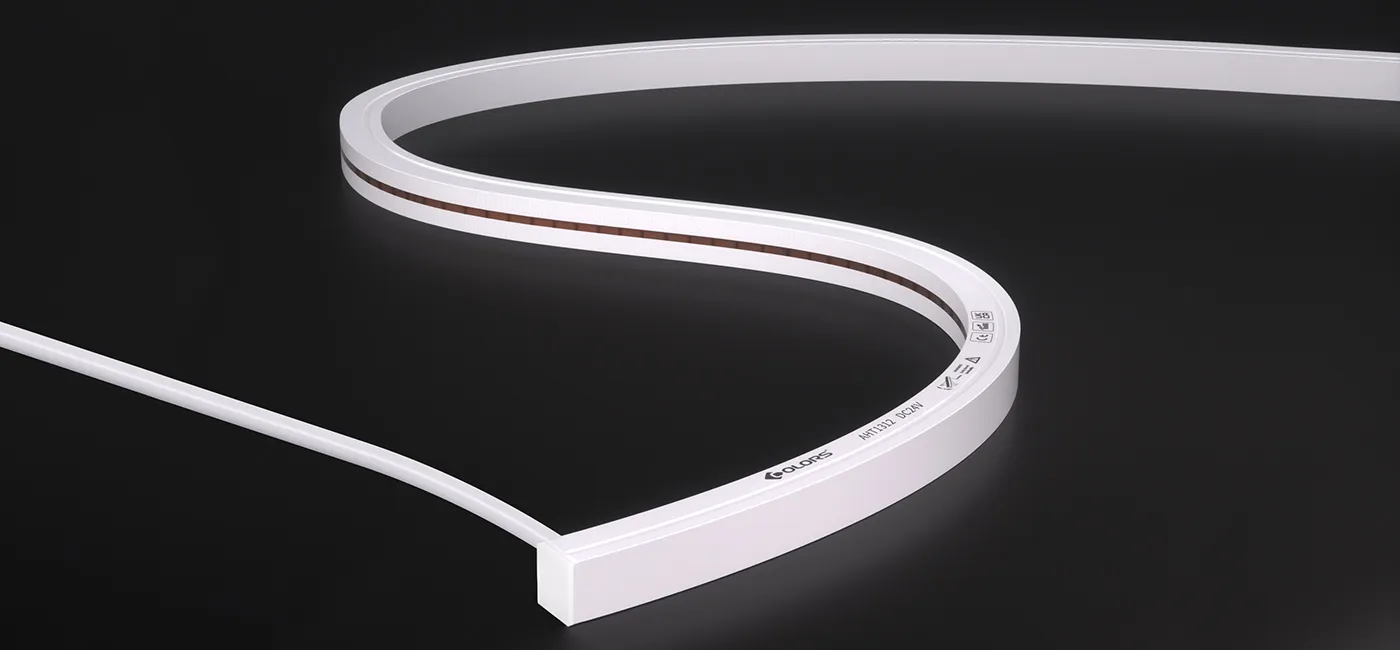

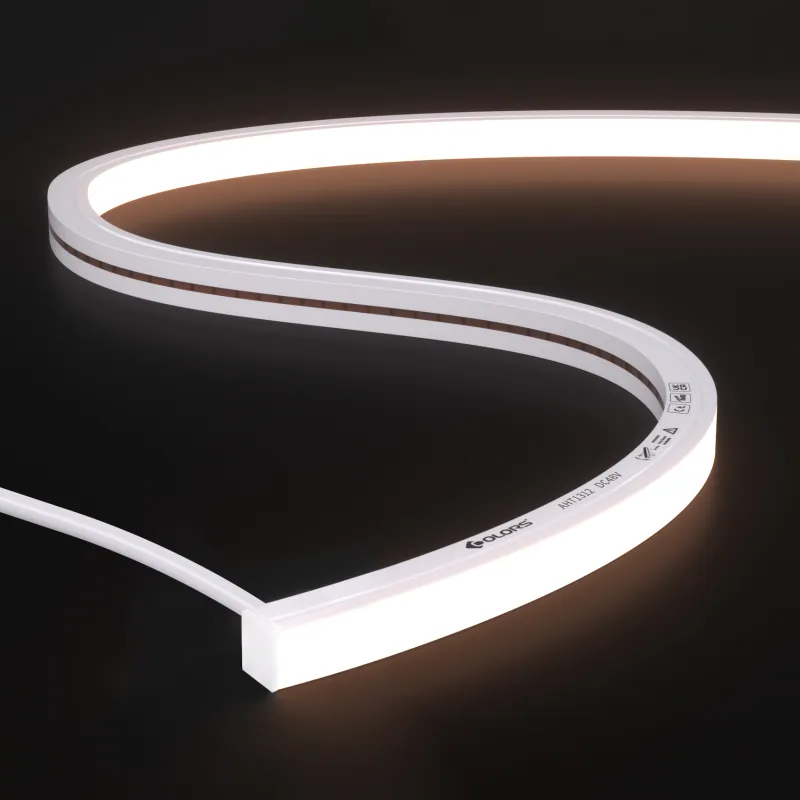

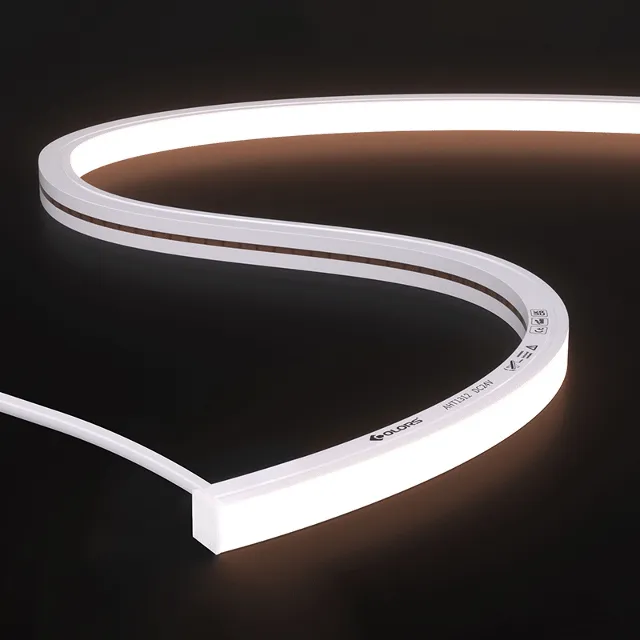

AHT1312
Discover AH Series- Max.110lm/w, Free Cutting
- 7-year warranty, high reliability
- Max.20m@48V
- For building facades and outdoor landscapes
Key Features

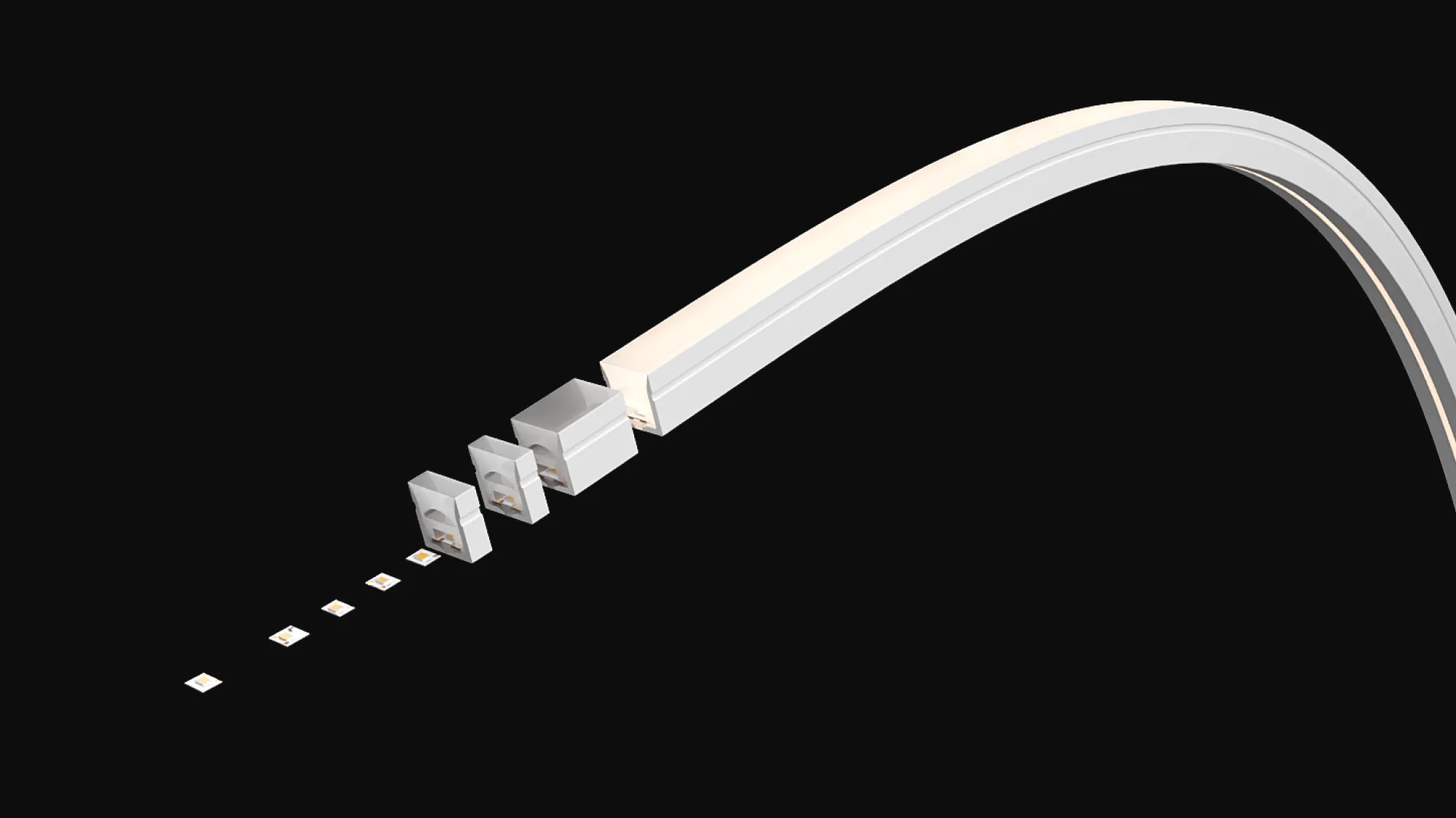

Cut-to-Size · Accurate Fit for Easy Installation
DC24V single Led cutting, precise to 6.25mm, with length customization unlimited by cutting units.

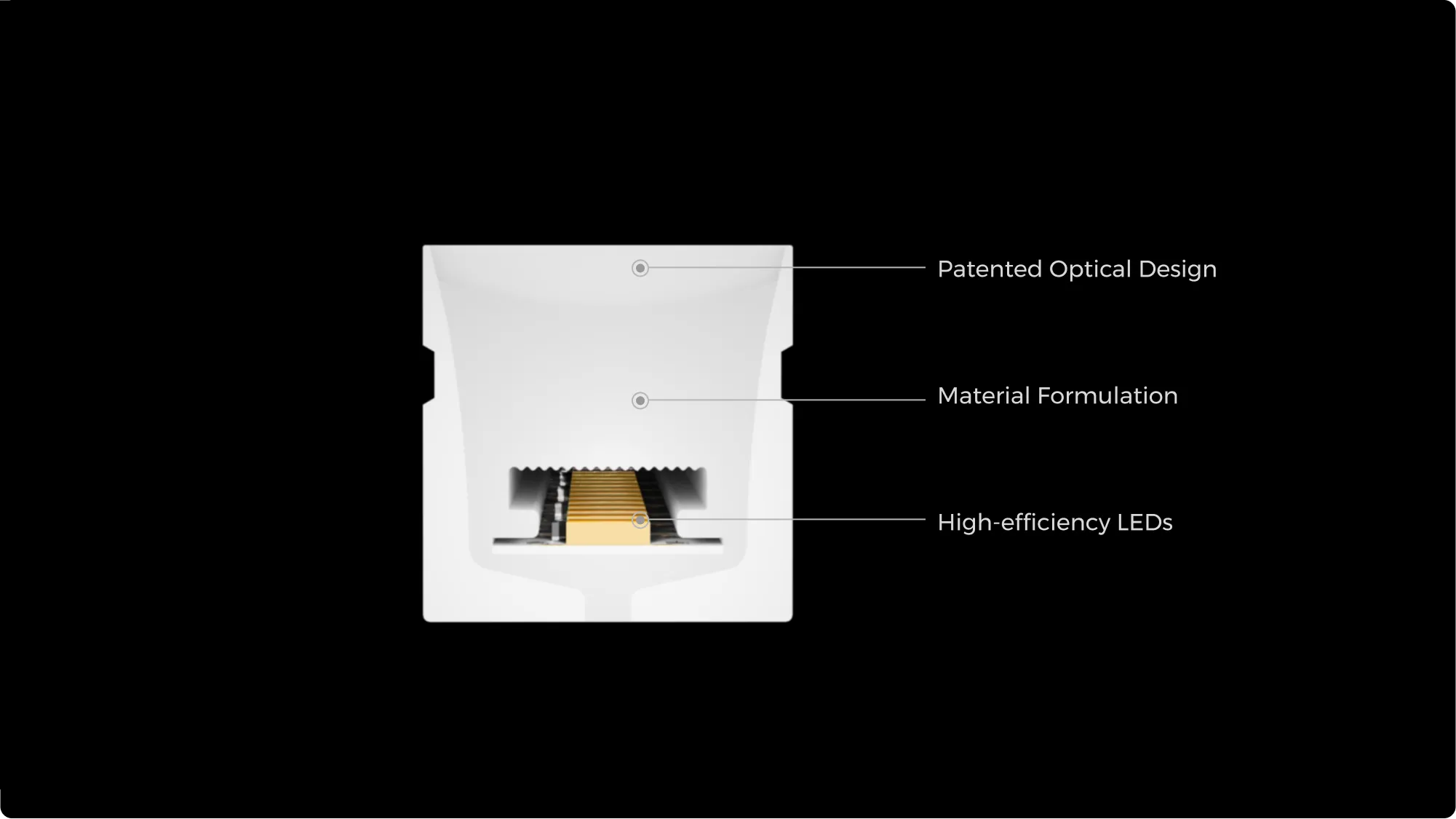

Ultra High Light Efficiency & More Energy Saving
High-efficiency LEDs + Patented Optical Design and Material Formulation， The maximum light efficiency is 110 lm/W, increasing the brightness by 60%, and 40% energy savings.
UV and Yellowing Resistance
Gas-Phase Silicone Extrusion Process,High-intensity 3000 hours UV test, equivalent to 9 years of outdoor use, almost no yellowing.

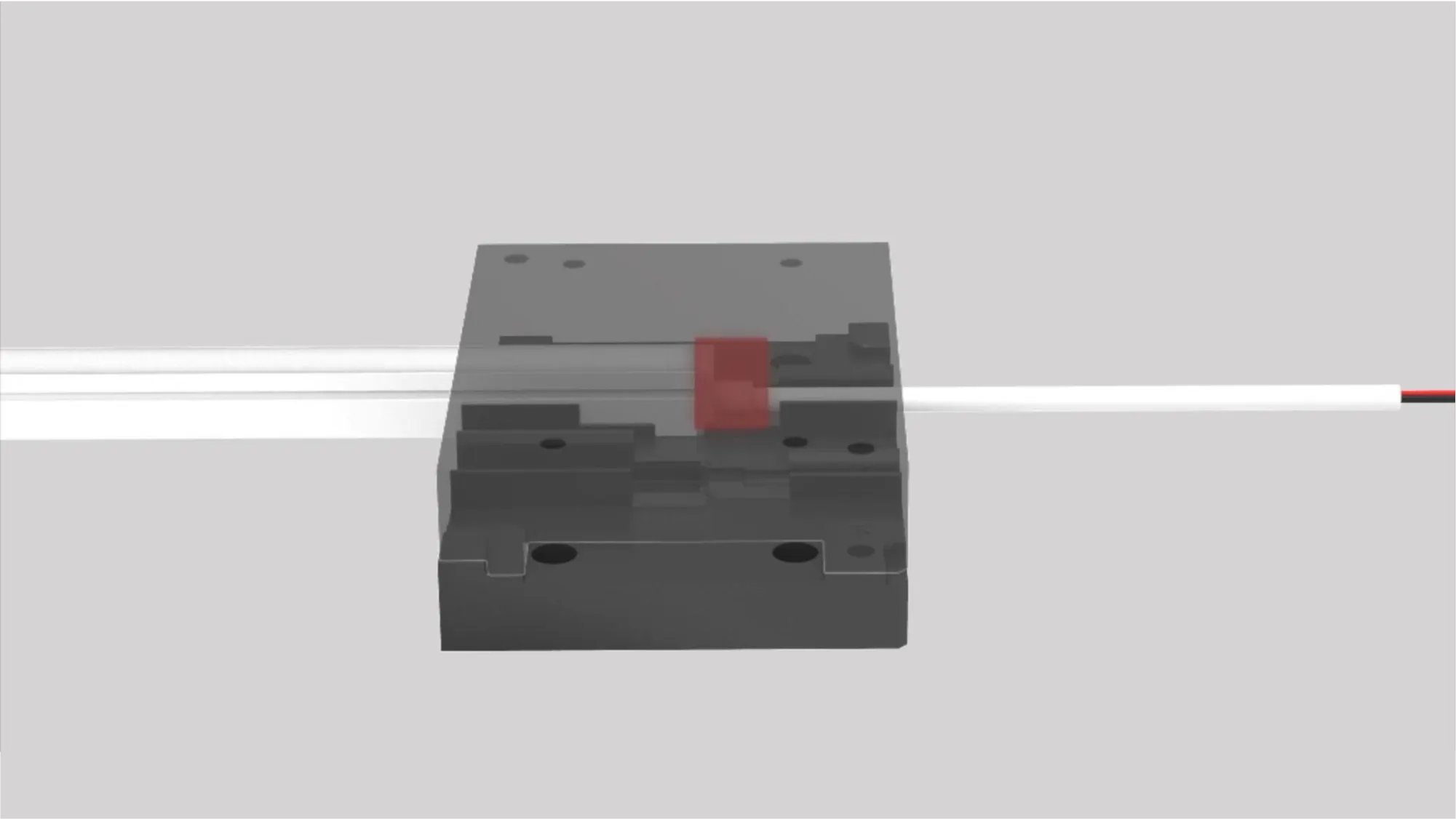

No Worry About Siphonage and Water Seepage
Uniform materials for the neon, end cap and terminal wire. Used integrated hot melt molding process.
Dual-Layer Protective Terminal
Dual-layer protective terminal ensure IP67 protection against rain and water immersion.

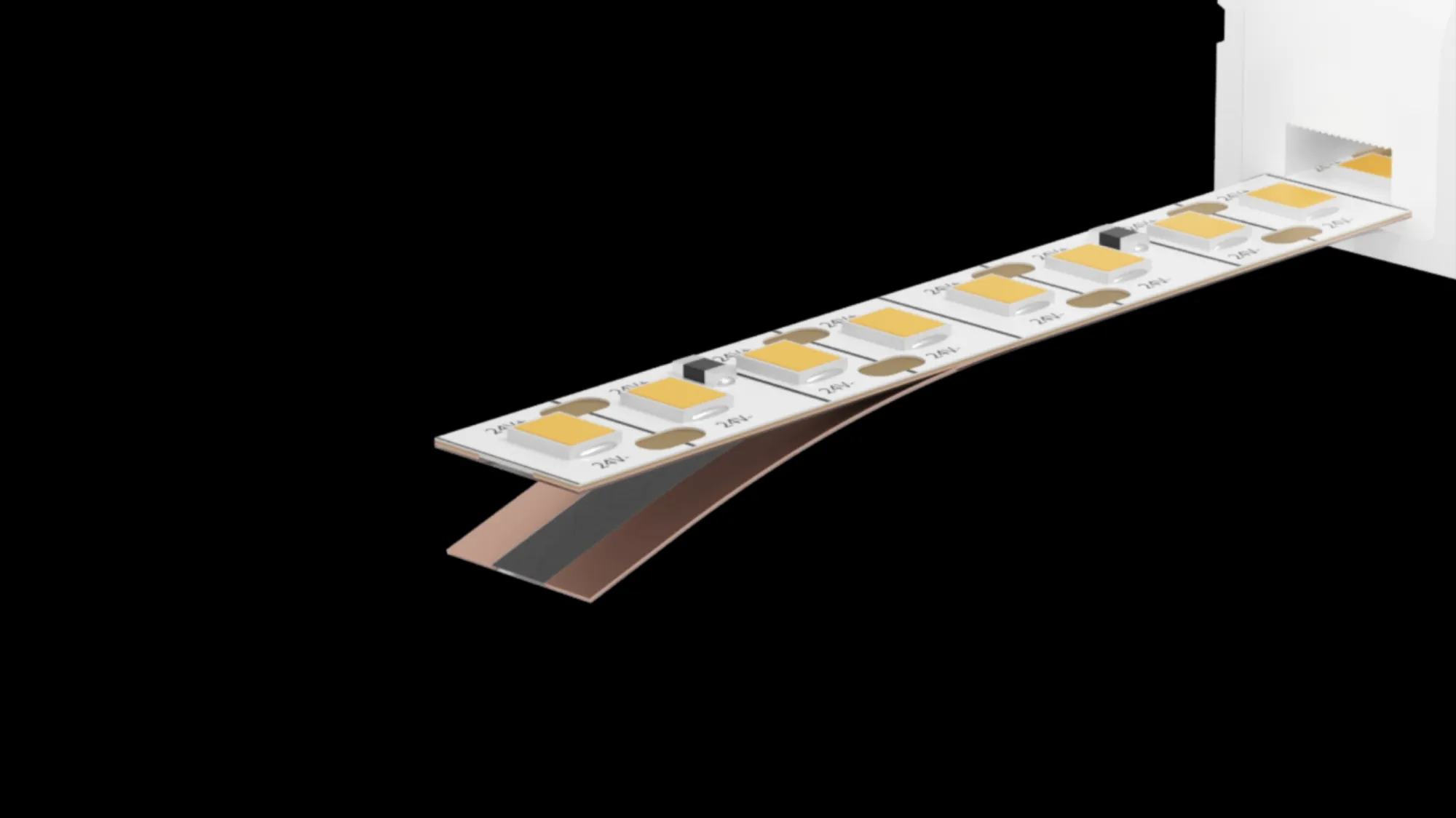

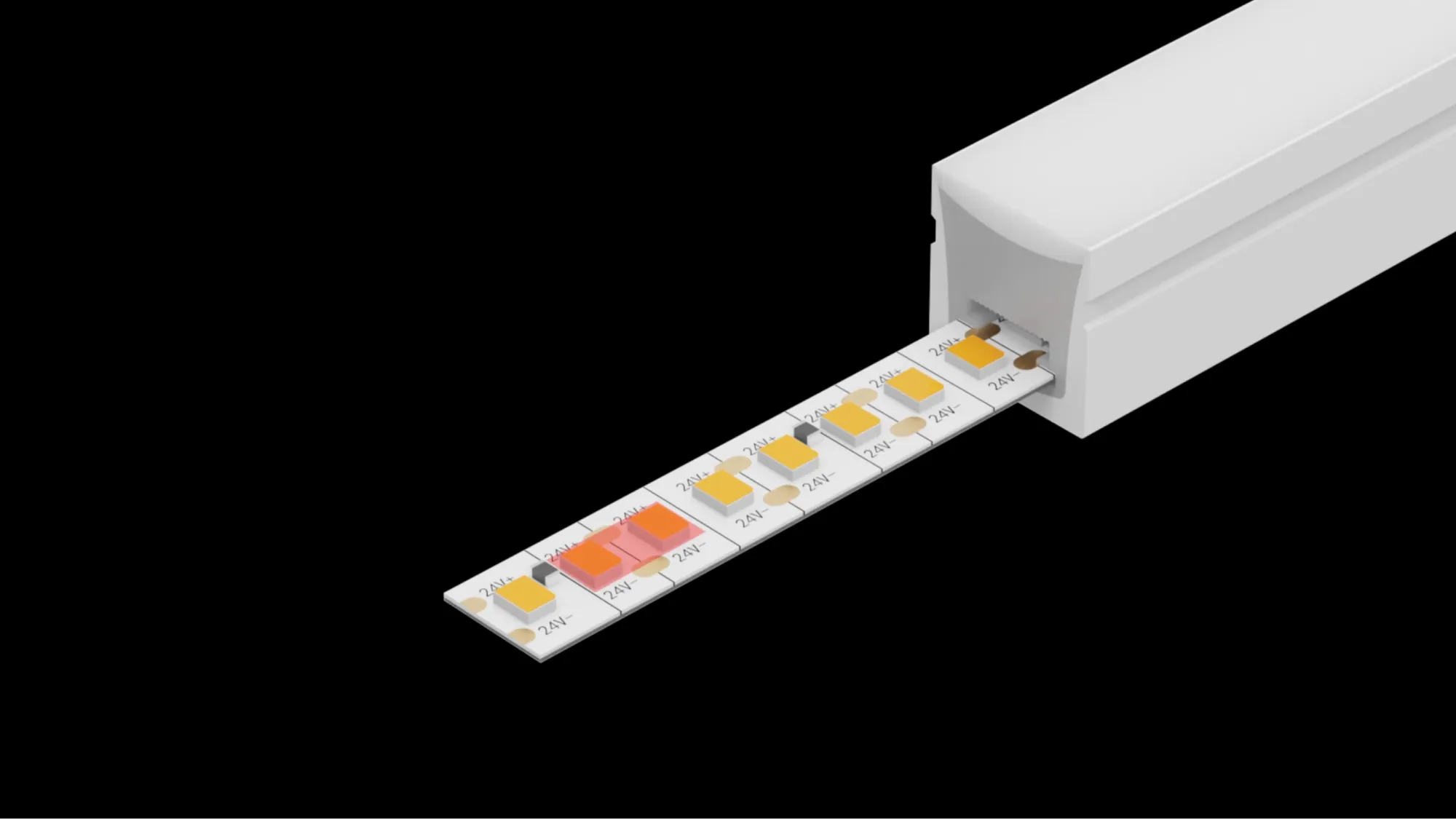

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable.
Worry Free About Quality
Parallel LEDs technology，special chip design, single chip breakage no affect the light effect.
Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces.

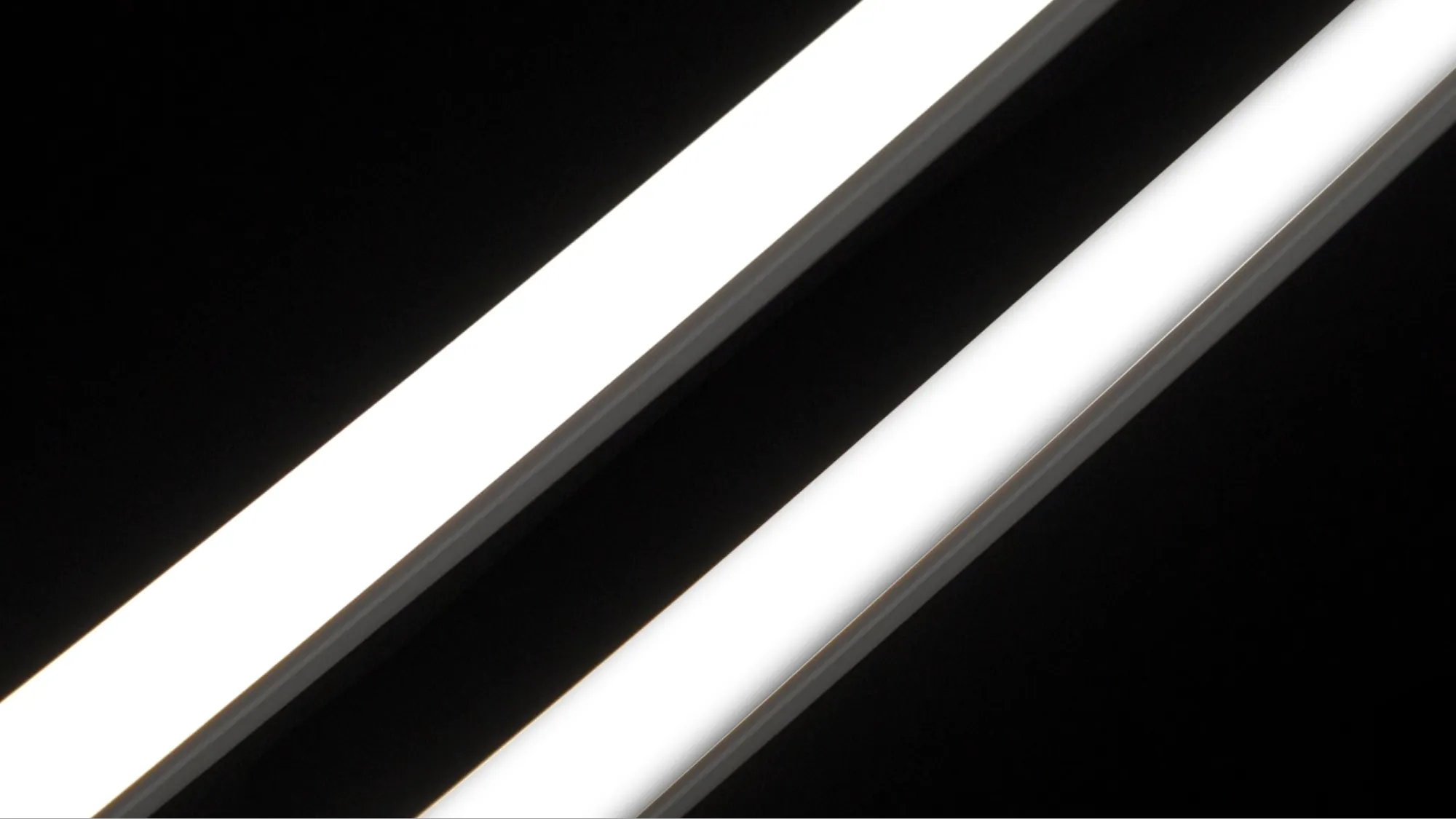

Upgraded Light-Emitting Structure, Even Color Without Dark Area On Surface
Precision-Controlled Color Temperature After Silicone Coated
SDCM<5, ensuring color consistency.

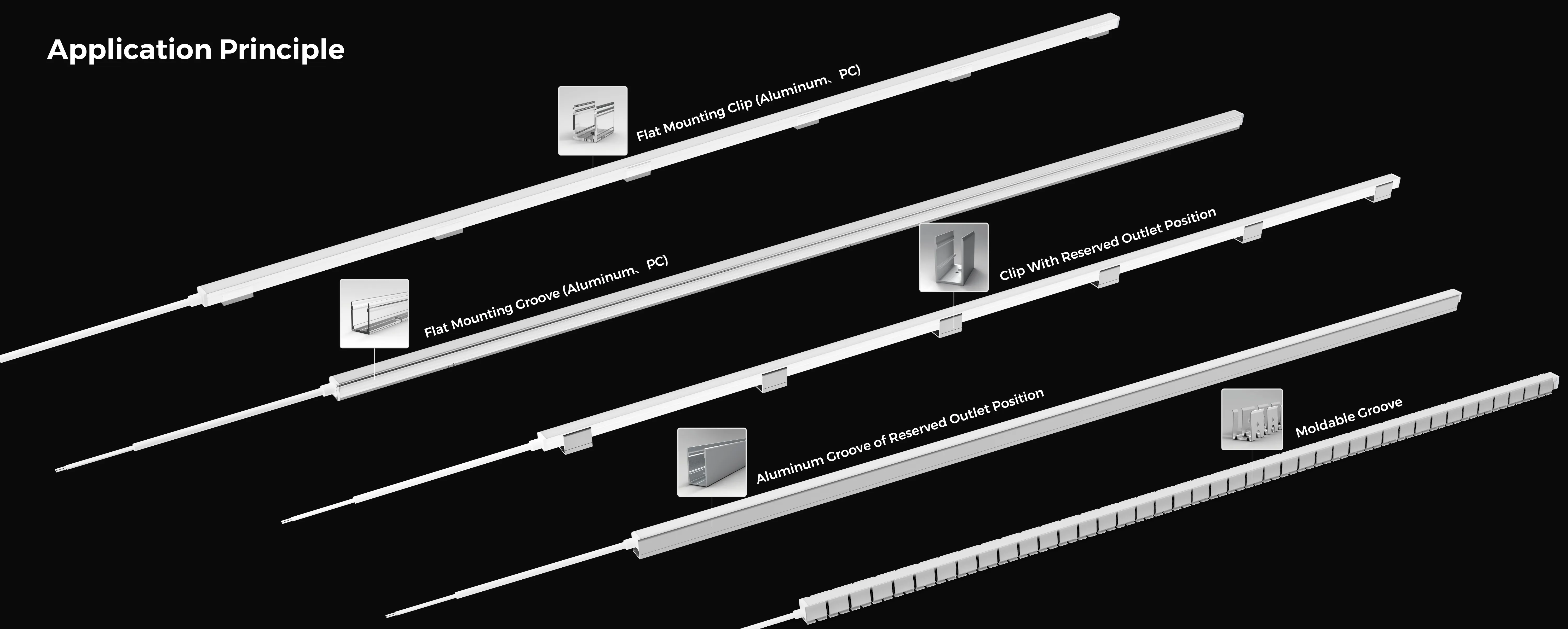

Application Principle

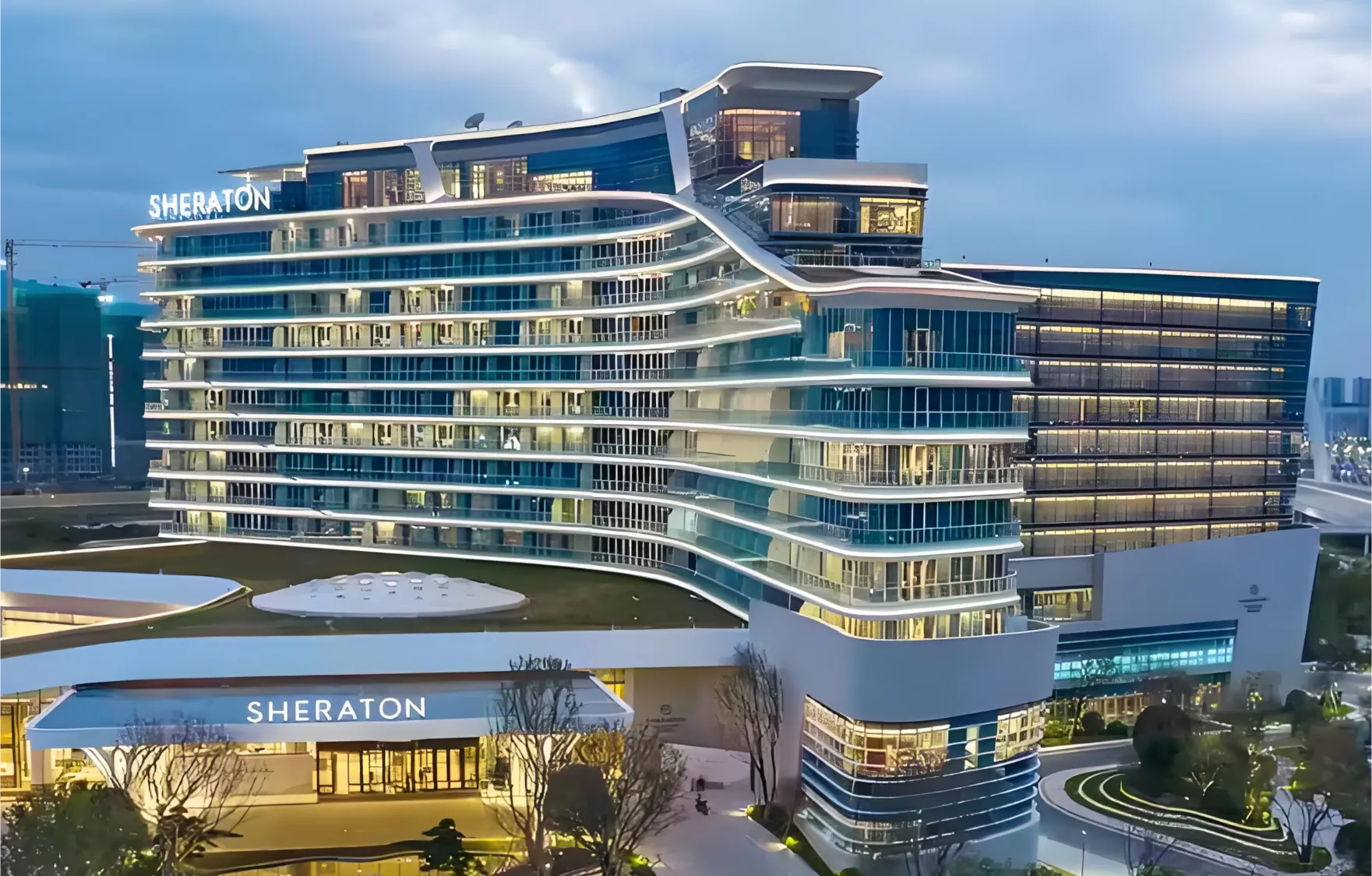

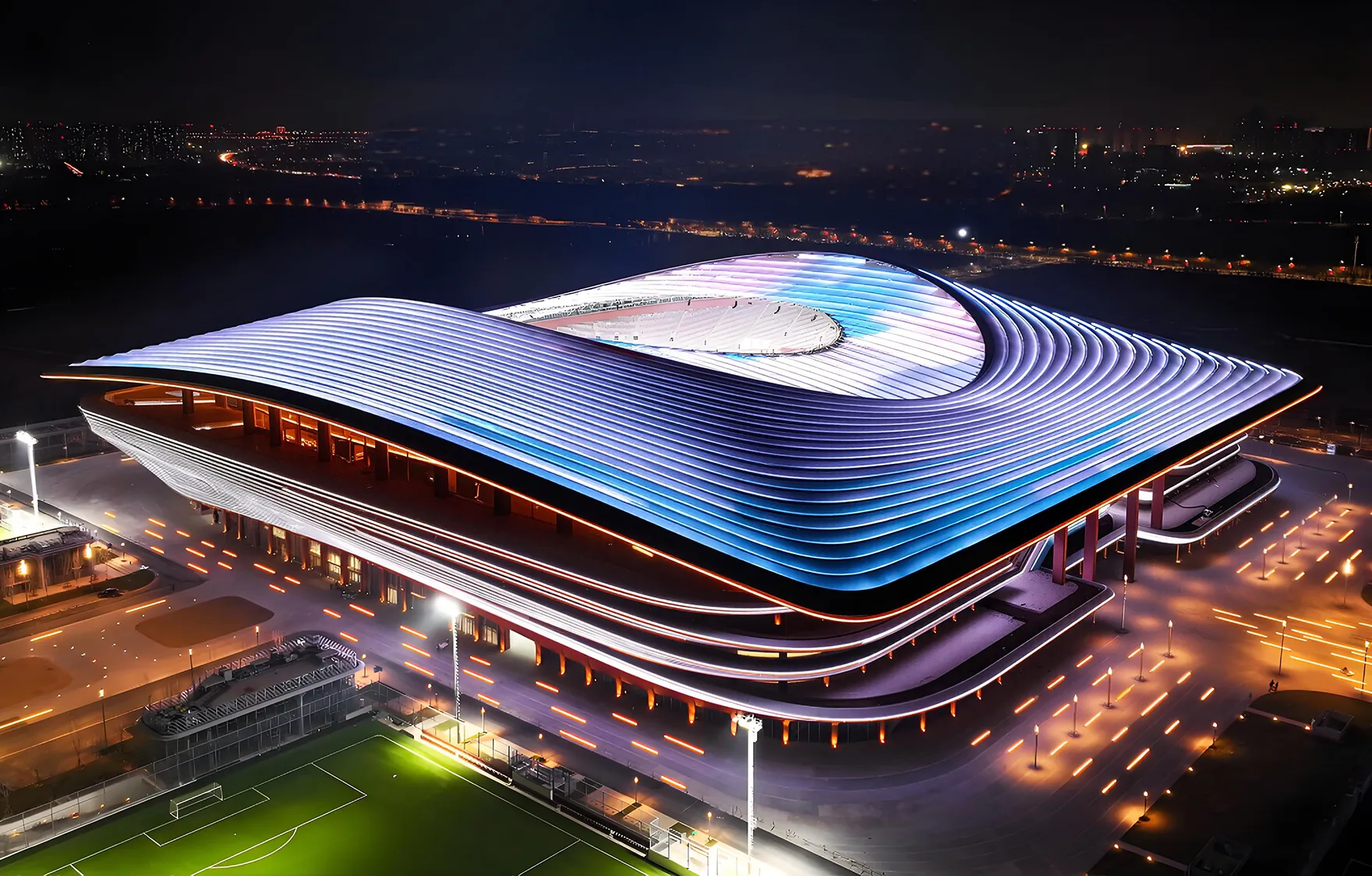

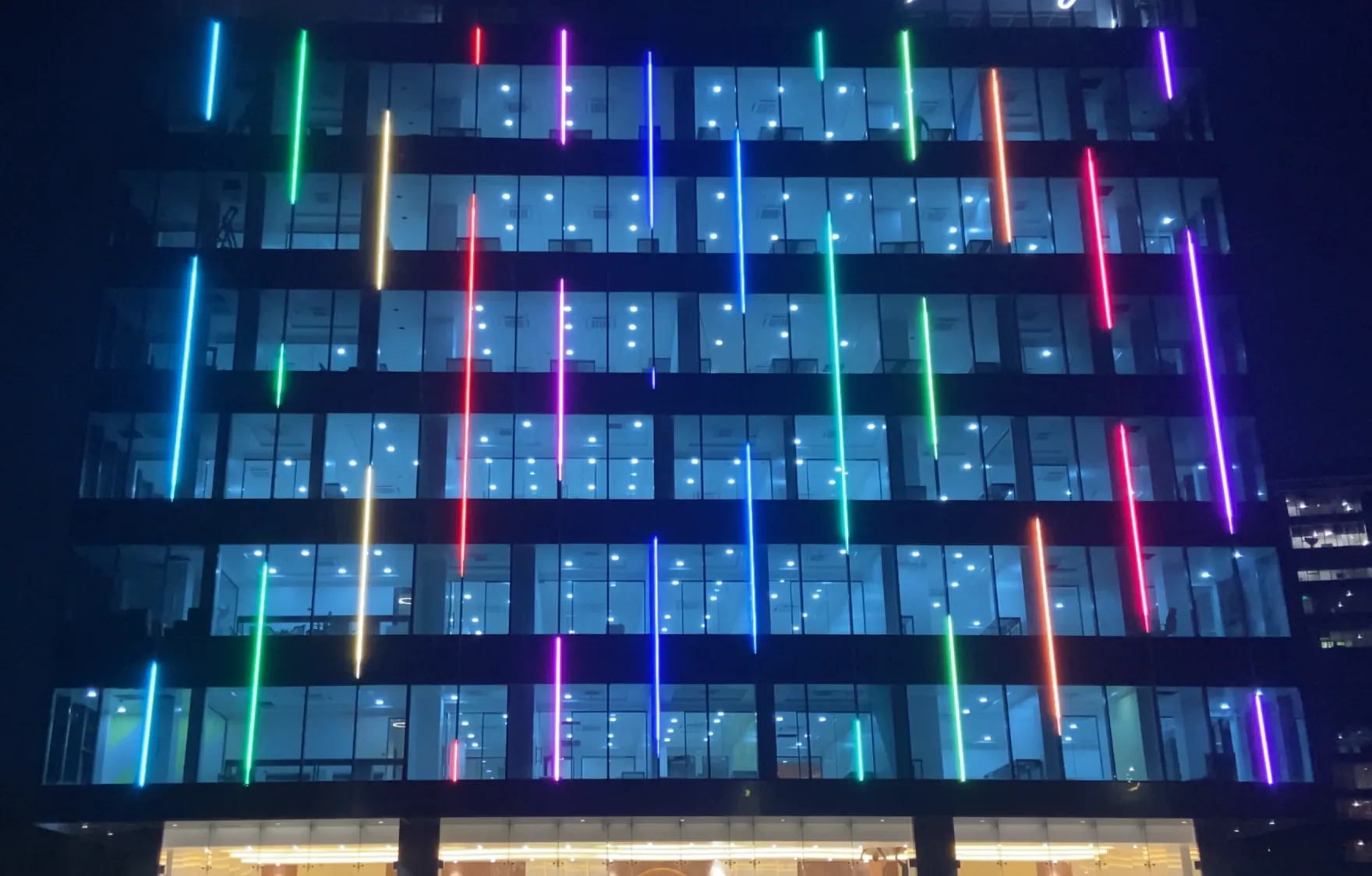

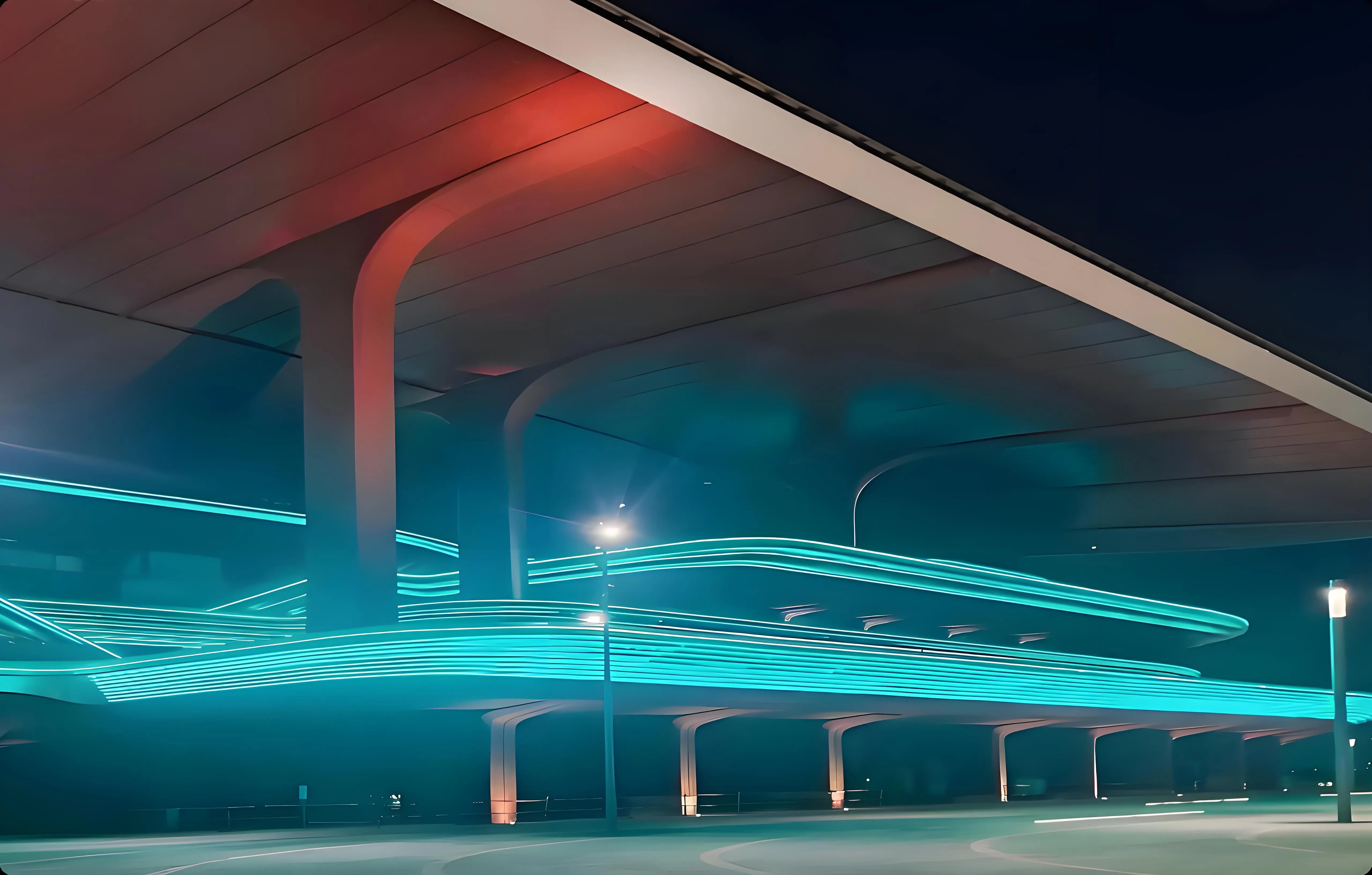

Scenario Case
Ordering Code
Optional Model
AHT1312-CCT-24V
AHT1312-White light-24V
AHT1312-White light-48V
AHT1312-CCT-24V
Basic parameter
IP Process
IP67
Warranty
7 Years
Cutting Unit
8.33 mm
Leds Qty
240LEDs/m
Typ.power
13W/M
Accessories Type
Installation accessory
End cap accessory
Other
Size
Name
Model
Description
Quantity
Application
AS-AFT1312A4-1000
AS-AFT1312A4-1000
Product model:AS-AFT1312A4-1000，Side opening card slot
Installation method：Flat Mounting
Coating：Silver
Size：1000*15.4*14.1mm
Quantity: 1PCS/ set,Side opening card slot, screws
Recommended dosage:1PCS/M
Applicable product model：1312 neon strips
AS-AFT1312A4-35
AS-AFT1312A4-35
Product model:AS-AFT1312A4-35，Side opening clip
Installation method：Flat Mounting
Coating：Silver
Size：35*15.4*14.1mm
Quantity: 1PCS/ set,Side-opening clip, screws
Recommended dosage:3PCS/M
Applicable product model：1312 neon strips
AS-AFT1312A5-1000
AS-AFT1312A5-1000
Product model:AS-AFT1312A5-1000,Recessed Shaped Slot
Installation method：Recessed installation
Coating：Silver
Size：1000*55.4*14.6mm
Quantity: 1PCS/ set,Recessed Shaped Slot, screws
Recommended dosage:1PCS/M
Applicable product model：1312 neon strips
AS-NMT1312A
AS-NMT1312A
Product model:AS-NMT1312A
Installation method：Flat Mounting
Coating：Silver
Size：LXXXX*W15.4*H14.1
Applicable product model：NMT1312
AS-NMT1312A-1000
AS-NMT1312A-1000
Product model:AS-NMT1312A-1000，NMT1312 Flat Mounting Aluminum Groove Installation method：Flat Mounting Coating：Silver Size：L1000*W15.4*H14.1 Quantity: 1PCS/ set Recommended dosage:1PCS/M Applicable product model：NMT1312/AFT1312/ANT1312/ACT1312
