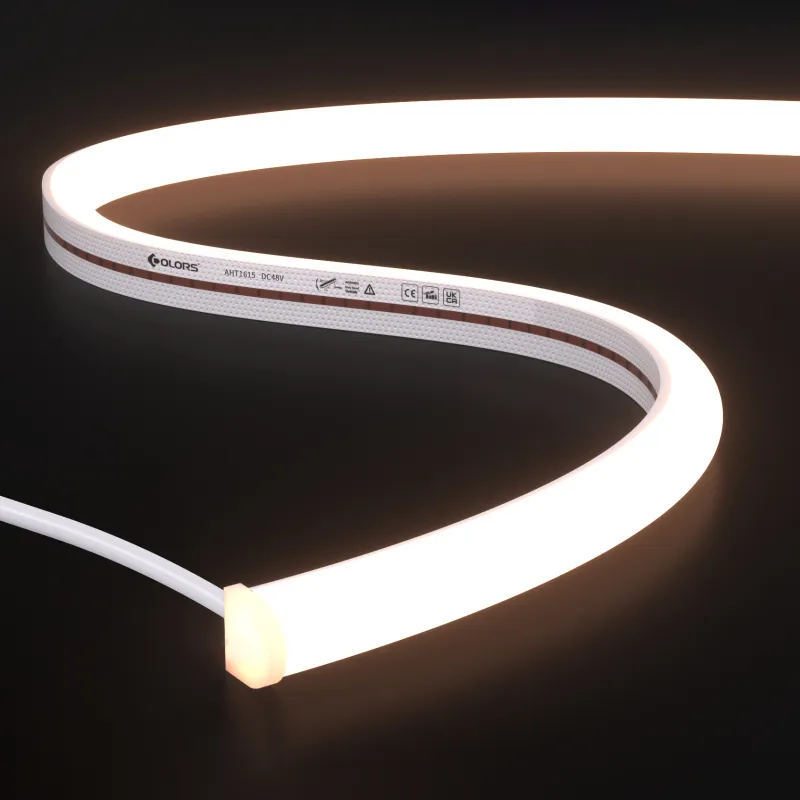

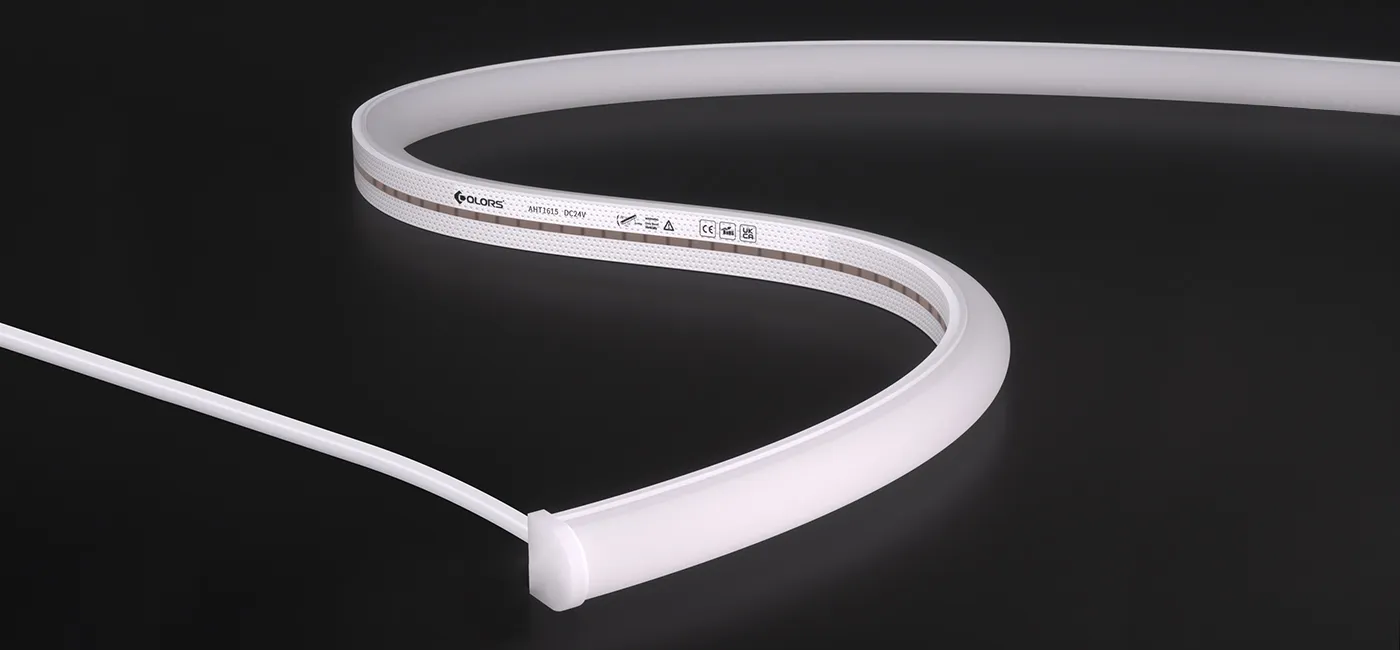

AHT1615
Discover AH Series- Max.110lm/w, Free Cutting
- 7-year warranty, high reliability
- Max.20m@48V
- For building facades and outdoor landscapes
Key Features

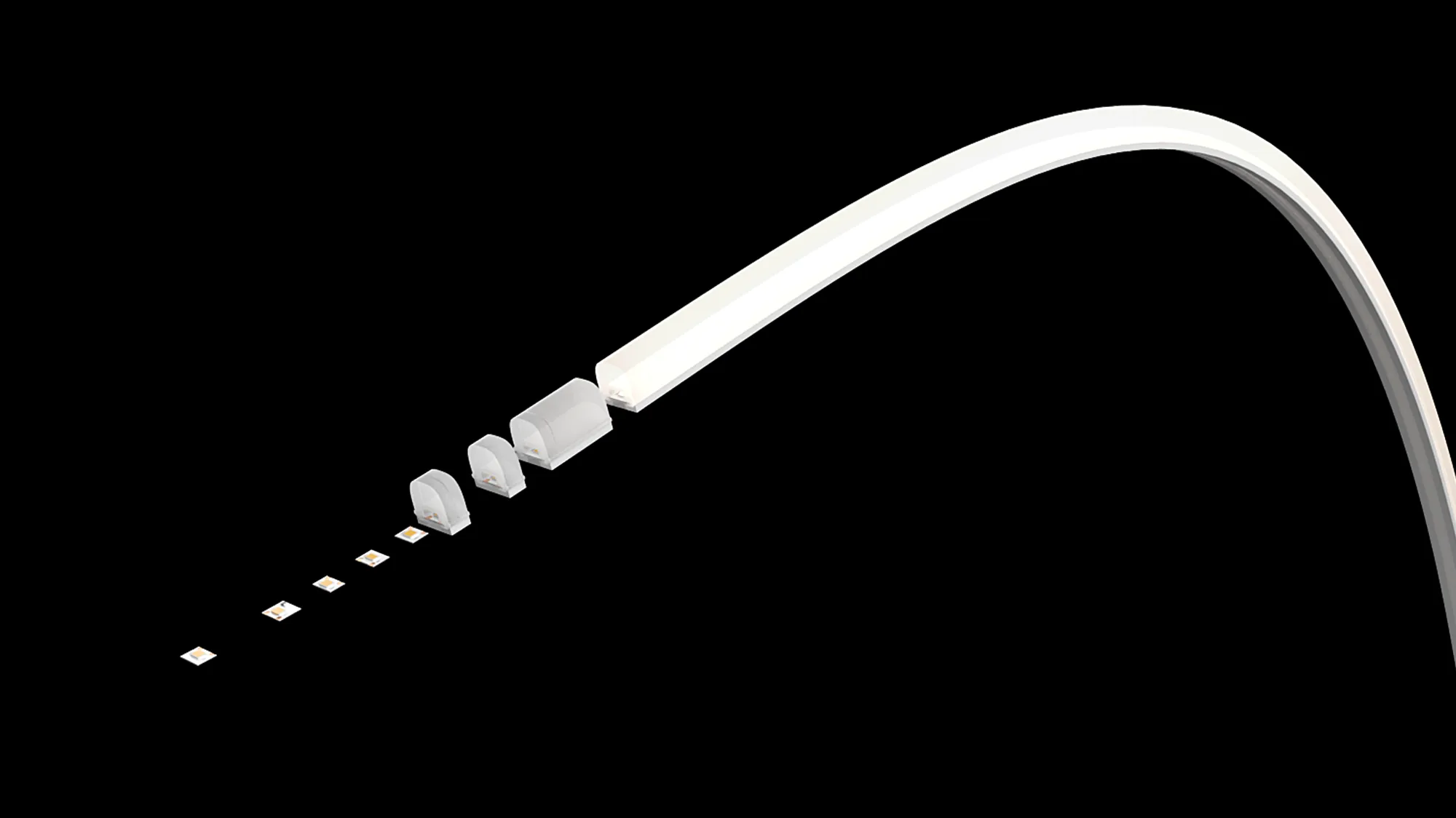

Cut-to-Size · Accurate Fit for Easy Installation
DC24V single Led cutting, precise to 6.25mm, with length customization unlimited by cutting units.

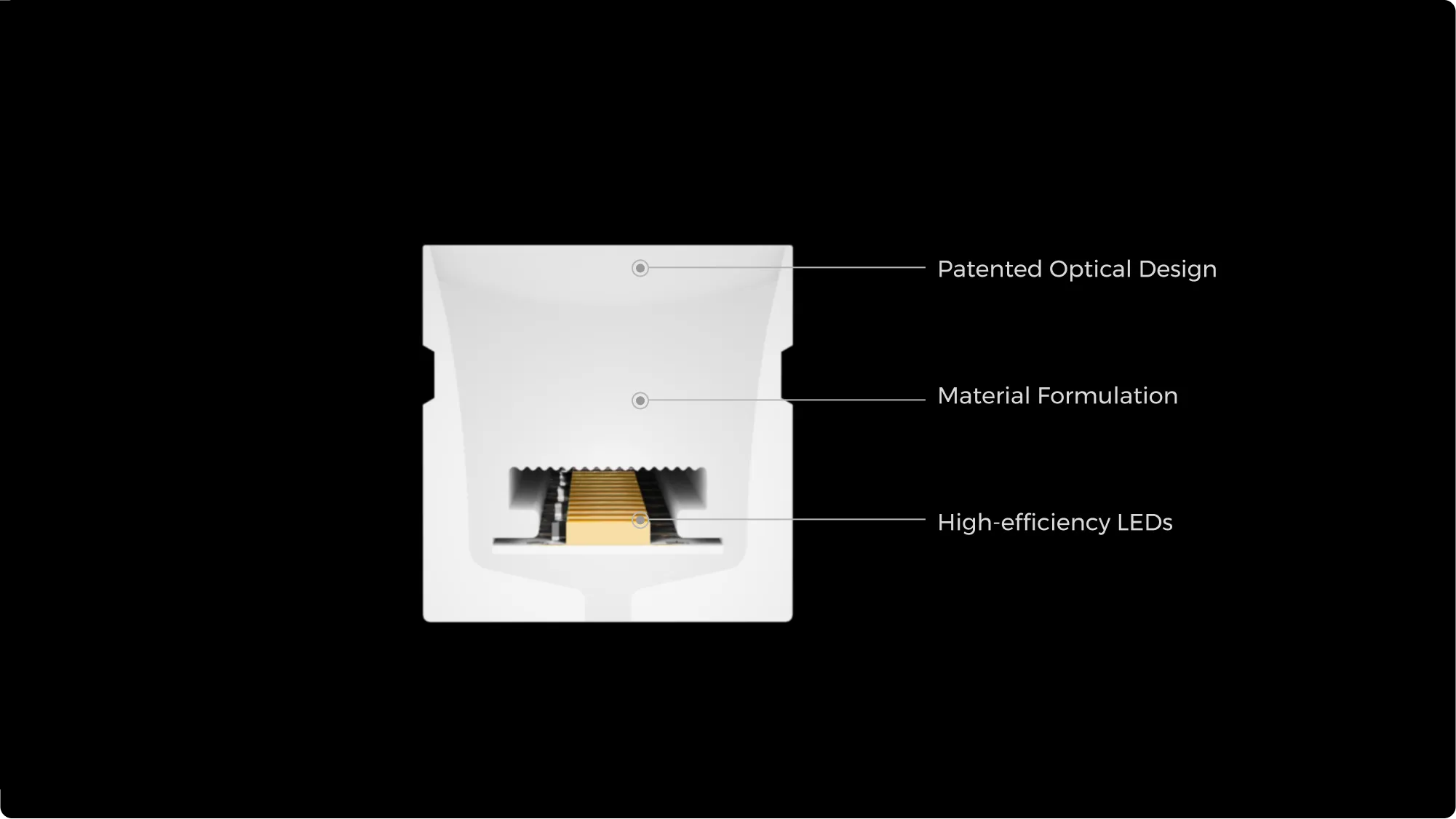

Ultra High Light Efficiency & More Energy Saving
High-efficiency LEDs + Patented Optical Design and Material Formulation， The maximum light efficiency is 110 lm/W, increasing the brightness by 60%, and 40% energy savings.
UV and Yellowing Resistance
Gas-Phase Silicone Extrusion Process,High-intensity 3000 hours UV test, equivalent to 9 years of outdoor use, almost no yellowing.
No Worry About Siphonage and Water Seepage
Uniform materials for the neon, end cap and terminal wire. Used integrated hot melt molding process.

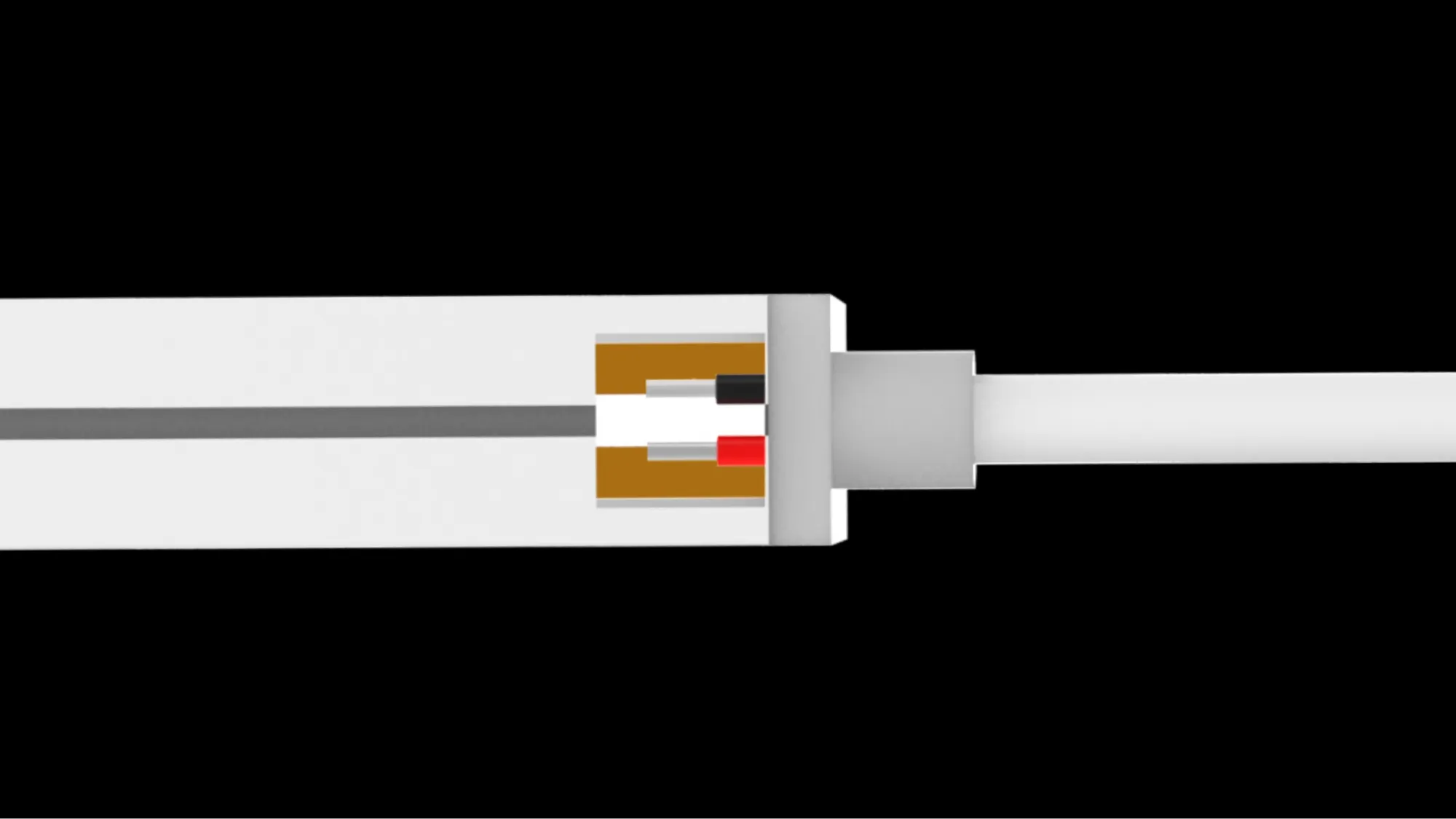

Dual-Layer Protective Terminal
Dual-layer protective terminal ensure IP67 protection against rain and water immersion.

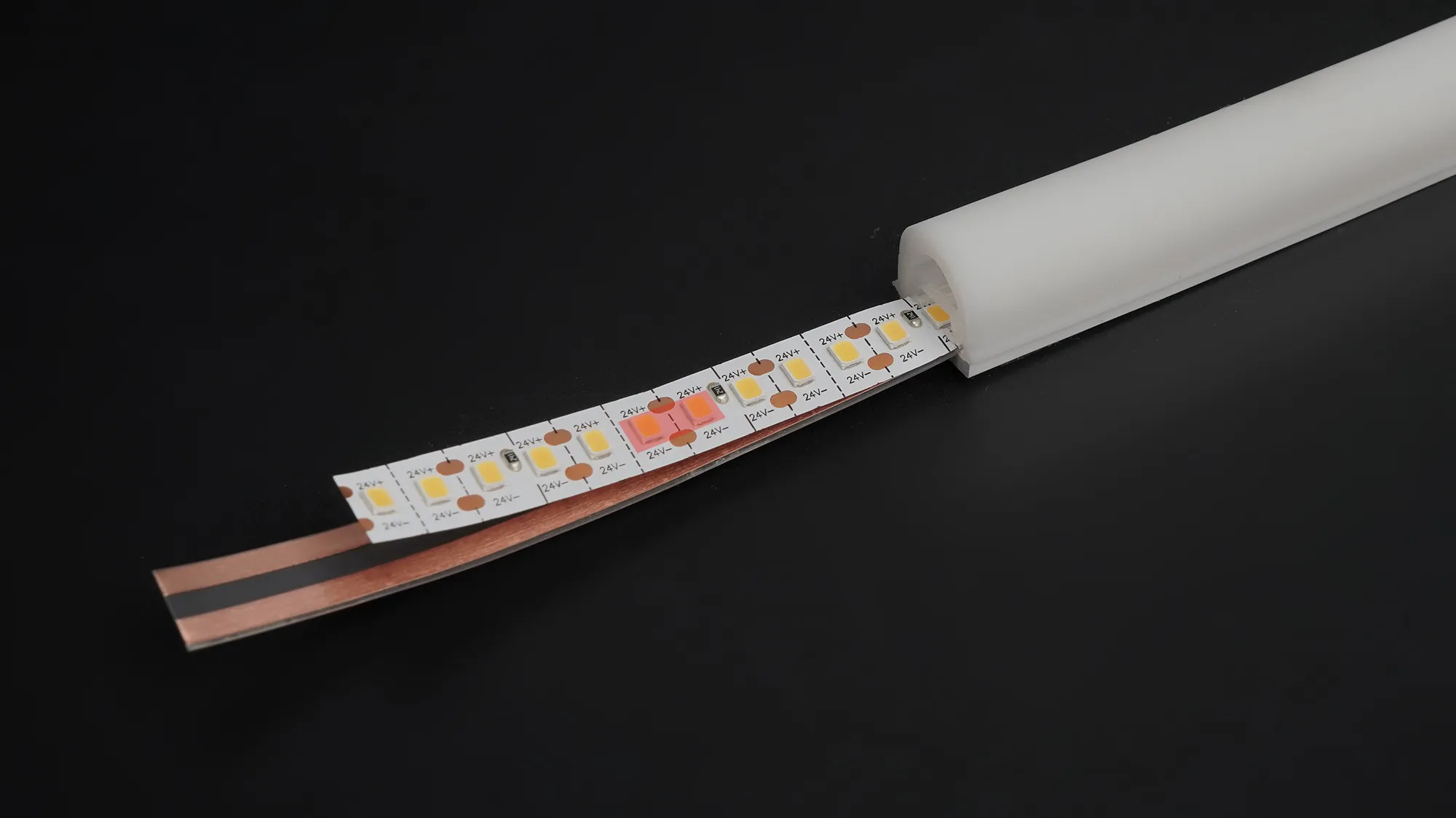

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable.
Worry Free About Quality
Parallel LEDs technology，special chip design, single chip breakage no affect the light effect.
Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces.

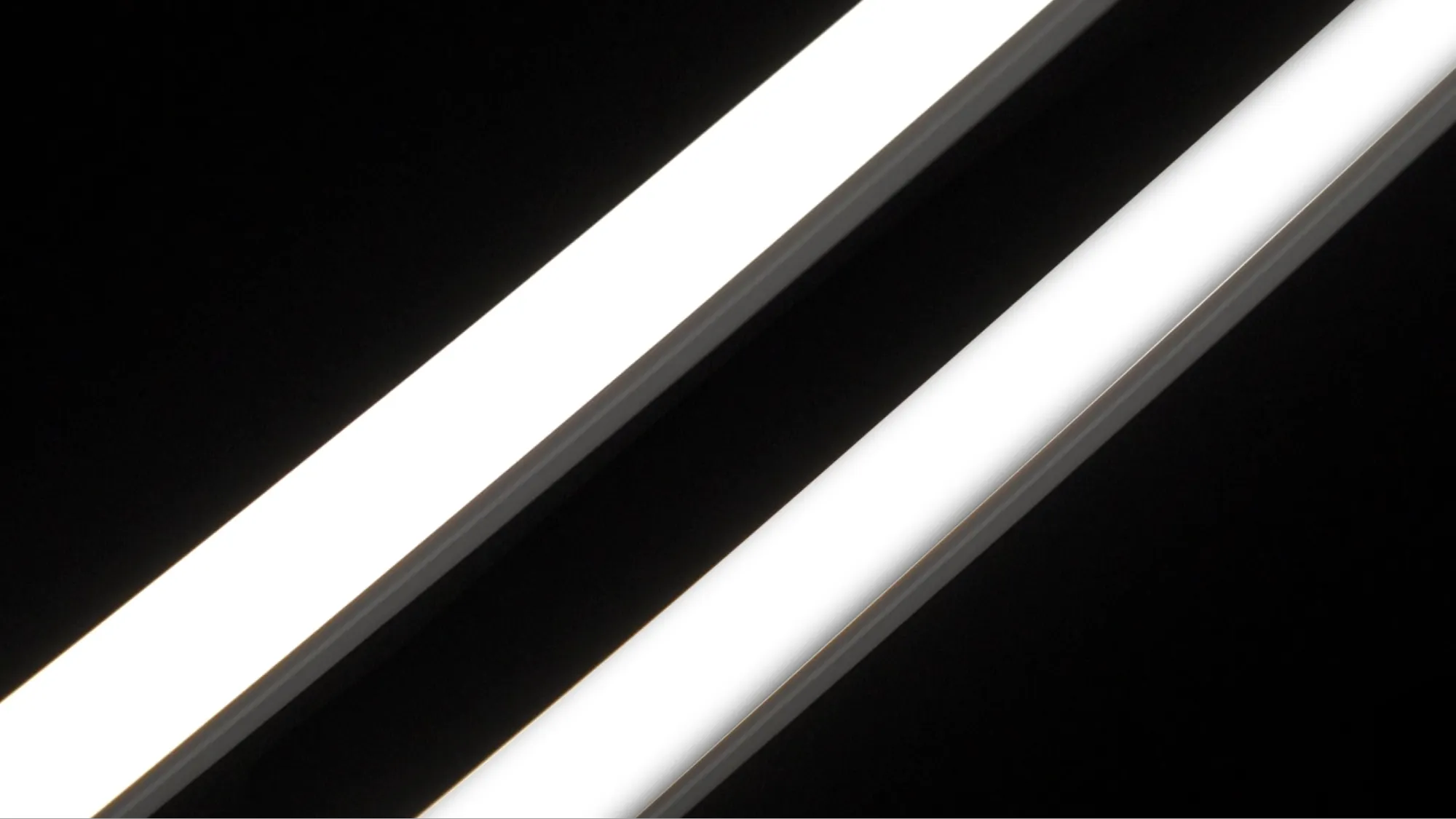

Upgraded Light-Emitting Structure, Even Color Without Dark Area On Surface
Precision-Controlled Color Temperature After Silicone Coated
SDCM<5, ensuring color consistency.

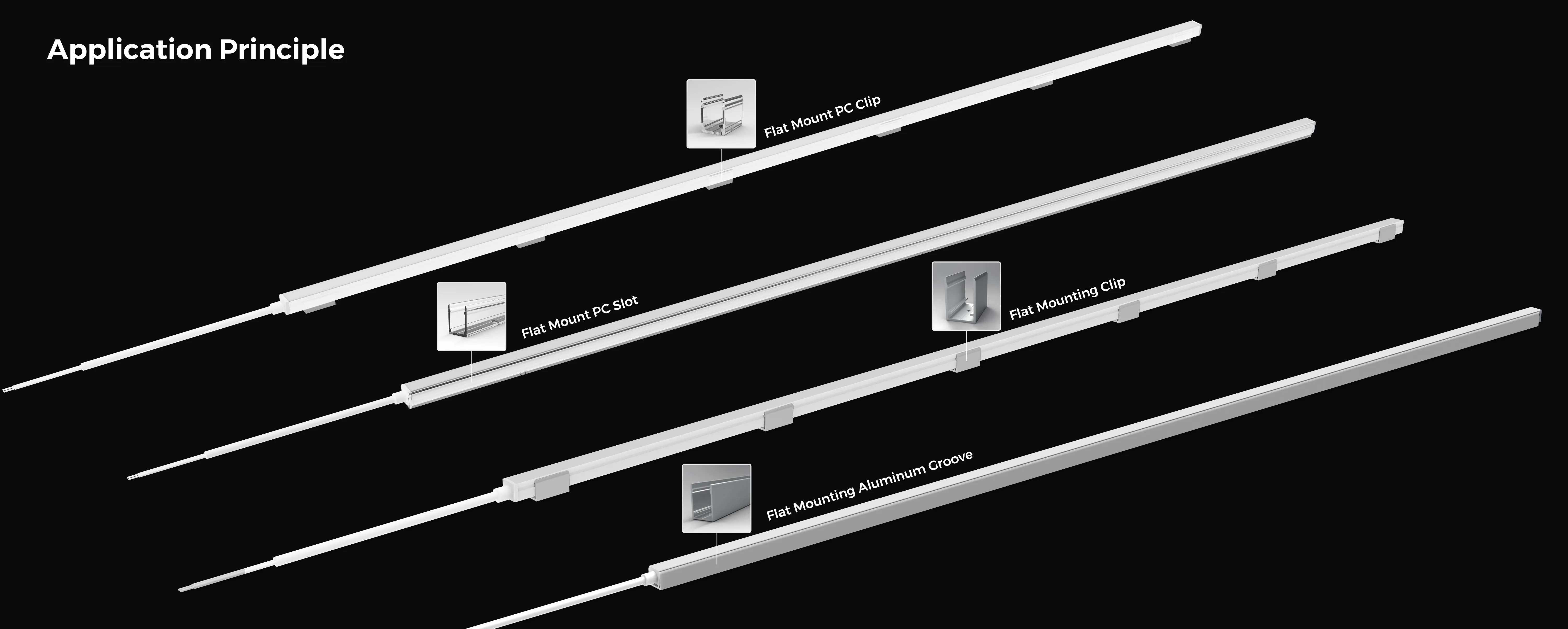

Application Principle

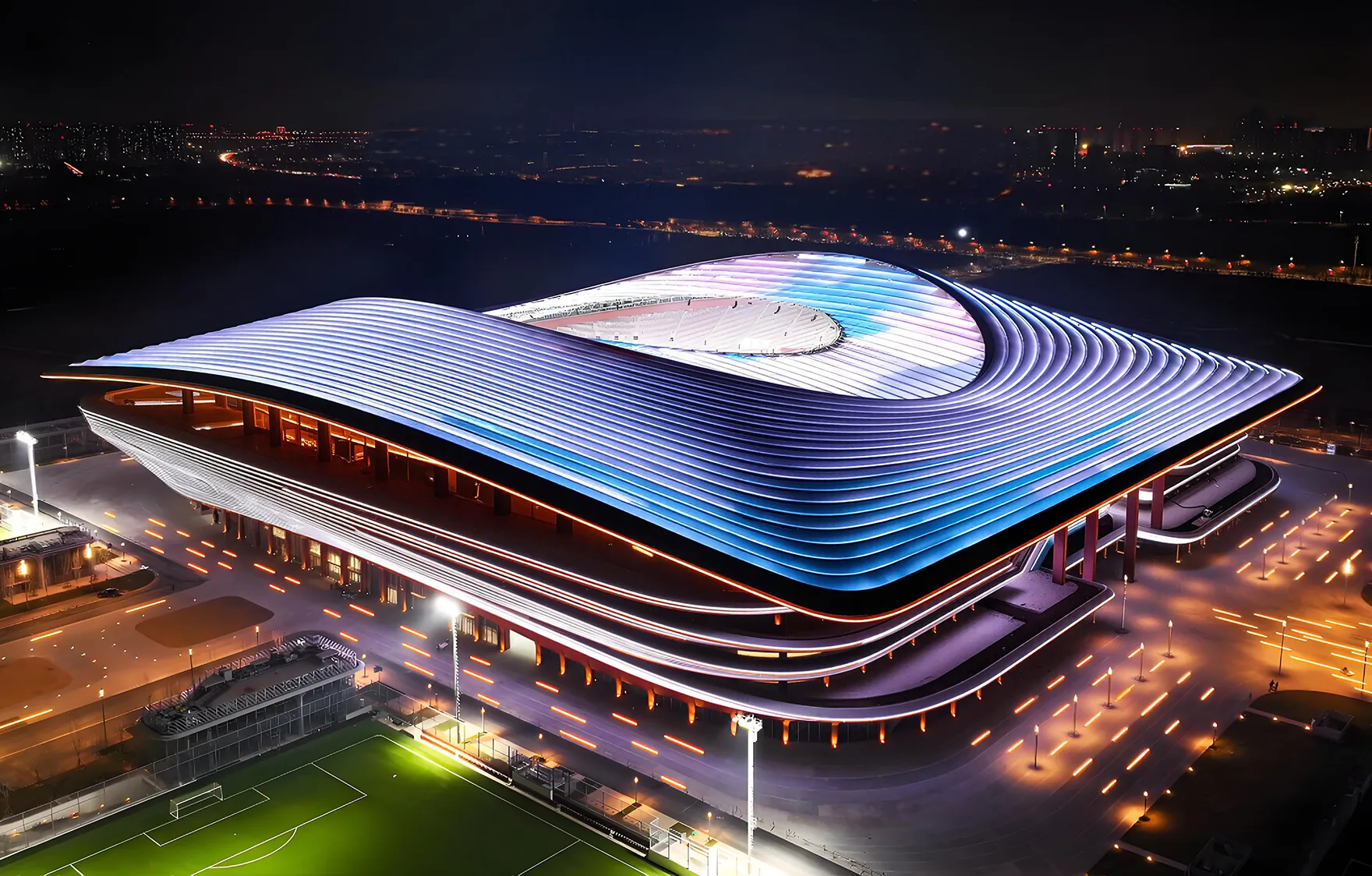

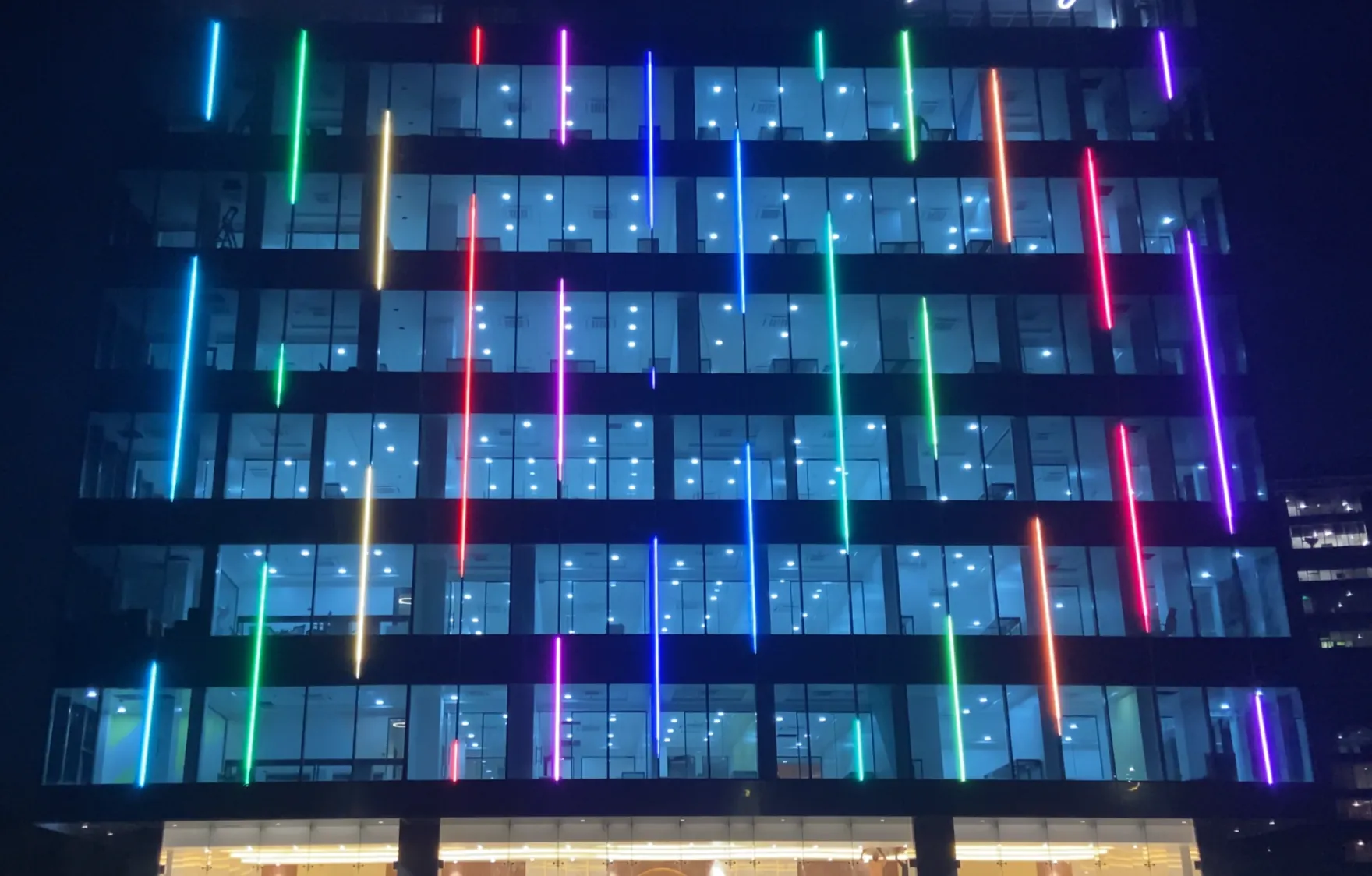

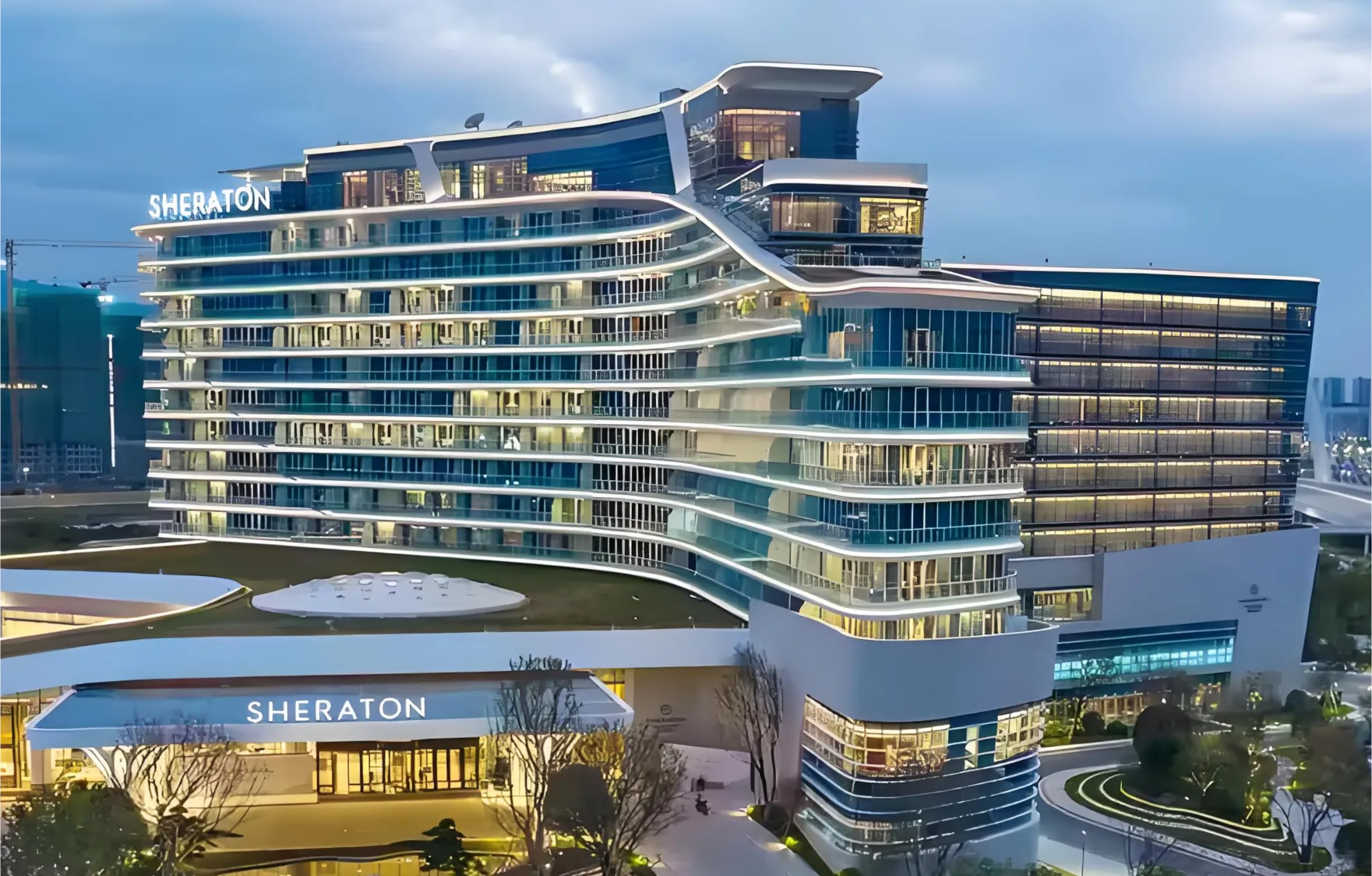

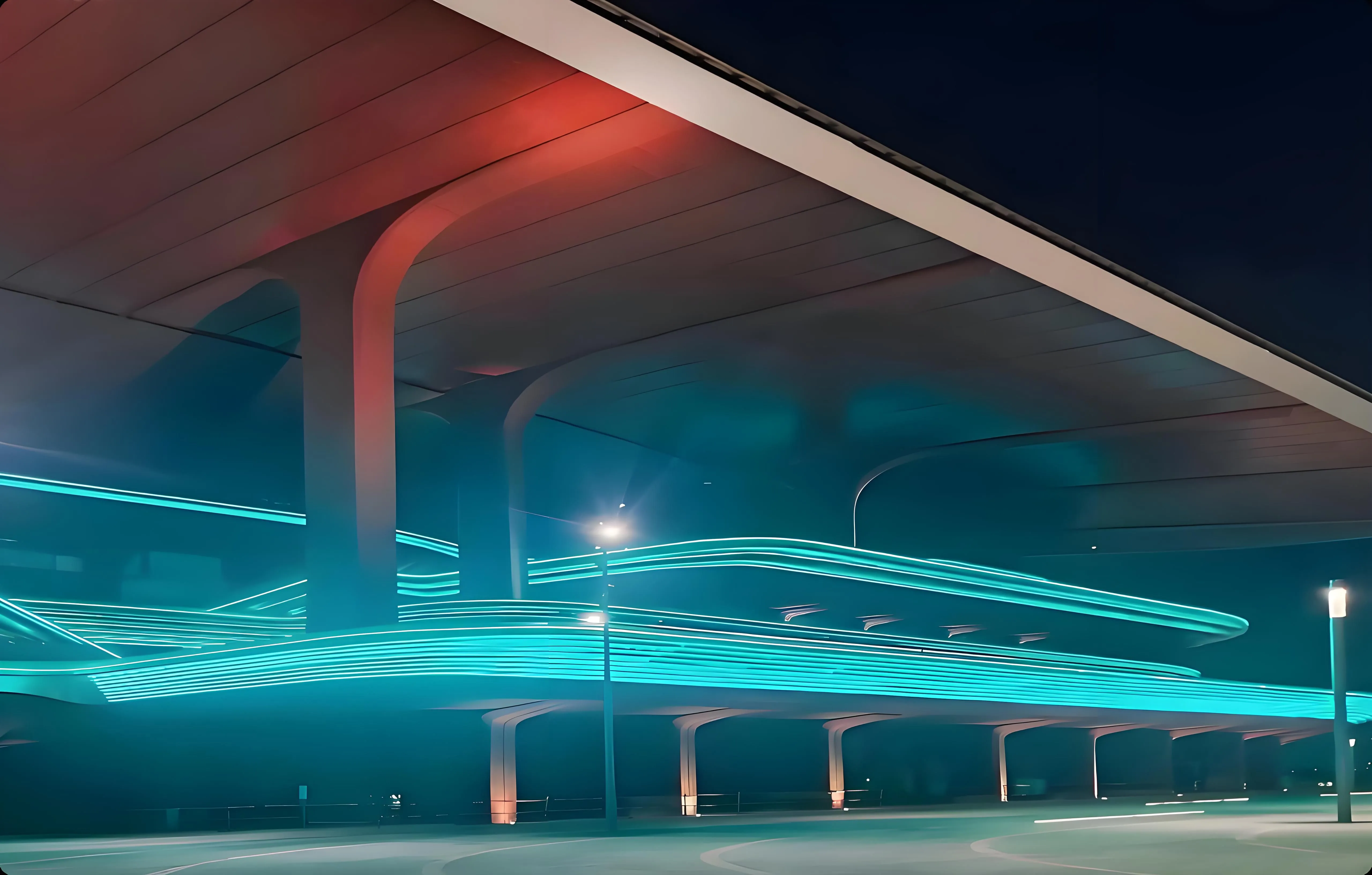

Scenario Case
Ordering Code
Optional Model
AHT1615-White light-24V
AHT1615-White light-48V
AHT1615-White light-24V
Basic parameter
Warranty
7 Years
Cutting Unit
6.25
Leds Qty
160LEDs/m
Typ.power
10W/M
CCT/colors
Color range
CRI
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
2200K
2166-2310K
>90
24V
0.4 (0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
780(238LM/ft)
10000mm (32.81ft)
1LED/6.25mm
2700K
2630-2830K
>90
24V
0.4 (0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
940(287LM/ft)
10000mm (32.81ft)
1LED/6.25mm
3000K
2920-3170K
>90
24V
0.4 (0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
990(302LM/ft)
10000mm (32.81ft)
1LED/6.25mm
4000K
3770-4220K
>90
24V
0.4 (0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
980(299LM/ft)
10000mm (32.81ft)
1LED/6.25mm
Accessories Type
Installation accessory

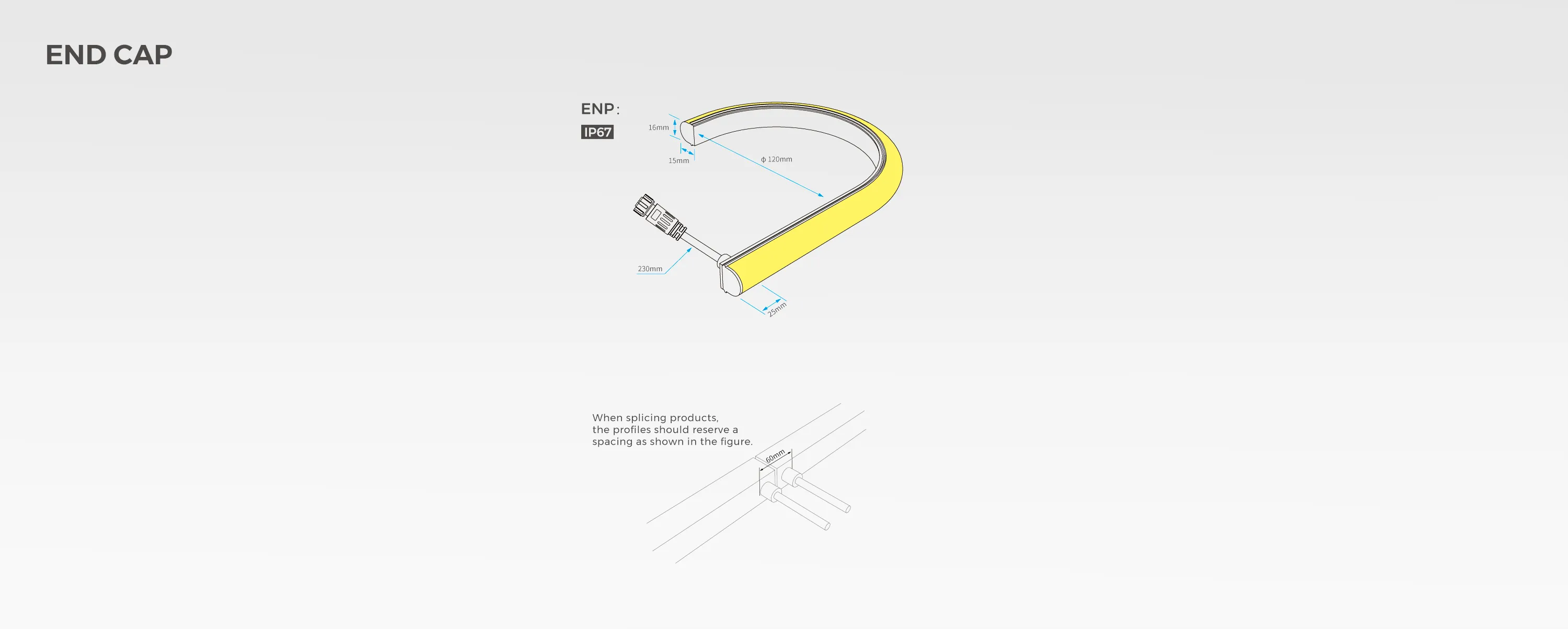

End cap accessory

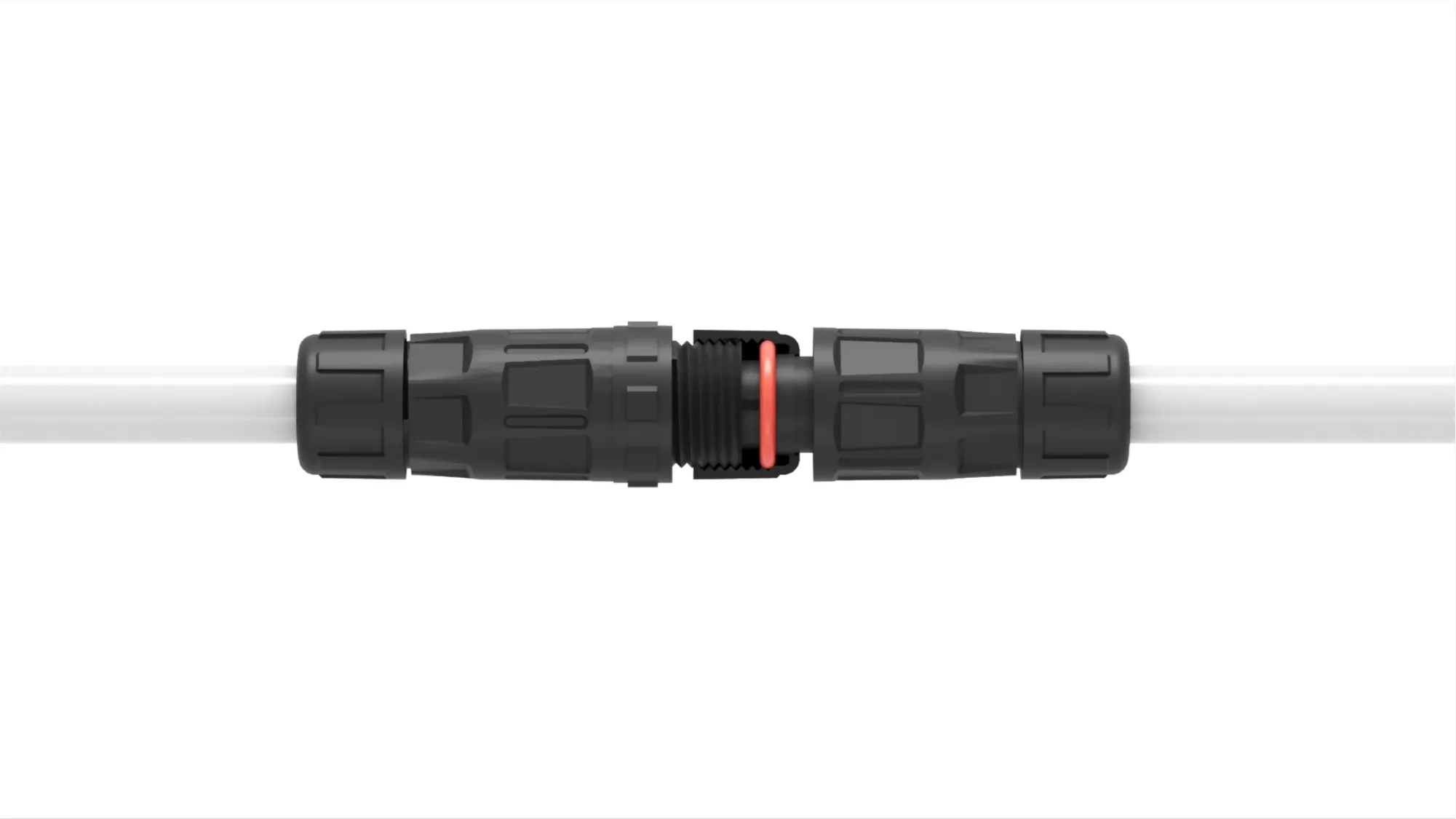

Cable accessory
Supporting accessory
Monochrome-Remote control
Controller
Size
Name
Model
Description
Quantity
Application
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-NNT1615A-1000
AS-NNT1615A-1000
Product model:AS-NNT1615A-1000，NNT1615 Flat Patch Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：L1000*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615
AS-NNT1615A-25
AS-NNT1615A-25
Product model:AS-NNT1615A-25，NNT1615 Flat Patch Mounting Aluminum Clip
Installation method：Flat Mounting
Coating：Silver
Size：L25*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：NNT1615
AS-NNT1615GH0-EC
AS-NNT1615GH0-EC
Product model:AS-NNT1615GH0-EC, NNT1615 translucent silicone plug set
Outlet direction: top
IP:IP65
Included: Translucent silicone plug and end cap
Applicable product model：NNT1615
AS-NNT1615P-1000
AS-NNT1615P-1000
Product model:AS-NNT1615P-1000，NNT1615 Flat Mounting PC Groove
Installation method：Flat Mounting
Coating：Transparent
Size：L1000*W19.4*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615
