• Max.110lm/w, Free Cutting
  • 7-year warranty, high reliability
  • Max.20m@48V

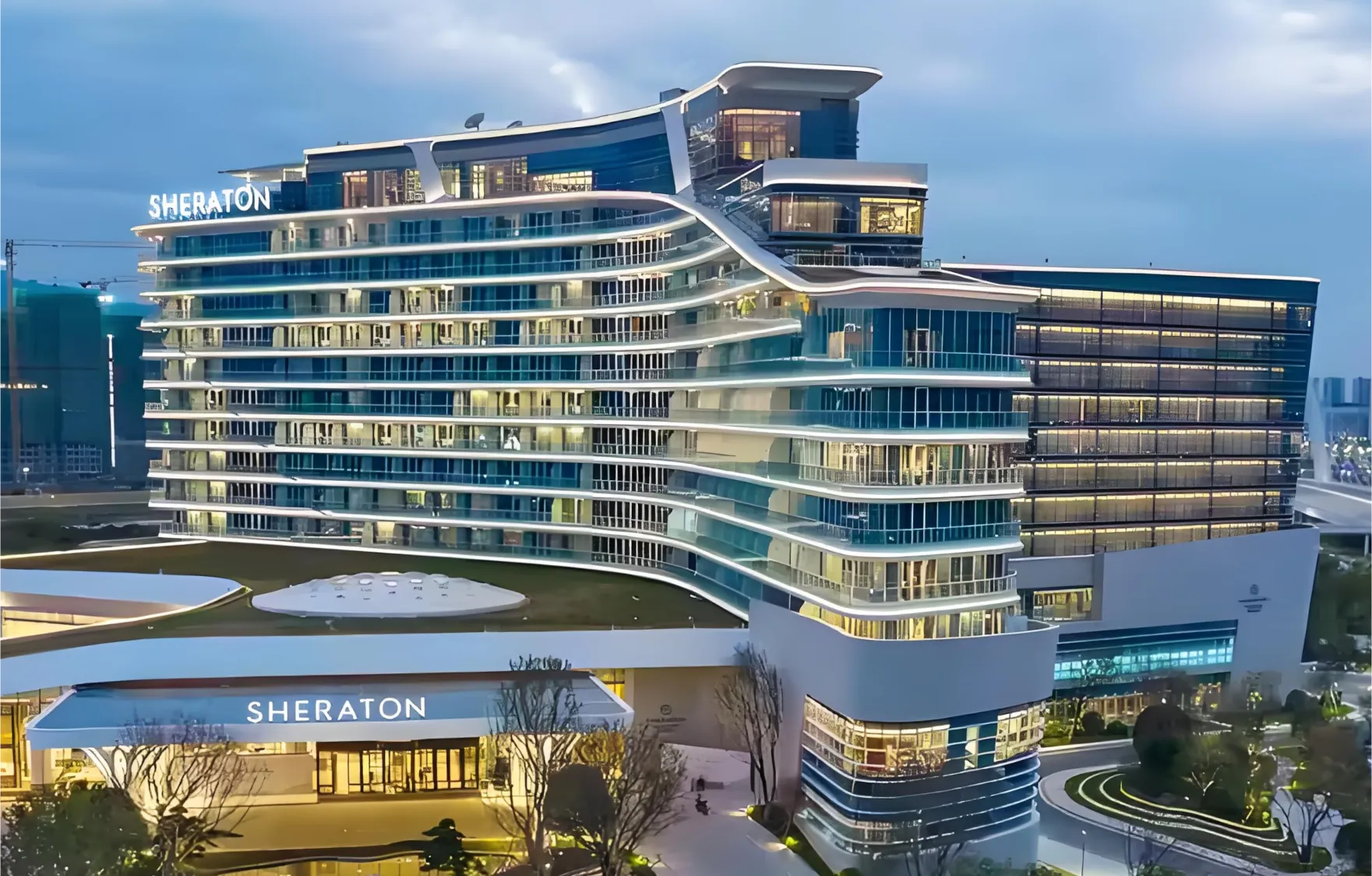

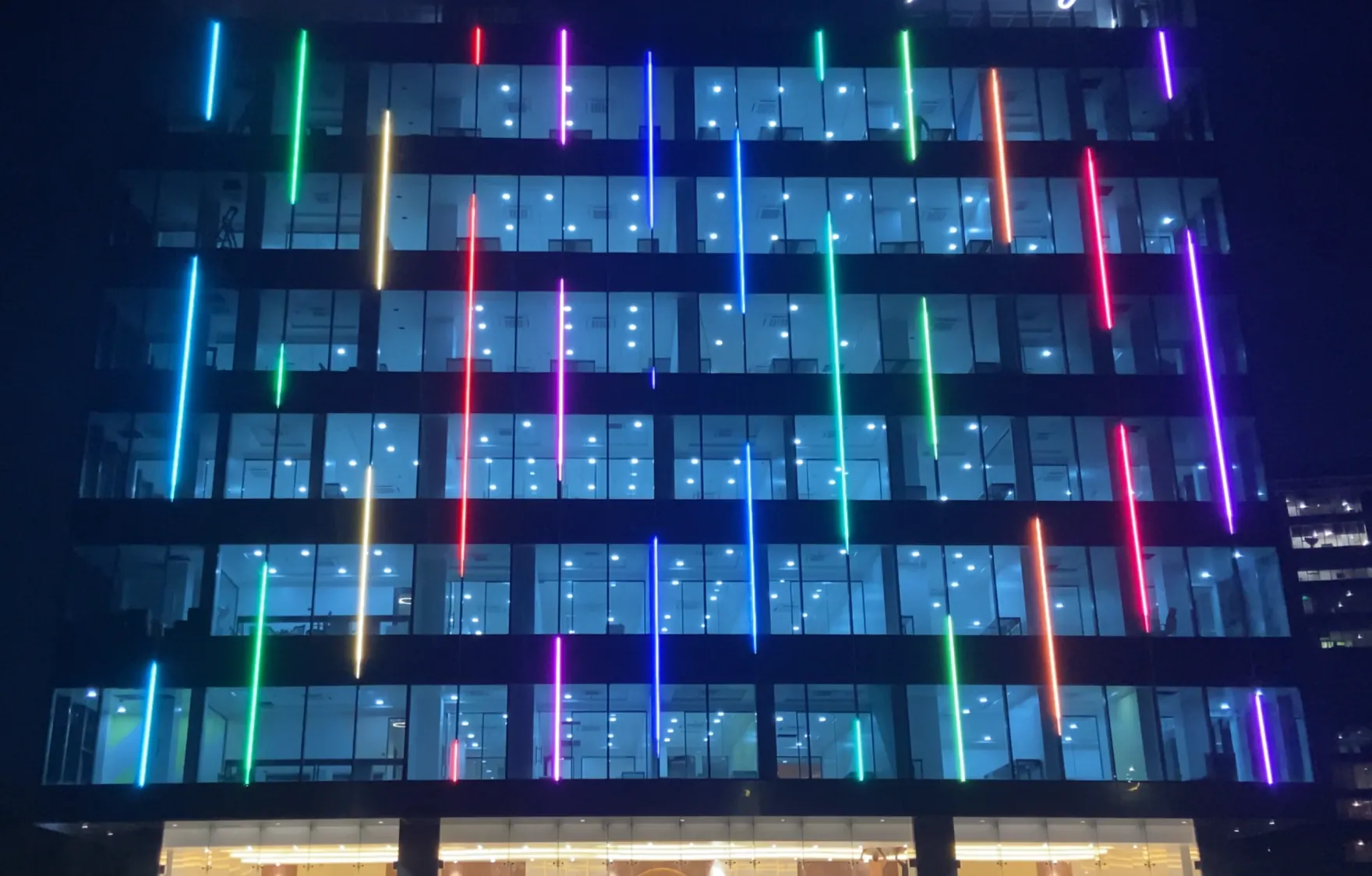

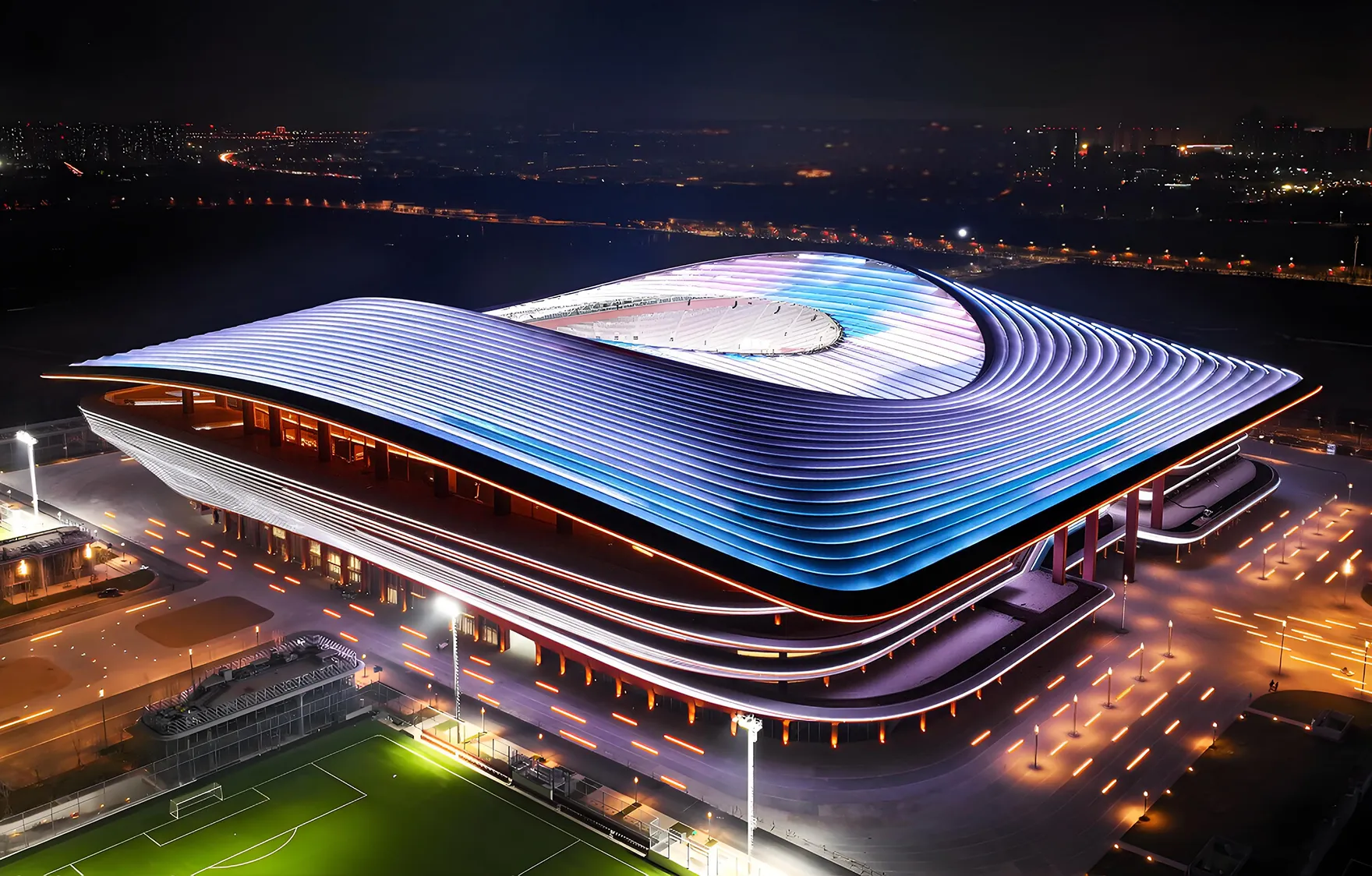

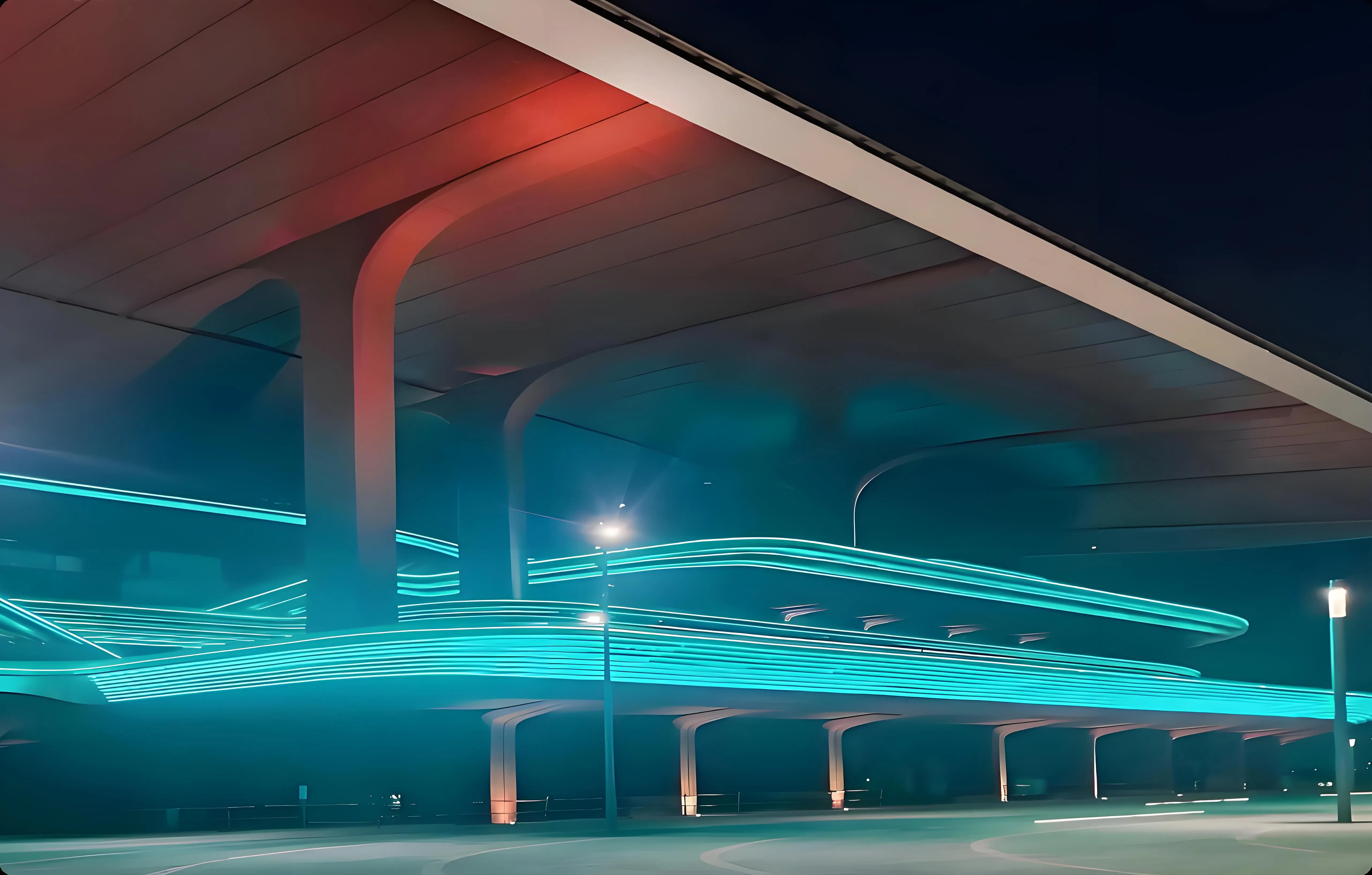

  • For building facades and outdoor landscapes

Feature

  • Cut-to-Size · Accurate Fit for Easy Installation

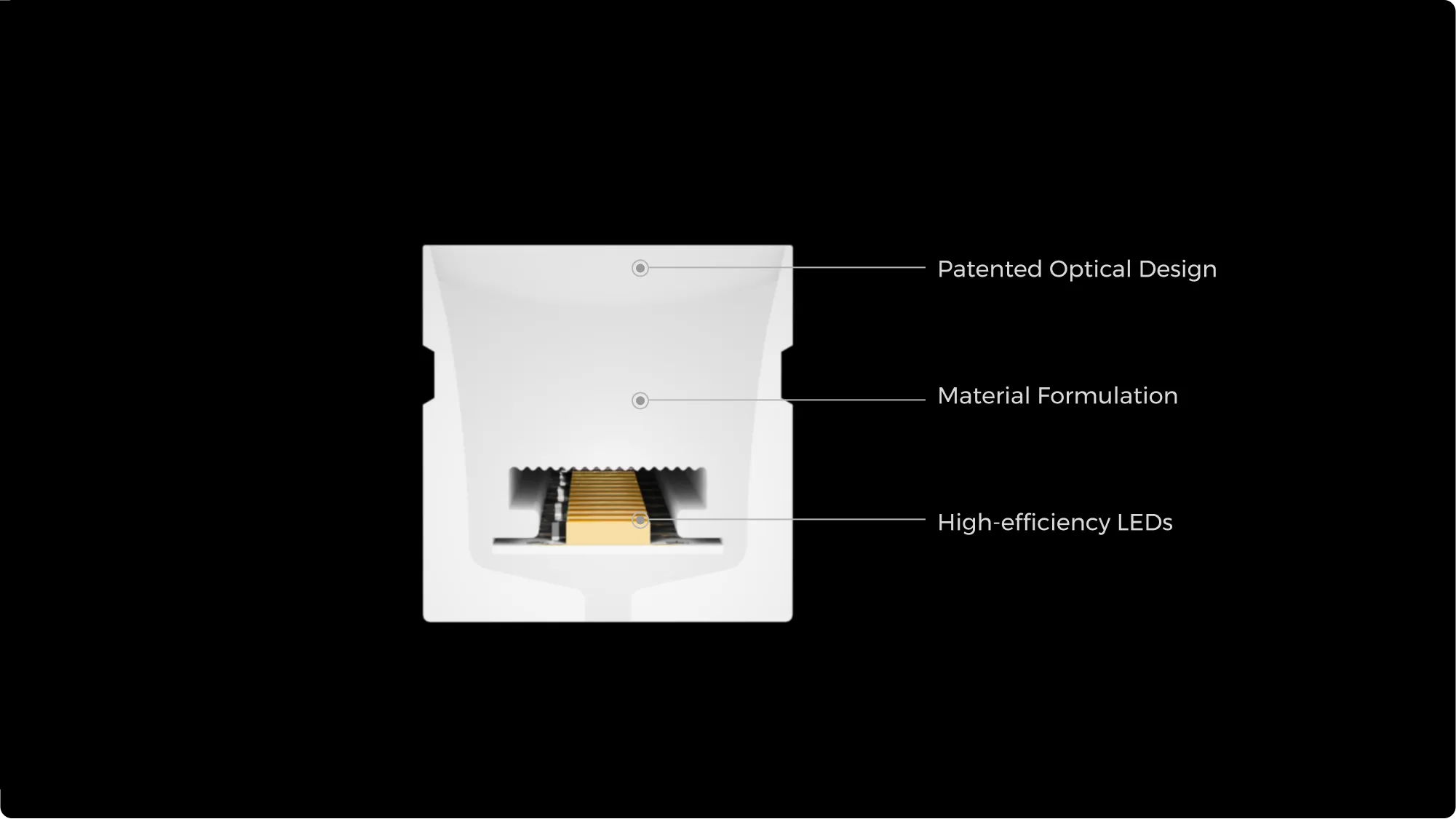

  • Ultra High Light Efficiency & More Energy Saving

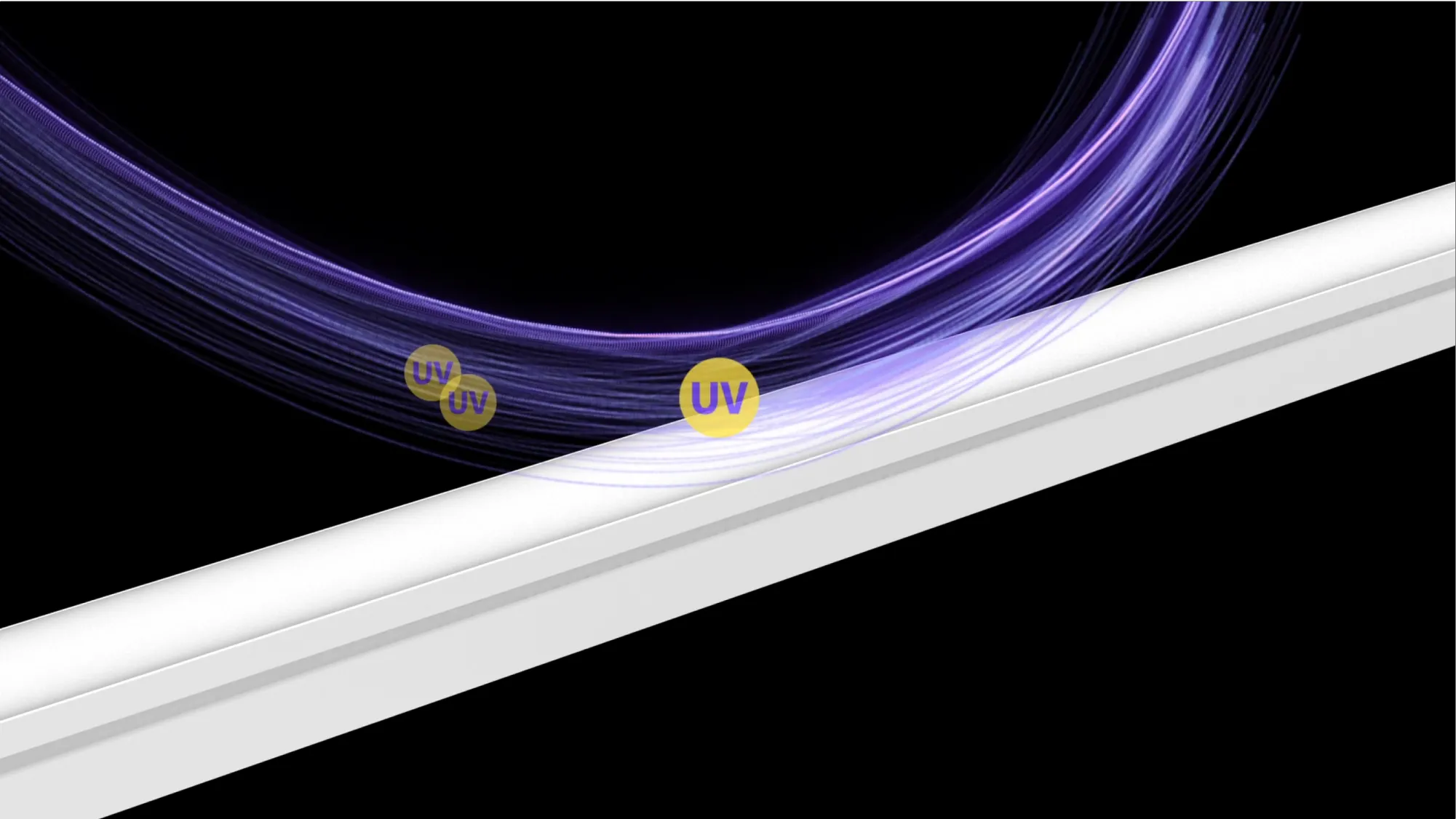

  • UV and Yellowing Resistance

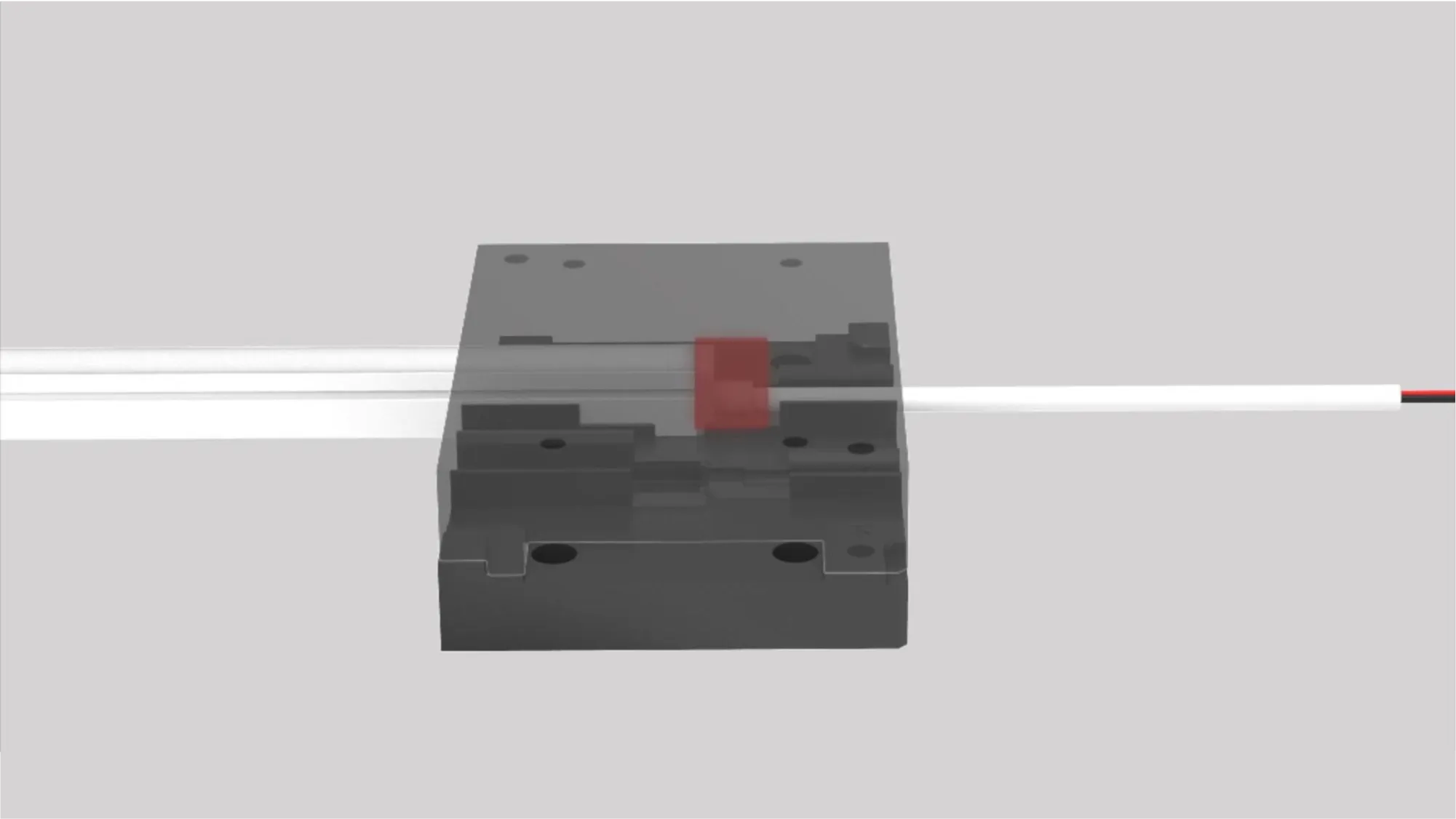

  • No Worry About Siphonage and Water Seepage

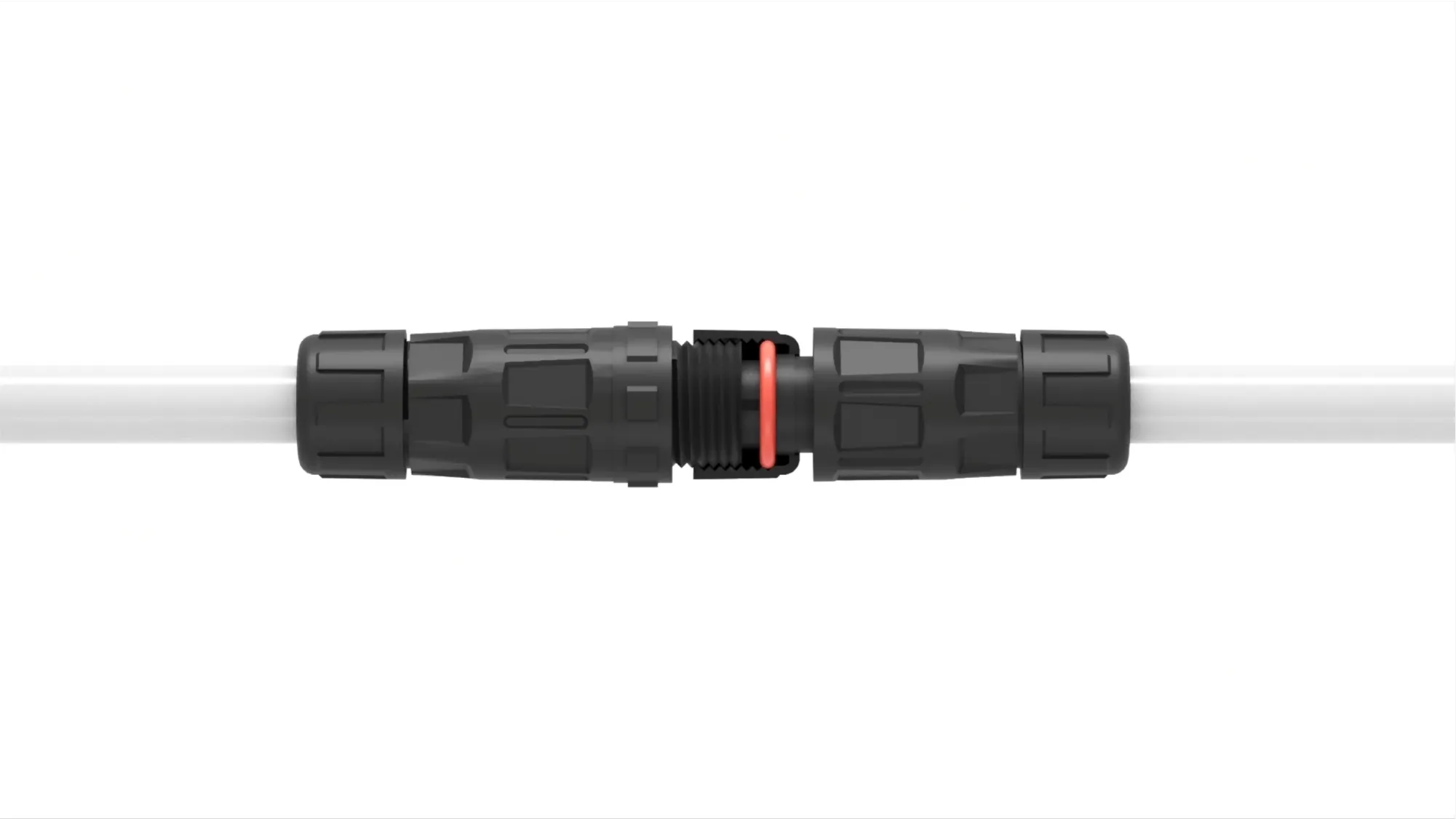

  • Dual-Layer Protective Terminal

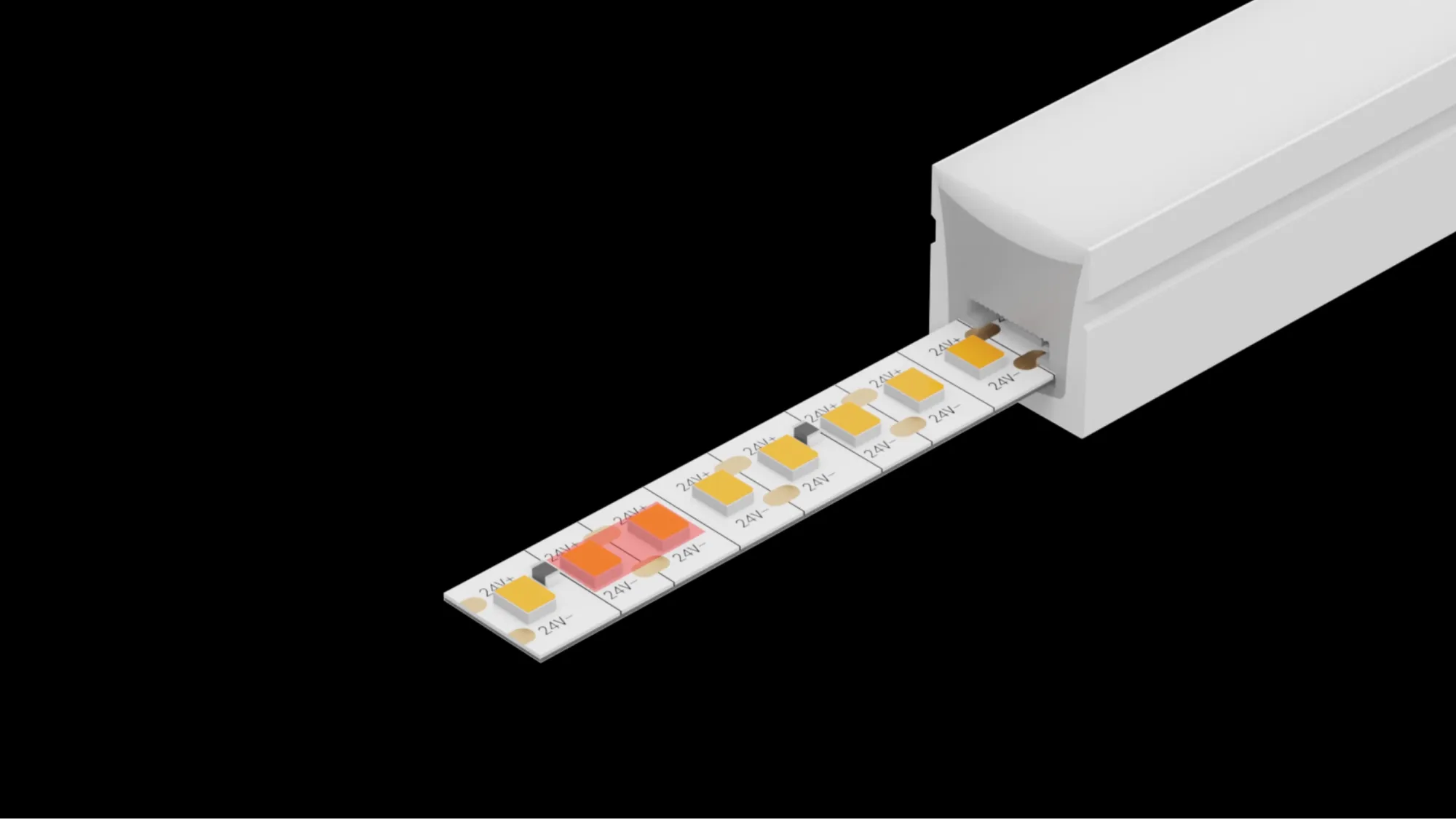

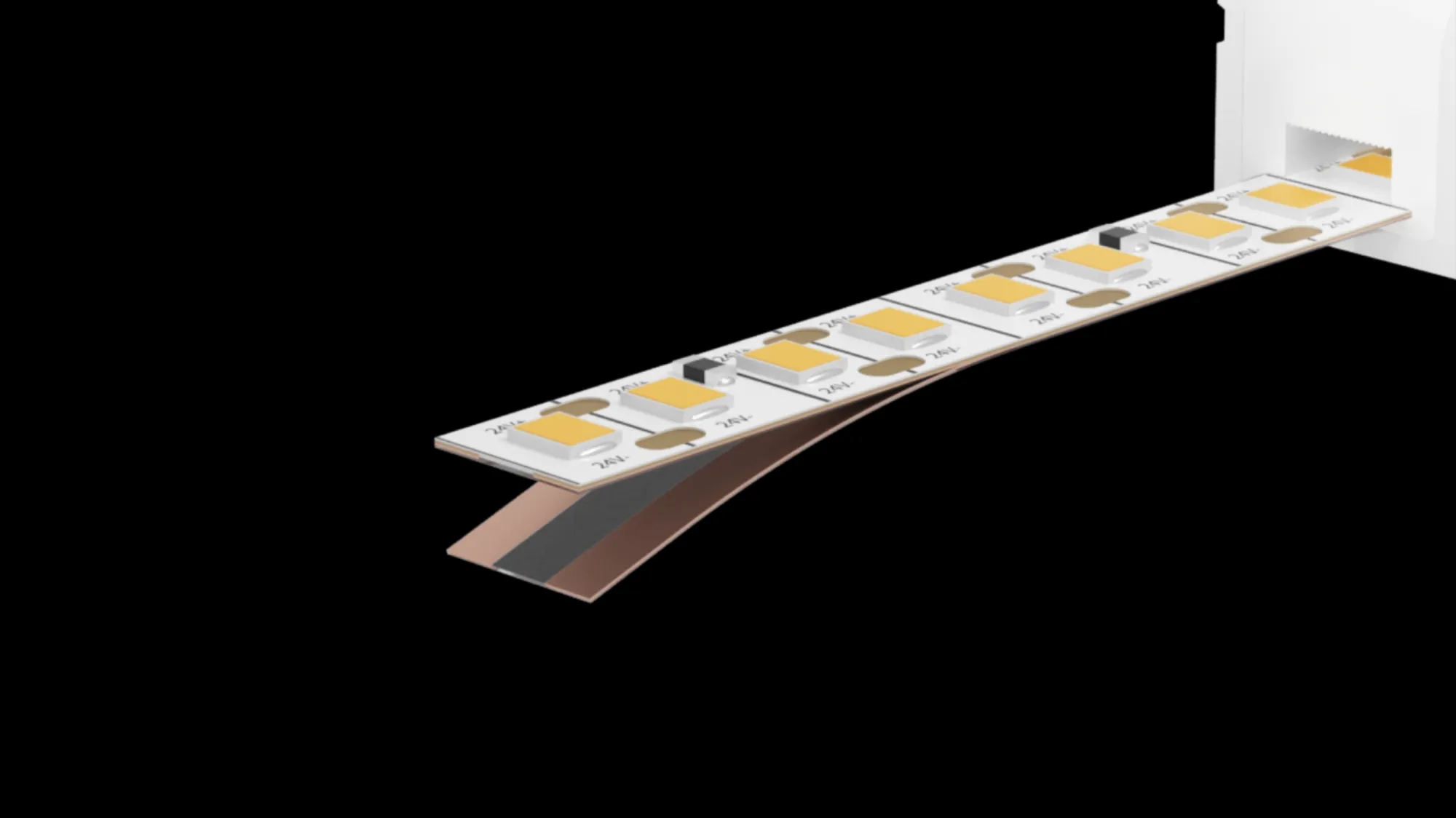

  • Anti-Breakage PCB Are More Durable
  • Worry Free About Quality

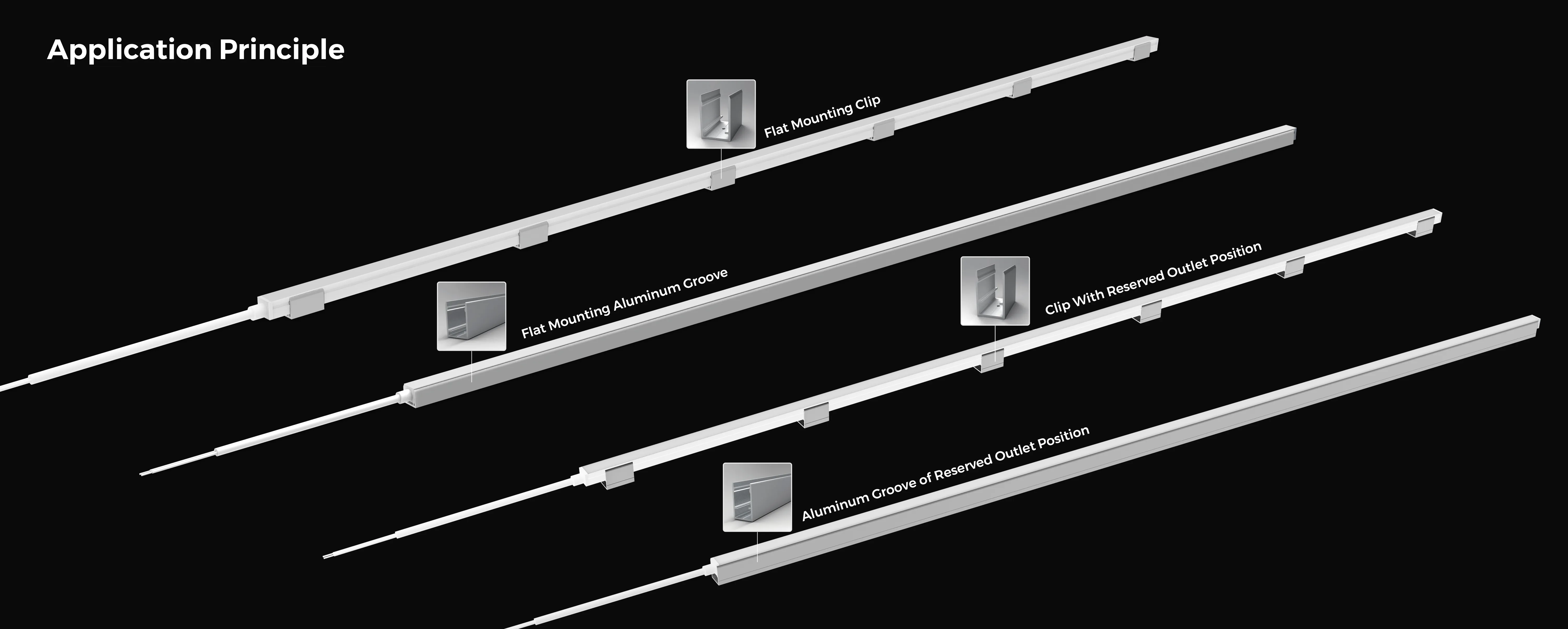

  • Withstands Installation Stresses

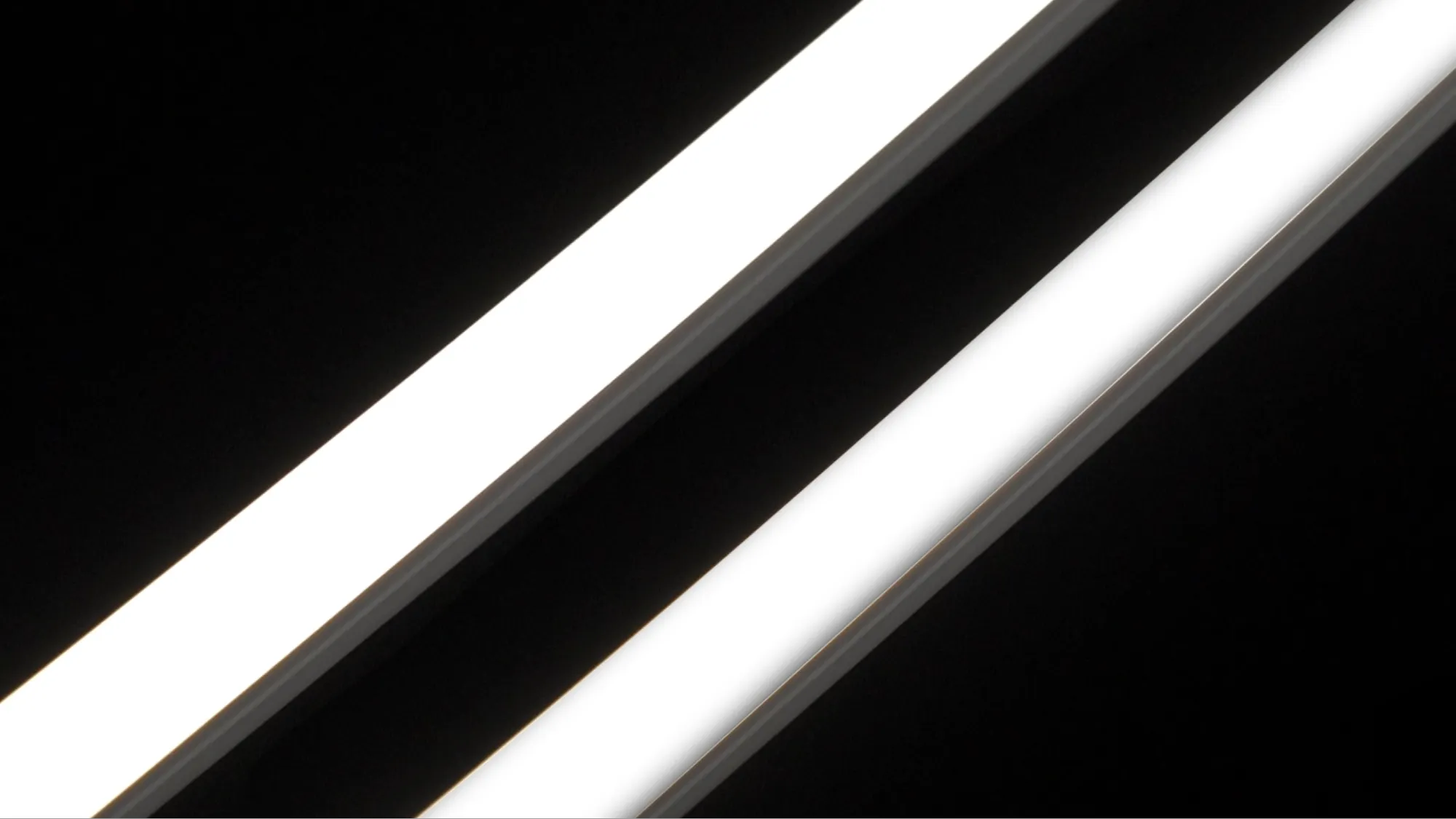

  • Upgraded Light-Emitting Structure, Even Color Without Dark Area On Surface
  • Precision-Controlled Color Temperature After Silicone Coated

Certification

General Info

Application
Outdoor

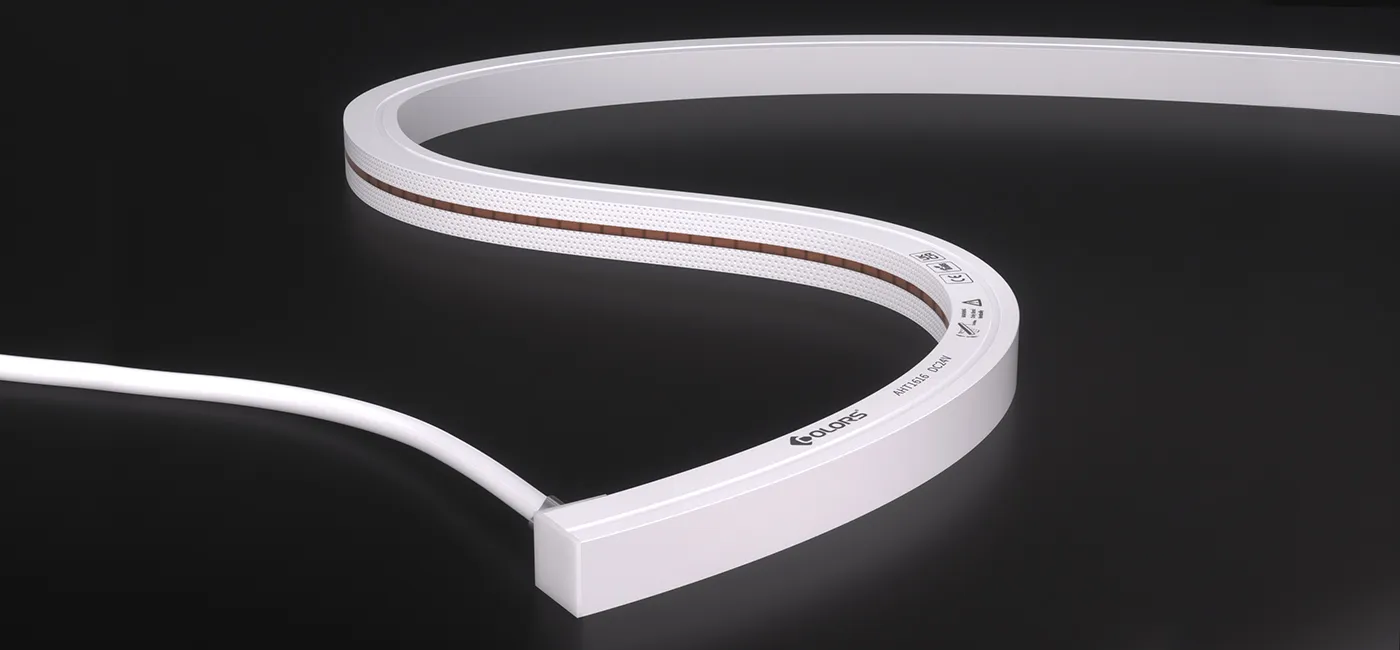

Bend Direction
Top-Bend
IK Rating
IK08
IP Rating
IP67
Operating Temperature
-20~50℃
Storage Temperature
0℃~60℃
Warranty
7 years
Certifications
CB, CE, REACH, RoHS, UKCA, UL

Electrical Info

Input Voltage
DC24V, DC48V
System Power
10 W/m
Electrical Insulation Class
Class III
Max-Run(Single-End Feed)
10m, 20m

Optical Info

LED Type
SMD2835
LED Brand
Colors
LED QTY
160LEDs/m
CCT
2200K, 2700K, 3000K, 4000K
CRI
Ra90+
Cutting Unit
6.25mm, 12.5mm

Download

Model

Input Voltage

Filter by Input Voltage

CCT

Filter by CCT

Luminous Efficacy(lm/W Max)

2 matching product codes

AHT1616-White light-24V

ORDER NOW
NameInput VoltageSystem PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
AHT1616-White light-24V,10 W/m,Ra90+,2200KDC24V10 W/m[3.05 W/ft]Ra90+2200K725 lm/m[221 lm/ft]73 lm/W7 years
AHT1616-White light-24V,10 W/m,Ra90+,2700KDC24V10 W/m[3.05 W/ft]Ra90+2700K860 lm/m[262 lm/ft]86 lm/W7 years
AHT1616-White light-24V,10 W/m,Ra90+,3000KDC24V10 W/m[3.05 W/ft]Ra90+3000K910 lm/m[277 lm/ft]91 lm/W7 years
AHT1616-White light-24V,10 W/m,Ra90+,4000KDC24V10 W/m[3.05 W/ft]Ra90+4000K940 lm/m[287 lm/ft]94 lm/W7 years

AHT1616-White light-48V

ORDER NOW
NameInput VoltageSystem PowerCRICCTSystem OutputLuminous EfficacyWarrantyDownload
AHT1616-White light-48V,10 W/m,Ra90+,2200KDC48V10 W/m[3.05 W/ft]Ra90+2200K800 lm/m[244 lm/ft]80 lm/W7 years
AHT1616-White light-48V,10 W/m,Ra90+,2700KDC48V10 W/m[3.05 W/ft]Ra90+2700K930 lm/m[284 lm/ft]93 lm/W7 years
AHT1616-White light-48V,10 W/m,Ra90+,3000KDC48V10 W/m[3.05 W/ft]Ra90+3000K990 lm/m[302 lm/ft]99 lm/W7 years
AHT1616-White light-48V,10 W/m,Ra90+,4000KDC48V10 W/m[3.05 W/ft]Ra90+4000K960 lm/m[293 lm/ft]96 lm/W7 years
