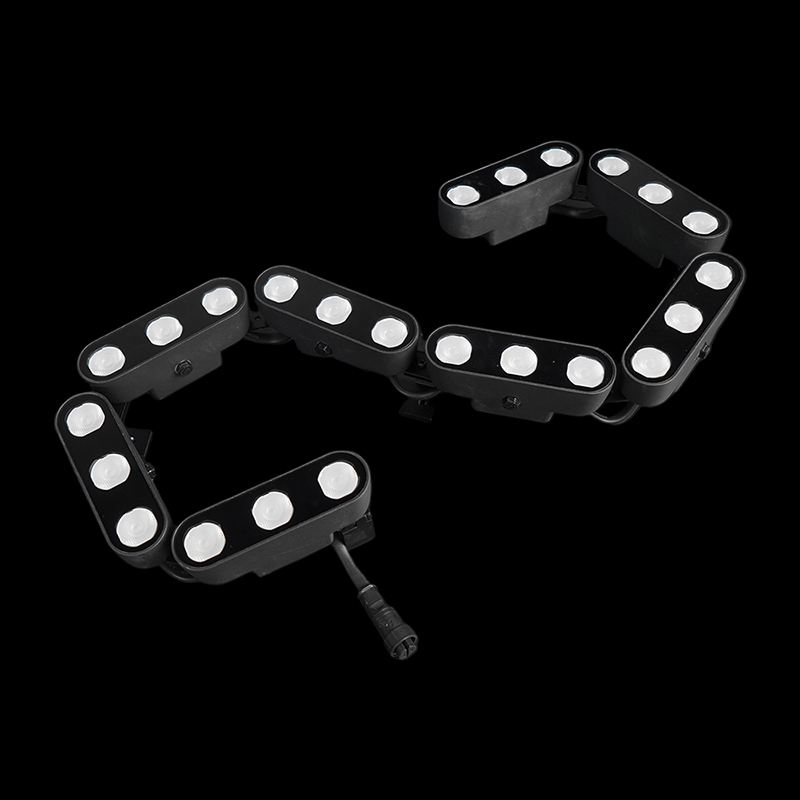

Arch Neon AL Series acts as a high-performance led wall washer light strips available in standard lengths ranging from 5 meters to 8 meters. Featuring excellent 3D bending flexibility, this neon strip supports free three-dimensional shaping to fit various architectural contours and curved surfaces, delivering uniform wall washing lighting effects for building facade, exterior outline and decorative lighting projects.
Certification
General Info
- Application
- outdoor
- IK Rating
- IK08
- IP Rating
- IP67
- Operating Temperature
- -20~50℃
- Storage Temperature
- 0℃～60℃
- Warranty
- 3years
- Certifications
- UKCA、UL、RoHS、REACH
- Bend Direction
- Side-Bend
Electrical Info
- Max-Run(Single-End Feed)
- 4M
- Input Voltage
- DC24V
- Typ.Power
- 56W/M
Optical Info
- CRI
- Ra90+
- CCT
- 2700K,3000K,4000K
- LED QTY
- 24LEDs/m
Download
Product Code
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DC24V | 56 W/m[17 W/ft] | Ra90+ | 2700K | 2981 lm/m[909 lm/ft] | 53 lm/W | 3years | |
| - | DC24V | 56 W/m[17 W/ft] | Ra90+ | 3000K | 3158 lm/m[962 lm/ft] | 56 lm/W | 3years | |
| - | DC24V | 56 W/m[17 W/ft] | Ra90+ | 4000K | 3508 lm/m[91069 lm/ft] | 63 lm/W | 3years |
