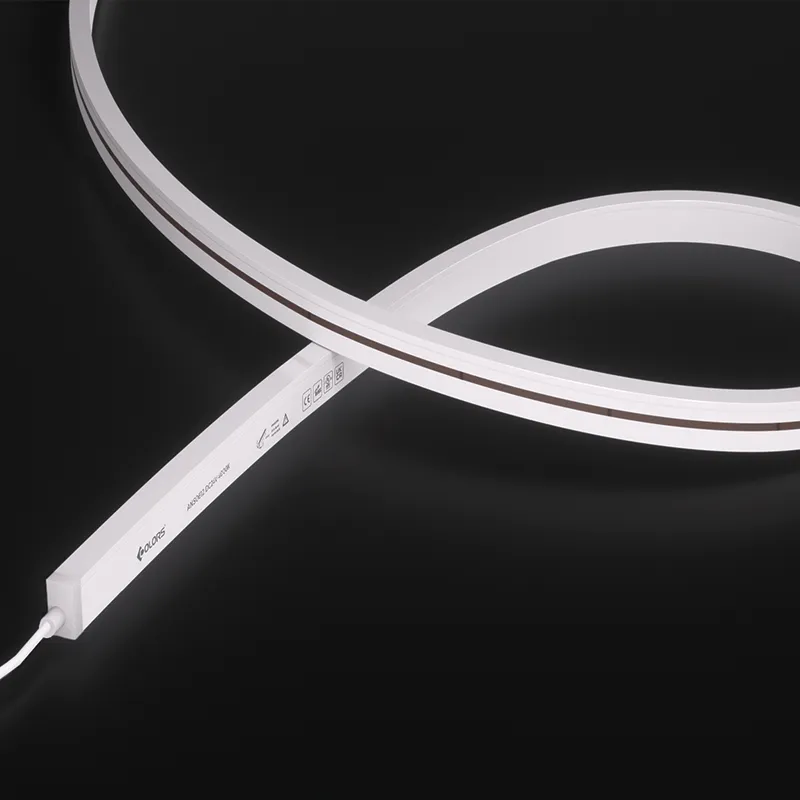

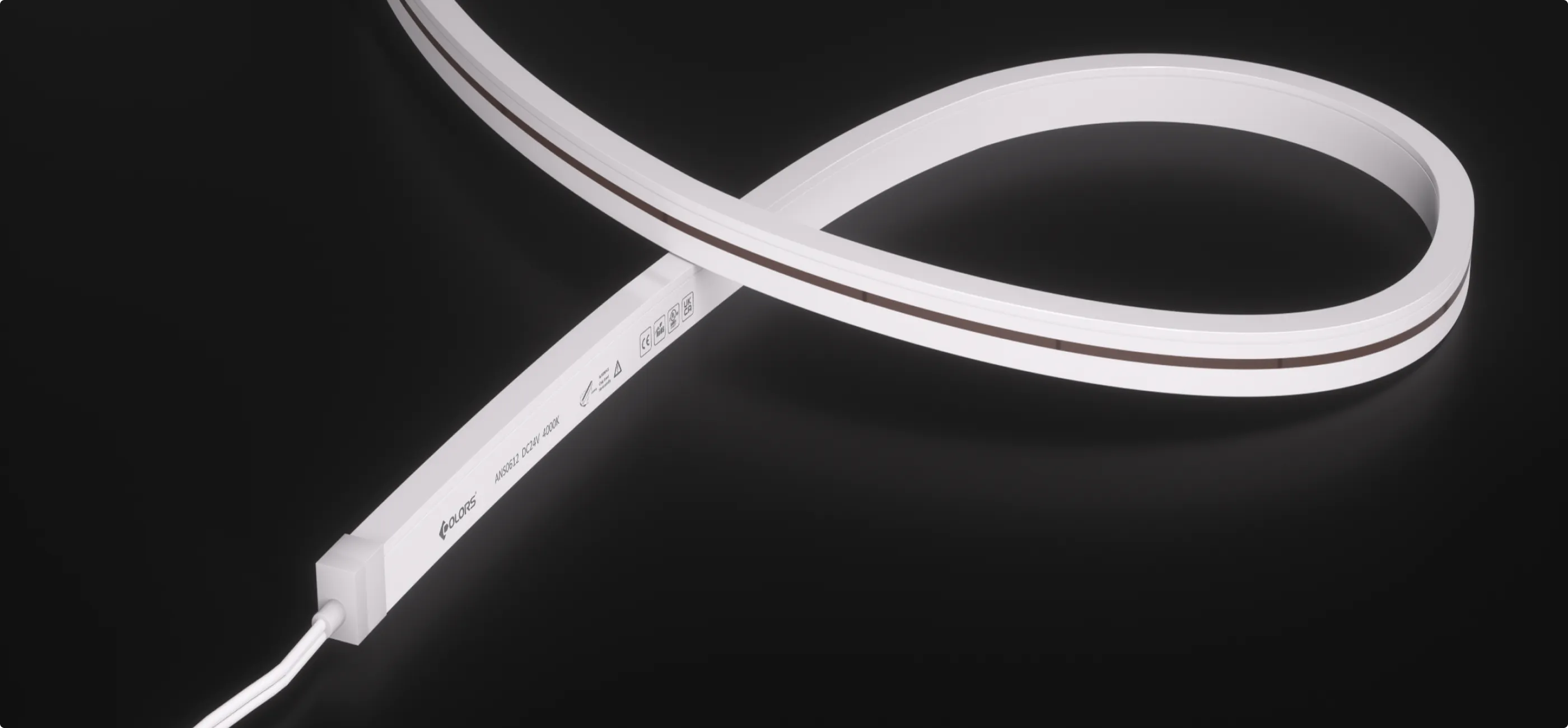

ANS0612
Discover AN Series5-year warranty, high reliability; 1600K Sauna Color/RGB; Max.15m @24V; For Sauna & High temperature Use.
Key Features
1600K, The Temperature Of A Campfire
With an exclusively crafted sauna color to create a more comfortable and relaxing atmosphere

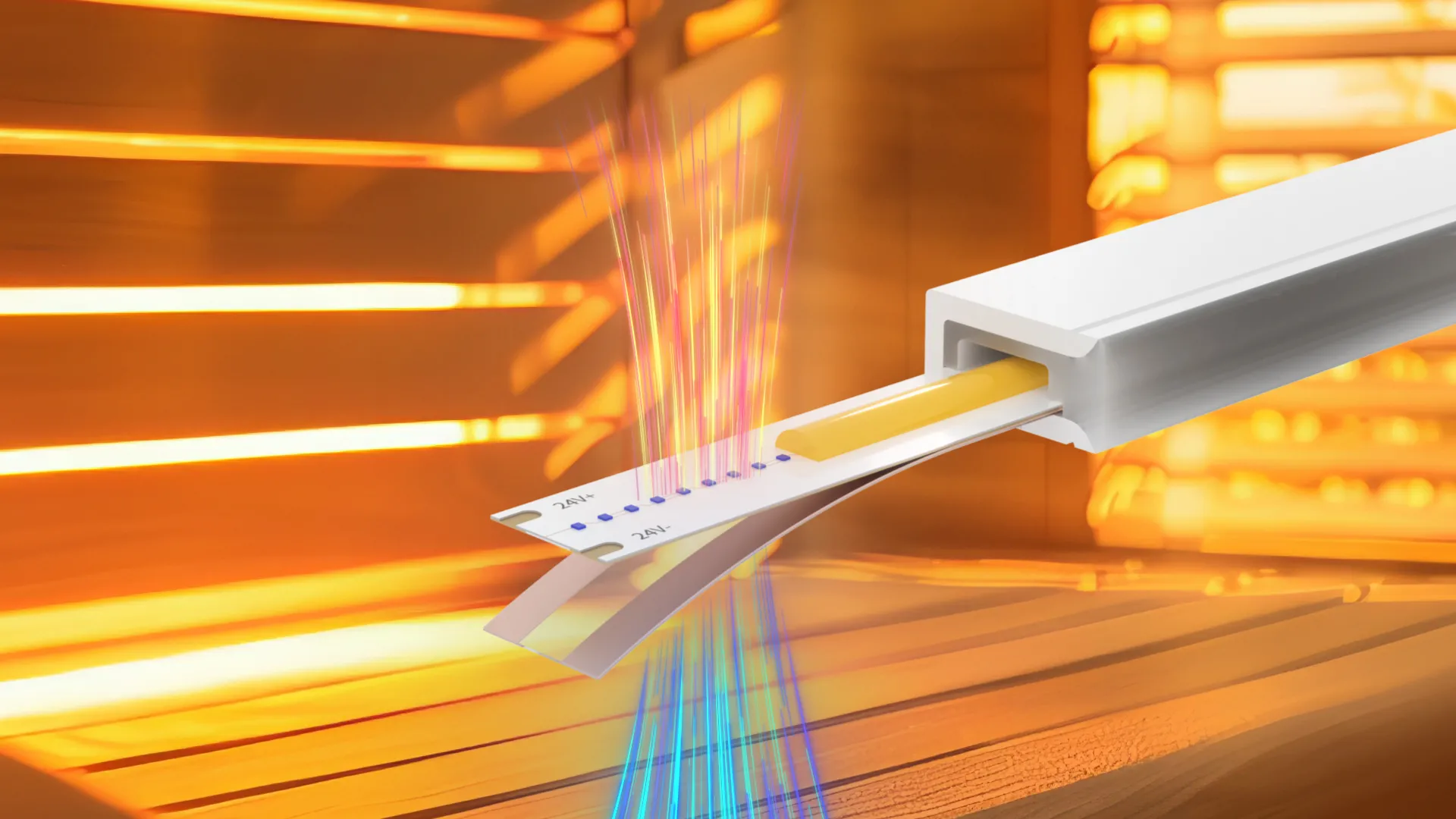

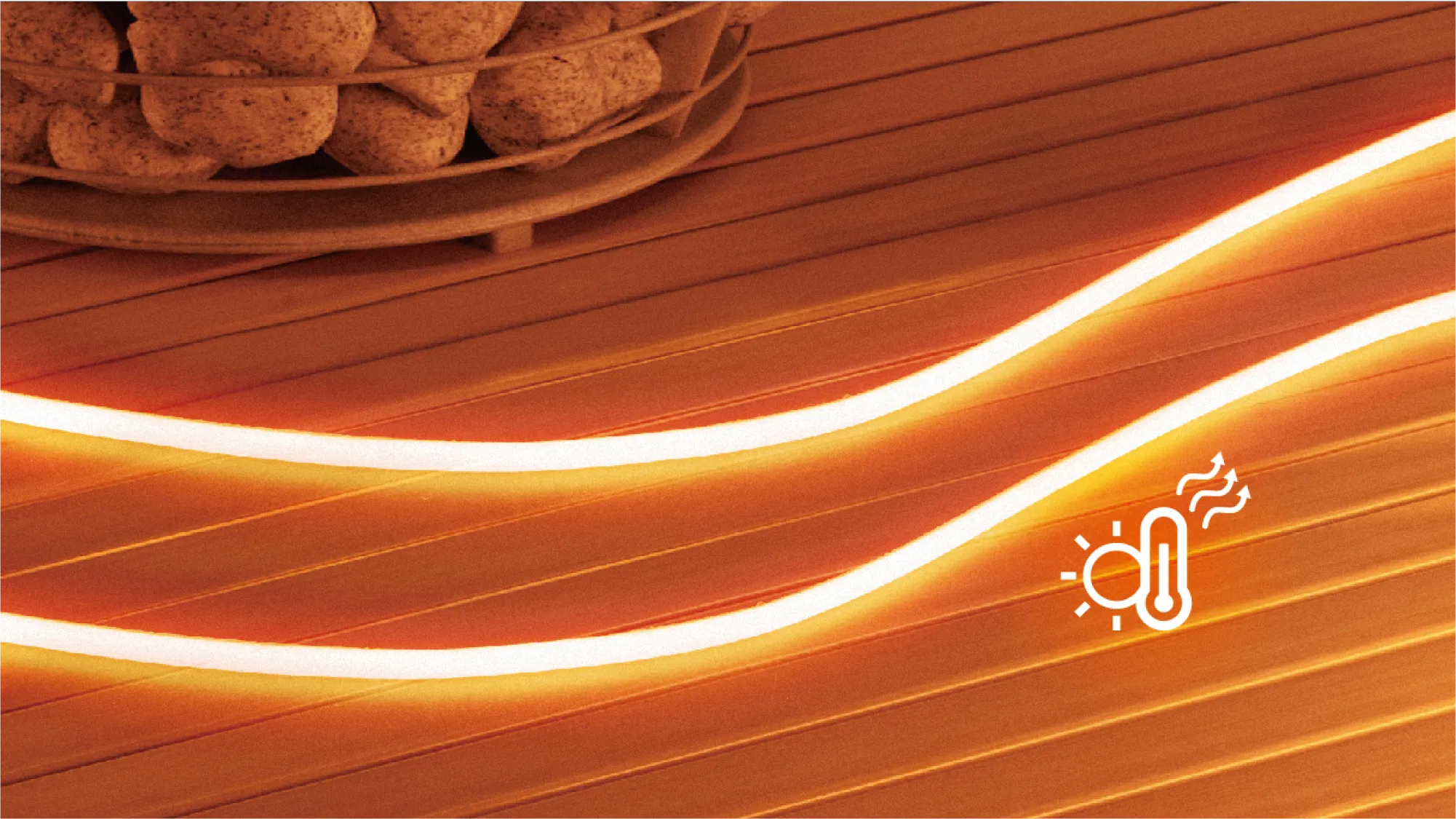

High-Temperature & Heat Wave Resistance
The Flip-Chip for direct heat dissipation, up to 110 ° C temperature resistance, special for sauna environment installation
125°C Max, Resistant To High Temperatures And High Humidity (Sauna Strip)

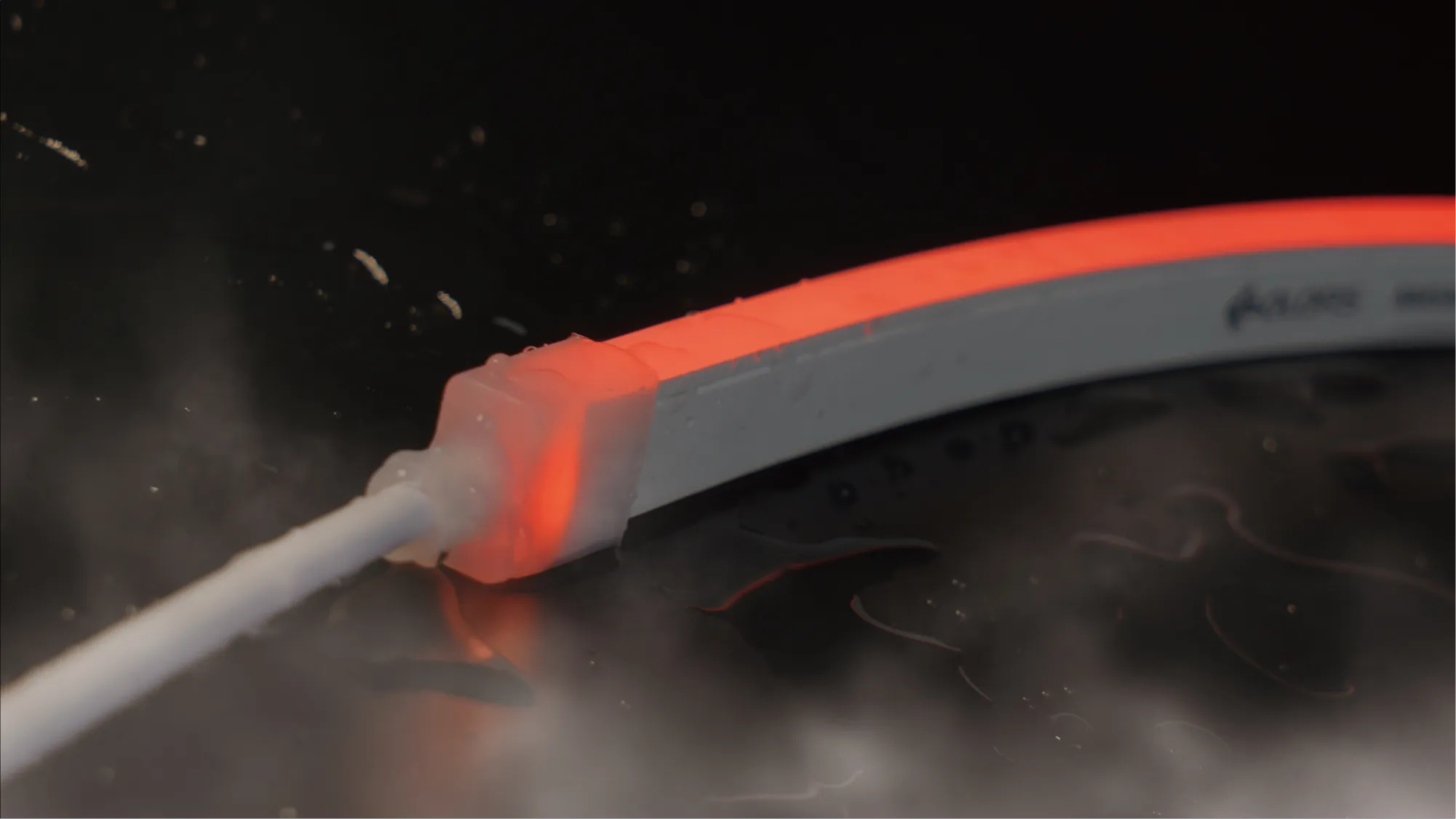

Excellent Protective Performance
IP67 one-piece molded end caps resist thermal expansion/contraction-induced siphoning and withstand sauna moisture, condensation, etc.

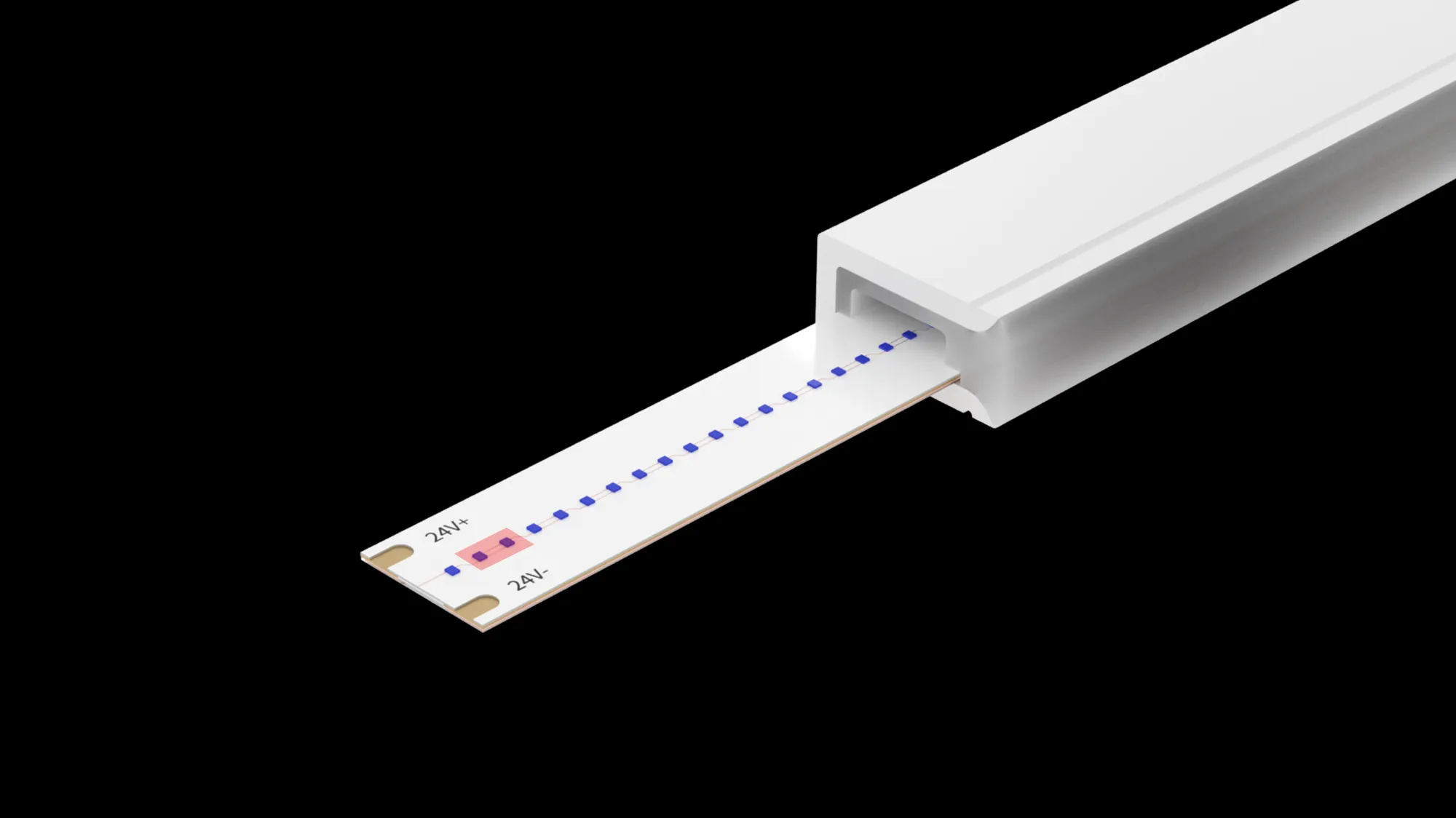

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable
Anti-Dead Chips Without Dark Area
Dual chips parallel LEDs technology,special chip design, single chip breakage no affect the light effect

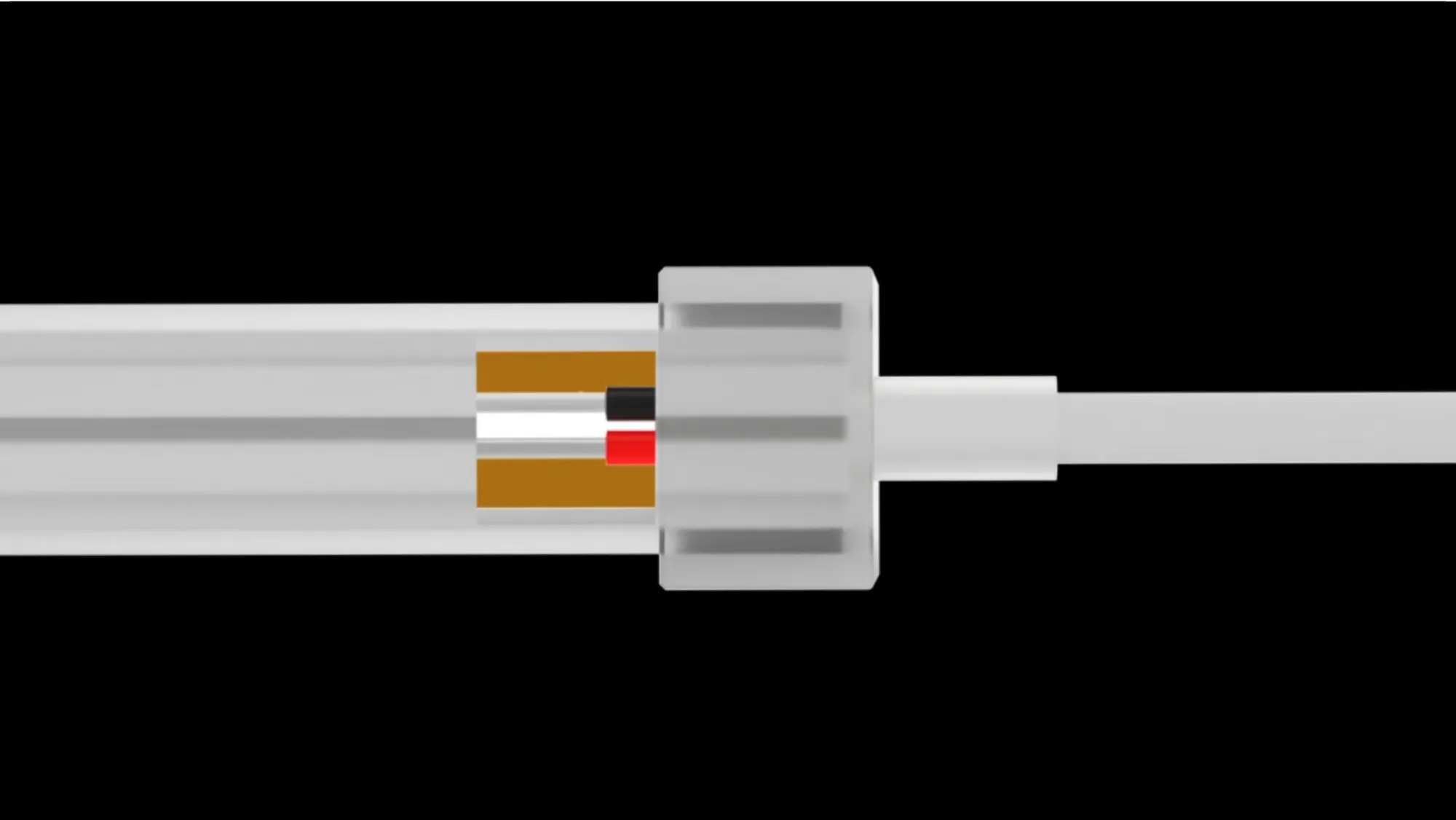

Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces

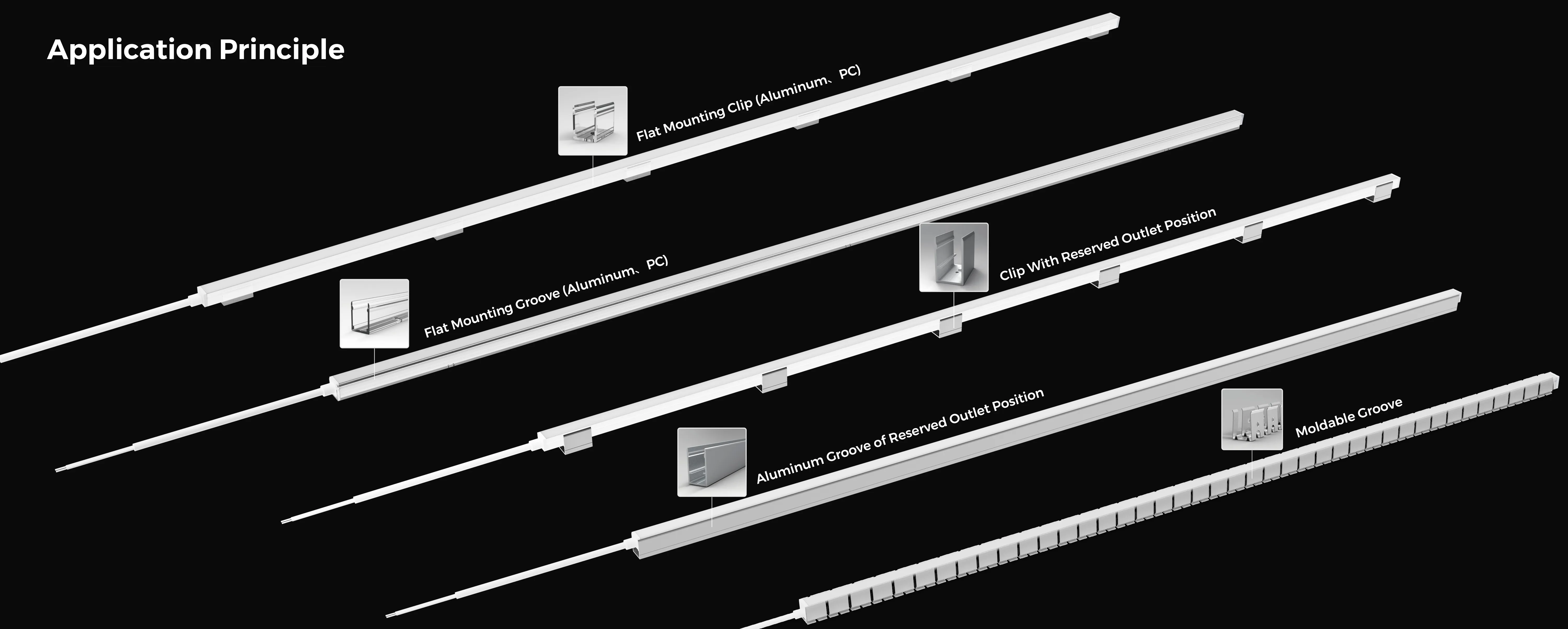

Application Principle

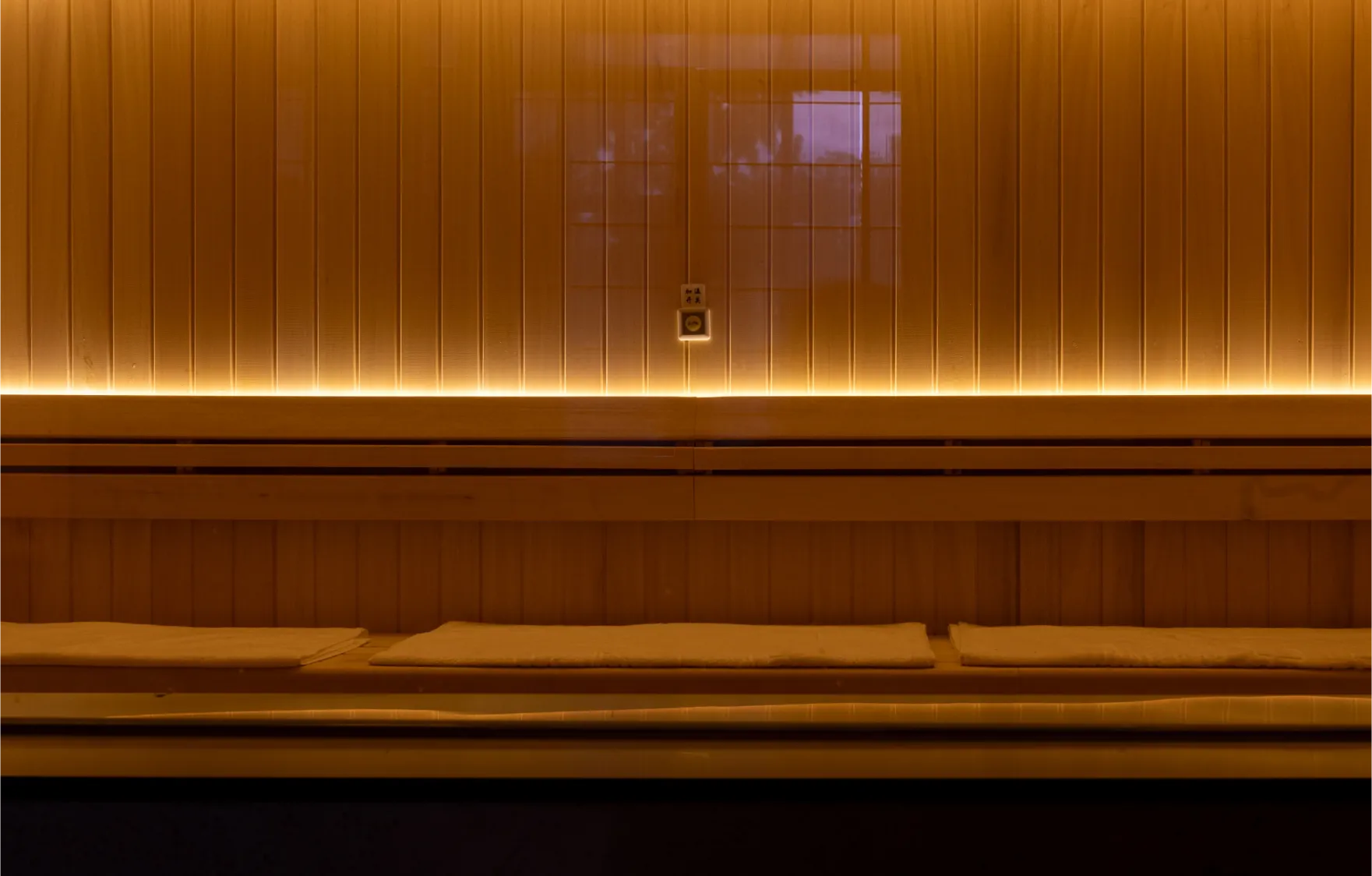

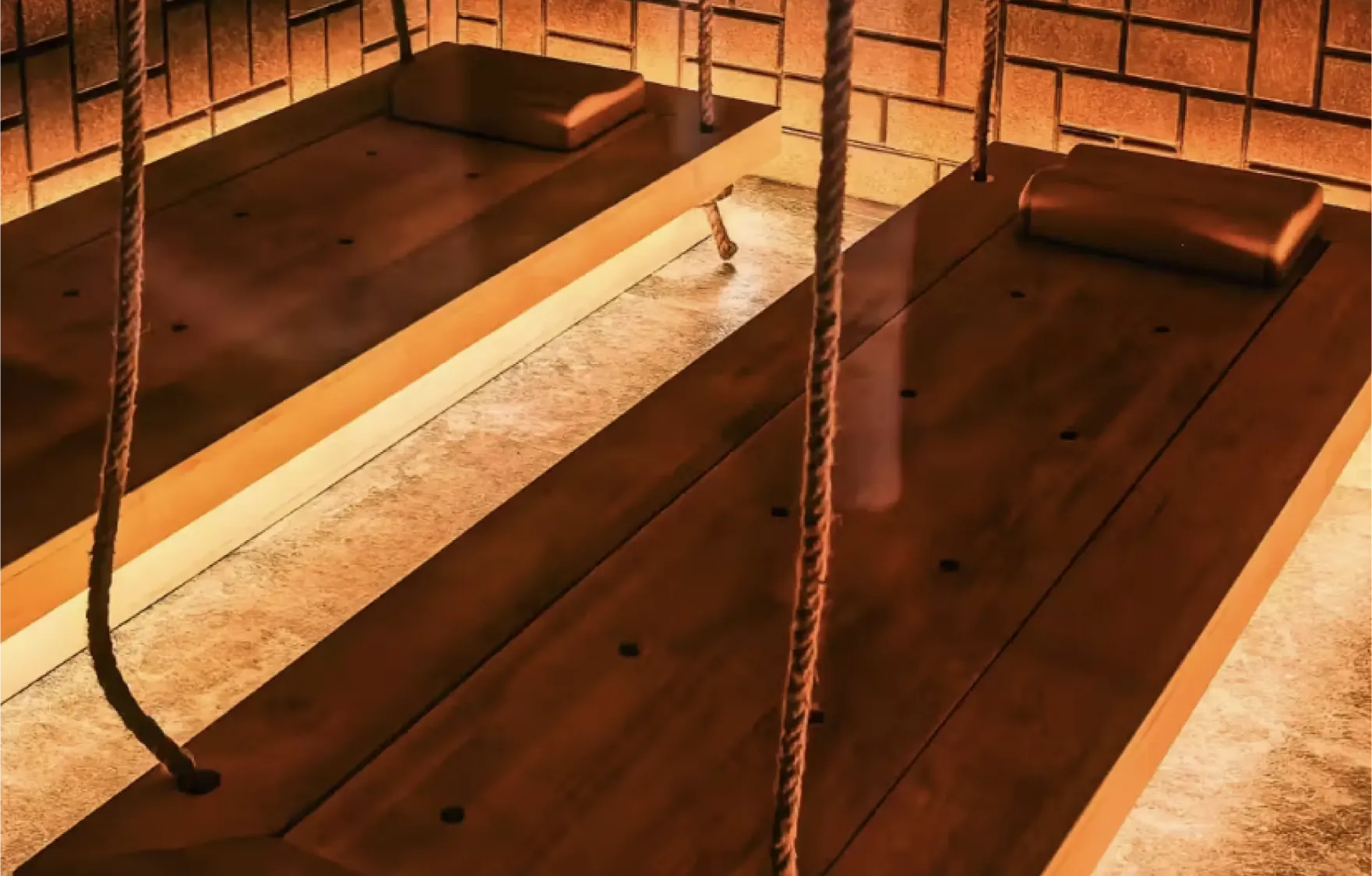

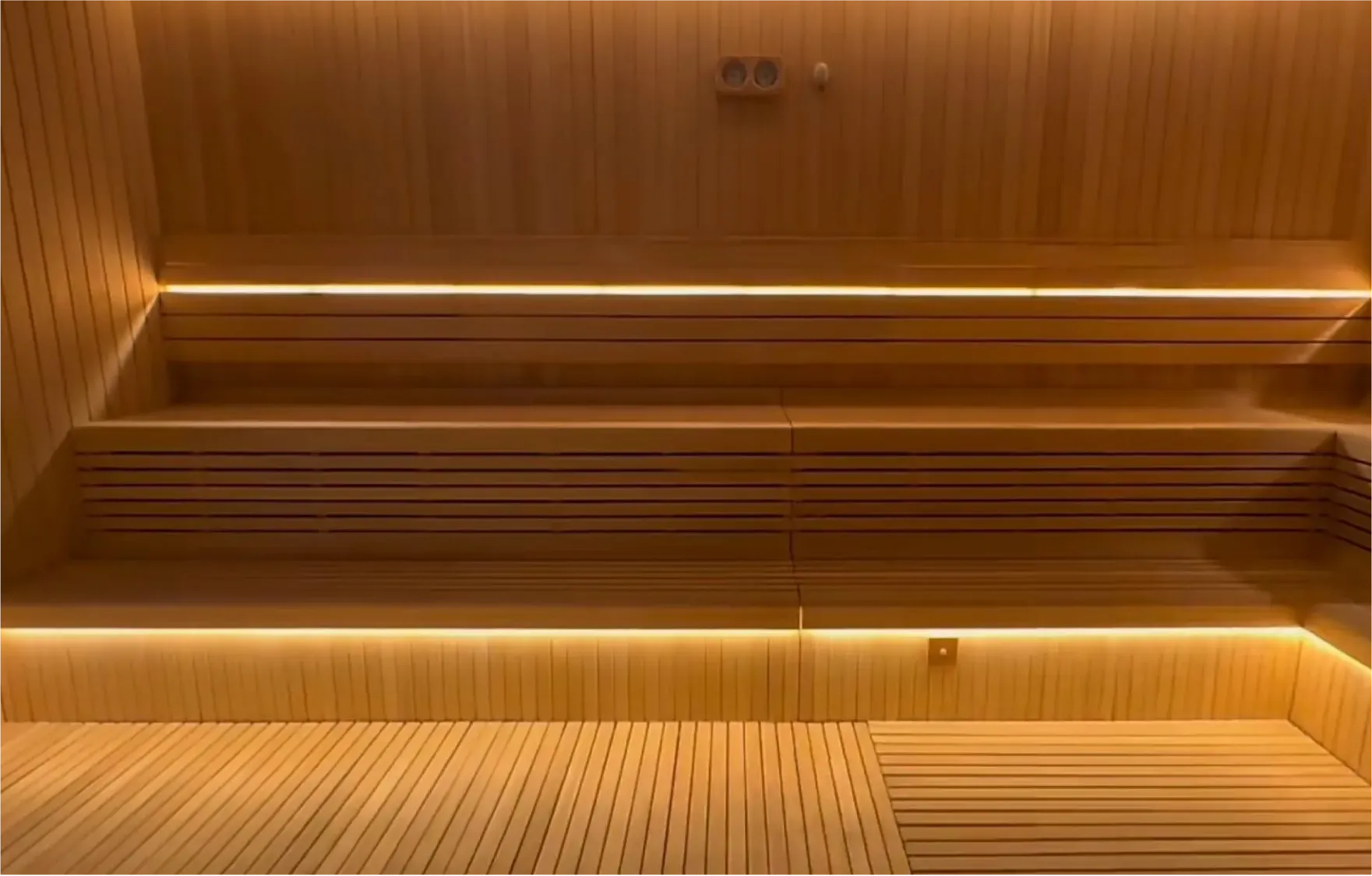

Scenario Case
Ordering Code
Optional Model
ANS0612-White light-24V
ANS0612-White light-24V
Basic parameter
IP Process
IP67
Warranty
5 Years
Cutting Unit
50 mm
Leds Qty
320LEDs/m
Typ.power
5W/M
CCT/colors
Color range
CRI
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
2200K
2150-2400K
>90
24V
0.21(0.064A/ft)
5 (1.53W/ft)
5.5 (1.68W/ft)
100(30.48LM/ft)
5000mm(16.4ft)
16LED/50mm
2700K
2550-2850K
>90
24V
0.21(0.064A/ft)
5 (1.53W/ft)
5.5 (1.68W/ft)
100(30.48LM/ft)
5000mm(16.4ft)
16LED/50mm
3000K
2850-3250K
>90
24V
0.21(0.064A/ft)
5 (1.53W/ft)
5.5 (1.68W/ft)
120(37LM/ft)
5000mm(16.4ft)
16LED/50mm
4000K
3770-4280K
>90
24V
0.21(0.064A/ft)
5 (1.53W/ft)
5.5 (1.68W/ft)
100(30.48LM/ft)
5000mm(16.4ft)
16LED/50mm
Accessories Type
Installation accessory
Monochrome-Remote control
Controller
Size
Name
Model
Description
Quantity
Application

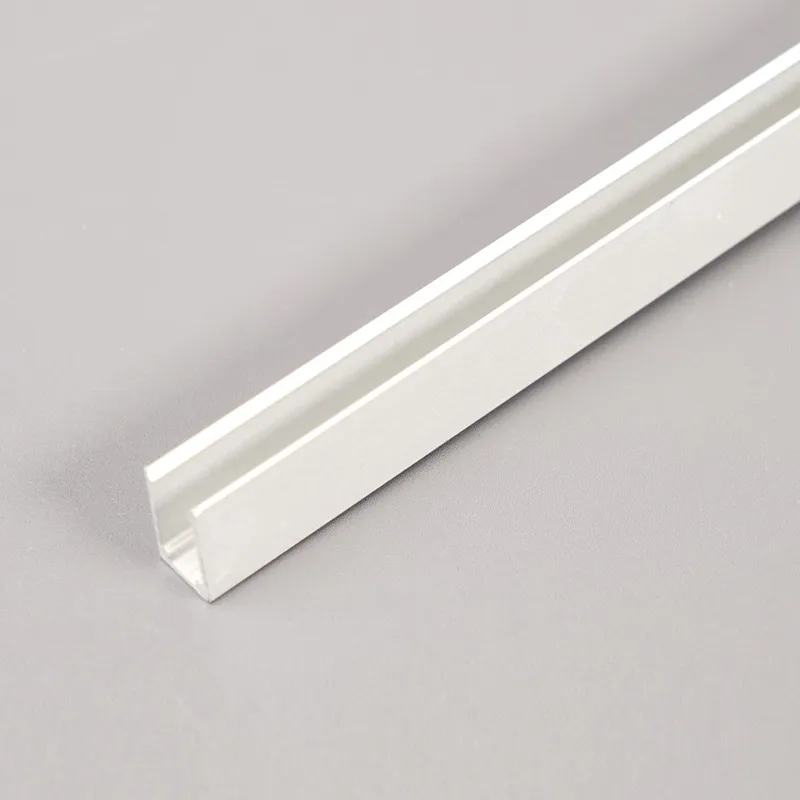

AS-NMS0612A-1000
AS-NMS0612A-1000

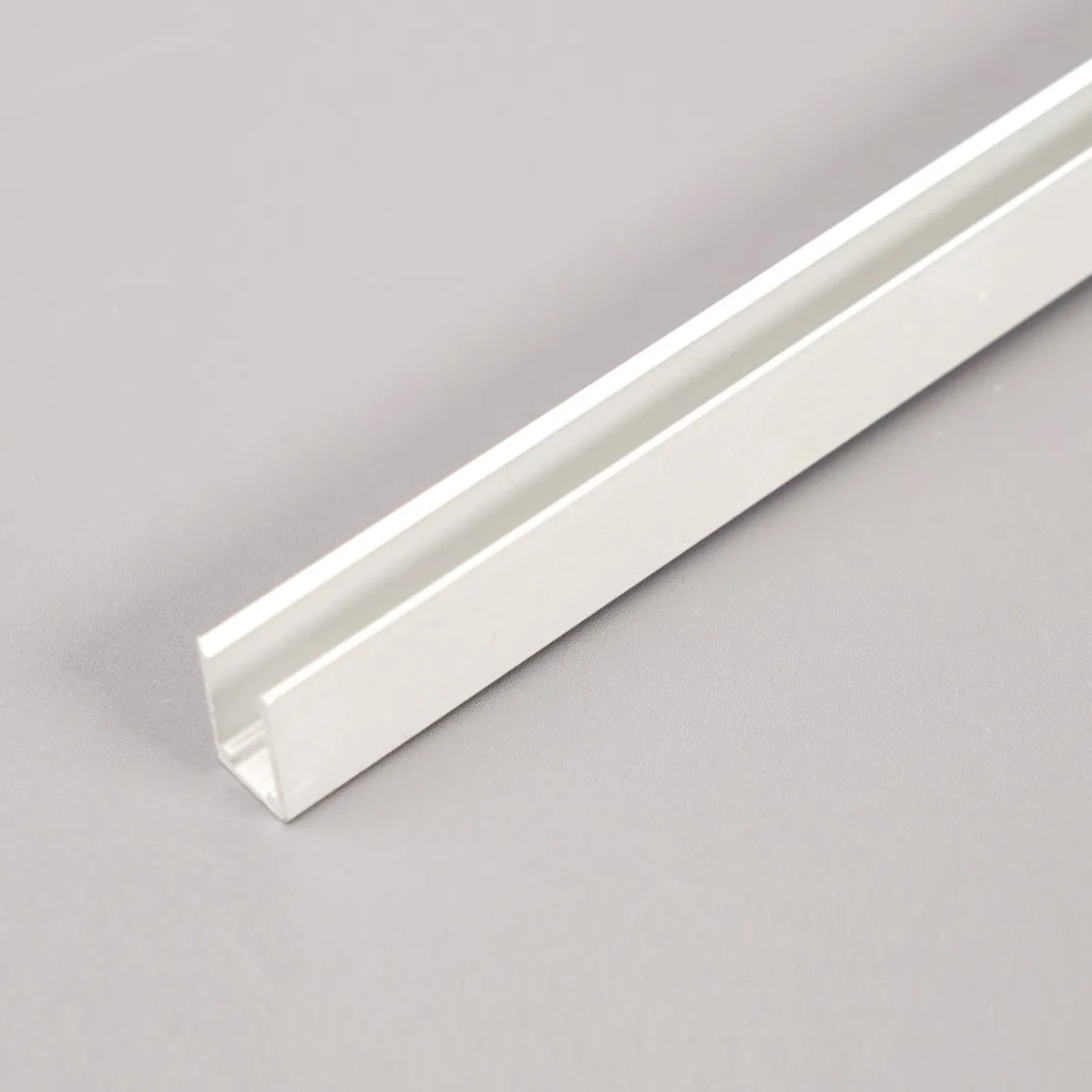

Product model:AS-NMS0612A-1000，NMS0612 Flat Patch Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：L1000*W8*H13.5
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NMS0612/NJS0612/NJS0612T

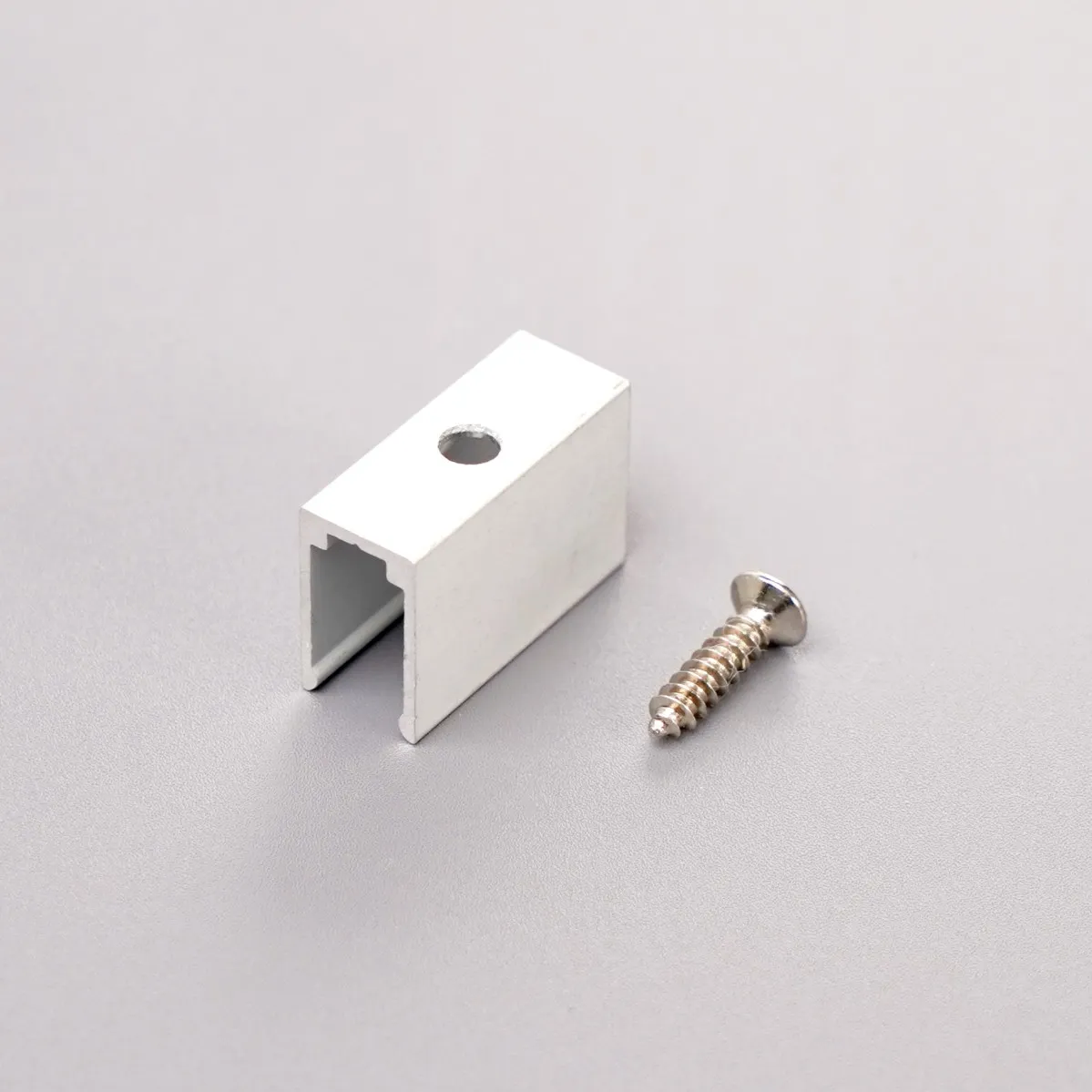

AS-NMS0612A-20
AS-NMS0612A-20
Product model:AS-NMS0612A-20，NMS0612 Flat Patch Mounting Aluminum Aluminum Clip
Installation method：Flat Mounting
Coating：Silver
Size：L20*W8*H13.5
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：NMS0612/NJS0612/NJS0612T

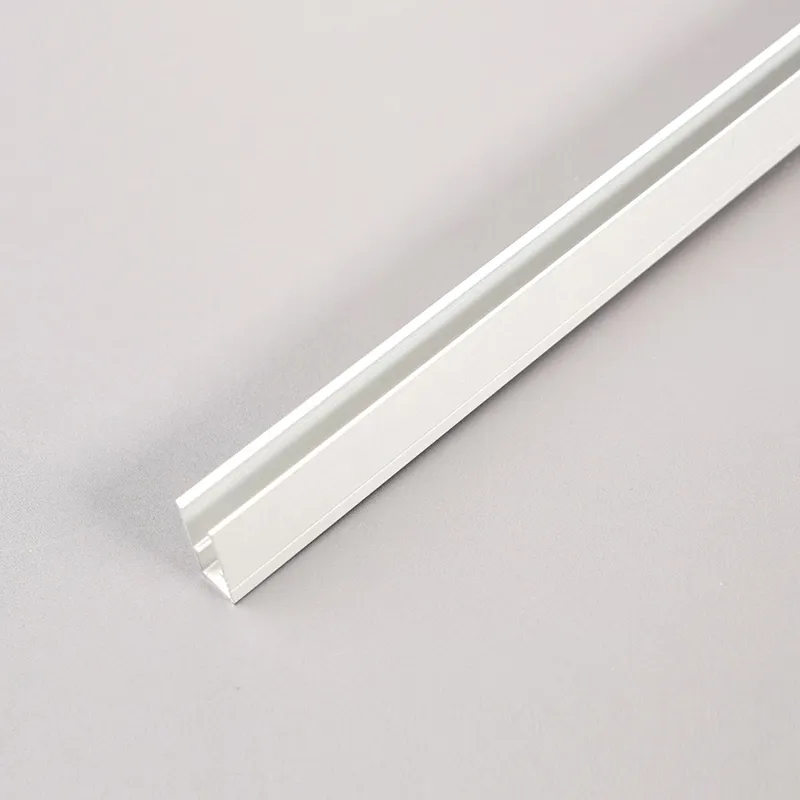

AS-NMS0612A1-1000
AS-NMS0612A1-1000
Product model:AS-NMS0612A1-1000，NMS0612 Groove With Reserved Wire Outlet
Installation method：Reserved outlet
Coating：Silver
Size：L1000*W8*H18.5
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NMS0612/NJS0612/NJS0612T

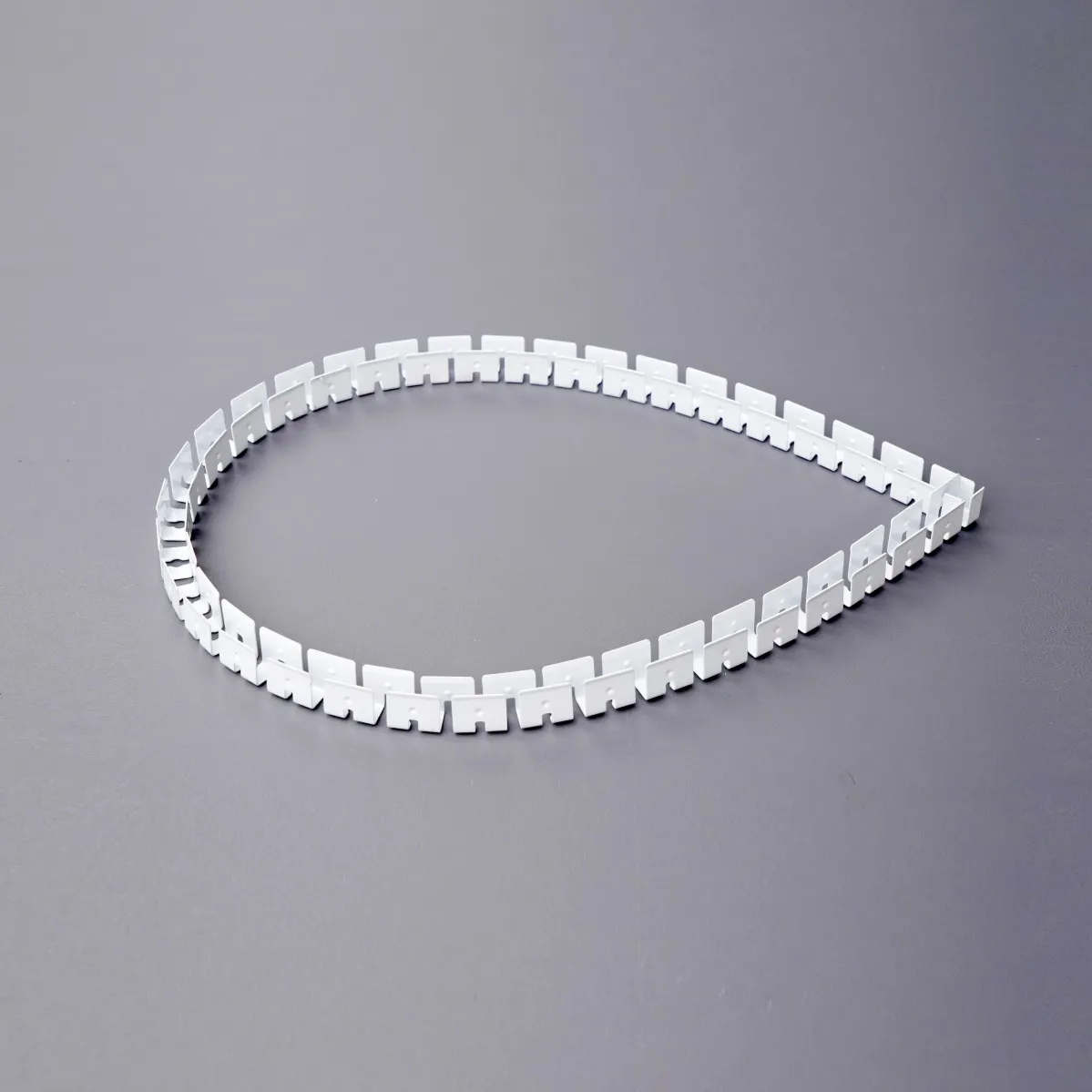

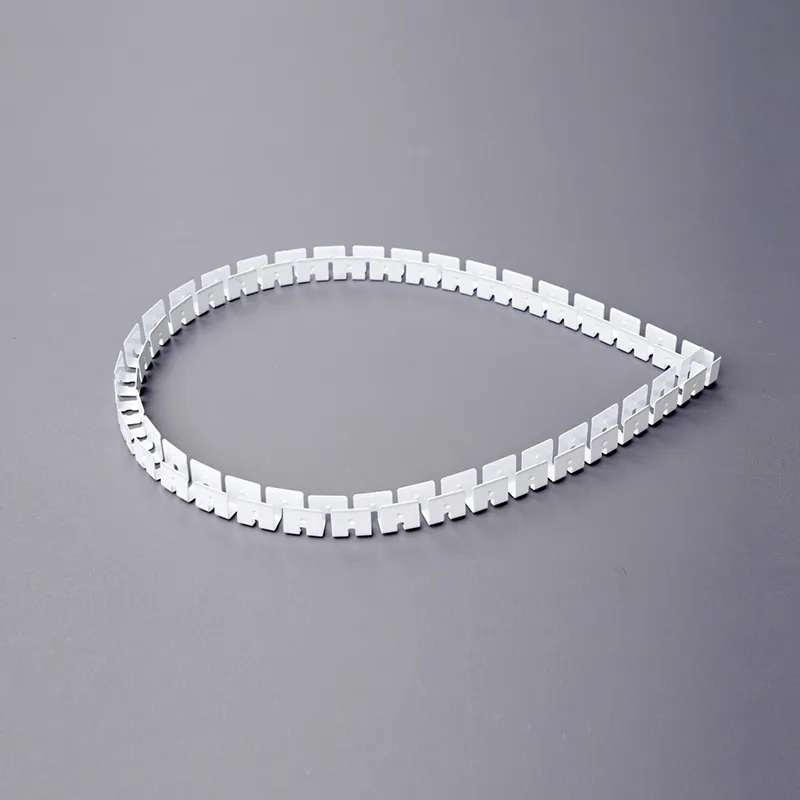

AS-NMS0612M-500
AS-NMS0612M-500
Product model:AS-NMS0612M-500，NMS0612 Stylable installation Groove
Installation method：Stylable Installation
Coating：white
Size：L500*W7.5*H11
Quantity: 2PCS/ set
Recommended dosage:2PCS/M
Applicable product model：NMS0612
Not to be used with the lighted side down

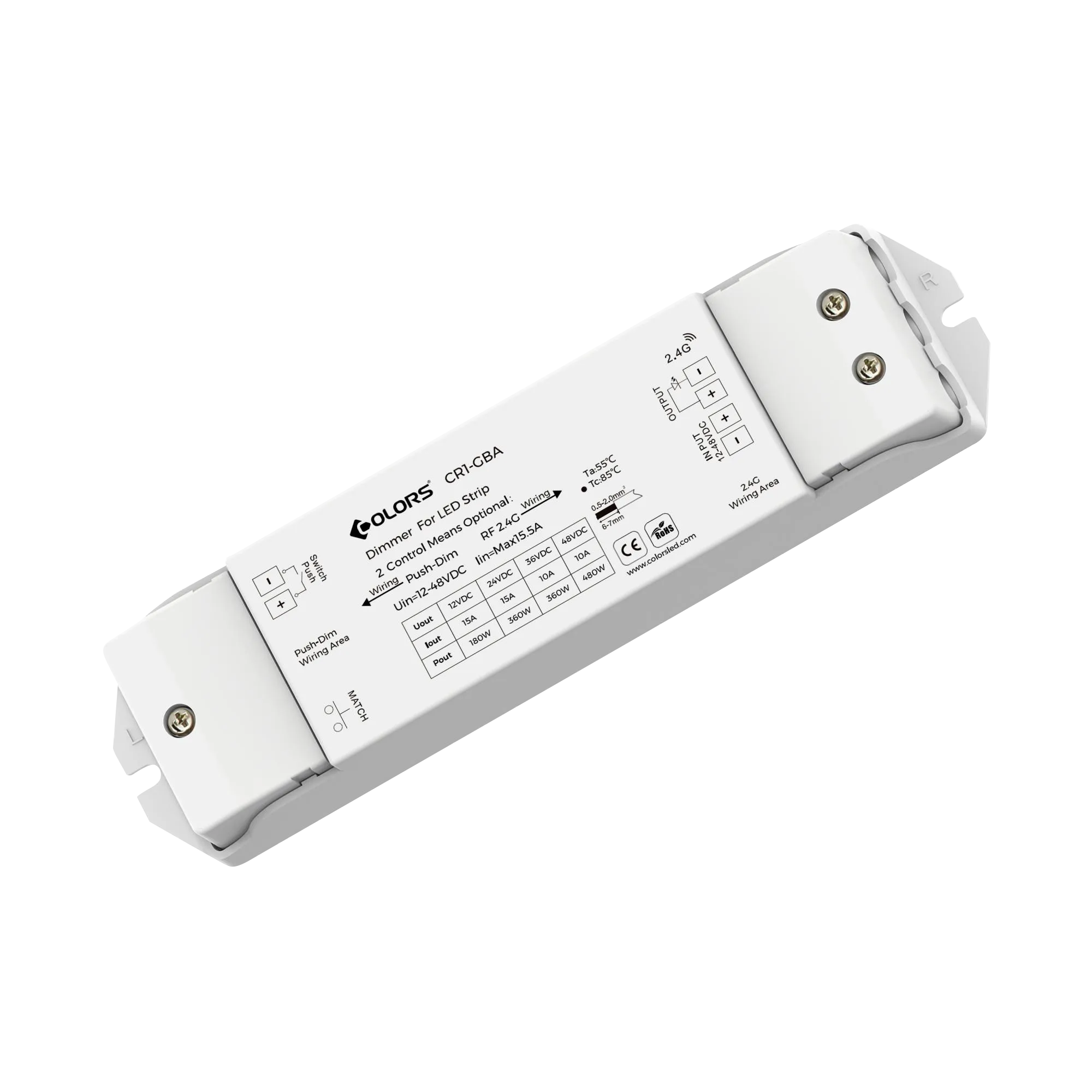

CR1-GBA
CR1-GBA
Product Name:CR1-GBA
Input Voltage:12-48V
Output current:15A*1CH,Max15A@12/24V，10A*1CH,Max10A@36/48V
Dimming Mode:Single-color RF2.4G remote control
IP:IP20Product Size: L175*W45*H27(mm)
Warranty: 5 years
