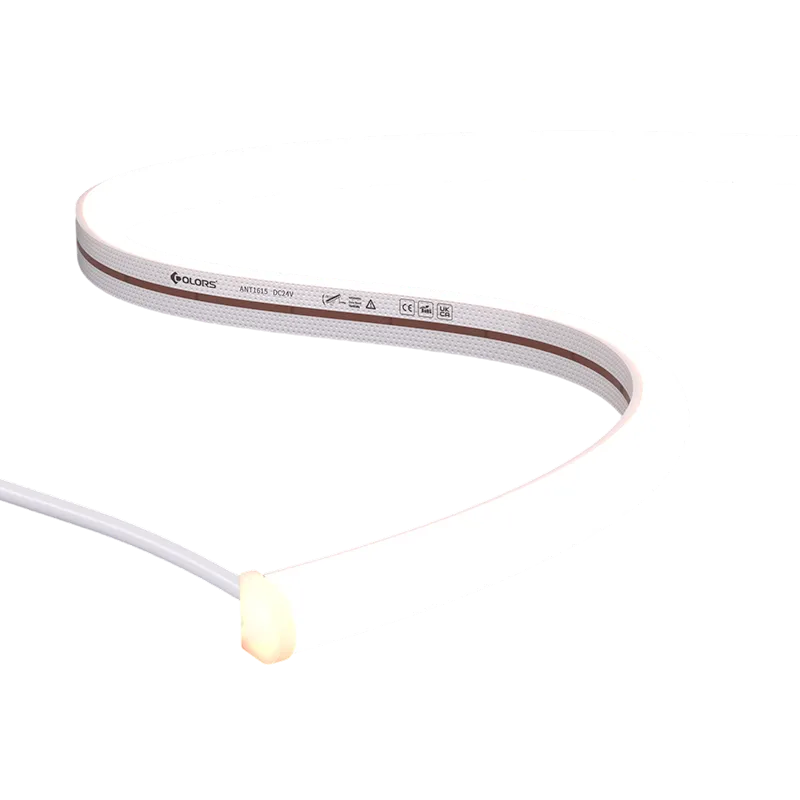

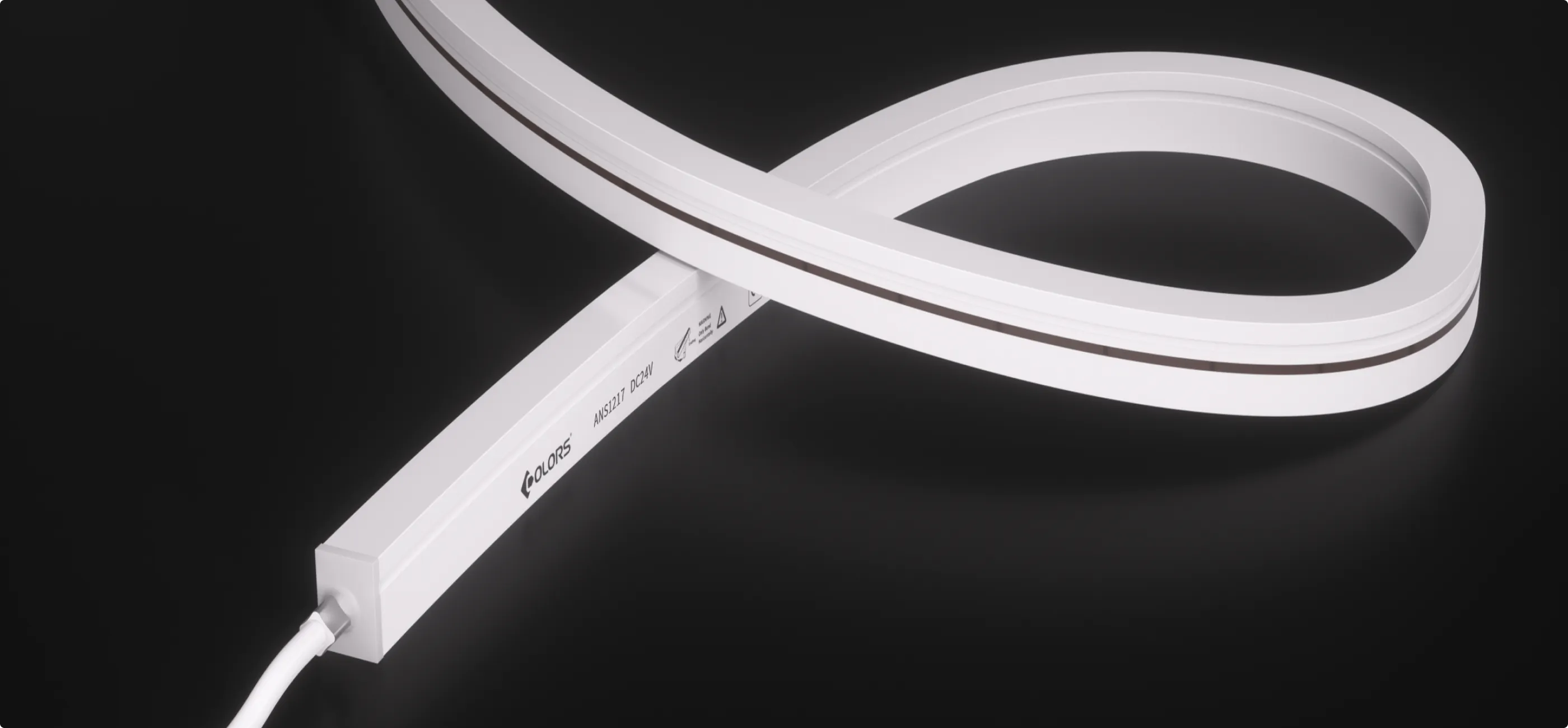

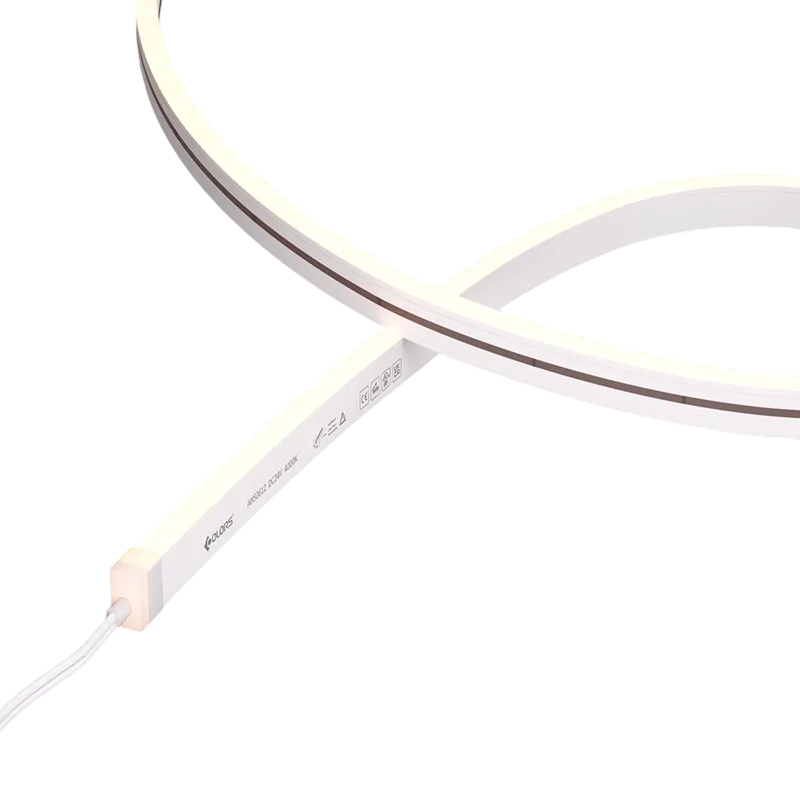

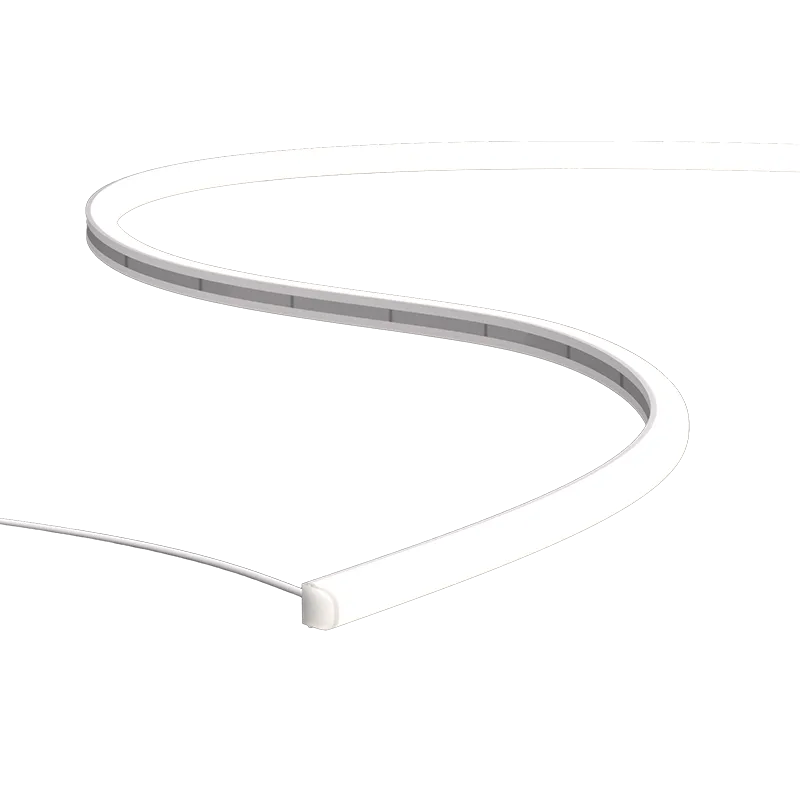

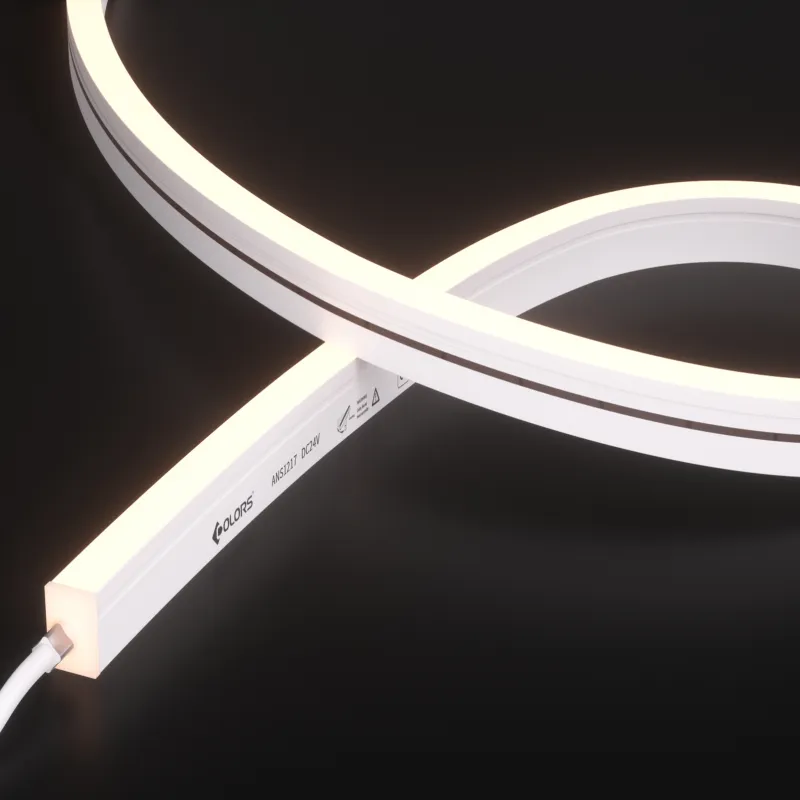

ANS1217
Discover AN Series5-year warranty, high reliability; 1600K Sauna Color/RGB; Max.15m @24V; For Sauna & High temperature Use.
Key Features
1600K, The Temperature Of A Campfire
With an exclusively crafted sauna color to create a more comfortable and relaxing atmosphere

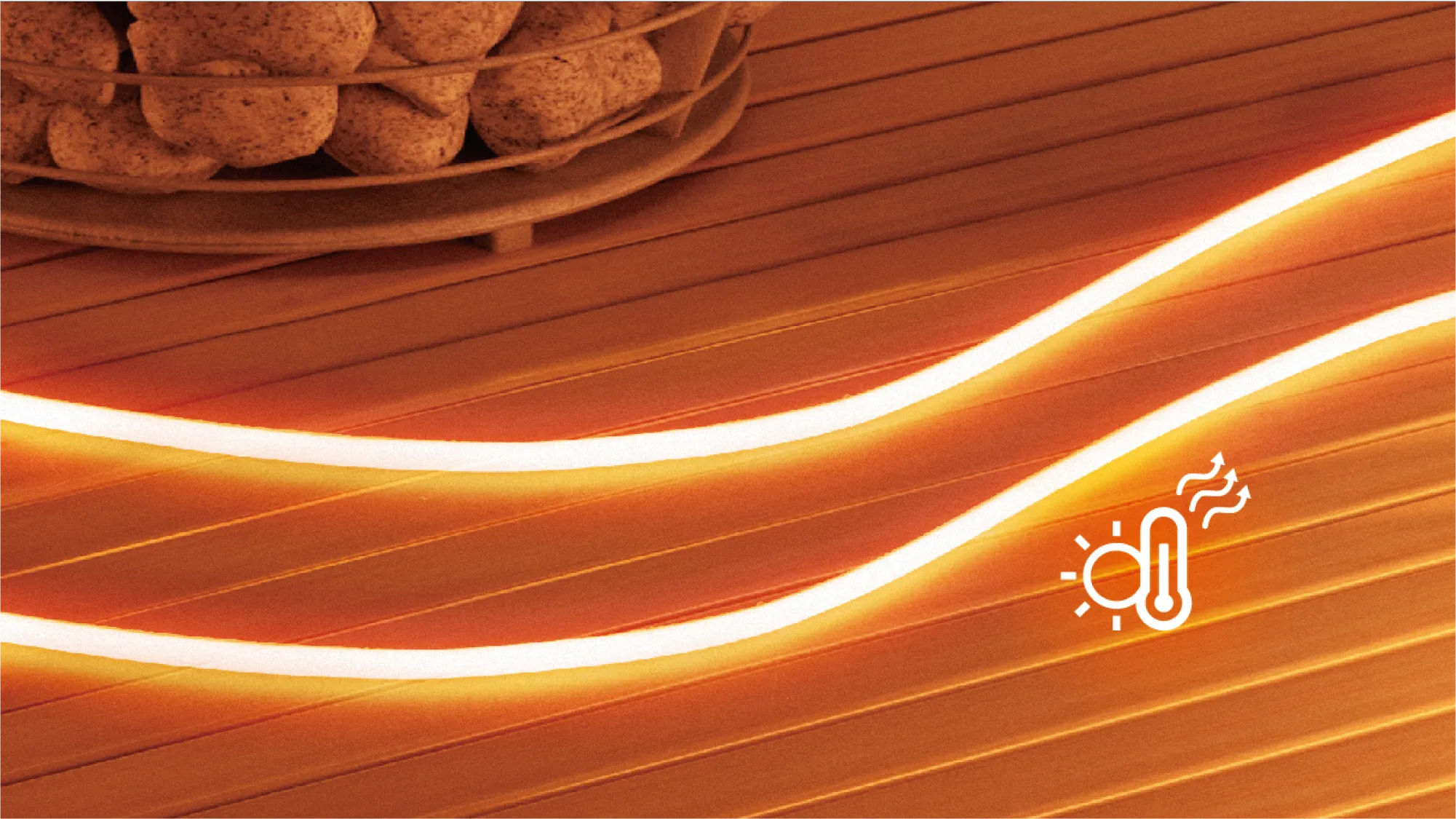

High-Temperature & Heat Wave Resistance
The Flip-Chip for direct heat dissipation, up to 110 ° C temperature resistance, special for sauna environment installation
125°C Max, Resistant To High Temperatures And High Humidity (Sauna Strip)

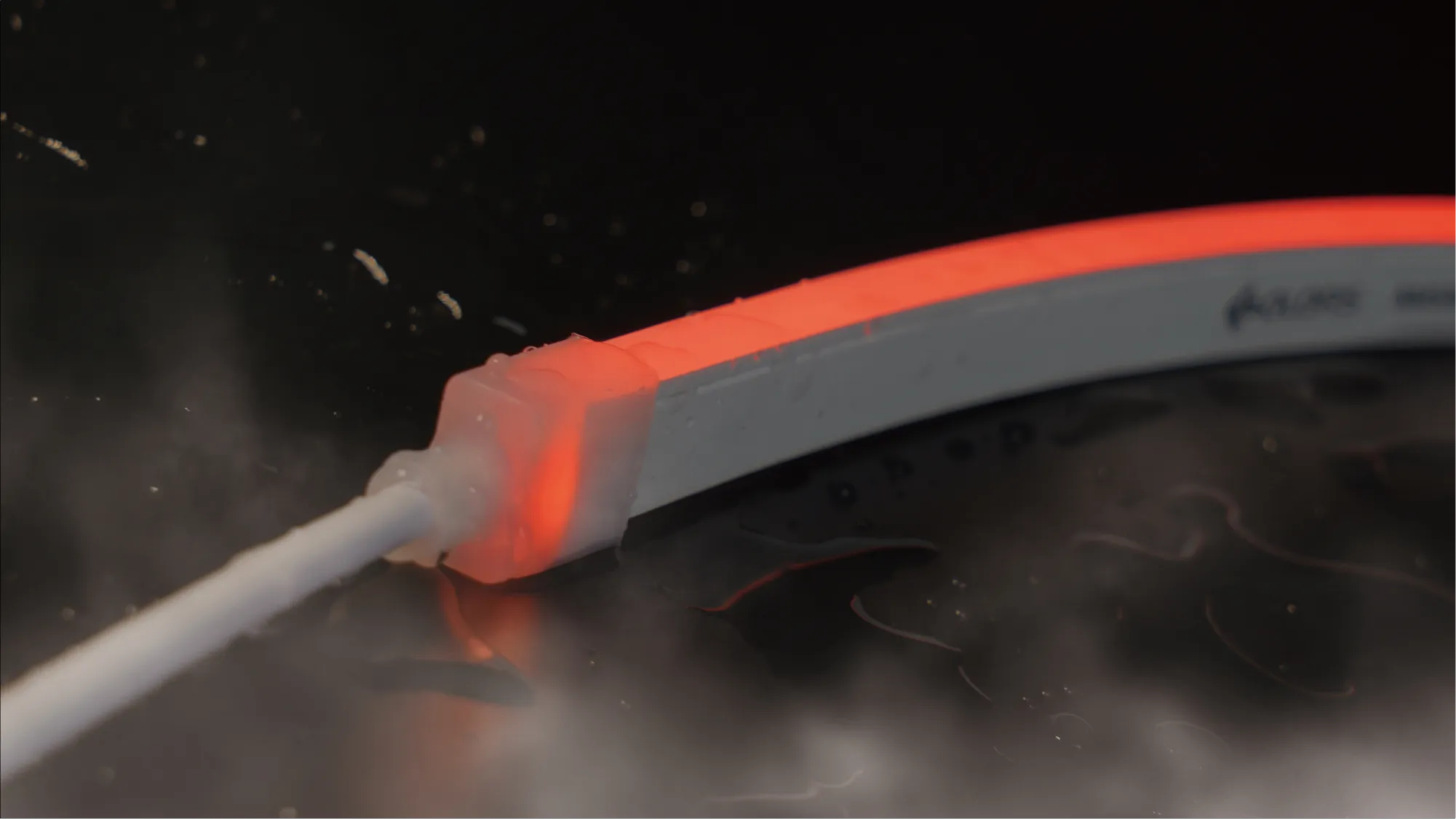

Excellent Protective Performance
IP67 one-piece molded end caps resist thermal expansion/contraction-induced siphoning and withstand sauna moisture, condensation, etc.

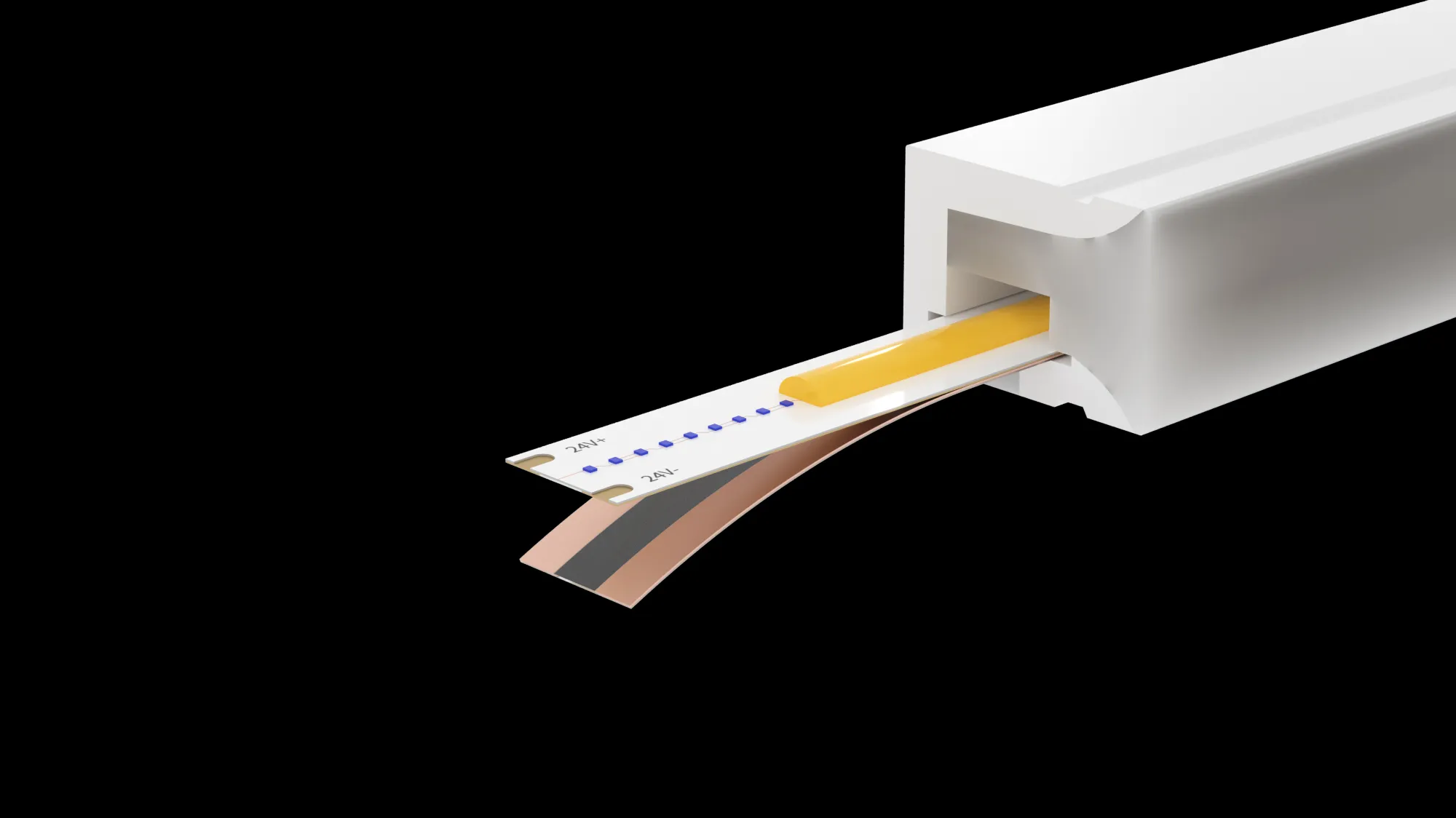

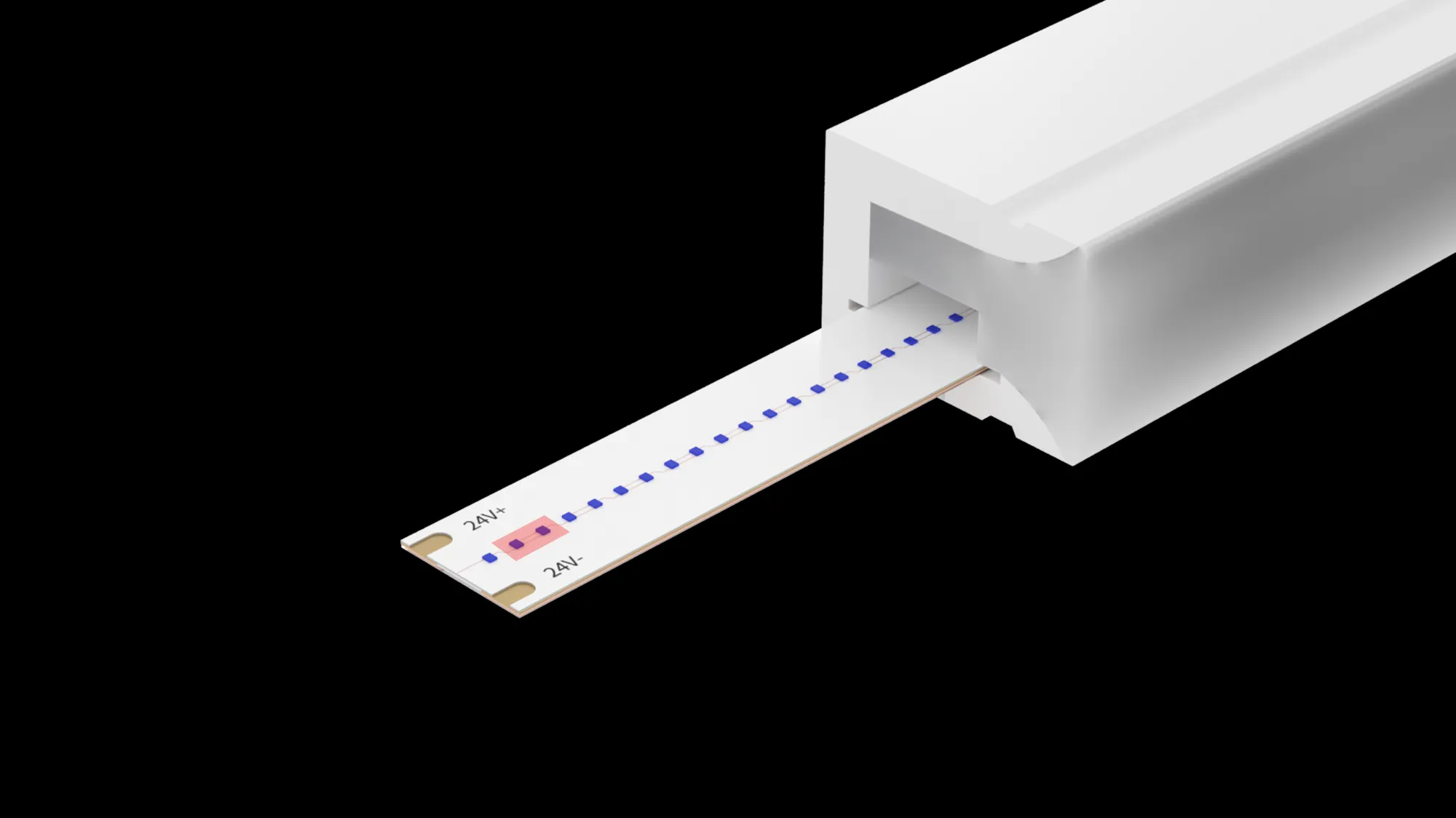

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable
Anti-Dead Chips Without Dark Area
Dual chips parallel LEDs technology,special chip design, single chip breakage no affect the light effect

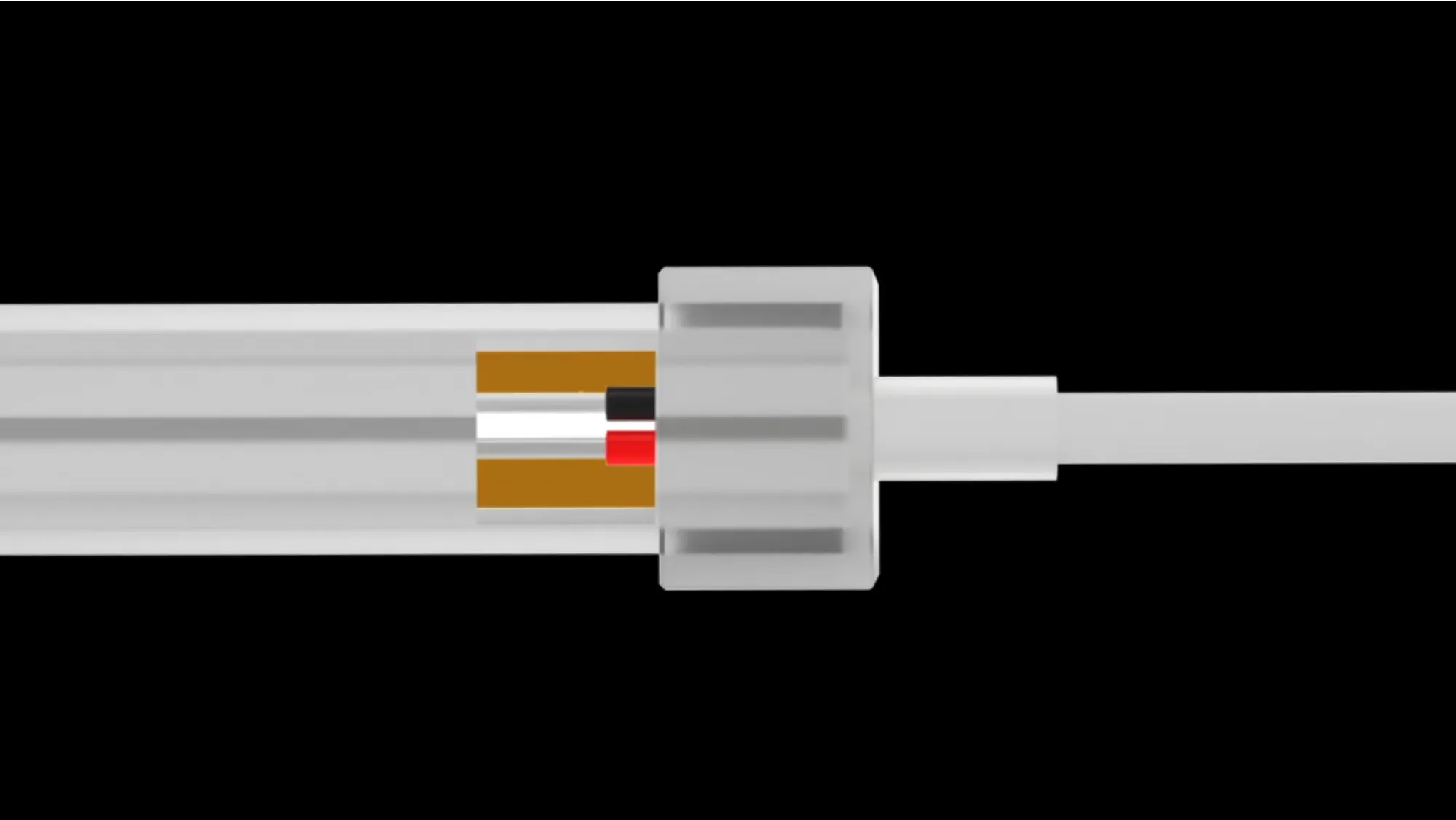

Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces

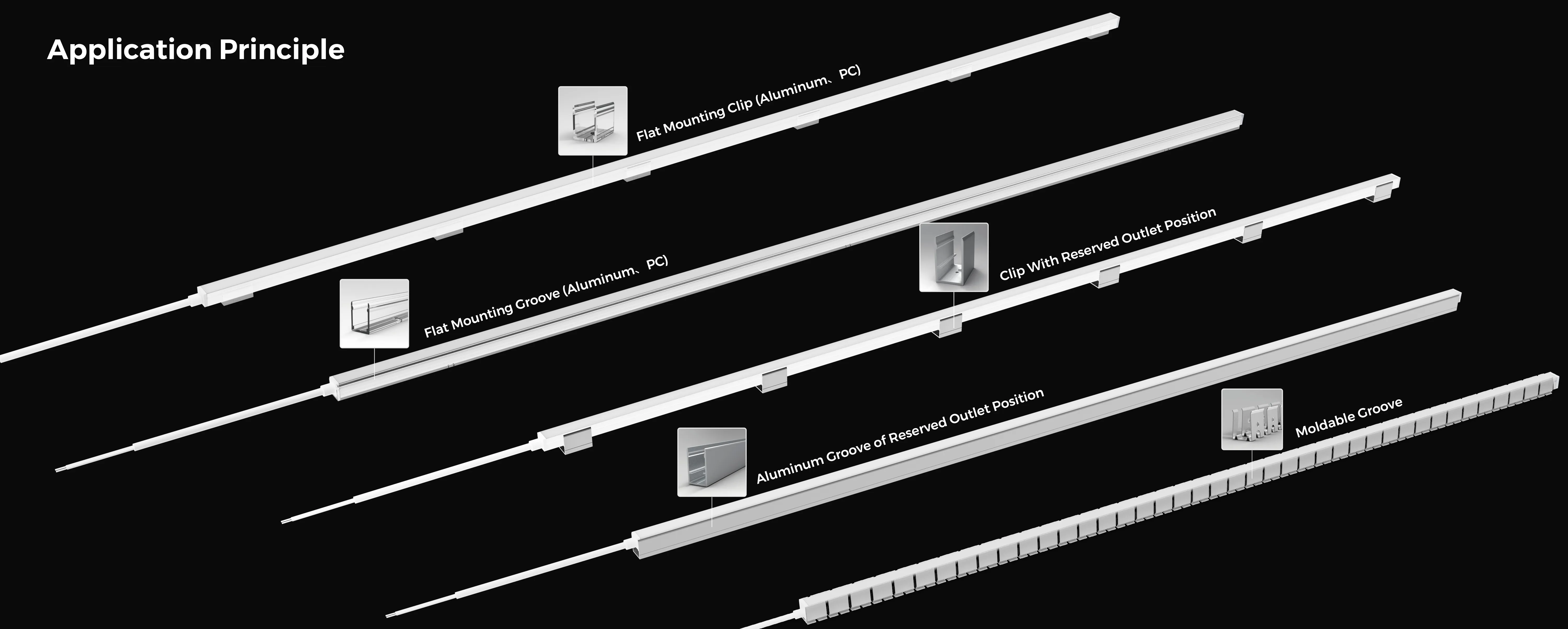

Application Principle

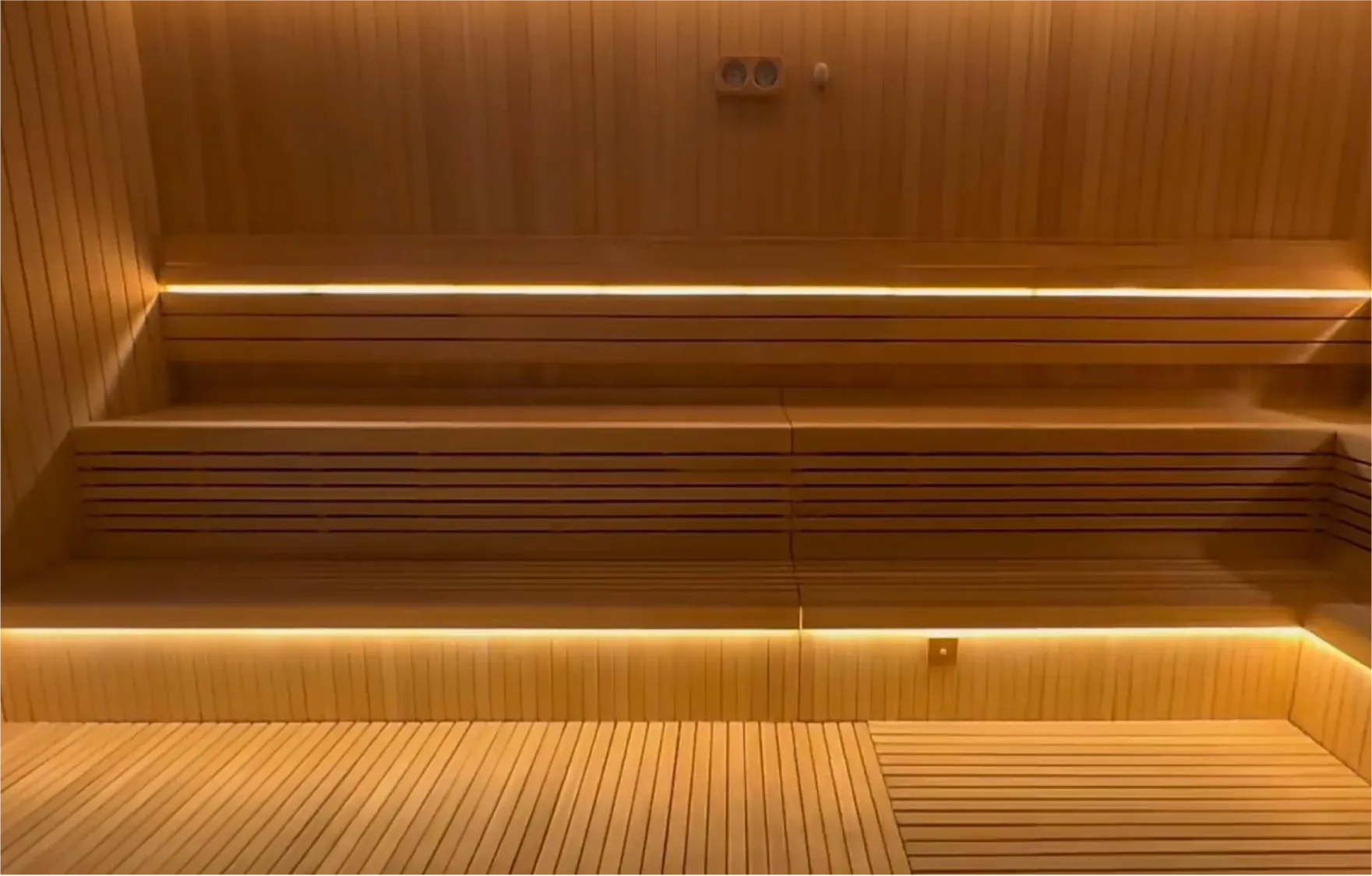

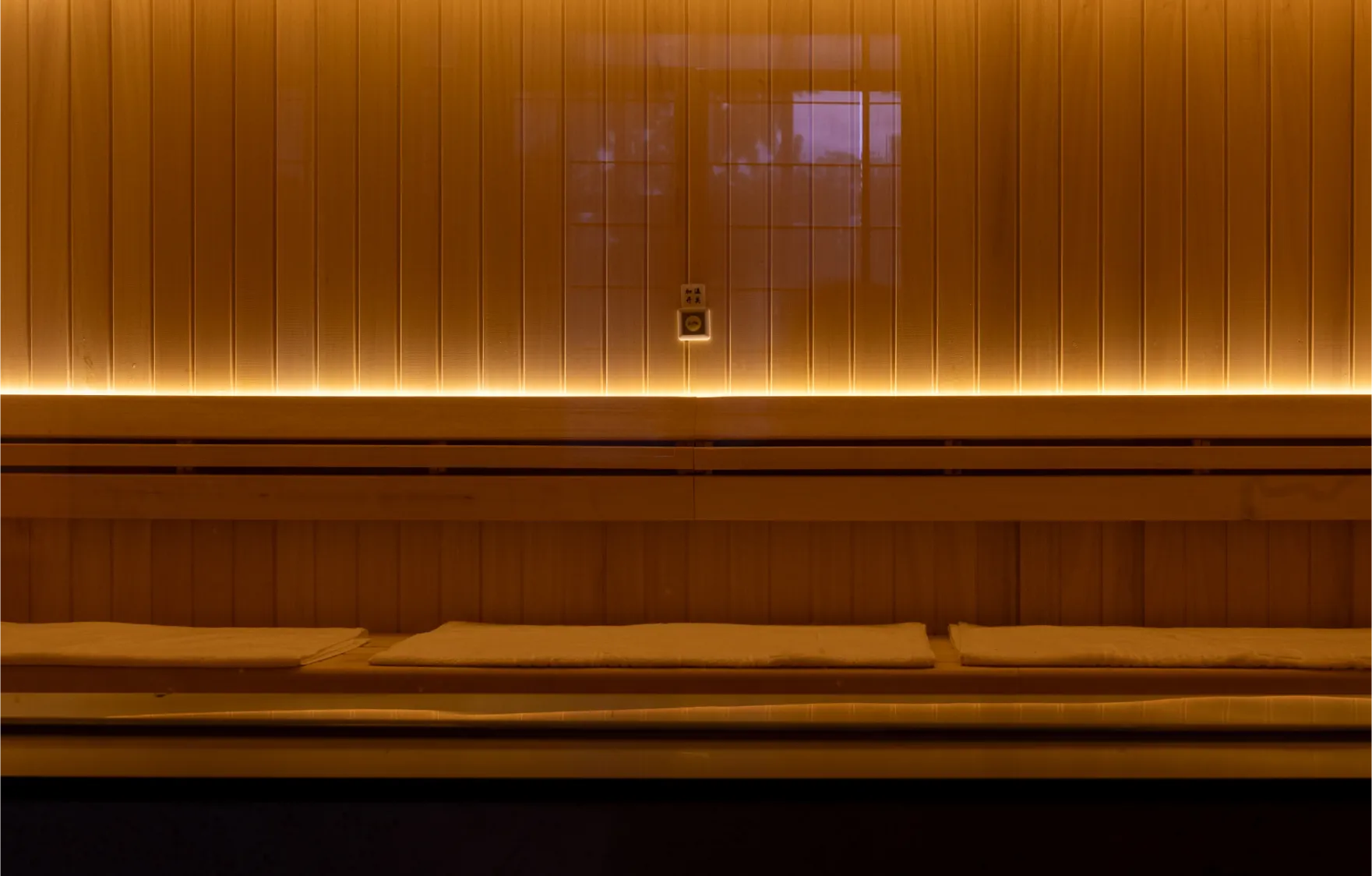

Scenario Case
Ordering Code
Optional Model

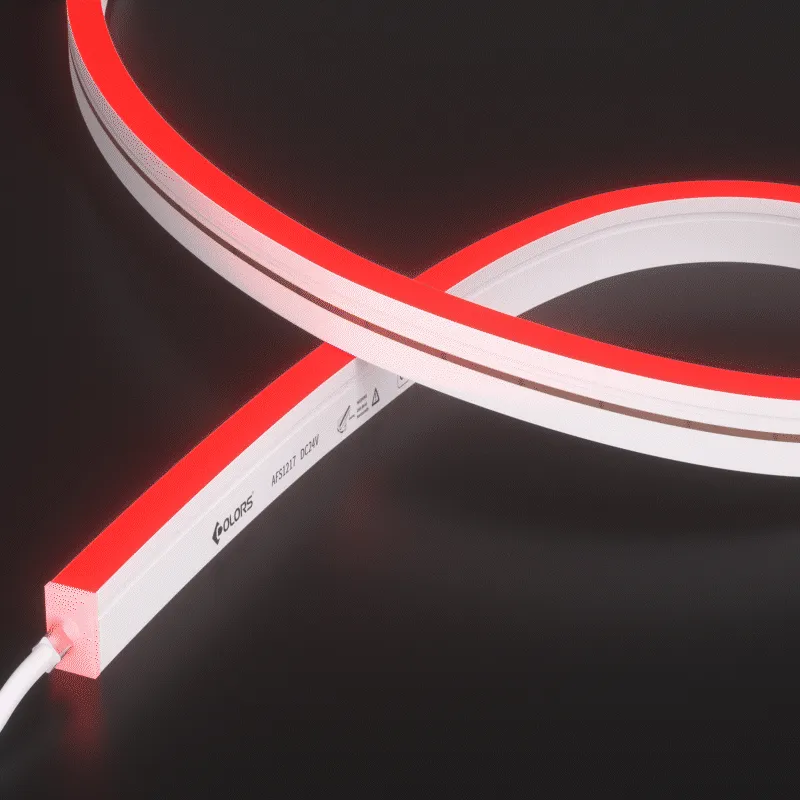

ANS1217-RGB-24V
ANS1217-White light-24V
ANS1217-RGB-24V
Basic parameter
IP Process
IP67
Warranty
5 Years
Cutting Unit
50 mm
Leds Qty
360LEDs/m
Typ.power
7.2W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
RGB
24V
0.3
(0.09A/ft)
7.2
(2.20W/ft)
7.9
(2.41W/ft)
108(33LM/ft)
5000mm
(16.4ft)
6*3LED/50mm
Accessories Type
Installation accessory
End cap accessory
Cable accessory
Supporting accessory
Monochrome-Remote control
Controller
Other
Size
Name
Model
Description
Quantity
Application

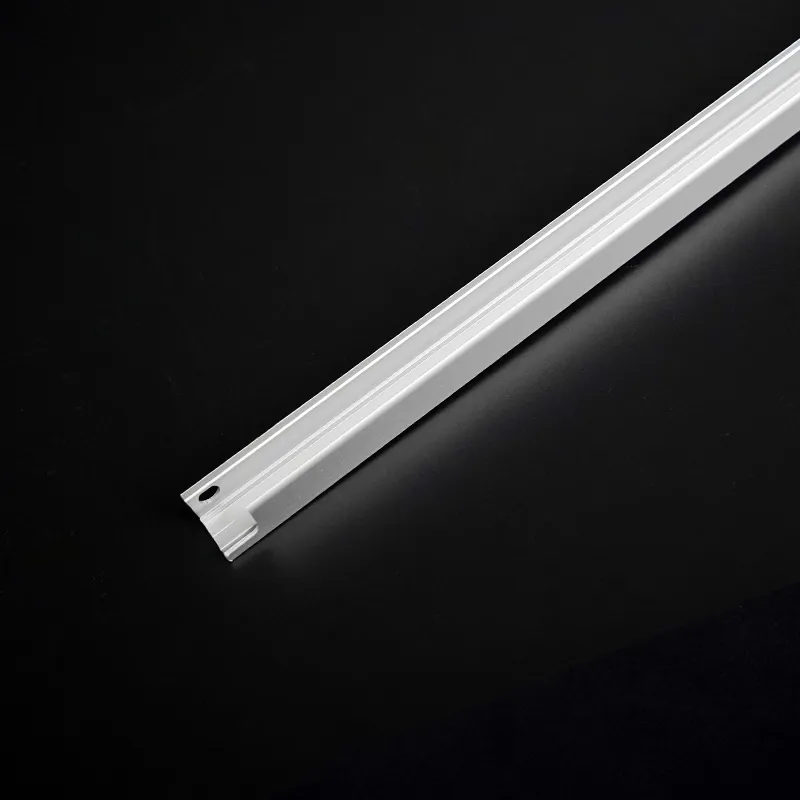

AS-AFS1217A4-1000
AS-AFS1217A4-1000
Product model:AS-AFS1217A4-1000，Side opening card slot
Installation method：Flat Mounting
Coating：Silver
Size：1000*14.4*18.9mm
Quantity: 1PCS/ set,Side opening card slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-AFS1217A4-35
AS-AFS1217A4-35
Product model:AS-AFS1217A4-35，Side opening clip
Installation method：Flat Mounting
Coating：Silver
Size：35*14.4*18.9mm
Quantity: 1PCS/ set,Side-opening clip, screws
Recommended dosage:3PCS/M
Applicable product model：1616 neon strips

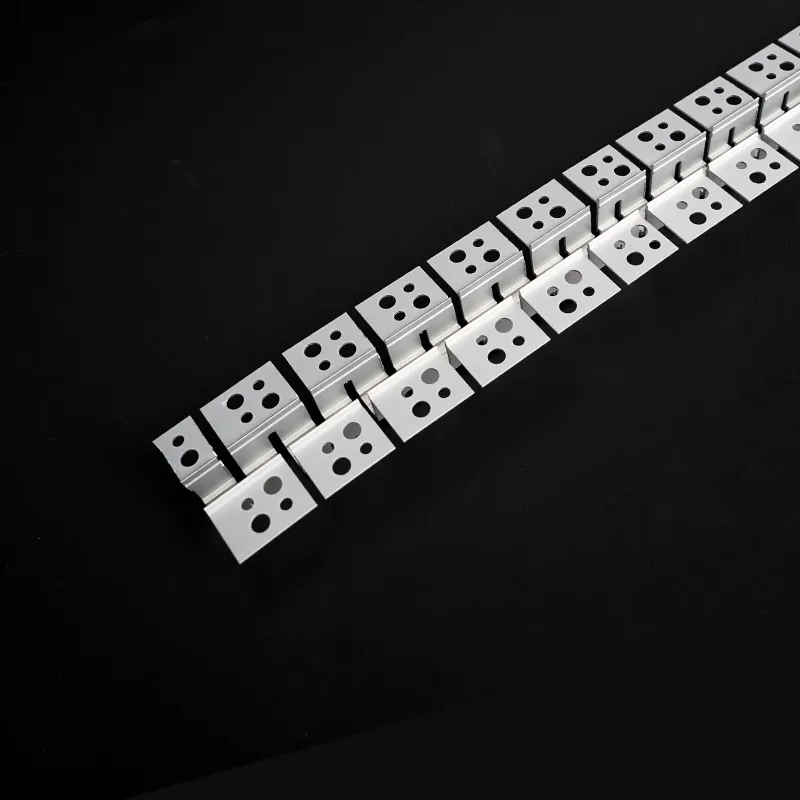

AS-AFS1217A5-1000
AS-AFS1217A5-1000
Product model:AS-AFS1217A5-1000,Recessed Shaped Slot
Installation method：Recessed installation
Coating：Silver
Size：1000*54.8*19.1mm
Quantity: 1PCS/ set,Recessed Shaped Slot, screws
Recommended dosage:1PCS/M
Applicable product model：1217 neon strips
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-NMS1217A
AS-NMS1217A
Product model:AS-NMS1217A，NMS1217 Flat Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：LXXXX*W14.4*H18.85
Applicable product model：NMS1217/NNS1224
1PCS/ SET
