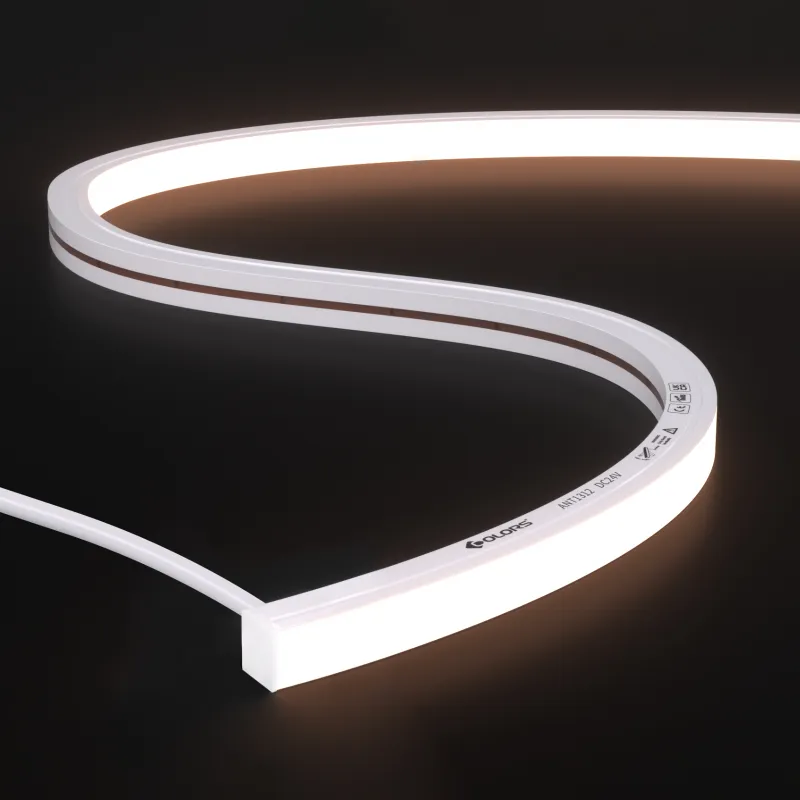

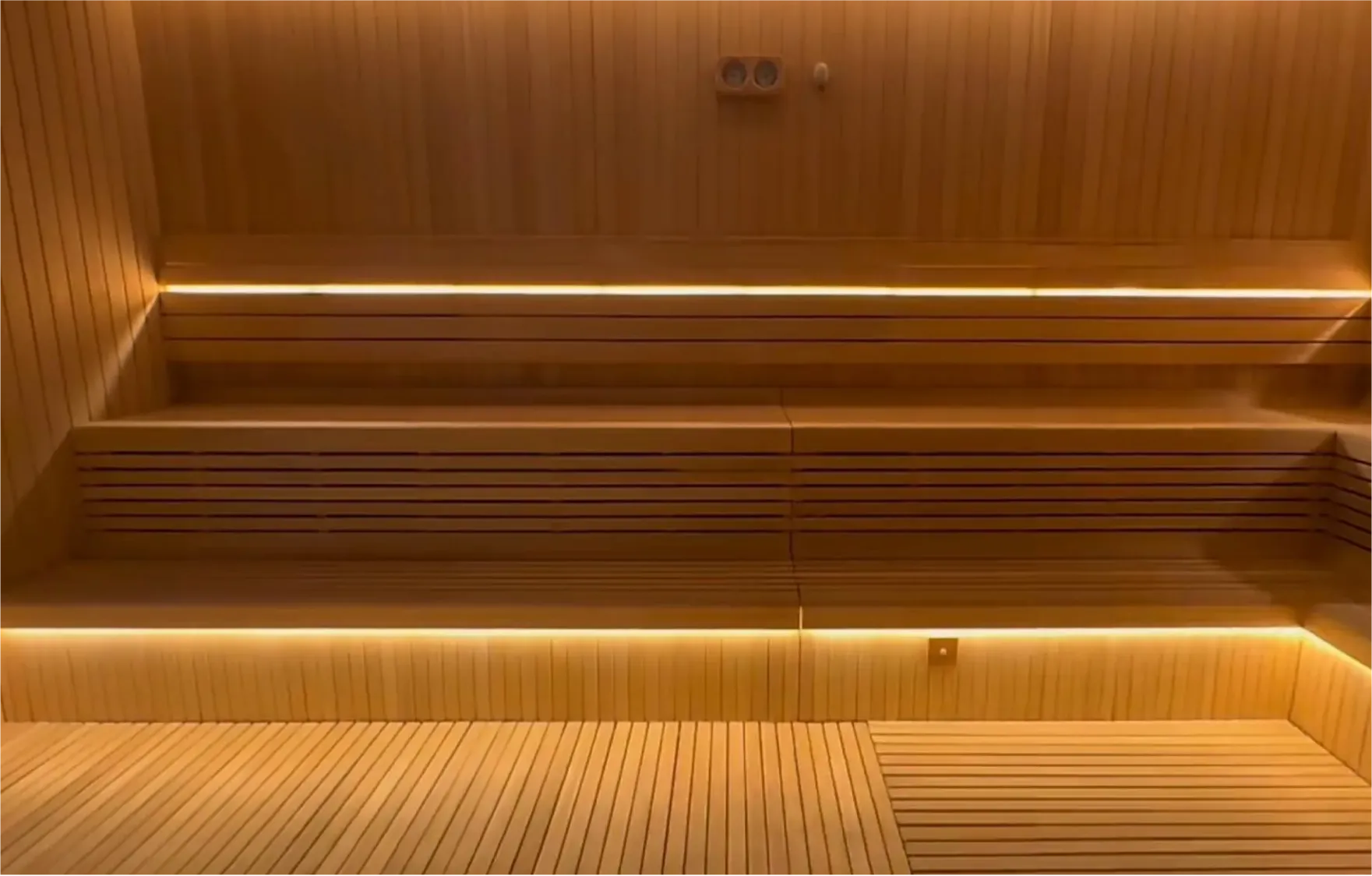

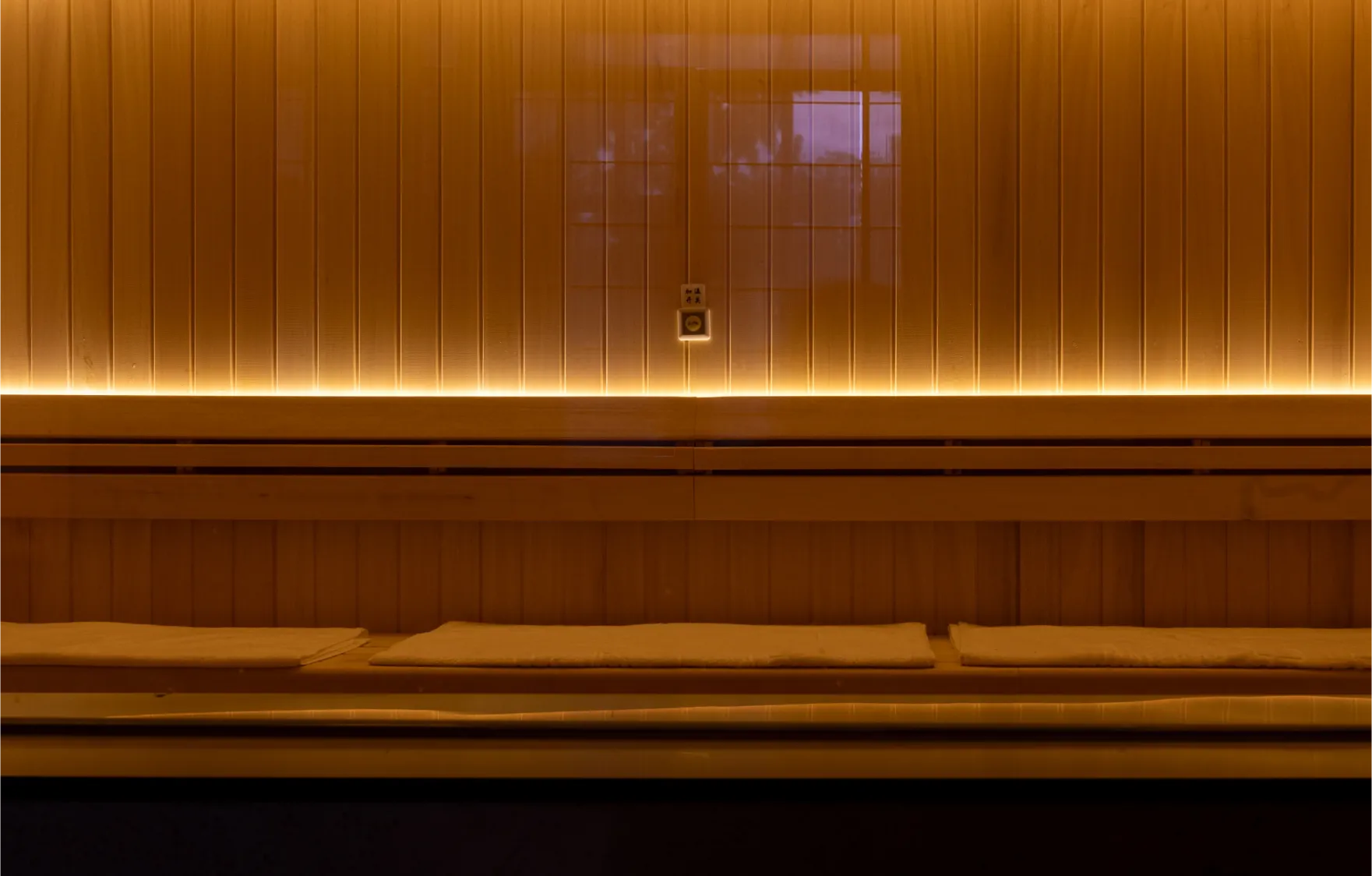

5-year warranty, high reliability; 1600K Sauna Color/RGB; Max.15m @24V; For Sauna & High temperature Use.

Feature

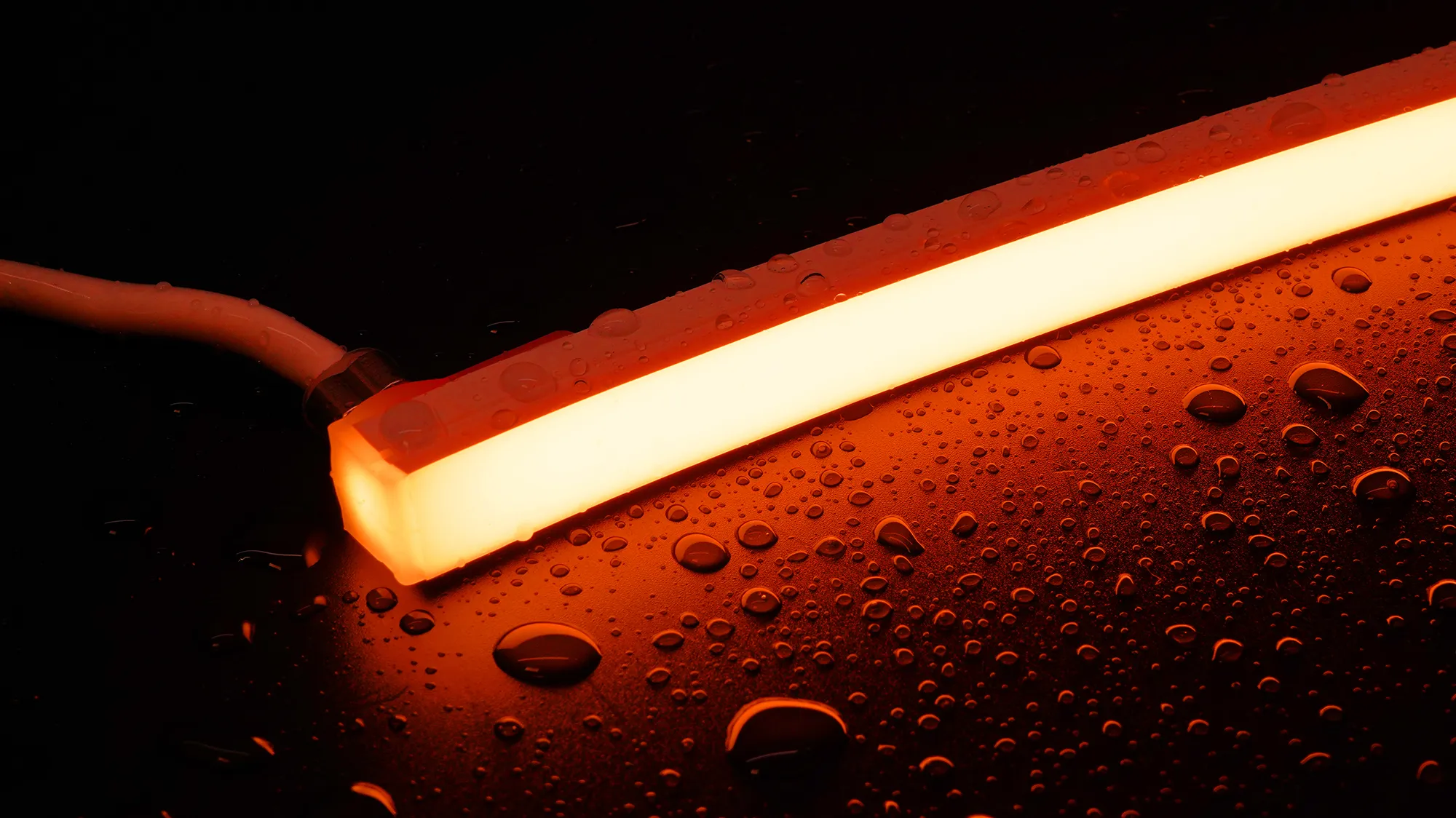

  • 1600K, The Temperature Of A Campfire
  • High-Temperature & Heat Wave Resistance

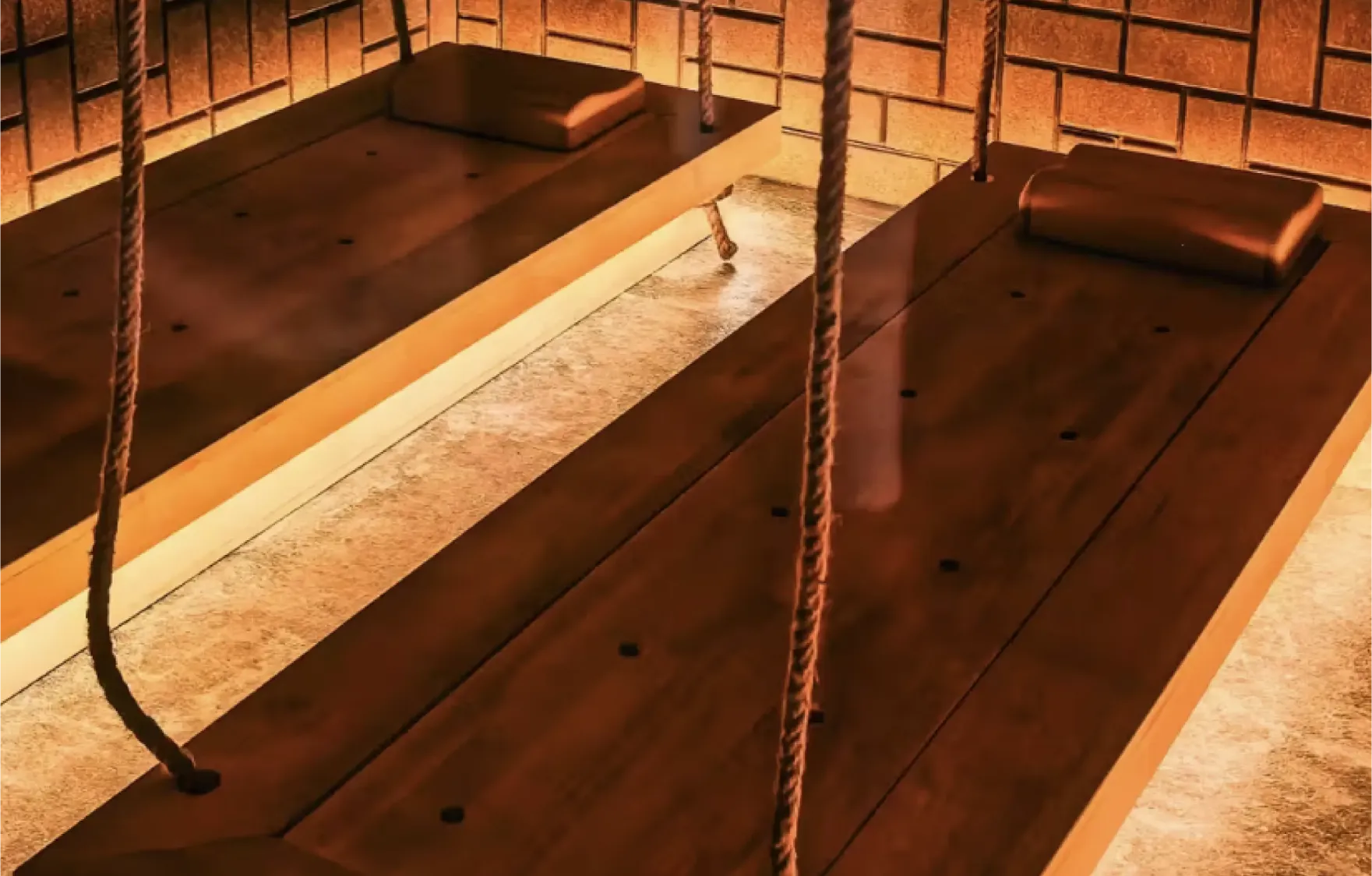

  • 125°C Max, Resistant To High Temperatures And High Humidity (Sauna Strip)
  • Excellent Protective Performance
  • Anti-Breakage PCB Are More Durable
  • Anti-Dead Chips Without Dark Area
  • Withstands Installation Stresses

Certification

General Info

Application
outdoor
IK Rating
IK08
IP Rating
IP67
Operating Temperature
-40~110℃
Storage Temperature
0℃~60℃
Warranty
5years
Certifications
UKCA、CE、UL、CB、RoHS、REACH, UKCA、CE、UL、RoHS、REACH

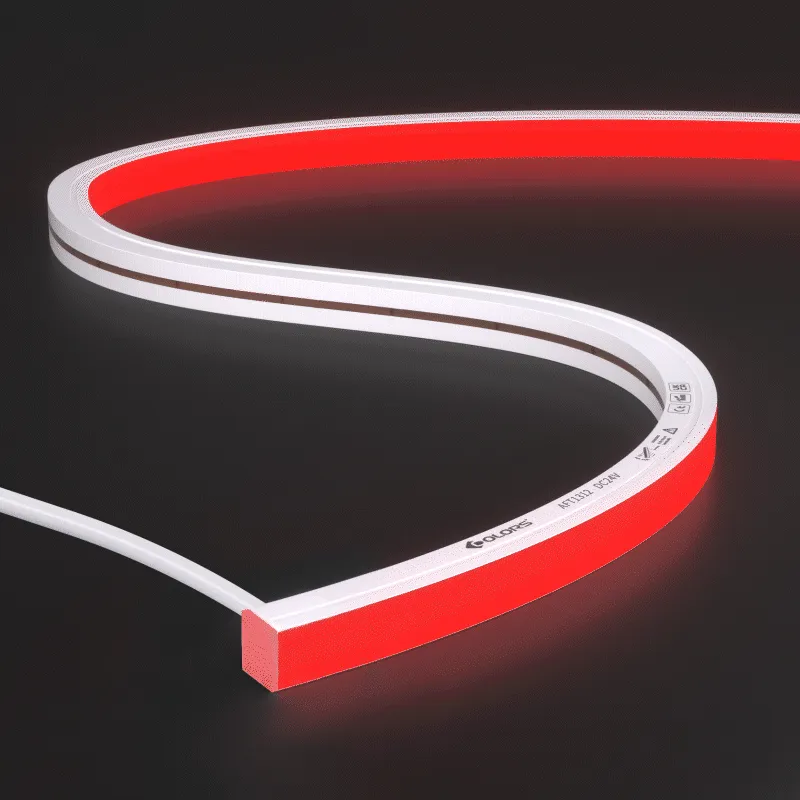

Bend Direction
Top-Bend

Electrical Info

System Power
5W/M, 7.2W/M
Max-Run(Single-End Feed)
5m, 15m
Input Voltage
DC24V
Electrical Insulation Class
Class III

Optical Info

LED Type
COF, CSP
CRI
N/A, Ra90+
CCT
1600K, 2200K, 2700K, 3000K, 4000K, 6500K, RGB
Cutting Unit
50mm
LED QTY
320LEDs/m, 360LEDs/m

Download

Model

CRI

Filter by CRI

CCT

Filter by CCT
2 matching product codes

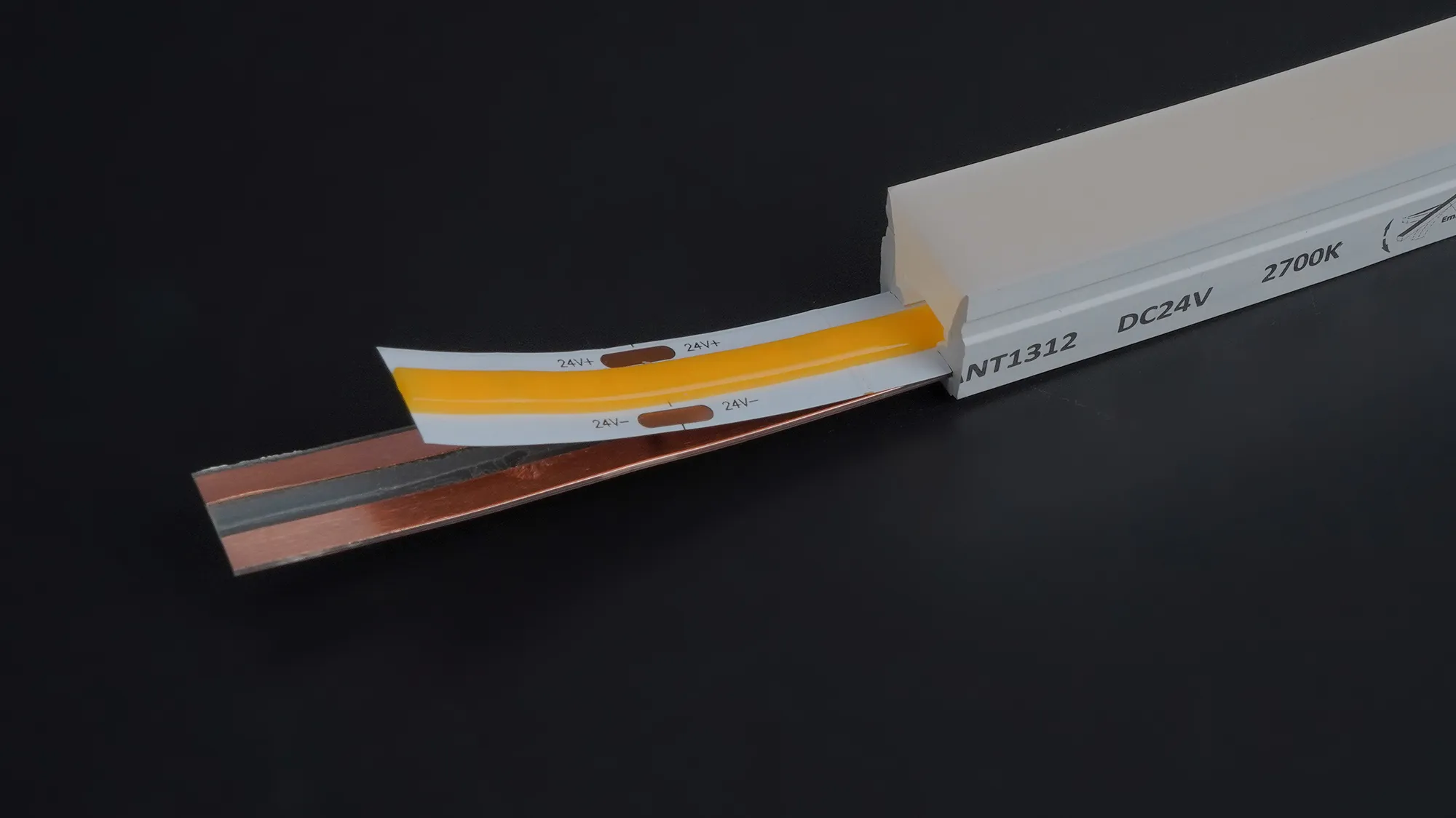

ANT1312-White light-24V

ANT1312-White light-24V

ORDER NOW
NameInput Voltagefield47CRICCTSystem OutputLuminous EfficacyWarrantyDownload
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,1600KDC24V5 W/m[1.53 W/ft]Ra90+1600K180 lm/m[55 lm/ft]36 lm/W5years
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,2200KDC24V5 W/m[1.53 W/ft]Ra90+2200K355 lm/m[108 lm/ft]71 lm/W5years
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,2700KDC24V5 W/m[1.53 W/ft]Ra90+2700K370 lm/m[113 lm/ft]74 lm/W5years
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,3000KDC24V5 W/m[1.53 W/ft]Ra90+3000K390 lm/m[119 lm/ft]78 lm/W5years
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,4000KDC24V5 W/m[1.53 W/ft]Ra90+4000K410 lm/m[125 lm/ft]82 lm/W5years
ANT1312-White light-24V,5 W/m[1.53 W/ft],Ra90+,6500KDC24V5 W/m[1.53 W/ft]Ra90+6500K460 lm/m[140 lm/ft]92 lm/W5years
ANT1312-RGB-24V

ANT1312-RGB-24V

ORDER NOW
NameInput Voltagefield47CRICCTSystem OutputLuminous EfficacyWarrantyDownload
ANT1312-RGB-24V,7.2 W/m[2.19 W/ft],N/A,RGBDC24V7.2 W/m[2.19 W/ft]N/ARGB158 lm/m[48 lm/ft]22 lm/W5years
