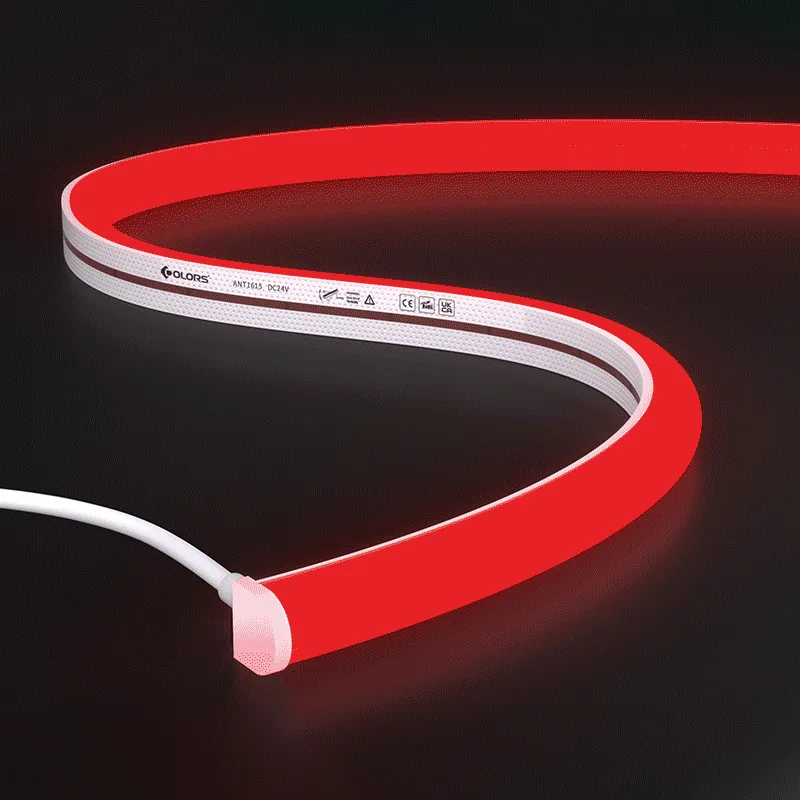

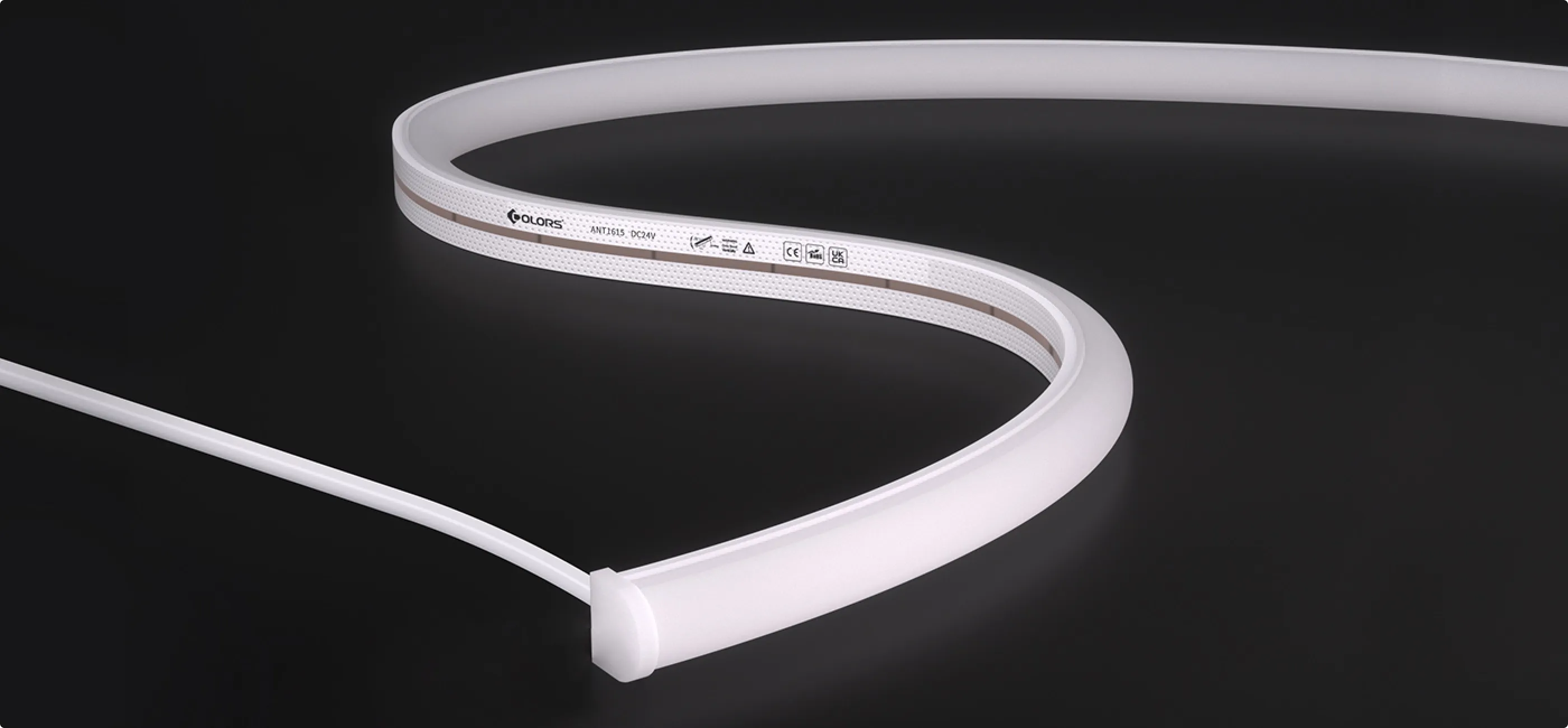

ANT1615
Discover AN Series5-year warranty, high reliability; 1600K Sauna Color/RGB; Max.15m @24V; For Sauna & High temperature Use.
Key Features
1600K, The Temperature Of A Campfire
With an exclusively crafted sauna color to create a more comfortable and relaxing atmosphere

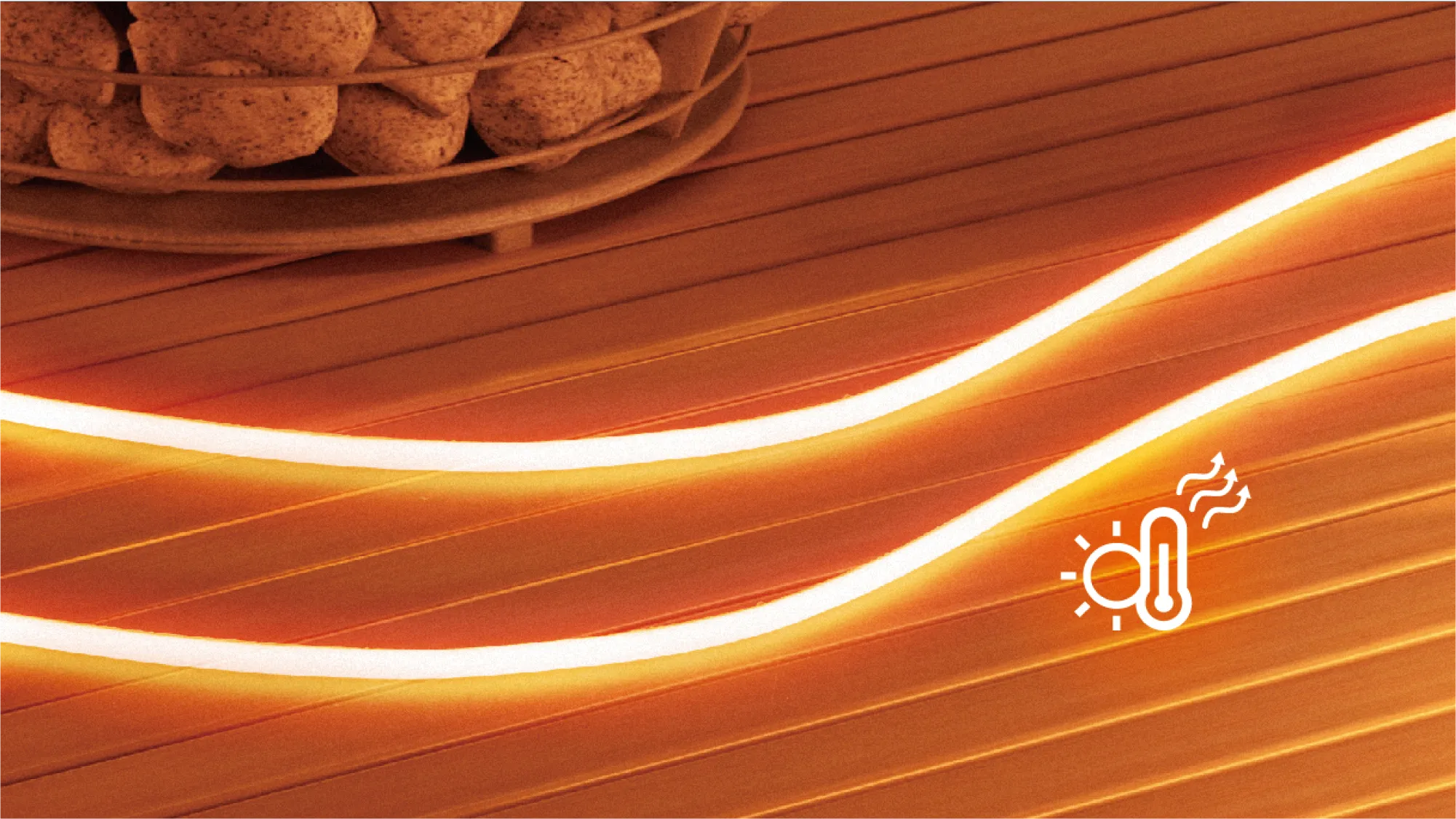

High-Temperature & Heat Wave Resistance

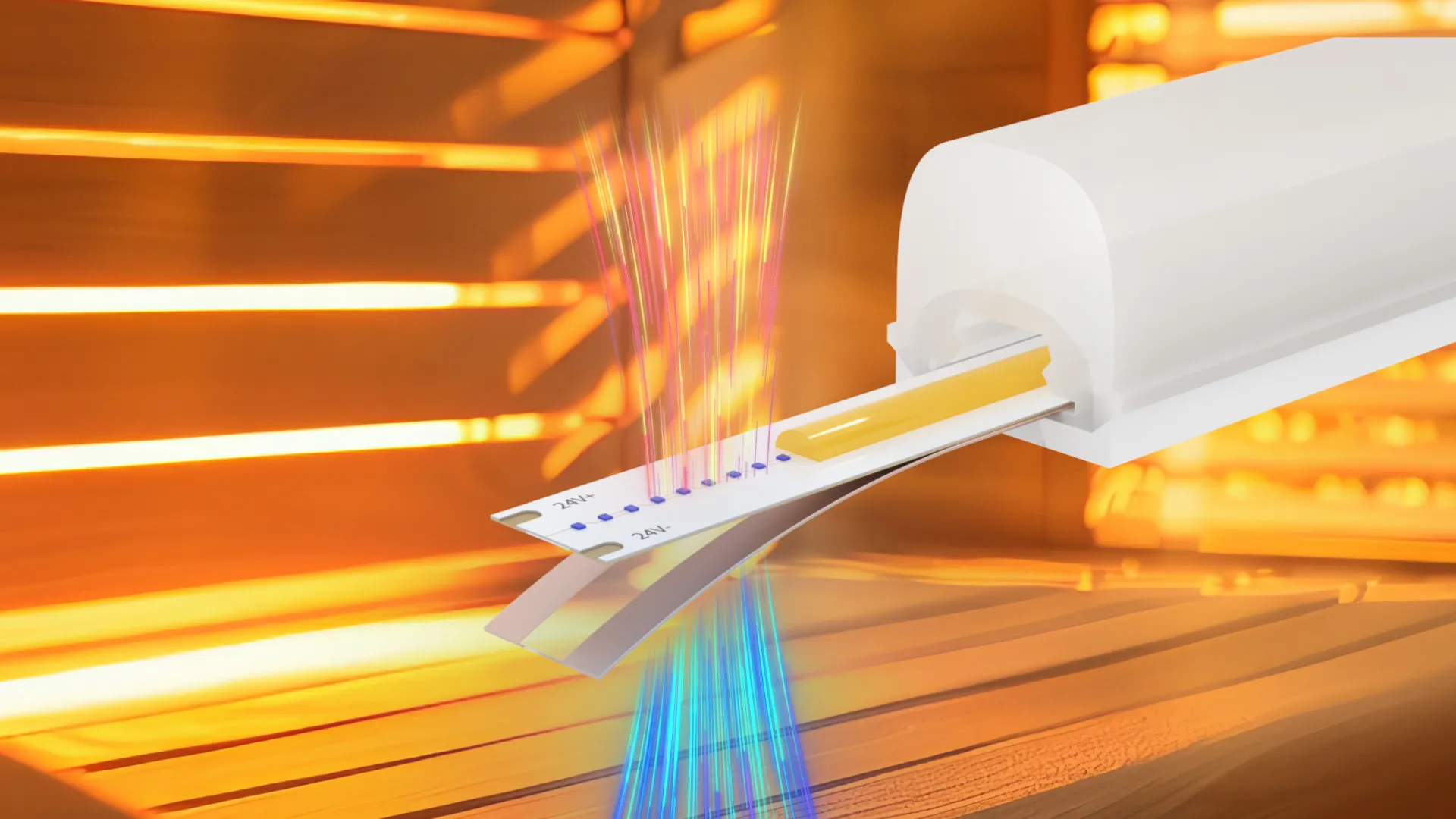

The Flip-Chip for direct heat dissipation, up to 110 ° C temperature resistance, special for sauna environment installation
125°C Max, Resistant To High Temperatures And High Humidity (Sauna Strip)

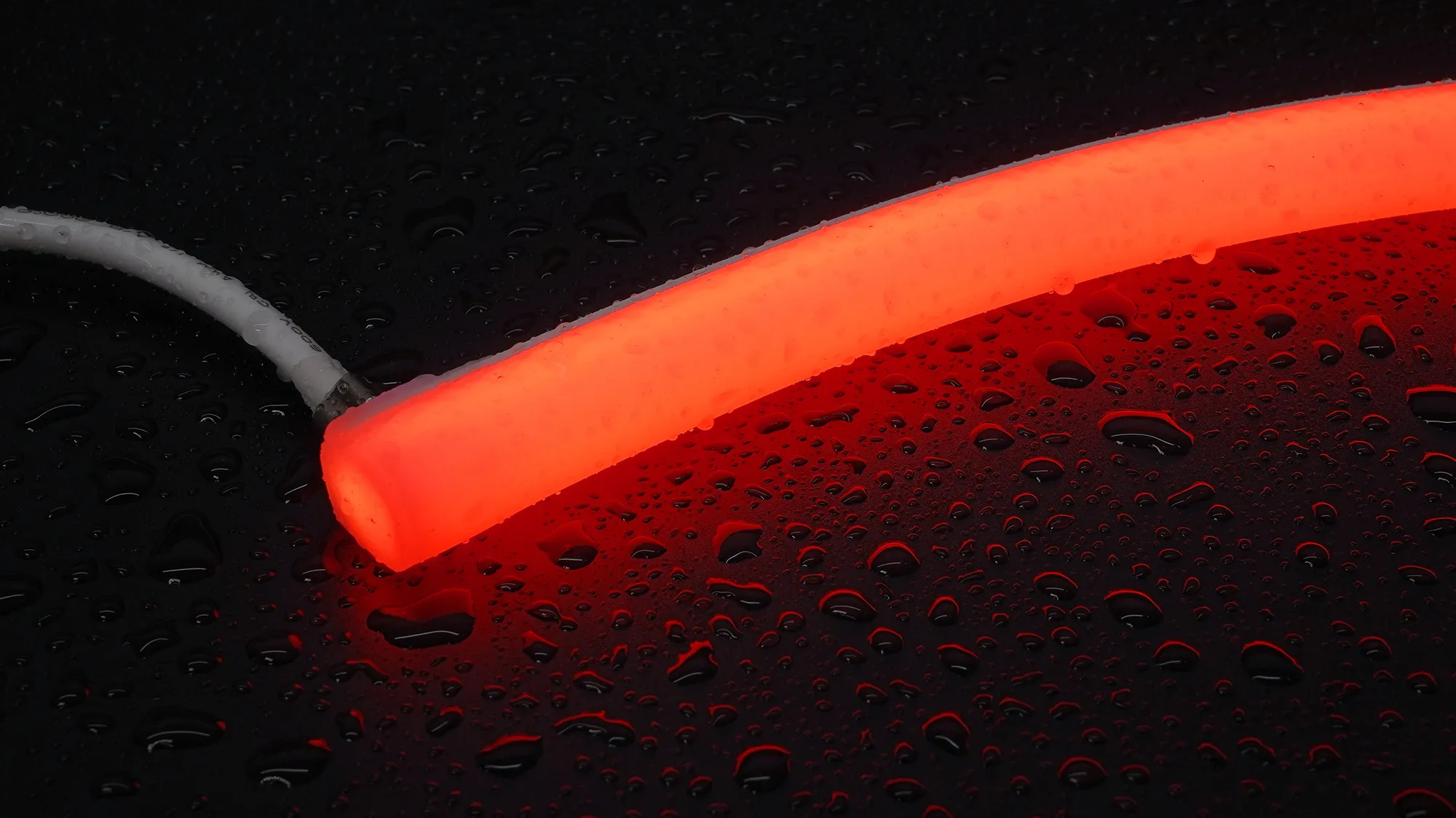

Excellent Protective Performance

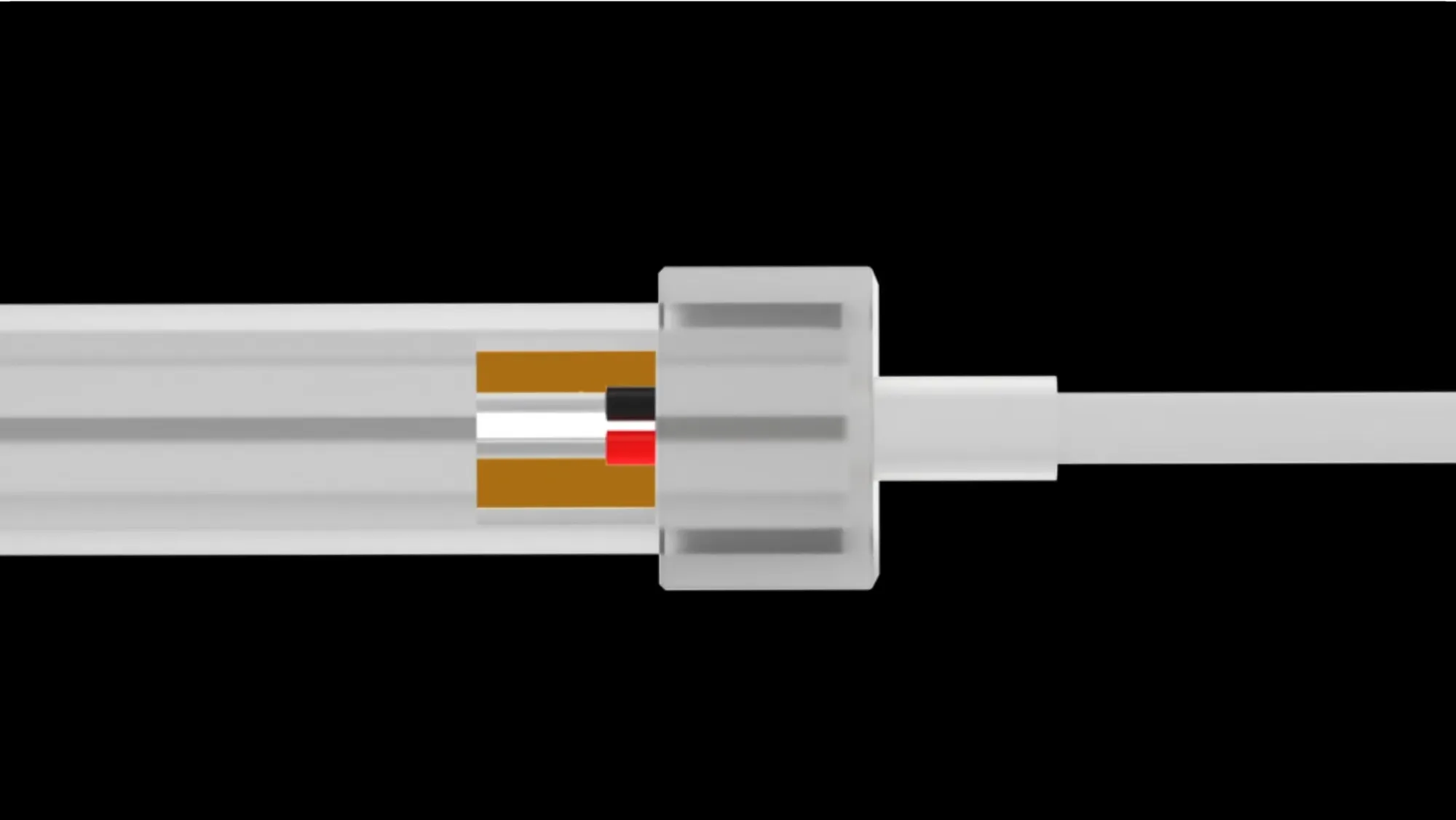

IP67 one-piece molded end caps resist thermal expansion/contraction-induced siphoning and withstand sauna moisture, condensation, etc.

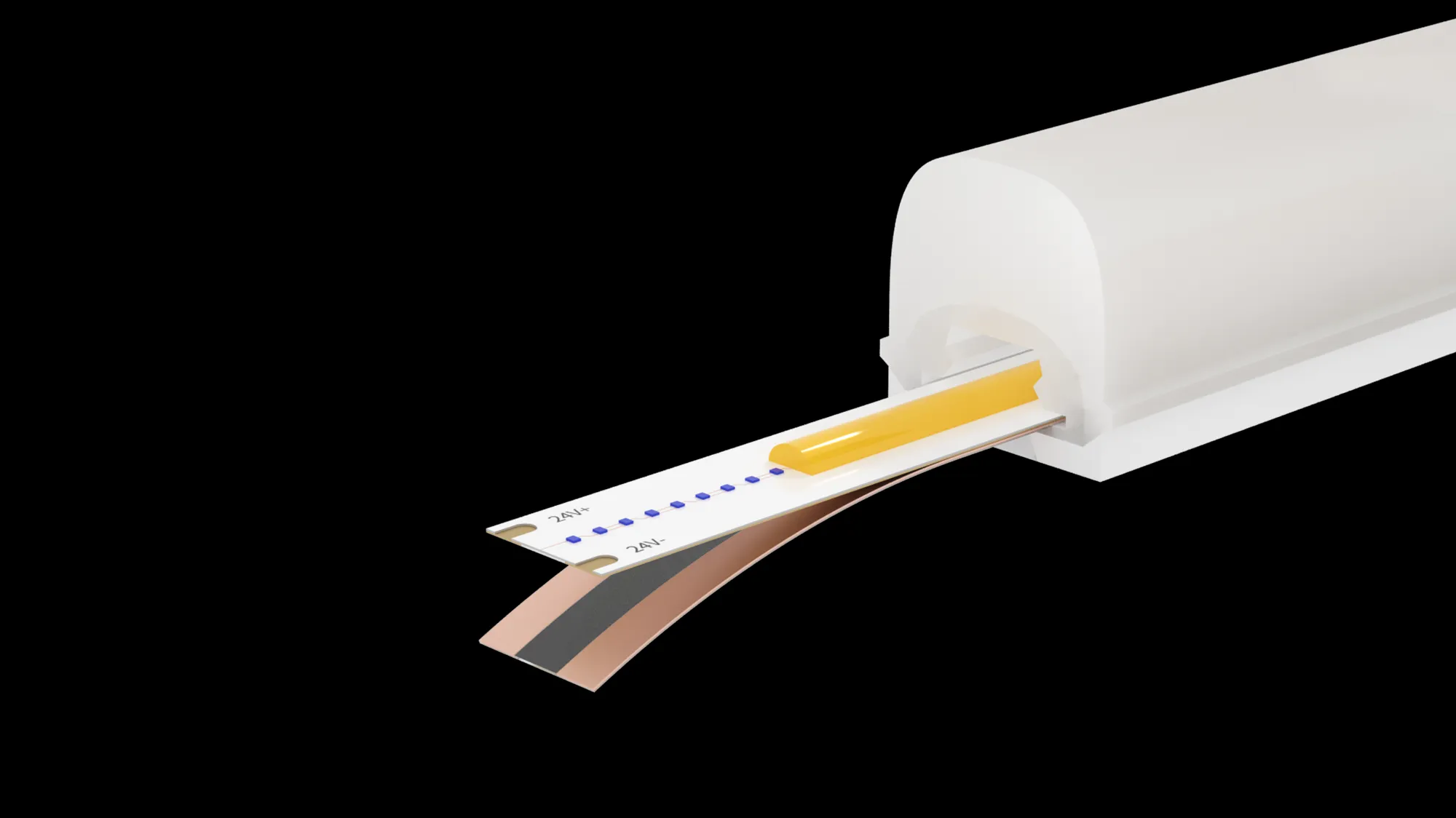

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti-breakage PCB is more durable

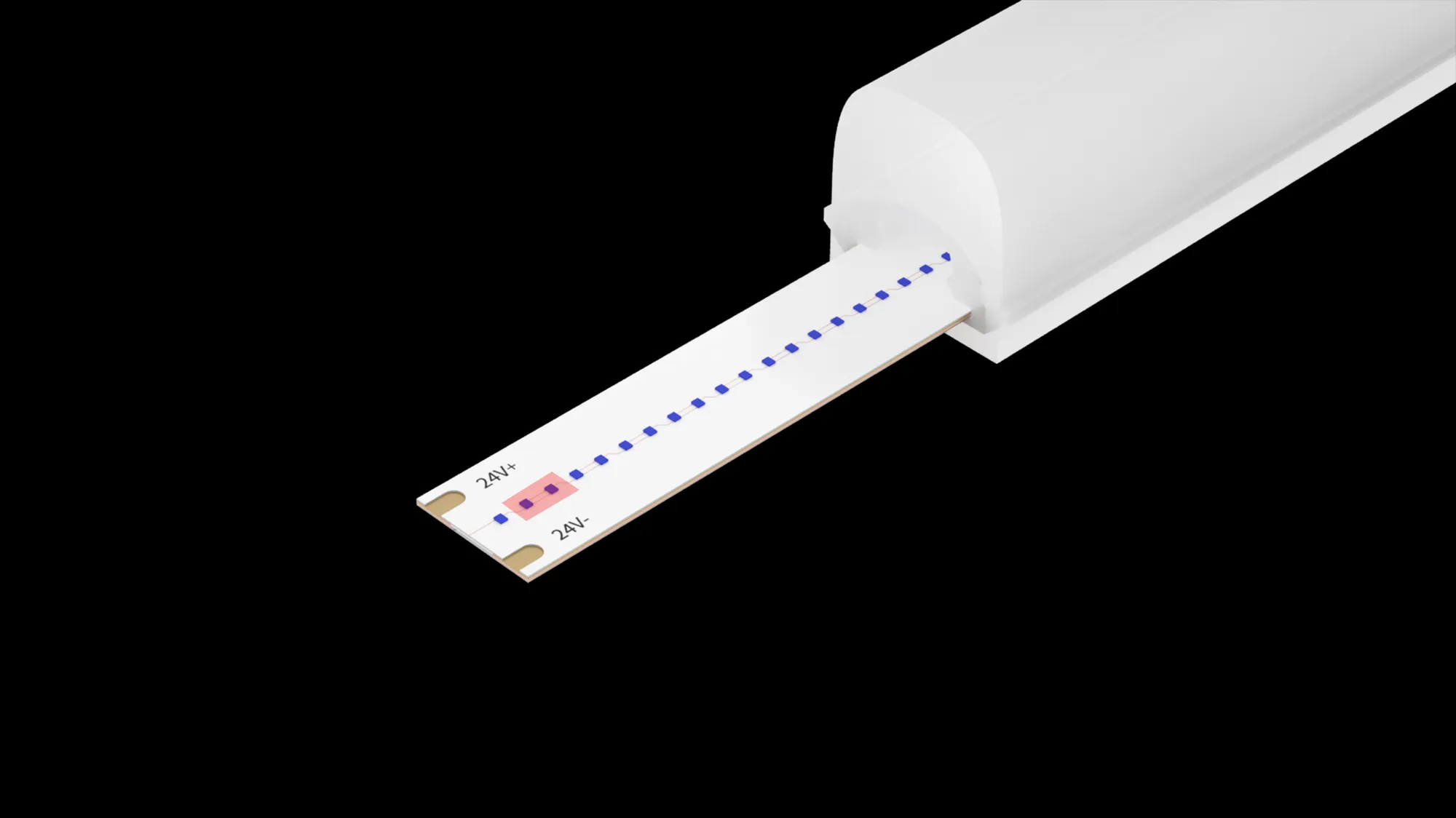

Anti-Dead Chips Without Dark Area
Dual chips parallel LEDs technology,special chip design, single chip breakage no affect the light effect
Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces

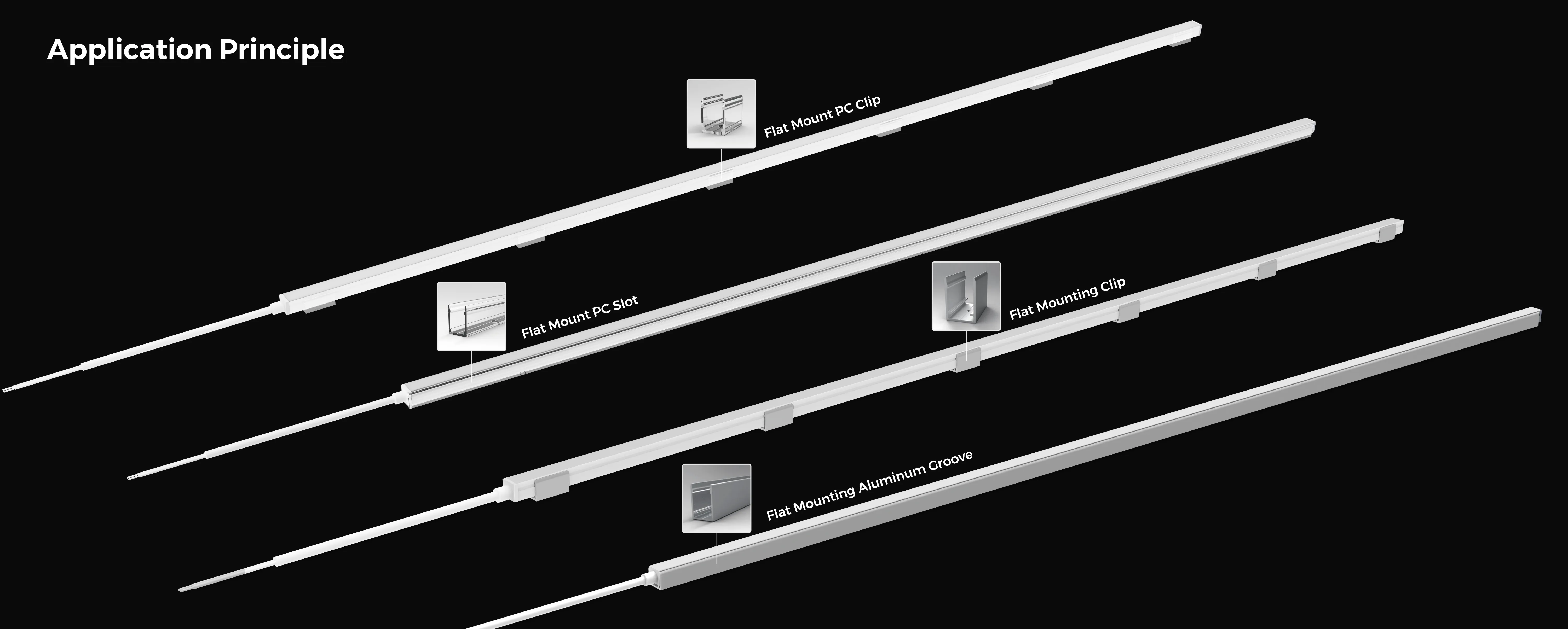

Application Principle

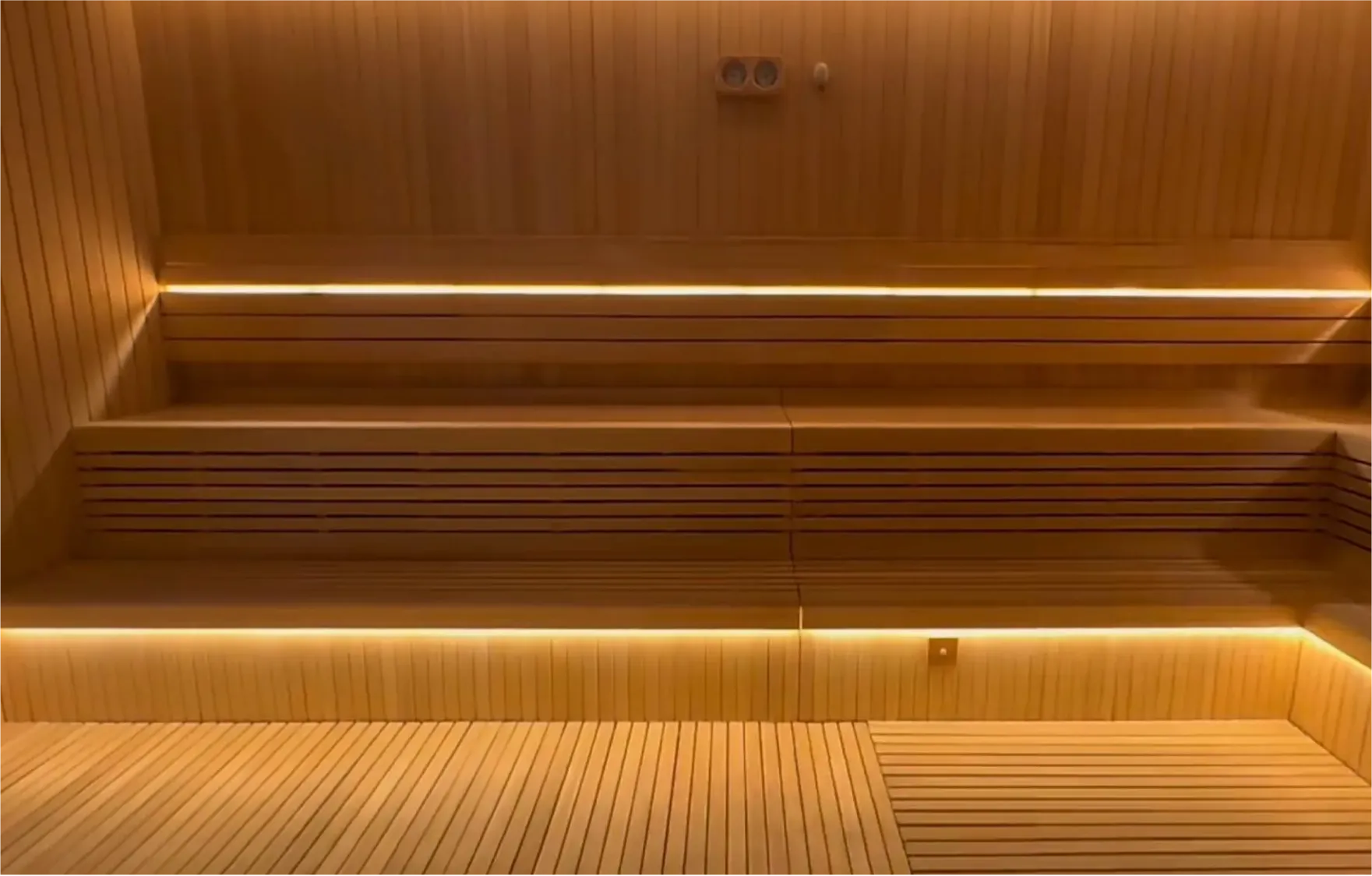

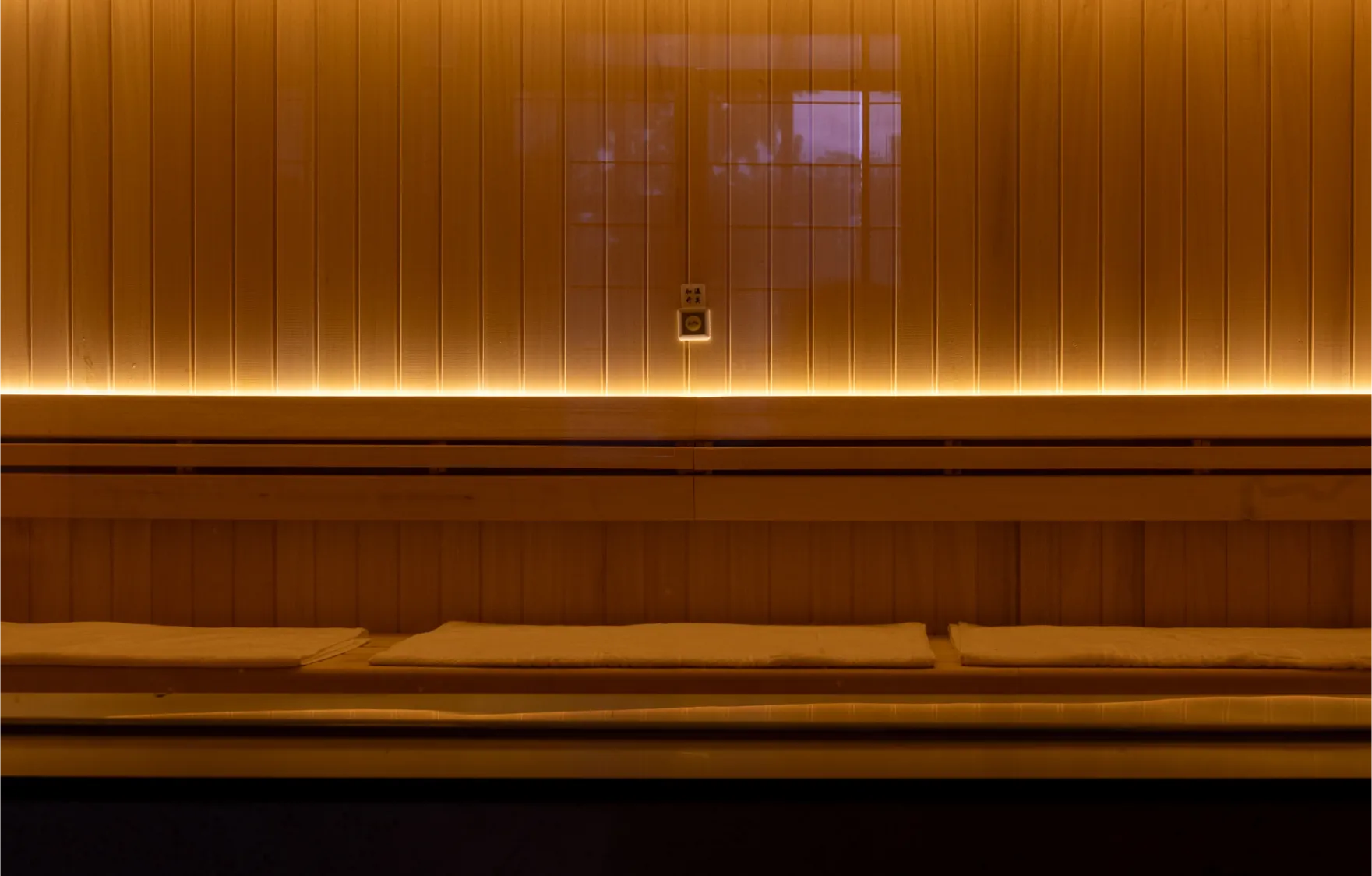

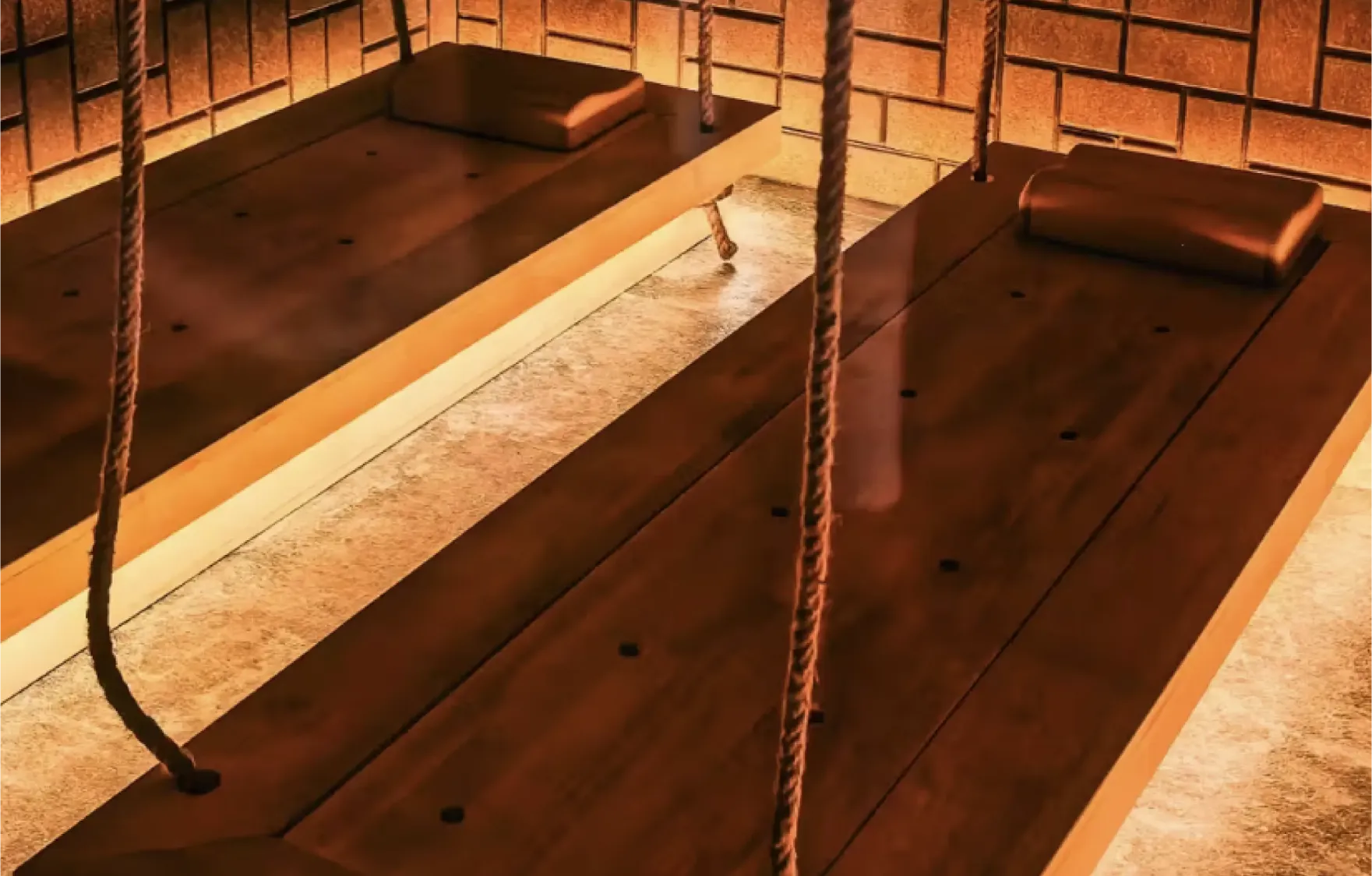

Scenario Case
Ordering Code
Optional Model
ANT1615-RGB-24V

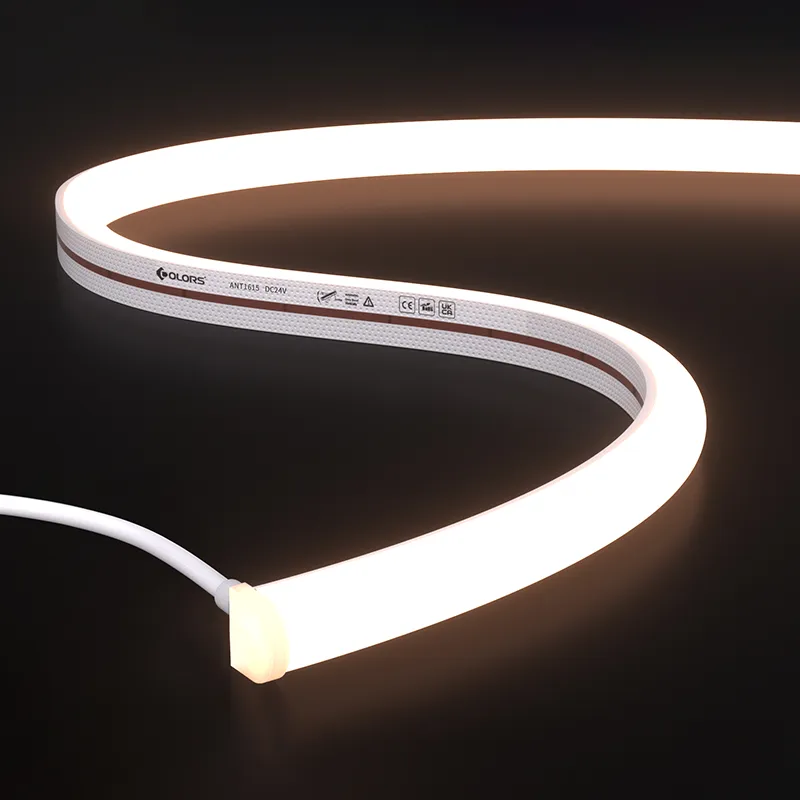

ANT1615-White light-24V
ANT1615-RGB-24V
Basic parameter
IP Process
IP67
Warranty
5 Years
Cutting Unit
50 mm
Leds Qty
360LEDs/m
Typ.power
7.2W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
RGB
24V
0.3
(0.09A/ft)
7.2
(2.20W/ft)
7.9
(2.41W/ft)
164(50LM/ft)
5000mm
(16.4ft)
6*3LED/50mm
Accessories Type
Installation accessory
End cap accessory
Cable accessory
Supporting accessory

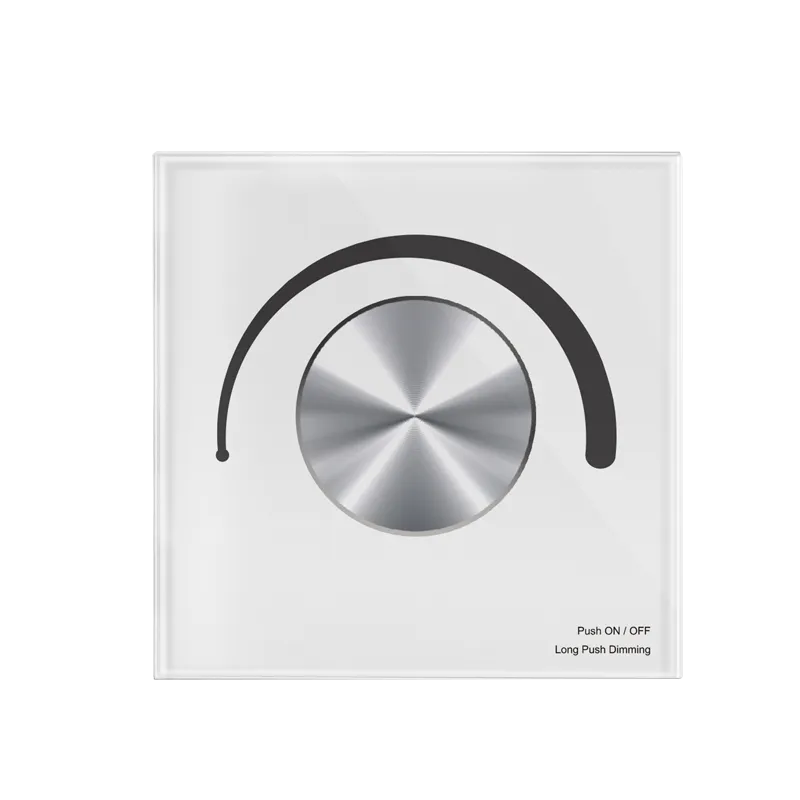

Monochrome-Remote control

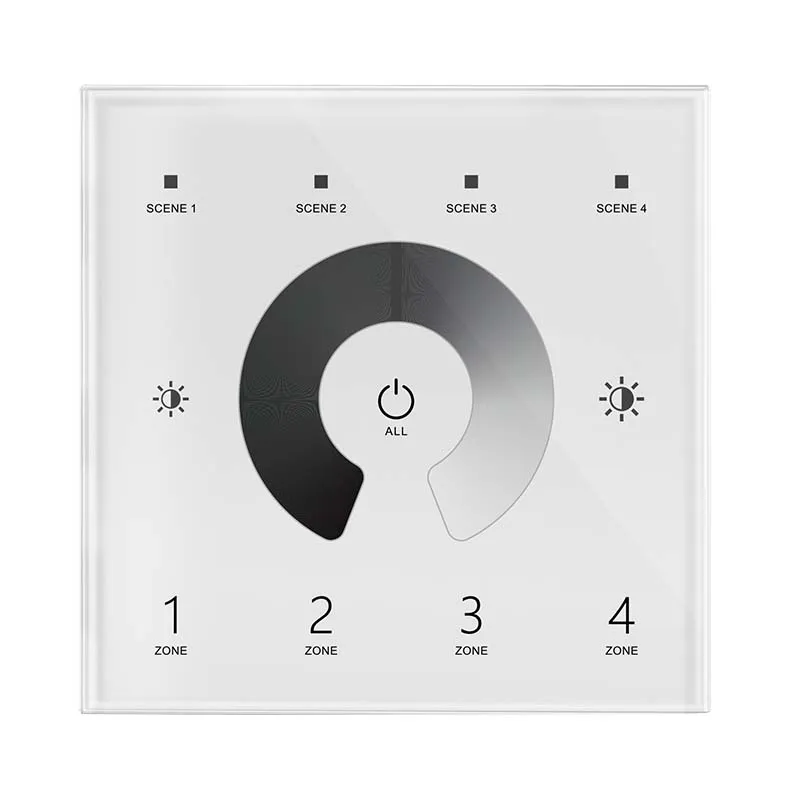

Controller
Size
Name
Model
Description
Quantity
Application
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-NNT1615A-1000
AS-NNT1615A-1000
Product model:AS-NNT1615A-1000，NNT1615 Flat Patch Mounting Aluminum Groove
Installation method：Flat Mounting
Coating：Silver
Size：L1000*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615
AS-NNT1615A-25
AS-NNT1615A-25
Product model:AS-NNT1615A-25，NNT1615 Flat Patch Mounting Aluminum Clip
Installation method：Flat Mounting
Coating：Silver
Size：L25*W17.8*H7.91
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：NNT1615
AS-NNT1615GH0-EC
AS-NNT1615GH0-EC
Product model:AS-NNT1615GH0-EC, NNT1615 translucent silicone plug set
Outlet direction: top
IP:IP65
Included: Translucent silicone plug and end cap
Applicable product model：NNT1615
AS-NNT1615P-1000
AS-NNT1615P-1000
Product model:AS-NNT1615P-1000，NNT1615 Flat Mounting PC Groove
Installation method：Flat Mounting
Coating：Transparent
Size：L1000*W19.4*H7.91
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NNT1615
