AWS2020
Discover AW SeriesUnderwater applications, 3m deep;
IP68 IP69K IK10;
5-year warranty;
T-type TPU;
For Swimming Pool & Sea Water & Onsen.
Key Features

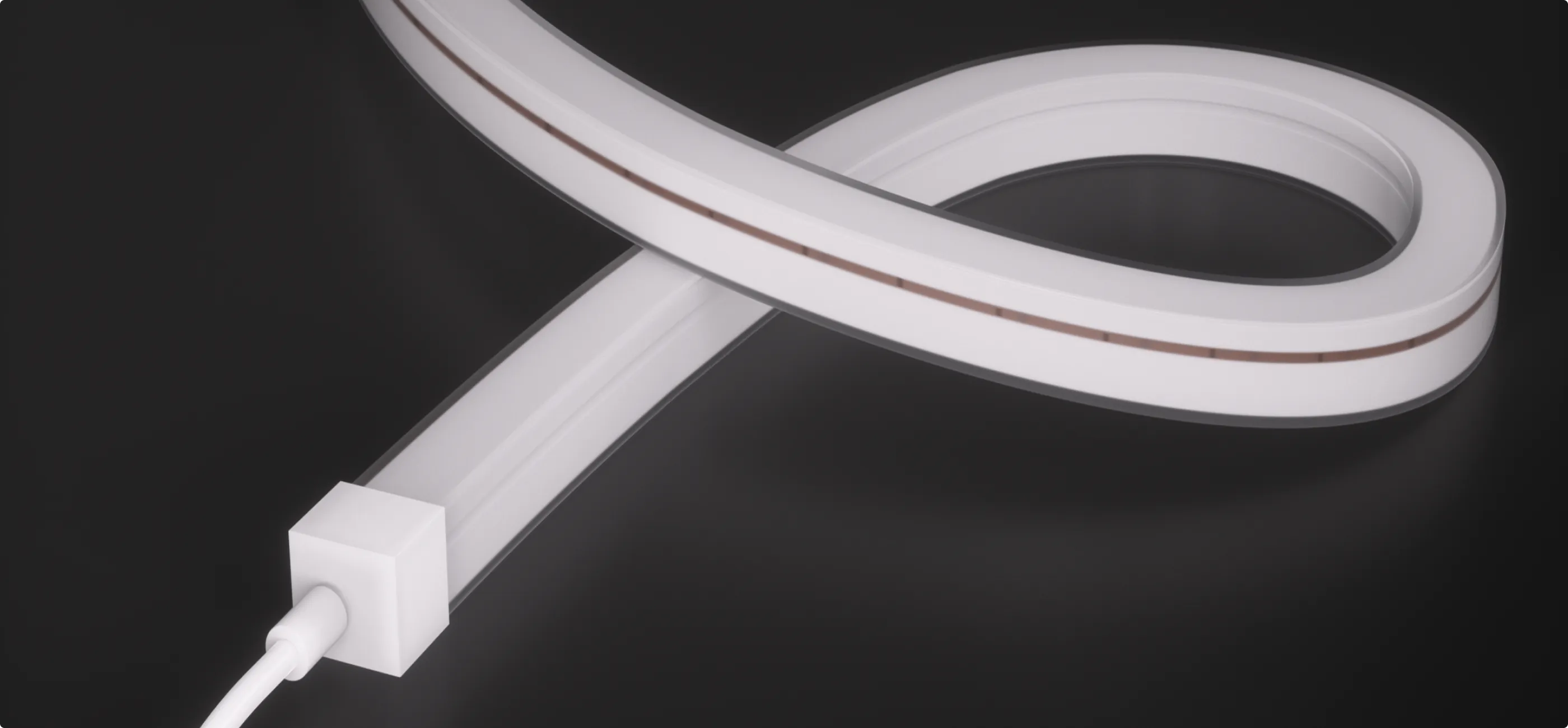

IP68 & IP69K

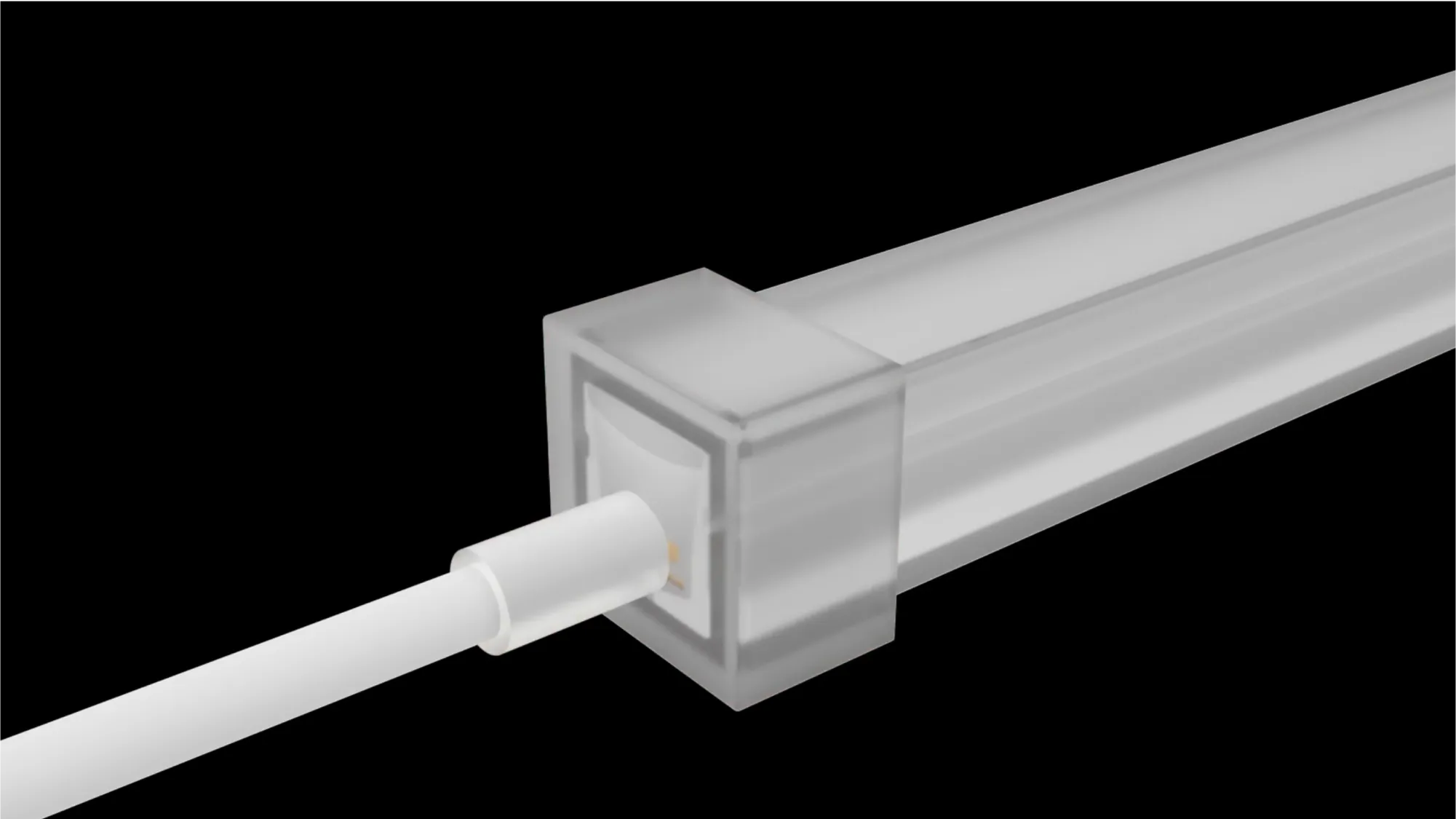

High-density TPU material , fully enclosed structure design , TPU injection-molded full encapsulated end cap
5-Years Warranty For Underwater Applications
Special t-type TPU material
Chlorine Resistance≤10ppm
NaCI Resistance<4%

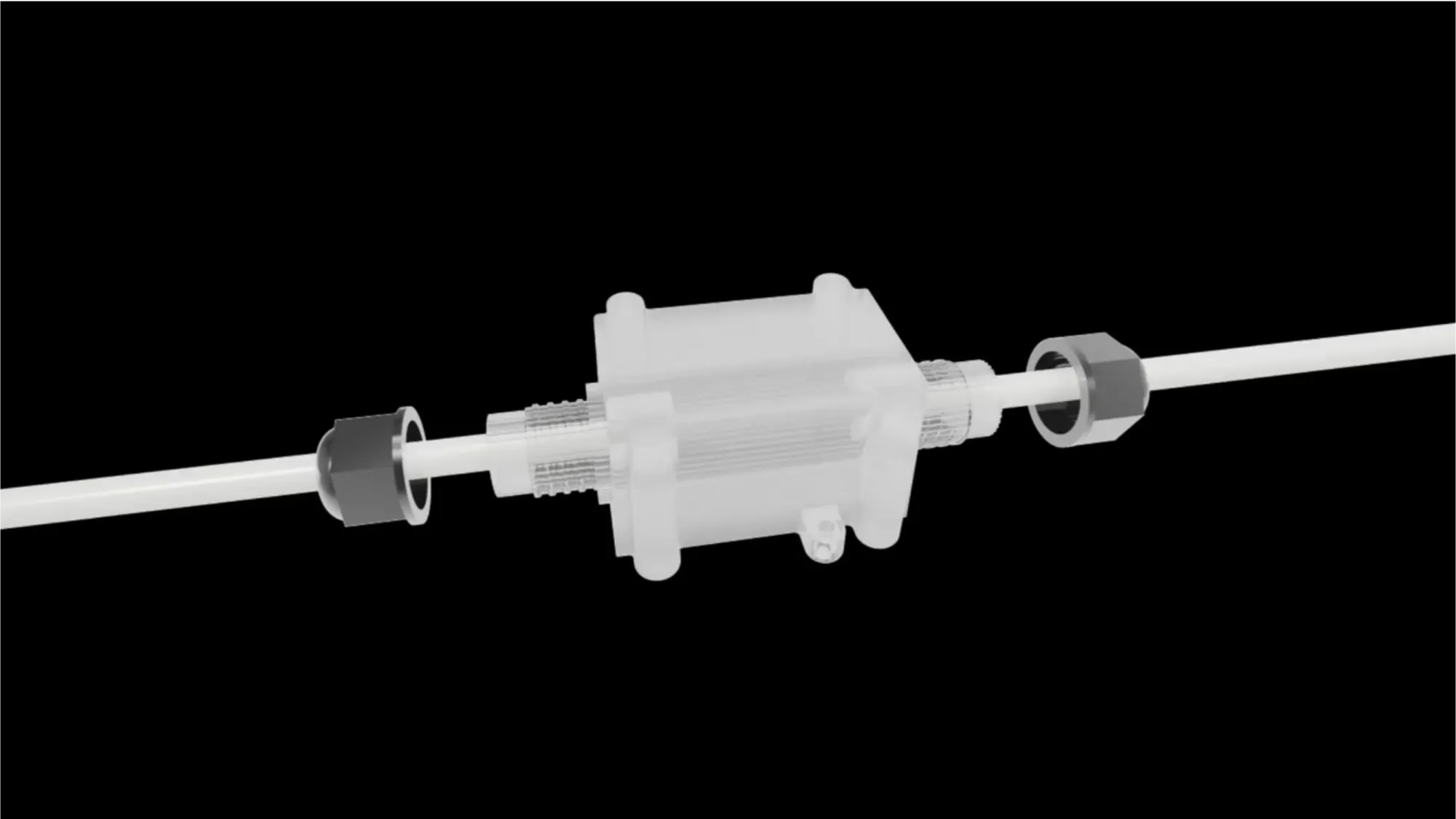

PC Profile + Waterproof Junction Box Installation Solution For Underwater Application
Non-conductive pc material, Anti-rust anti-brittle, IP68 waterproof junction box

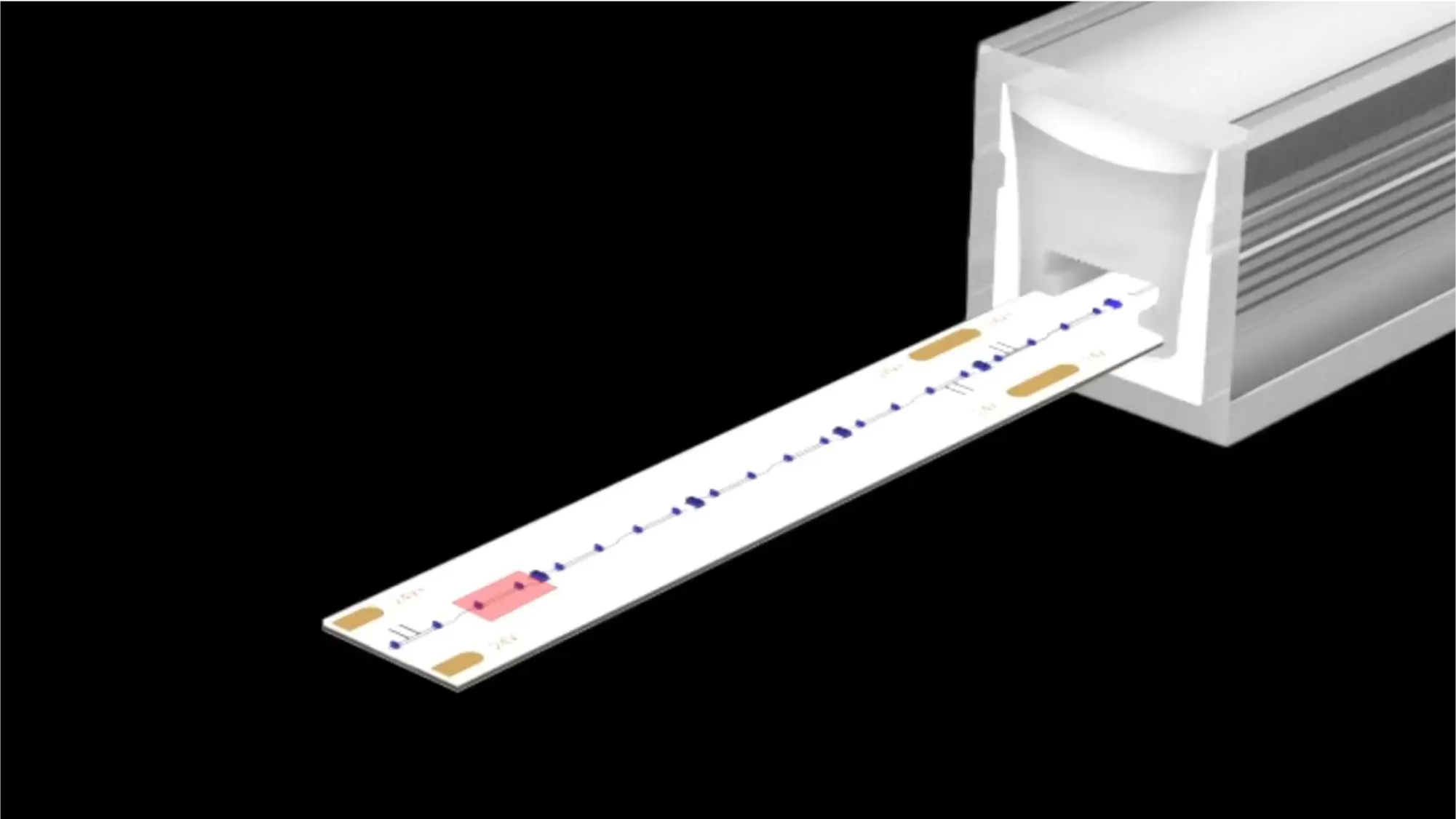

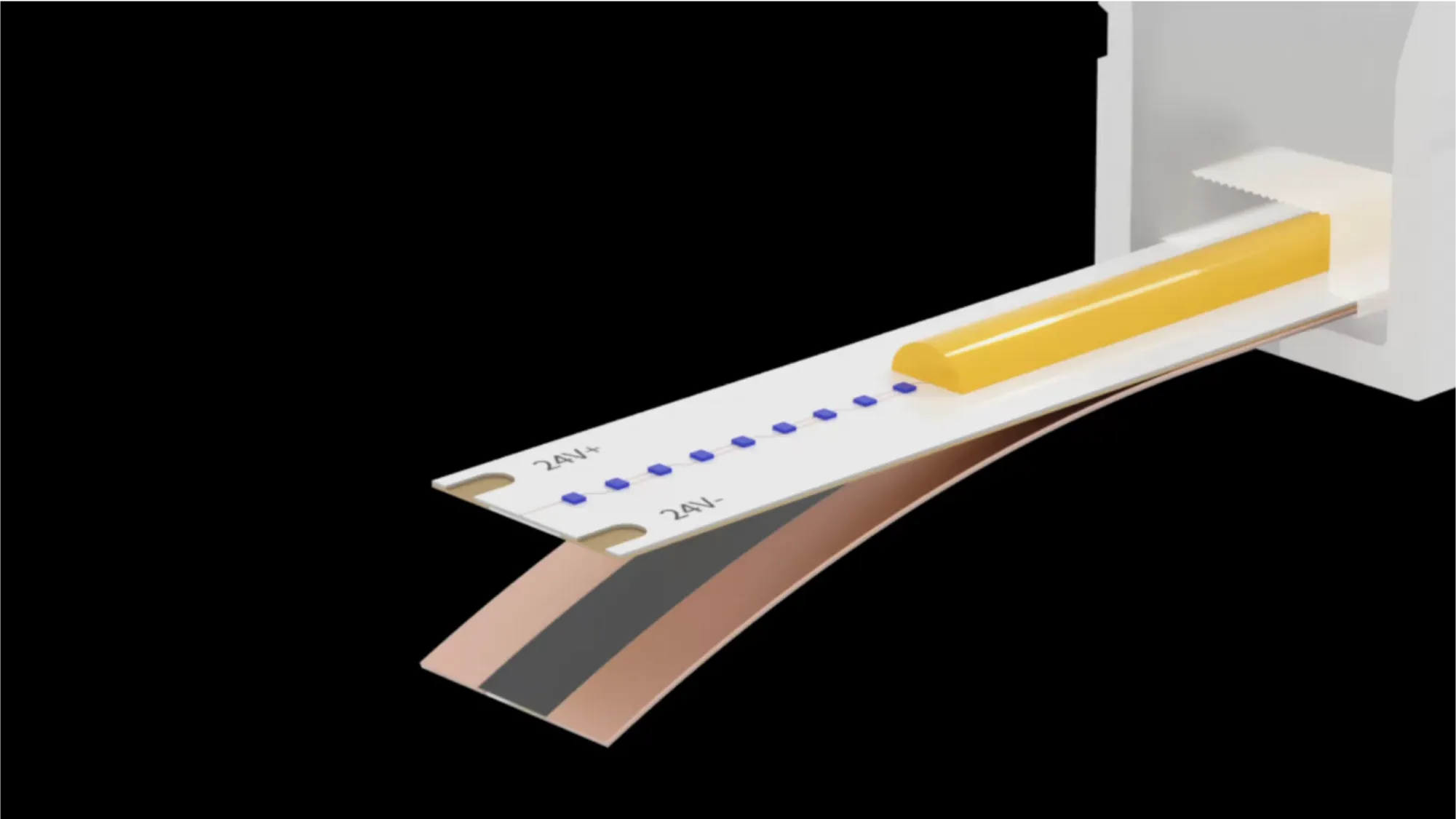

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti- breakage PCB is more durable
Anti-Dead Chips Without Dark Area
Dual chips parallel LEDs technology,special chip design, single chip breakage no affect the light effect

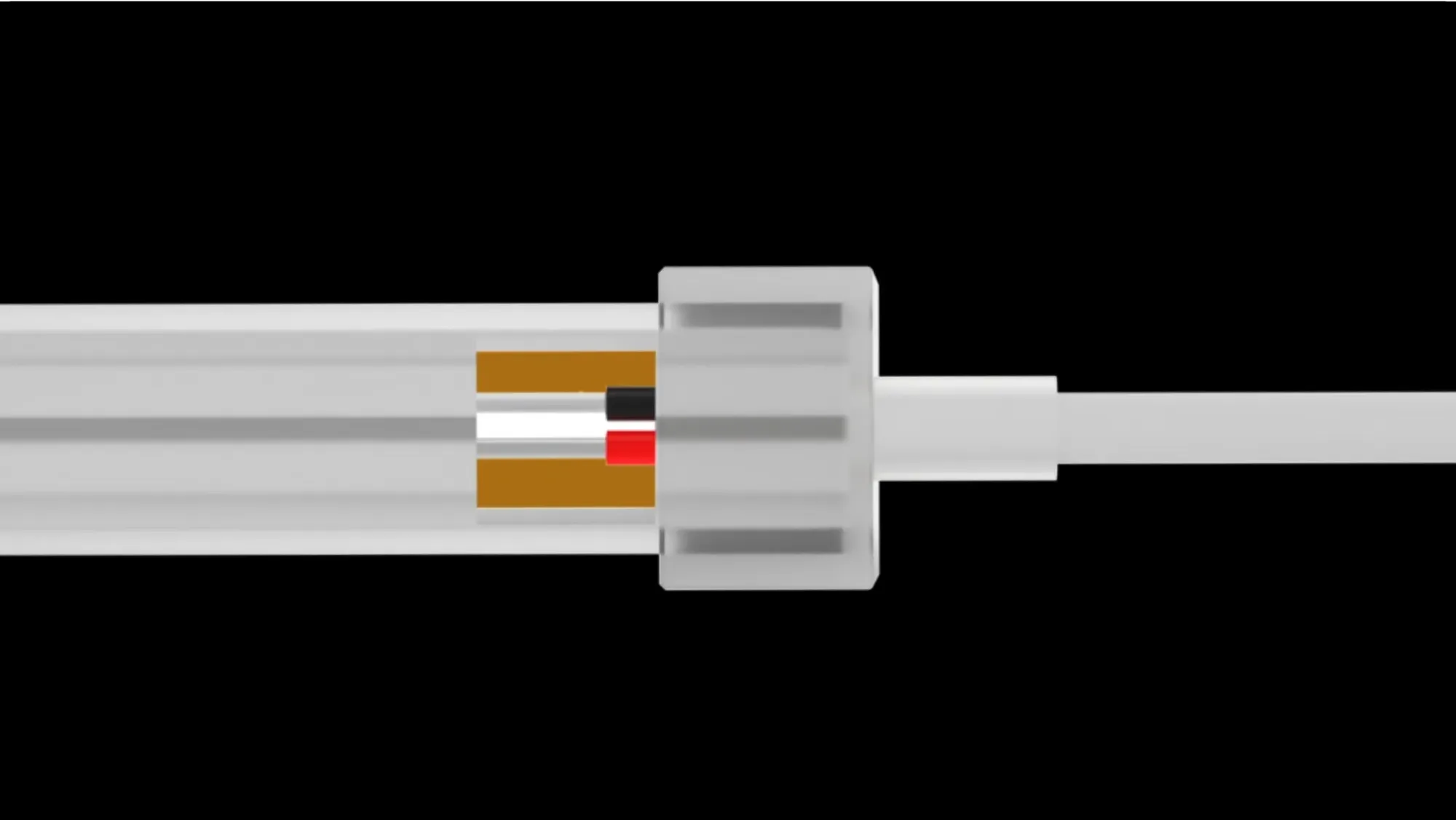

Withstands Installation Stresses
Reinforced wire soldering technology,designed to overcome external forces

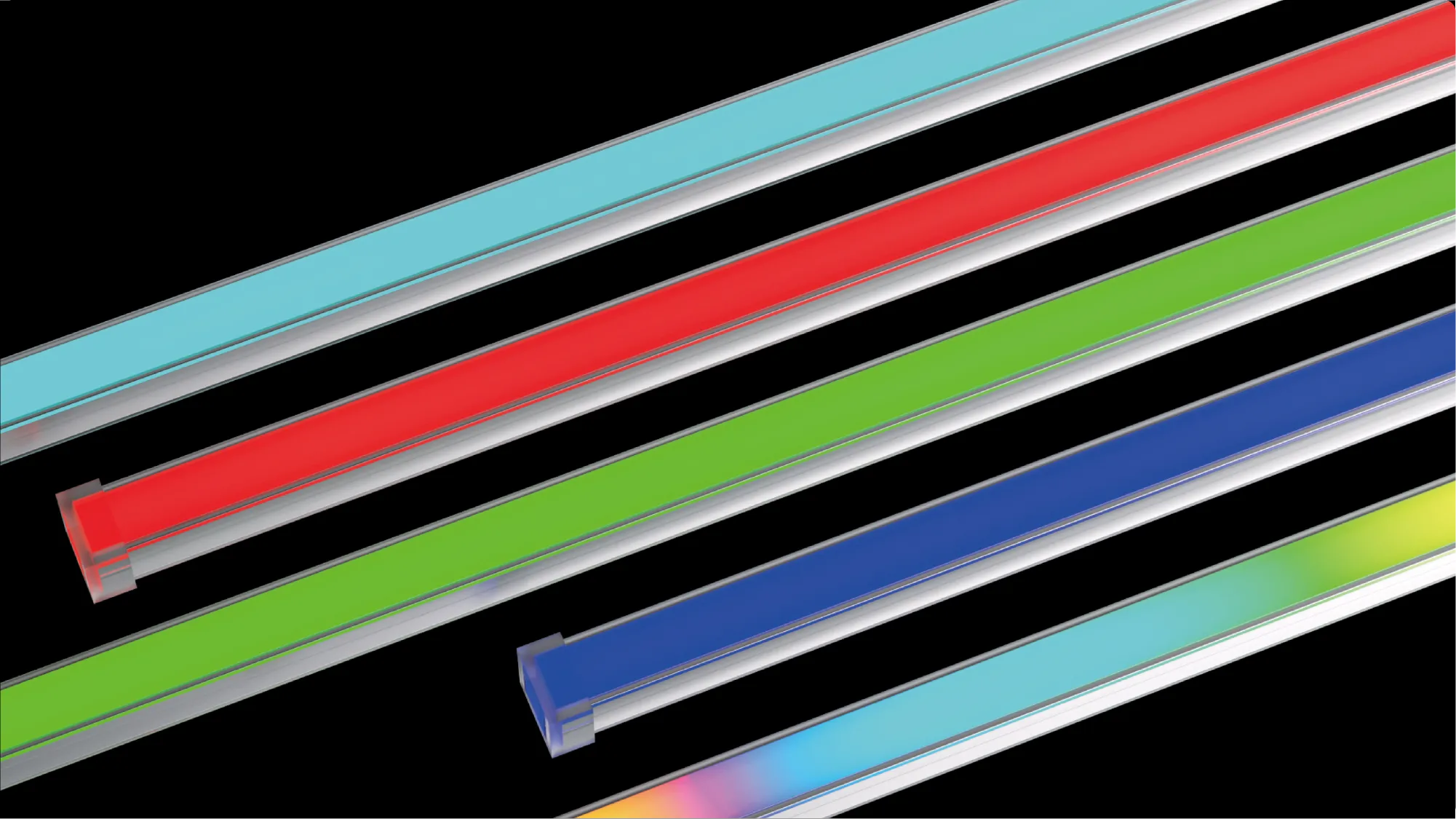

Rich Range Of Light Colors
With newly added ice blue light, RGB/RGBW and color-changing models, offering a wider range of adaptation and more optional configurations
Application Principle

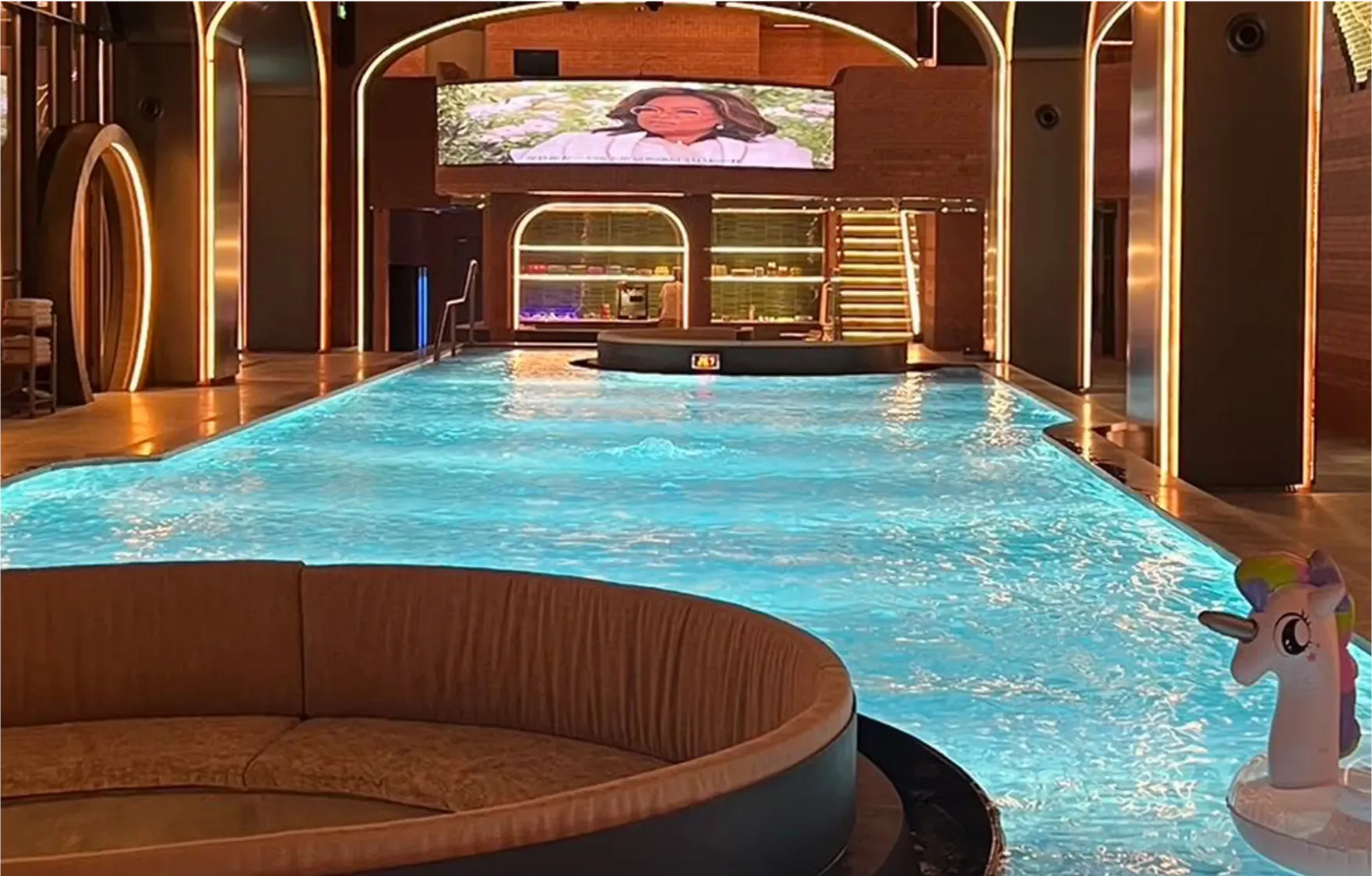

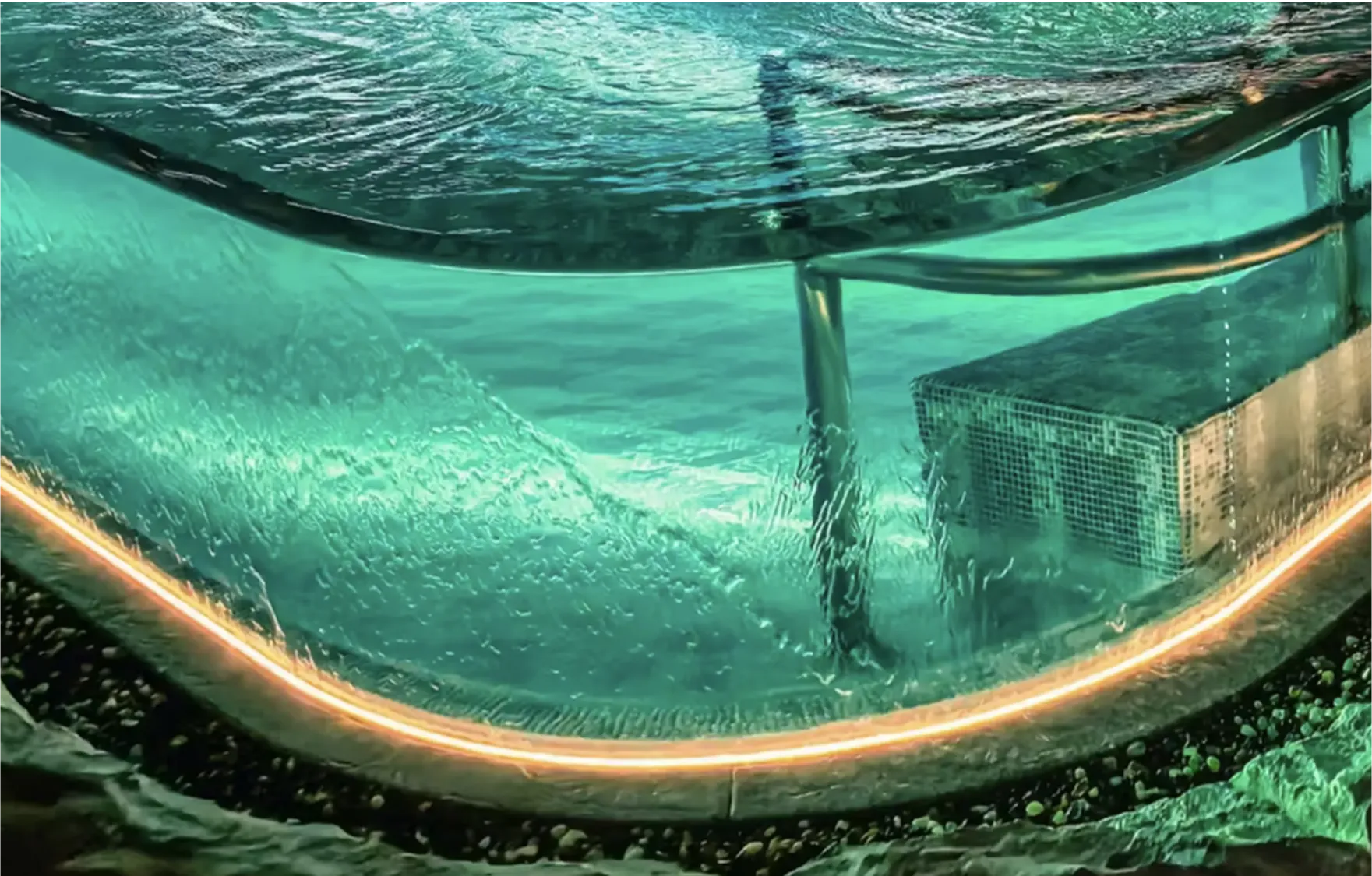

Scenario Case
Ordering Code
Optional Model

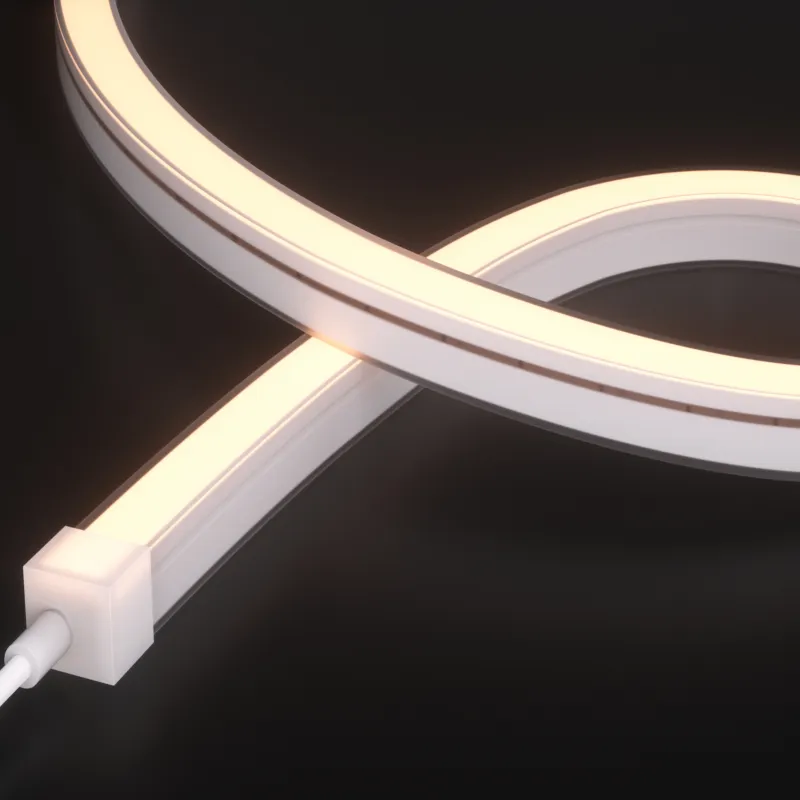

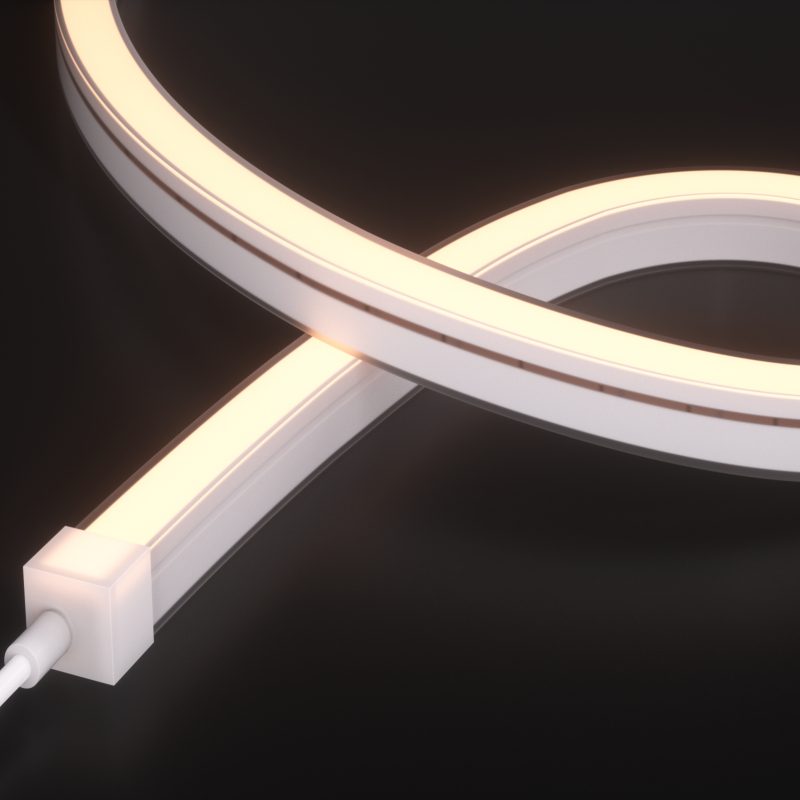

AWS2020-White light-24V
AWS2020-White light-24V
Basic parameter
IP Process
68
Warranty
5 Years
Cutting Unit
50
Leds Qty
320LEDs/m
Typ.power
10W/M
CCT/colors
Color range
CRI
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Lumens(LM/m)
Standard Length
Min Cut
2700K
2450-2750K
>90
24V
0.4
(0.24A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
510(155LM/ft)
5000mm
(16.4ft)
16LED/50mm
3000K
2770-3070K
>90
24V
0.4
(0.24A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
560(171LM/ft)
5000mm
(16.4ft)
16LED/50mm
3700K
3475-3925K
>90
24V
0.4
(0.24A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
610(186LM/ft)
5000mm
(16.4ft)
16LED/50mm
6500K
6000-7000K
>90
24V
0.4
(0.24A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
622(190LM/ft)
5000mm
(16.4ft)
16LED/50mm
Accessories Type
Installation accessory
Supporting accessory
Controller
Other
Size
Name
Model
Description
Quantity
Application

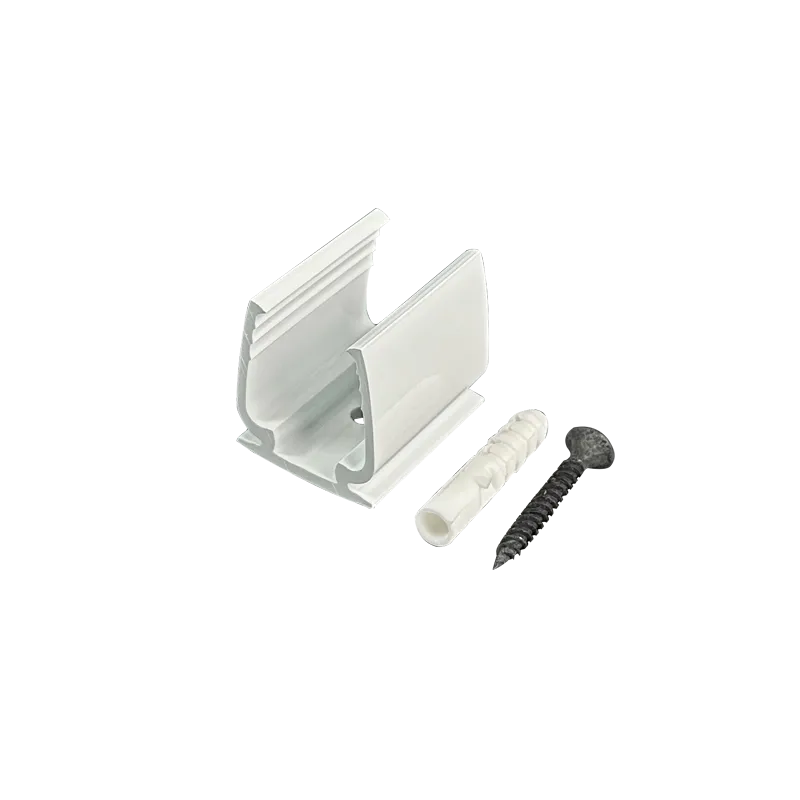

AS-AWS/T2020A-30
AS-AWS/T2020A-30
AS-AWS/T2020A-30\AWS/T2020 Flat Mounting Plastic Clip\Fixed installation\ Size: L30*W23.9*H27.2mm\White\With Screws\ Applicable to AWS/T2020 TPU Neon Strips

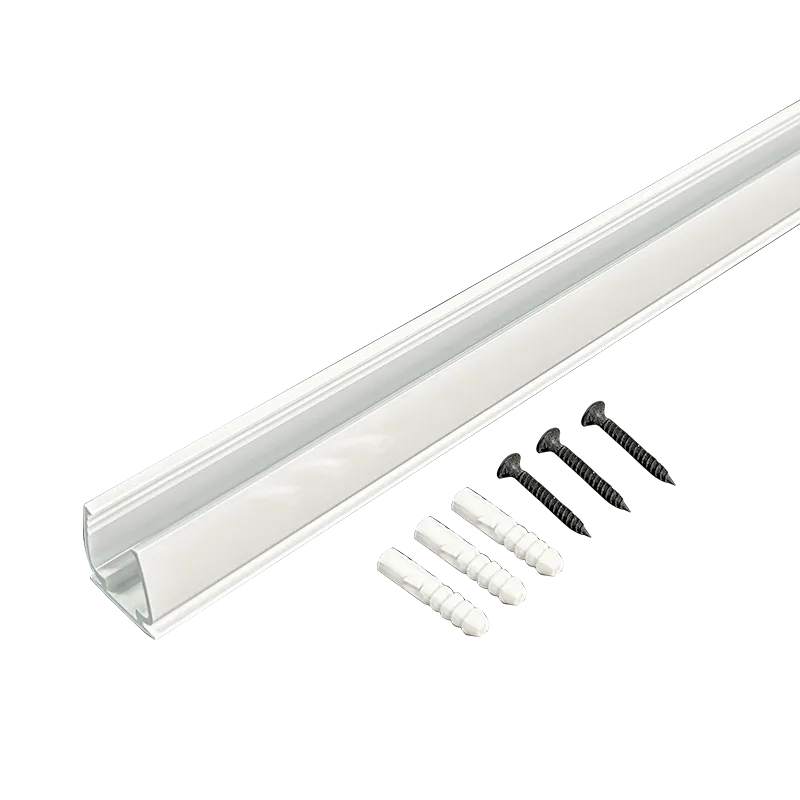

AS-AWS/T2020A-950
AS-AWS/T2020A-950
AS-AWS/T2020A-950\AWS/T2020 Flat Mounting Plastic Clip\Fixed installation\ Size: L950*W23.9*H27.2mm\White/With Screws\ Applicable to AWS/T2020 TPU Neon Strips
AS-FC-0031
AS-FC-0031
Product model：AS-FC-0031, 2PIN IP68 Terminal Box
Wiring method: screw crimp type
Inlet diameter range: 4~8mm
Size：122*50.5*35.5mm
Applicable product model：AWS2020/T2020
Used together with AS-PG-0004 (PU sealing glue) for IP68
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-PG-0004
AS-PG-0004
Product model：AS-PG-0004，PU Sealing glue
AB glue
Specification:50ml /staff, matching push needle and mixing tube
Applicable product model：AS-FC-00031
AB glue
Specification:50ml /staff, matching push needle and mixing tube
Applicable product model：AS-FC-00031
