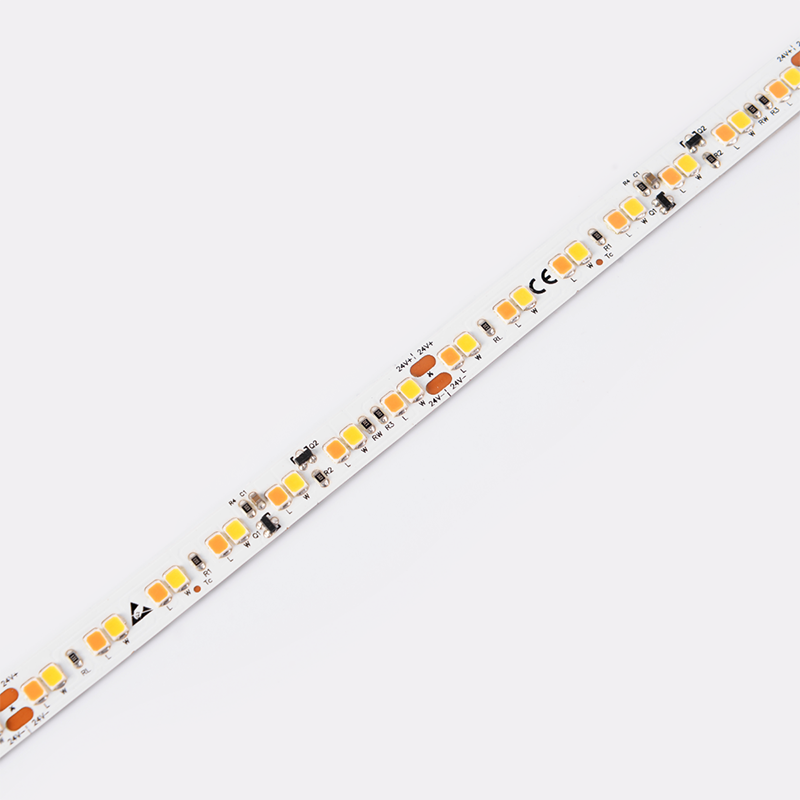

Classic DS8

CLASSIC Series covers mainstream SMD 2835, 2216 and 5050 chip configurations for versatile linear lighting demands. It adopts strict single-bin color sorting with only 2 MacAdam steps, delivering highly consistent color temperature and uniform luminous effect across the whole LED strip for stable, reliable indoor decorative lighting.

Certification

General Info

Operating Temperature: -25~40°C;Tc：75°C（max）
Storage Temperature: 0~40°C
Warranty: 5years
Certifications: CB,CE,UKCA,UL

Electrical Info

Max-Run(Single-End Feed): 5M
Input Voltage: DC24V
Electrical Insulation Class: Class III
Typ.Power: 13.5W/M

Optical Info

LED Type: 2835
CRI: Ra90+
CCT: 1900+3000K
Cutting Unit: 83.33mm
LED QTY: 168LEDs/m
Copper foil: 3oz

Download

Product Code

DS8168GWWW-24V-10mm

DS8168GWWW-24V-10mm

Name	Input Voltage	Typ.Power	CRI	CCT	System Output	Luminous Efficacy	Warranty	Download
-	DC24V	13.5 W/m	Ra90+	1900+3000K	580 lm/m[176 lm/ft]	72 lm/W	5years
-	DC24V	13.5 W/m	Ra80+	1900+3000K	675 lm/m[206 lm/ft]	83 lm/W	5years
