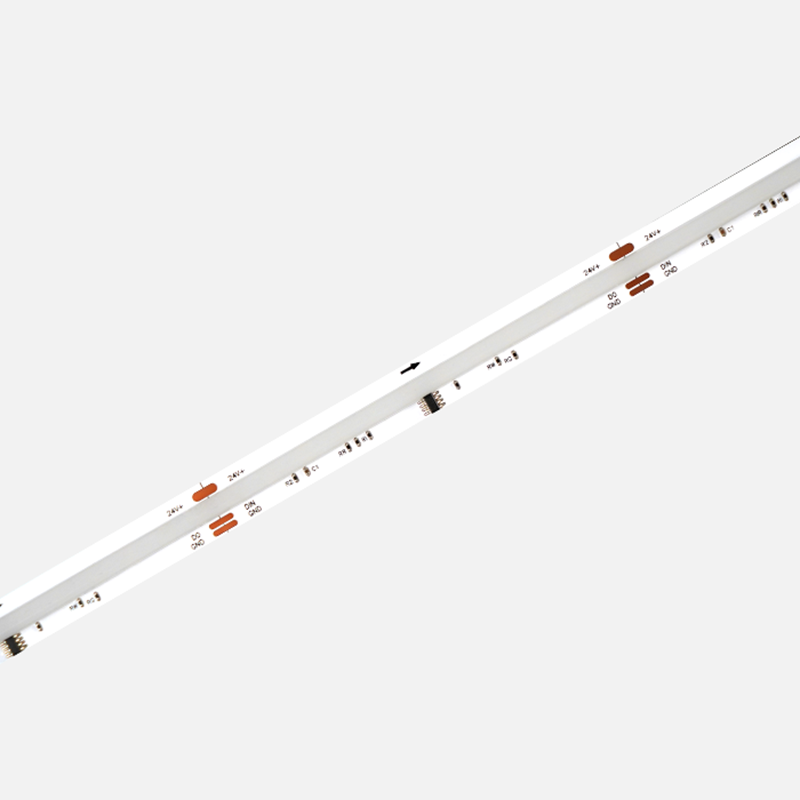

CSP-linear Series performs good color consistency and is more reliable, which benefits from the 2nd generation of CSP LED with bigger soldering pads, when it matches with slim profile can get more uniform light.
Certification
General Info
- Operating Temperature
- -25~40°C;Tc：75°C（max）
- Storage Temperature
- 0~40°C
- Warranty
- 3years
- Certifications
- CB,CE,UKCA,UL
Electrical Info
- Max-Run(Single-End Feed)
- 5M
- Input Voltage
- DC24V
- Electrical Insulation Class
- Class III
- Typ.Power
- 18W/M
Optical Info
- LED Type
- CSP
- CRI
- N/A
- CCT
- 3000K,4000K,6000K,RGB+2700K
- Cutting Unit
- 83.33mm
- LED QTY
- 576LEDs/m
- IC Model
- WS2814F
- Copper foil
- 3oz
Download
Product Code
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DC24V | 18 W/m | 3000K | 250 lm/m[75 lm/ft] | 54 lm/W | 3years | ||
| - | DC24V | 18 W/m | N/A | R | 87 lm/m[26 lm/ft] | 19 lm/W | 3years | |
| - | DC24V | 18 W/m | N/A | G | 294 lm/m[89 lm/ft] | 64 lm/W | 3years | |
| - | DC24V | 18 W/m | N/A | B | 50 lm/m[15 lm/ft] | 11 lm/W | 3years | |
| - | DC24V | 18 W/m | N/A | RGB+2700K | 755 lm/m[230 lm/ft] | 42 lm/W | 3years | |
| - | DC24V | 18 W/m | N/A | RGB+3000K | 775 lm/m[234 lm/ft] | 43 lm/W | 3years | |
| - | DC24V | 18 W/m | N/A | RGB+4000K | 790 lm/m[241 lm/ft] | 44 lm/W | 3years |
