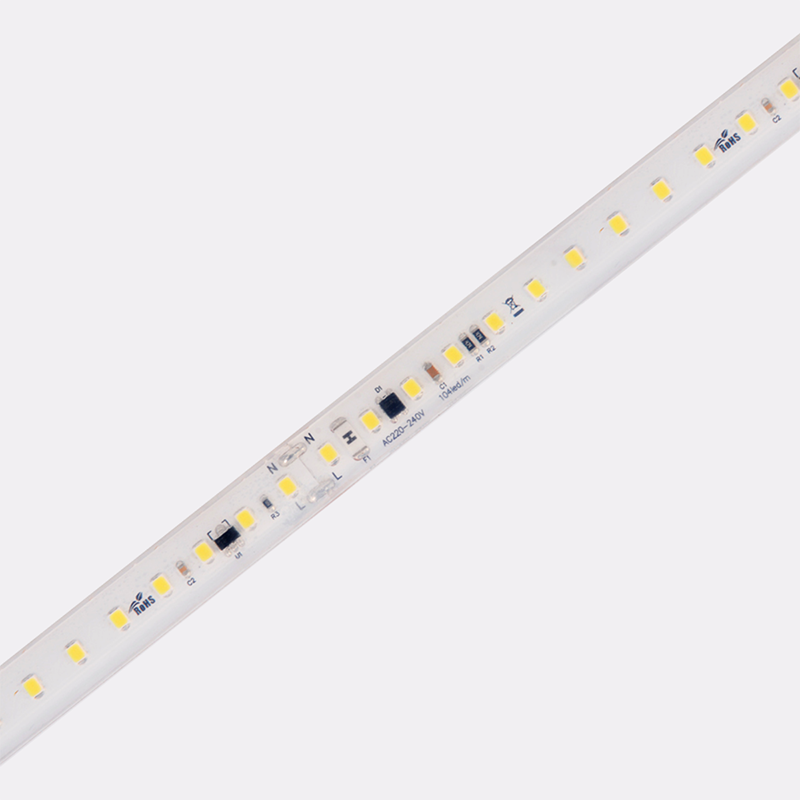

The HIGH VOLTAGE Series LED strip light operates directly on 230V AC mains without an external driver, adopting integrated circuit design to deliver stable, consistent brightness across the full length. It supports a maximum single run length of 50 meters and comes with a 3-year manufacturer’s warranty, simplifying wiring construction for large-scale architectural and landscape lighting projects.
Certification
General Info
- Operating Temperature
- -25~40°C;Tc:75°C（max）
- Storage Temperature
- 0~40°C
- Warranty
- 3years
- Certifications
- CB,CE,UKCA,UL
Electrical Info
- Max-Run(Single-End Feed)
- 50M
- Input Voltage
- DV230V
- Electrical Insulation Class
- Class III
- Typ.Power
- 10.6W/M
Optical Info
- LED Type
- 2835
- CRI
- Ra80+
- CCT
- 2200K,2850K,4000K,5700K
- Cutting Unit
- 250mm
- LED QTY
- 104LEDs/m
- Copper foil
- 3oz
Download
Product Code
CCT
Filter by CCT
| Name | Input Voltage | Typ.Power | CRI | CCT | System Output | Luminous Efficacy | Warranty | Download |
|---|---|---|---|---|---|---|---|---|
| - | DV230V | 10.6 W/m | Ra80+ | 2200K | 820 lm/m[250 lm/ft] | 78 lm/W | 3years | |
| - | DV230V | 10.6 W/m | Ra80+ | 2850K | 990 lm/m[301 lm/ft] | 94 lm/W | 3years | |
| - | DV230V | 10.6 W/m | Ra80+ | 4000K | 1060 lm/m[323 lm/ft] | 100 lm/W | 3years | |
| - | DV230V | 10.6 W/m | Ra80+ | 5700K | 1100 lm/m[335 lm/ft] | 104 lm/W | 3years |
