Infinite Module 70 Surface Mounted

Infinite Lights offers a variety of standard modules that designers can freely combine and extend to create the most suitable shape for the space. The quick-connect design of the modules makes the installation of complex shapes easy and efficient.

Feature

Mainstream Size Options
Free Combinations, Infi nite Possibilities
Quick-Connect Design
Powerful Performance

Certification

General Info

Application: Indoor
Mounting Type: Surface Mounted,Suspended
Light Direction: Direct
Dimension: 300mm,600mm,900mm,1200mm,1500mm,1800mm,2400mm,D600mm,D800mm,D1000mm,D1200mm,D1500mm,D2000mm,D3000mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,Silver,White
Diffuser Type: Diffuser
Cover Material: PC
Diffuser Transmittance: >80%
Fire-Resistance Rating: UL94-V2
IP Rating: IP20
Operating Temperature: -15~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CB,CE,ENEC,LM80,Reach,RoHS,UKCA

Electrical Info

Input Voltage: DC36V
Driver Brand: N/A
Electrical Insulation Class: Class Ⅲ
Dimming: No Driver

Optical Info

Version: High efficiency,Regular
LED Type: SMD2835
LED Brand: Lumileds,QZOPTO
CRI: Ra80+,Ra90+
CCT: 2700K,3000K,3500K,4000K,5000K,6500K
SDCM: ≤3 Step (ANSI)
Beam Angle: 100°
Luminous Efficacy: 100 lm/W,109 lm/W,110 lm/W,112 lm/W,135 lm/W max
LED Voltage: DC36V
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

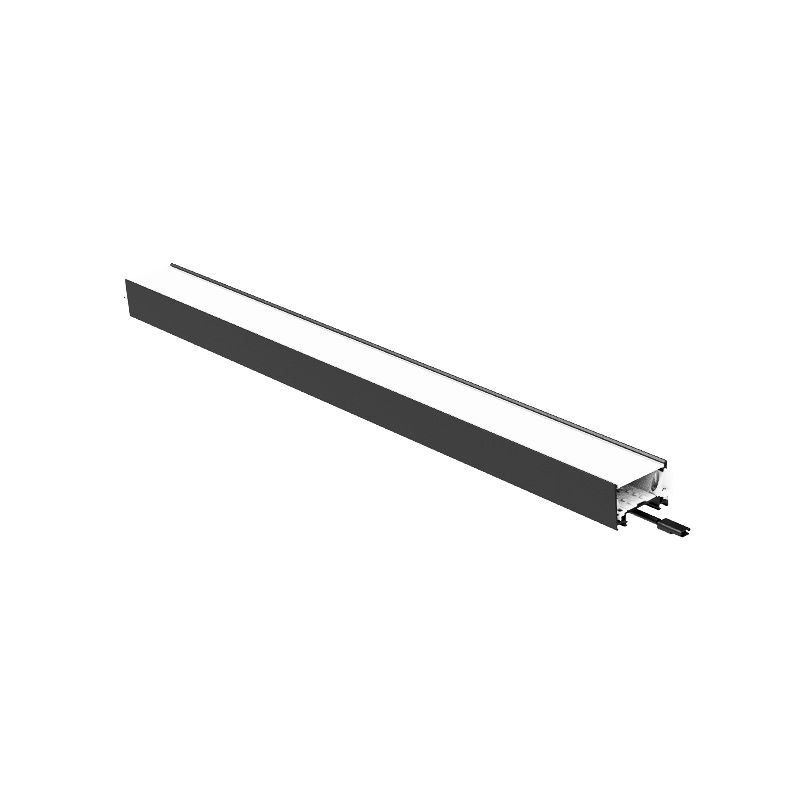

Product Code

MS7035D

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	600mm	20W	Ra80+	2700K	White	100°	1848 lm	92 lm/W	DC36V
-	Regular	600mm	20W	Ra80+	3000K	White	100°	1957 lm	98 lm/W	DC36V
-	Regular	600mm	20W	Ra80+	3500K	White	100°	2109 lm	105 lm/W	DC36V
-	Regular	600mm	20W	Ra80+	4000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	600mm	20W	Ra80+	5000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	600mm	20W	Ra80+	6500K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	600mm	20W	Ra90+	2700K	White	100°	1587 lm	79 lm/W	DC36V
-	Regular	600mm	20W	Ra90+	3000K	White	100°	1696 lm	85 lm/W	DC36V
-	Regular	600mm	20W	Ra90+	3500K	White	100°	1804 lm	90 lm/W	DC36V
-	Regular	600mm	20W	Ra90+	4000K	White	100°	1870 lm	94 lm/W	DC36V

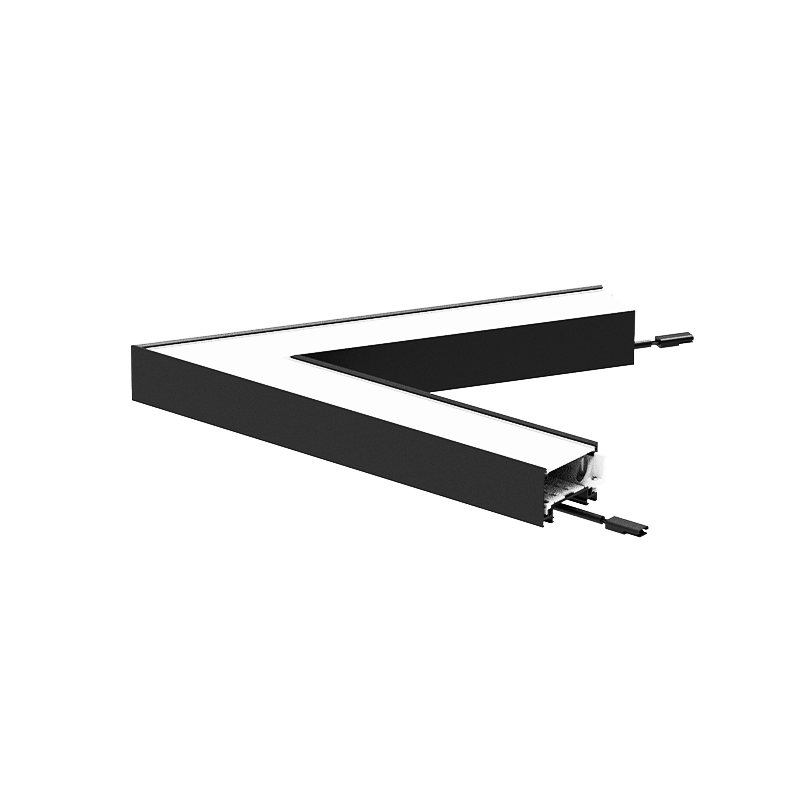

MS7035D-L

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-L60°	20W	Ra80+	2700K	White	100°	1848 lm	92 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra80+	3000K	White	100°	1957 lm	98 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra80+	3500K	White	100°	2109 lm	105 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra80+	4000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra80+	5000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra80+	6500K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra90+	2700K	White	100°	1587 lm	79 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra90+	3000K	White	100°	1696 lm	85 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra90+	3500K	White	100°	1804 lm	90 lm/W	DC36V
-	Regular	300mm-L60°	20W	Ra90+	4000K	White	100°	1870 lm	94 lm/W	DC36V

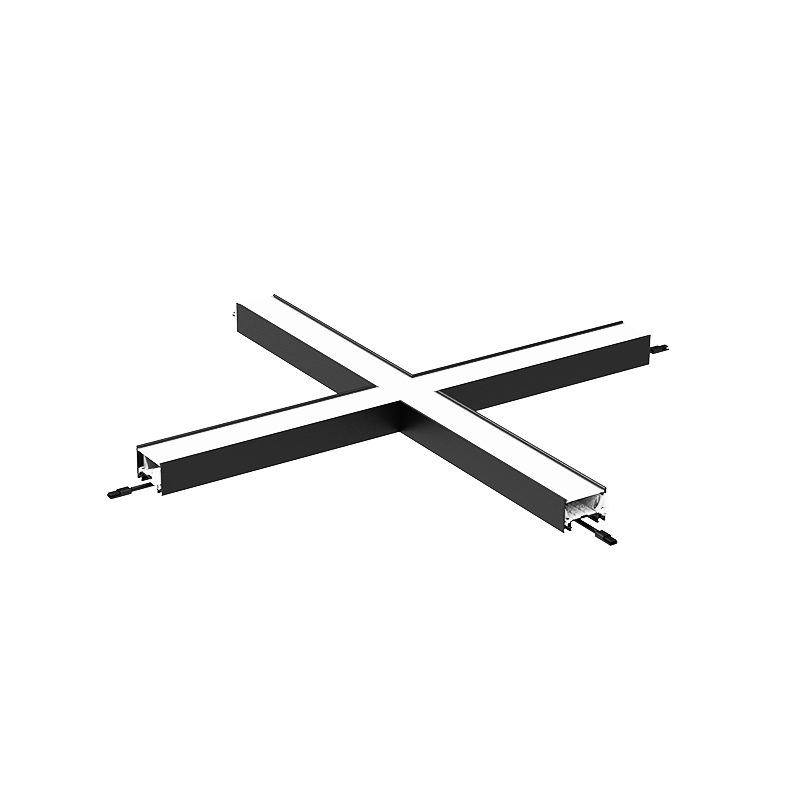

MS7035D-X

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-X90°	40W	Ra80+	2700K	White	100°	3697 lm	92 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra80+	3000K	White	100°	3914 lm	98 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra80+	3500K	White	100°	4219 lm	105 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra80+	4000K	White	100°	4349 lm	109 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra80+	5000K	White	100°	4349 lm	109 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra80+	6500K	White	100°	4349 lm	109 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra90+	2700K	White	100°	3175 lm	79 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra90+	3000K	White	100°	3392 lm	85 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra90+	3500K	White	100°	3610 lm	90 lm/W	DC36V
-	Regular	300mm-X90°	40W	Ra90+	4000K	White	100°	3740 lm	94 lm/W	DC36V

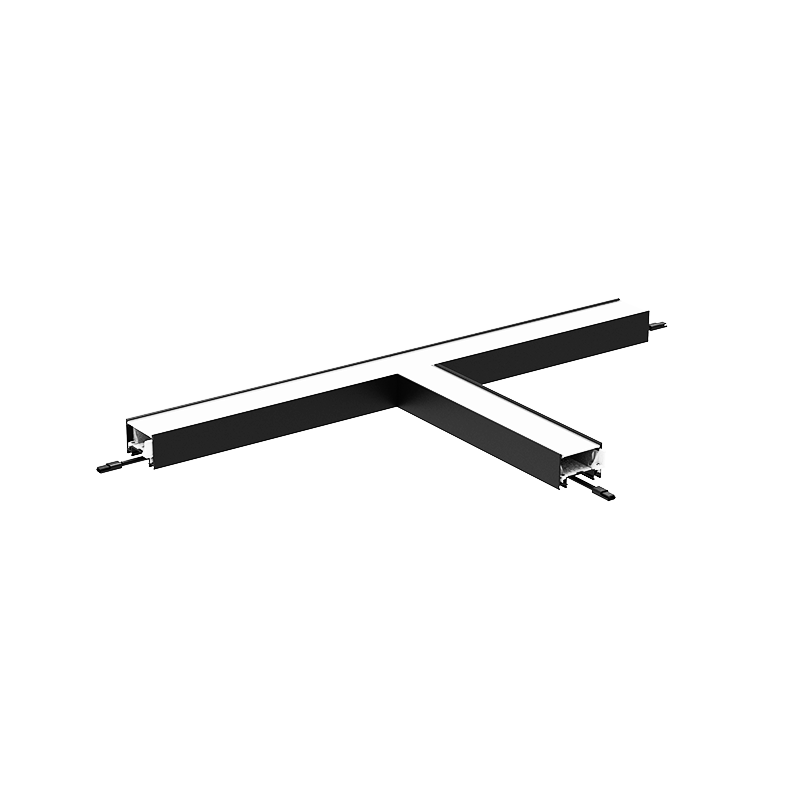

MS7035D-Y

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-Y90°	28W	Ra80+	2700K	White	100°	2587 lm	92 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra80+	3000K	White	100°	2740 lm	98 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra80+	3500K	White	100°	2953 lm	105 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra80+	4000K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra80+	5000K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra80+	6500K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra90+	2700K	White	100°	2222 lm	79 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra90+	3000K	White	100°	2374 lm	85 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra90+	3500K	White	100°	2527 lm	90 lm/W	DC36V
-	Regular	300mm-Y90°	28W	Ra90+	4000K	White	100°	2618 lm	94 lm/W	DC36V

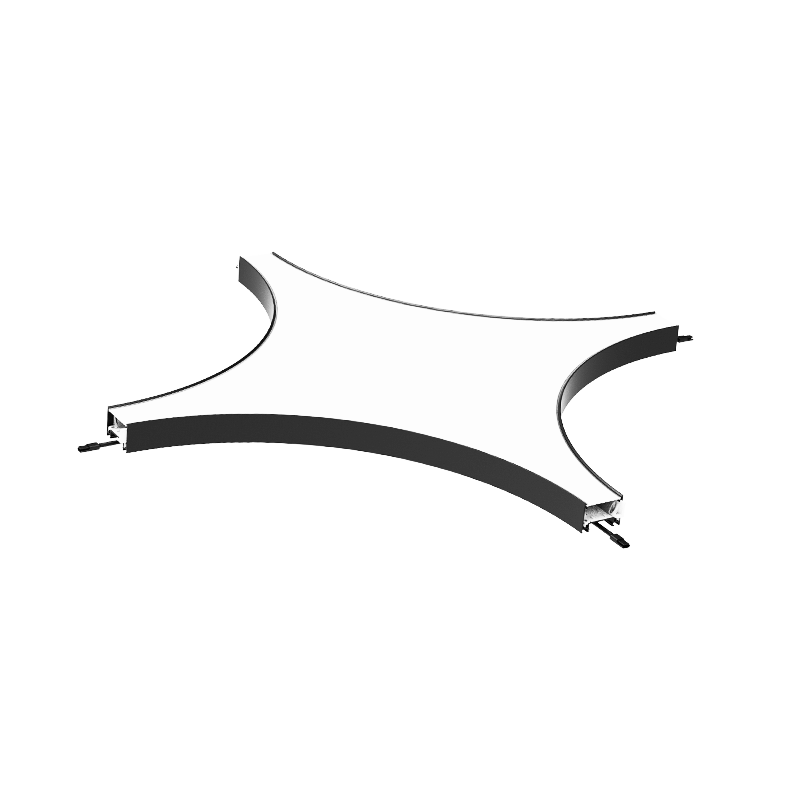

MS7035D-NX

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D800mm-X90°	95W	Ra80+	2700K	White	100°	8871 lm	93 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra80+	3000K	White	100°	9393 lm	99 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra80+	3500K	White	100°	10124 lm	107 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra80+	4000K	White	100°	10437 lm	110 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra80+	5000K	White	100°	10437 lm	110 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra80+	6500K	White	100°	10437 lm	110 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra90+	2700K	White	100°	7619 lm	80 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra90+	3000K	White	100°	8141 lm	86 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra90+	3500K	White	100°	8663 lm	91 lm/W	DC36V
-	Regular	D800mm-X90°	95W	Ra90+	4000K	White	100°	8976 lm	94 lm/W	DC36V

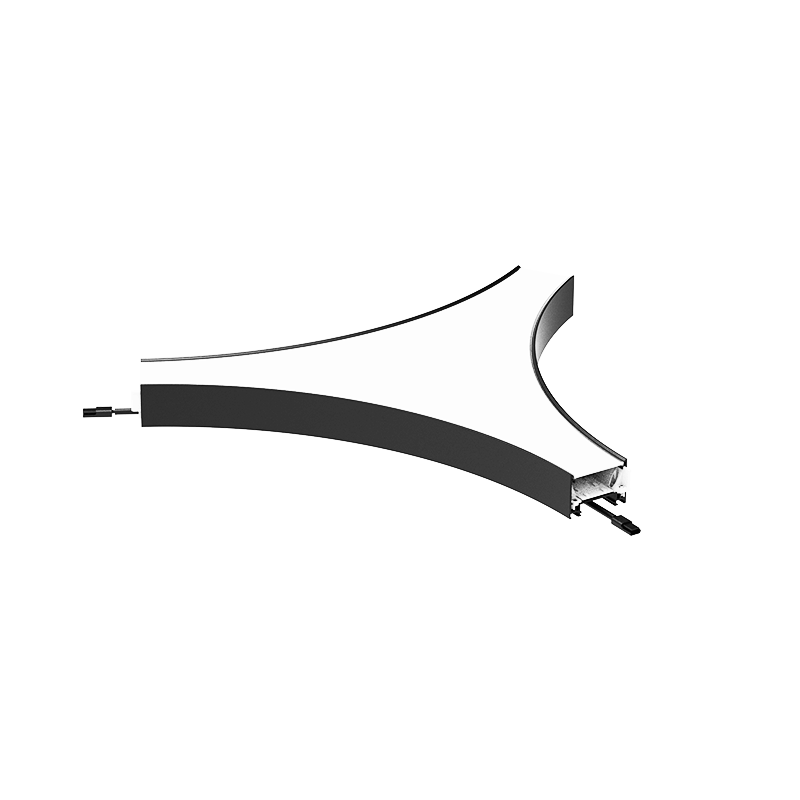

MS7035D-NY

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm-Y60°	20W	Ra80+	2700K	White	100°	1848 lm	92 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra80+	3000K	White	100°	1957 lm	98 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra80+	3500K	White	100°	2109 lm	105 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra80+	4000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra80+	5000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra80+	6500K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra90+	2700K	White	100°	1587 lm	79 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra90+	3000K	White	100°	1696 lm	85 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra90+	3500K	White	100°	1804 lm	90 lm/W	DC36V
-	Regular	D600mm-Y60°	20W	Ra90+	4000K	White	100°	1870 lm	94 lm/W	DC36V

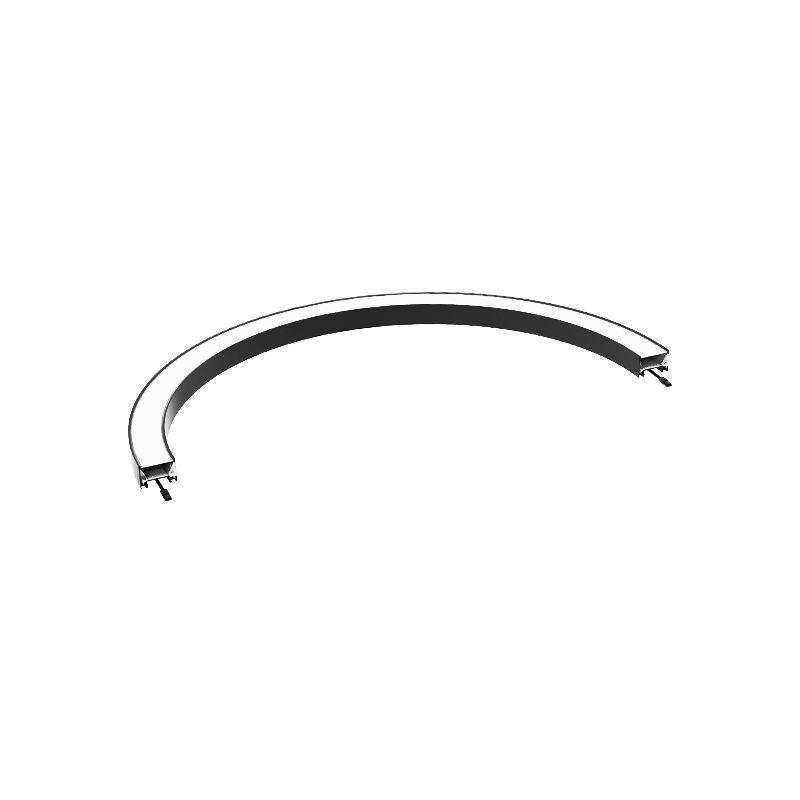

MS7035D-A180

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm	28W	Ra80+	2700K	White	100°	2587 lm	92 lm/W	DC36V
-	Regular	D600mm	28W	Ra80+	3000K	White	100°	2740 lm	98 lm/W	DC36V
-	Regular	D600mm	28W	Ra80+	3500K	White	100°	2953 lm	105 lm/W	DC36V
-	Regular	D600mm	28W	Ra80+	4000K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	D600mm	28W	Ra80+	5000K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	D600mm	28W	Ra80+	6500K	White	100°	3044 lm	109 lm/W	DC36V
-	Regular	D600mm	28W	Ra90+	2700K	White	100°	2222 lm	79 lm/W	DC36V
-	Regular	D600mm	28W	Ra90+	3000K	White	100°	2374 lm	85 lm/W	DC36V
-	Regular	D600mm	28W	Ra90+	3500K	White	100°	2527 lm	90 lm/W	DC36V
-	Regular	D600mm	28W	Ra90+	4000K	White	100°	2618 lm	94 lm/W	DC36V

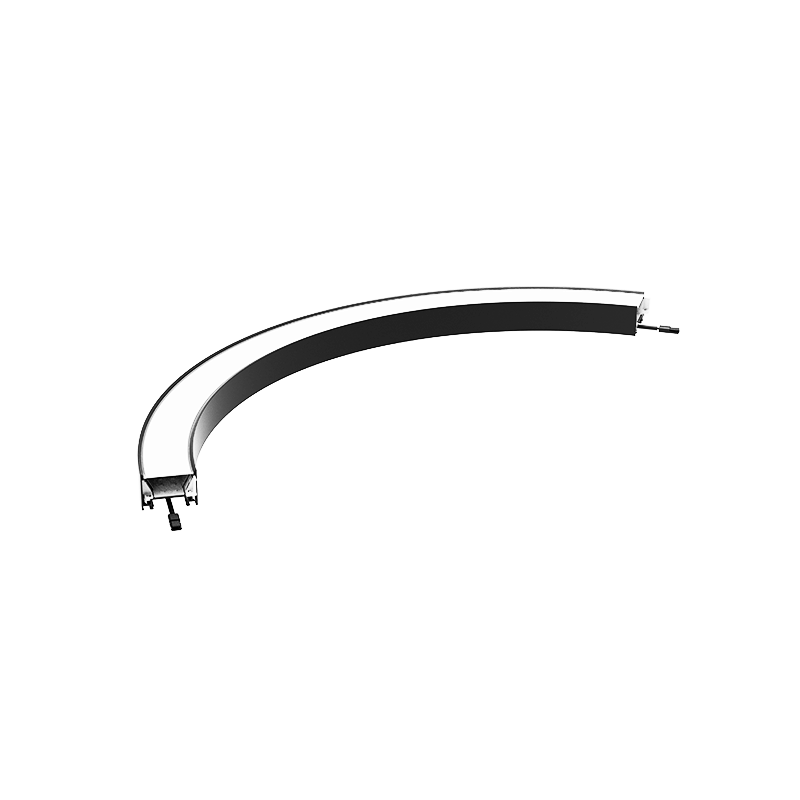

MS7035D-A120

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm	20W	Ra80+	2700K	White	100°	1848 lm	92 lm/W	DC36V
-	Regular	D600mm	20W	Ra80+	3000K	White	100°	1957 lm	98 lm/W	DC36V
-	Regular	D600mm	20W	Ra80+	3500K	White	100°	2109 lm	105 lm/W	DC36V
-	Regular	D600mm	20W	Ra80+	4000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm	20W	Ra80+	5000K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm	20W	Ra80+	6500K	White	100°	2174 lm	109 lm/W	DC36V
-	Regular	D600mm	20W	Ra90+	2700K	White	100°	1587 lm	79 lm/W	DC36V
-	Regular	D600mm	20W	Ra90+	3000K	White	100°	1696 lm	85 lm/W	DC36V
-	Regular	D600mm	20W	Ra90+	3500K	White	100°	1804 lm	90 lm/W	DC36V
-	Regular	D600mm	20W	Ra90+	4000K	White	100°	1870 lm	94 lm/W	DC36V

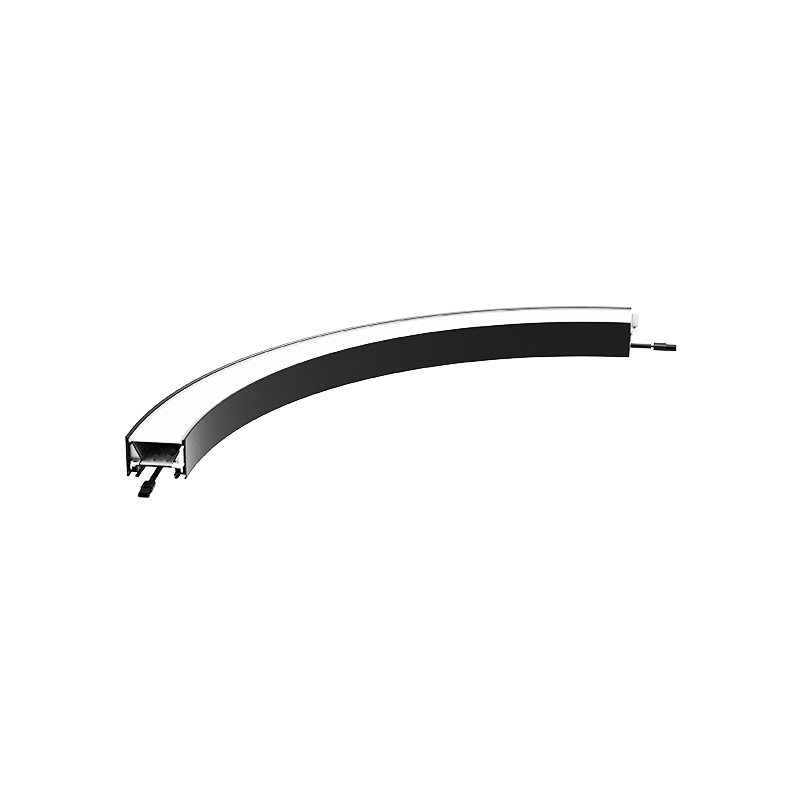

MS7035D-A90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm	14W	Ra80+	2700K	White	100°	1294 lm	92 lm/W	DC36V
-	Regular	D600mm	14W	Ra80+	3000K	White	100°	1370 lm	98 lm/W	DC36V
-	Regular	D600mm	14W	Ra80+	3500K	White	100°	1476 lm	105 lm/W	DC36V
-	Regular	D600mm	14W	Ra80+	4000K	White	100°	1522 lm	109 lm/W	DC36V
-	Regular	D600mm	14W	Ra80+	5000K	White	100°	1522 lm	109 lm/W	DC36V
-	Regular	D600mm	14W	Ra80+	6500K	White	100°	1522 lm	109 lm/W	DC36V
-	Regular	D600mm	14W	Ra90+	2700K	White	100°	1111 lm	79 lm/W	DC36V
-	Regular	D600mm	14W	Ra90+	3000K	White	100°	1187 lm	85 lm/W	DC36V
-	Regular	D600mm	14W	Ra90+	3500K	White	100°	1263 lm	90 lm/W	DC36V
-	Regular	D600mm	14W	Ra90+	4000K	White	100°	1309 lm	94 lm/W	DC36V

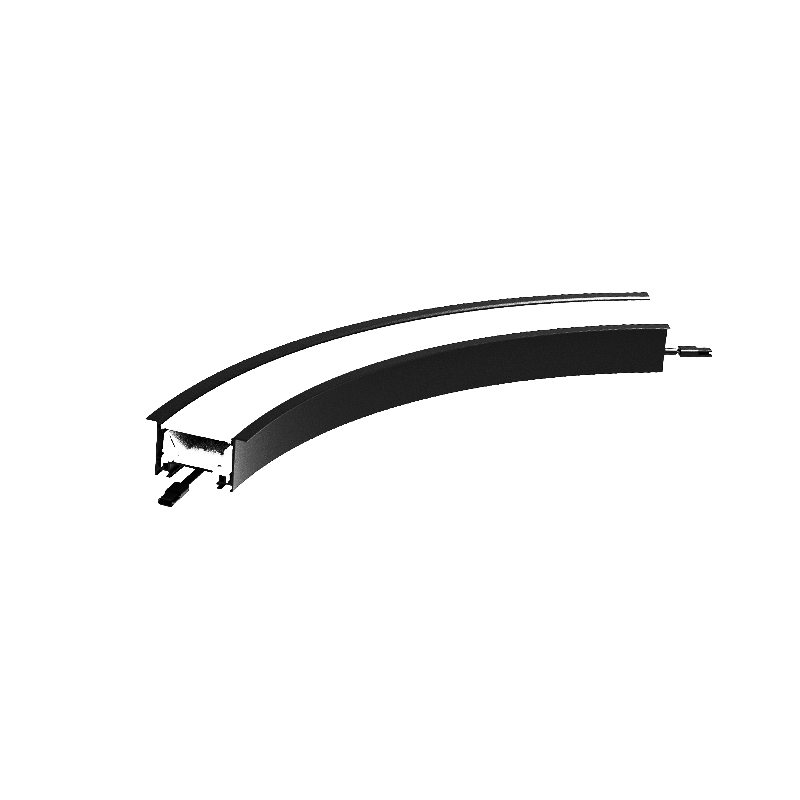

MS7035D-A60

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm	10W	Ra80+	2700K	White	100°	924 lm	92 lm/W	DC36V
-	Regular	D600mm	10W	Ra80+	3000K	White	100°	978 lm	98 lm/W	DC36V
-	Regular	D600mm	10W	Ra80+	3500K	White	100°	1054 lm	105 lm/W	DC36V
-	Regular	D600mm	10W	Ra80+	4000K	White	100°	1087 lm	109 lm/W	DC36V
-	Regular	D600mm	10W	Ra80+	5000K	White	100°	1087 lm	109 lm/W	DC36V
-	Regular	D600mm	10W	Ra80+	6500K	White	100°	1087 lm	109 lm/W	DC36V
-	Regular	D600mm	10W	Ra90+	2700K	White	100°	794 lm	79 lm/W	DC36V
-	Regular	D600mm	10W	Ra90+	3000K	White	100°	848 lm	85 lm/W	DC36V
-	Regular	D600mm	10W	Ra90+	3500K	White	100°	902 lm	90 lm/W	DC36V
-	Regular	D600mm	10W	Ra90+	4000K	White	100°	935 lm	94 lm/W	DC36V
