Infinite Module 50 Surface Mounted

Infinite Lights offers a variety of standard modules that designers can freely combine and extend to create the most suitable shape for the space. The quick-connect design of the modules makes the installation of complex shapes easy and efficient.

Feature

Mainstream Size Options
Free Combinations, Infi nite Possibilities
Quick-Connect Design
Powerful Performance

Certification

General Info

Application: Indoor
Mounting Type: Surface Mounted,Suspended
Light Direction: Direct
Dimension: 300mm,600mm,900mm,1200mm,1500mm,1800mm,2400mm,D450mm,D600mm,D800mm,D1000mm,D1200mm,D1500mm,D2000mm,D3000mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,Silver,White
Diffuser Type: Diffuser
Cover Material: PC
Diffuser Transmittance: >80%
Fire-Resistance Rating: UL94-V2
IP Rating: IP20
Operating Temperature: -15~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CB,CE,ENEC,LM80,Reach,RoHS,UKCA

Electrical Info

Input Voltage: DC36V
Driver Brand: N/A
Electrical Insulation Class: Class Ⅲ
Dimming: No Driver

Optical Info

Version: High efficiency,Regular
LED Type: SMD2835
LED Brand: Lumileds,QZOPTO
CRI: Ra80+,Ra90+
CCT: 2700K,3000K,3500K,4000K,5000K,6500K
SDCM: ≤3 Step (ANSI)
Beam Angle: 100°
Luminous Efficacy: 99 lm/W,100 lm/W,120 lm/W max
LED Voltage: DC36V
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

Product Code

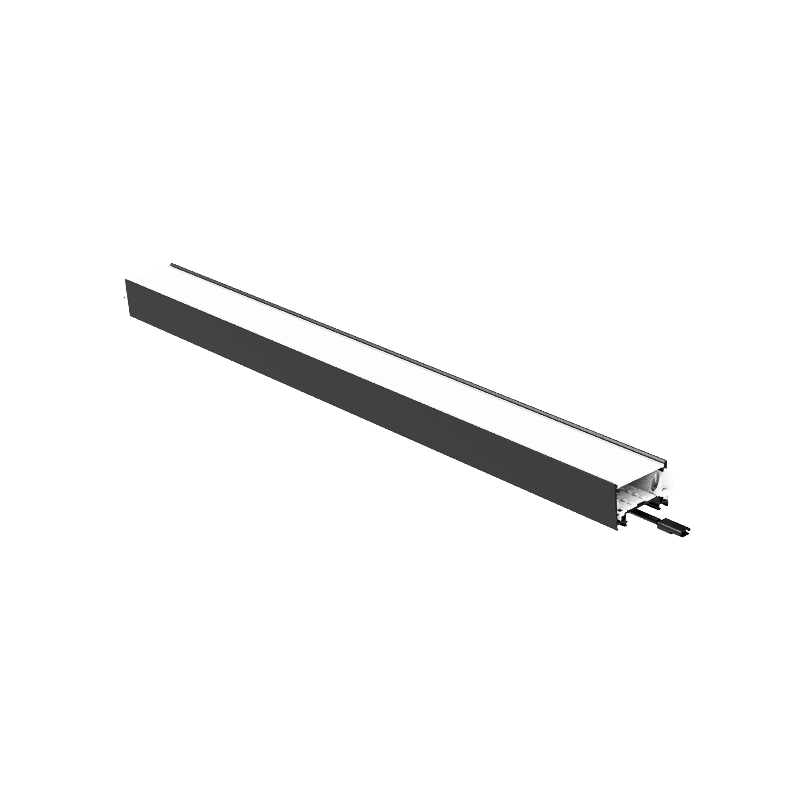

MS5035D

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	600mm	16W	Ra80+	2700K	White	100°	1344 lm	84 lm/W	DC36V
-	Regular	600mm	16W	Ra80+	3000K	White	100°	1423 lm	89 lm/W	DC36V
-	Regular	600mm	16W	Ra80+	3500K	White	100°	1534 lm	96 lm/W	DC36V
-	Regular	600mm	16W	Ra80+	4000K	White	100°	1581 lm	99 lm/W	DC36V
-	Regular	600mm	16W	Ra80+	5000K	White	100°	1581 lm	99 lm/W	DC36V
-	Regular	600mm	16W	Ra80+	6500K	White	100°	1581 lm	99 lm/W	DC36V
-	Regular	600mm	16W	Ra90+	2700K	White	100°	1154 lm	72 lm/W	DC36V
-	Regular	600mm	16W	Ra90+	3000K	White	100°	1233 lm	77 lm/W	DC36V
-	Regular	600mm	16W	Ra90+	3500K	White	100°	1312 lm	82 lm/W	DC36V
-	Regular	600mm	16W	Ra90+	4000K	White	100°	1360 lm	85 lm/W	DC36V

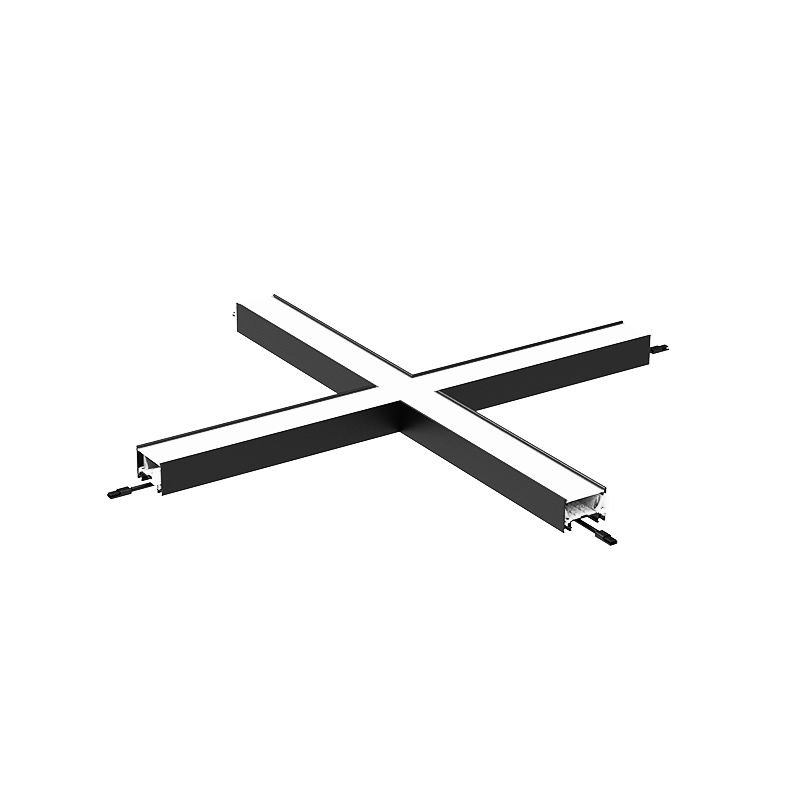

MS5035D-X

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-X90°	30W	Ra80+	2700K	White	100°	2520 lm	84 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra80+	3000K	White	100°	2669 lm	89 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra80+	3500K	White	100°	2876 lm	96 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra80+	4000K	White	100°	2965 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra80+	5000K	White	100°	2965 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra80+	6500K	White	100°	2965 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra90+	2700K	White	100°	2164 lm	72 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra90+	3000K	White	100°	2313 lm	77 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra90+	3500K	White	100°	2461 lm	82 lm/W	DC36V
-	Regular	300mm-X90°	30W	Ra90+	4000K	White	100°	2550 lm	85 lm/W	DC36V

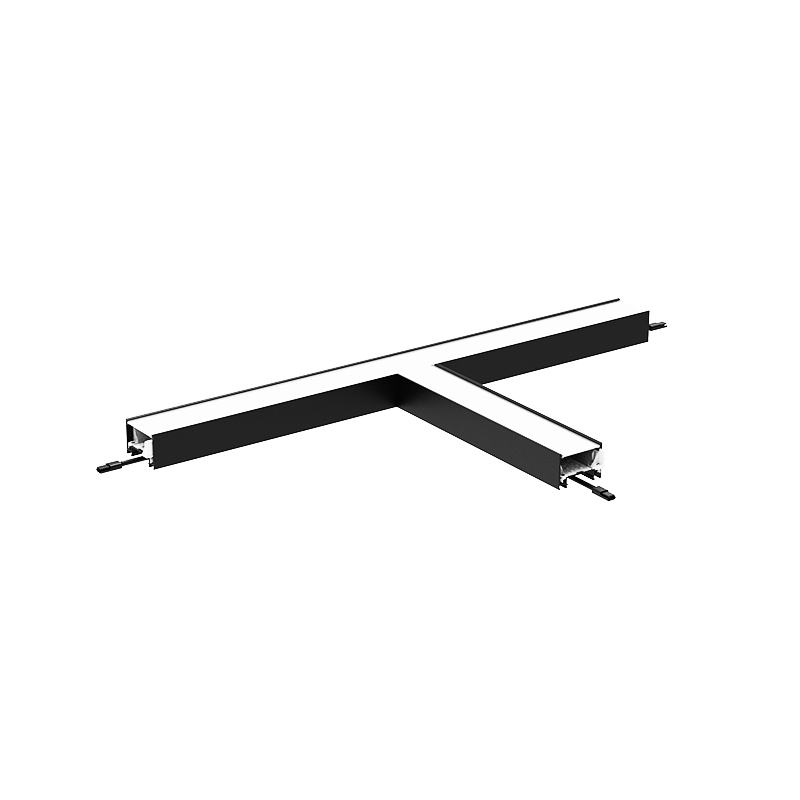

MS5035D-Y

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-Y90°	22W	Ra80+	2700K	White	100°	1890 lm	86 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra80+	3000K	White	100°	2002 lm	91 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra80+	3500K	White	100°	2157 lm	98 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra80+	4000K	White	100°	2224 lm	101 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra80+	5000K	White	100°	2224 lm	101 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra80+	6500K	White	100°	2224 lm	101 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra90+	2700K	White	100°	1624 lm	74 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra90+	3000K	White	100°	1735 lm	79 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra90+	3500K	White	100°	1846 lm	84 lm/W	DC36V
-	Regular	300mm-Y90°	22W	Ra90+	4000K	White	100°	1913 lm	87 lm/W	DC36V

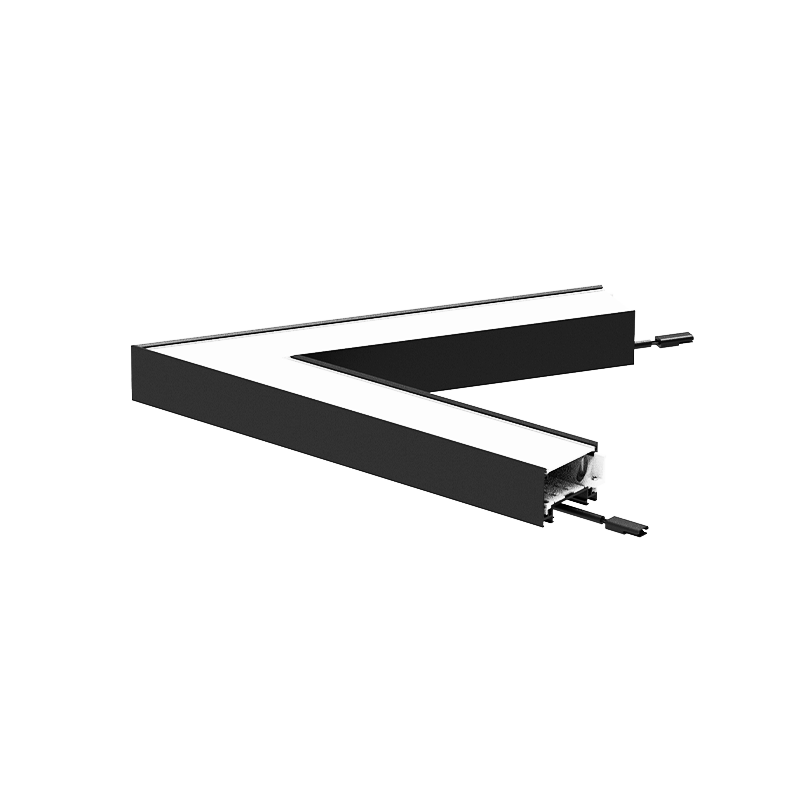

MS5035D-L

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-L60°	13W	Ra80+	2700K	White	100°	1109 lm	85 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra80+	3000K	White	100°	1175 lm	90 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra80+	3500K	White	100°	1266 lm	97 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra80+	4000K	White	100°	1305 lm	100 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra80+	5000K	White	100°	1305 lm	100 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra80+	6500K	White	100°	1305 lm	100 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra90+	2700K	White	100°	953 lm	73 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra90+	3000K	White	100°	1018 lm	78 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra90+	3500K	White	100°	1083 lm	83 lm/W	DC36V
-	Regular	300mm-L60°	13W	Ra90+	4000K	White	100°	1122 lm	86 lm/W	DC36V

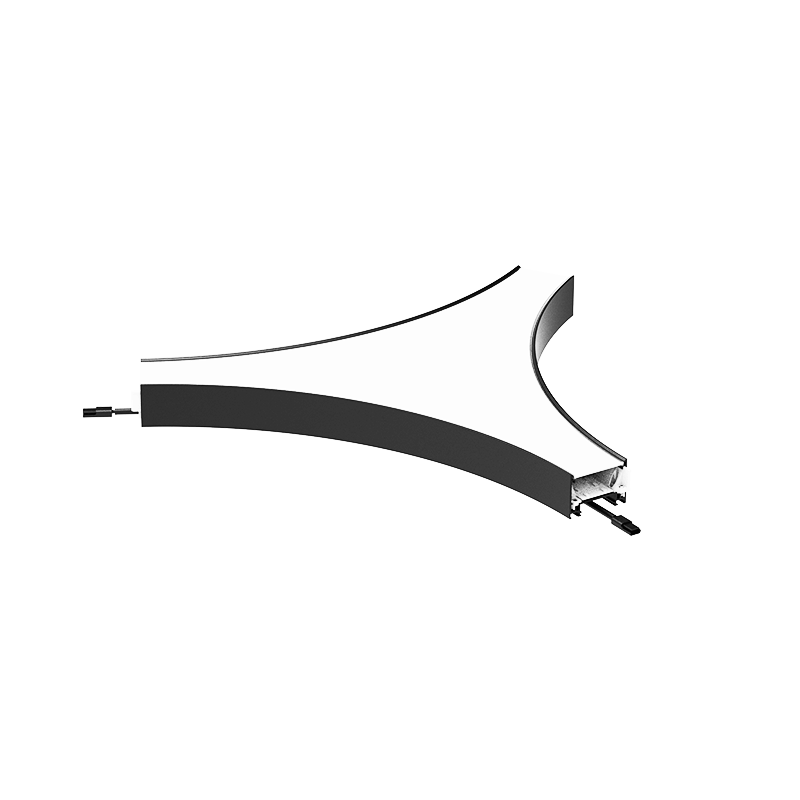

MS5035D-NY

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm-Y60°	14W	Ra80+	2700K	White	100°	1176 lm	84 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra80+	3000K	White	100°	1246 lm	89 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra80+	3500K	White	100°	1342 lm	96 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra80+	4000K	White	100°	1384 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra80+	5000K	White	100°	1384 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra80+	6500K	White	100°	1384 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra90+	2700K	White	100°	1010 lm	72 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra90+	3000K	White	100°	1080 lm	77 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra90+	3500K	White	100°	1149 lm	82 lm/W	DC36V
-	Regular	D450mm-Y60°	14W	Ra90+	4000K	White	100°	1190 lm	85 lm/W	DC36V

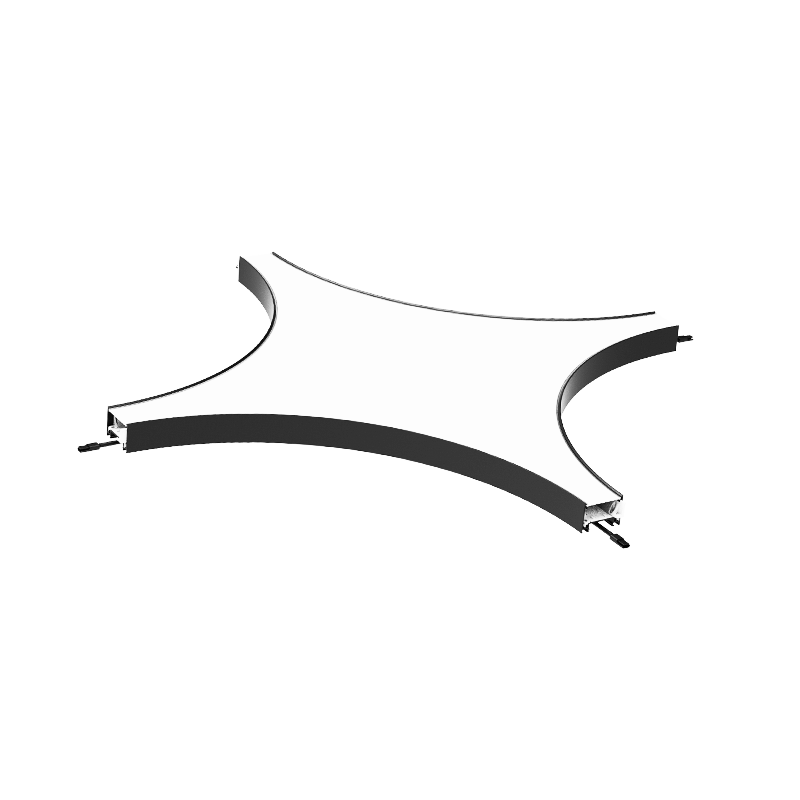

MS5035D-NX

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm-X90°	75W	Ra80+	2700K	White	100°	6385 lm	85 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra80+	3000K	White	100°	6761 lm	90 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra80+	3500K	White	100°	7287 lm	97 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra80+	4000K	White	100°	7512 lm	100 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra80+	5000K	White	100°	7512 lm	100 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra80+	6500K	White	100°	7512 lm	100 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra90+	2700K	White	100°	5484 lm	73 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra90+	3000K	White	100°	5859 lm	78 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra90+	3500K	White	100°	6235 lm	83 lm/W	DC36V
-	Regular	D600mm-X90°	75W	Ra90+	4000K	White	100°	6460 lm	86 lm/W	DC36V

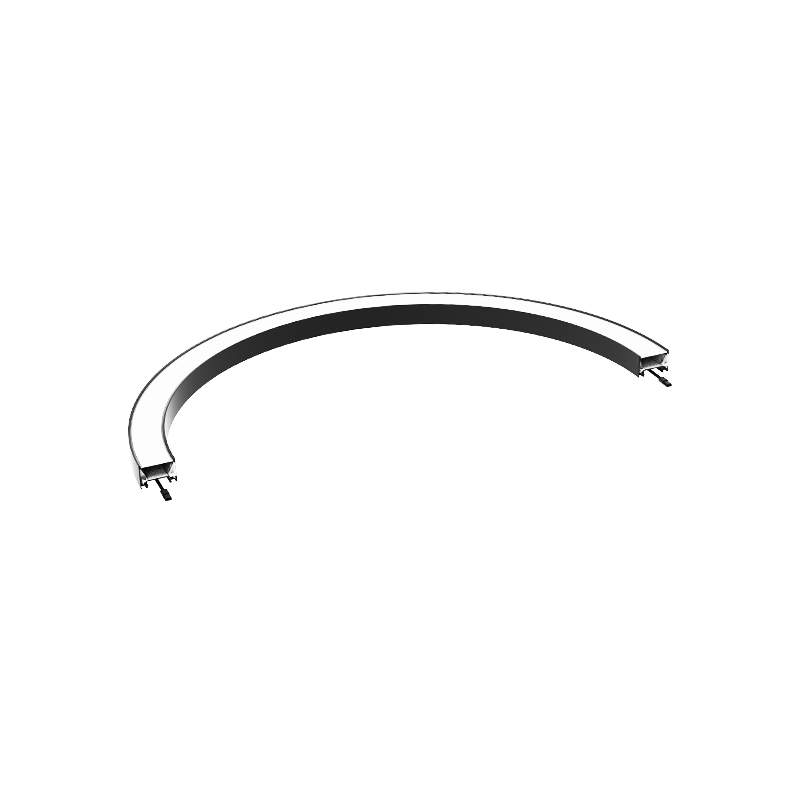

MS5035D-A180

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	15W	Ra80+	2700K	White	100°	1261 lm	84 lm/W	DC36V
-	Regular	D450mm	15W	Ra80+	3000K	White	100°	1335 lm	89 lm/W	DC36V
-	Regular	D450mm	15W	Ra80+	3500K	White	100°	1439 lm	96 lm/W	DC36V
-	Regular	D450mm	15W	Ra80+	4000K	White	100°	1483 lm	99 lm/W	DC36V
-	Regular	D450mm	15W	Ra80+	5000K	White	100°	1483 lm	99 lm/W	DC36V
-	Regular	D450mm	15W	Ra80+	6500K	White	100°	1483 lm	99 lm/W	DC36V
-	Regular	D450mm	15W	Ra90+	2700K	White	100°	1083 lm	72 lm/W	DC36V
-	Regular	D450mm	15W	Ra90+	3000K	White	100°	1157 lm	77 lm/W	DC36V
-	Regular	D450mm	15W	Ra90+	3500K	White	100°	1231 lm	82 lm/W	DC36V
-	Regular	D450mm	15W	Ra90+	4000K	White	100°	1275 lm	85 lm/W	DC36V

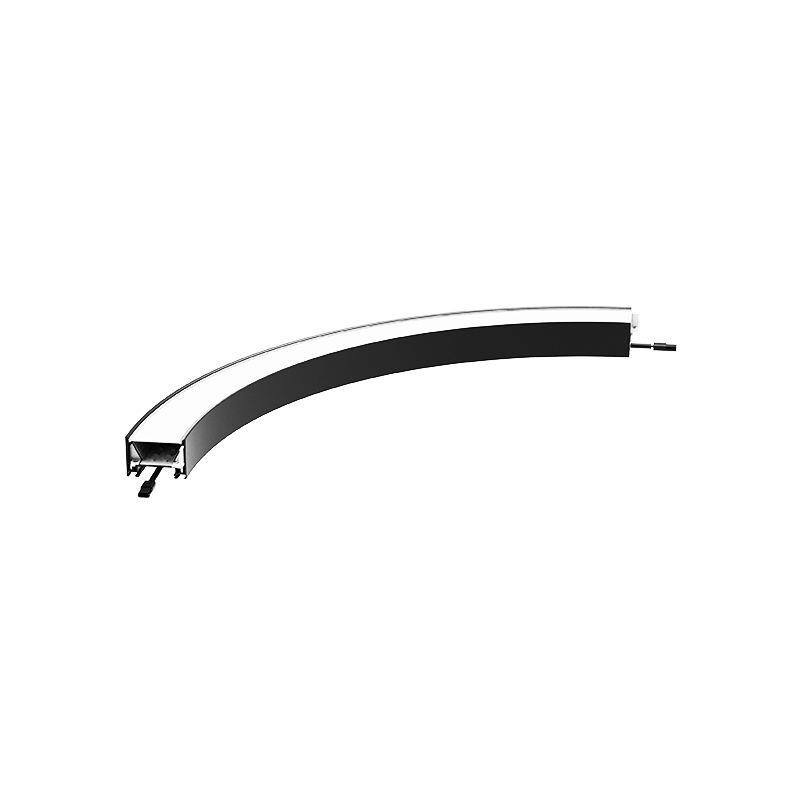

MS5035D-A90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	7.4W	Ra80+	2700K	White	100°	628 lm	85 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra80+	3000K	White	100°	665 lm	90 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra80+	3500K	White	100°	717 lm	97 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra80+	4000K	White	100°	739 lm	100 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra80+	5000K	White	100°	739 lm	100 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra80+	6500K	White	100°	739 lm	100 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra90+	2700K	White	100°	539 lm	73 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra90+	3000K	White	100°	576 lm	78 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra90+	3500K	White	100°	613 lm	83 lm/W	DC36V
-	Regular	D450mm	7.4W	Ra90+	4000K	White	100°	636 lm	86 lm/W	DC36V

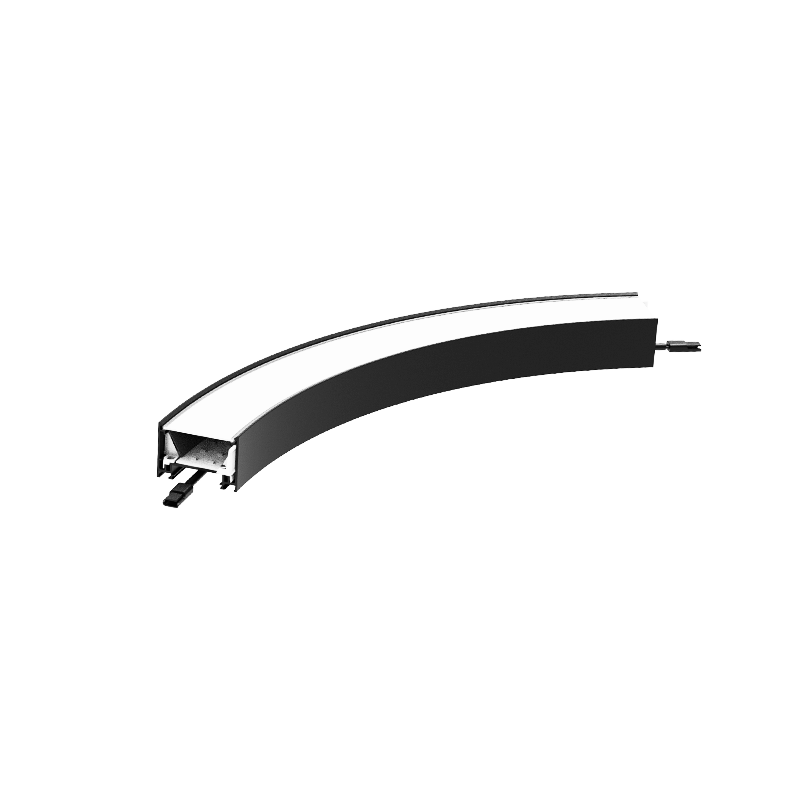

MS5035D-A60

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	5.5W	Ra80+	2700K	White	100°	470 lm	85 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra80+	3000K	White	100°	498 lm	91 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra80+	3500K	White	100°	536 lm	97 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra80+	4000K	White	100°	553 lm	101 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra80+	5000K	White	100°	553 lm	101 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra80+	6500K	White	100°	553 lm	101 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra90+	2700K	White	100°	404 lm	73 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra90+	3000K	White	100°	431 lm	78 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra90+	3500K	White	100°	459 lm	83 lm/W	DC36V
-	Regular	D450mm	5.5W	Ra90+	4000K	White	100°	476 lm	87 lm/W	DC36V

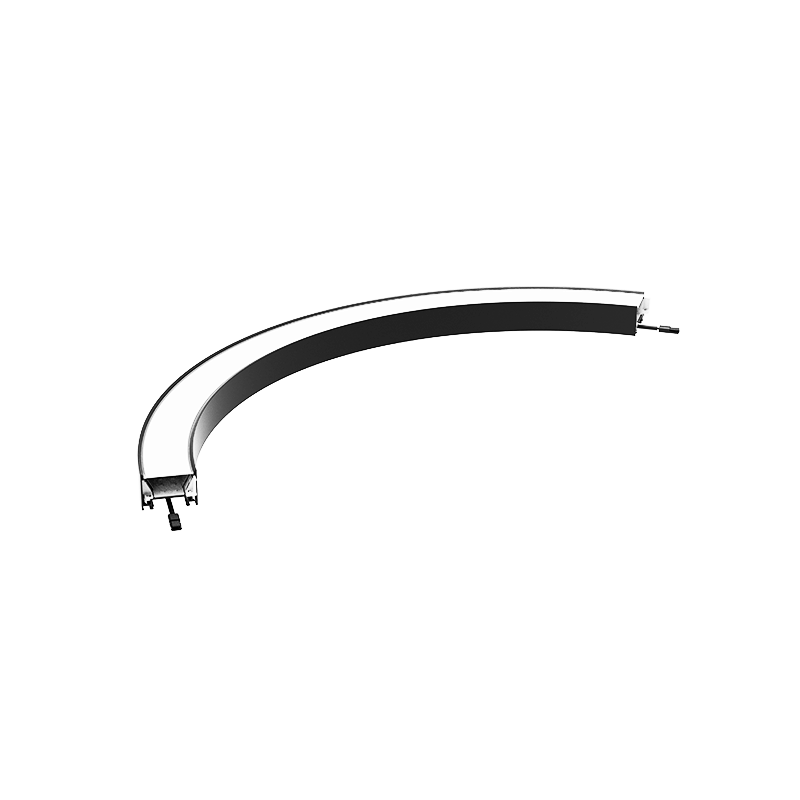

MS5035D-A120

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	11W	Ra80+	2700K	White	100°	941 lm	86 lm/W	DC36V
-	Regular	D450mm	11W	Ra80+	3000K	White	100°	996 lm	91 lm/W	DC36V
-	Regular	D450mm	11W	Ra80+	3500K	White	100°	1074 lm	98 lm/W	DC36V
-	Regular	D450mm	11W	Ra80+	4000K	White	100°	1107 lm	101 lm/W	DC36V
-	Regular	D450mm	11W	Ra80+	5000K	White	100°	1107 lm	101 lm/W	DC36V
-	Regular	D450mm	11W	Ra80+	6500K	White	100°	1107 lm	101 lm/W	DC36V
-	Regular	D450mm	11W	Ra90+	2700K	White	100°	808 lm	73 lm/W	DC36V
-	Regular	D450mm	11W	Ra90+	3000K	White	100°	863 lm	78 lm/W	DC36V
-	Regular	D450mm	11W	Ra90+	3500K	White	100°	919 lm	84 lm/W	DC36V
-	Regular	D450mm	11W	Ra90+	4000K	White	100°	952 lm	87 lm/W	DC36V
