MicroTrack 11
Discover MicroTrack 11MicroTrack 11 is a low-voltage track system with an ultra-thin 10.2mm and ultraslim 19mm design. It is compatible with 48V and 24V. Thanks to the 4-wire design, the modules are dimmable and can be precisely controlled. The system provides spotlight modules, linear modules, and decorative modules; it can be widely used in residential, hotel, exhibition, etc.
Key Features

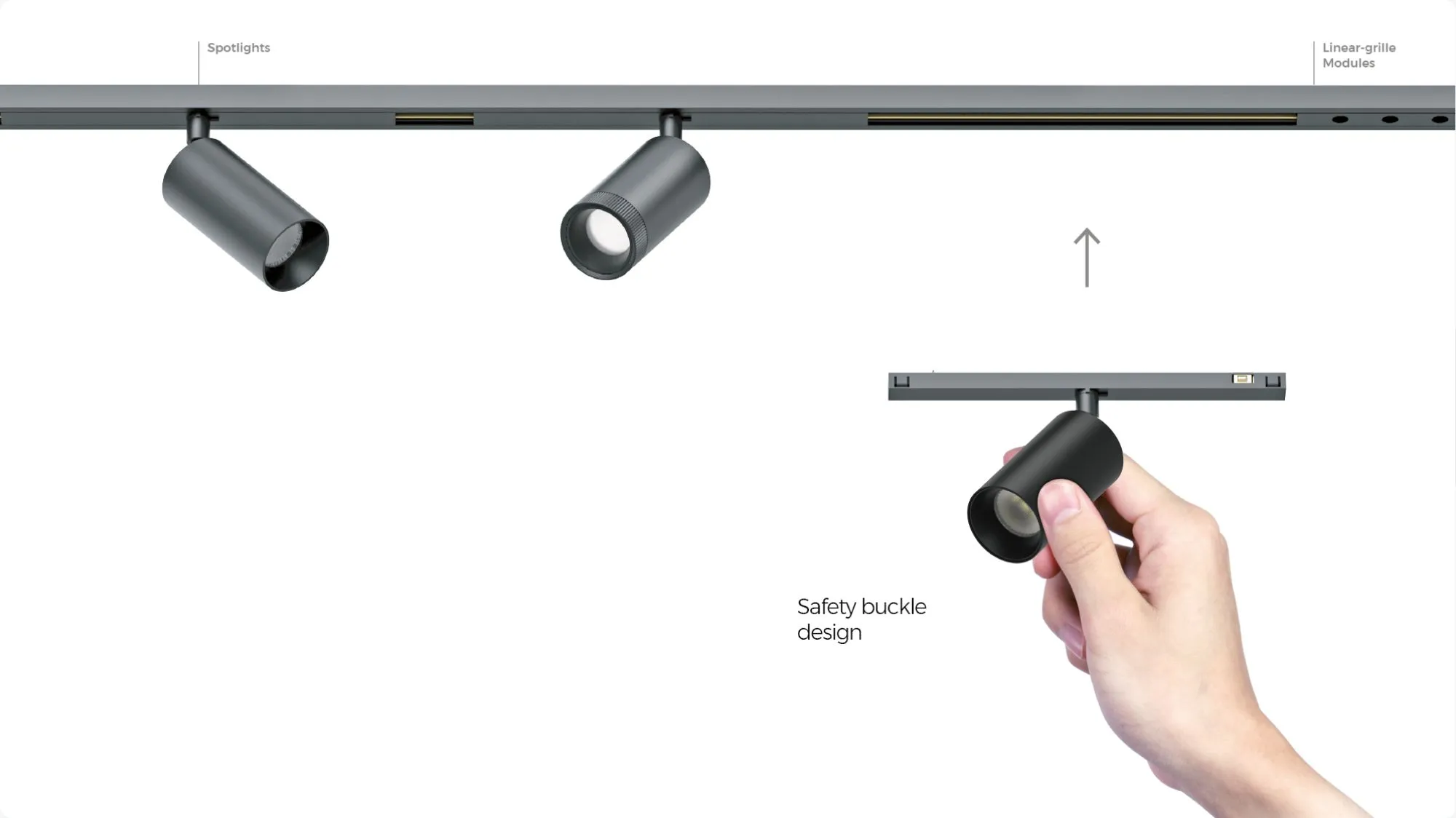

Easy installation

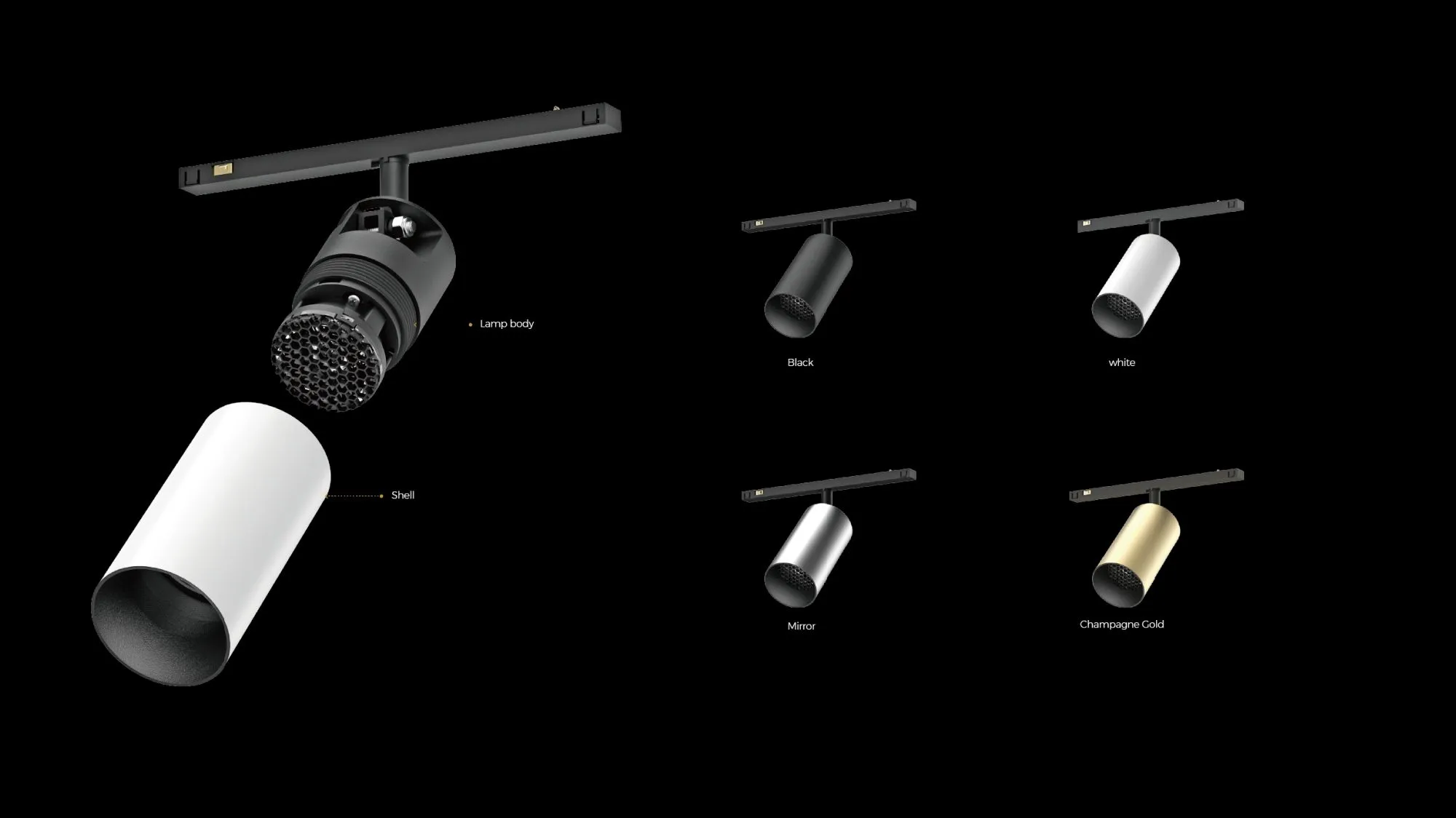

Easy to change colors
The shell of the lamp body is removable, so it is easy to change colors.
Precise light control
The zooming spotlight module is compact in size and it has a wide range of beam angles from 10° to 45°。

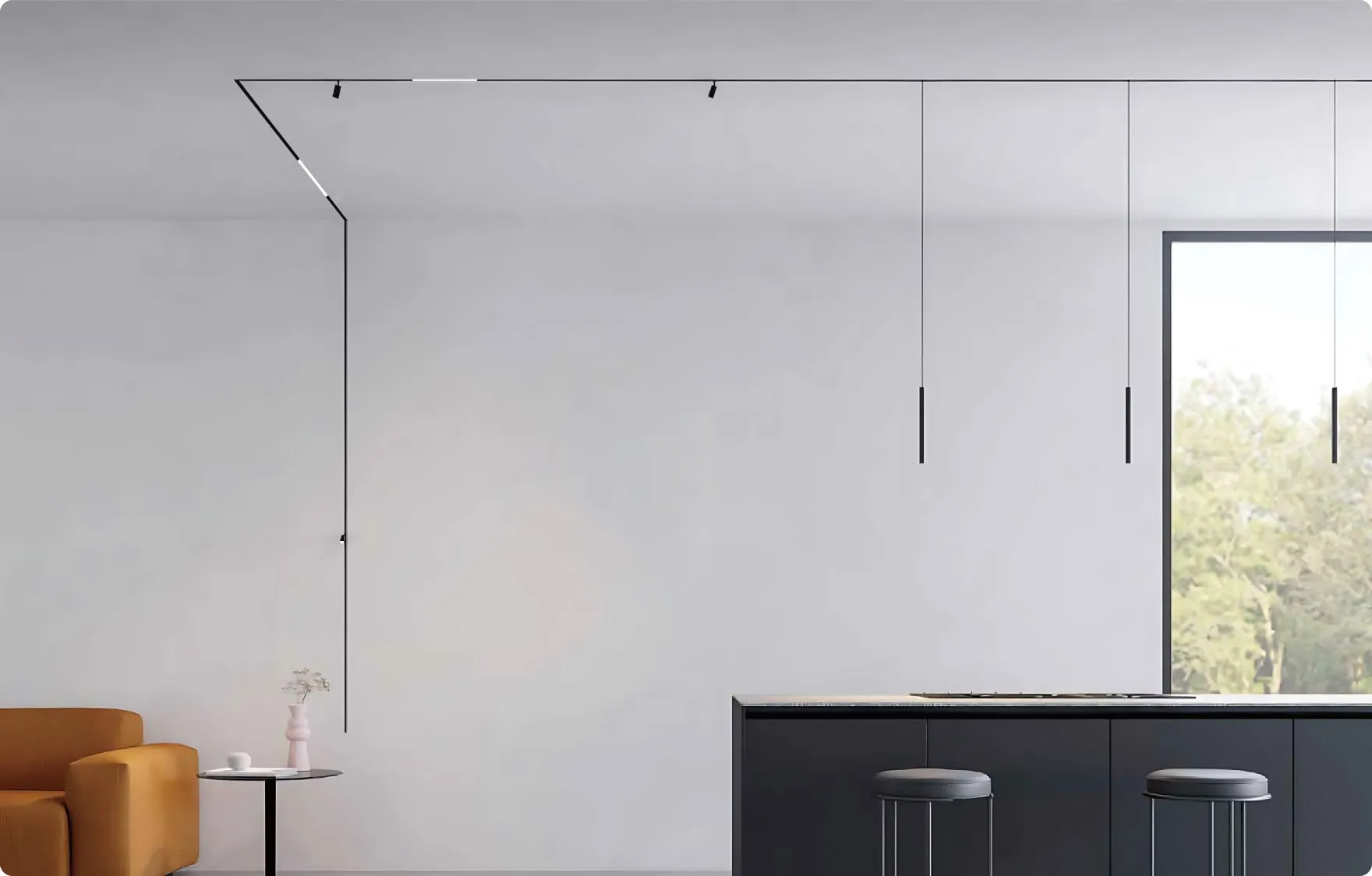

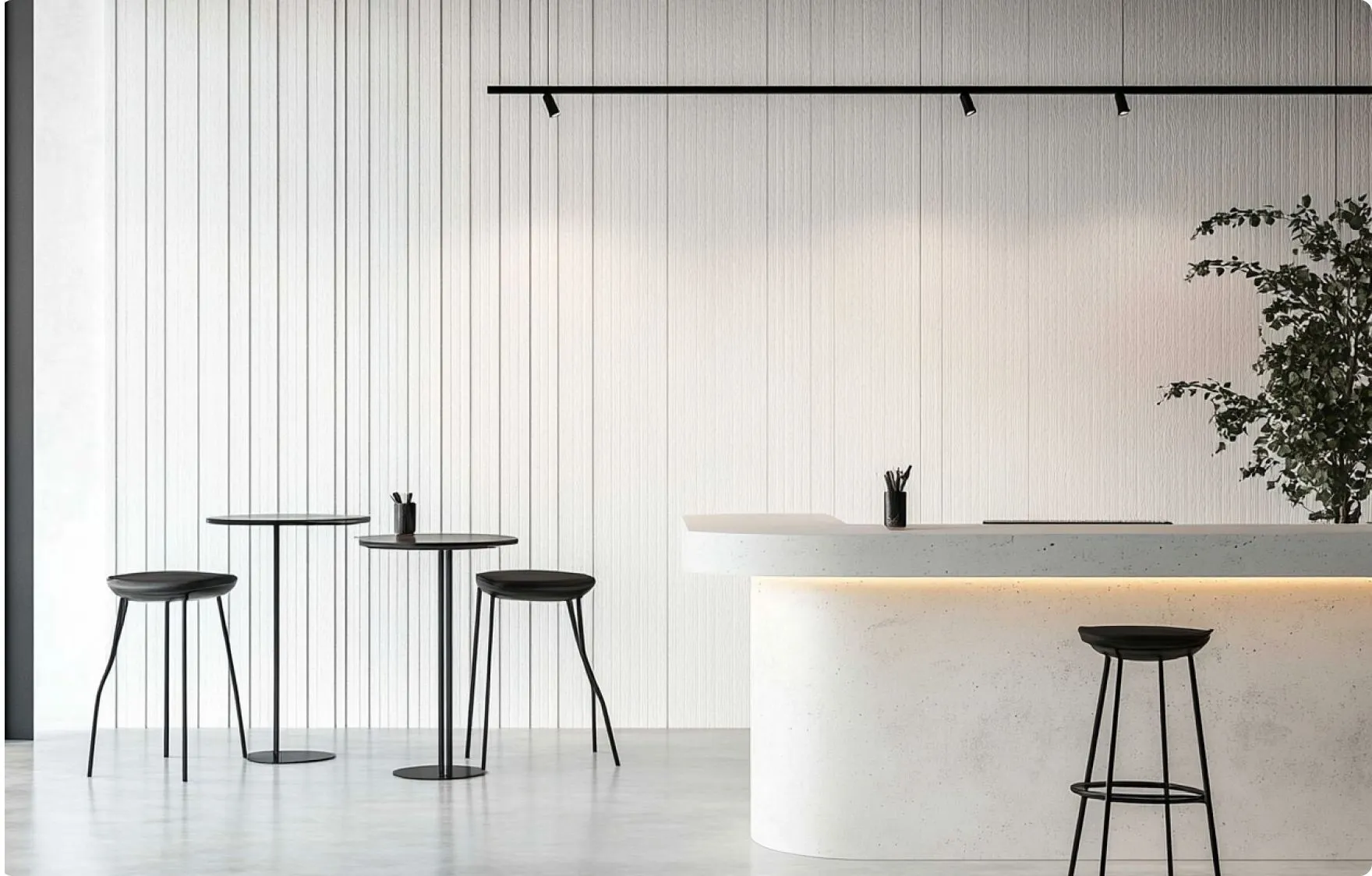

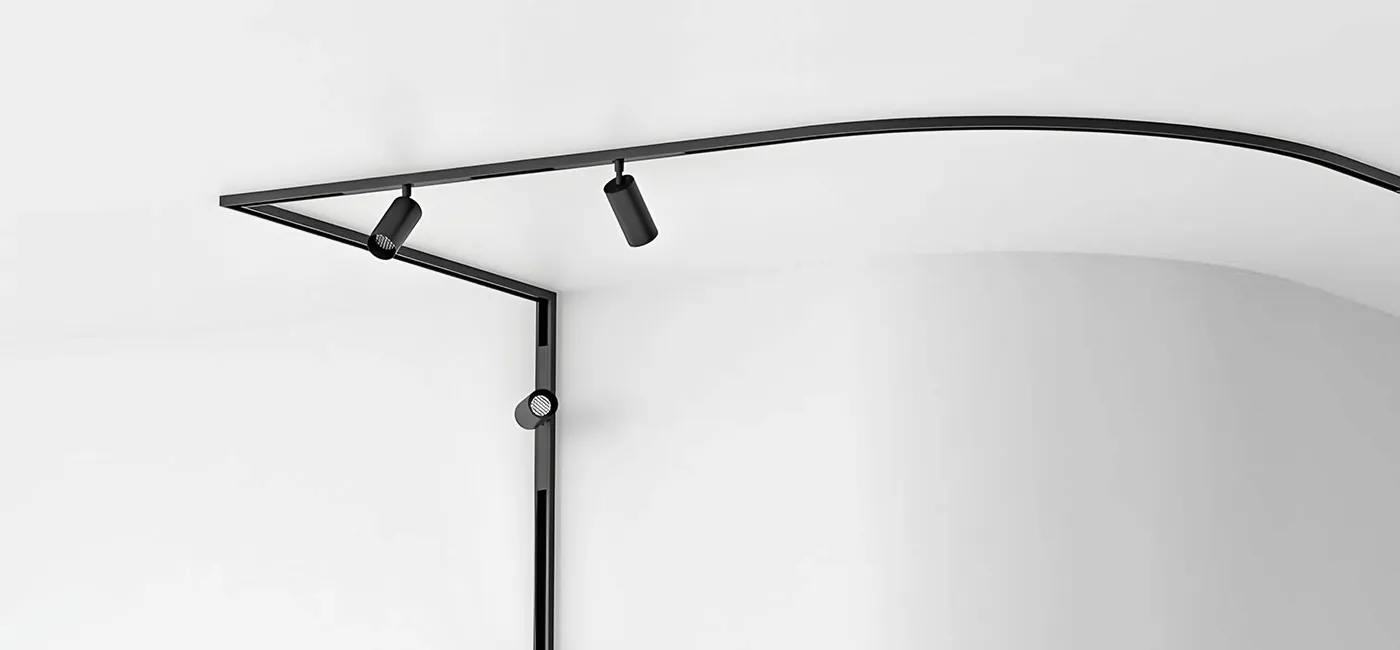

Scenario Case
Ordering Code
Optional Model

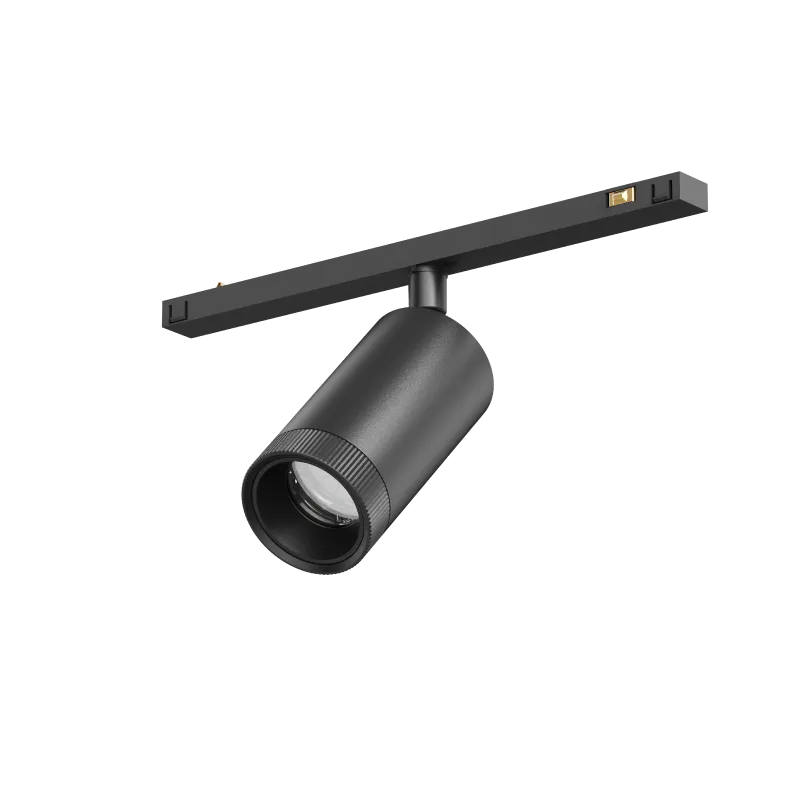

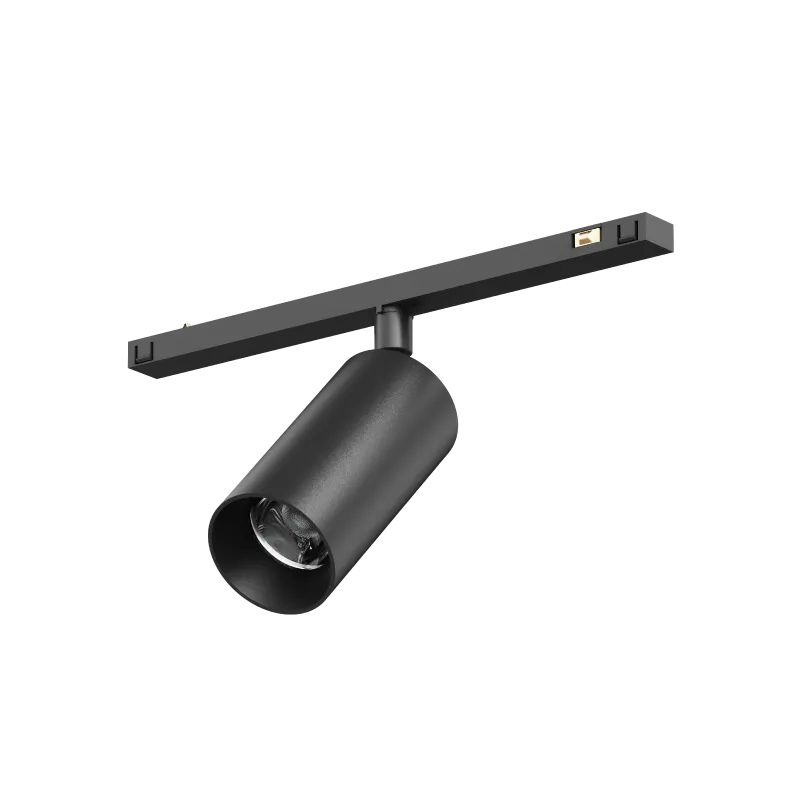

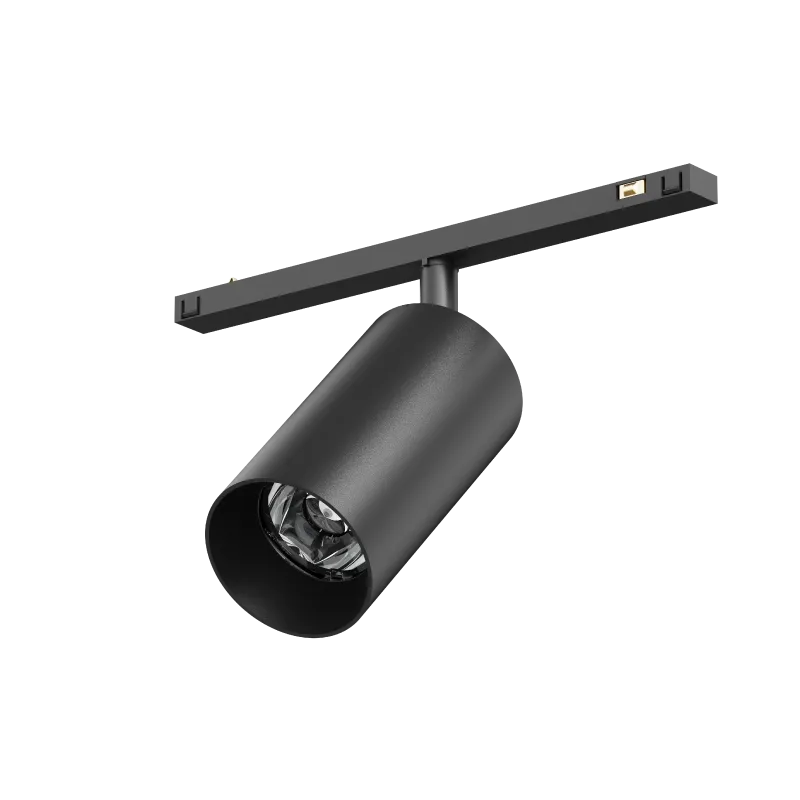

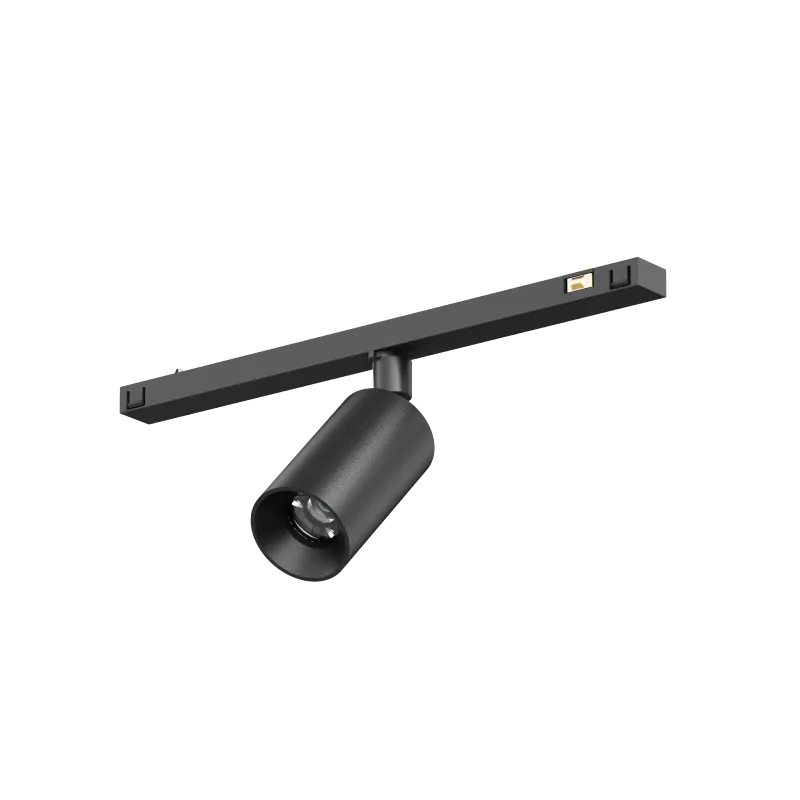

MT11S-25
MT11S-32

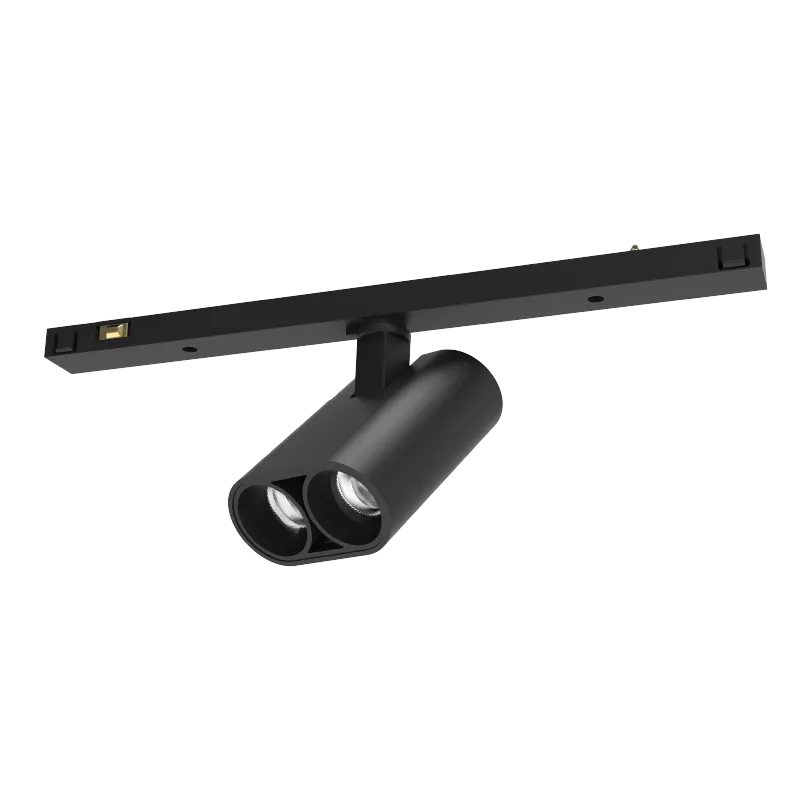

MT11S-3820
MT11S-3838

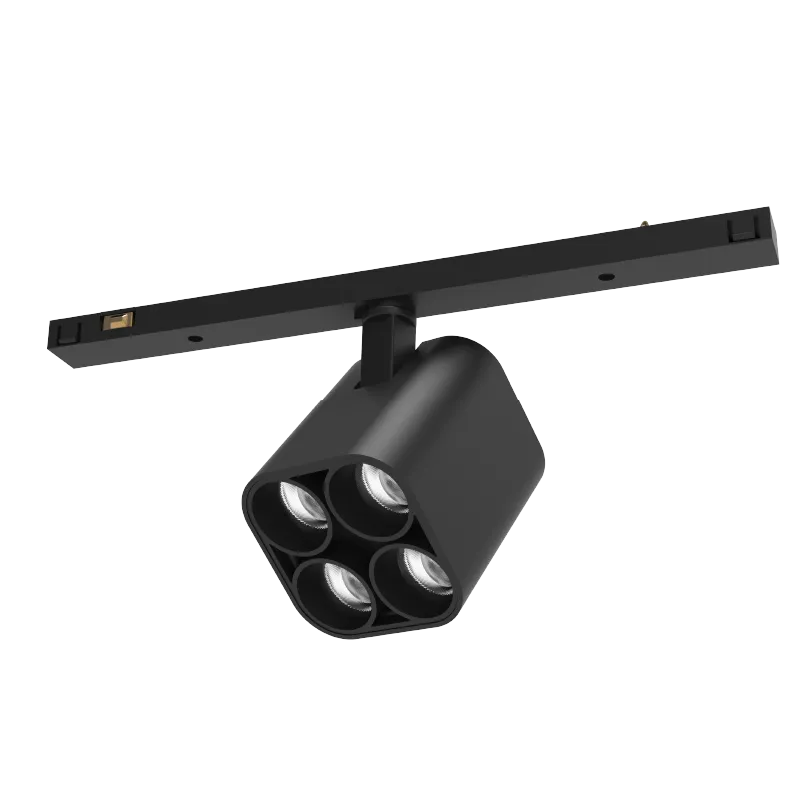

MT11S-42

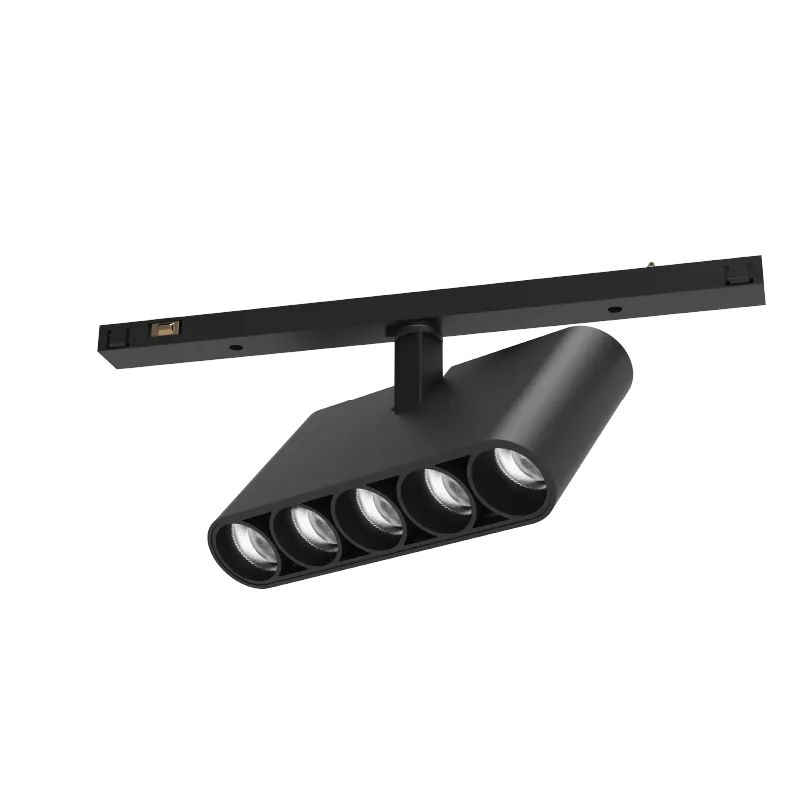

MT11S-9520
MT11SL-23

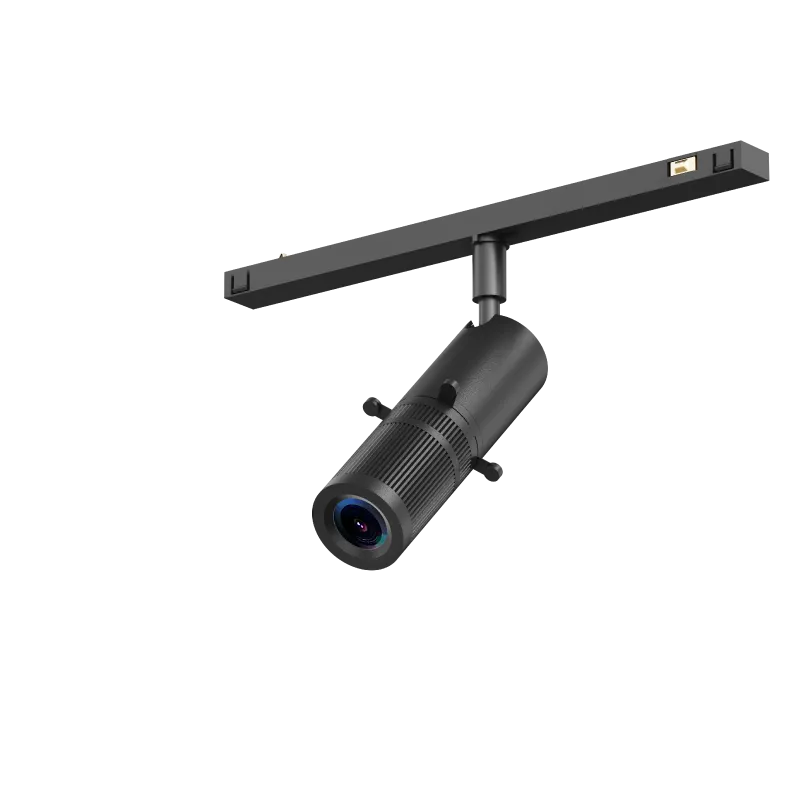

MT11SZ-32
MT11SZ-42

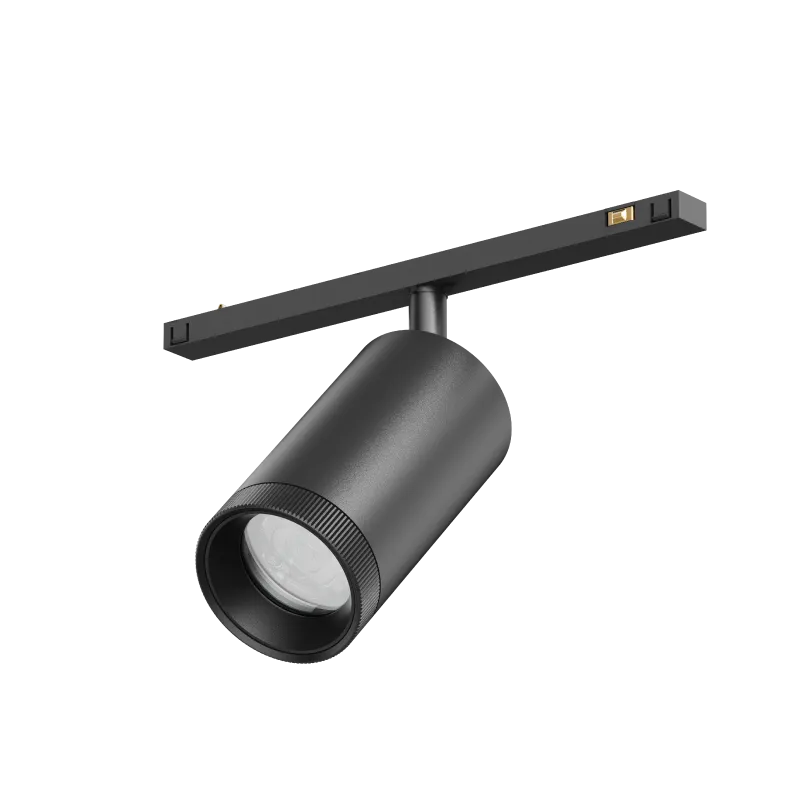

MT11S-25
Basic parameter
Material
AL6063,spraying surface
Coating
Black (RAL9005)
Dimming Method
Non,DALI-2,Tuya Bluetooth,CASAMBI
CCT
2700K,3000K,4000K optional
CRI
>90
SDCM(Light source)
≤3 Step(ANSI)
Beam Angle
24°, 36°optional
Light Efficiency
46LM/W. 50LM/W optional
Input Voltage
DC24-48V
IP Process
IP20
Warranty
5 years
Certification
CE,UKCA,ROHS,Reach
Installation
Track
Input Voltage (V)
Type Power (W)
Beam Angle
CCT
Lumen (LM)
DC48V
4W
24°
2700K
175
DC48V
4W
24°
3000K
185
DC48V
4W
24°
4000K
195
DC48V
4W
36°
2700K
190
DC48V
4W
36°
3000K
200
DC48V
4W
36°
4000K
210
model
Size (mm/box)
Quantity /box
Size (mm/carton)
Quantity /carton
NW （kg/box)
NW (kg/carton)
GW (kg/carton)
TLS-MT11S25-XXX
L200*W100*H50mm
1
L520*W415*H325mm
60
0.053
9.78
0.146
Accessories Type
Track
Standard Corner
Power feeder
Splicing accessory
Installation accessory
End cap accessory
Power Supply
Size
Name
Model
Description
Quantity
Application
BN-V48-XP
BN-V48-XP
Product name:BN-V48-100P/BN-V48-150P/BN-V48-250P
Output power:100W/150W/250W
Output current:≤2.10A/≤3.13A/≤5.21A
Product size:350.0*30.0*18.0mm/350.0*30.0*18.0mm/400.0*40.0*22.0mm
Input voltage:AC220-240V
Output voltage:DC48V
PF：PF>0.95
IP:IP20
Dimming method:Non-Dimming
Material:Plastic housing
Certification:CE/CB
Warranty:5 years
Note:Products with COLORS LOGO

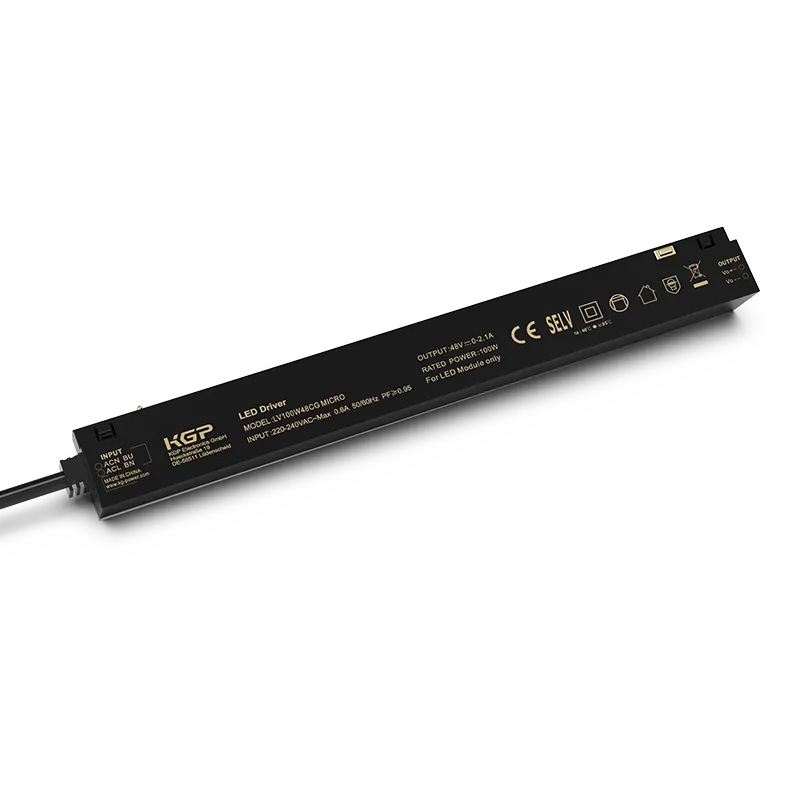

LV100W48CG-1 MICRO
LV100W48CG-1 MICRO
Applicable track model:TLS-MT11-SX0
Dimming mode:Non-dimming
Size:230×19×24.5mm(L*W*H)
Input voltage:AC220~240V
Operating frequency:50/60Hz
PF value:≥0.9
Output voltage:48VDC
Output current:2.1A
Power:100W
Efficiency:≥90%
Certification:CE
Case material:Plastic housing
Dimming mode:Non-dimming
Size:230×19×24.5mm(L*W*H)
Input voltage:AC220~240V
Operating frequency:50/60Hz
PF value:≥0.9
Output voltage:48VDC
Output current:2.1A
Power:100W
Efficiency:≥90%
Certification:CE
Case material:Plastic housing
MT11-L90-MH11
MT11-L90-MH11
Applicable product model: TLS-MT11-HX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: L34.5×W34.5×H24mm
MT11-L90-MR11
MT11-L90-MR11
Applicable product model: TLS-MT11-RX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: : L49.5×W49.5×H15mm
MT11-L90-MS11
MT11-L90-MS11
Applicable product model: TLS-MT11-SX0
Installation method: L-shaped splicing(Downward)
Material process: Aluminum
Light source: No
Size: L34.5×W34.5×H10.2mm
- 1
- 2
- 3
- 4
- 5
