Features

· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)、White(RAL9003)
· IP grade: IP20
·Beam angle: 20°/28°/38°/55° optional
· CCT: 2700/3000/4000/3000-5000K optional
· CRI: >90
· SDCM: <5 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming(Suitable for four-wire three-circuit guide rail)/DALI dimming(Suitable for six-wire three-circuit guide rail) optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5 years

BASIC CONFIGURATION

EHS-55_Module(AC220V) Required track installation Including electrical conector Adapted track brand:Powergear, Stucchi, Global, Staff, Eutrac, Nordic

EHS-55

Reset selected

$
**
/set
Login to view price
Length:

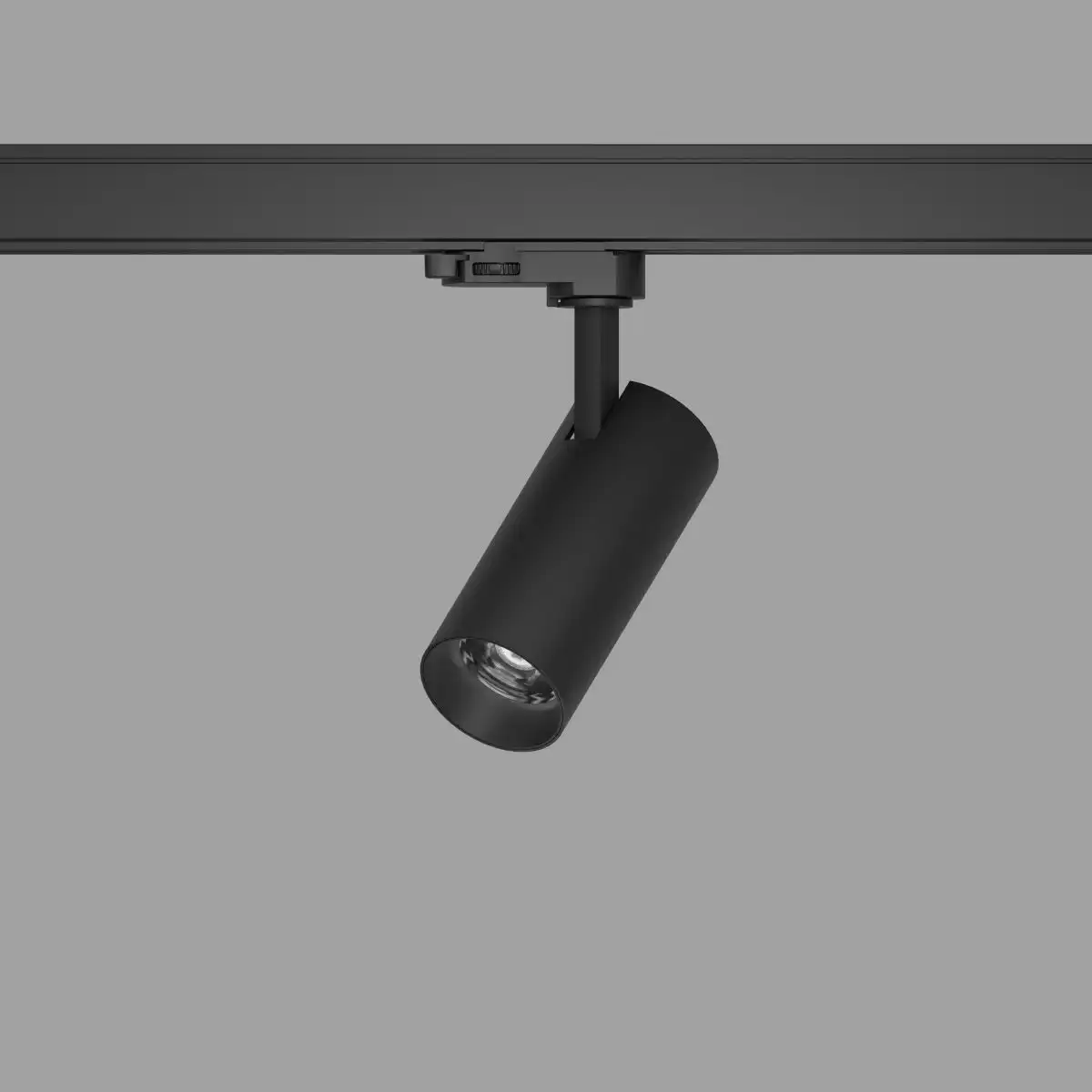

φ55mm Spotlight
Typ.power:
15W
CRI:
>90
Version
  • Normal
  • 3 CCT tunable(Dial switch)
Diffuser Nature
  • 55°
  • 38°
  • 28°
  • 20°
Color
  • Black
  • White
Dimming Method
  • Non-Dimming
  • DALI Dimming
CCT
  • 2700K
  • 3000K
  • 4000K
  • 3000K-5000K
Label Type
  • Customized Label

  • COLORS

Ordering Code :

$ **/set

φ55mm Spotlight,
15W,
>90

Common Accessories

Accessories Type
  • Track
  • Power feeder
  • End cap accessory
  • Installation accessory
  • Splicing accessory
Specifications
