Features

·Material:AL6063-T5,spraying surface
·Coating:Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency:90LM/W(Normal&Emergency&CCT tunable&Presence sensing)、130LM/W(High efficiency model)
·UGR: ≤ 19 (X=4H, Y=8H)
·Dimming method:Non/ DALI-2+PUSH/ 1-10V optional
·Length:1200mm/1500mn/1800mmoptional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500/3000-6500K optional
·Input voltage:AC200-240V
·Application: Indoor
·Installation:Recessed
·IP grade:IP20
·Certification:CE、UKCA、ROHS、Reach
·Warranty:5 years (Emergency model: 3 years)

BASIC CONFIGURATION

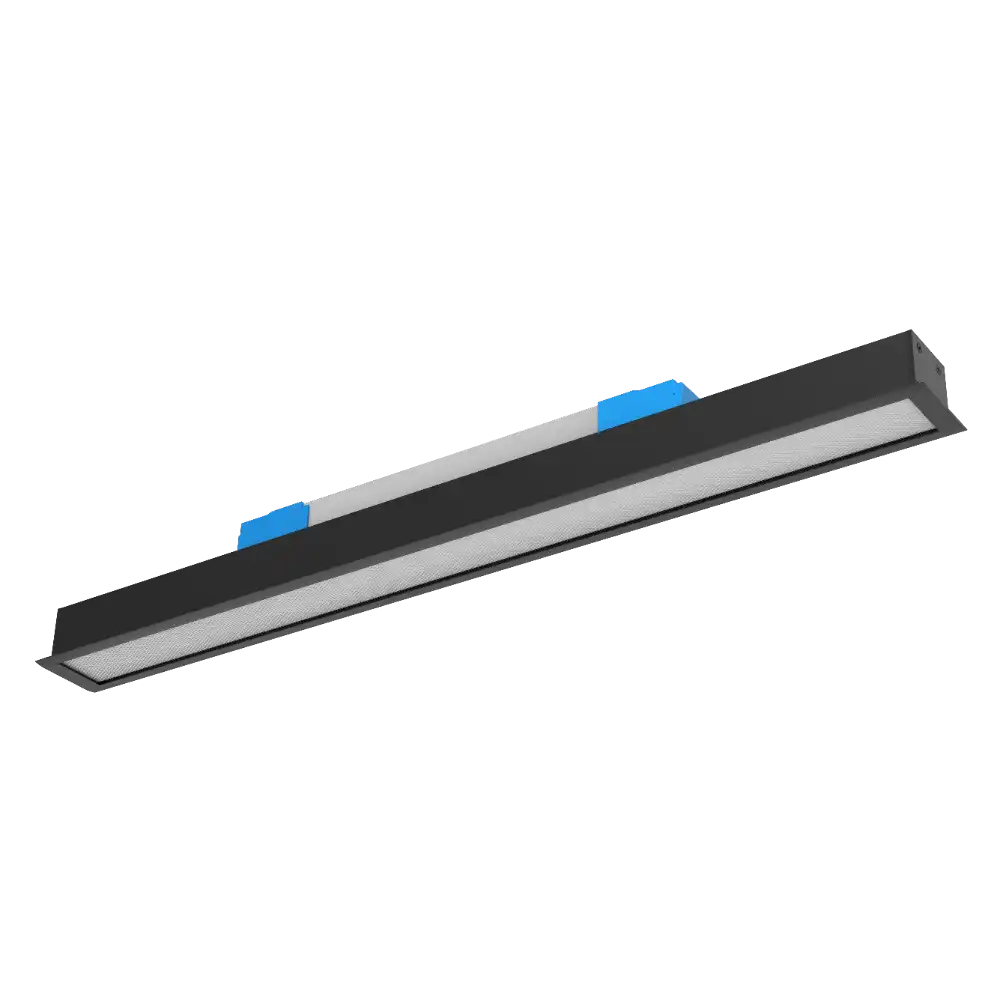

LE40FP luminaire luminaire entry cable 2M Included recessed mounting accessories

LE40FP

Reset selected

$
**
/set
Login to view price
Diffuser Nature:
Prismatic
Carrier Style:
No carrier
Light Source Type:
Constant Current Rigid PCB
Input Voltage:
AC200-240V
End Cap Style:
Holeless end cap
Package:
COLORS Individual
Version
  • Normal
  • High efficiency
  • 3 CCT tunable(Dial switch)
  • Emergency
Length
  • 1200mm
  • 1500mm
  • 1800mm
Typ.power
  • 40W
  • 34W
  • 28W
  • 24W
  • 30W
  • 36W
Color
  • Black
  • White
  • Matt Orange
  • Matt Blue
  • Yellow
  • Champagne Gold
  • Rose gold
  • Matt Green
Dimming Method
  • Non-Dimming
  • 1-10V Dimming
  • DALI Dimming
CRI
  • >80
  • >90
CCT
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6500K
  • 3000K-6500K
Label Type
  • Customized Label

  • COLORS

Ordering Code :

$ **/set

Prismatic,
No carrier,
Constant Current Rigid PCB,
AC200-240V,
Holeless end cap,
COLORS Individual

Common Accessories

Accessories Type
  • Splicing accessory
Specifications
