Best Architectural Exterior Wall Wash Lighting: Expert LED Picks
Best Architectural Exterior Wall Wash Lighting: Expert LED Picks
Aurora Jin.UpdatedJanuary 23, 2026|6 mins Read
This content will recommend the best LED exterior wall wash lighting fixtures for architectural use. It will also offer design ideas for wall wash lighting and guide you on where to find durable LED luminaires. Additionally, the content will highlight a leading company that provides exterior architectural wall wash lighting solutions and explain the reasons to choose them.
Recommended Best LED Exterior Wall Wash Lighting Fixtures For Architectural Use
In response to modern architectural needs, the AL series lens neon fixtures exemplify the ideal solution for exterior wall wash lighting. These flexible 5-meter cascading wall washers are suitable for medium and high-power applications. They can be used at wall washing heights of 3, 5, and 8 meters and offer multiple angles for lighting. With an IP67 waterproof rating, these fixtures are designed to withstand harsh conditions and come with a 5-year warranty. They operate effectively in temperatures ranging from -20℃ to +50℃, and they feature a high Color Rendering Index (CRI) of over 90. Available color temperatures include 2700K, 3000K, 3500K, 4000K, 6500K and DMX512.

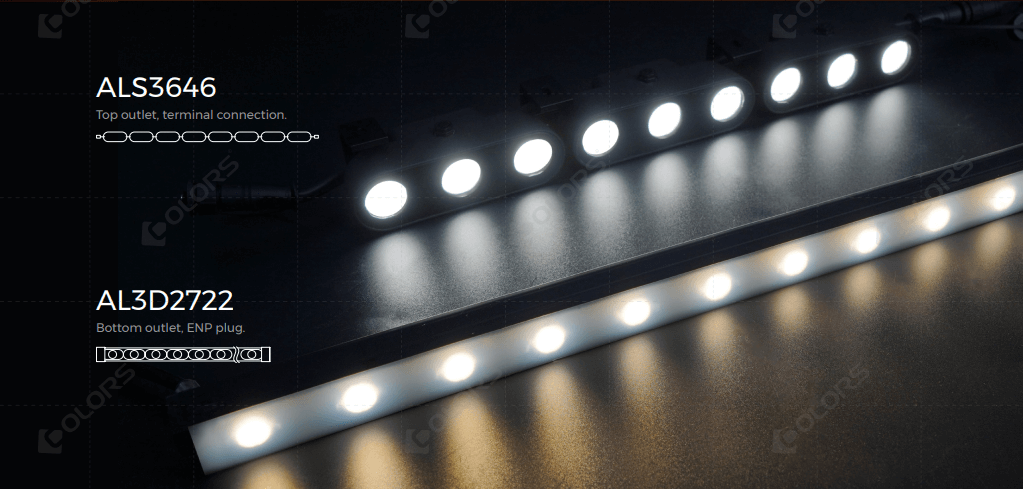

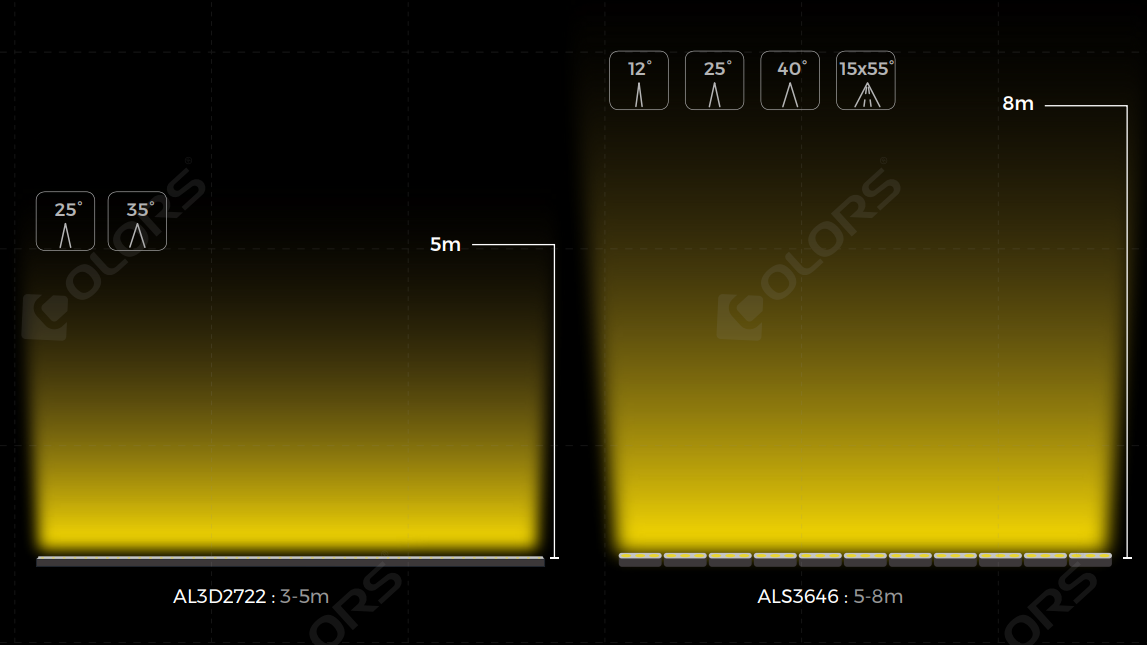

AL series lens neon fixtures include two models, ALS3646 and AL3D2722, providing full coverage from 3 to 10 meters, with wall-washing height and multiple angles available.

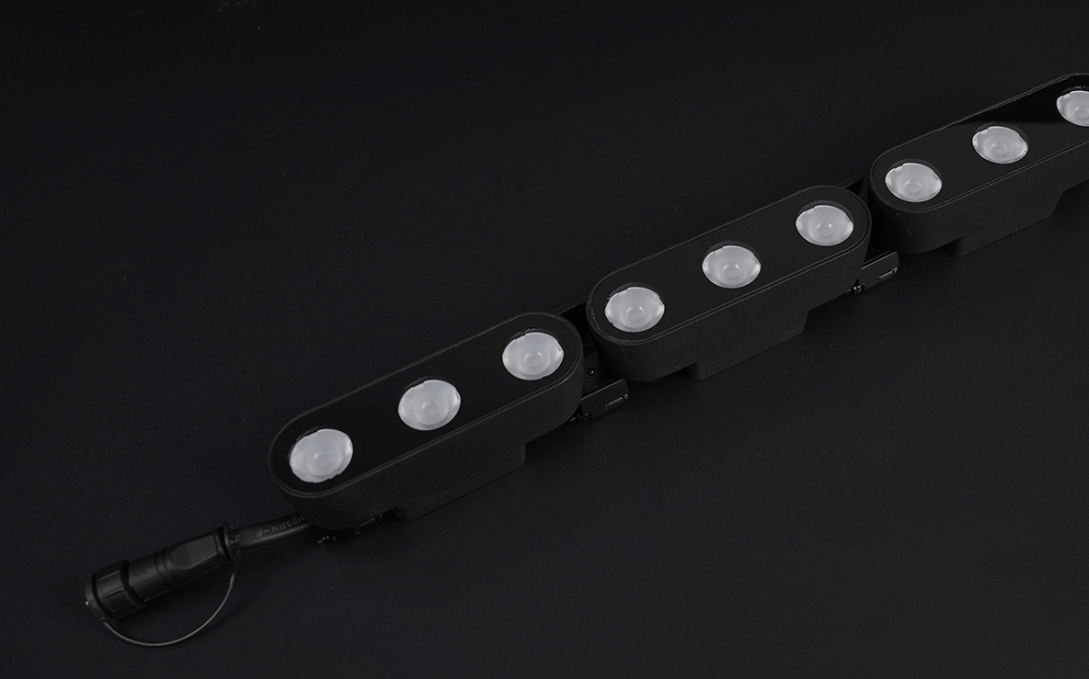

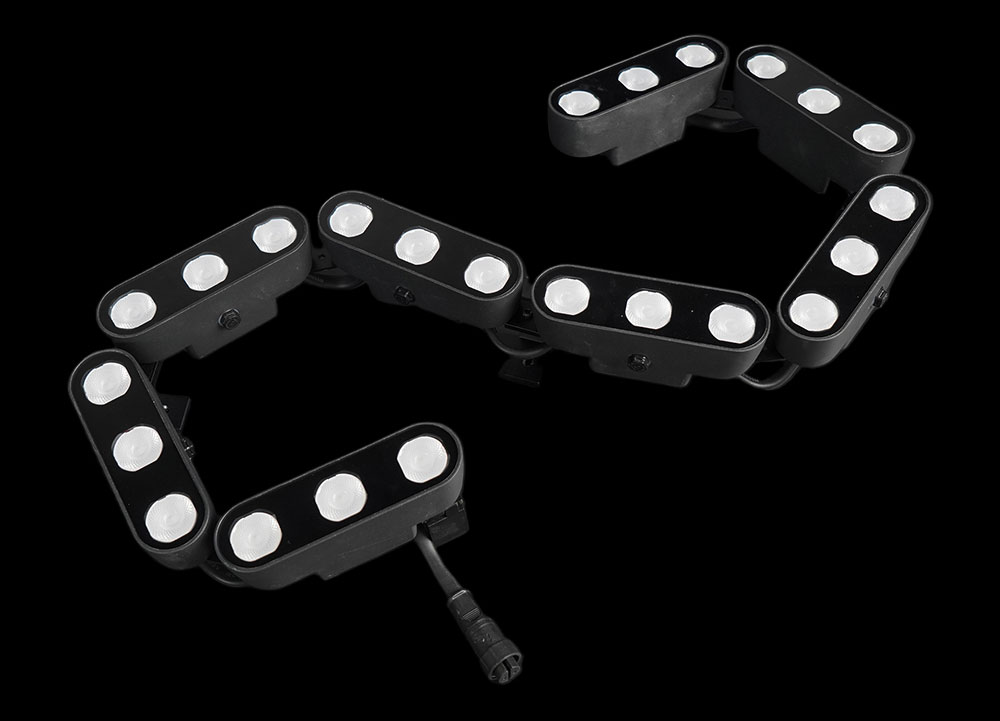

Model 1: ALS3646
The ALS3646 LEN NEON features a top outlet with a terminal connection and supports side bends. It is available in white light with a voltage of 24V and has a Color Rendering Index (CRI) greater than 90. The Correlated Color Temperature (CCT) options include 2700K, 3000K, and 4000K, making it suitable for both indoor and outdoor use. Additionally, it is flame-resistant, saltwater-resistant, solvent-resistant, and UV-resistant.
Optical Features:
- Light source: Outdoor-grade wall-washing LED chips.
- Structural Features: Modular rigid linear fixture, Structural waterproofing and high-efficiency thermal management for outdoor stability.
- Material & Craftsmanship: Extruded aluminum alloy housing + Professional PC optical lens.
- Applications: Architectural facades, public venues, luxury villas, commercial landscapes.
- Wall-washing distance: 8-10m
- Length recommendation: For cascaded length 4 meters or less, use this product (4 sections of 1m each, connected via terminals).
- Operating temperature: W: Ta:-20~50℃
- Storage temperature: W: Ta:0℃～60℃
- Warranty: 3-year warranty or working life =36000H, whichever comes first
- Angle: 12°, 25°, 40°, 15×55°

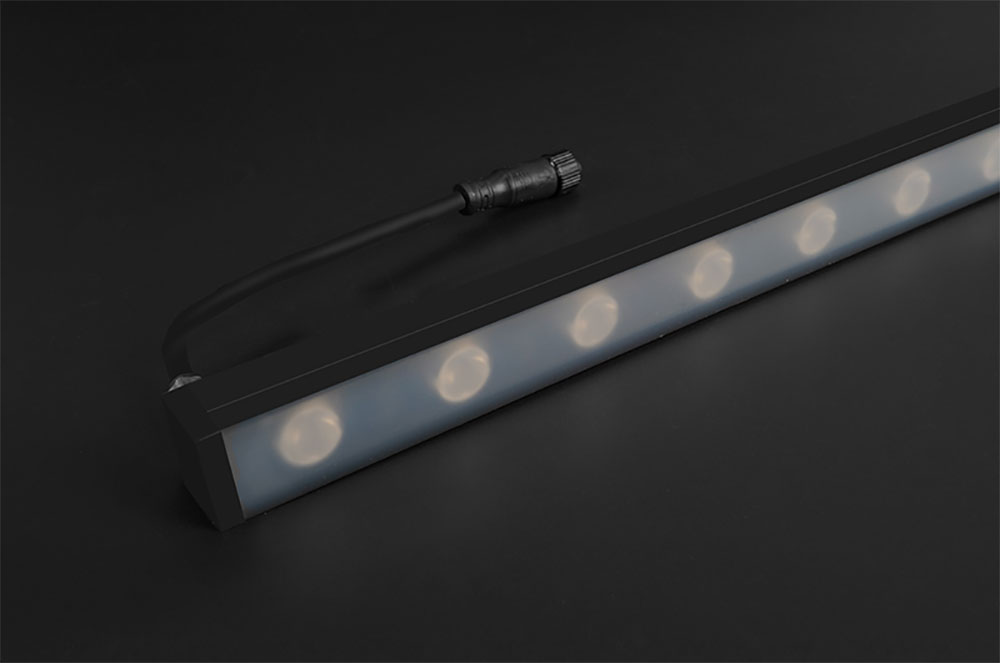

Model 2: AL3D2722
The AL3D2722 LEN Neon offers a power range of 20-25W and features a bottom outlet with an ENP plug. It is designed for 360° bending and can be shaped in 3D, with a maximum length of 5 meters. The product operates at a voltage of 24V and is available in white light as well as DMX512 RGBW, DMX512 RGB, and DMX512 white options. It supports correlated color temperatures (CCT) of 2700K, 3000K, 3500K, 4000K, and 6000K. Additionally, this neon type is flame-resistant, saltwater-resistant, solvent-resistant, and UV-resistant.
Optical Features:
- More optional beam angles: 25° & 35°.
- Recommend the distance 200~300mm between the LED strips and the wall, and the tested illumination height 4-5 meters.
- Recommend the LED strips stick to the aluminum profile for installation.
- Suitable for outdoor or indoor wall washing, wall graze and others.
- Working/storage temperature: Ta: -20~50℃ / 0℃～60℃.
- Product application: outdoor or indoor wall washing, wall graze and others.
- 5 years warranty or working life =60000H, whichever comes first.
Architectural Exterior Wall Wash Lighting Ideas

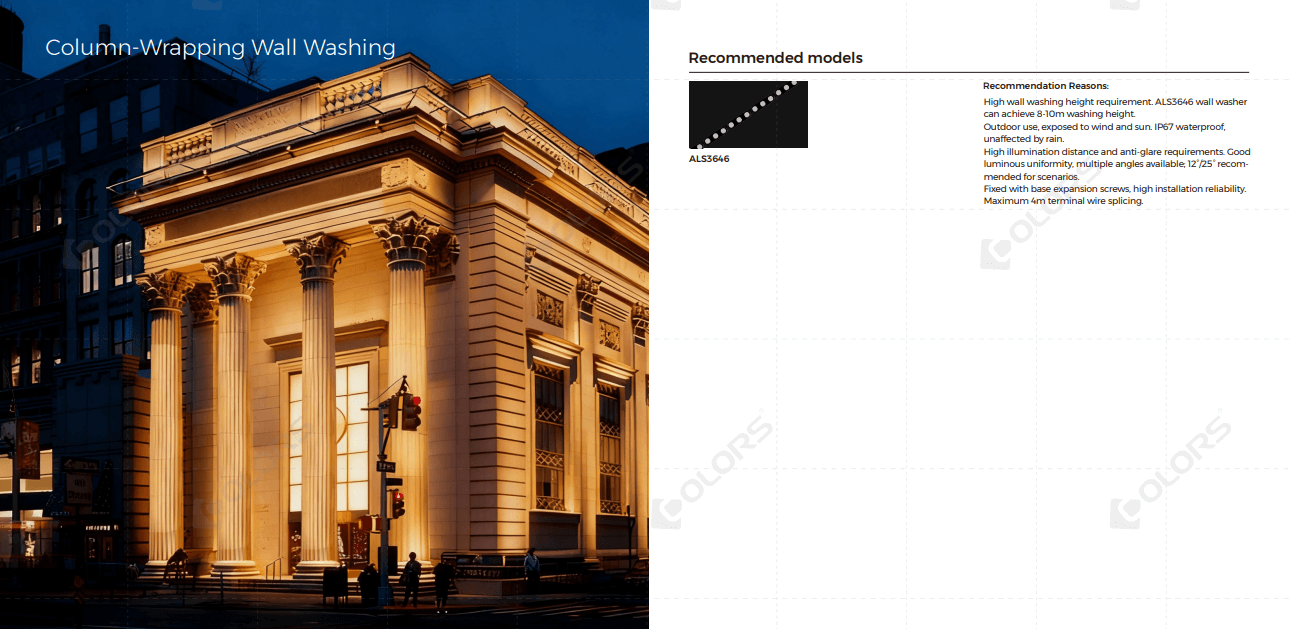

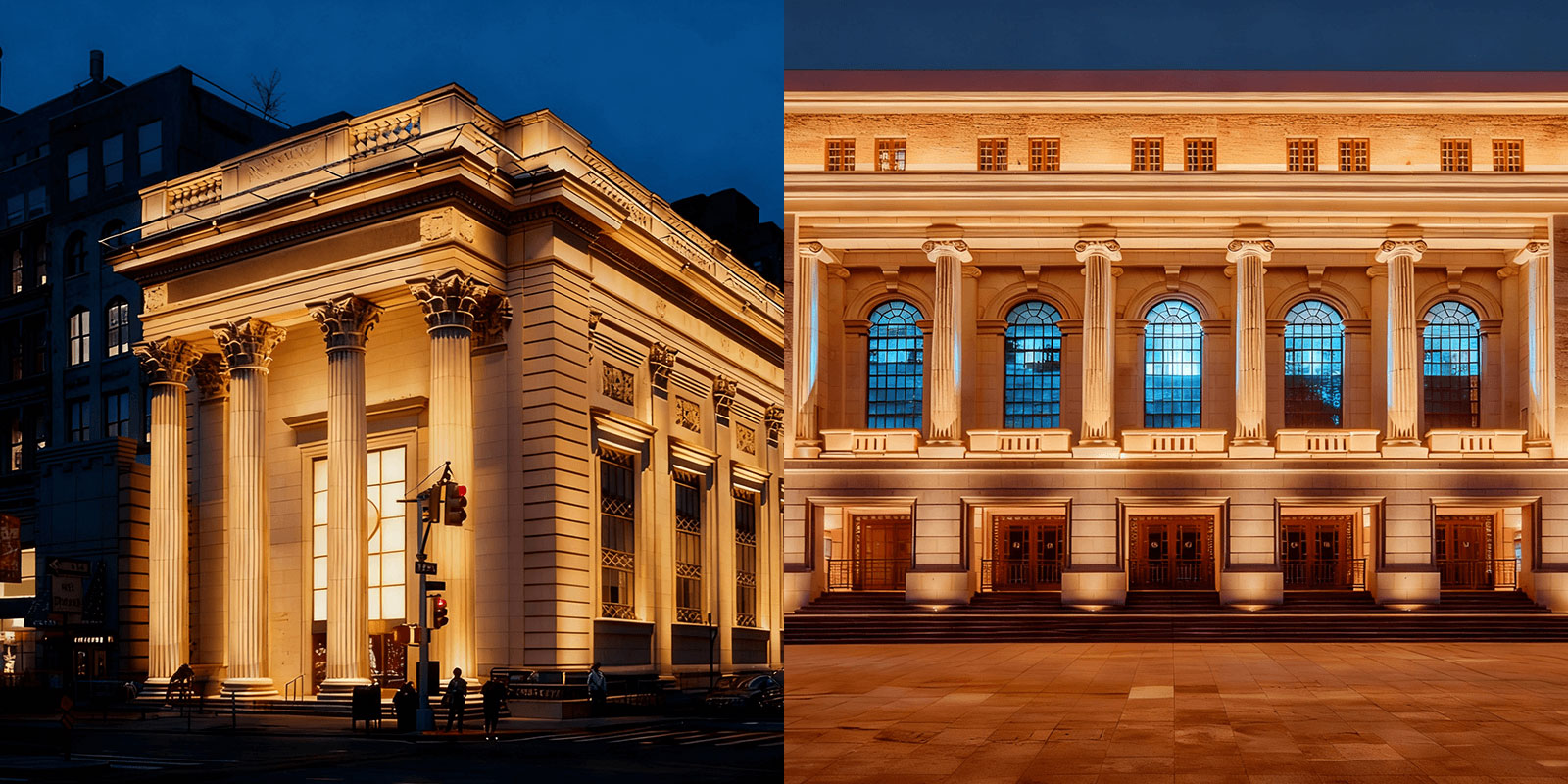

Column-Wrapping Wall Washing
Recommended models: ALS3646
Recommendation Reasons:
- High wall washing height requirement. ALS3646 wall washer can achieve 8-10m washing height.
- Outdoor use, exposed to wind and sun. IP67 waterproof, unaffected by rain.
- High illumination distance and anti-glare requirements. Good luminous uniformity, multiple angles available; 12°/25° recommended for scenarios.
- Fixed with base expansion screws, high installation reliability.
- Maximum 4m terminal wire splicing.

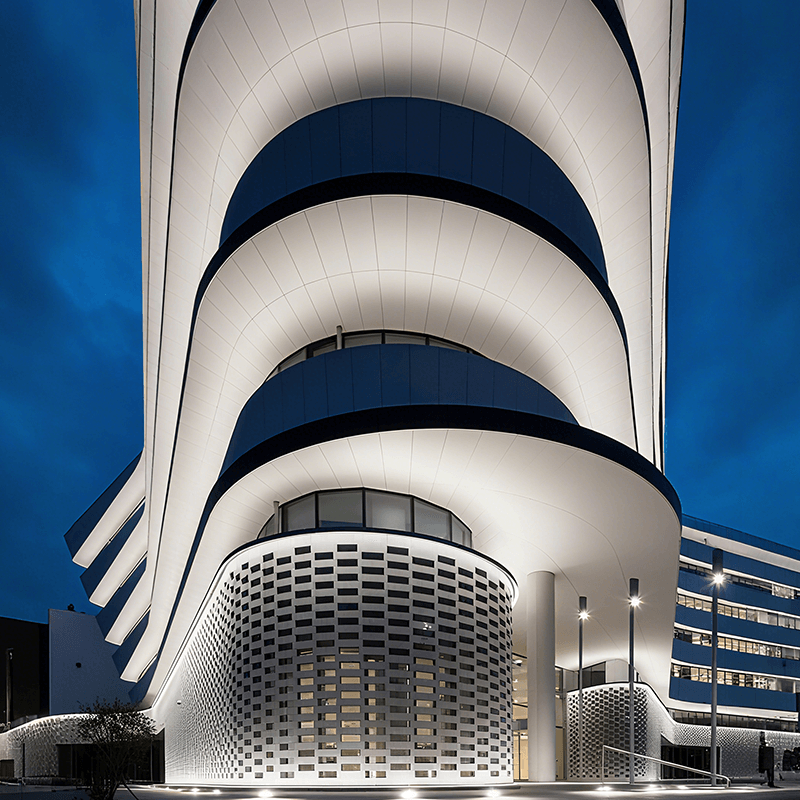

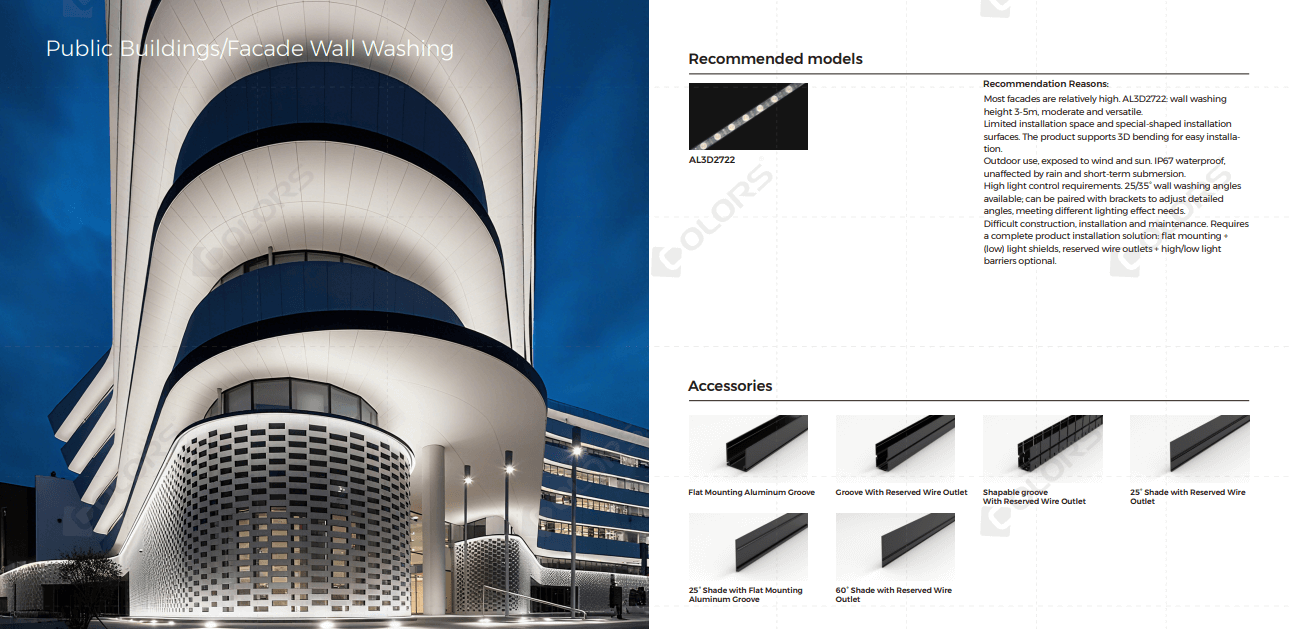

Public Buildings/Facade Wall Washing
Recommended models: AL3D2722
Recommendation Reasons:
- Most facades are relatively high. AL3D2722: wall washing height 3-5m, moderate and versatile.
- Limited installation space and special-shaped installation surfaces. The product supports 3D bending for easy installation.
- Outdoor use, exposed to wind and sun. IP67 waterproof, unaffected by rain and short-term submersion.
- Highlight control requirements. 25/35° wall washing angles available; can be paired with brackets to adjust detailed angles, meeting different lighting effect needs.
- Difficult construction, installation and maintenance. Requires a complete product installation solution: flat mounting + (low) light shields, reserved wire outlets + high/low light barriers, optional.
Accessories:
- Flat Mounting Aluminum Groove;
- Groove With Reserved Wire Outlet;
- Shapable groove, With Reserved Wire Outlet;
- 25° Shade with Reserved Wire Outlet;
- 25° Shade with Flat Mounting Aluminum Groove;
- 60° Shade with Reserved Wire Outlet;

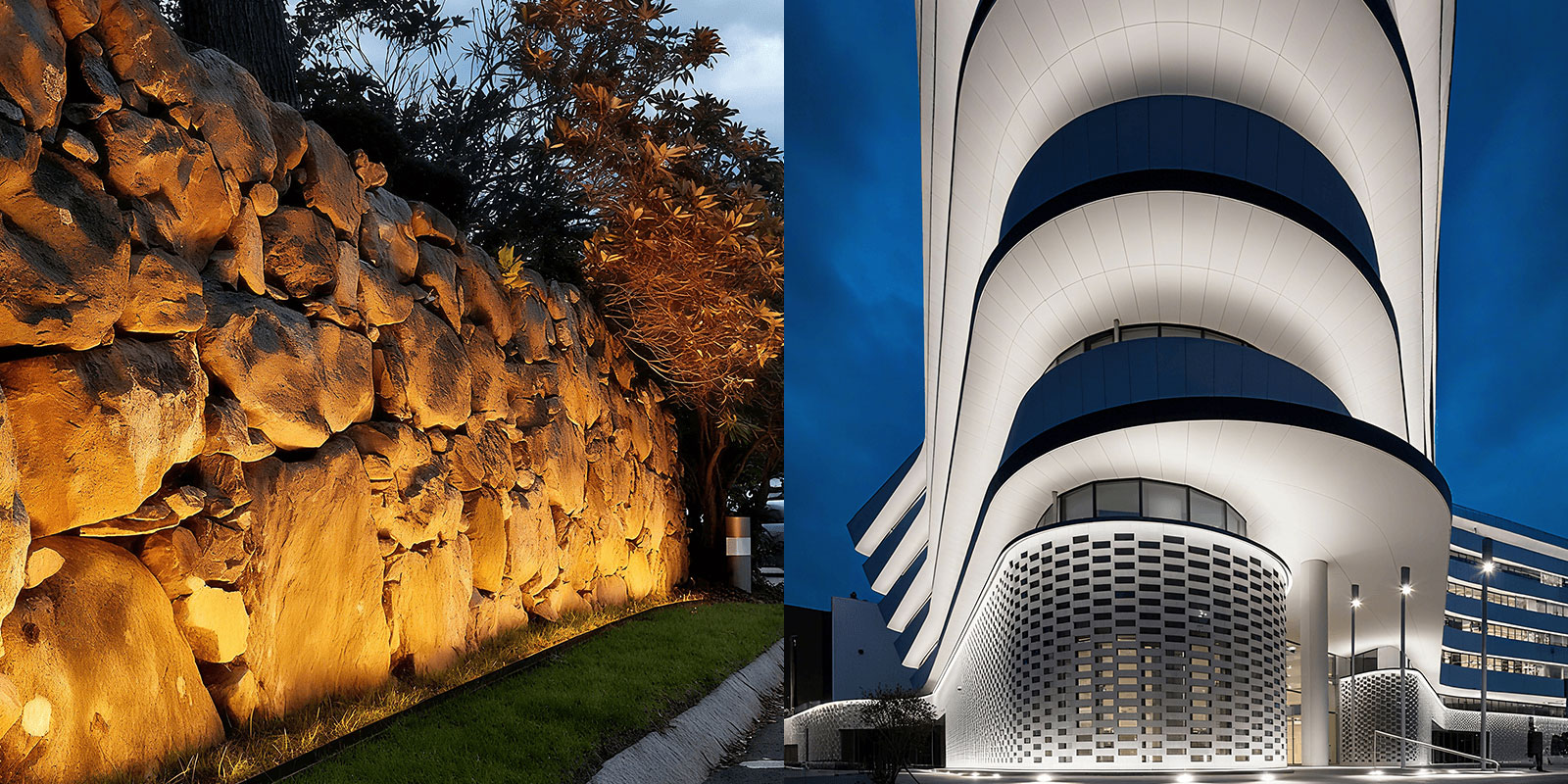

Garden Landscape Lighting
Recommended models: AL3D2722
Recommendation Reasons:
- Complex types of illuminated objects. Model AL3D2722: wall washing height 3-5m, moderate and versatile.
- Special-shaped/uneven installation surfaces or combination of top and side mounting. The product supports 3D bending for easy installation.
- Outdoor use, exposed to wind and sun. IP67 waterproof, unaffected by rain and short-term submersion.
- Highlight control requirements. 25/35° wall washing angles available; can be paired with brackets to adjust detailed angles, meeting different lighting effect needs.
- Difficult construction, installation and maintenance. Requires a complete product installation solution: flat mounting + (low) light shields, reserved wire outlets + high/low light barriers, optional.
- Installation must ensure structural stability and waterproofing, especially in outdoor environments. Wiring layout should follow safety standards to avoid signal interference and power overload. Regular maintenance is recommended to extend service life and maintain lighting performance.
Accessories:
- Flat Mounting Aluminum Groove;
- Groove With Reserved Wire Outlet;
- Shapable groove, with Reserved Wire Outlet;
- 25° Shade with Reserved Wire Outlet;
- 25° Shade with Flat Mounting Aluminum Groove;
- 60° Shade with Reserved Wire Outlet;
Where Can I Find Durable LED Luminaires For Outdoor Wall Washing?
COLORS Lighting is a top company providing exterior architectural wall wash lighting solutions. Our product portfolio includes neon strips, LED strips, linear lights, track lights, downlights, and spotlights. We offer integrated and professional lighting solutions for residential, hotel, office, commercial, and outdoor spaces.
For wall washer lighting, we provide LED strips, neon strips, LED linear lights for both interior and exterior use, as well as downlights and spotlights designed for interior settings. Finding LED strips, LED linear lights, downlights and spotlights for wall wash lighting? Click on Product Recommendation: LED Wall Washer Lights For Indoor/Outdoor Use, to explore more products and lighting design ideas.
However, all our products can be purchased on COLORS Lighting Online Store, which makes B2B deals as simple as Amazon! COLORS Lighting has made significant investments in information technology, establishing a digital management system that covers the entire business chain. This ensures efficient and refined service implementation across all stages, from customer demand coordination to internal workflow management, production and supply, and order fulfillment.
Welcome to contact us and tell us which products you prefer, or let us know what type of LED lighting solution you need. Let us help your lighting project!
