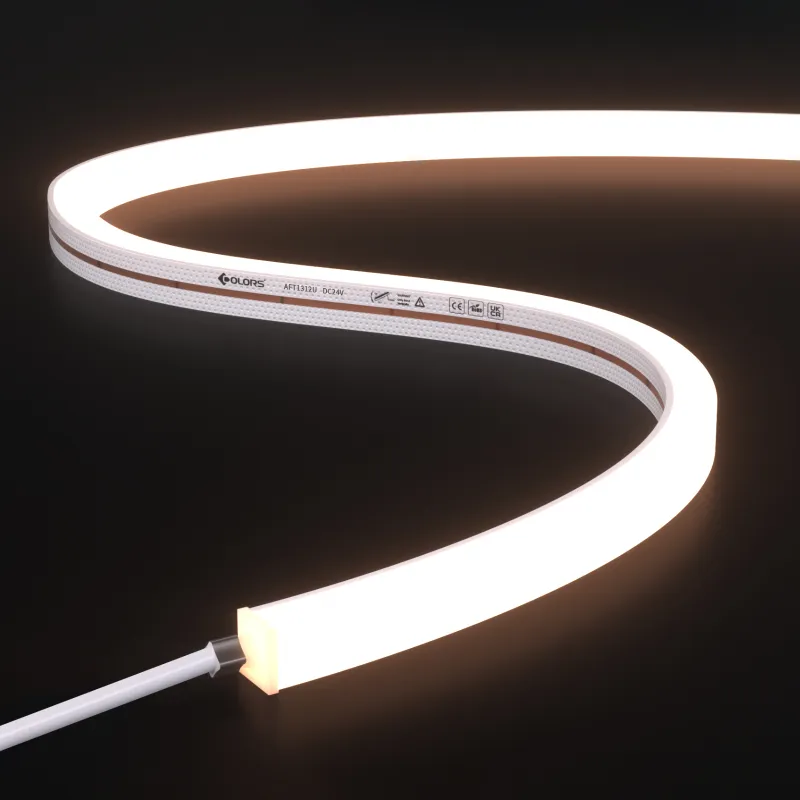

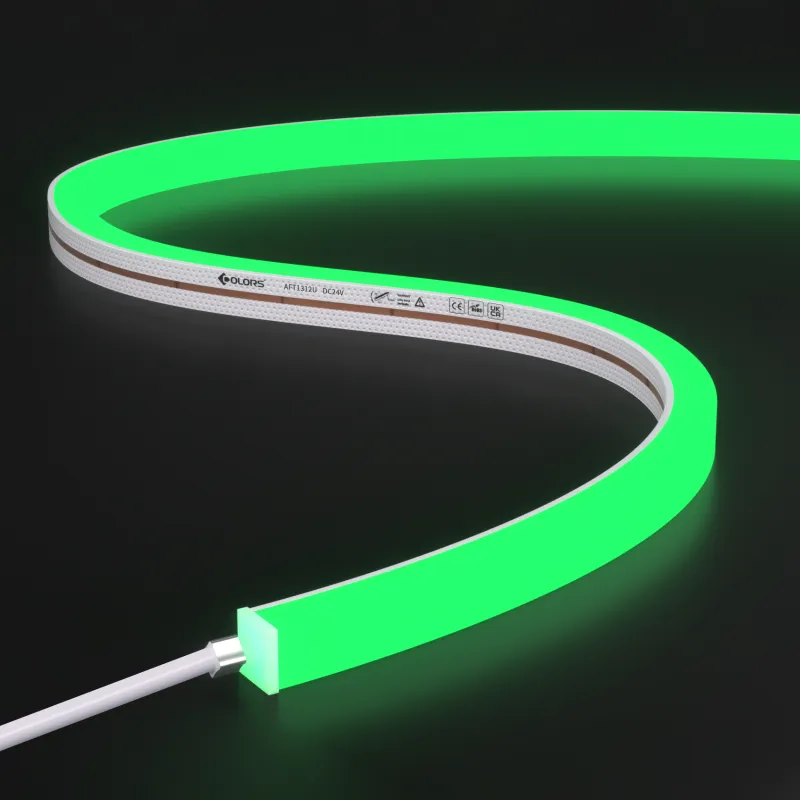

AFT1312U
Discover AF SeriesDesigned for illuminating building facades and outdoor landscapes,
tailored for use in frigid and sweltering climates(-40~+60°C), 7-year
warranty, characterized by high reliability and exceptional weather
fastness, ANSI SDCM≤5
Key Features
NEWLY UPGRADED ARCH NEON
Anti-dead led design
Anti-breakage PCB design
Warranty Upgraded
Weather Resistance Upgraded
Lighting Effect Upgraded

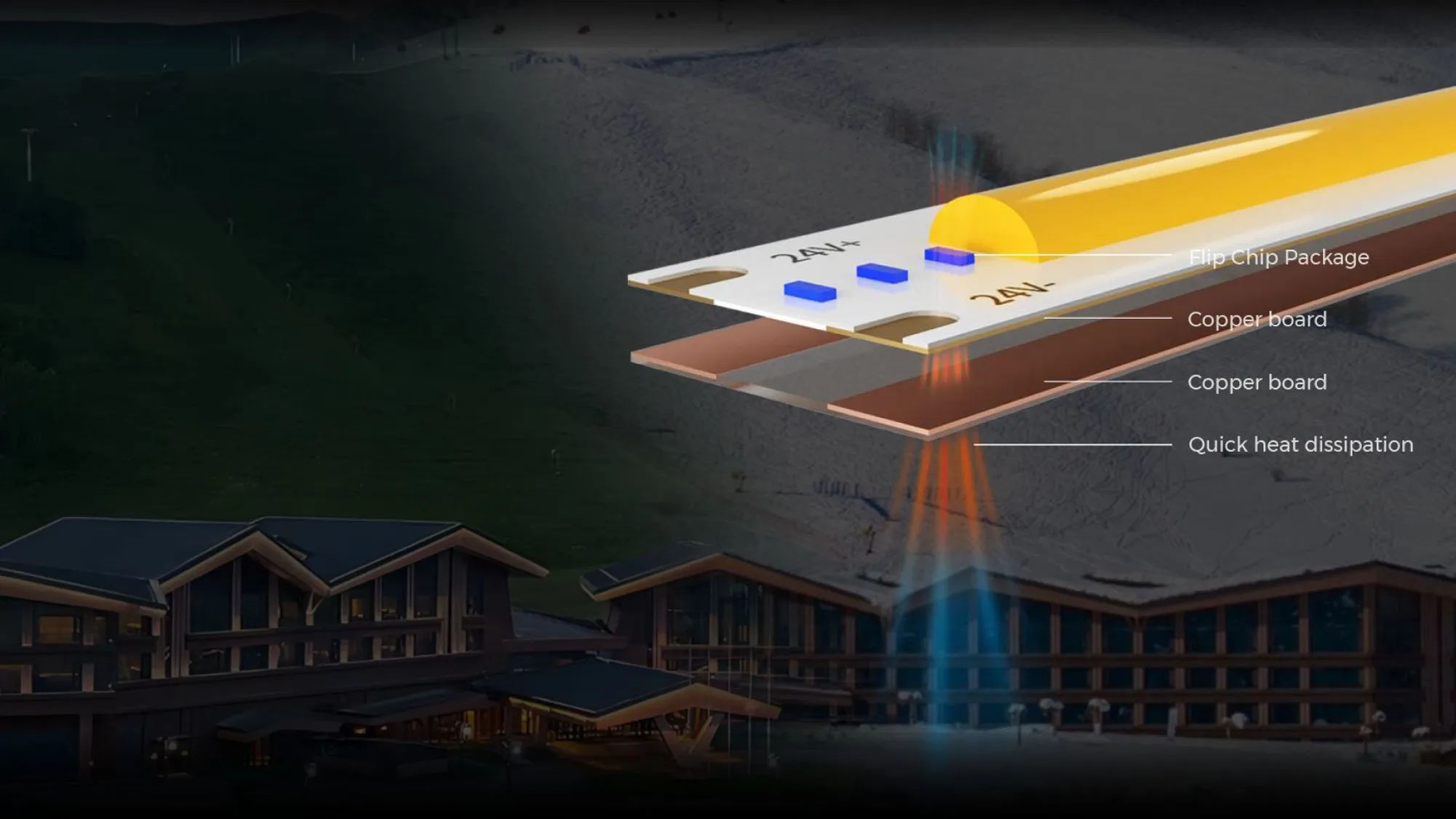

Outstanding weather resistancewith flip chip package technology,unaffected by extreme cold or heat
Temperature resistance: -40°C ~ + 60°C

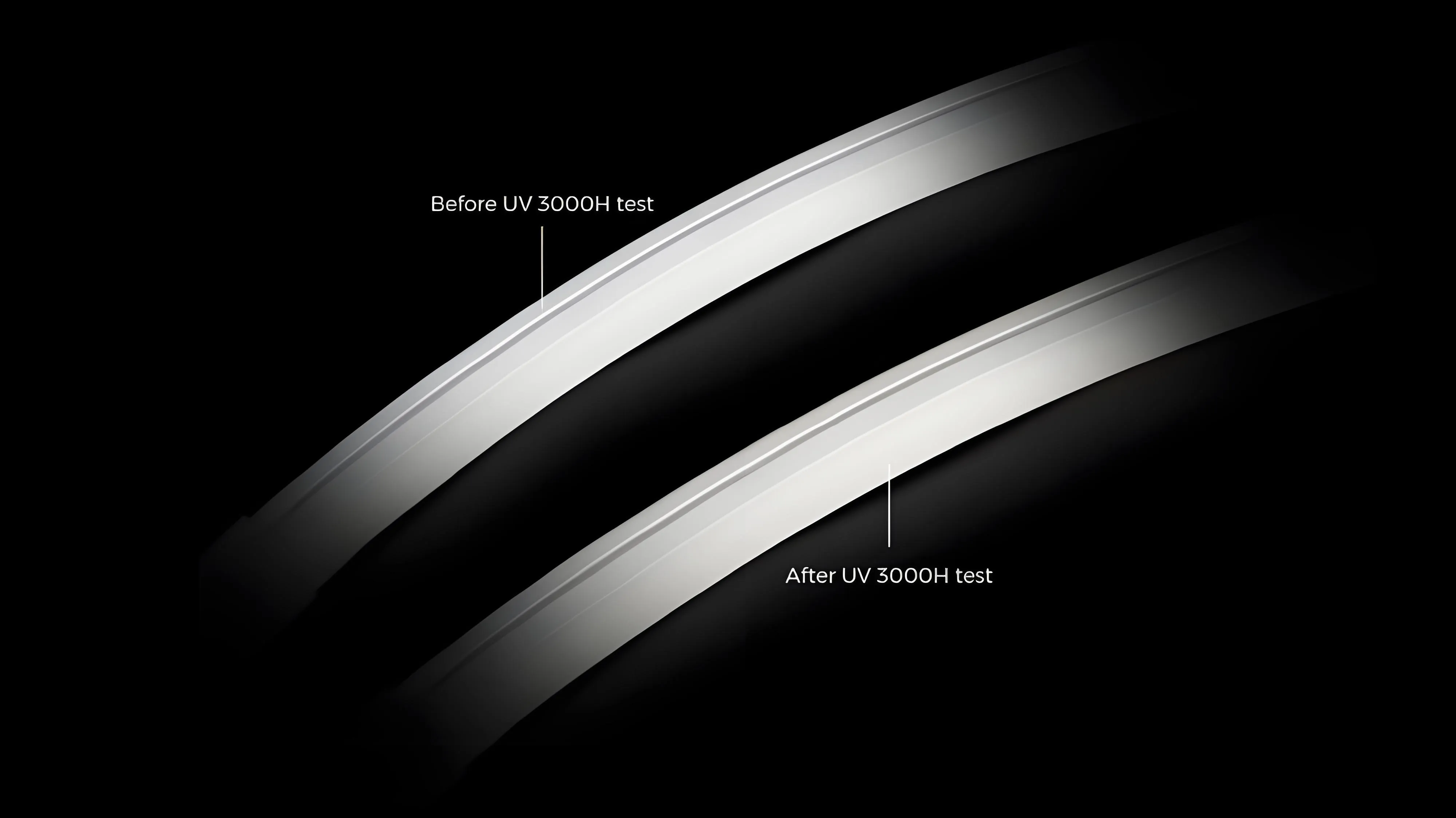

High-intensityUV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.

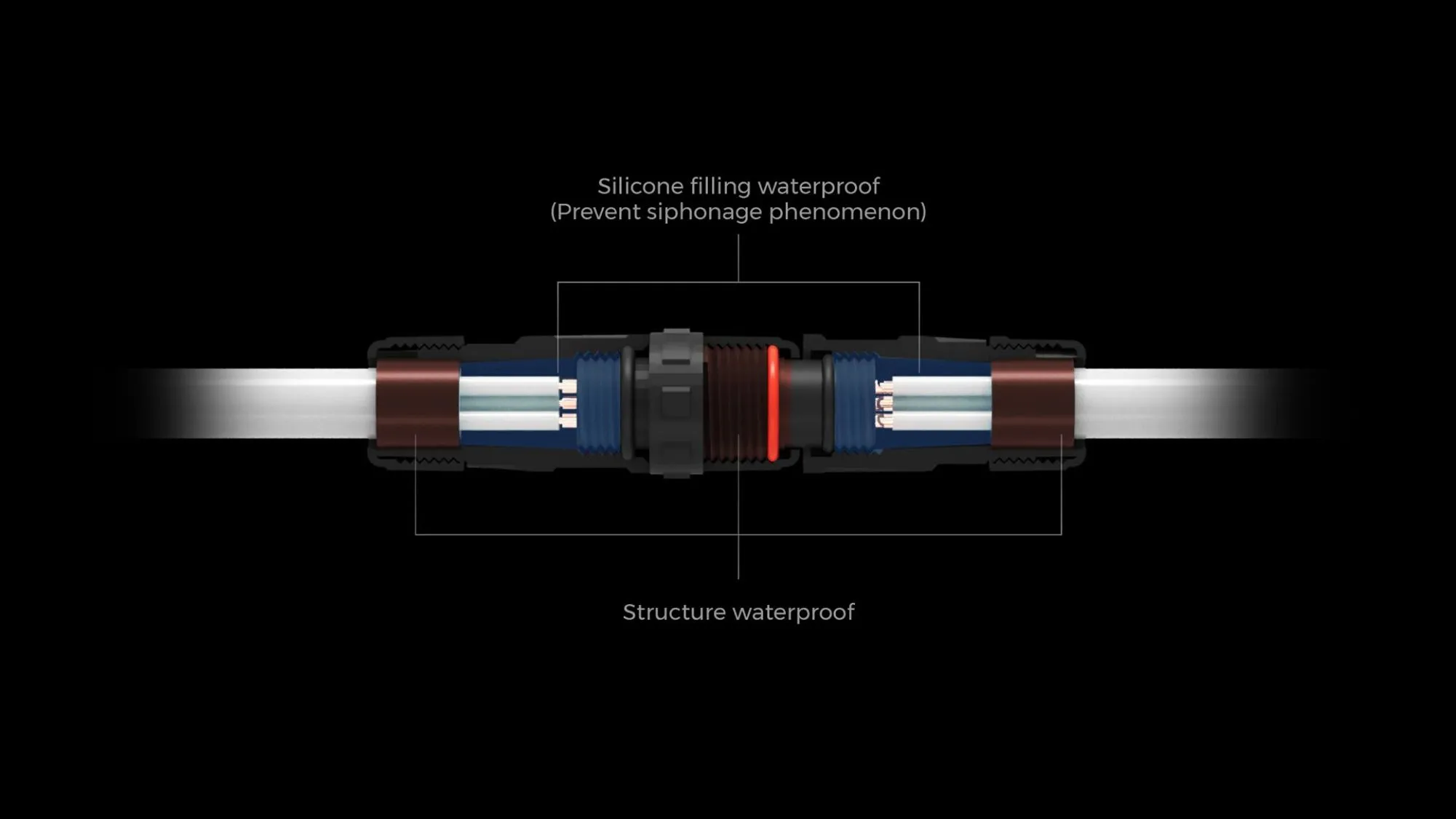

Solder-free fast connection, avoid siphonage phenomenon.
Silicone Filling waterproof in two areas, and structure waterproof in three areas.Dural Protection
Special dura chips design, worry free about the dead-chips.
Parallel design of the smallest lighting unit, single chip failure does not affect normal illumination
Innovative structure, Anti-twist high reliability.
Built in anti-tensile PC line and Backplane, 2in1 designTwisting test : 5000 times* & Tensile Test ≥ 650NTrouble-free installation

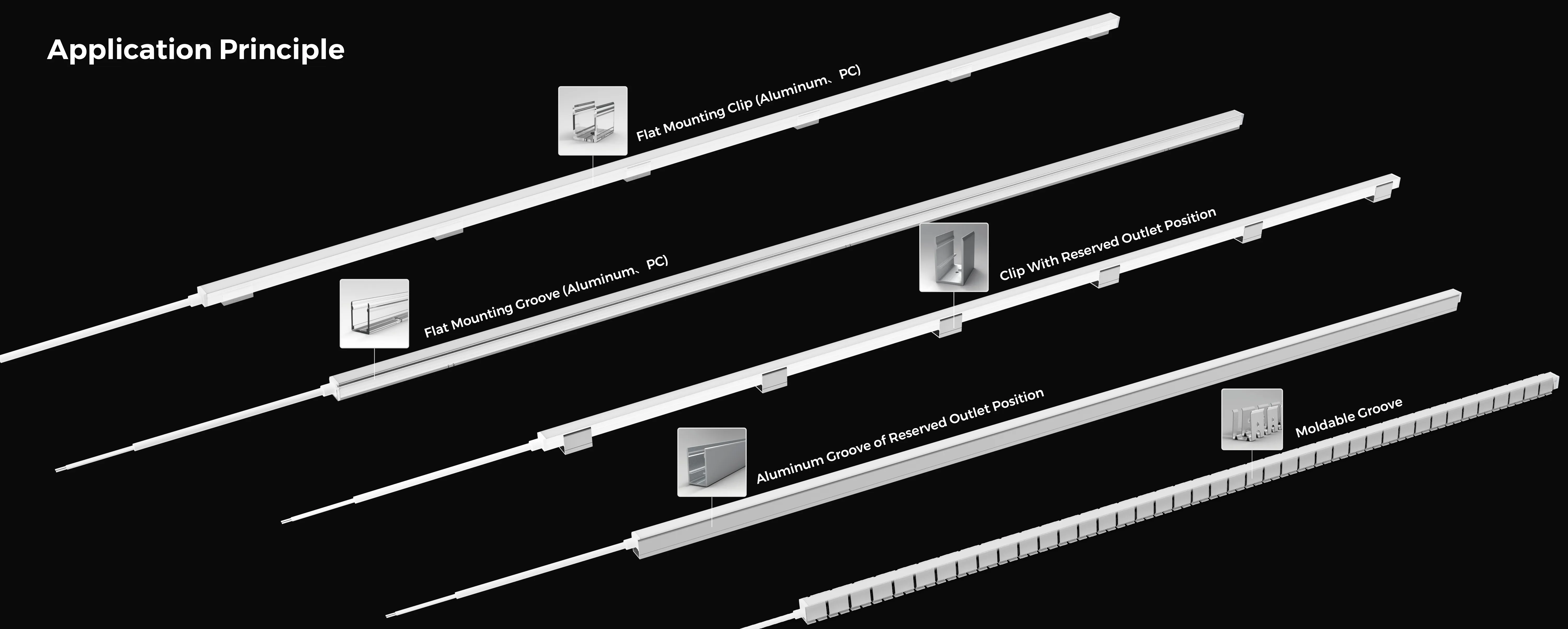

Application Principle

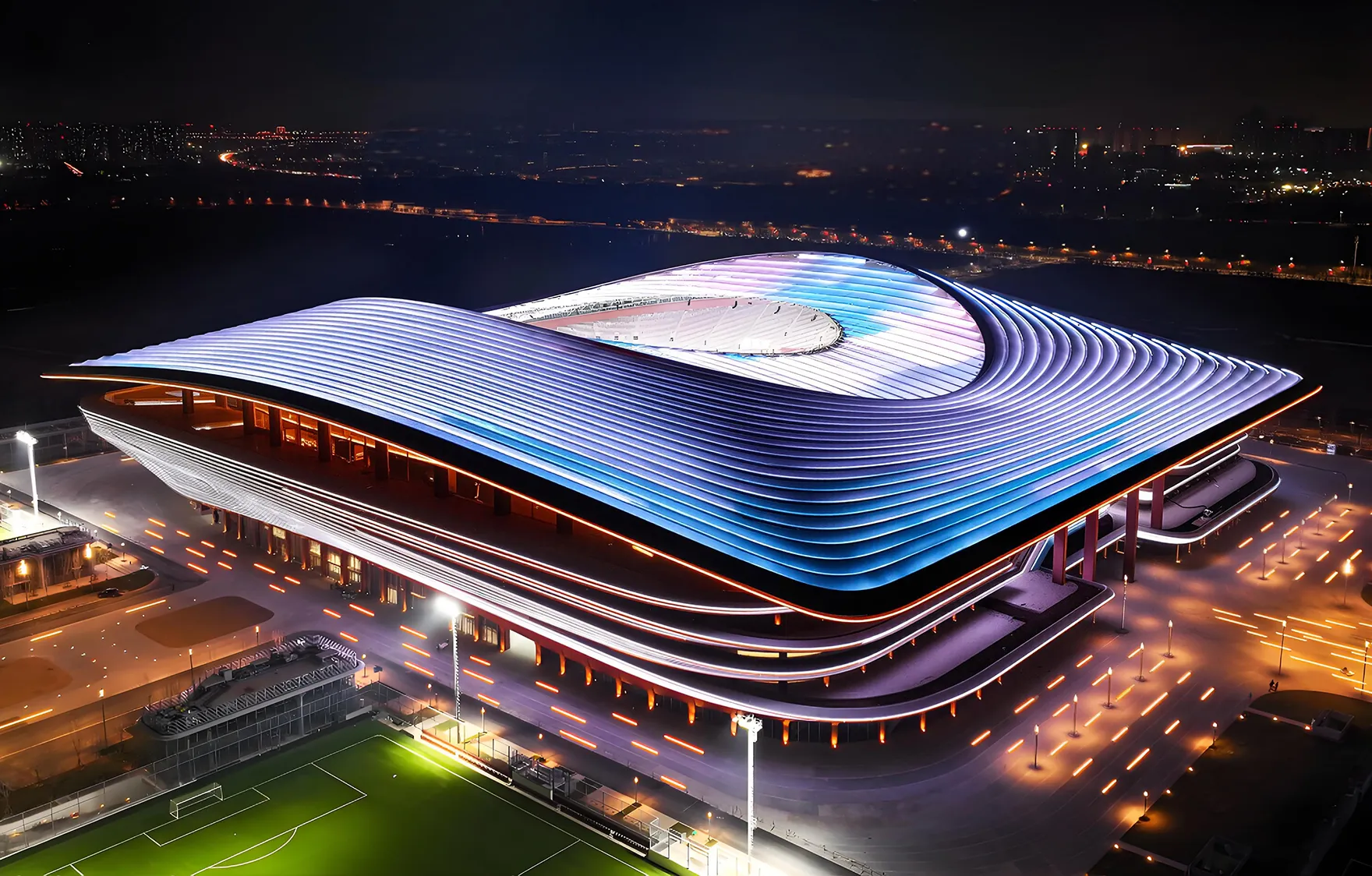

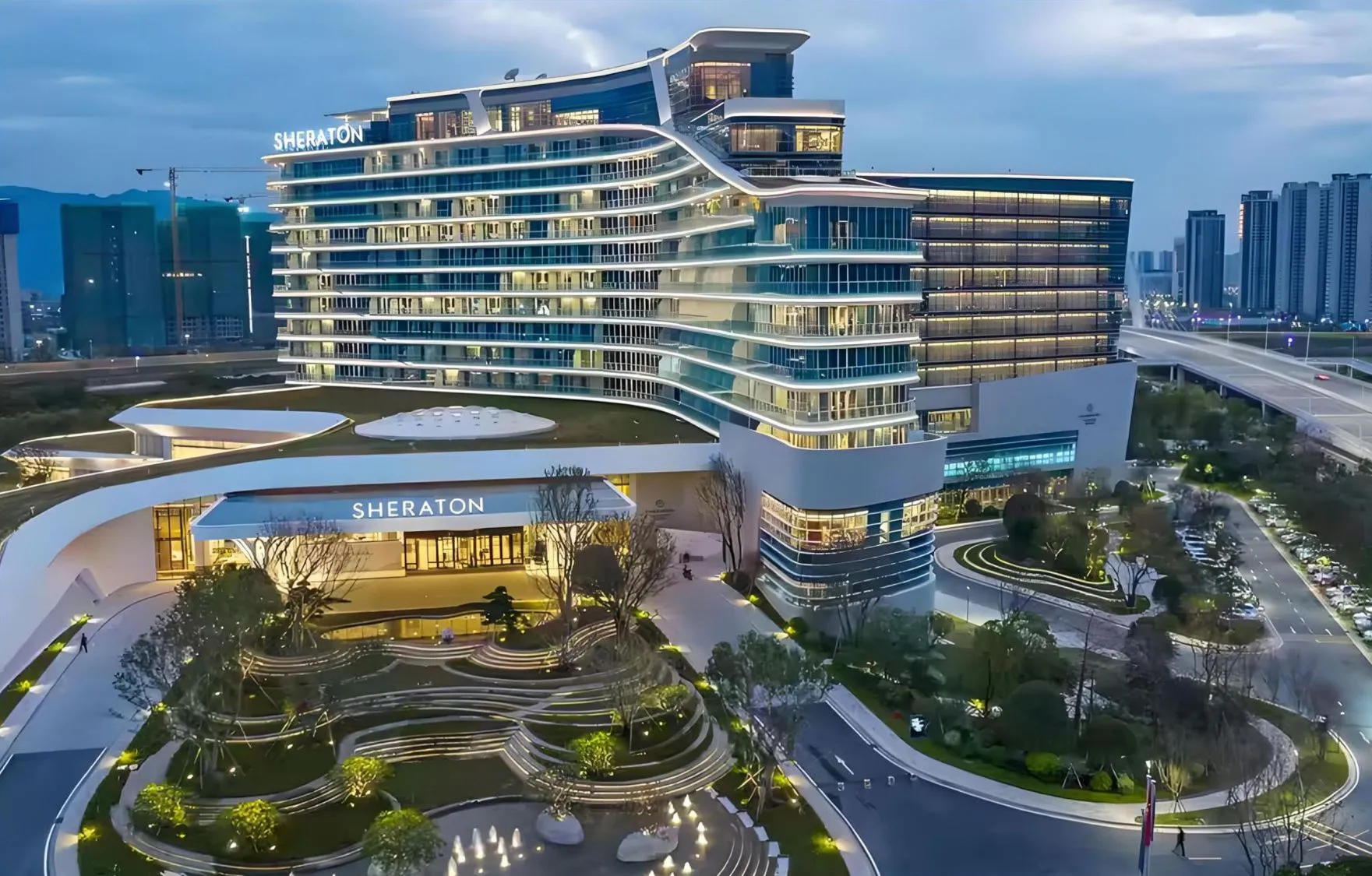

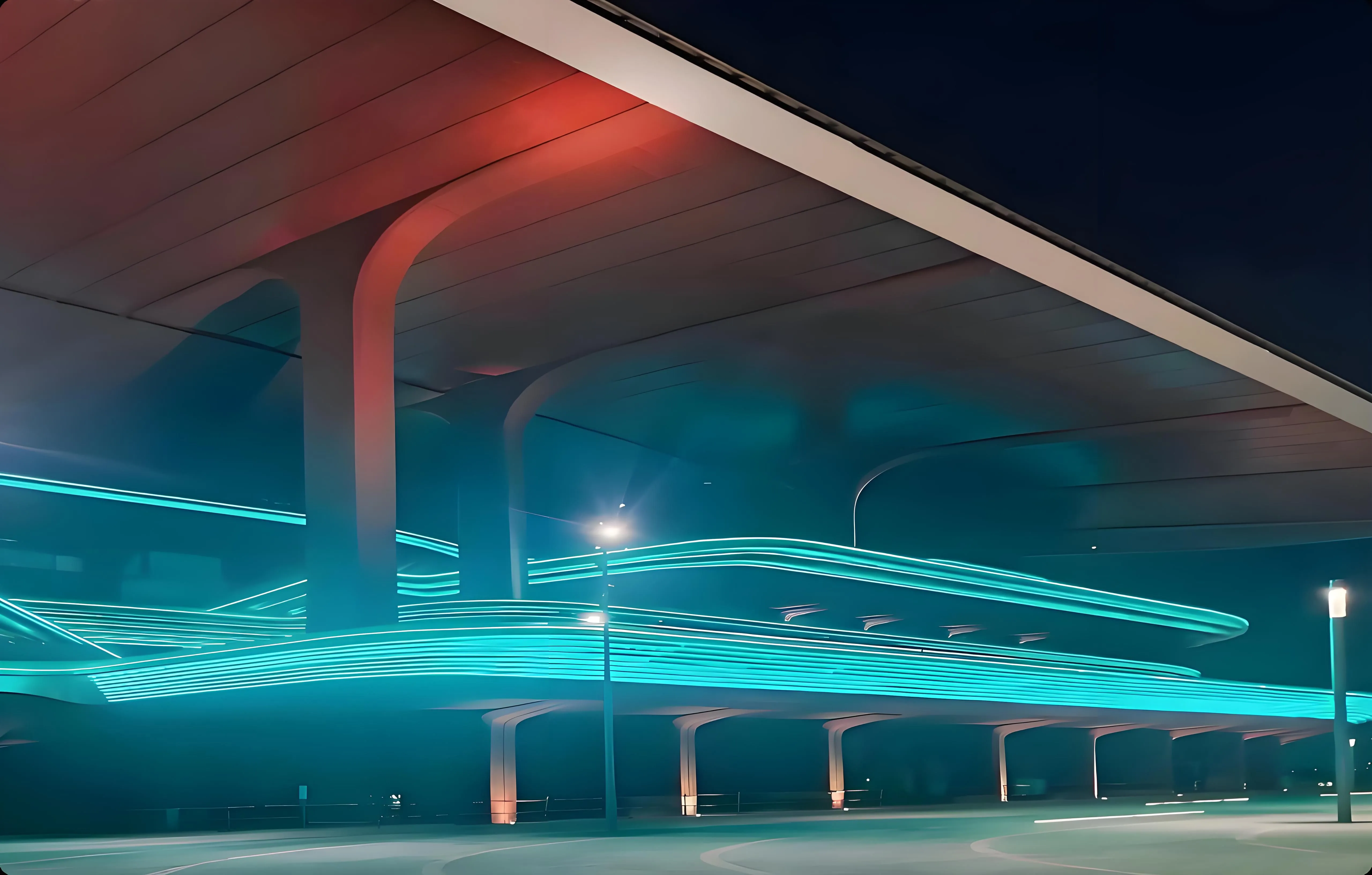

Scenario Case
Ordering Code
Optional Model
AFT1312U-Color light-24V
AFT1312U-White light-24V
AFT1312U-Color light-24V
Basic parameter
Warranty
7 Years
Cutting Unit
50
Leds Qty
320LEDs/m
Typ.power
10W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Standard Length
Min Cut
G
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
B
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
Accessories Type
Installation accessory

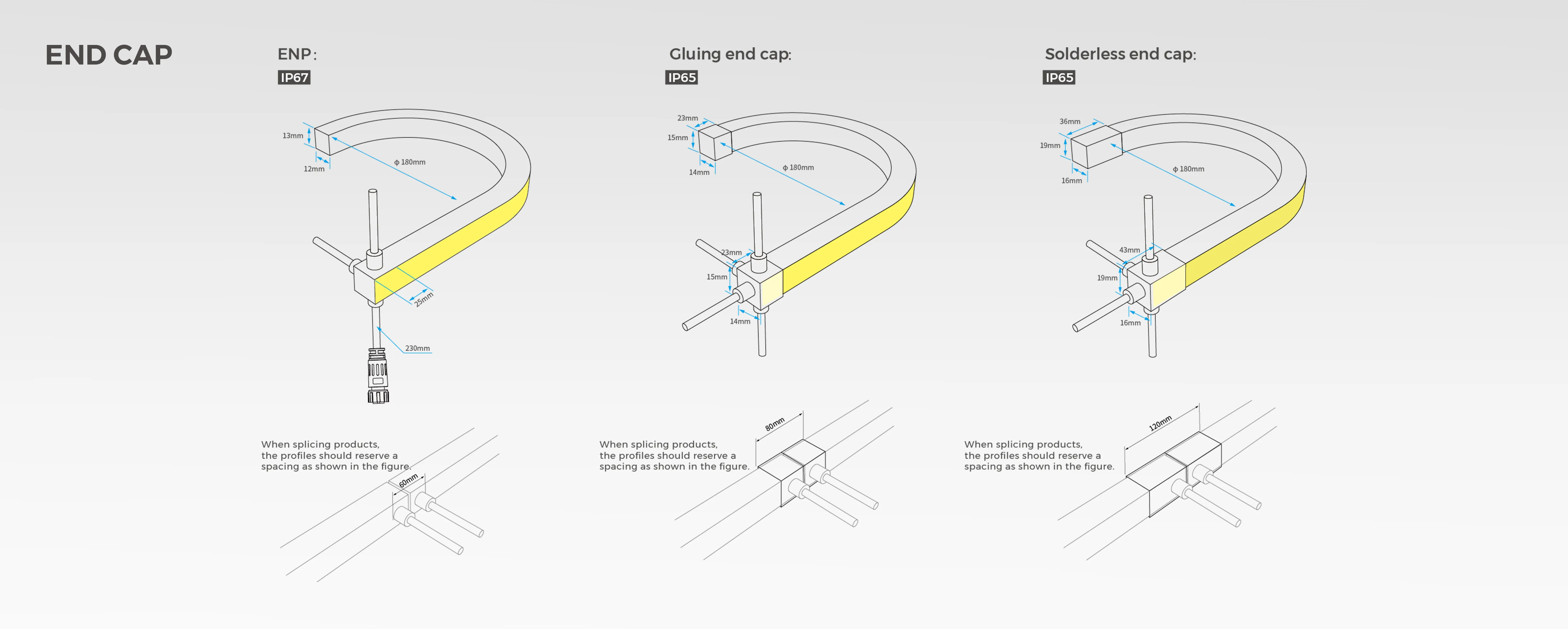

End cap accessory
Cable accessory
Supporting accessory
Monochrome-Remote control
Controller
Other
Size
Name
Model
Description
Quantity
Application

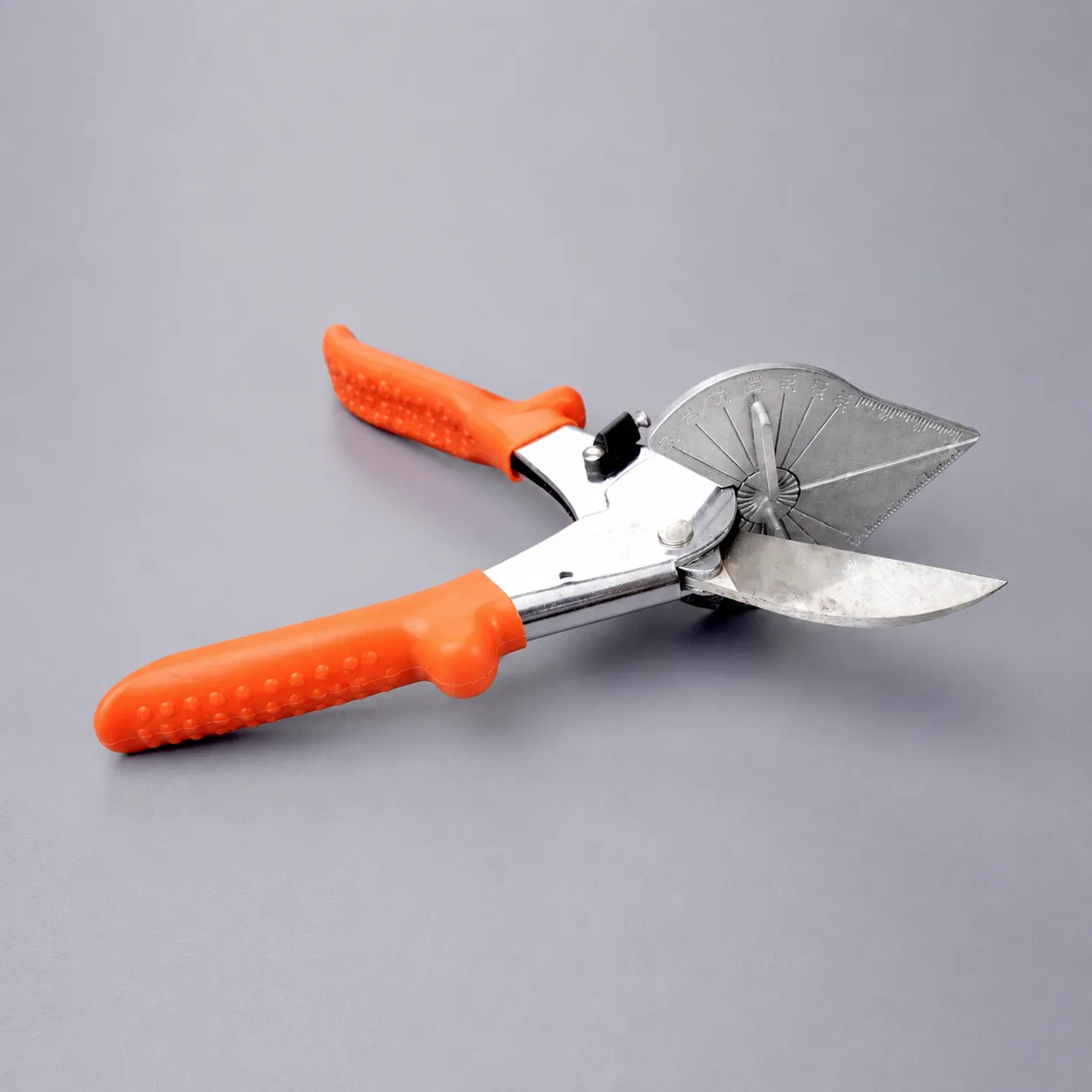

AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-NMT1312A
AS-NMT1312A
Product model:AS-NMT1312A
Installation method：Flat Mounting
Coating：Silver
Size：LXXXX*W15.4*H14.1
Applicable product model：NMT1312

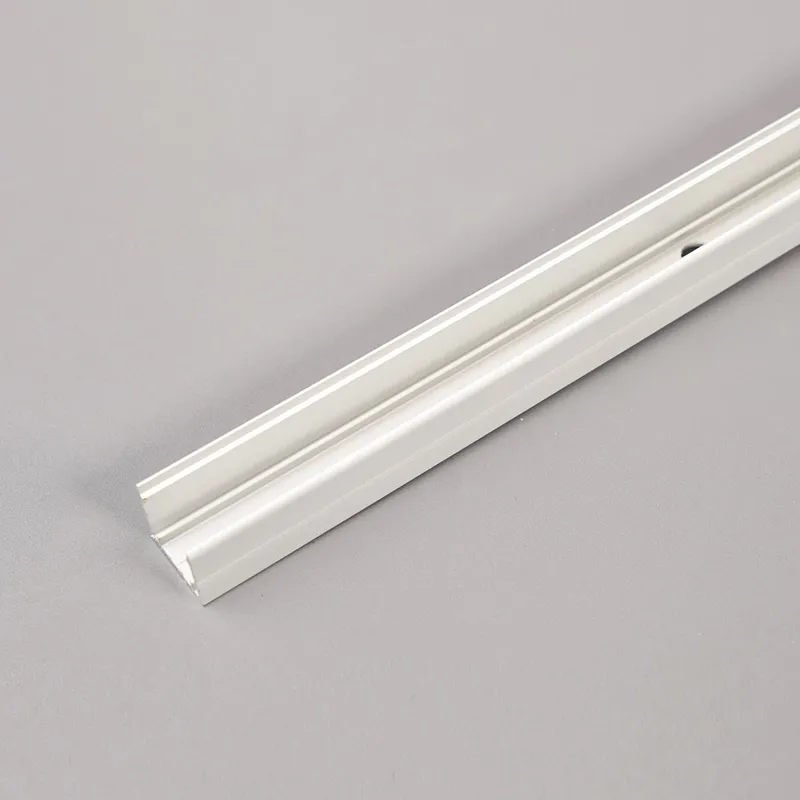

AS-NMT1312A-1000
AS-NMT1312A-1000
Product model:AS-NMT1312A-1000，NMT1312 Flat Mounting Aluminum Groove Installation method：Flat Mounting Coating：Silver Size：L1000*W15.4*H14.1 Quantity: 1PCS/ set Recommended dosage:1PCS/M Applicable product model：NMT1312/AFT1312/ANT1312/ACT1312
AS-NMT1312A-25
AS-NMT1312A-25
Product model:AS-NMT1312A-25，NMT1312 Flat Patch Mounting Aluminum Groove Installation method：Flat Mounting Coating：Silver Size：L25*W15.4*H14.1 Quantity: 1PCS/ set Recommended dosage:3PCS/M Applicable product model：NMT1312/AFT1312/AHT1312/ANT1312/ACT1312

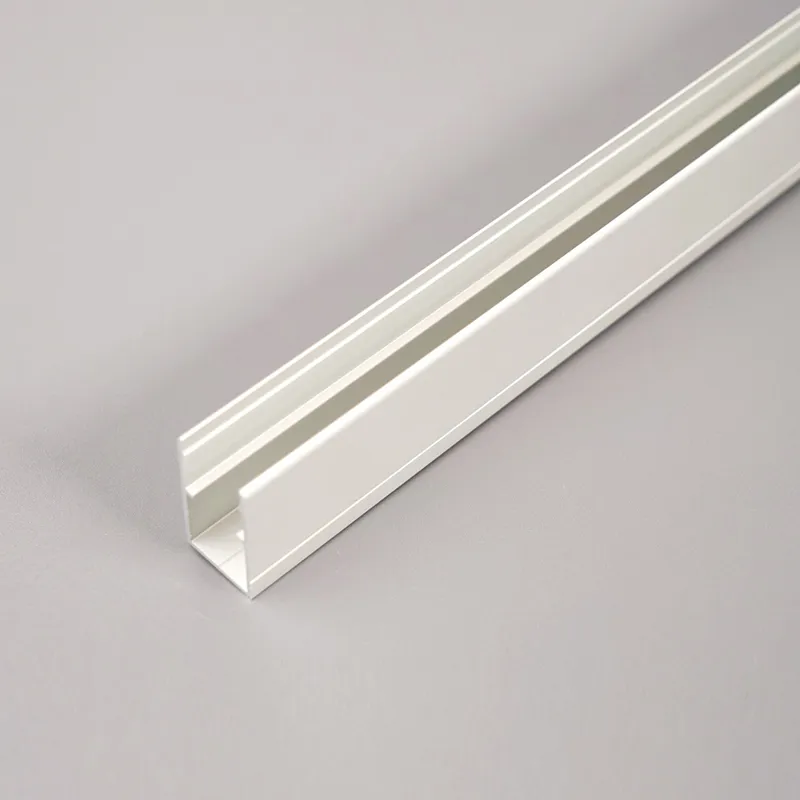

AS-NMT1312B1-1000
AS-NMT1312B1-1000
Product model:AS-NMT1312B1-1000，NMT1312 Groove With Reserved Wire Outlet
Installation method：Reserved outlet
Coating：Silver
Size：L1000*W14.8*H26
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：NMT1312
