Features

Led_Qty：320LEDs/m
Typ.Power：10W/M
Min Cut：16led/50mm
Luminous flux:820LM/m@4000K
Bend radius：＞60mm
IP:IP67
Max run length (single‑end power feed): 10m
Warranty：7years,Working life ≥ 84000 hours
Operating/storage temperature:Ta:-40~60℃ / 0℃～60℃

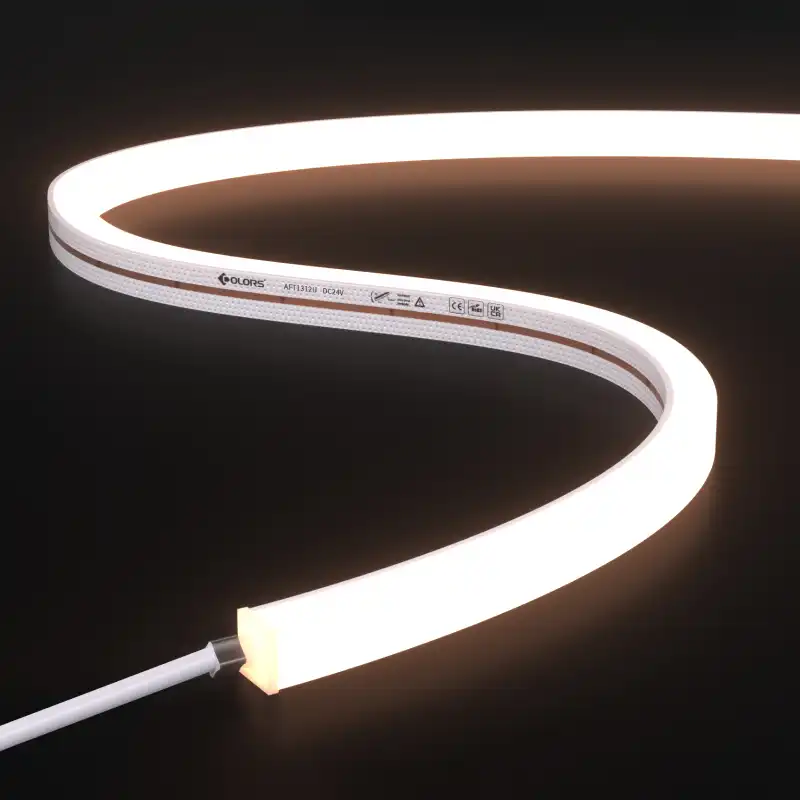

AFT1312U-White light-24V

Check Stock

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

Typ.power

  • 5W/M

  • 10W/M

Silk Printing

  • COLORS

  • Neutral

  • Customize

Strip Length

  • 5M

  • 10M

  • 15M

  • 20M

  • 50M

  • Customized Length

  • 100M

Entry Cable

  • S(One-end top)

  • D(Dual-end top)

  • S(One-end bottom)

  • D(Dual-end bottom)

  • S(One-end side left)

  • D(Dual-end side left)

  • S(One-end side right)

  • D(Dual-end side right)

Wire Type

  • Silicone

  • DC wire

    Single‑end cable: Male DC connector (input only)
    Dual‑end cable: Male DC connector (input) + Female DC connector (output for daisy‑chain)

Wire Length

  • 25CM

  • 50CM

  • 200CM

  • Length customization

Label Type

  • COLORS

  • Customized Label

IP

  • EP(IP67 all-wrapped end cap)

  • ENP(IP67 hydraulic end cap)

Fixed Options
Version:
Version 1.0
CRI:
>90
Voltage:
24V
ESD:
ESD
Engineering Package:
Engineering package
Ordering Code :

$ **/m

Common Accessories

Accessories Type
  • Installation accessory
  • End cap accessory
  • Cable accessory
  • Supporting accessory
  • Monochrome-Remote control
  • Controller
  • Other
Specifications
