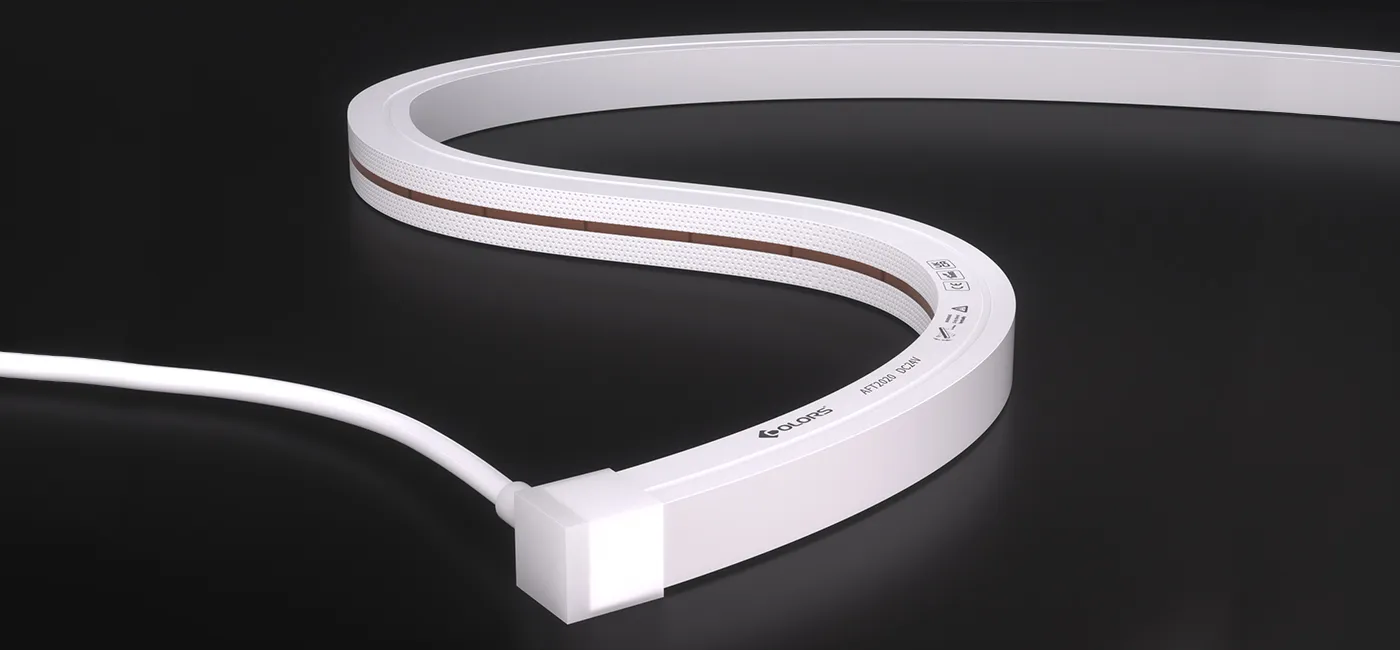

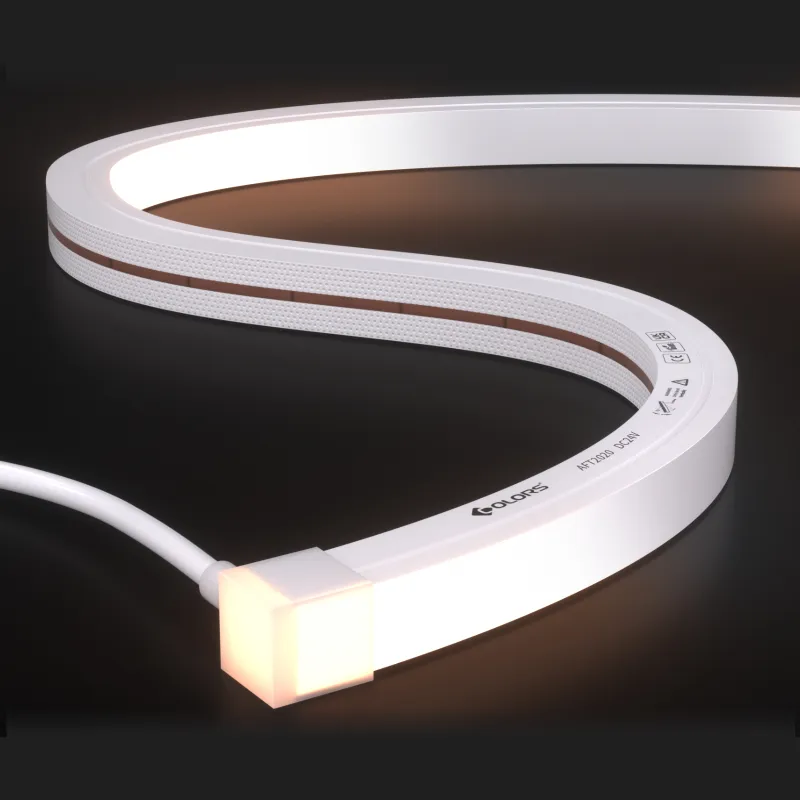

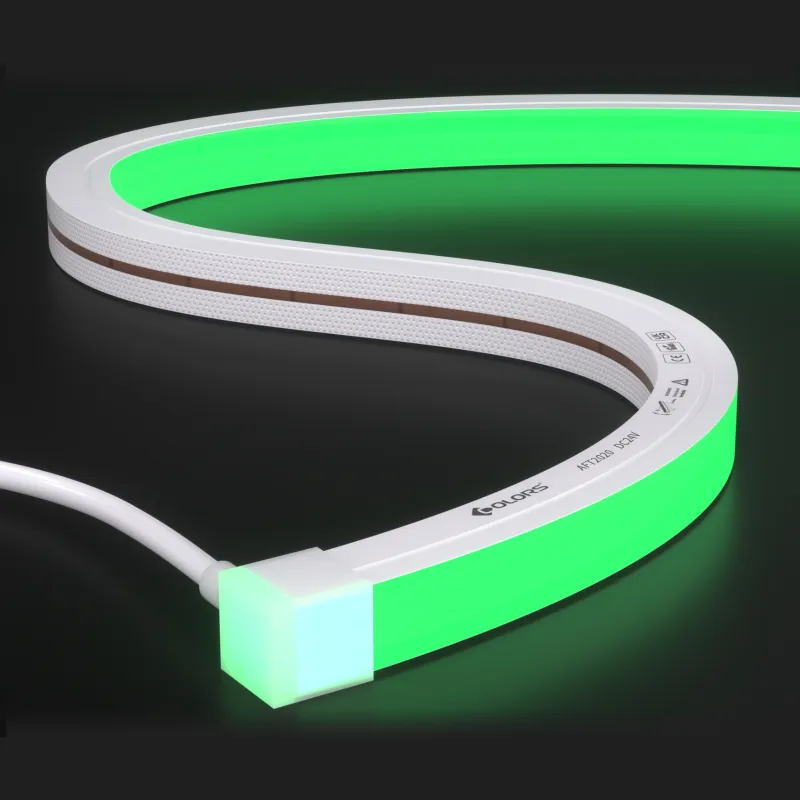

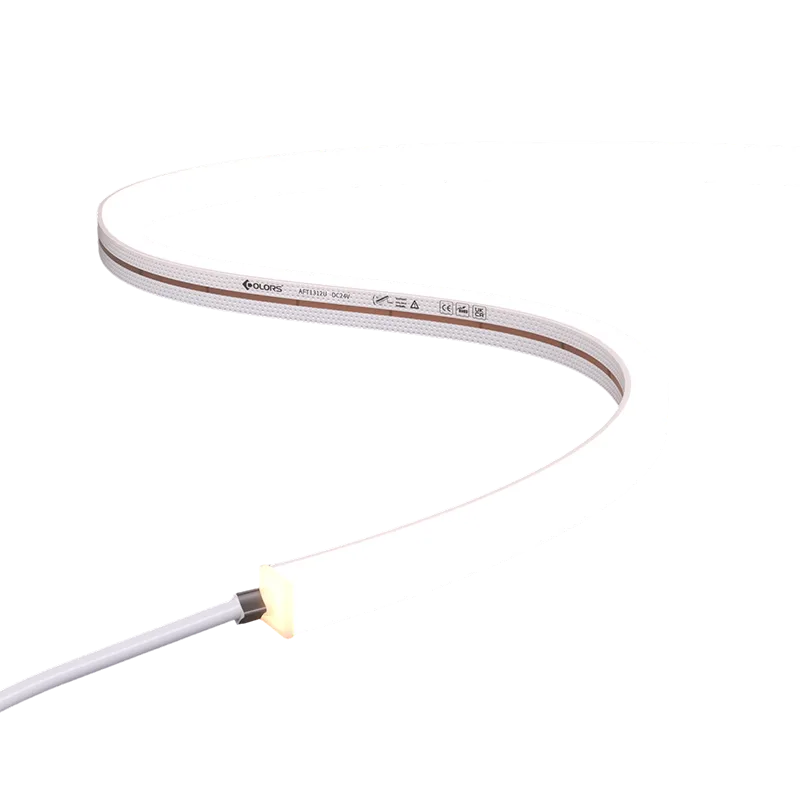

AFT2020

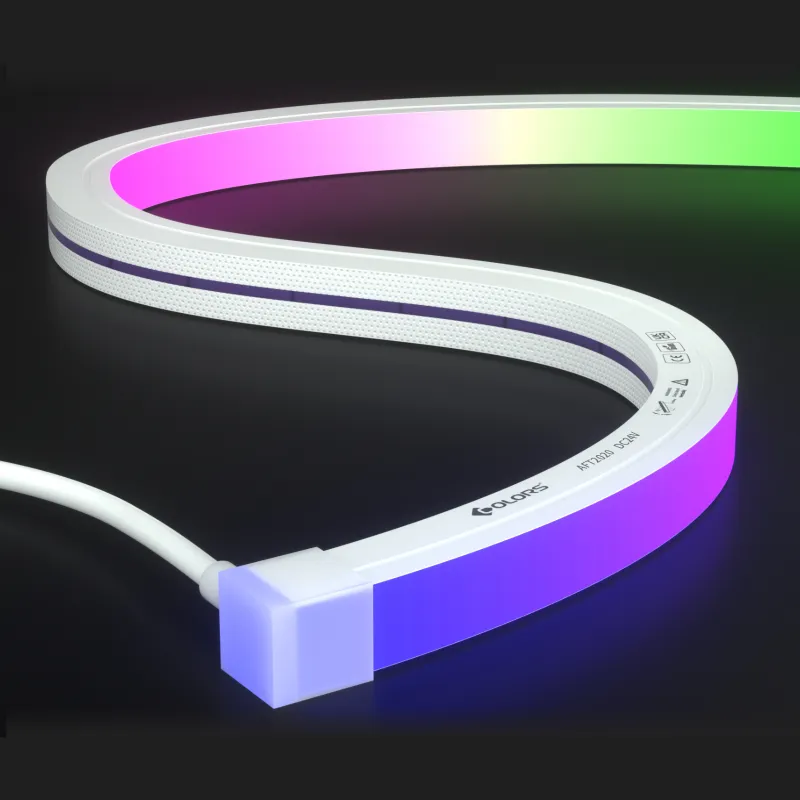

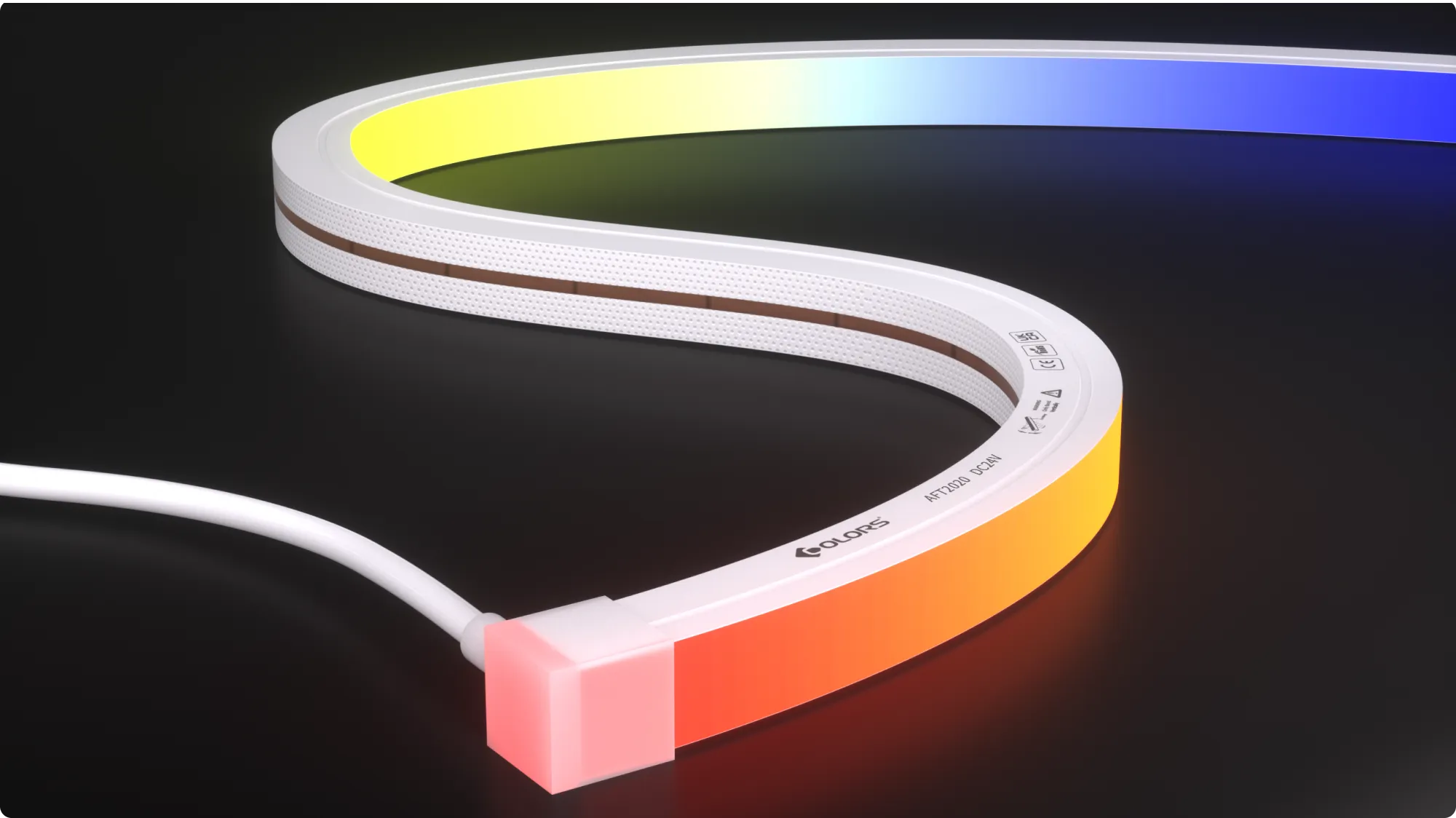

Discover AF SeriesDesigned for illuminating building facades and outdoor landscapes, tailored for use in frigid and sweltering climates(-40~+60°C), 7-year warranty, characterized by high reliability and exceptional weather fastness, ANSI SDCM≤5
Key Features

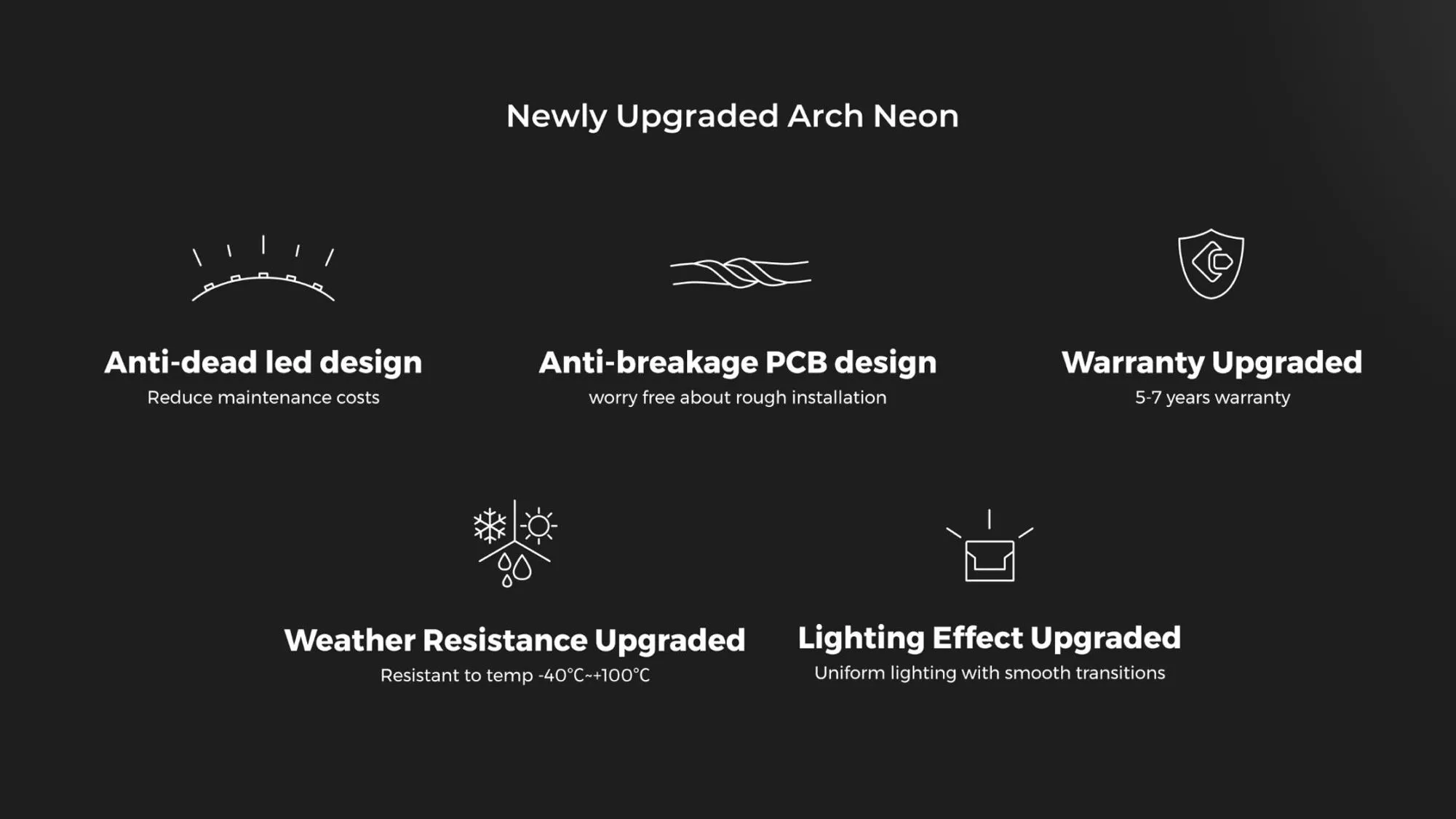

NEWLY UPGRADED ARCH NEON
Anti-dead led design
Anti-breakage PCB design
Warranty Upgraded
Weather Resistance Upgraded
Lighting Effect Upgraded

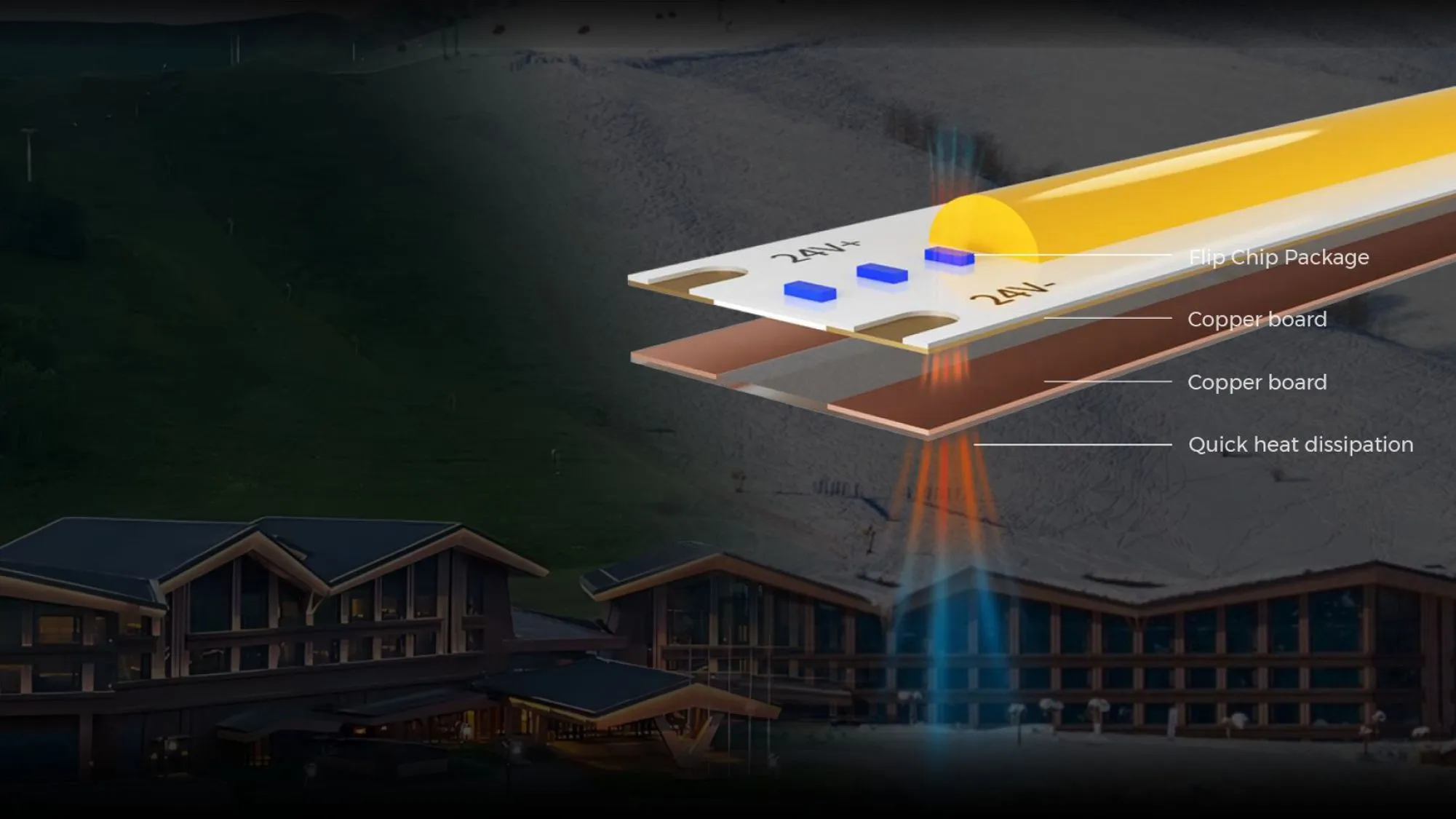

Outstanding weather resistancewith flip chip package technology,unaffected by extreme cold or heat
Temperature resistance: -40°C ~ + 60°C

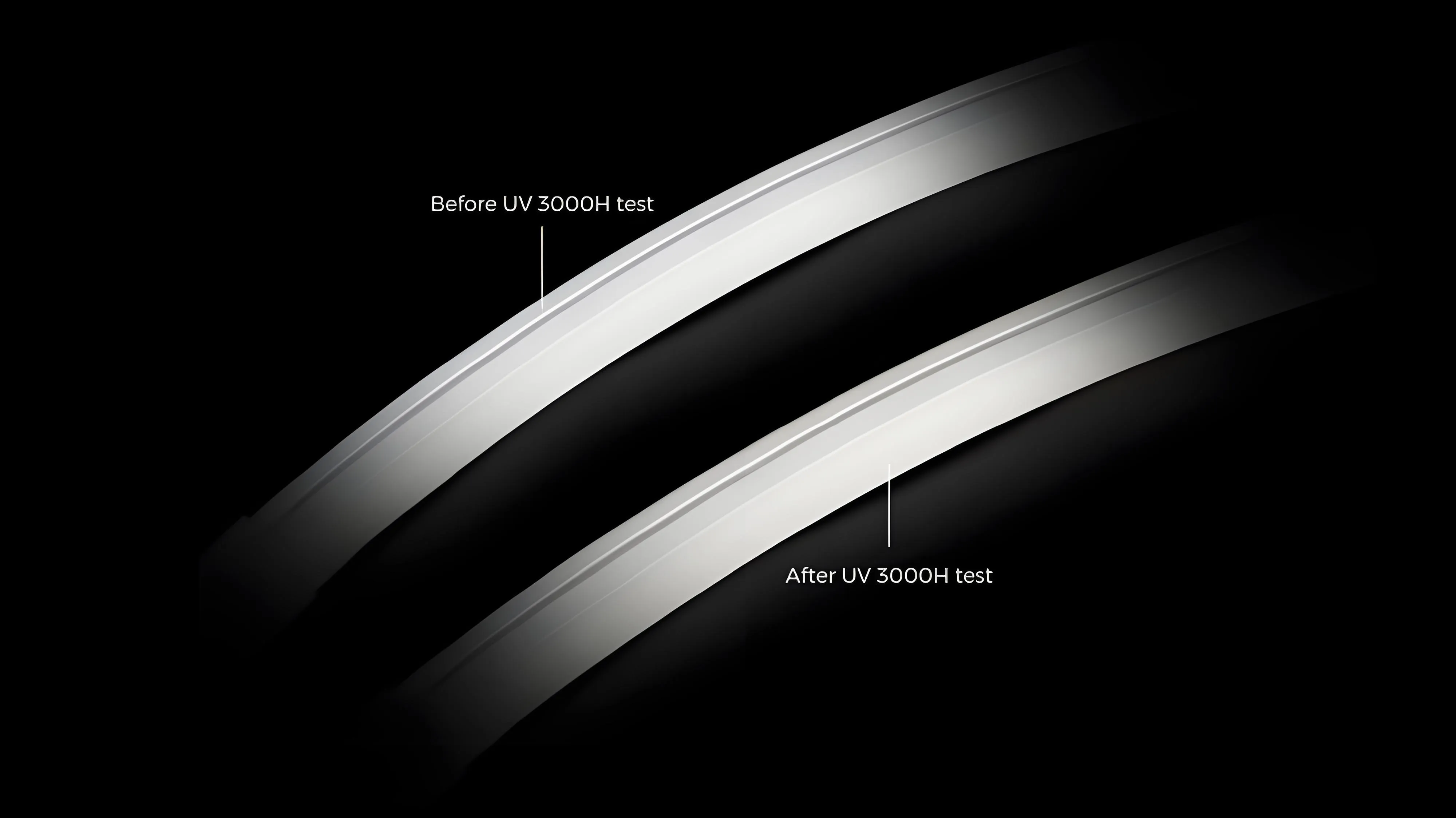

High-intensity UV test in 3000H
Equivalent to 9 years of outdoor use, with slight color change.

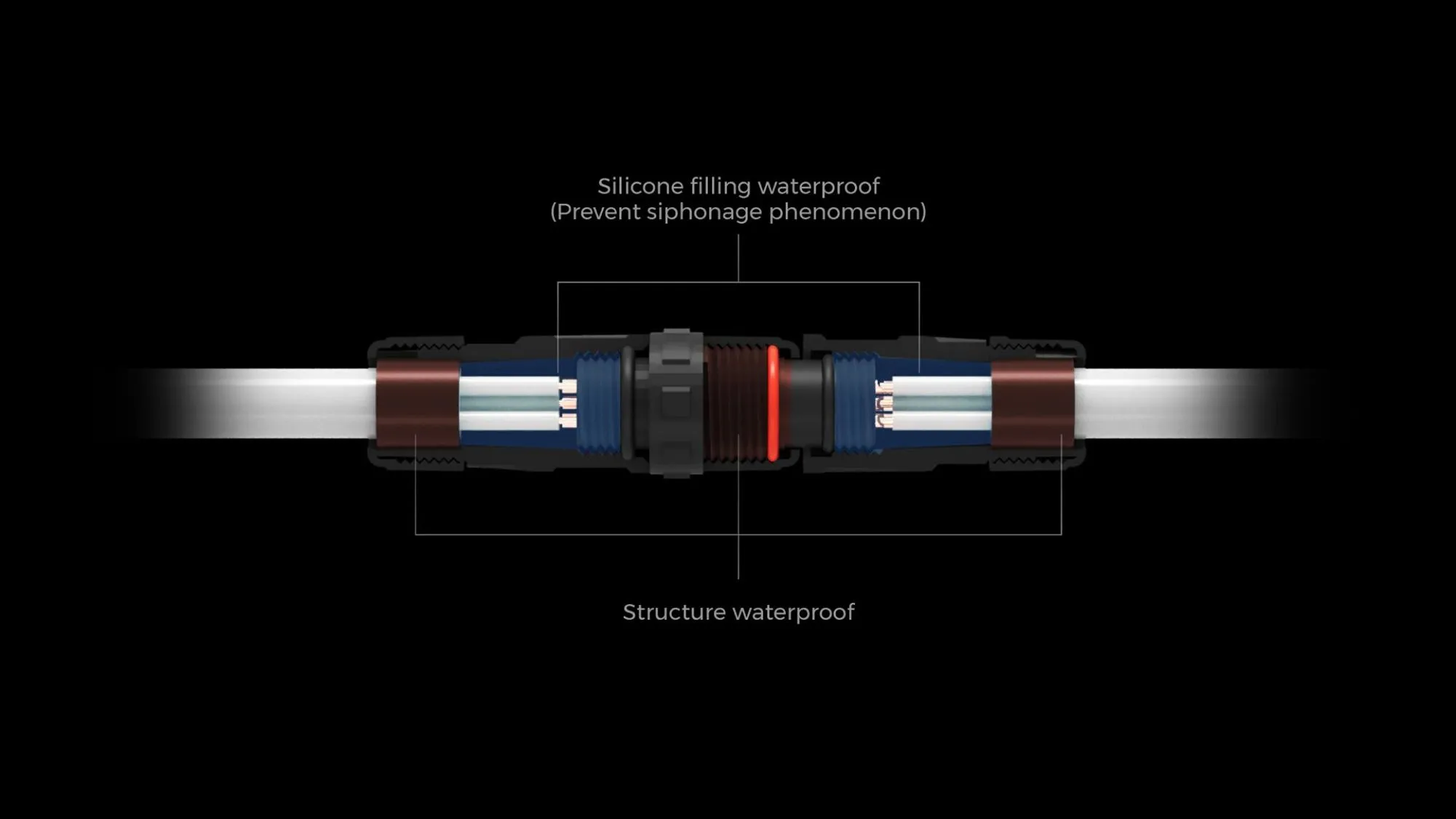

Solder-free fast connection, avoid siphonage phenomenon.
Silicone Filling waterproof in two areas, and structure waterproof in three areas.Dural Protection
Special dura chips design, worry free about the dead-chips.
Parallel design of the smallest lighting unit, single chip failure does not affect normal illumination
Innovative structure, Anti-twist high reliability.
Built in anti-tensile PC line and Backplane, 2in1 designTwisting test : 5000 times* & Tensile Test ≥ 650NTrouble-free installation
Compatible with Various DMX Control Systems.
Compatible with various DMX control systems such asNicolaudie (SLESA-U11+DNA-DRT-LTE),MADRIX (AURA <2/8/32>/STELLA),Mingrui (MR-CM <23S/12T/12V/12E>/MR-228DW).

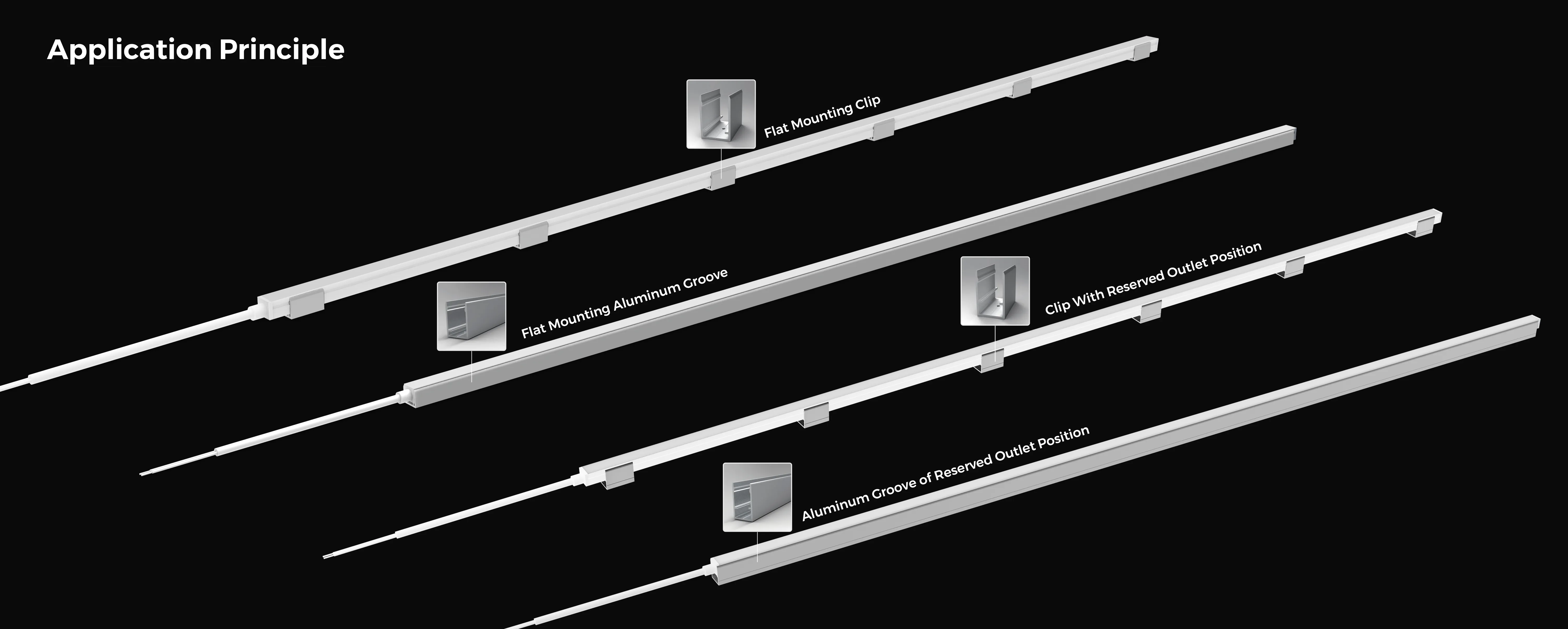

Application Principle

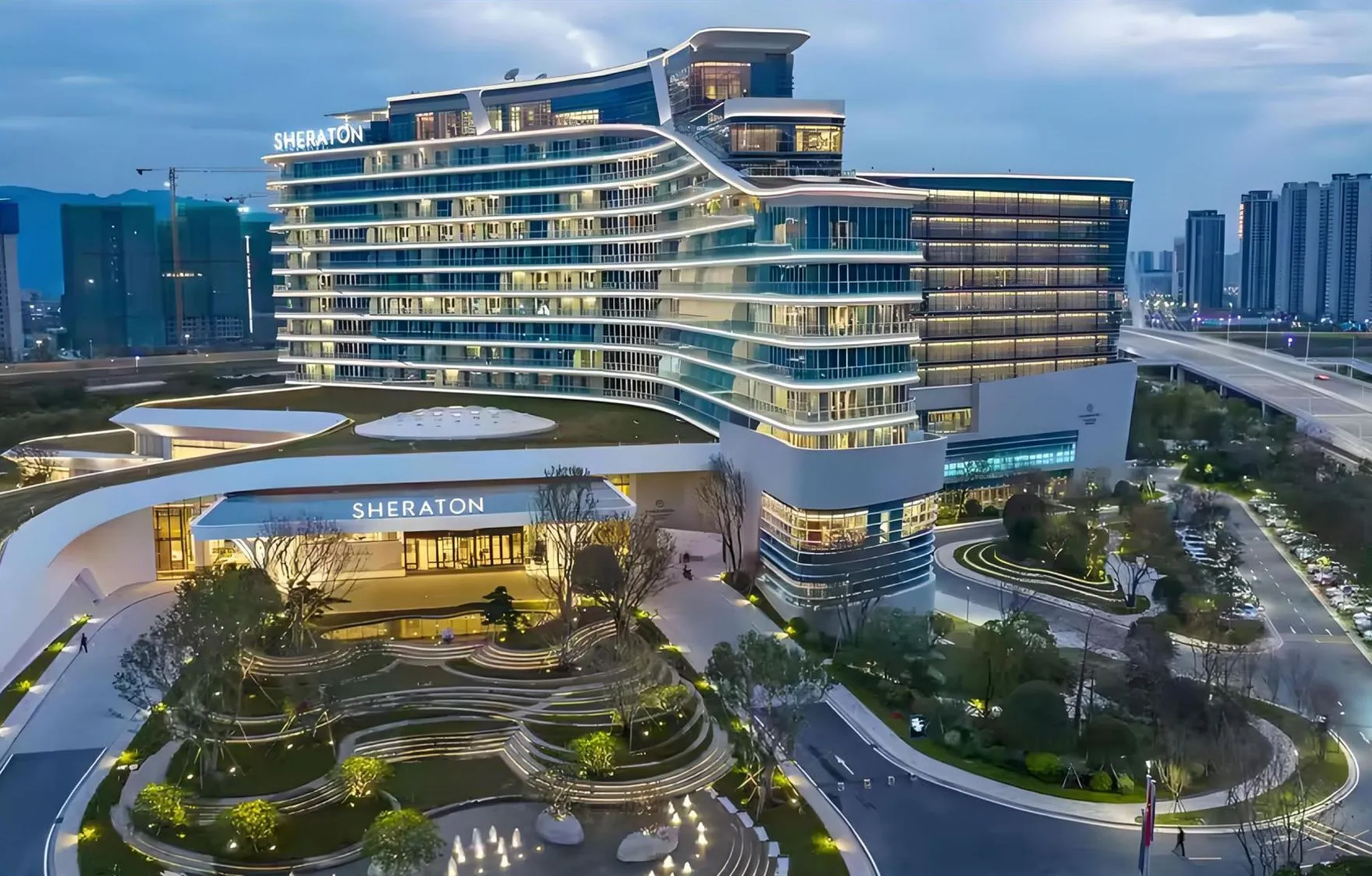

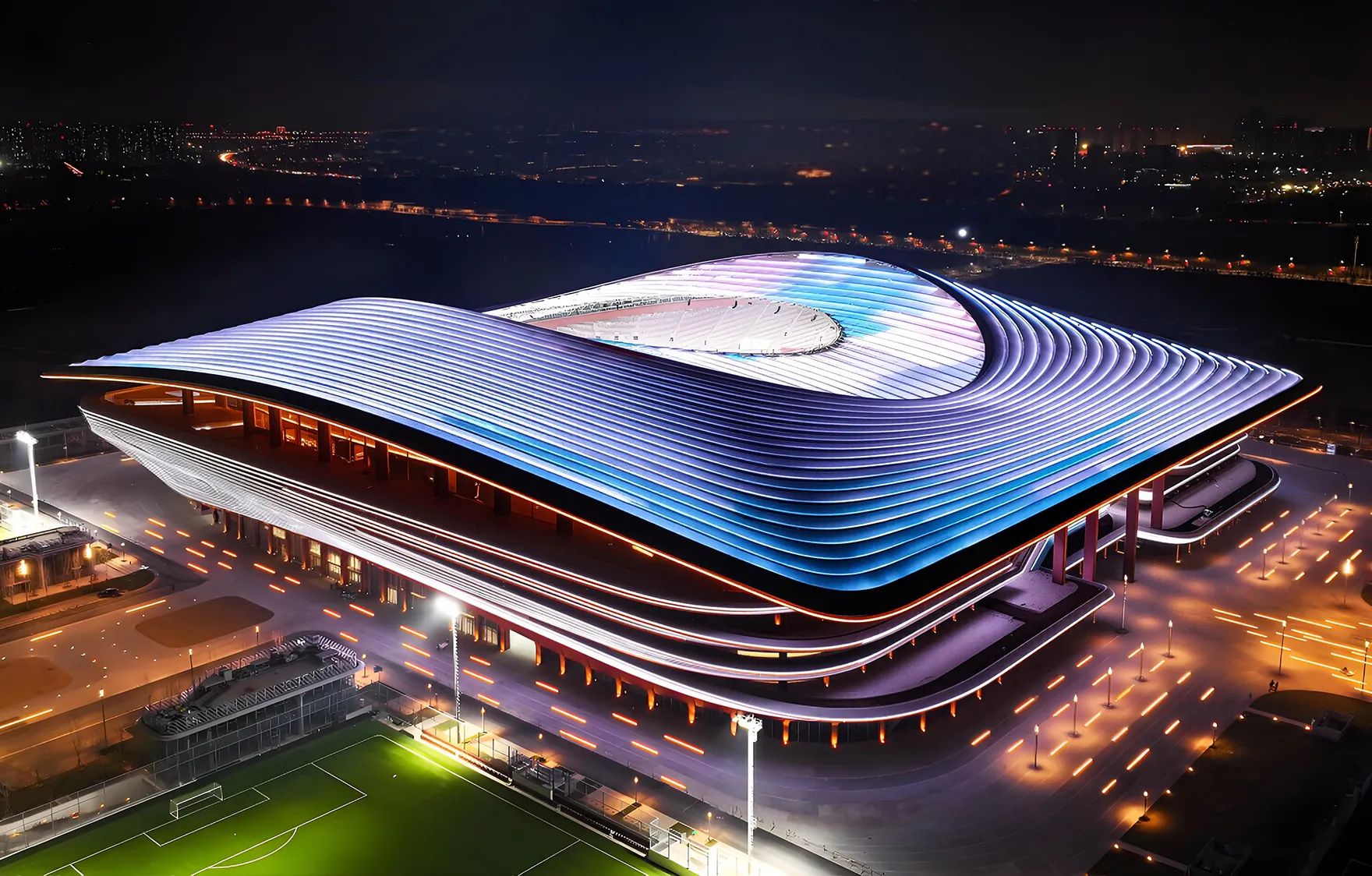

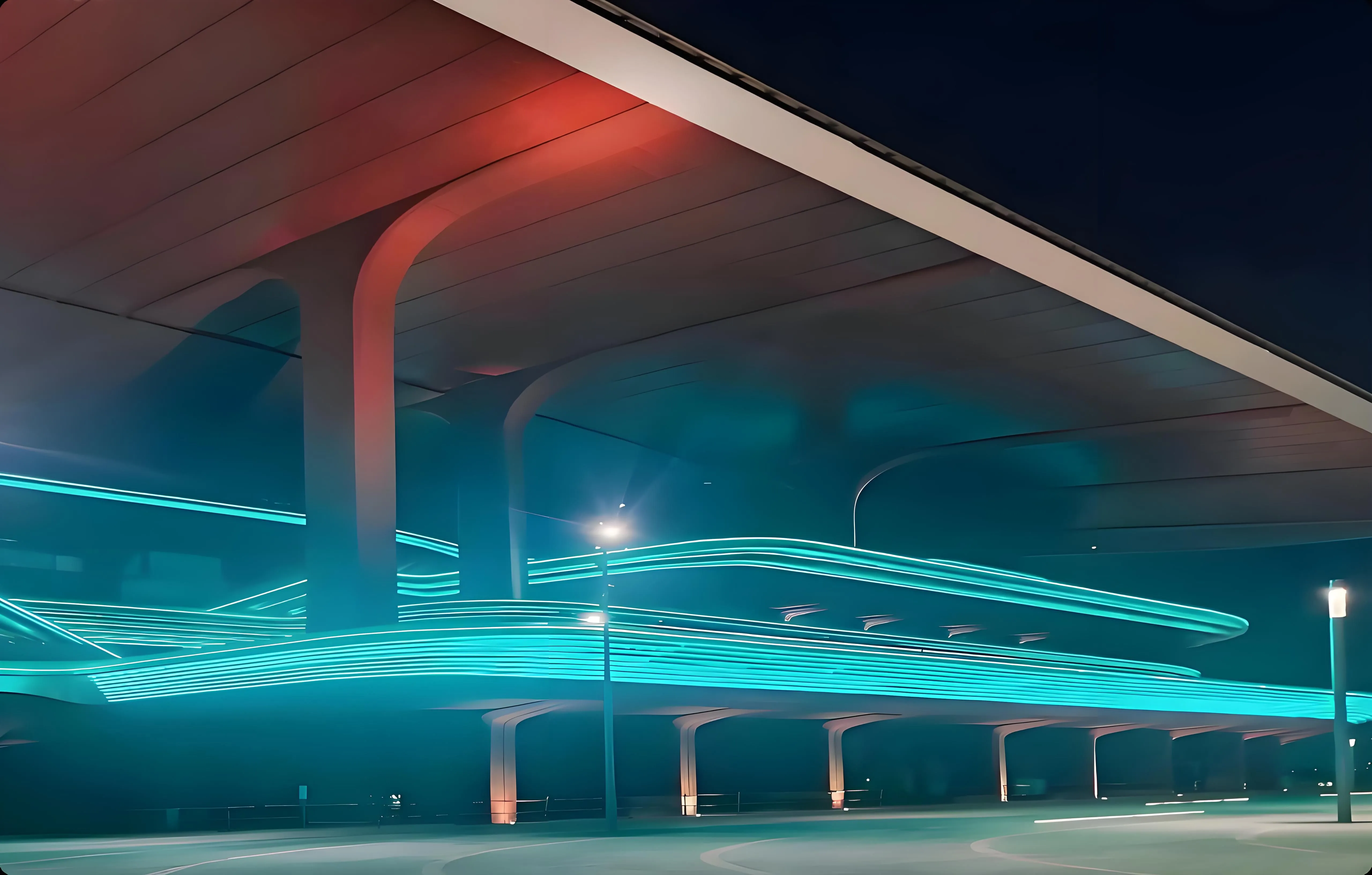

Scenario Case
Ordering Code
Optional Model
AFT2020-Color light-24V
AFT2020-DMX512 RGB neon light-24V
AFT2020-DMX512 RGBW neon light-24V
AFT2020-DMX512 White neon light-24V

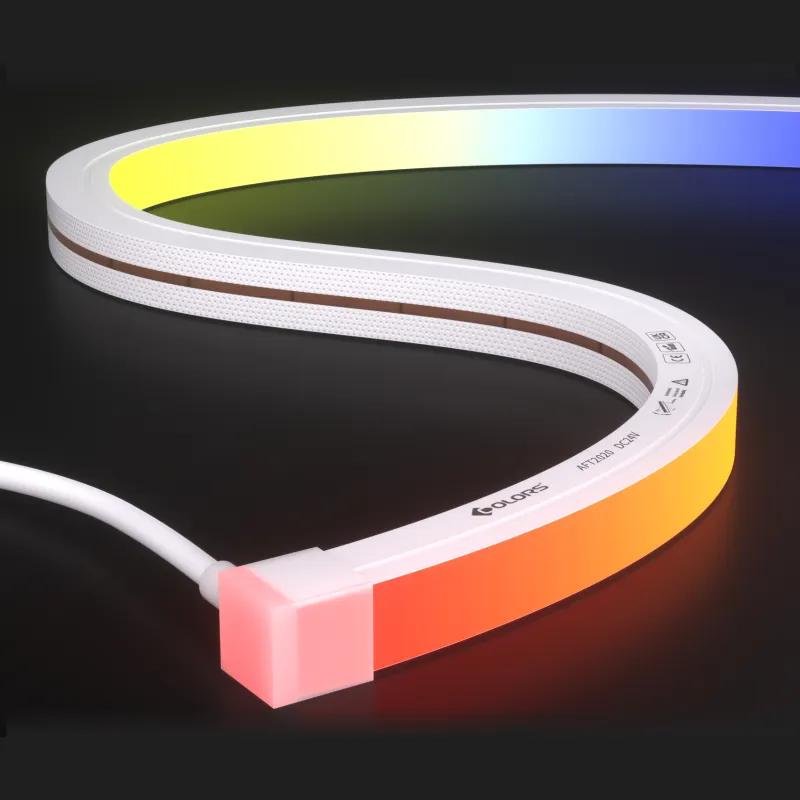

AFT2020-RGB-24V
AFT2020-RGBW-24V

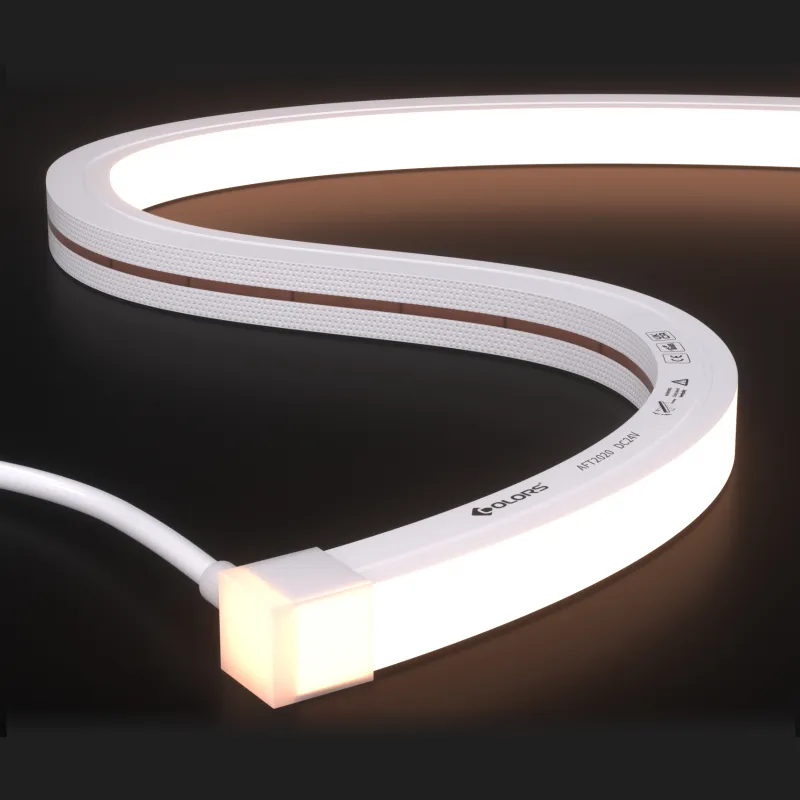

AFT2020-White light-24V
AFT2020-White light-48V

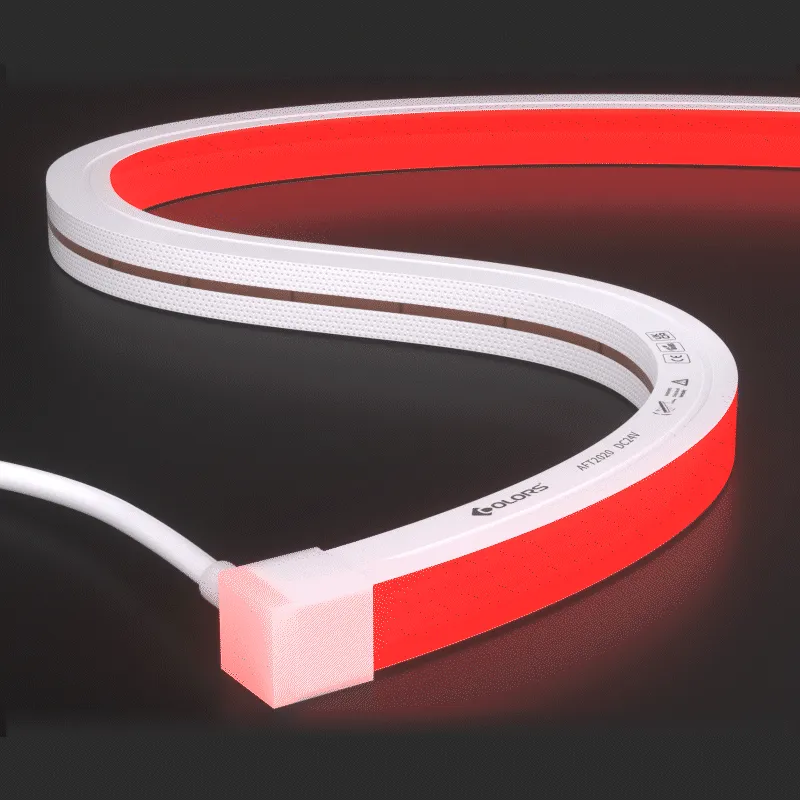

AFT2020-Color light-24V
Basic parameter
Warranty
7 Years
Cutting Unit
50
Leds Qty
320LEDs/m
Typ.power
10W/M
CCT/colors
Input voltage(v)
Rated current(A/m)
Rated power(W/m)
Maximum power(W/m)
Standard Length
Min Cut
G
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
B
24V
0.4
(0.12A/ft)
10 (3.05W/ft)
11 (3.35W/ft)
10000mm (32.81ft)
16LED/50mm
Accessories Type
Installation accessory

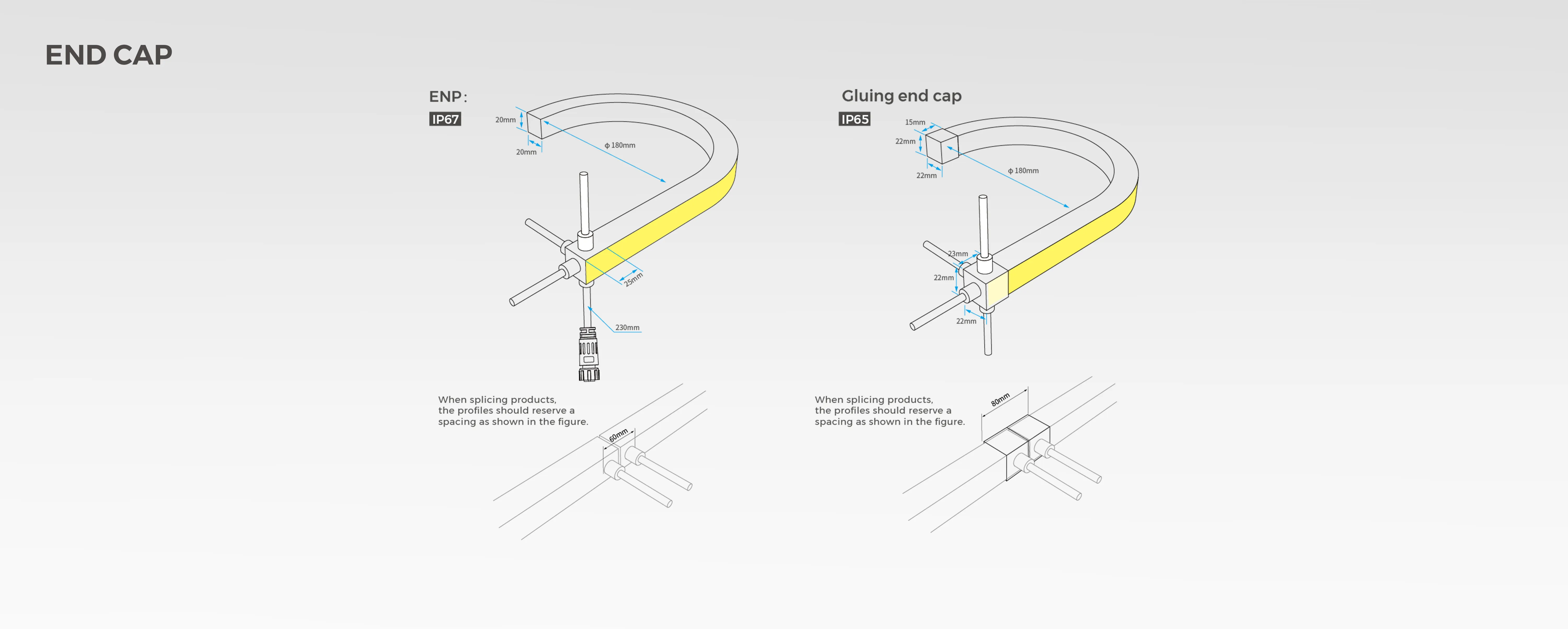

End cap accessory
Cable accessory
Supporting accessory
Controller
Size
Name
Model
Description
Quantity
Application

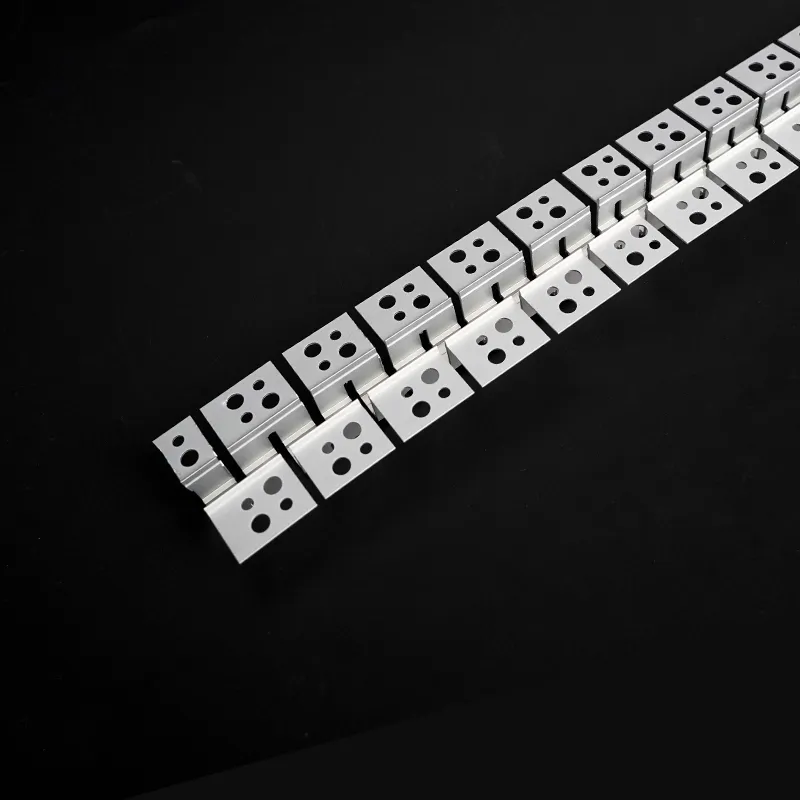

AS-AFS(T)2020A5-1000
AS-AFS(T)2020A5-1000
Product model:AS-AFS(T)2020A5-1000,Recessed Shaped Slot Installation method：Recessed installation Coating：Silver Size：1000*62.6*24.7mm Quantity: 1PCS/ set,Recessed Shaped Slot, screws Recommended dosage:1PCS/M Applicable product model：2020 neon strips
AS-AFS(T)2020M-1000
AS-AFS(T)2020M-1000
Product model:AS-AFS(T)2020M-1000，Stylable installation Groove Installation method：Stylable Installation Coating：silvery Size:1000*22.6*24.7mm Quantity: 1PCS/ set, Moldable card slot, screws Recommended dosage:1PCS/M Applicable product model：2020 neon strips
AS-FC-0009
AS-FC-0009
Product model：AS-FC-0009，2P Male silicone wire 0.25m
Line number:18#
Outer diameter：φ6.0mm
Wire Length：250mm
Applicable product model：GMS\GMT1616\2020-Color light-24V,GMS\GMT1616(L)\2020(L)White light-24V
AS-FC-0010
AS-FC-0010
Product model：AS-FC-0010，2P Male silicone wire 0.5m
Line number:18#
Outer diameter：φ6.0mm
Wire Length：500mm
Applicable product model：GMS\GMT1616\2020-Color light-24V,GMS\GMT1616(L)\2020(L)White light-24V
AS-FC-0011
AS-FC-0011
Product model：AS-FC-0011，2P Male silicone wire 2m
Line number:18#
Outer diameter：φ6.0mm
Wire Length：2000mm
Applicable product model：GMS\GMT1616\2020-Color light-24V,GMS\GMT1616(L)\2020(L)White light-24V
