Infinite Module 35 Surface Mounted

Infinite Lights offers a variety of standard modules that designers can freely combine and extend to create the most suitable shape for the space. The quick-connect design of the modules makes the installation of complex shapes easy and efficient.

Feature

Mainstream Size Options
Free Combinations, Infi nite Possibilities
Quick-Connect Design
Powerful Performance

Certification

General Info

Application: Indoor
Mounting Type: Surface Mounted,Suspended
Light Direction: Direct
Dimension: 300mm,600mm,900mm,1200mm,1500mm,1800mm,2400mm,D450mm,D600mm,D800mm,D1000mm,D1200mm,D1500mm,D2000mm,D3000mm
Lamp Body Material: AL6063-T5
Finish Colors: Black,Silver,White
Diffuser Type: Diffuser
Cover Material: PC
Diffuser Transmittance: >80%
Fire-Resistance Rating: UL94-V2
IP Rating: IP20
Operating Temperature: -15~35℃
Storage Temperature: 0℃-40℃
Warranty: 5 years
Certifications: CB,CE,ENEC,LM80,Reach,RoHS,UKCA

Electrical Info

Input Voltage: DC36V
Driver Brand: N/A
Electrical Insulation Class: Class Ⅲ
Dimming: No Driver

Optical Info

Version: High efficiency,Regular
LED Type: SMD2835
LED Brand: Lumileds,QZOPTO
CRI: Ra80+,Ra90+
CCT: 2700K,3000K,3500K,4000K,5000K,6500K
SDCM: ≤3 Step (ANSI)
Beam Angle: 100°
Luminous Efficacy: 99 lm/W,100 lm/W,120 lm/W max
LED Voltage: DC36V
LED Lifetime: 000H,>50,L90B10(Ta 25℃)

Download

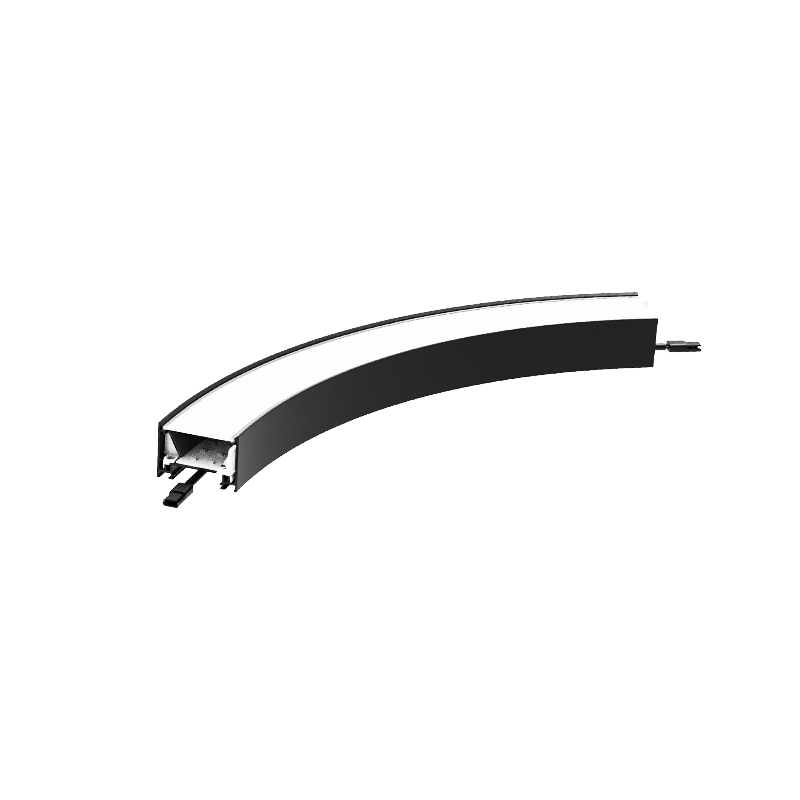

Product Code

MS3535D-A60

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	4.3W	Ra80+	2700K	White	100°	370 lm	86 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra80+	3000K	White	100°	392 lm	91 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra80+	3500K	White	100°	422 lm	98 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra80+	4000K	White	100°	435 lm	101 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra80+	5000K	White	100°	435 lm	101 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra80+	6500K	White	100°	435 lm	101 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra90+	2700K	White	100°	318 lm	74 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra90+	3000K	White	100°	339 lm	79 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra90+	3500K	White	100°	361 lm	84 lm/W	DC36V
-	Regular	D450mm	4.3W	Ra90+	4000K	White	100°	374 lm	87 lm/W	DC36V

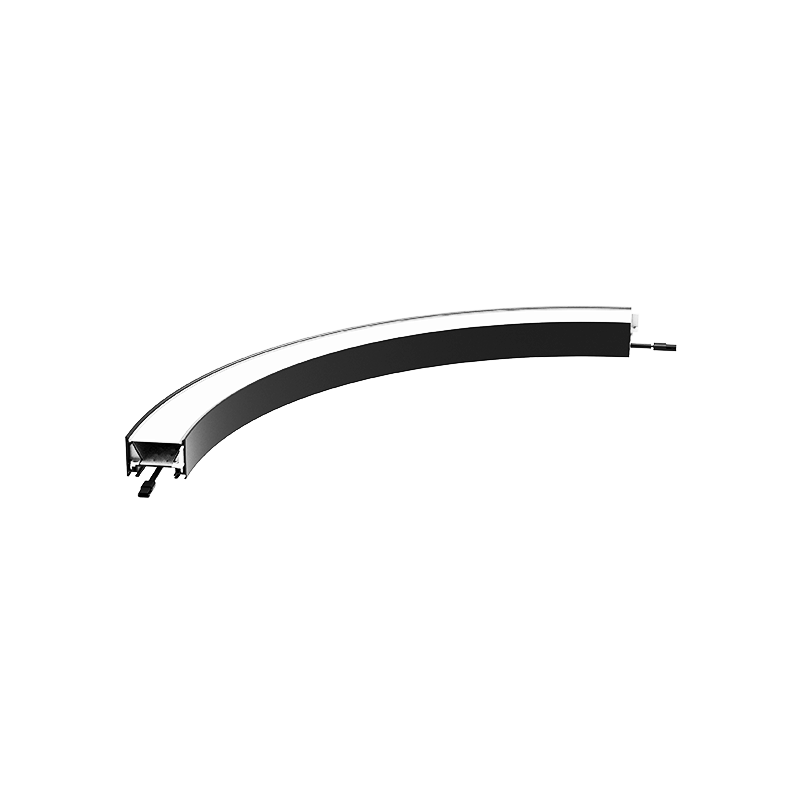

MS3535D-A90

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	6.3W	Ra80+	2700K	White	100°	538 lm	85 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra80+	3000K	White	100°	570 lm	90 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra80+	3500K	White	100°	614 lm	97 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra80+	4000K	White	100°	633 lm	100 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra80+	5000K	White	100°	633 lm	100 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra80+	6500K	White	100°	633 lm	100 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra90+	2700K	White	100°	462 lm	73 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra90+	3000K	White	100°	494 lm	78 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra90+	3500K	White	100°	525 lm	83 lm/W	DC36V
-	Regular	D450mm	6.3W	Ra90+	4000K	White	100°	544 lm	86 lm/W	DC36V

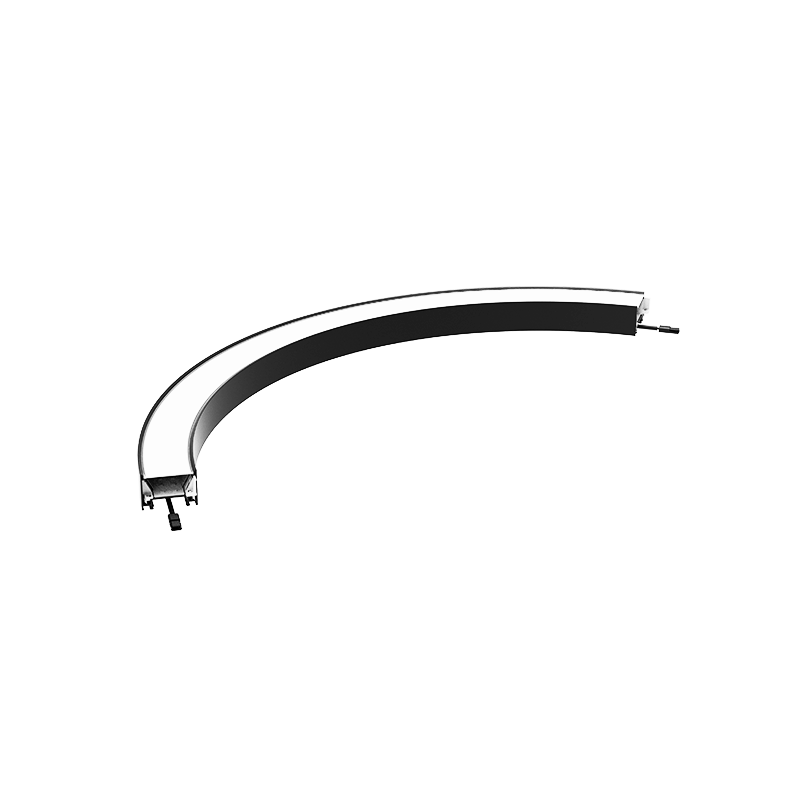

MS3535D-A120

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	9W	Ra80+	2700K	White	100°	757 lm	84 lm/W	DC36V
-	Regular	D450mm	9W	Ra80+	3000K	White	100°	801 lm	89 lm/W	DC36V
-	Regular	D450mm	9W	Ra80+	3500K	White	100°	863 lm	96 lm/W	DC36V
-	Regular	D450mm	9W	Ra80+	4000K	White	100°	890 lm	99 lm/W	DC36V
-	Regular	D450mm	9W	Ra80+	5000K	White	100°	890 lm	99 lm/W	DC36V
-	Regular	D450mm	9W	Ra80+	6500K	White	100°	890 lm	99 lm/W	DC36V
-	Regular	D450mm	9W	Ra90+	2700K	White	100°	650 lm	72 lm/W	DC36V
-	Regular	D450mm	9W	Ra90+	3000K	White	100°	694 lm	77 lm/W	DC36V
-	Regular	D450mm	9W	Ra90+	3500K	White	100°	739 lm	82 lm/W	DC36V
-	Regular	D450mm	9W	Ra90+	4000K	White	100°	765 lm	85 lm/W	DC36V

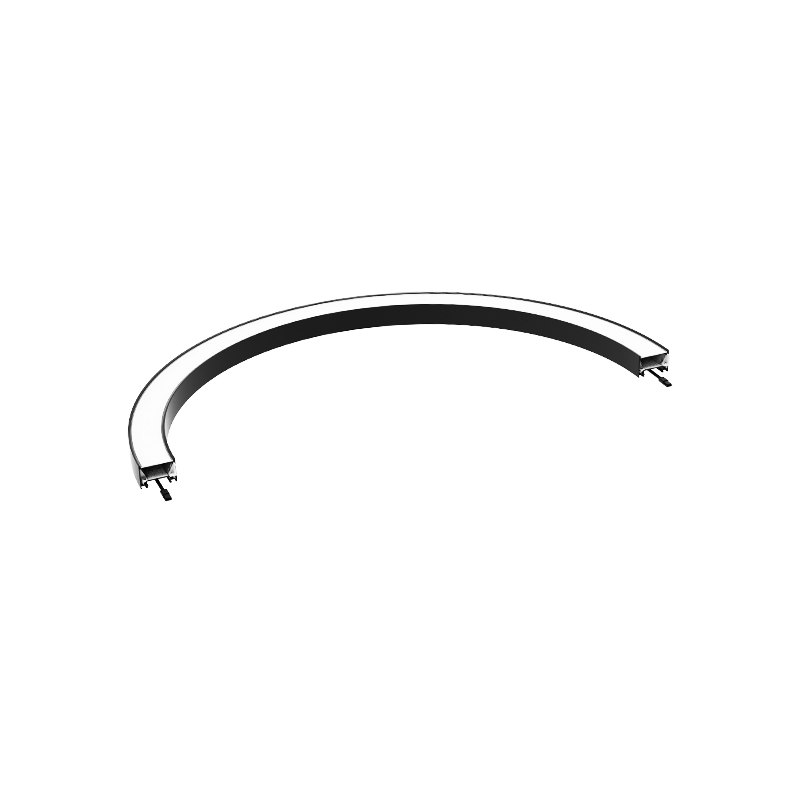

MS3535D-A180

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm	13W	Ra80+	2700K	White	100°	1092 lm	84 lm/W	DC36V
-	Regular	D450mm	13W	Ra80+	3000K	White	100°	1157 lm	89 lm/W	DC36V
-	Regular	D450mm	13W	Ra80+	3500K	White	100°	1246 lm	96 lm/W	DC36V
-	Regular	D450mm	13W	Ra80+	4000K	White	100°	1285 lm	99 lm/W	DC36V
-	Regular	D450mm	13W	Ra80+	5000K	White	100°	1285 lm	99 lm/W	DC36V
-	Regular	D450mm	13W	Ra80+	6500K	White	100°	1285 lm	99 lm/W	DC36V
-	Regular	D450mm	13W	Ra90+	2700K	White	100°	938 lm	72 lm/W	DC36V
-	Regular	D450mm	13W	Ra90+	3000K	White	100°	1002 lm	77 lm/W	DC36V
-	Regular	D450mm	13W	Ra90+	3500K	White	100°	1067 lm	82 lm/W	DC36V
-	Regular	D450mm	13W	Ra90+	4000K	White	100°	1105 lm	85 lm/W	DC36V

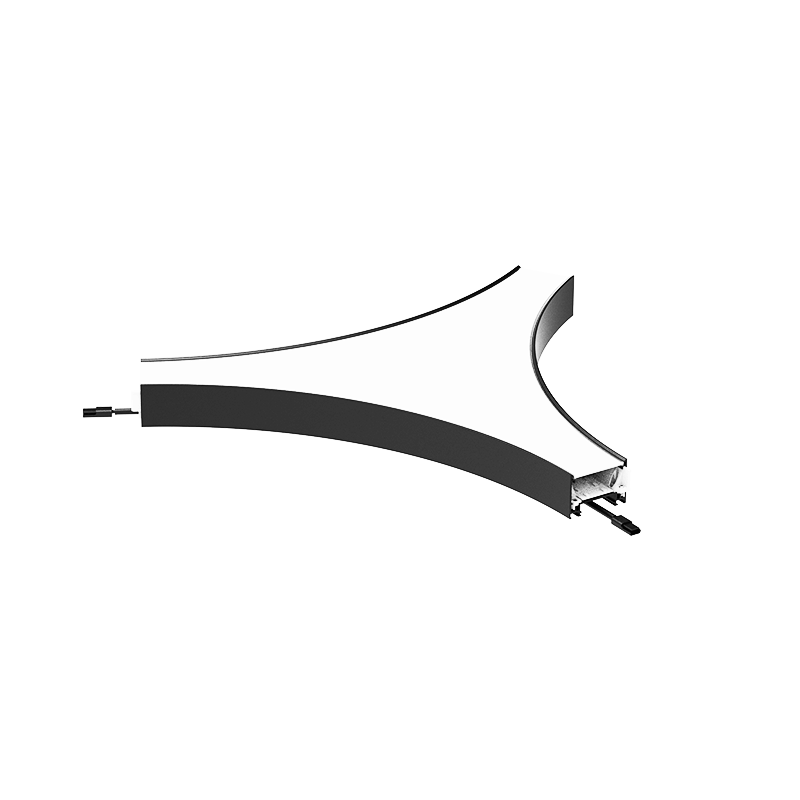

MS3535D-NY

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D450mm-Y60°	10W	Ra80+	2700K	White	100°	840 lm	84 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra80+	3000K	White	100°	889 lm	89 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra80+	3500K	White	100°	958 lm	96 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra80+	4000K	White	100°	988 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra80+	5000K	White	100°	988 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra80+	6500K	White	100°	988 lm	99 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra90+	2700K	White	100°	721 lm	72 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra90+	3000K	White	100°	771 lm	77 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra90+	3500K	White	100°	820 lm	82 lm/W	DC36V
-	Regular	D450mm-Y60°	10W	Ra90+	4000K	White	100°	850 lm	85 lm/W	DC36V

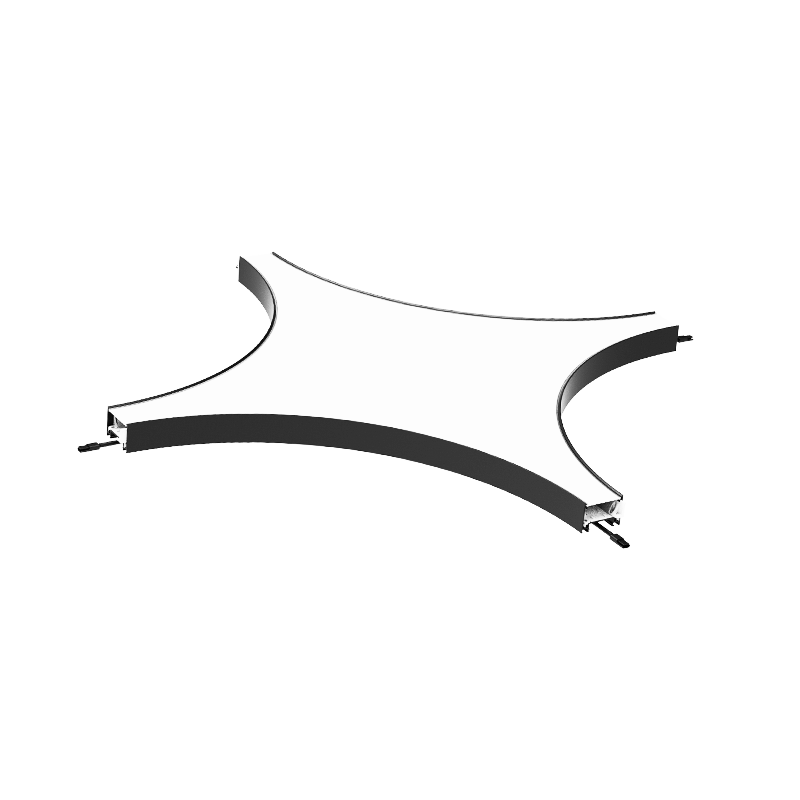

MS3535D-NX

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	D600mm-X90°	53W	Ra80+	2700K	White	100°	4536 lm	86 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra80+	3000K	White	100°	4803 lm	91 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra80+	3500K	White	100°	5177 lm	98 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra80+	4000K	White	100°	5337 lm	101 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra80+	5000K	White	100°	5337 lm	101 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra80+	6500K	White	100°	5337 lm	101 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra90+	2700K	White	100°	3896 lm	74 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra90+	3000K	White	100°	4163 lm	79 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra90+	3500K	White	100°	4430 lm	84 lm/W	DC36V
-	Regular	D600mm-X90°	53W	Ra90+	4000K	White	100°	4590 lm	87 lm/W	DC36V

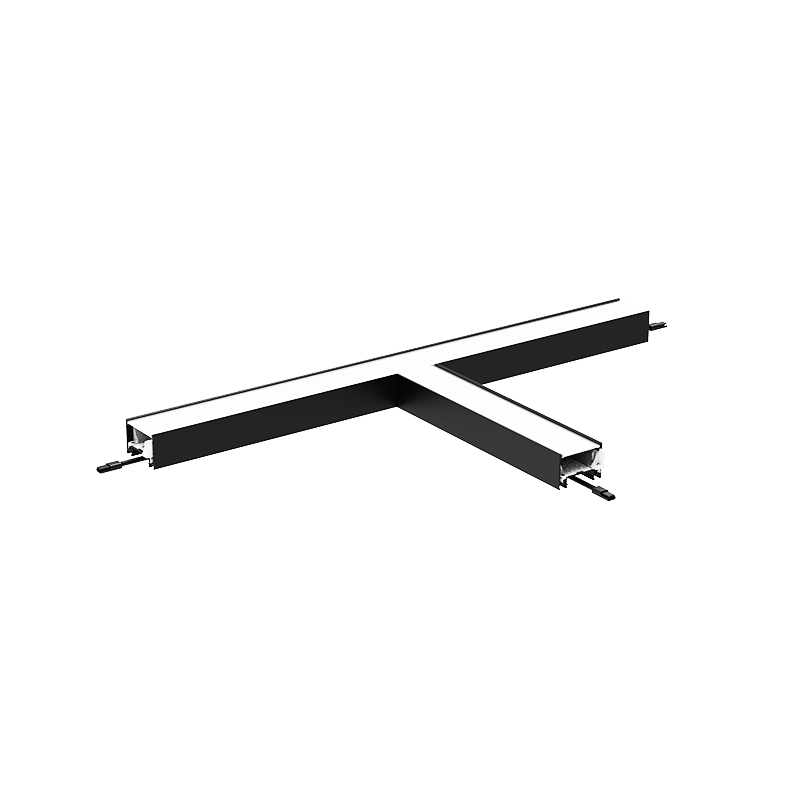

MS3535D-Y

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-Y90°	18W	Ra80+	2700K	White	100°	1512 lm	84 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra80+	3000K	White	100°	1601 lm	89 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra80+	3500K	White	100°	1726 lm	96 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra80+	4000K	White	100°	1779 lm	99 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra80+	5000K	White	100°	1779 lm	99 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra80+	6500K	White	100°	1779 lm	99 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra90+	2700K	White	100°	1299 lm	72 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra90+	3000K	White	100°	1388 lm	77 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra90+	3500K	White	100°	1477 lm	82 lm/W	DC36V
-	Regular	300mm-Y90°	18W	Ra90+	4000K	White	100°	1530 lm	85 lm/W	DC36V

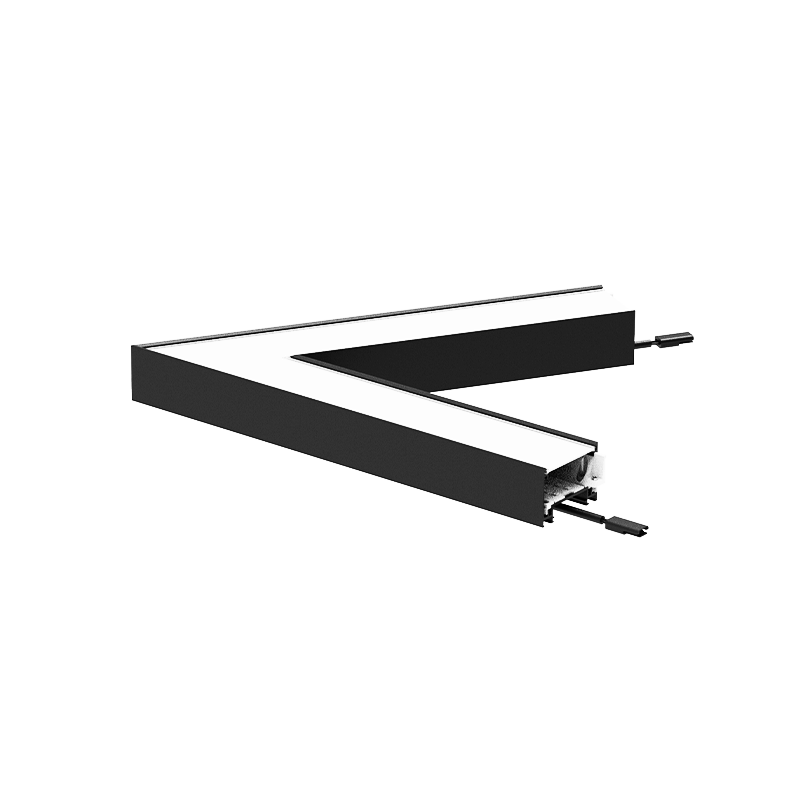

MS3535D-L

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-L60°	10W	Ra80+	2700K	White	100°	881 lm	88 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra80+	3000K	White	100°	932 lm	93 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra80+	3500K	White	100°	1005 lm	101 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra80+	4000K	White	100°	1036 lm	104 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra80+	5000K	White	100°	1036 lm	104 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra80+	6500K	White	100°	1036 lm	104 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra90+	2700K	White	100°	756 lm	76 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra90+	3000K	White	100°	808 lm	81 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra90+	3500K	White	100°	860 lm	86 lm/W	DC36V
-	Regular	300mm-L60°	10W	Ra90+	4000K	White	100°	891 lm	89 lm/W	DC36V

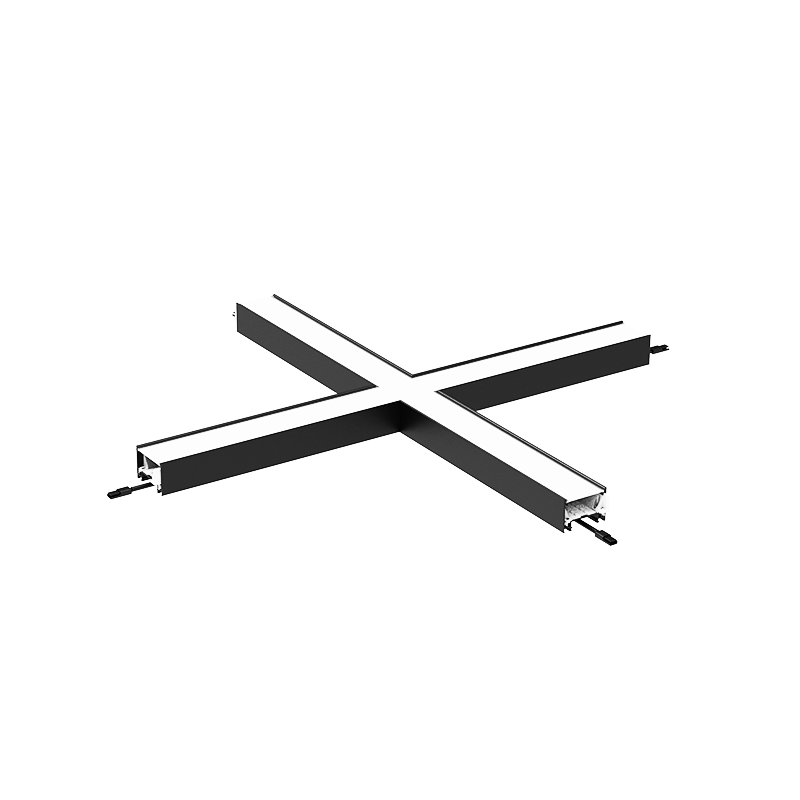

MS3535D-X

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	300mm-X90°	24W	Ra80+	2700K	White	100°	2016 lm	84 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra80+	3000K	White	100°	2135 lm	89 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra80+	3500K	White	100°	2301 lm	96 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra80+	4000K	White	100°	2372 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra80+	5000K	White	100°	2372 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra80+	6500K	White	100°	2372 lm	99 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra90+	2700K	White	100°	1732 lm	72 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra90+	3000K	White	100°	1850 lm	77 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra90+	3500K	White	100°	1969 lm	82 lm/W	DC36V
-	Regular	300mm-X90°	24W	Ra90+	4000K	White	100°	2040 lm	85 lm/W	DC36V

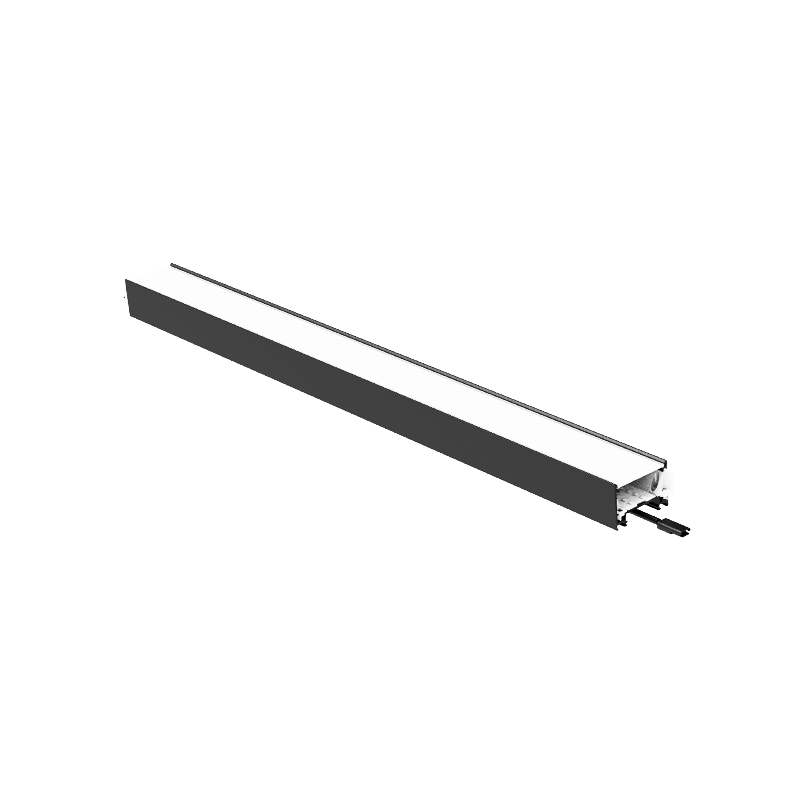

MS3535D

ORDER NOW

Name	Version	Dimension	System Power	CRI	CCT	Finish Colors	Beam Angle	System Output	Luminous Efficacy	Input Voltage
-	Regular	600mm	12W	Ra80+	2700K	White	100°	1008 lm	84 lm/W	DC36V
-	Regular	600mm	12W	Ra80+	3000K	White	100°	1067 lm	89 lm/W	DC36V
-	Regular	600mm	12W	Ra80+	3500K	White	100°	1150 lm	96 lm/W	DC36V
-	Regular	600mm	12W	Ra80+	4000K	White	100°	1186 lm	99 lm/W	DC36V
-	Regular	600mm	12W	Ra80+	5000K	White	100°	1186 lm	99 lm/W	DC36V
-	Regular	600mm	12W	Ra80+	6500K	White	100°	1186 lm	99 lm/W	DC36V
-	Regular	600mm	12W	Ra90+	2700K	White	100°	866 lm	72 lm/W	DC36V
-	Regular	600mm	12W	Ra90+	3000K	White	100°	925 lm	77 lm/W	DC36V
-	Regular	600mm	12W	Ra90+	3500K	White	100°	984 lm	82 lm/W	DC36V
-	Regular	600mm	12W	Ra90+	4000K	White	100°	1020 lm	85 lm/W	DC36V
