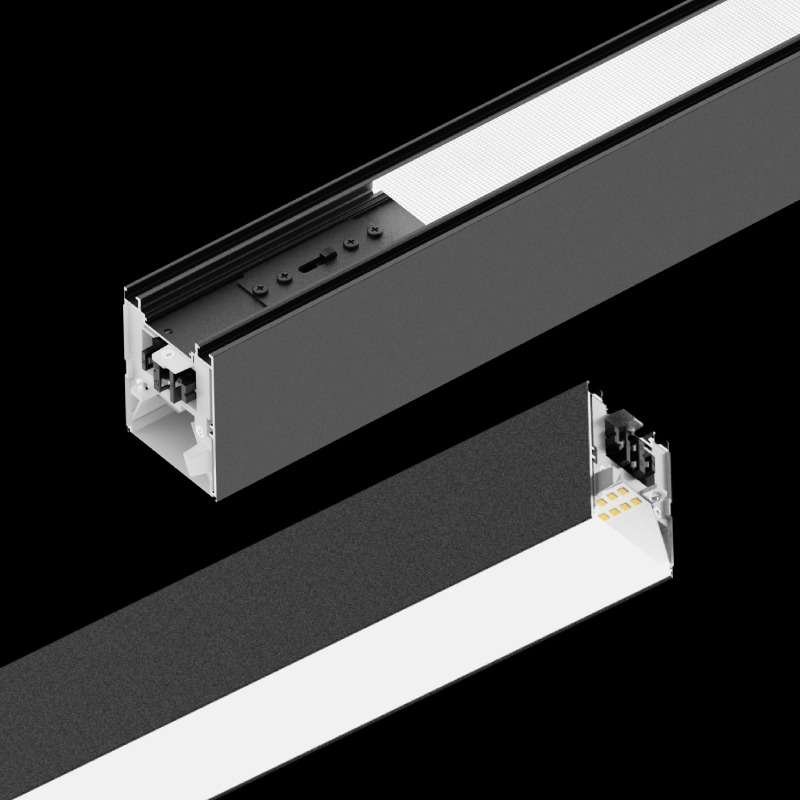

The LINE LINK Quick Connect lighting system features an innovative quick-connect end cap design, making the structural and electrical connections between fixtures simple and efficient. With a simple plug-and-play mechanism, users can achieve instant structural and electrical connections in just one second. Combined with its modular design, this system allows customers to quickly create extended configurations, significantly reducing the additional costs
associated with custom lengths.
Feature
- Innovative Quick-Connect End
- Ultra Long Application
- Ultra-Long Single-End Power in
- Extra-Long Flexible Diffuser & Prismatic
Certification
General Info
- Application
- Indoor
- Mounting Type
- Suspended
- Light Direction
- Direct & Indirect
- Dimension
- 300mm,1200mm,1800mm,2400mm
- Lamp Body Material
- AL6063-T5
- Finish Colors
- Black,White
- Diffuser Type
- Diffuser,Prismatic
- Cover Material
- PC,PC+PET
- Diffuser Transmittance
- >80%
- Fire-Resistance Rating
- UL94-V2
- IP Rating
- IP20
- Operating Temperature
- -15℃~35℃
- Storage Temperature
- 0℃-40℃
- Warranty
- 5 years
- Certifications
- CB,CE,ENEC,LM80,Reach,RoHS,UKCA
Electrical Info
- Input Voltage
- AC220-240V
- Driver Brand
- LiFud
- Electrical Insulation Class
- Class I
- Dimming
- 1-10V,DALI-2,Non-Dimming
Optical Info
- Version
- High Efficiency,High Efficiency-DIP Dual-color,Regular,Regular-DIP Dual-color
- LED Type
- SMD2835
- LED Brand
- Lumileds,QZOPTO
- CRI
- Ra80+,Ra90+
- CCT
- 2700K,3000K,4000K,6500K
- SDCM
- ≤3 Step (ANSI)
- Beam Angle
- 90°,100°
- UGR(4H,8H)
- UGR<19
- Luminous Efficacy
- 125 lm/W max,130 lm/W max,135 lm/W max,140 lm/W max,150 lm/W max
- LED Voltage
- DC36V
- LED Lifetime
- 000H,>50,L90B10(Ta 25℃)
Download
Product Code
Dimension
Filter by Dimension
Finish Colors
Filter by Finish Colors
Version
Filter by Version
CRI
Filter by CRI
CCT
Filter by CCT
Beam Angle
Filter by Beam Angle
Luminous Efficacy
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular-3 CCT Dial Switch | 1800mm | 67W | Ra80+ | 4200K | White | 100° | 6700 lm | 100 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 67W | Ra80+ | 4200K | Black | 100° | 6030 lm | 90 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 90W | Ra80+ | 4200K | White | 100° | 9000 lm | 100 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 90W | Ra80+ | 4200K | Black | 100° | 8100 lm | 90 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 45W | Ra90+ | 4200K | White | 100° | 3870 lm | 86 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 45W | Ra90+ | 4200K | Black | 100° | 3483 lm | 77 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 67W | Ra90+ | 4200K | White | 100° | 5762 lm | 86 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 67W | Ra90+ | 4200K | Black | 100° | 5186 lm | 77 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 90W | Ra90+ | 4200K | White | 100° | 7740 lm | 86 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 90W | Ra90+ | 4200K | Black | 100° | 6966 lm | 77 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 19
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular-3 CCT Dial Switch | 1800mm | 90W | Ra80+ | 4200K | White | 100° | 9900 lm | 110 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 90W | Ra80+ | 4200K | Black | 100° | 8910 lm | 99 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 120W | Ra80+ | 4200K | White | 100° | 13200 lm | 110 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 120W | Ra80+ | 4200K | Black | 100° | 11880 lm | 99 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 58W | Ra90+ | 4200K | White | 100° | 5487 lm | 95 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 58W | Ra90+ | 4200K | Black | 100° | 4938 lm | 85 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 90W | Ra90+ | 4200K | White | 100° | 8514 lm | 95 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 90W | Ra90+ | 4200K | Black | 100° | 7663 lm | 85 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 120W | Ra90+ | 4200K | White | 100° | 11352 lm | 95 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 120W | Ra90+ | 4200K | Black | 100° | 10217 lm | 85 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 19
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular-3 CCT Dial Switch | 1800mm | 106W | Ra80+ | 4200K | White | 100° | 12190 lm | 115 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 106W | Ra80+ | 4200K | Black | 100° | 10971 lm | 104 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 140W | Ra80+ | 4200K | White | 100° | 16100 lm | 115 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 140W | Ra80+ | 4200K | Black | 100° | 14490 lm | 104 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 70W | Ra90+ | 4200K | White | 100° | 6923 lm | 99 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1200mm | 70W | Ra90+ | 4200K | Black | 100° | 6231 lm | 89 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 106W | Ra90+ | 4200K | White | 100° | 10483 lm | 99 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 1800mm | 106W | Ra90+ | 4200K | Black | 100° | 9435 lm | 89 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 140W | Ra90+ | 4200K | White | 100° | 13846 lm | 99 lm/W | AC220-240V | |
| - | Regular-3 CCT Dial Switch | 2400mm | 140W | Ra90+ | 4200K | Black | 100° | 12461 lm | 89 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 19
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 1200mm | 33W | Ra80+ | 4000K | White | 90° | 3465 lm | 105 lm/W | AC220-240V | |
| - | Regular | 1200mm | 33W | Ra80+ | 4000K | Black | 90° | 3118 lm | 94 lm/W | AC220-240V | |
| - | Regular | 1800mm | 49W | Ra80+ | 4000K | White | 90° | 5145 lm | 105 lm/W | AC220-240V | |
| - | Regular | 1800mm | 49W | Ra80+ | 4000K | Black | 90° | 4630 lm | 94 lm/W | AC220-240V | |
| - | Regular | 1200mm | 33W | Ra90+ | 4000K | White | 90° | 2979 lm | 90 lm/W | AC220-240V | |
| - | Regular | 1200mm | 33W | Ra90+ | 4000K | Black | 90° | 2681 lm | 81 lm/W | AC220-240V | |
| - | Regular | 1800mm | 49W | Ra90+ | 4000K | White | 90° | 4424 lm | 90 lm/W | AC220-240V | |
| - | Regular | 1800mm | 49W | Ra90+ | 4000K | Black | 90° | 3982 lm | 81 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 33W | Ra80+ | 4000K | White | 90° | 4125 lm | 125 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 33W | Ra80+ | 4000K | Black | 90° | 3712 lm | 112 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 12
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 1200mm | 38W | Ra80+ | 4000K | White | 90° | 4180 lm | 110 lm/W | AC220-240V | |
| - | Regular | 1200mm | 38W | Ra80+ | 4000K | Black | 90° | 3762 lm | 99 lm/W | AC220-240V | |
| - | Regular | 1800mm | 57W | Ra80+ | 4000K | White | 90° | 6270 lm | 110 lm/W | AC220-240V | |
| - | Regular | 1800mm | 57W | Ra80+ | 4000K | Black | 90° | 5643 lm | 99 lm/W | AC220-240V | |
| - | Regular | 1200mm | 38W | Ra90+ | 4000K | White | 90° | 3594 lm | 95 lm/W | AC220-240V | |
| - | Regular | 1200mm | 38W | Ra90+ | 4000K | Black | 90° | 3235 lm | 85 lm/W | AC220-240V | |
| - | Regular | 1800mm | 57W | Ra90+ | 4000K | White | 90° | 5392 lm | 95 lm/W | AC220-240V | |
| - | Regular | 1800mm | 57W | Ra90+ | 4000K | Black | 90° | 4852 lm | 85 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 38W | Ra80+ | 4000K | White | 90° | 4940 lm | 130 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 38W | Ra80+ | 4000K | Black | 90° | 4446 lm | 117 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 12
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 1200mm | 47W | Ra80+ | 4000K | White | 90° | 5170 lm | 110 lm/W | AC220-240V | |
| - | Regular | 1200mm | 47W | Ra80+ | 4000K | Black | 90° | 4653 lm | 99 lm/W | AC220-240V | |
| - | Regular | 1800mm | 70W | Ra80+ | 4000K | White | 90° | 7700 lm | 110 lm/W | AC220-240V | |
| - | Regular | 1800mm | 70W | Ra80+ | 4000K | Black | 90° | 6930 lm | 99 lm/W | AC220-240V | |
| - | Regular | 1200mm | 47W | Ra90+ | 4000K | White | 90° | 4461 lm | 95 lm/W | AC220-240V | |
| - | Regular | 1200mm | 47W | Ra90+ | 4000K | Black | 90° | 4015 lm | 85 lm/W | AC220-240V | |
| - | Regular | 1800mm | 70W | Ra90+ | 4000K | White | 90° | 6645 lm | 95 lm/W | AC220-240V | |
| - | Regular | 1800mm | 70W | Ra90+ | 4000K | Black | 90° | 5980 lm | 85 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 47W | Ra80+ | 4000K | White | 90° | 6345 lm | 135 lm/W | AC220-240V | |
| - | High-Efficiency | 1200mm | 47W | Ra80+ | 4000K | Black | 90° | 5710 lm | 121 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
- 5
- 6
- 12
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*70mm | 20W | Ra80+ | 2700K | White | 90° | 2295 lm | 115 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra80+ | 3000K | White | 90° | 2430 lm | 122 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra80+ | 4000K | White | 90° | 2700 lm | 135 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra80+ | 6500K | White | 90° | 2700 lm | 135 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra90+ | 2700K | White | 90° | 1971 lm | 99 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra90+ | 3000K | White | 90° | 2106 lm | 105 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra90+ | 4000K | White | 90° | 2322 lm | 116 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 20W | Ra90+ | 6500K | White | 90° | 2322 lm | 116 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*70mm | 20W | Ra80+ | 2700K | White | 90° | 2565 lm | 128 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*70mm | 20W | Ra80+ | 3000K | White | 90° | 2700 lm | 135 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*70mm | 32W | Ra80+ | 2700K | White | 100° | 1870 lm | 58 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra80+ | 3000K | White | 100° | 1980 lm | 62 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra80+ | 4000K | White | 100° | 2200 lm | 69 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra80+ | 6500K | White | 100° | 2200 lm | 69 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra90+ | 2700K | White | 100° | 1606 lm | 50 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra90+ | 3000K | White | 100° | 1716 lm | 54 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra90+ | 4000K | White | 100° | 1892 lm | 59 lm/W | AC220-240V | |
| - | Regular | 300*300*70mm | 32W | Ra90+ | 6500K | White | 100° | 1892 lm | 59 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*70mm | 24W | Ra80+ | 2700K | White | 100° | 2223 lm | 93 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*70mm | 24W | Ra80+ | 3000K | White | 100° | 2340 lm | 98 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*65mm | 18W | Ra80+ | 2700K | White | 90° | 1683 lm | 94 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra80+ | 3000K | White | 90° | 1782 lm | 99 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra80+ | 4000K | White | 90° | 1980 lm | 110 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra80+ | 6500K | White | 90° | 1980 lm | 110 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra90+ | 2700K | White | 90° | 1445 lm | 80 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra90+ | 3000K | White | 90° | 1544 lm | 86 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra90+ | 4000K | White | 90° | 1703 lm | 95 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 18W | Ra90+ | 6500K | White | 90° | 1703 lm | 95 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*65mm | 18W | Ra80+ | 2700K | White | 90° | 2565 lm | 143 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*65mm | 18W | Ra80+ | 3000K | White | 90° | 2700 lm | 150 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*65mm | 25W | Ra80+ | 2700K | White | 100° | 1216 lm | 49 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra80+ | 3000K | White | 100° | 1287 lm | 51 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra80+ | 4000K | White | 100° | 1430 lm | 57 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra80+ | 6500K | White | 100° | 1430 lm | 57 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra90+ | 2700K | White | 100° | 1044 lm | 42 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra90+ | 3000K | White | 100° | 1115 lm | 45 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra90+ | 4000K | White | 100° | 1230 lm | 49 lm/W | AC220-240V | |
| - | Regular | 300*300*65mm | 25W | Ra90+ | 6500K | White | 100° | 1230 lm | 49 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*65mm | 18W | Ra80+ | 2700K | White | 100° | 1781 lm | 99 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*65mm | 18W | Ra80+ | 3000K | White | 100° | 1875 lm | 104 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*60mm | 15W | Ra80+ | 2700K | White | 90° | 1381 lm | 92 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra80+ | 3000K | White | 90° | 1463 lm | 98 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra80+ | 4000K | White | 90° | 1625 lm | 108 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra80+ | 6500K | White | 90° | 1625 lm | 108 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra90+ | 2700K | White | 90° | 1186 lm | 79 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra90+ | 3000K | White | 90° | 1268 lm | 85 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra90+ | 4000K | White | 90° | 1398 lm | 93 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 15W | Ra90+ | 6500K | White | 90° | 1398 lm | 93 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*60mm | 15W | Ra80+ | 2700K | White | 90° | 1544 lm | 103 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*60mm | 15W | Ra80+ | 3000K | White | 90° | 1625 lm | 108 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
| Name | Version | Dimension | System Power | CRI | CCT | Finish Colors | Beam Angle | System Output | Luminous Efficacy | Input Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Regular | 300*300*60mm | 20W | Ra80+ | 2700K | White | 100° | 1870 lm | 94 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra80+ | 3000K | White | 100° | 1980 lm | 99 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra80+ | 4000K | White | 100° | 2200 lm | 110 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra80+ | 6500K | White | 100° | 2200 lm | 110 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra90+ | 2700K | White | 100° | 1606 lm | 80 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra90+ | 3000K | White | 100° | 1716 lm | 86 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra90+ | 4000K | White | 100° | 1892 lm | 95 lm/W | AC220-240V | |
| - | Regular | 300*300*60mm | 20W | Ra90+ | 6500K | White | 100° | 1892 lm | 95 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*60mm | 15W | Ra80+ | 2700K | White | 100° | 2565 lm | 171 lm/W | AC220-240V | |
| - | High-Efficiency | 300*300*60mm | 15W | Ra80+ | 3000K | White | 100° | 2700 lm | 180 lm/W | AC220-240V |
- 1
- 2
- 3
- 4
