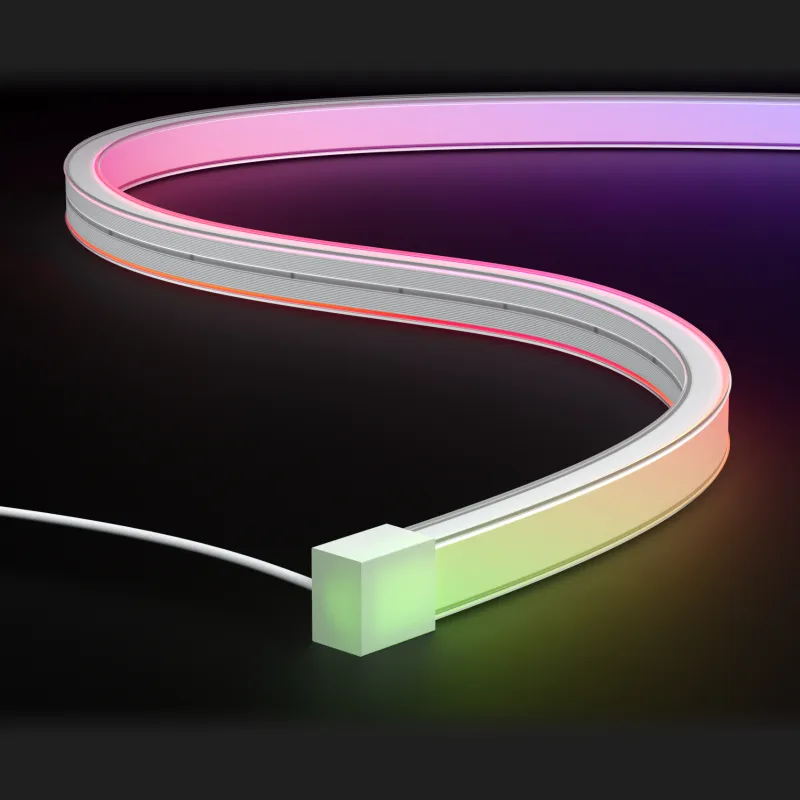

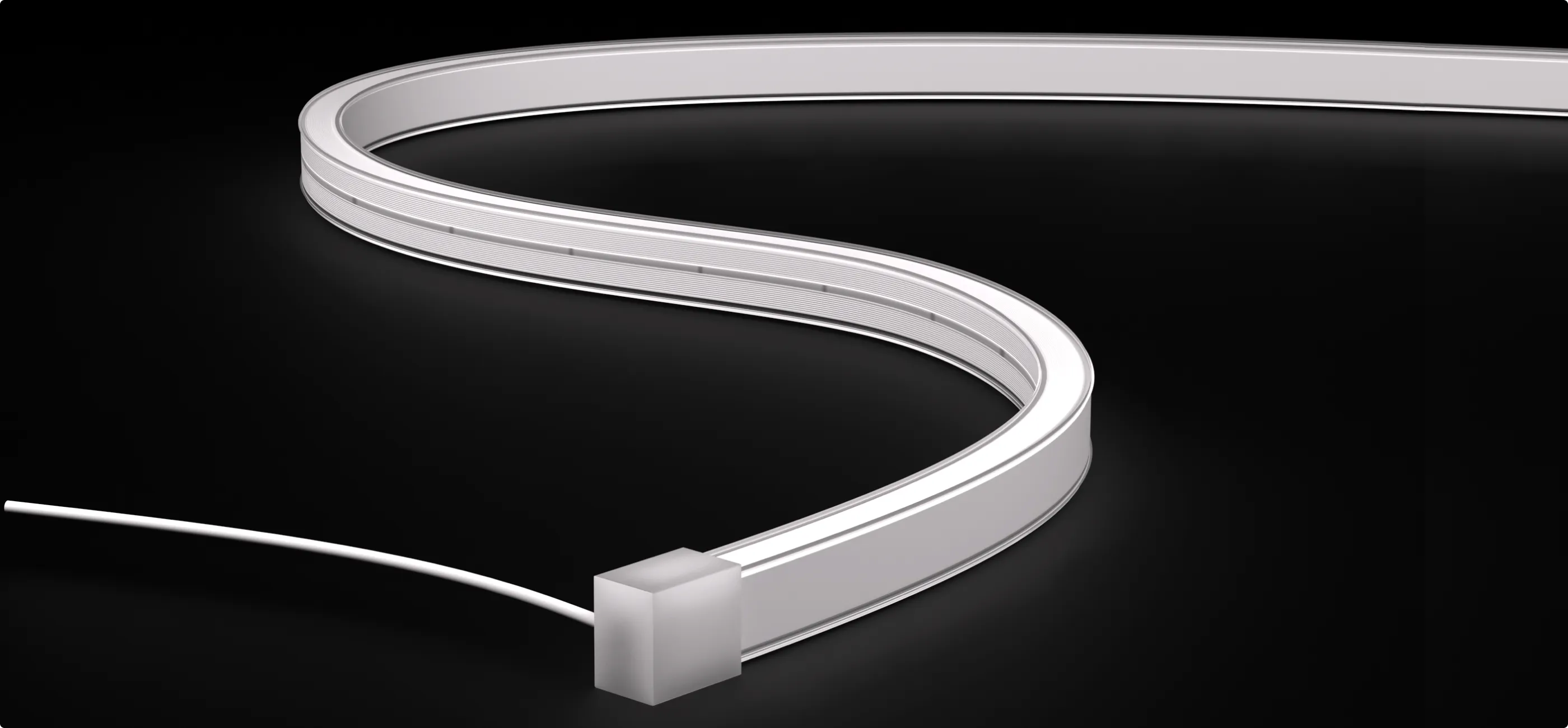

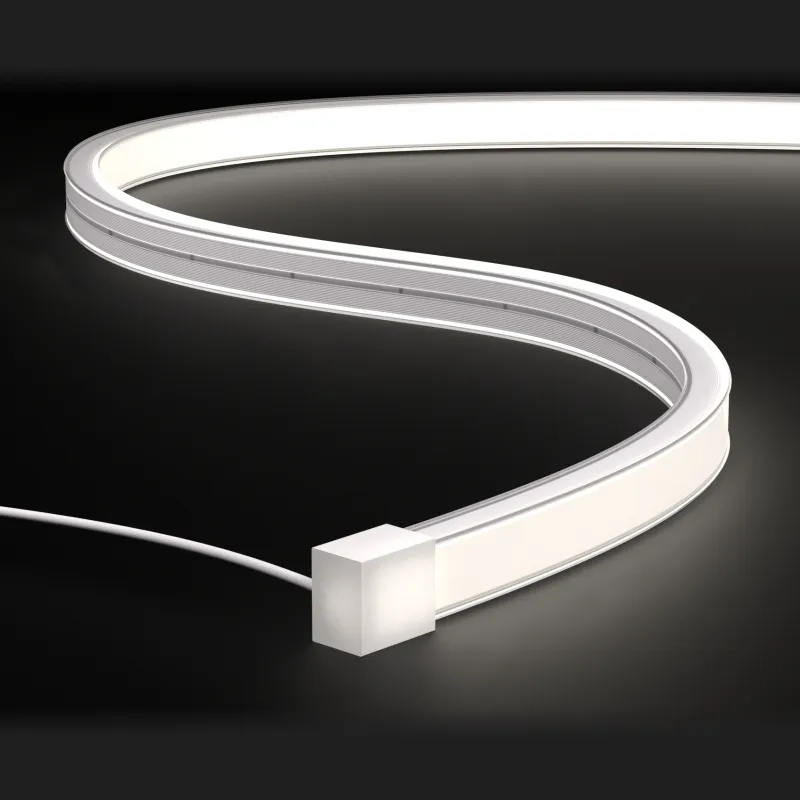

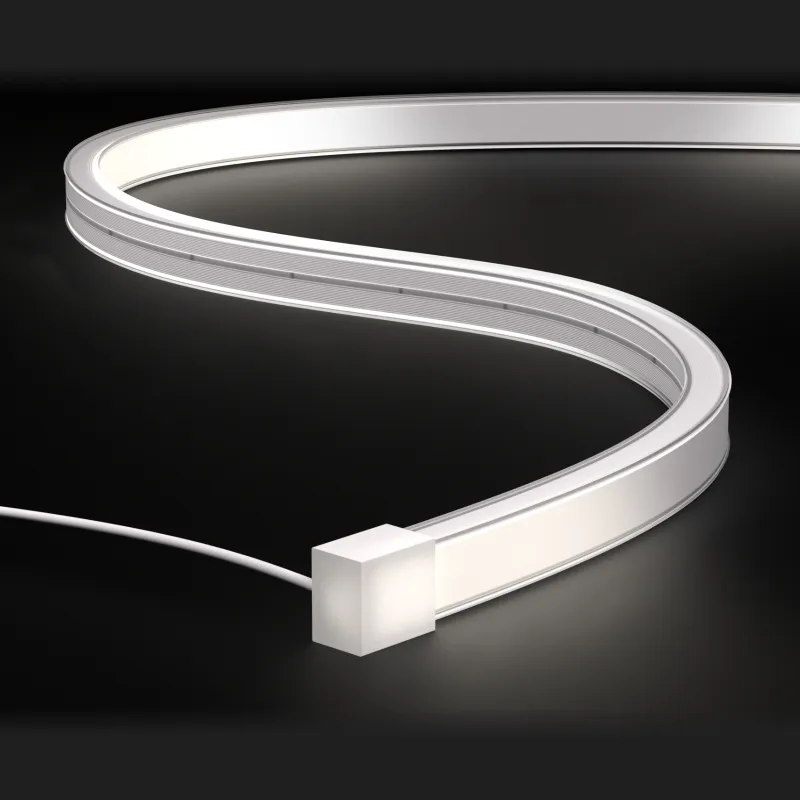

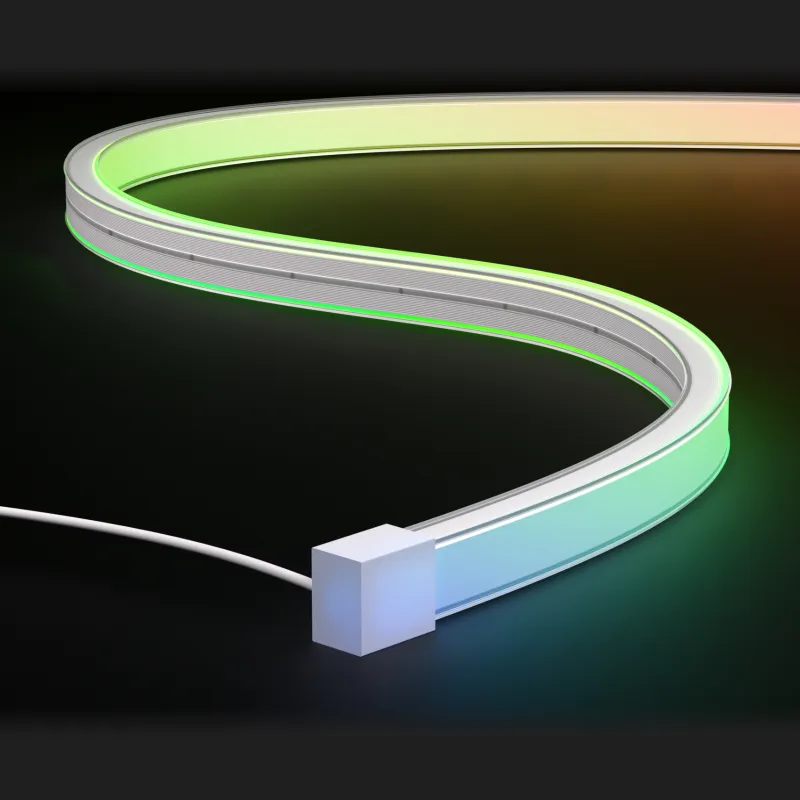

AWT2013
Discover AW SeriesUnderwater applications, 3m deep;
IP68 IP69K IK10;
5-year warranty;
T-type TPU;
For Swimming Pool & Sea Water & Onsen.
Key Features
IP68 & IP69K

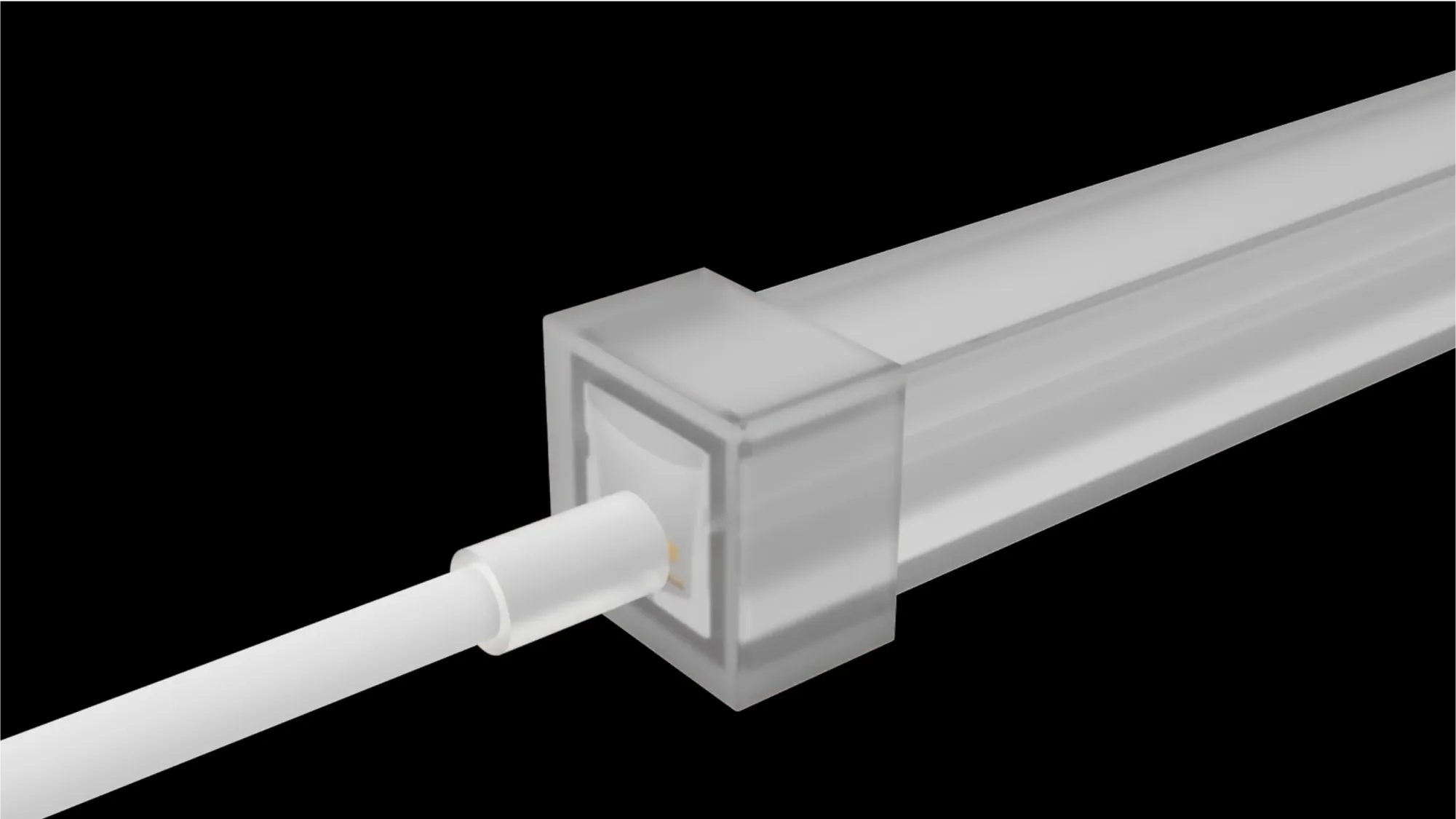

High-density TPU material , fully enclosed structure design , TPU injection-molded full encapsulated end cap
5-Years Warranty For Underwater Applications
Special t-type TPU material
Chlorine Resistance≤10ppm
NaCI Resistance<4%

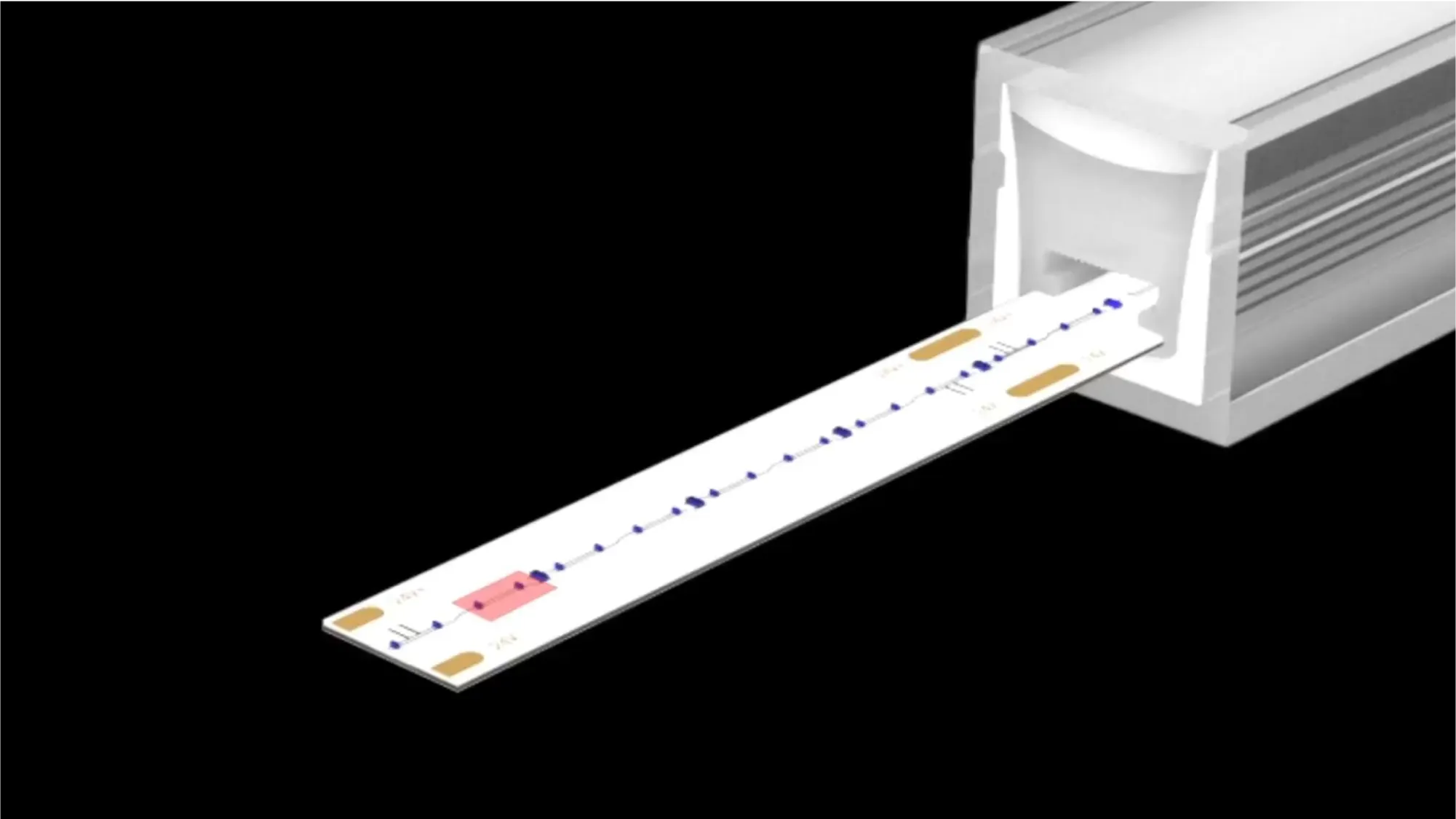

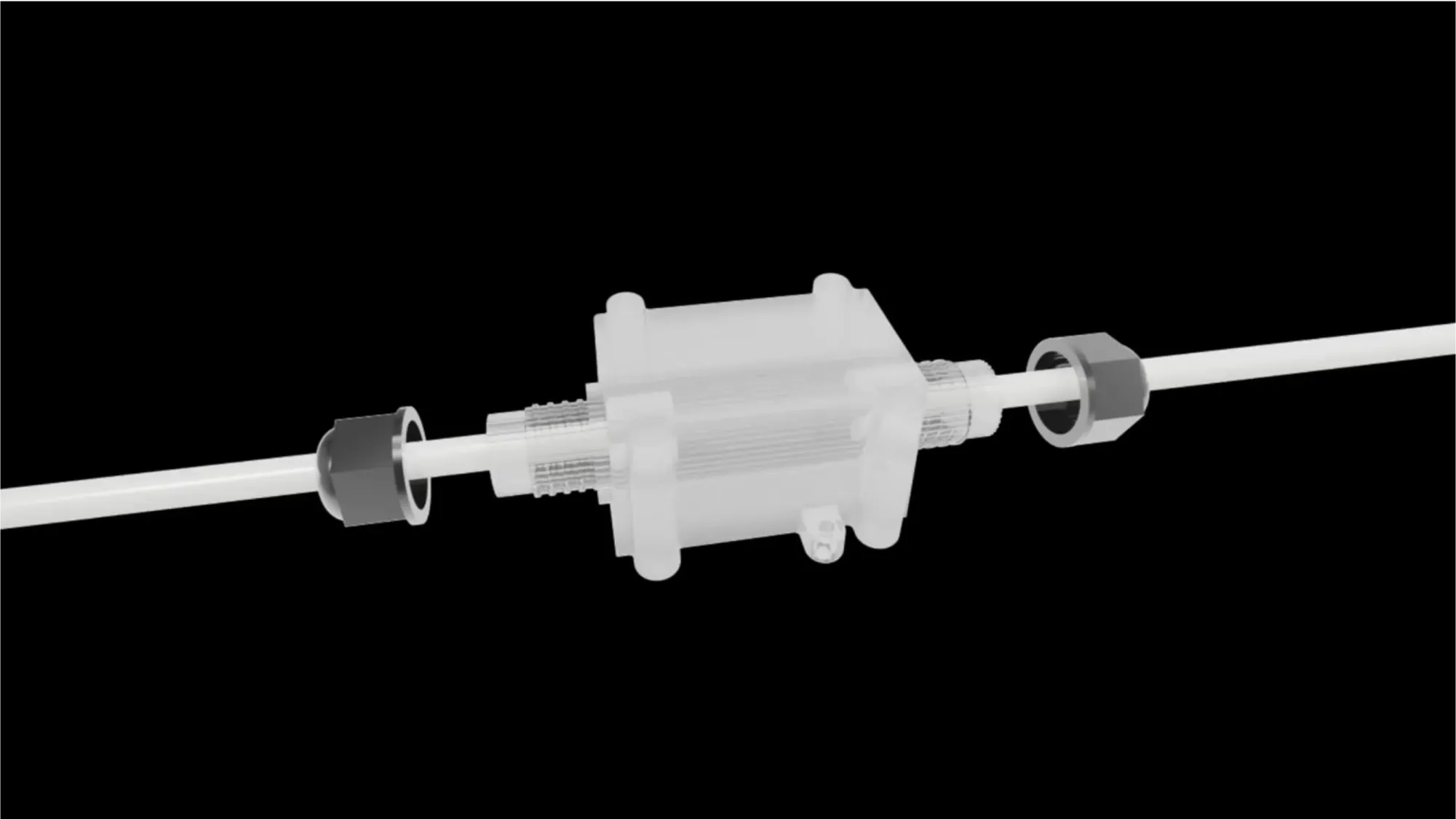

PC Profile + Waterproof Junction Box Installation Solution For Underwater Application
Non-conductive pc material, Anti-rust anti-brittle, IP68 waterproof junction box

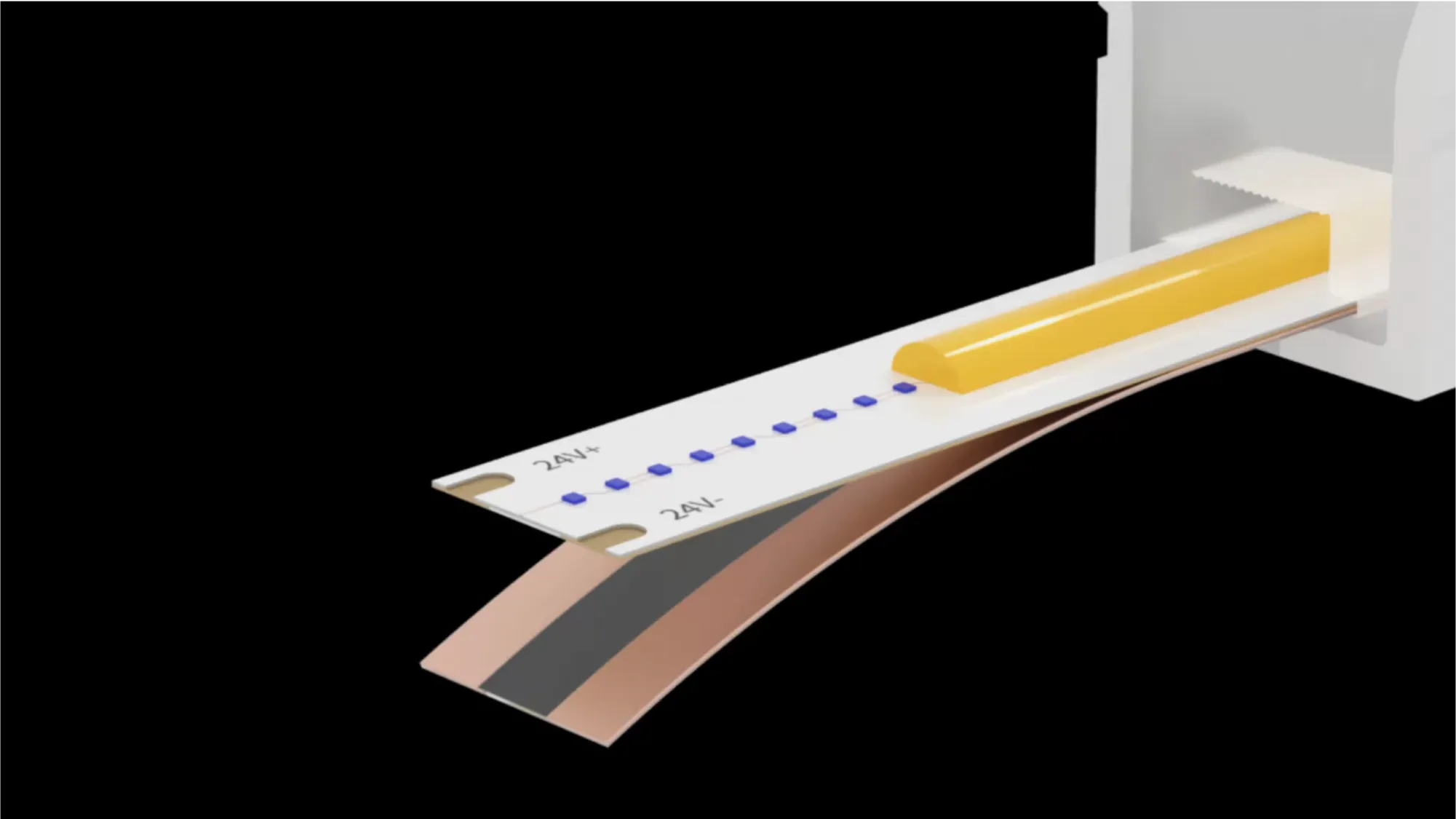

Anti-Breakage PCB Are More Durable
With an innovative 2in1 built-in anti-tensile PC line and backplane design, the anti- breakage PCB is more durable
Anti-Dead Chips Without Dark Area
Dual chips parallel LEDs technology,special chip design, single chip breakage no affect the light effect
Withstands Installation Stresses

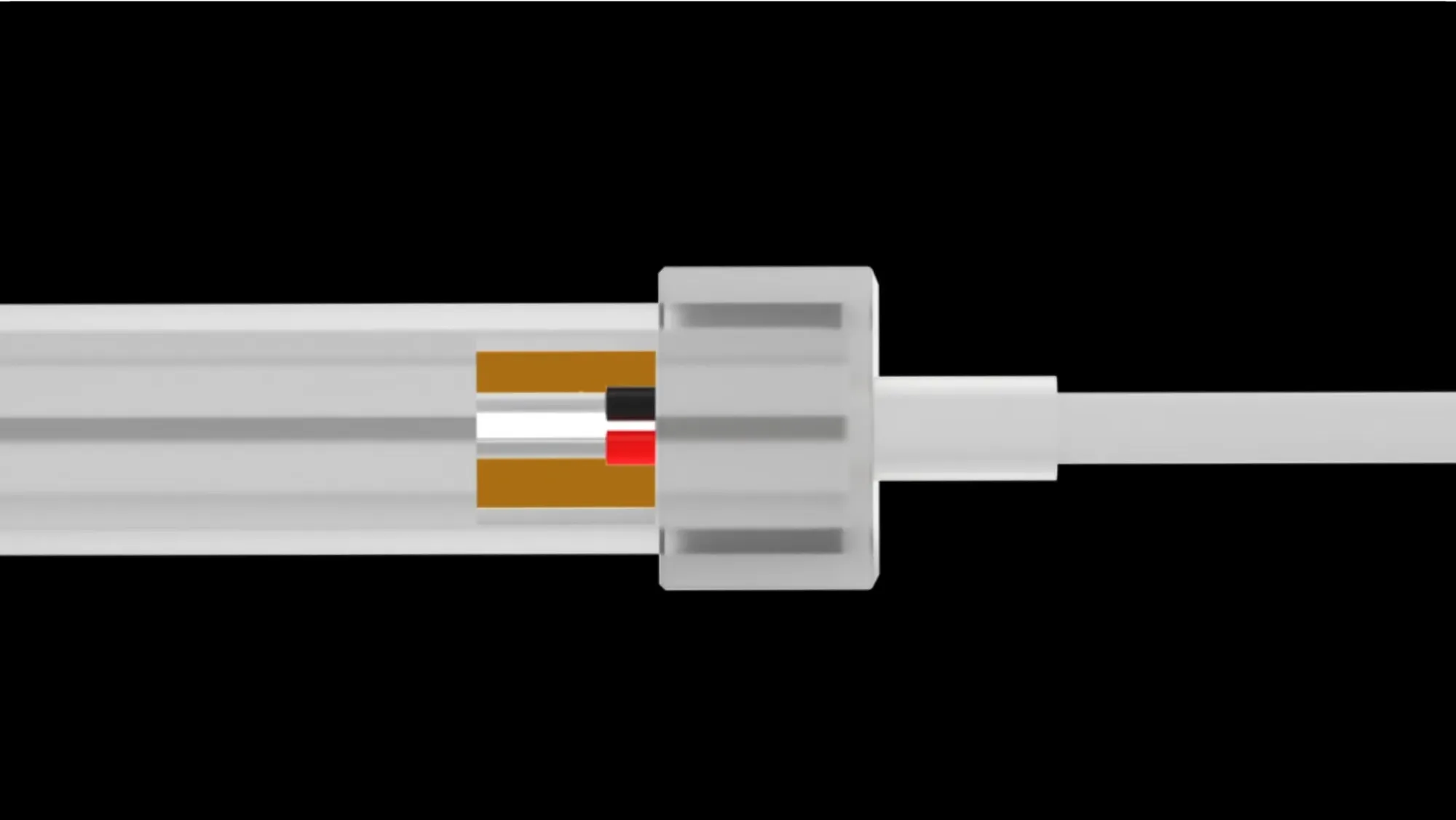

Reinforced wire soldering technology,designed to overcome external forces

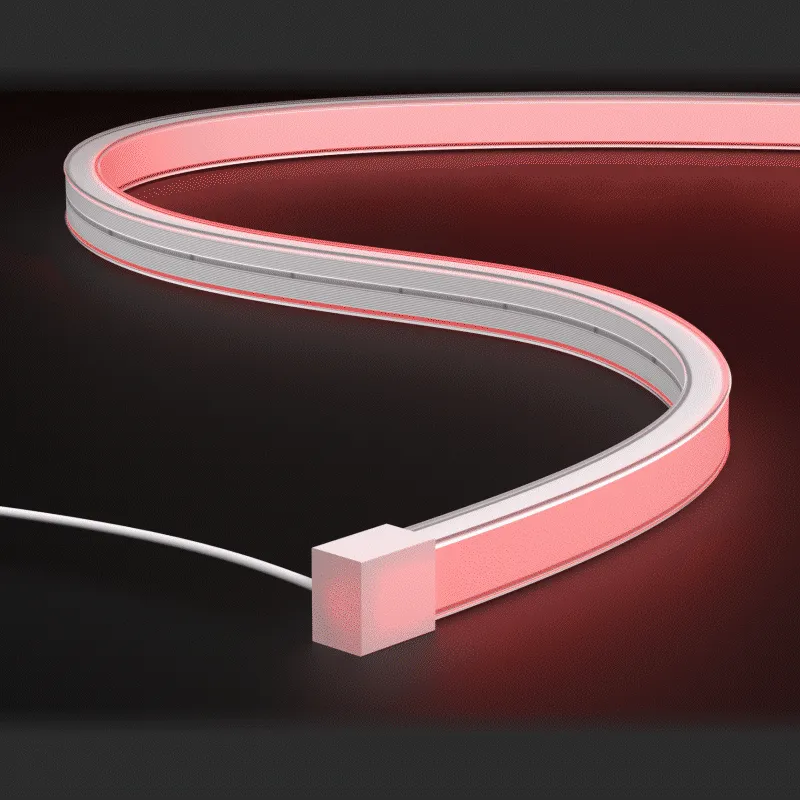

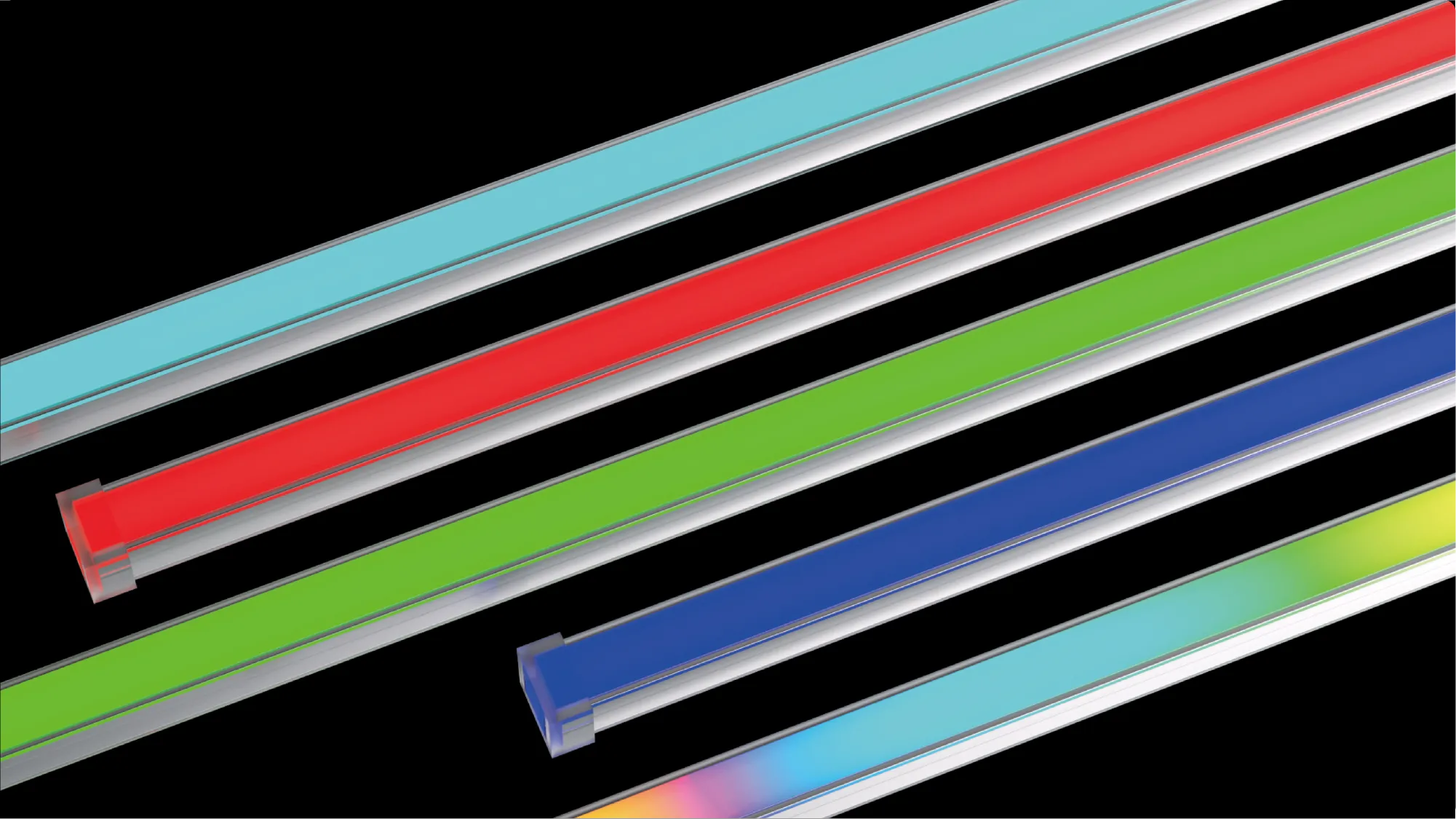

Rich Range Of Light Colors
With newly added ice blue light, RGB/RGBW and color-changing models, offering a wider range of adaptation and more optional configurations

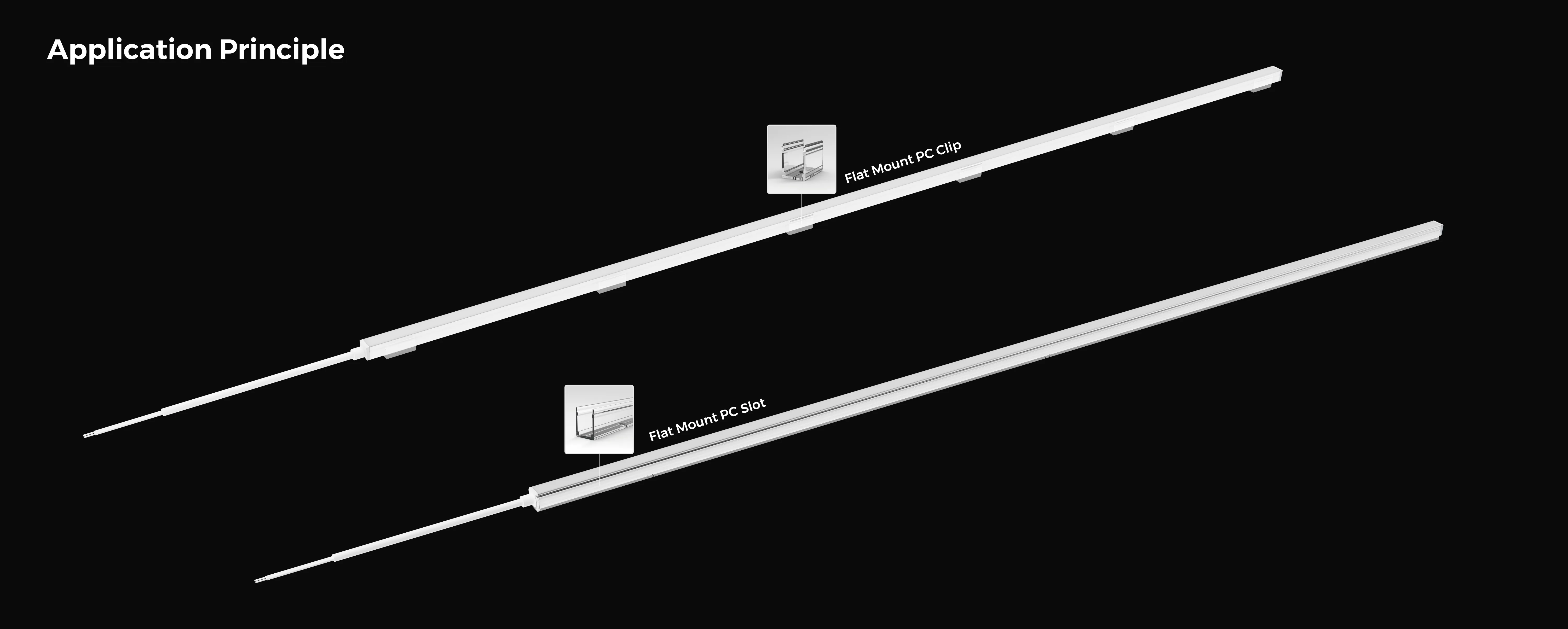

Application Principle

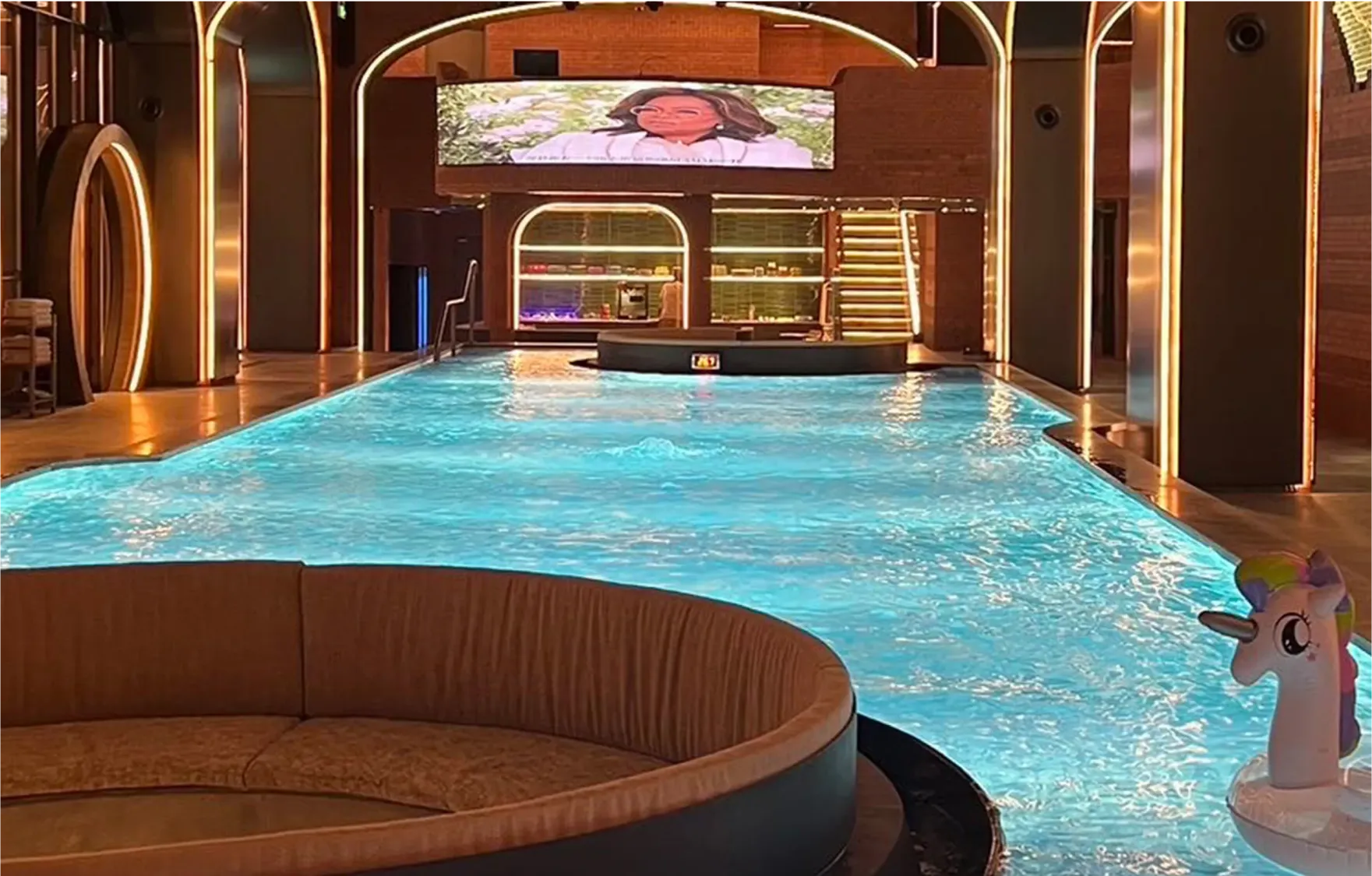

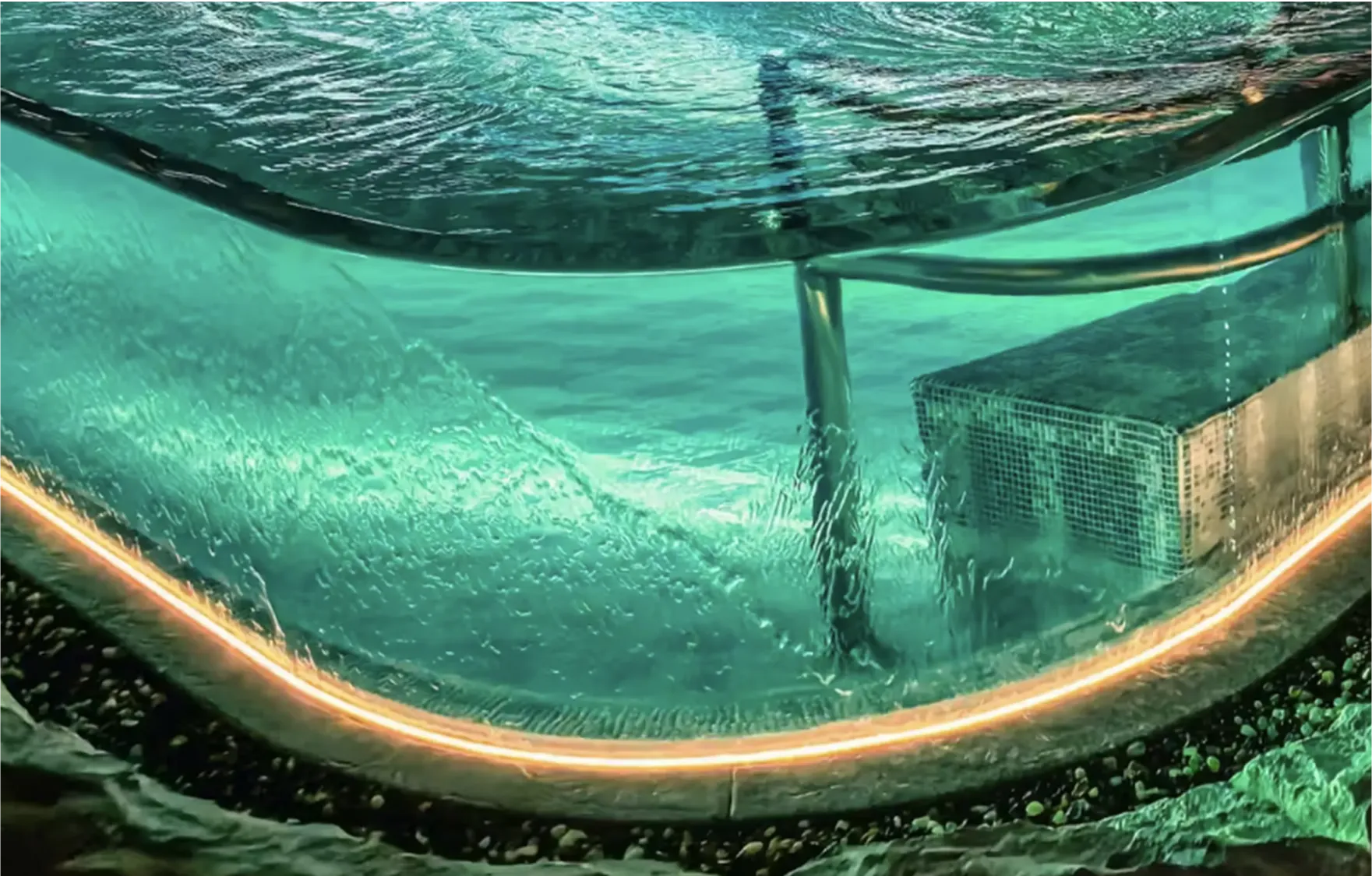

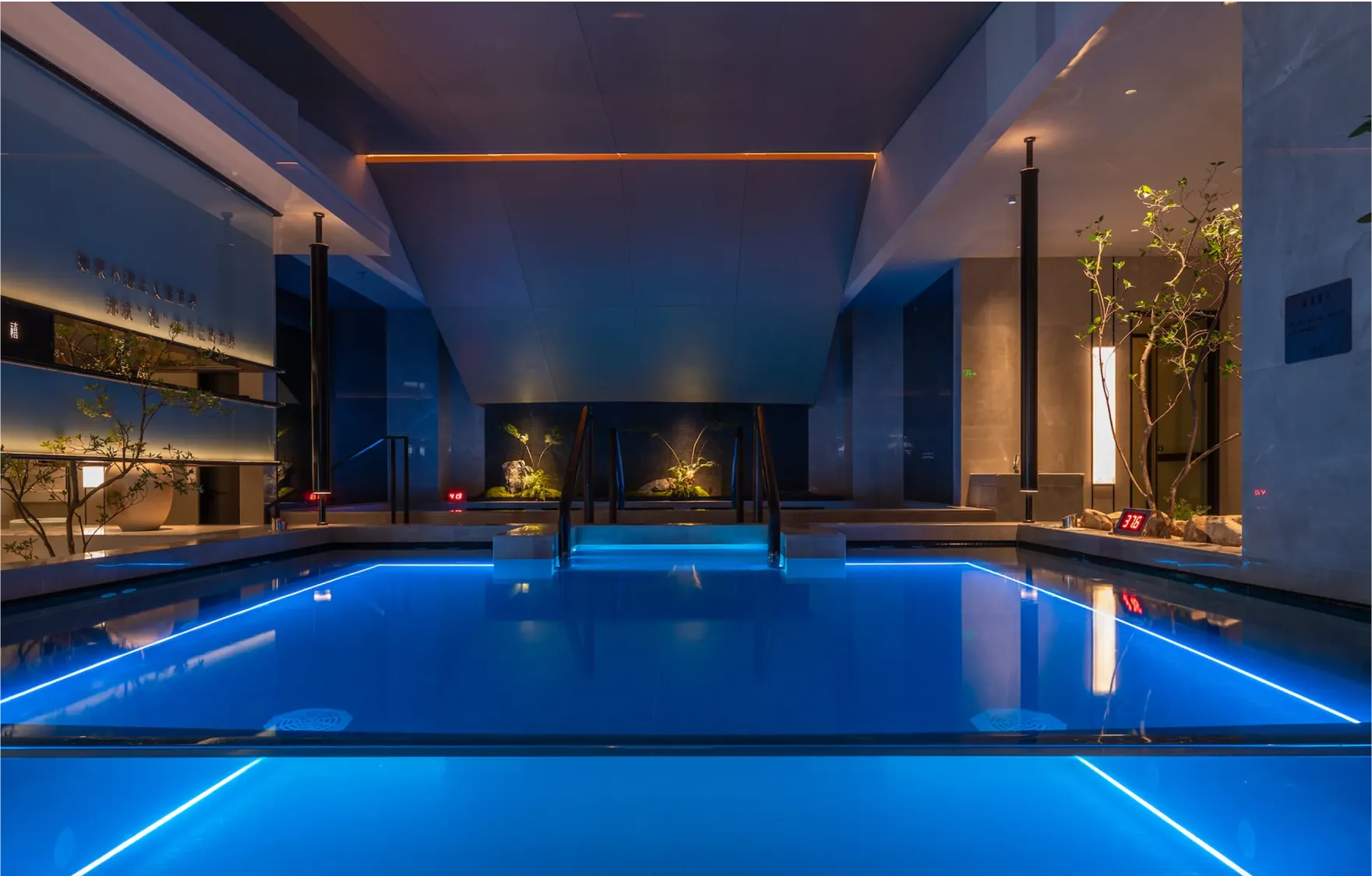

Scenario Case
Ordering Code
Optional Model
AWT2013-Color light-24V
AWT2013-DMX512 RGB neon light-24V
AWT2013-DMX512 RGBW neon light-24V
AWT2013-DMX512 White neon light-24V
AWT2013-RGB-24V
AWT2013-RGBW-24V
AWT2013-White light-24V
AWT2013-Color light-24V
Basic parameter
IP Process
IP68
Warranty
5 Years
Cutting Unit
50 mm
Leds Qty
320LEDs/m
Typ.power
10W/M
Accessories Type
Installation accessory
Supporting accessory
Controller
Other
Size
Name
Model
Description
Quantity
Application
AS-AWT2013P-30
AS-AWT2013P-30

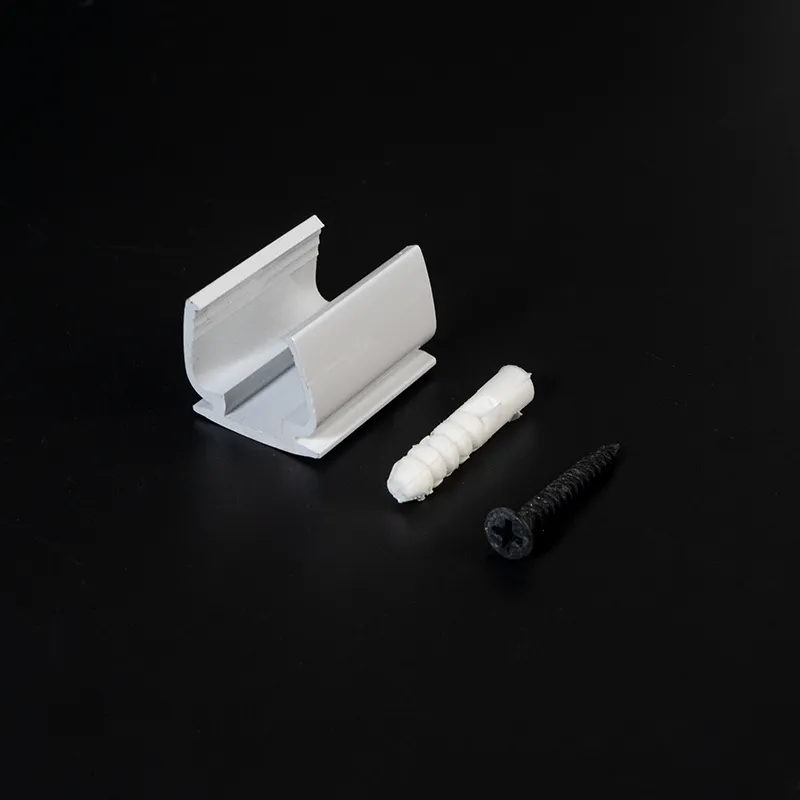

Product model: AS-AWT2013P-30，AWT2013 Flat Plastic Clip
Installation method：Flat mounting
Coating：White
Size：L30*W23.9*H21.5mm
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：AWT2013
Installation method：Flat mounting
Coating：White
Size：L30*W23.9*H21.5mm
Quantity: 1PCS/ set
Recommended dosage:3PCS/M
Applicable product model：AWT2013
AS-AWT2013P-950
AS-AWT2013P-950

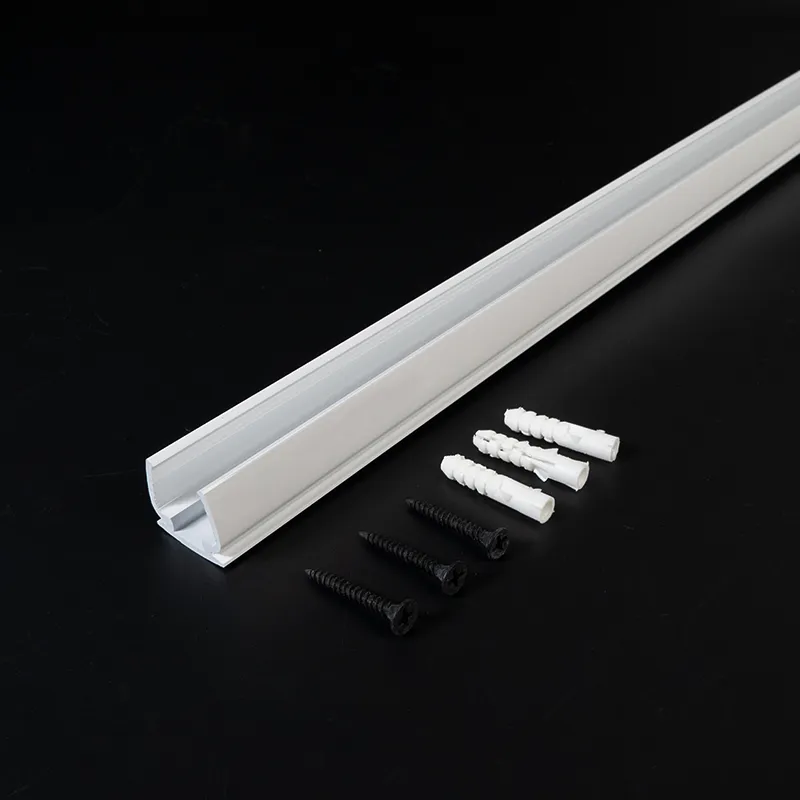

Product model:AS-AWT2013P-950，AWT2013 Flat Plastic Groove
Installation method：Flat mounting
Coating：White
Size：L950*W23.9*H21.5mm
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：AWT2013
Installation method：Flat mounting
Coating：White
Size：L950*W23.9*H21.5mm
Quantity: 1PCS/ set
Recommended dosage:1PCS/M
Applicable product model：AWT2013
AS-FC-0031
AS-FC-0031

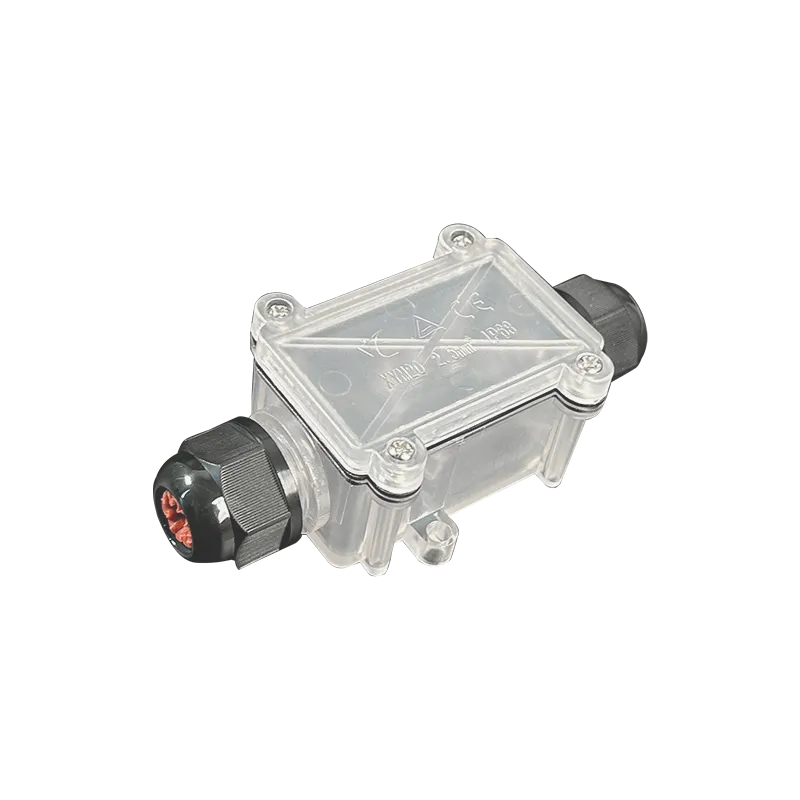

Product model：AS-FC-0031, 2PIN IP68 Terminal Box
Wiring method: screw crimp type
Inlet diameter range: 4~8mm
Size：122*50.5*35.5mm
Applicable product model：AWS2020/T2020
Used together with AS-PG-0004 (PU sealing glue) for IP68
AS-JD-0001
AS-JD-0001
Product model：AS-JD-0001，European standard
Applicable product model：Full range of neon strips
1PCS/ SET
AS-PG-0004
AS-PG-0004

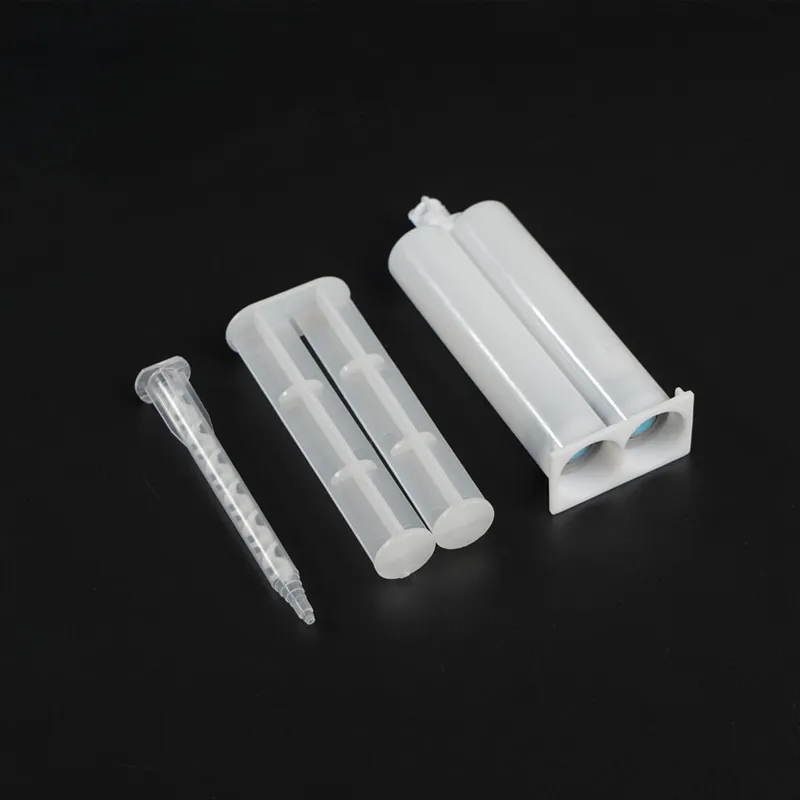

Product model：AS-PG-0004，PU Sealing glue
AB glue
Specification:50ml /staff, matching push needle and mixing tube
Applicable product model：AS-FC-00031
AB glue
Specification:50ml /staff, matching push needle and mixing tube
Applicable product model：AS-FC-00031
